Week 14 challenge

AIM

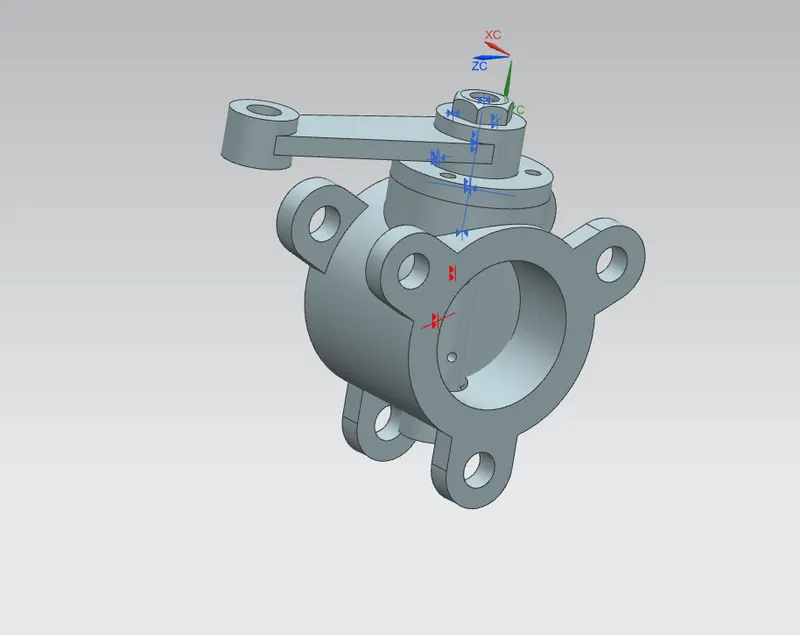

TO ASSEMBLE THE BUTTERFLY VALVE AND PERFORM GD&T

USE OF BUTTERFLY VALVE

Butterfly valves are quarter-turn valves that are popular for on-off or modulating services. They are lightweight, have a small installation footprint, lower cost, quick operation, and are available with large orifice sizes. The “butterfly” is a disk connected to a rod. When the valve opens, the disk rotates to allow fluid to pass through. It closes when the rod rotates the disc by a quarter turn to a position perpendicular to the flow direction. Learn more about how butterfly valves work and when to use them for different applications

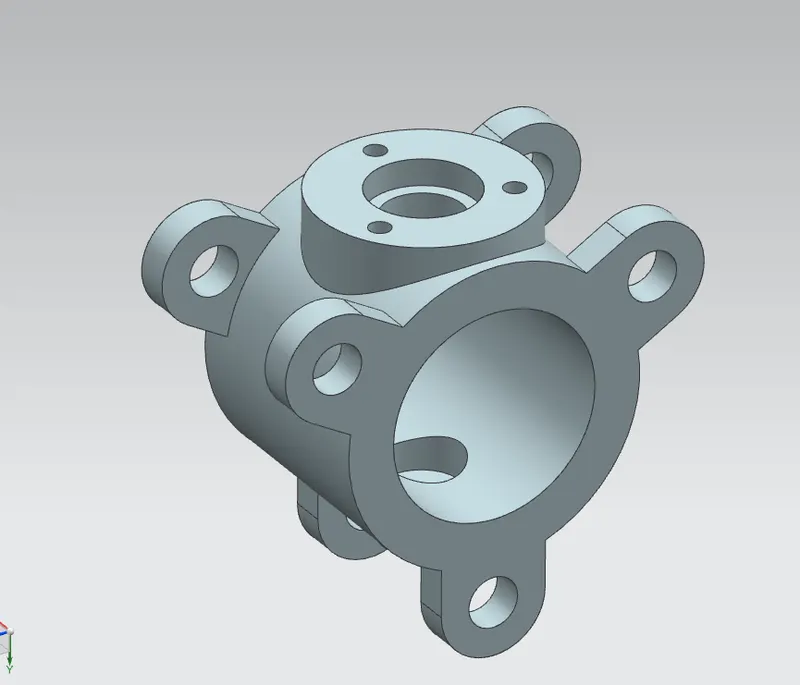

BODY

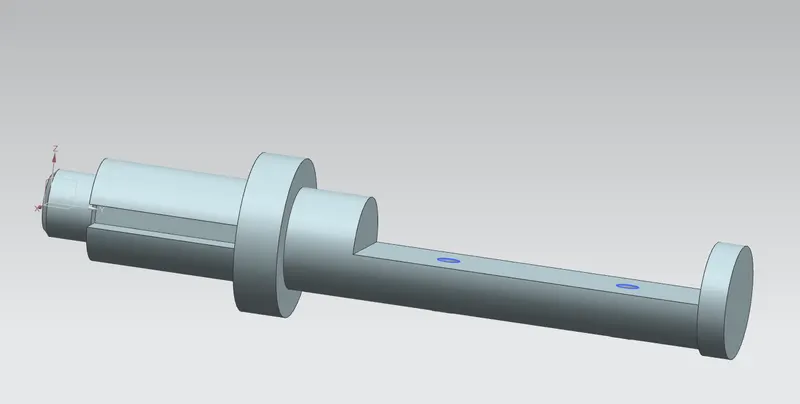

SHAFT

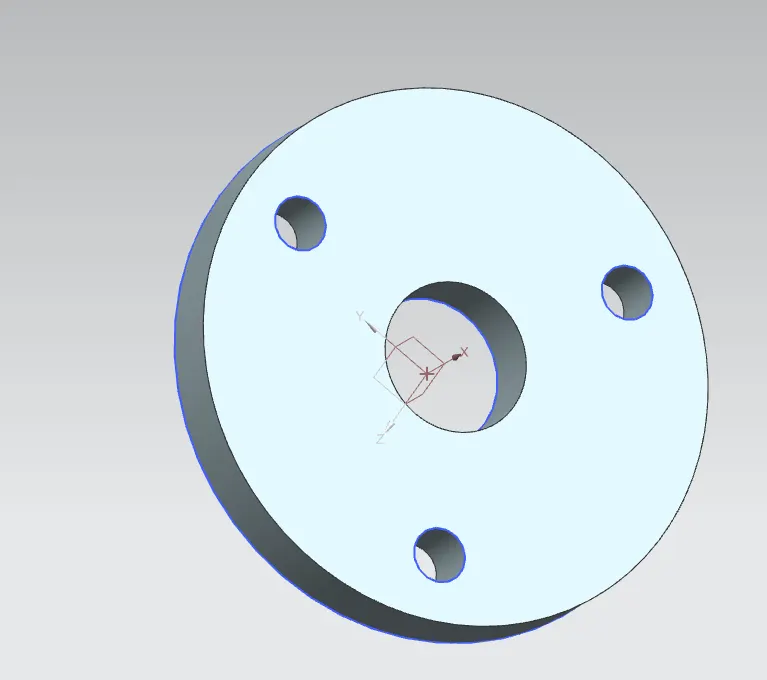

RETAINER

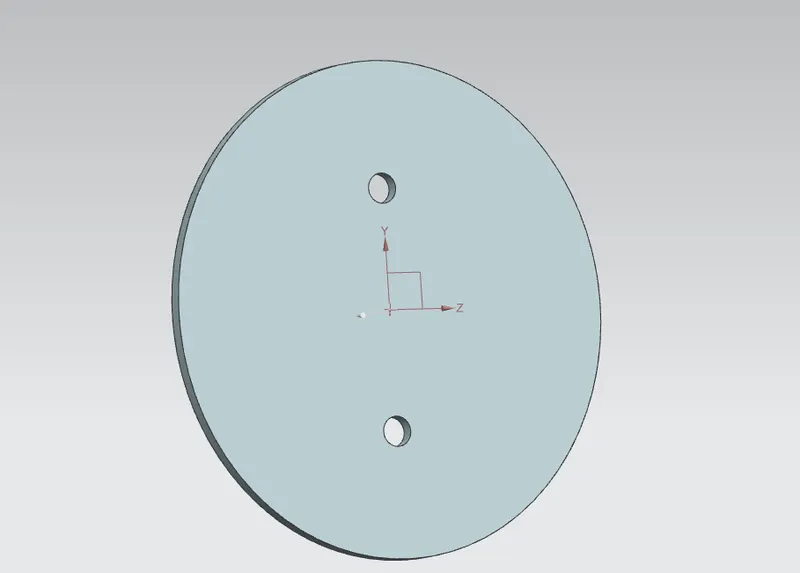

DISK

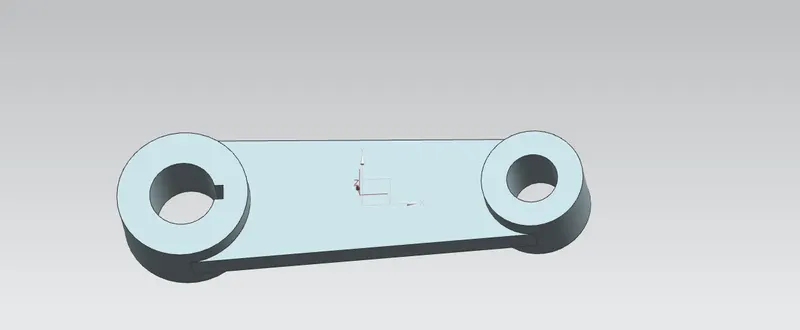

LEAVER

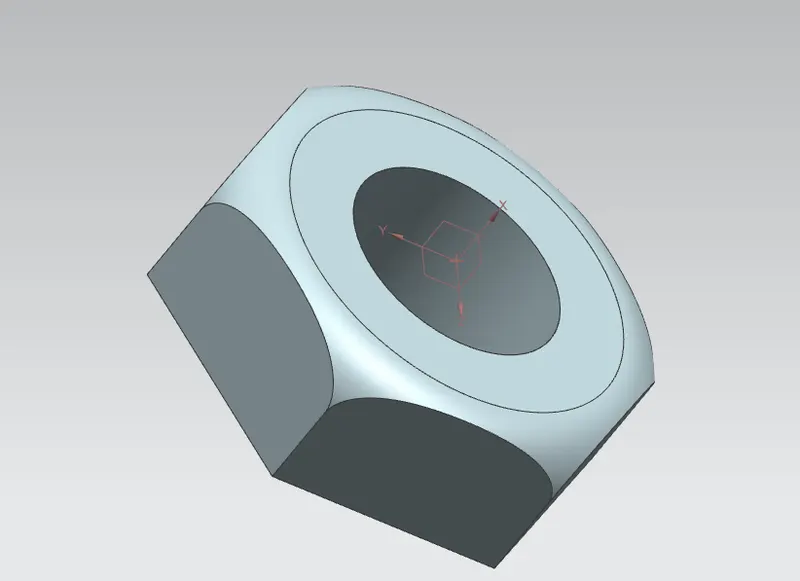

NUT
