Week 12 - Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
Validation studies of Symmetry BC vs Wedge BC in OpenFOAM vs Analytical H.P equation
Aim:
This challenge is a continuation of the week 11 challenge.
In this challenge, you will simulate the same problem as in week 11 but by applying Symmetry Boundary Condition. You will do the simulation for the below-mentioned angles using both symmetry and wedge boundary conditions and validate them with HP equations as you did in the week 11 challenge.
Angles to test:
`10^0`
`25^0`
`45^0`
Hagen Poiseuuiles Equation
In nonideal fluid dynamics, the Hagen–Poiseuille equation, also known as the Hagen–Poiseuille law, Poiseuille law, or Poiseuille equation, is a physical law that gives the pressure drop in an incompressible and Newtonian fluid in laminar flow flowing through a long cylindrical pipe of a constant cross-section.
The assumptions of the equation are that the fluid is incompressible and Newtonian; the flow is laminar through a pipe of the constant circular cross-section that is substantially longer than its diameter, and there is no acceleration of fluid in the pipe. For velocities and pipe diameters above a threshold, actual fluid flow is not laminar but turbulent, leading to larger pressure drops than calculated by the Hagen–Poiseuille equation.
In standard fluid-kinetics notation
`Δ_p = (8⋅μ⋅L⋅Q)/A ^2`
where,
`Delta p` is the pressure difference between the two ends,
L is the length of pipe,
μ is the dynamic viscosity,
Q is the vloumetric flow rate.
R is the pipe radius.
A is the cross-section of the pipe.
The equation does not hold close to the pipe entrance.
This is the diagrammatic representation of flow through the pipe. This is what the fluid profile looks like.
The layer in which the shearing viscous forces are significant is called the boundary layer. This boundary layer is a hypothetical concept. It divides the flow in the pipe into two regions:
- Boundary layer region: The region in which viscous effects and velocity changes are significant.
- The irrotational (core) flow region: The region in which viscous effects and velocity changes are negligible, also known as the inviscid core.
When the fluid just enters the pipe, the thickness of the boundary layer gradually increases from zero moving in the direction of fluid flow, and eventually reaches the pipe center and fills the entire pipe. This region from the entrance of the pipe to the point where the boundary layer covers the entire pipe is termed the hydrodynamic entrance region and the length of the pipe in this region is termed as the hydrodynamic entry length. In this region, the velocity profile develops and thus the flow is called the hydrodynamically developing flow. After this region, the velocity profile is fully developed and continues unchanged. This region is called the hydrodynamically fully developed region.
Formulas:
Average Velocity `V_(a v g) = (Re⋅μ)/(ρ⋅D)` `= 0.09373 ms^(−1)`
Maximum Velocity `V_max = 2 ⋅ V_(a v g)` `= 0.18746 ms^(−1)`
Pressure Difference `Δ P = (8⋅μ⋅L⋅V_(avg))/(r^2)` `= 16.817pa`
Kinematic Pressure Difference `Δ P_k =(ΔP)/ρ` `(ΔP)/ρ=0.016817m.`
Shear Stress `τ = (2⋅μ⋅V_max⋅R)/(r^2)`
Assuming the following:
- The distance the fluid has to travel to become fully developed is given by the Entry Length formula.
- Given Reynolds number is 2100. This implies flow is laminar.
- Hence Entry length formula for Laminar is given by: `L/d = 0.06.Re`
- where L is effective length; d is dia of pipe and Re is Reynolds number.
- Assuming the dia of the pipe as 10mm; substituting the values, we get L = 1.2m;
Steps to follow
- First, the geometry is created in the block mesh Dict file, this is done by creating the file through the Matlab code.
- The mesh is generated according to requirement.
- The velocity and pressure bc are applied
- The controlDict file is edited for Simulation run time and timestep;
- After the geometry is input, the simulation can be started by calling the 'icoFoam' command in the terminal.
- 'paraFoam' command helps to open paraView

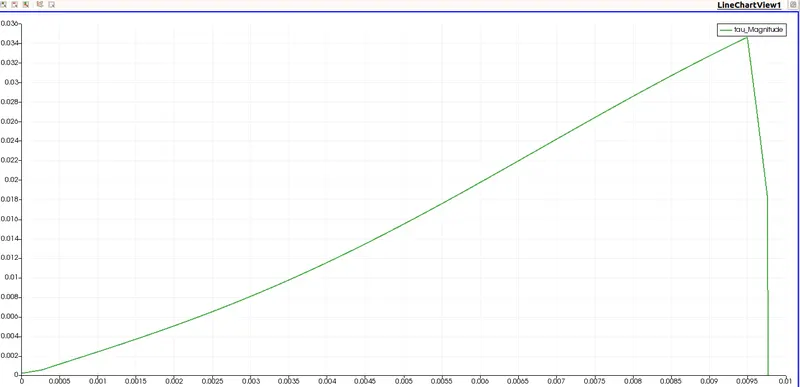

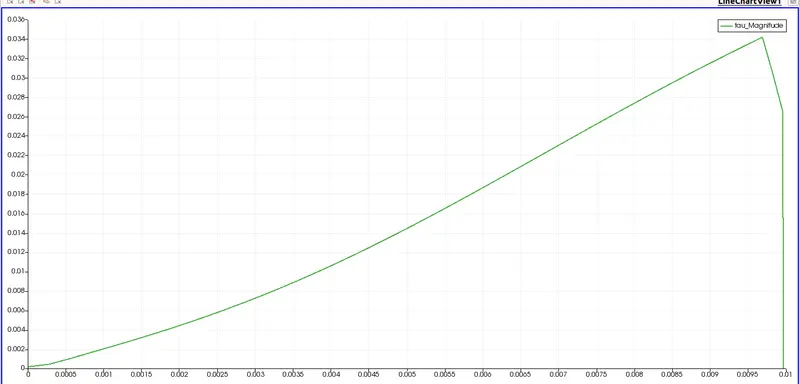

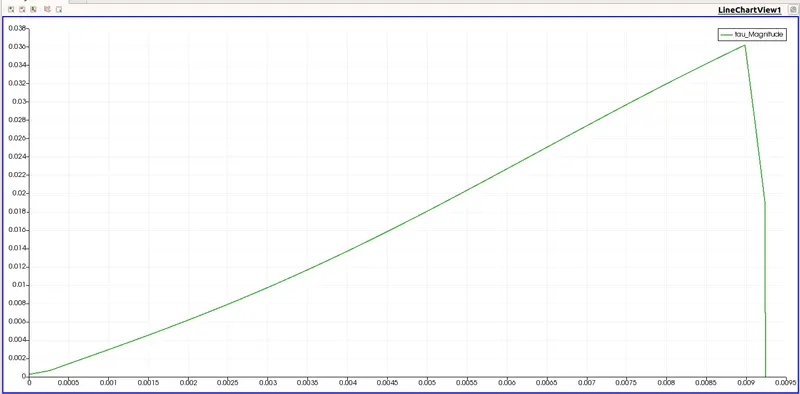

- The shear stress diagram is obtained by post-processing the velocity results obtained from OpenFOAM.
Matlab code
%creating blockMeshdict file
clear all
close all
clc
% The Reynolds number
Re = 2100
% The Diameter of pipe
D = 0.004
% The Entry length of pipe
L =0.06*Re*D
% The total length of pipe
L_p = L+0.7
% Radius of pipe
r = D/2
% Angle of wedge (less than 5)
theta = 4
% Dynamic viscosity
mu = 0.89e-3
% Density
rho = 997
% Hagen poiseuille flow equations
v_avg = (Re*mu)/(rho*D)
v_max = 2*(v_avg)
del_p = (8*mu*L_p*v_avg)/(r^2)
kinematic_p = del_p/rho

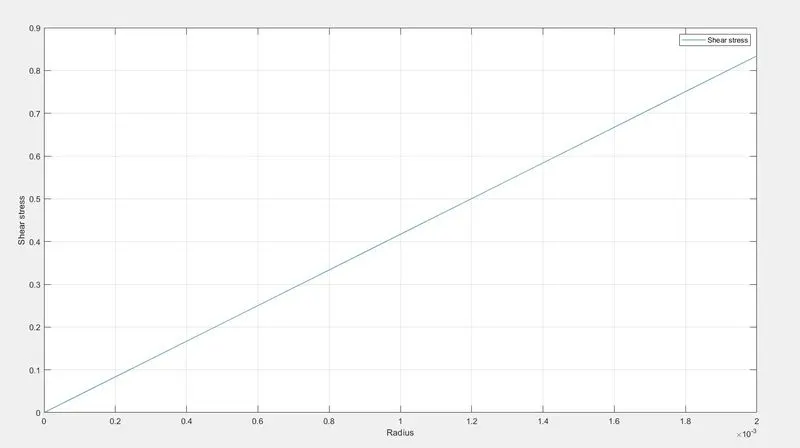

% calculating shear stress
R = linspace(0,(D/2),1000)
for i = 1:length(R)
tau(i) = 2*mu*v_max*(abs(R(i)))/r^2
end
plot(R,tau)
xlabel("Radius")
ylabel("Shear stress")
grid on
legend ("Shear stress")
header1='/*----------------------------------*- C++ -*------------------------------------*'
header2=' ========= | '
header3=' / F ield | OpenFOAM: The Open Source CFD Toolbox '
header4=' / O peration | Website: https://openfoam.org '
header5=' / A nd | Version: 10 '
header6=' / M anipulation | '
header7='*----------------------------------------------------------------------------------*/'
f1 = fopen('blockMeshDict','w')
fprintf(f1, '%sn', header1)
fprintf(f1, '%sn', header2)
fprintf(f1, '%sn', header3)
fprintf(f1, '%sn', header4)
fprintf(f1, '%sn', header5)
fprintf(f1, '%sn', header6)
fprintf(f1, '%sn', header7)
fprintf(f1, 'FoamFilen{n')
fprintf(f1, '%12s t 2.0;n','version')
fprintf(f1, '%12s t ascii;n','format')
fprintf(f1, '%12s t dictionary;n','class')
fprintf(f1, '%12s t blockMeshDict;n','object')
fprintf(f1, '}n')
header8='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //'
fprintf(f1, '%snn',header8)
fprintf(f1, 'convertToMeters 1;nn')
fprintf(f1, 'verticesn')
fprintf(f1, '(n')
fprintf(f1, 't (%d %d %d)n',0,0,0)
fprintf(f1, 't (%d %d %d)n',0,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',0,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',L_p,0,0)
fprintf(f1, 't (%d %d %d)n',L_p,r*cosd(theta/2),r*sind(theta/2))
fprintf(f1, 't (%d %d %d)n',L_p,r*cosd(theta/2),-r*sind(theta/2))
fprintf(f1, ');nn')
fprintf(f1, 'blocksn')
fprintf(f1, '(n')
fprintf(f1, 't hex (0 3 5 2 0 3 4 1) (%d %d %d)',300,30,1)
fprintf(f1, ' SimpleGrading (1 0.1 1)nn')
fprintf(f1, ');nn')
fprintf(f1, 'edgesn')
fprintf(f1, '(n')
fprintf(f1, 't arc %d %d (%d %d %d)n',1,2,0,r,0)
fprintf(f1, 't arc %d %d (%d %d %d)n',4,5,L_p,r,0)
fprintf(f1, ');nn')
fprintf(f1, 'boundaryn')
fprintf(f1, '(n')
fprintf(f1, 't inlet n')
fprintf(f1, 't {n')
fprintf(f1, 'tt type patch;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 1 2 0)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't outletn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type patch;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (3 5 4 3)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't topn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wall;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (1 4 5 2)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't frontn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wedge;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 3 4 1)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't backn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type wedge;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 2 5 3)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, 't axisn')
fprintf(f1, 't {n')
fprintf(f1, 'tt type empty;n')
fprintf(f1, 'tt facesn')
fprintf(f1, 'tt (n')
fprintf(f1, 'ttt (0 3 3 0)n')
fprintf(f1, 'tt );n')
fprintf(f1, 't }n')
fprintf(f1, '); nn')
fprintf(f1, 'mergePatchPairsn')
fprintf(f1, '(n')
fprintf(f1, ');n')
header9='// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //'
fprintf(f1, '%sn',header9)
fclose(f1)
The blockMeshDict file for a wedge with symmetrical boundary conditions is as follows:
BlockMeshDict file For `10^0`
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.009962 -0.000872)
(0.000000 0.009962 0.000872)
(2.5200000 0.000000 0.000000)
(2.520000 0.009962 -0.000872)
(2.520000 0.009962 0.000872)
);
blocks
(
hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.5 1 1)
);
edges
(
arc 1 2 (0.000000 0.010000 0.000000)
arc 4 5 (2.520000 0.010000 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 5 2)
);
}
back
{
type symmetry;
faces
(
(0 1 4 3)
);
}
pipe
{
type wall;
faces
(
(1 4 5 2)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// **************************************************************** //BlockMeshDict file For `25^0`
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.009763 -0.002164)
(0.000000 0.009763 0.002164)
(2.5200000 0.000000 0.000000)
(2.520000 0.009763 -0.002164)
(2.520000 0.009763 0.002164)
);
blocks
(
hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.5 1 1)
);
edges
(
arc 1 2 (0.000000 0.010000 0.000000)
arc 4 5 (2.520000 0.010000 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 5 2)
);
}
back
{
type symmetry;
faces
(
(0 1 4 3)
);
}
pipe
{
type wall;
faces
(
(1 4 5 2)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// **************************************************************** //BlockMeshDict file For `45^0`
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0.000000 0.000000 0.000000)
(0.000000 0.009239 -0.003827)
(0.000000 0.009239 0.003827)
(2.5200000 0.000000 0.000000)
(2.520000 0.009239 -0.003827)
(2.520000 0.009239 0.003827)
);
blocks
(
hex (0 1 2 0 3 4 5 3) (50 1 200) simpleGrading (0.5 1 1)
);
edges
(
arc 1 2 (0.000000 0.010000 0.000000)
arc 4 5 (2.520000 0.010000 0.000000)
);
boundary
(
inlet
{
type patch;
faces
(
(0 1 2 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 5 2)
);
}
back
{
type symmetry;
faces
(
(0 1 4 3)
);
}
pipe
{
type wall;
faces
(
(1 4 5 2)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// **************************************************************** //The data relating to simulation time duration etc is updated in controlDict file as shown below:
controlDict file
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 10;
deltaT 0.001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //The boundary conditions can be given as follows. The velocity boundary condition was put in the problem discussed below.
velocity file
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.0937312 0 0);
}
outlet
{
type zeroGradient;
}
pipe
{
type noSlip;
}
axis
{
type empty;
}
front
{
type symmetry;
}
back
{
type symmetry;
}
}
//**********************************//The boundary conditions can be given as follows. The pressure drop boundary condition was put in the problem discussed below.
pressure file
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
axis
{
type empty;
}
pipe
{
type zeroGradient;
}
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 0.0168682;
}
front
{
type wedge;
}
back
{
type wedge;
}
}
// ************************************************************************* //The data related to kinematic viscosity is updated in physicalProperties file.
/*--------------------------------*- C++ -*----------------------------------*
========= |
/ F ield | OpenFOAM: The Open Source CFD Toolbox
/ O peration | Website: https://openfoam.org
/ A nd | Version: 10
/ M anipulation |
*---------------------------------------------------------------------------*/
FoamFile
{
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 8.927e-07;
// ************************************************************************* //After checking the mesh we get the following confirmation At this stage, we can check whether our mesh is as per requirement or not by using ParaView and typing the paraFoam command.
After deploying mesh, now we are ready to run the simulation. The simulation that we selected was icoFoam. Hence, just type ‘icoFoam’ and the simulation will start.
Output :
Results for the angle of 10 degrees of the wedge with symmetrical boundary conditions:

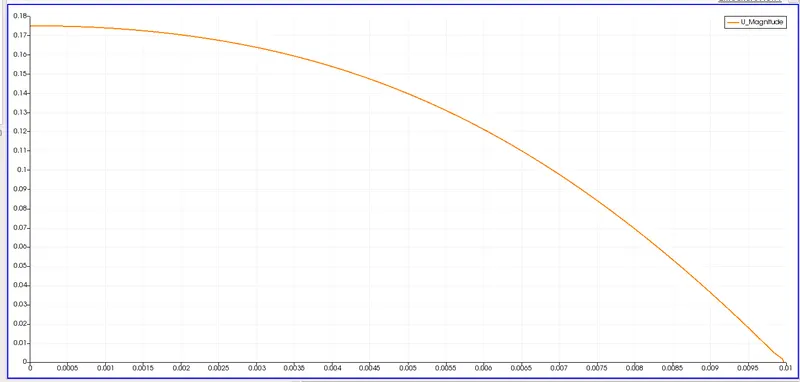

The velocity plots

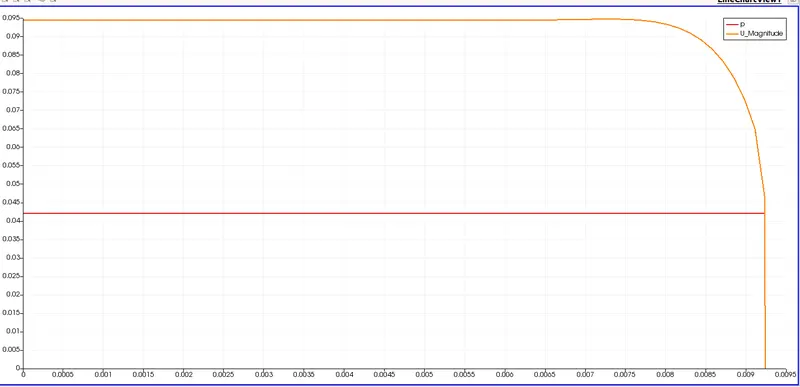

At a distance of 0.001 from the inlet
At a distance of 0.5 from the inlet
At a distance of 1.15 from the inlet
At the outlet

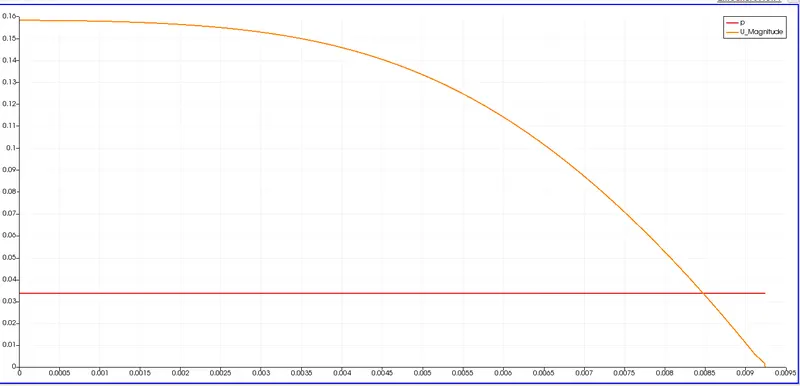

Shear stress in the almost fully developed regions is as follows:
Results for an angle of 25 degrees of a wedge with symmetrical boundary conditions:
The velocity plots

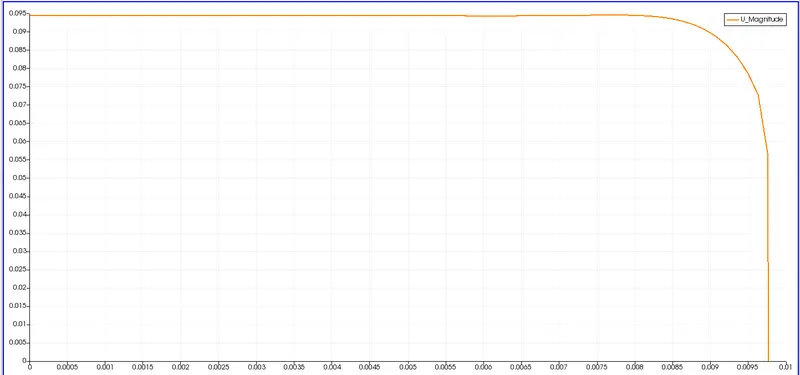

At a distance of 0.001 from the inlet

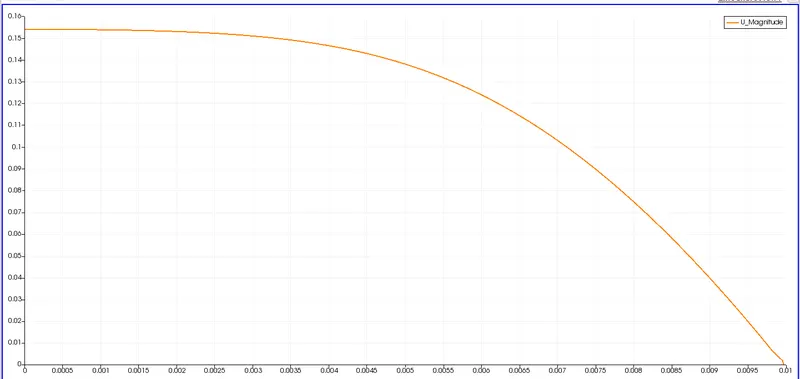

At a distance of 1.15 from the inlet
At the outlet

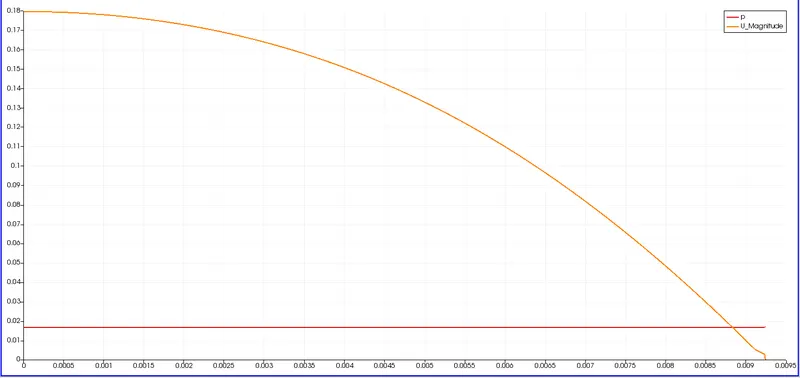

Shear stress in the almost fully developed regions is as follows:
Results for an angle of 45 degrees of a wedge with symmetrical boundary conditions:
The velocity plots

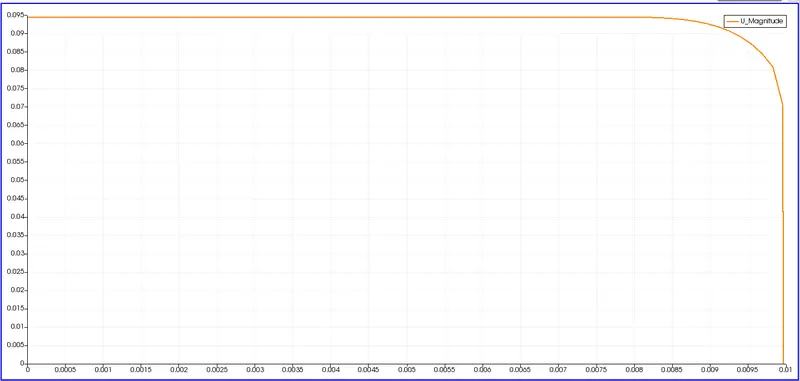

At a distance of 0.001 from the inlet
At a distance of 0.5 from the inlet:
At a distance of 1.15 from the inlet

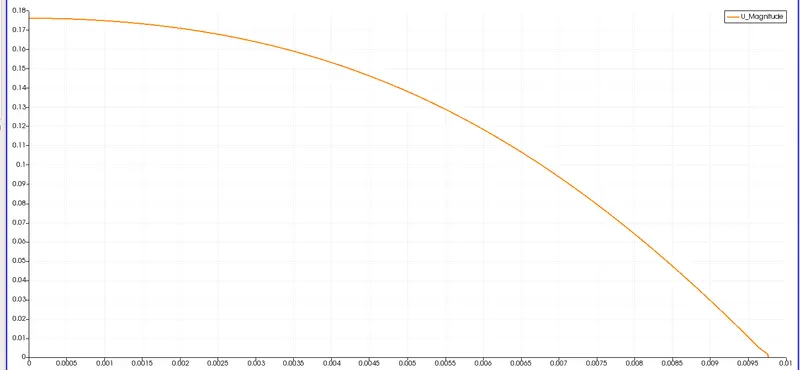

At the outlet

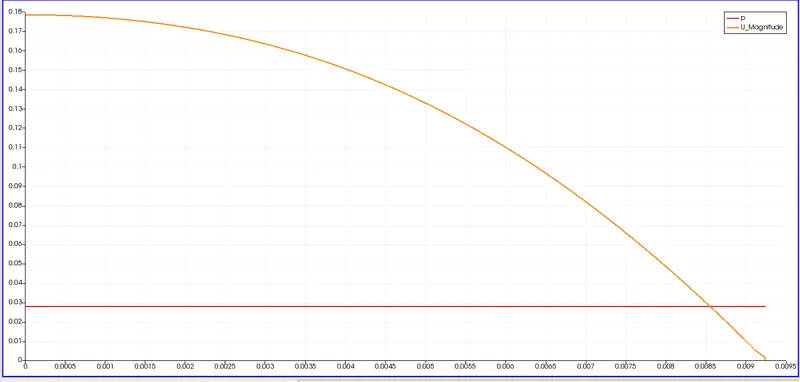

Shear stress in the almost fully developed regions is as follows:
Results
| Wedge angle in degrees | Max velocity(by equation) | Max velocity by simulation | Max shear stress |
| 10(Symmetry BC) | 0.1875 | 0.175861 | 0.034 |
| 25(Symmetry BC) | 0.1875 | 0.1770109 | 0.03451 |
| 45(Symmetry BC) | 0.1875 | 0.1796 | 0.03609 |
conclusions:
- Here we could see that as the wedge angle increases the velocity becomes more accurate to the true value.
- Also, we observe that the symmetric BC is more accurate in terms of velocity where it is very close to the true value. It means its accuracy is high.
- As observed we could say that the symmetric BC because of its fine meshing takes more time for computing or running the simulation.
- Also, we could observe that at a distance of 1.15 and 2.52 the plots of velocity appears to be the same which means a distance of 1.15 is closer to that of the fully developed region.
- Due to the no-slip boundary conditions, the velocity is dipped to zero at the edge near the pipe walls for all cases.
- Also, maximum shear stress is found in the walls of the pipe itself. and straight away falls to zero at the center.
- As the wedge angle increases the courant number increases, this could be explained by an increase in element size of the mesh, now as the number of elements remains the same in the analysis . The courant number is directly proportional to the element size
