Week 12 - Symmetry vs Wedge vs HP equation
In the previous part we looked into the simulation results for a laminar ,incompressible flow through a pipe in OpenFoam .now in this section ,we attempt the same with symmetery boundary conditions
BlockMeshDict for 10deg
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 1.99239e-03 1.74311e-04)
(0 1.99239e-03 -1.74311e-04)
(1.204000e+00 0 0)
(1.204000e+00 1.99239e-03 1.74311e-04)
(1.204000e+00 1.99239e-03 -1.74311e-04)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (300 30 1)SimpleGrading (1 0.1 1)
);
edges
(
arc 1 2 (0 2.000000e-03 0)
arc 4 5 (1.204000e+00 2.000000e-03 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 2 1 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //
Pressure
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volScalarField;
object p;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 2 -2 0 0 0 0];
internalField uniform 0;
boundaryField
{
inlet
{
type zeroGradient;
}
outlet
{
type fixedValue;
value uniform 1.0073;
}
axis
{
type empty;
}
top
{
type zeroGradient;
}
front
{
type symmetry;
}
back
{
type symmetry;
}
}
// ************************************************************************* //
Velocity
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class volVectorField;
object U;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
dimensions [0 1 -1 0 0 0 0];
internalField uniform (0.4686 0 0);
boundaryField
{
inlet
{
type fixedValue;
value uniform (0.4686 0 0);
}
outlet
{
type zeroGradient;
}
axis
{
type empty;
}
top
{
type fixedValue;
value uniform (0 0 0) ;
}
front
{
type symmetry;
}
back
{
type symmetry;
}
}
// ************************************************************************* //
ControlDict
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "system";
object controlDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
application icoFoam;
startFrom startTime;
startTime 0;
stopAt endTime;
endTime 1;
deltaT 0.001;
writeControl timeStep;
writeInterval 20;
purgeWrite 0;
writeFormat ascii;
writePrecision 6;
writeCompression off;
timeFormat general;
timePrecision 6;
runTimeModifiable true;
// ************************************************************************* //
TransportProperties
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
location "constant";
object transportProperties;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
nu [0 2 -1 0 0 0 0] 0.892e-6;
// ************************************************************************* //
Theta=25deg
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 1.95259e-03 4.32879e-04)
(0 1.95259e-03 -4.32879e-04)
(1.204000e+00 0 0)
(1.204000e+00 1.95259e-03 4.32879e-04)
(1.204000e+00 1.95259e-03 -4.32879e-04)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (300 30 1)SimpleGrading (1 0.1 1)
);
edges
(
arc 1 2 (0 2.000000e-03 0)
arc 4 5 (1.204000e+00 2.000000e-03 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 2 1 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //
Theta=45deg
/*--------------------------------*- C++ -*----------------------------------*\
========= |
\\ / F ield | OpenFOAM: The Open Source CFD Toolbox
\\ / O peration | Website: https://openfoam.org
\\ / A nd | Version: 8
\\/ M anipulation |
\*---------------------------------------------------------------------------*/
FoamFile
{
version 2.0;
format ascii;
class dictionary;
object blockMeshDict;
}
// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
convertToMeters 1;
vertices
(
(0 0 0)
(0 1.847759e-03 7.653668e-04)
(0 1.847759e-03 -7.653668e-04)
(1.204000e+00 0 0)
(1.204000e+00 1.847759e-03 7.653668e-04)
(1.204000e+00 1.847759e-03 -7.653668e-04)
);
blocks
(
hex (0 3 5 2 0 3 4 1) (300 30 1)SimpleGrading (1 0.1 1)
);
edges
(
arc 1 2 (0 2.000000e-03 0)
arc 4 5 (1.204000e+00 2.000000e-03 0)
);
boundary
(
inlet
{
type patch;
faces
(
(0 2 1 0)
);
}
outlet
{
type patch;
faces
(
(3 4 5 3)
);
}
top
{
type wall;
faces
(
(1 2 5 4)
);
}
back
{
type symmetry;
faces
(
(0 2 5 3)
);
}
front
{
type symmetry;
faces
(
(0 3 4 1)
);
}
axis
{
type empty;
faces
(
(0 3 3 0)
);
}
);
mergePatchPairs
(
);
// ************************************************************************* //

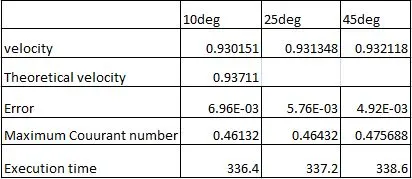

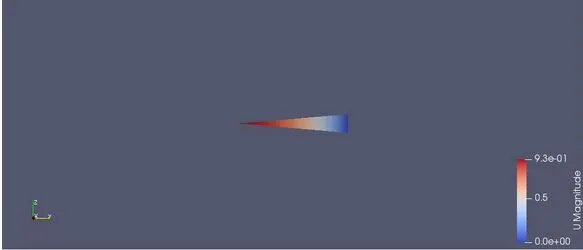

Results
Remarks
1.symmetry bonndary conditions are more accurate than wedge conditions
2.Execution time is greater for symmetry than boundary conditions than wedge conditions
3.Courant number increases with increase in the angle
