Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Report Week 12

Aim:Mesh the Rear Wheel Holder

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

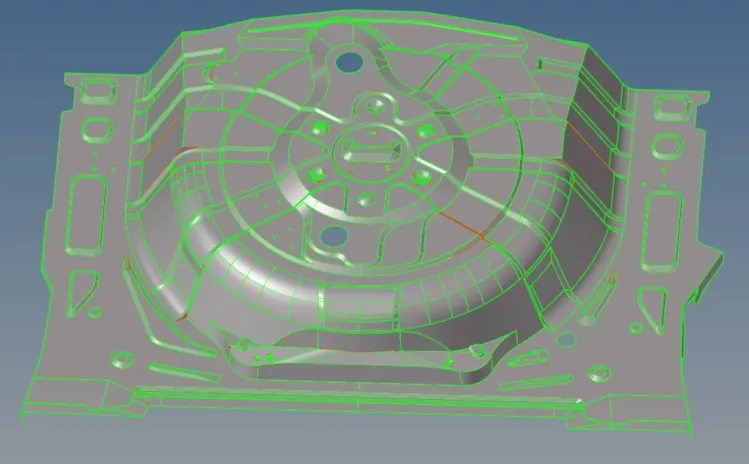

import geometry

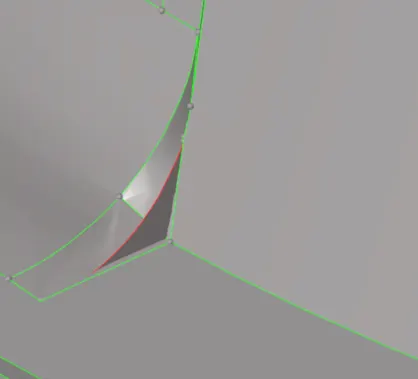

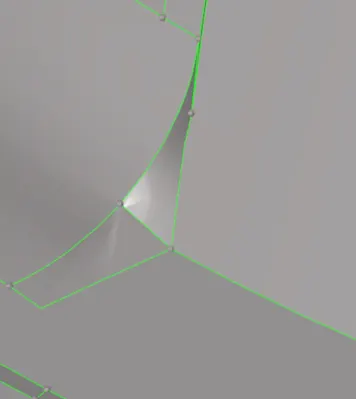

geometry cleanup

for example:

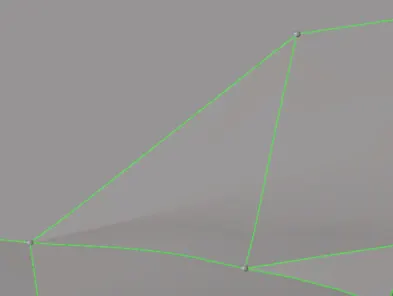

delete surface and create new surface

for example:

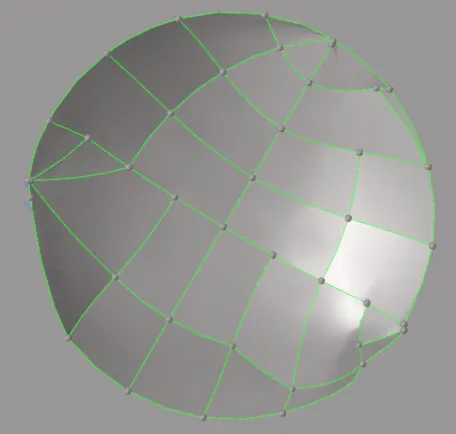

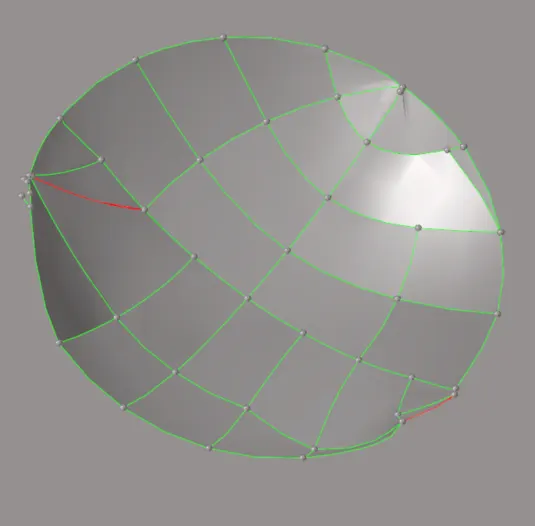

delete surface

for example:

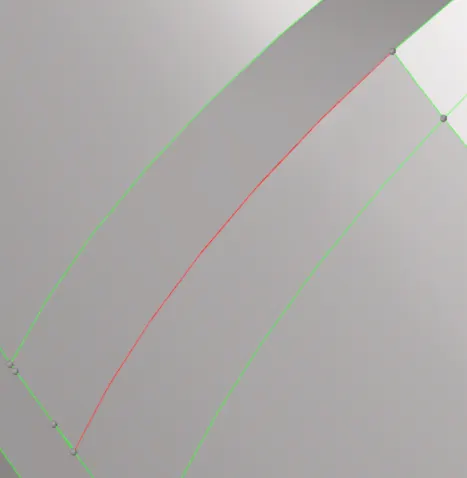

toggle lines

for example:

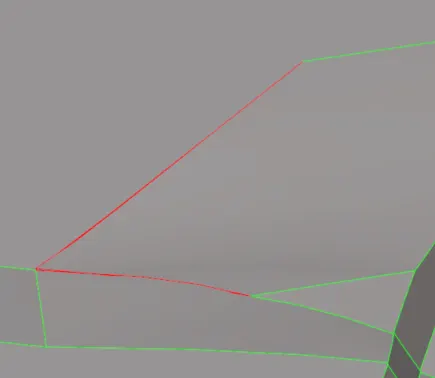

toggle lines

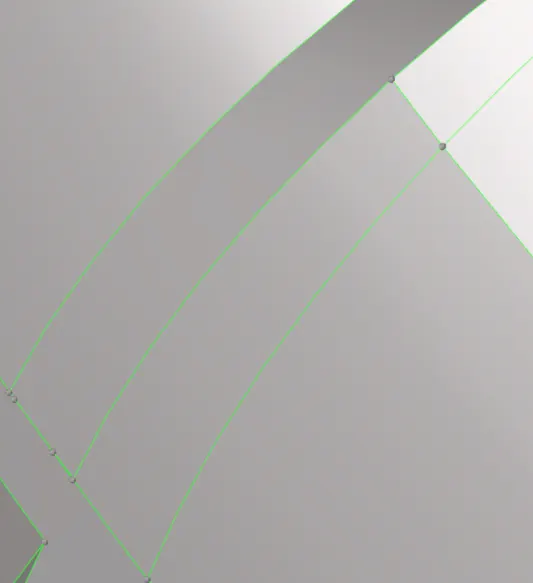

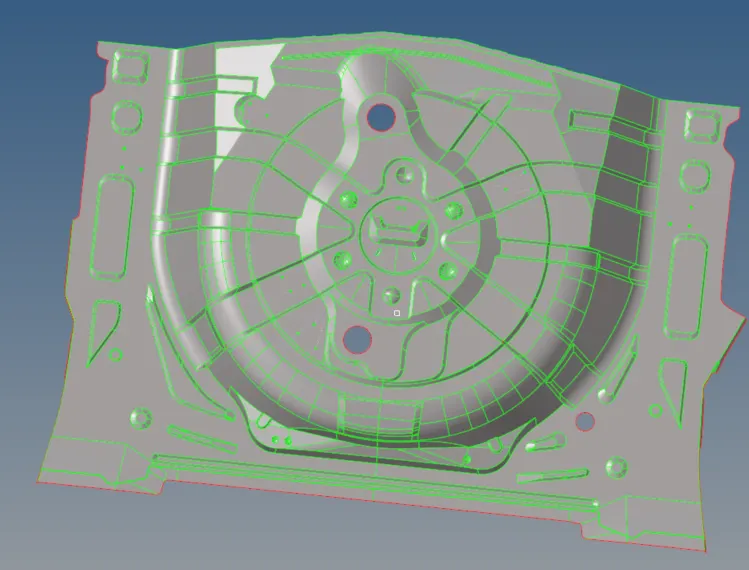

final geometry

measure the thickness,extracr mid surface

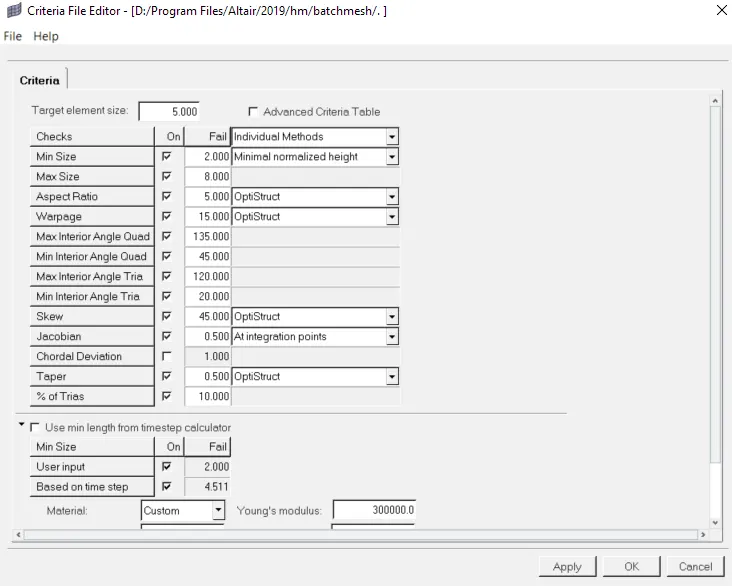

set up quality criteria:

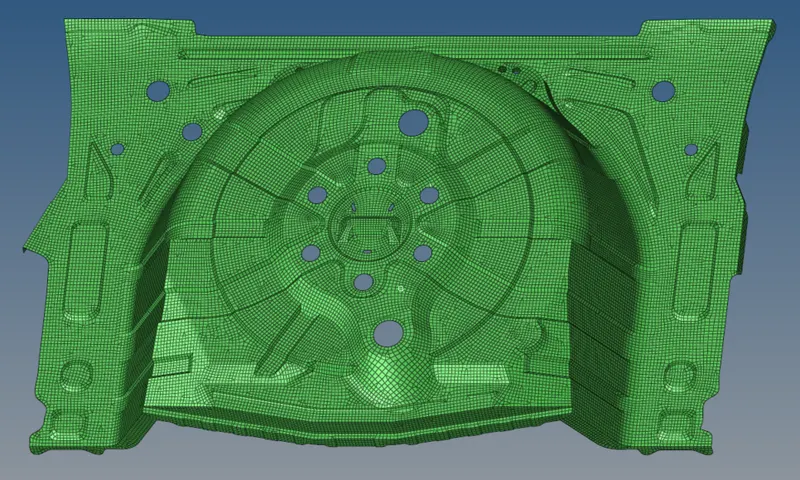

2d mesh:

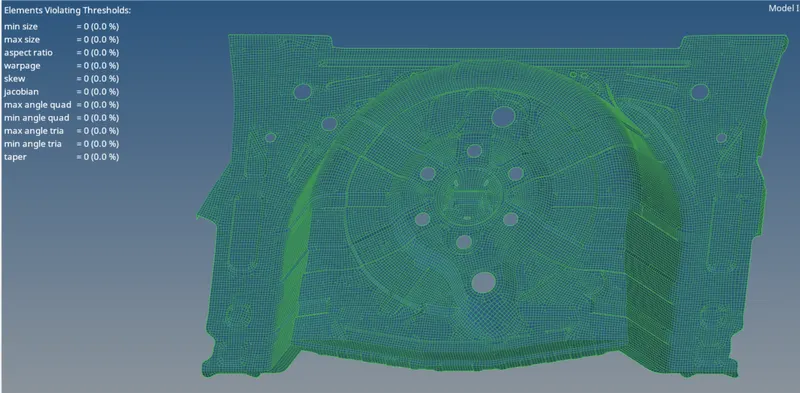

check quality: there is no failing element

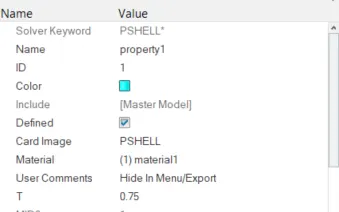

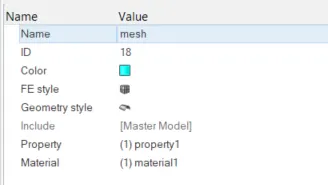

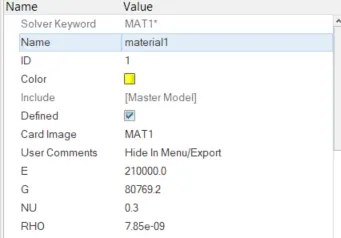

Assign property and material

Conclusion:

Performed geometry cleanup, extracted mid surface. Finished 2d mesh and all elements passed quality criteria.
