Week 12:Project 2-Meshing of Rear Wheel Holder challenge
Aim : To Mesh Given Rear Wheel Holder.
Objective :
- mesh using given criteria.
- Target Element Length = 5 Units

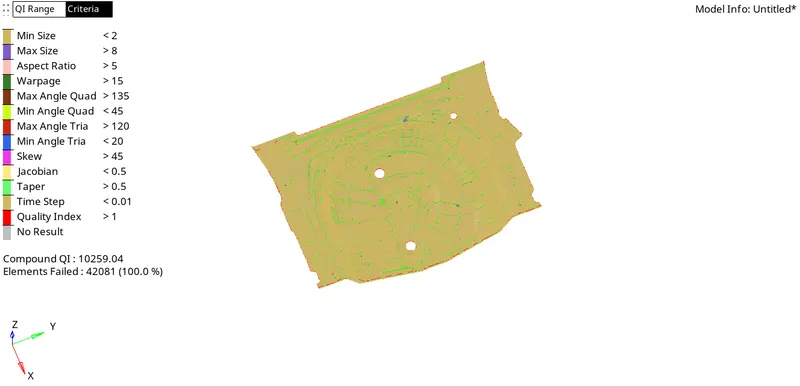

| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 8 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
Procedure :
- Import the given component.
- Using command
- Command : Open +Import geometry + IGES file + Import

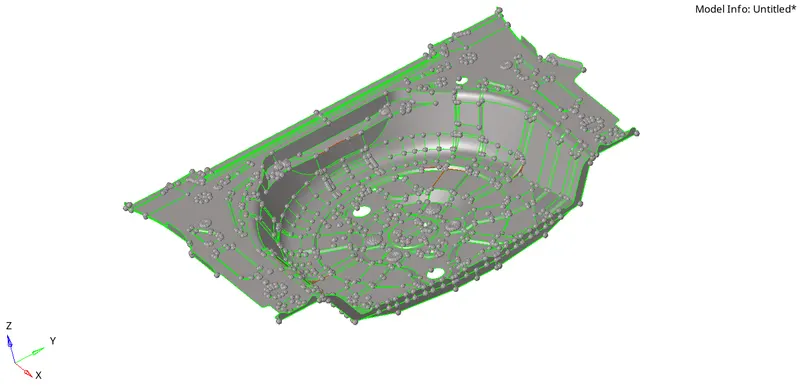

- Check component properly.

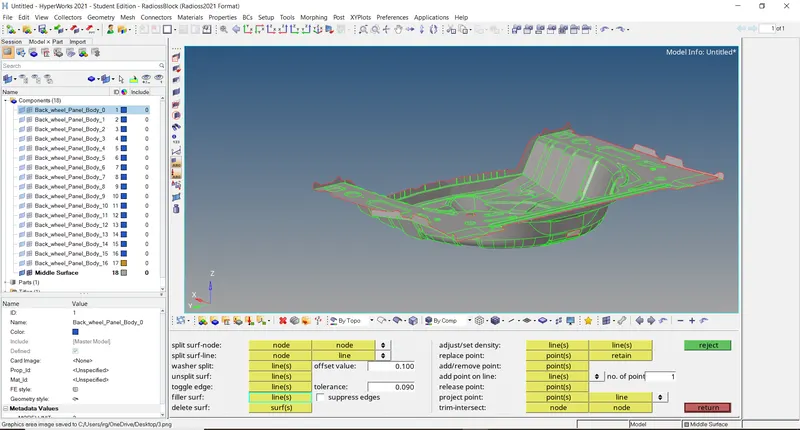

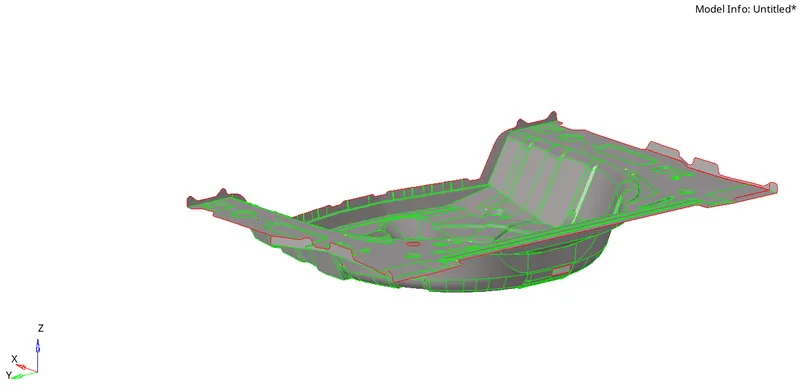

- Create midsurface using below command
- Command : Geom+Midsurface+Surf+create.

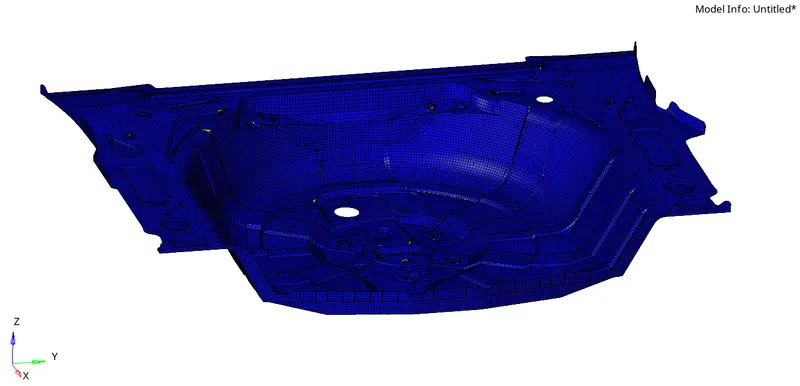

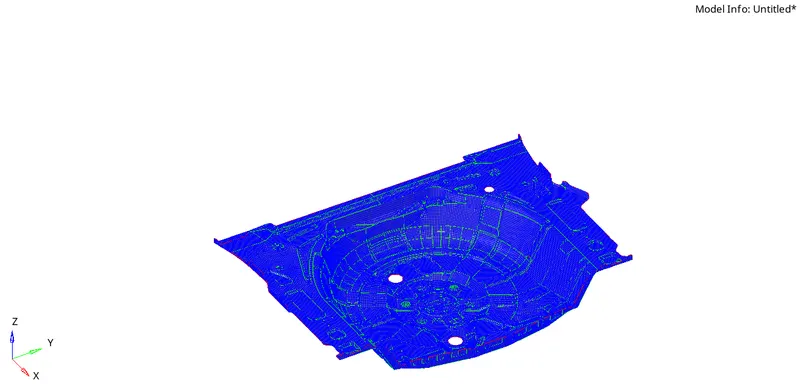

- After creating midsurface then mesh it.
- Command: 2D + automesh +surf + mesh
- After meshing give thickenss
- create property define thickness.
