Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Aim: To take the mid surface and mesh the model as per the given criteria.

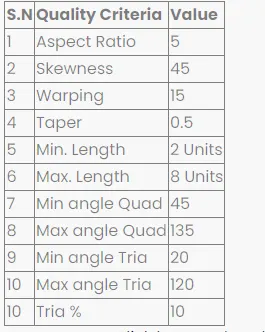

Quality Criteria :

Procedure :

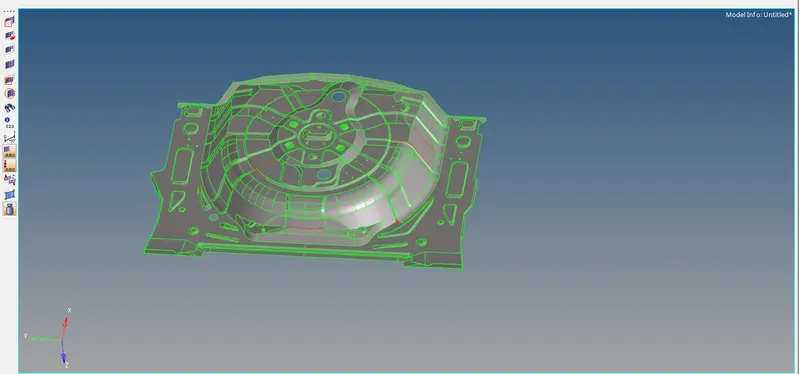

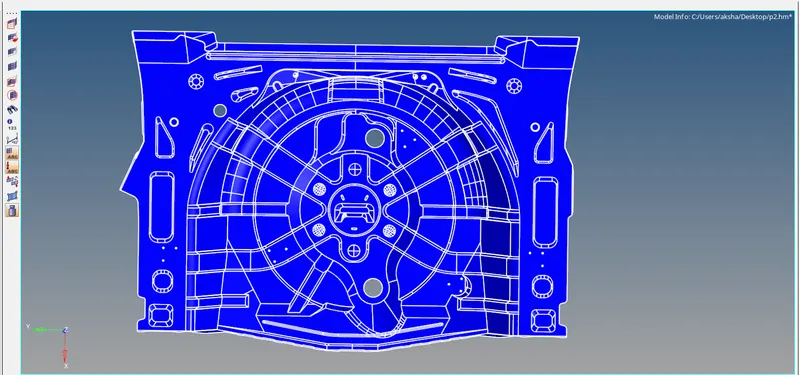

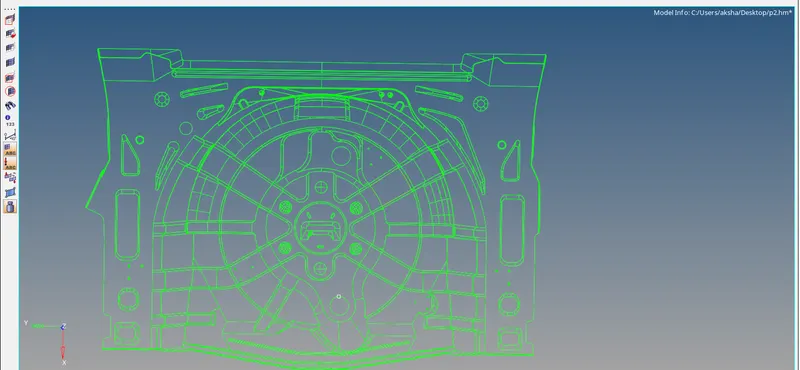

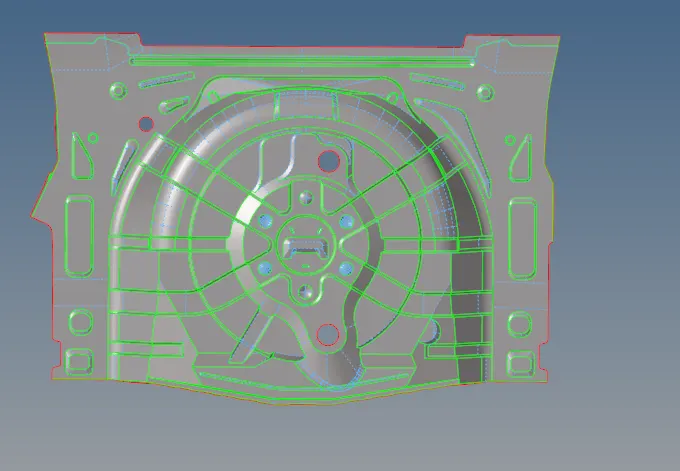

Open the model in hypermesh as shown below :

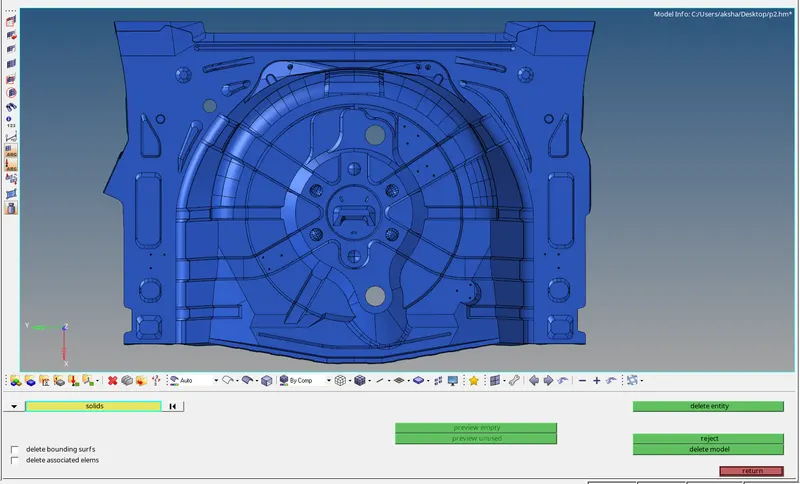

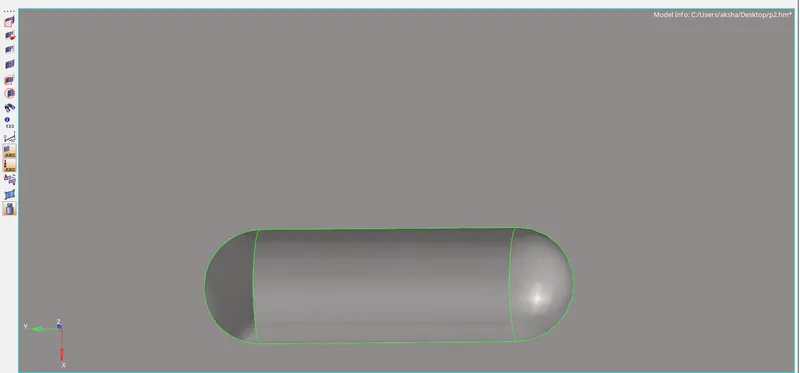

Delete all solids present in the model :

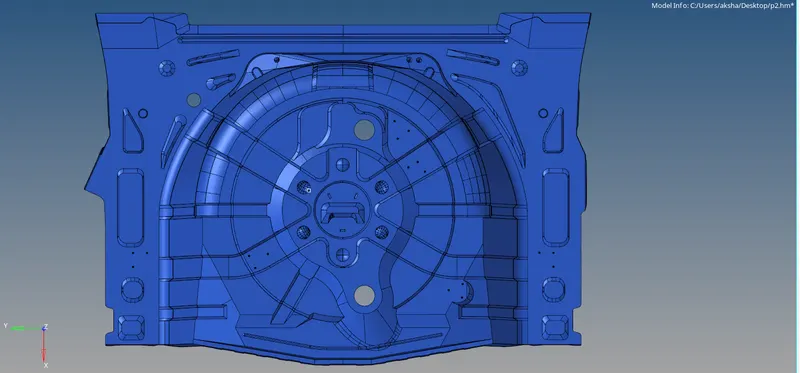

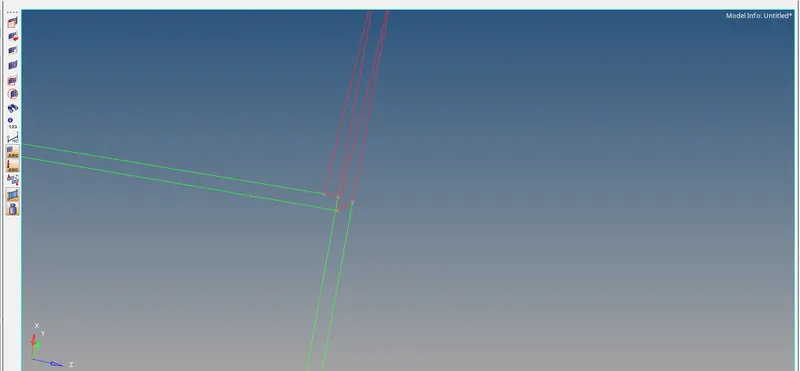

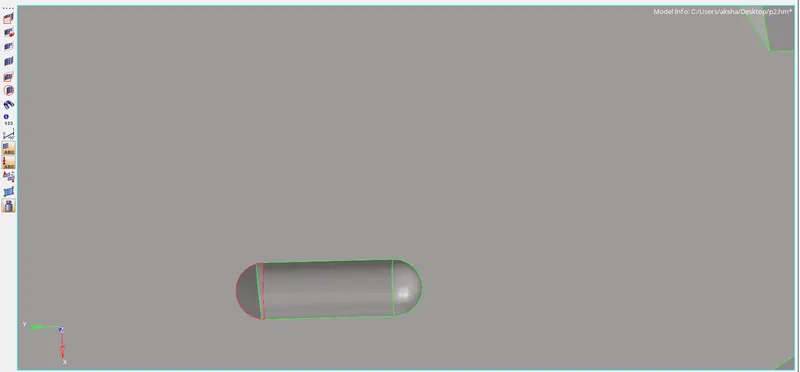

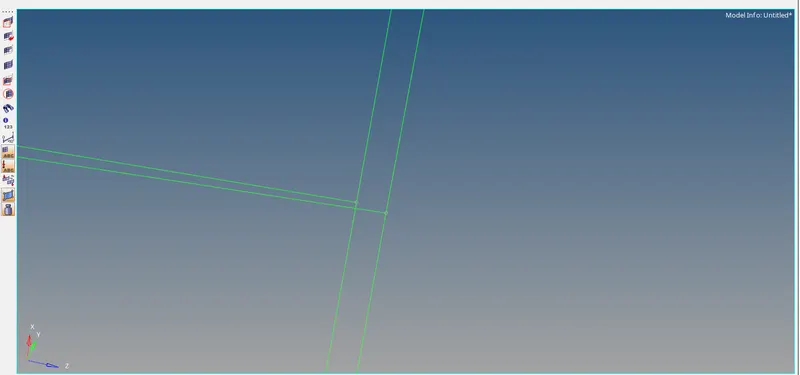

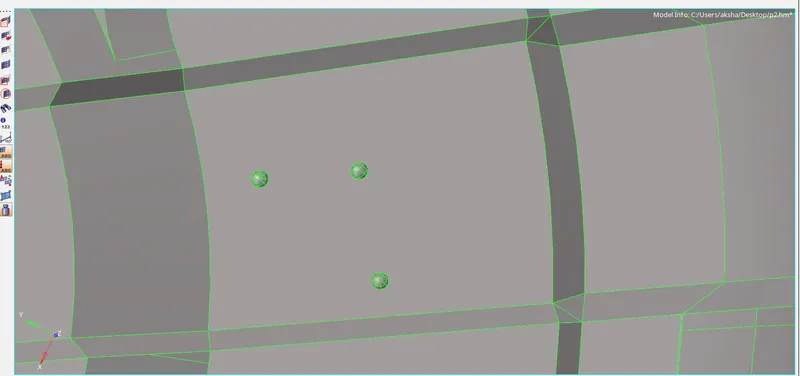

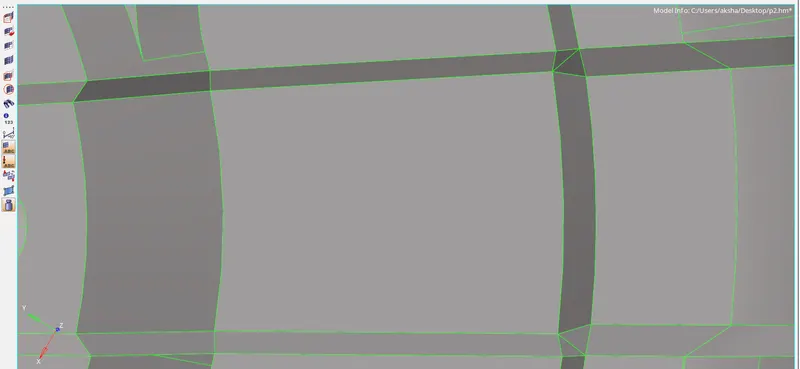

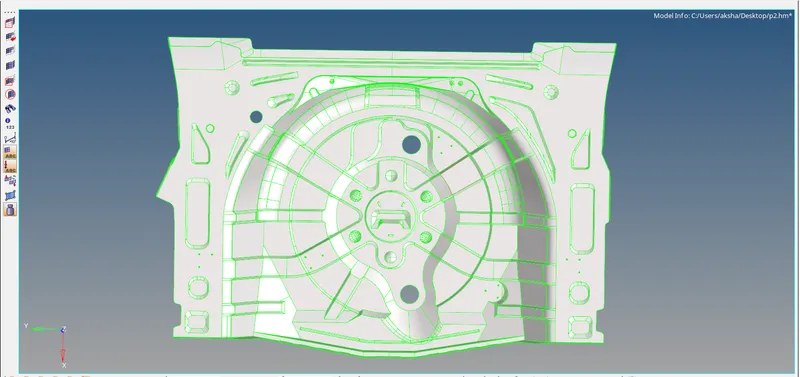

Fix geometrical issues present in the model as shown below :

Midsurfacing :

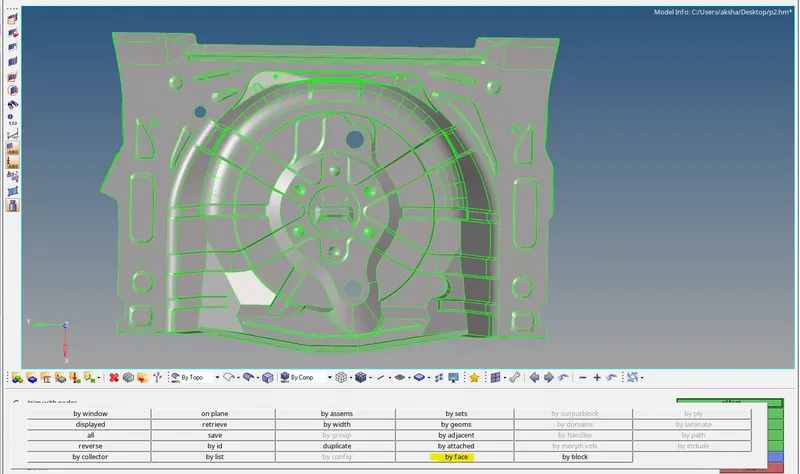

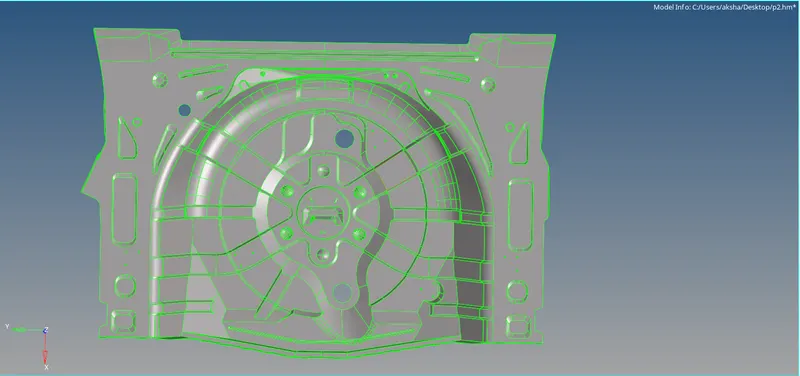

Since it is a sheet metal component it has a uniform thickness, we take the mid surface by offset method as shown :

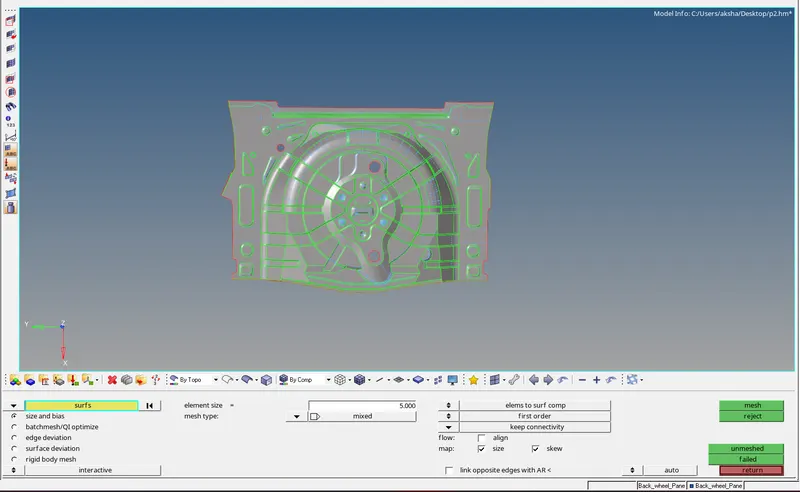

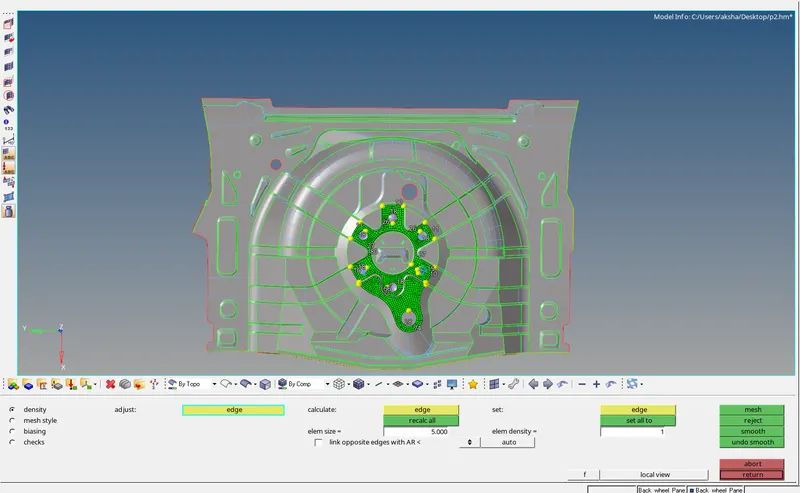

After taking the mid surface we mesh the geometry as shown :

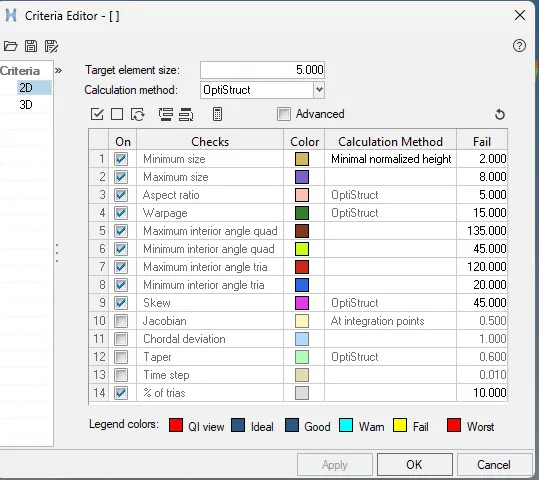

Quality Criteria are entered as shown below :

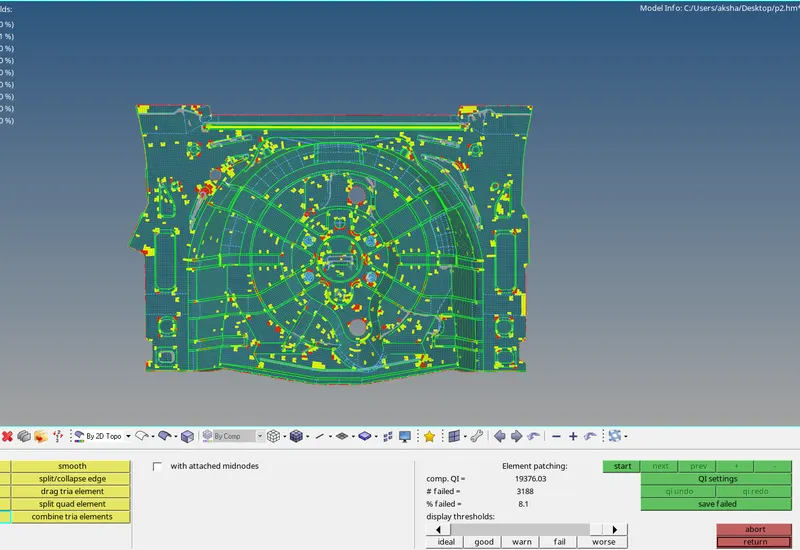

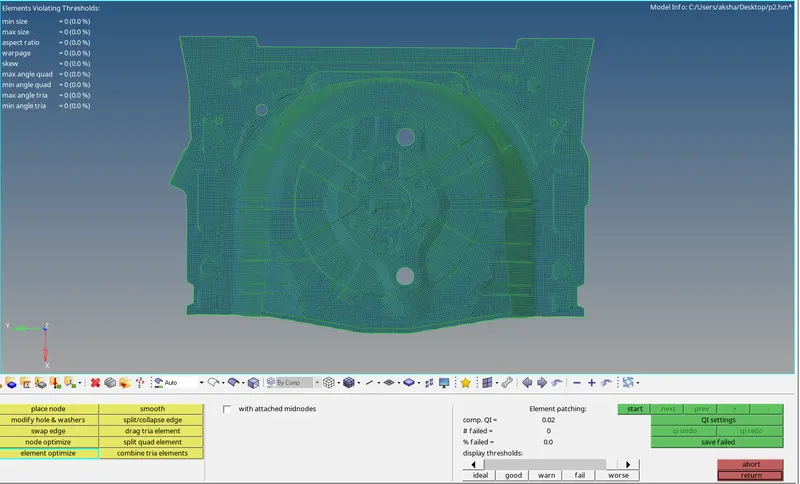

Elements quality criteria cleanup is shown below :

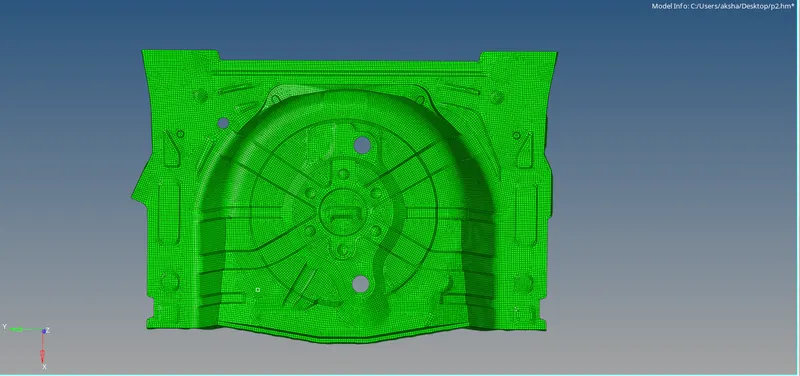

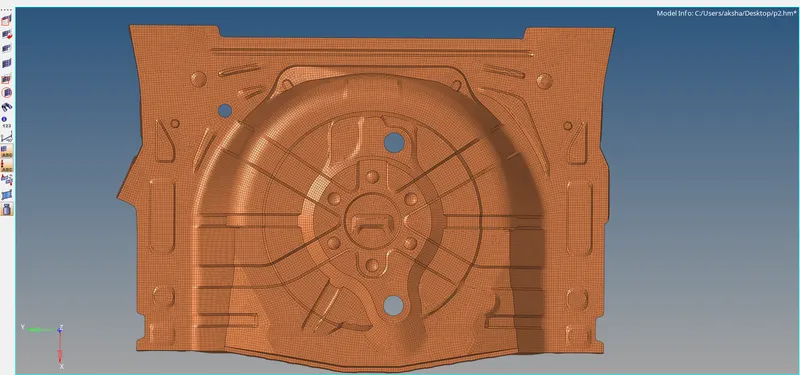

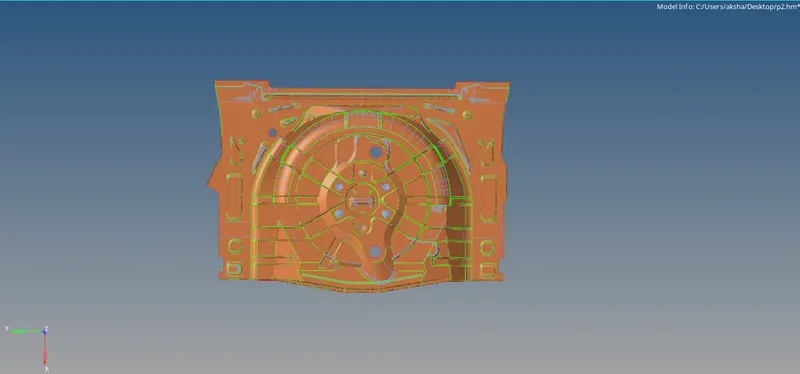

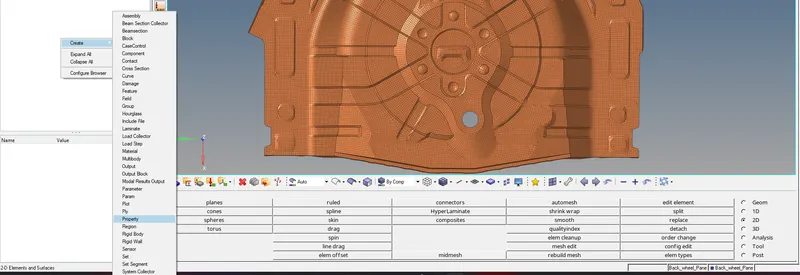

The final meshed model is as shown :

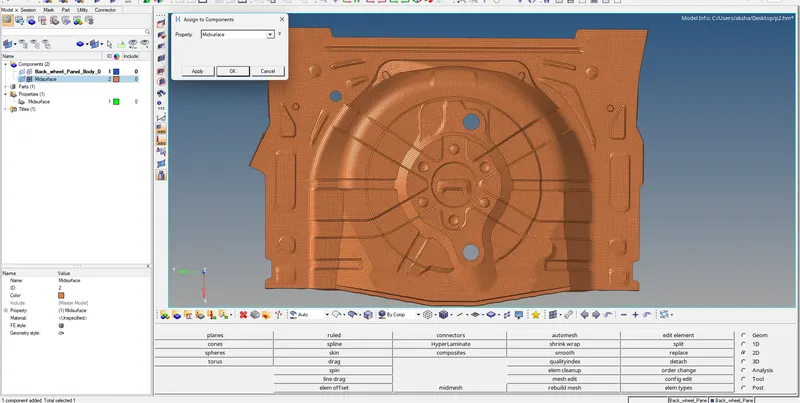

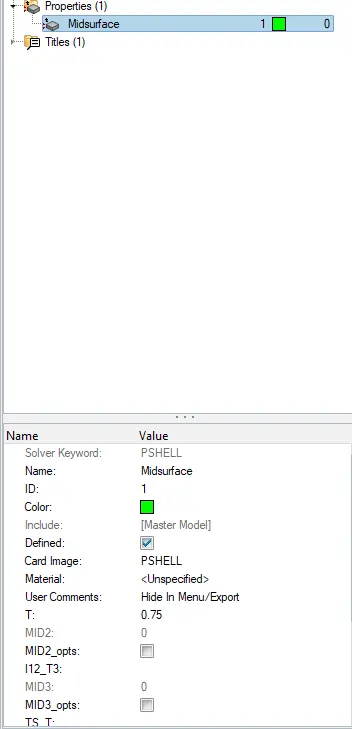

Assigning Thickness :

Learning Outcomes :

Learned to clean the geometry.

Learned to take mid-surface in hypermesh.

Learned to clean elements.

Result :

The given model has successfully meshed and mid surfaced.
