Objective: To mesh the given component and assign thickness.

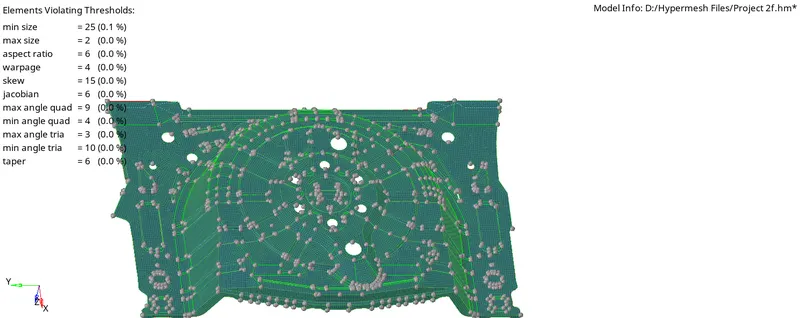

Quality criteria:
Target Element Length = 5 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 8 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
Procedure:
1) Import the geometry

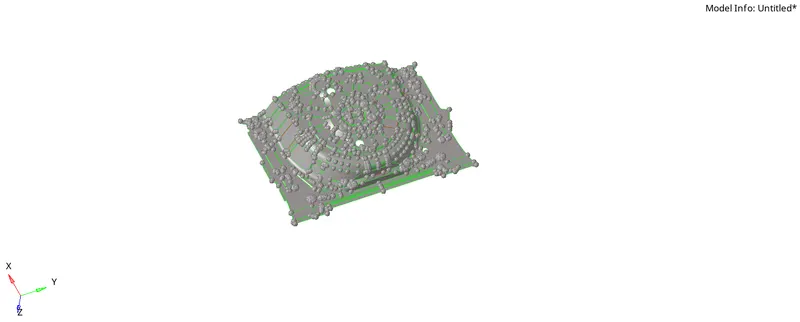

2) See there are a few geometrical errors that need to be corrected

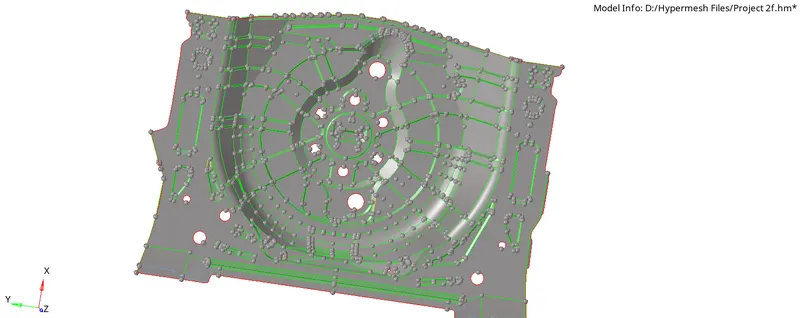

3) Extract the middle surface using the auto mid surface(offset +planes+sweep) option

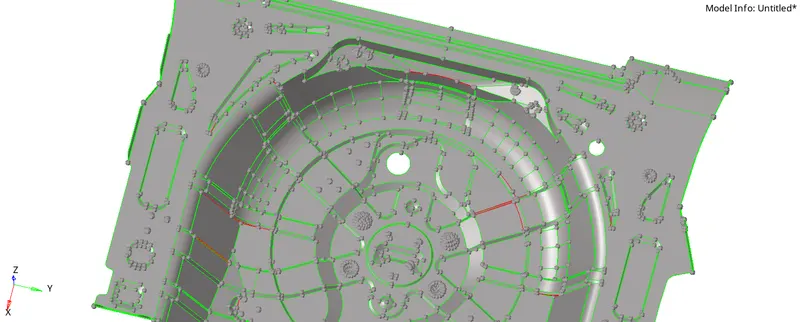

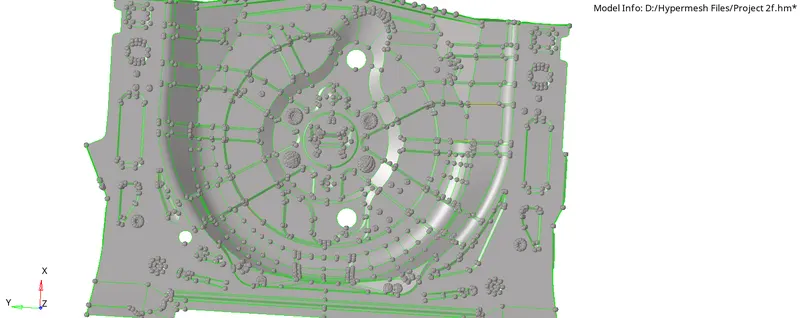

4) perform manual geometry clean up on the generated mid surface

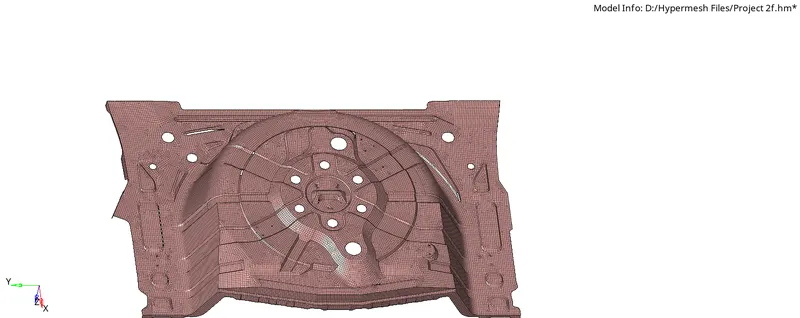

5) Mesh the component as per required quality criteria.
7) Measure the thickness of the parent geometry using two nodes.

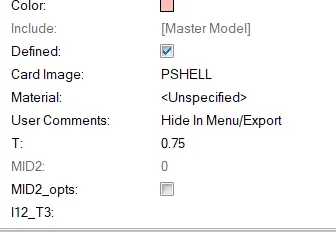

8) create a property card and assign the thickness.
9) Assign the property on the component and view the model by property.
