Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Aim:

To mesh the meshing of Rear wheel holder with the given element quality

Procedure:

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

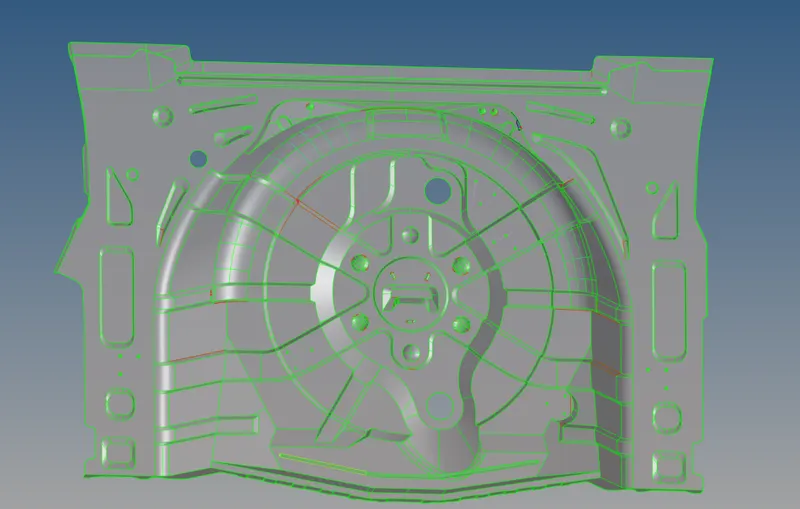

Geometry clean up the components and fix some errors

The middle surface was extracted for the model

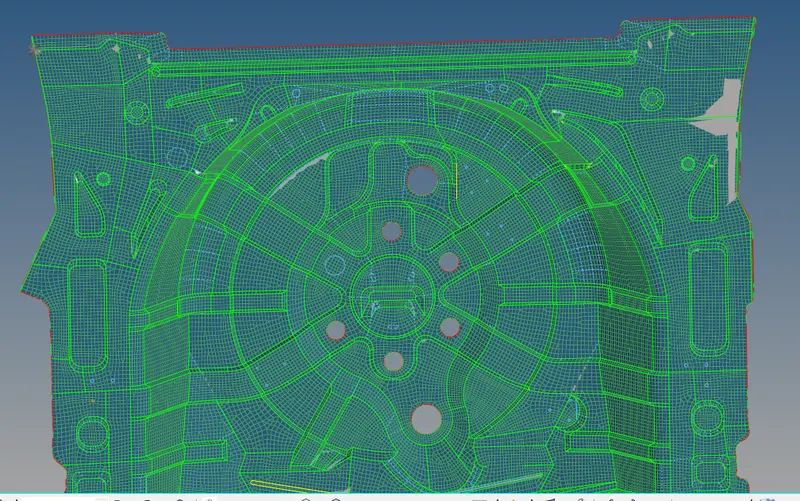

Then mesh the component for element size 5mm

Do it surface by surface and then mesh it

capture the features properly

Geometry - midsurface and then offset

Conclusion:

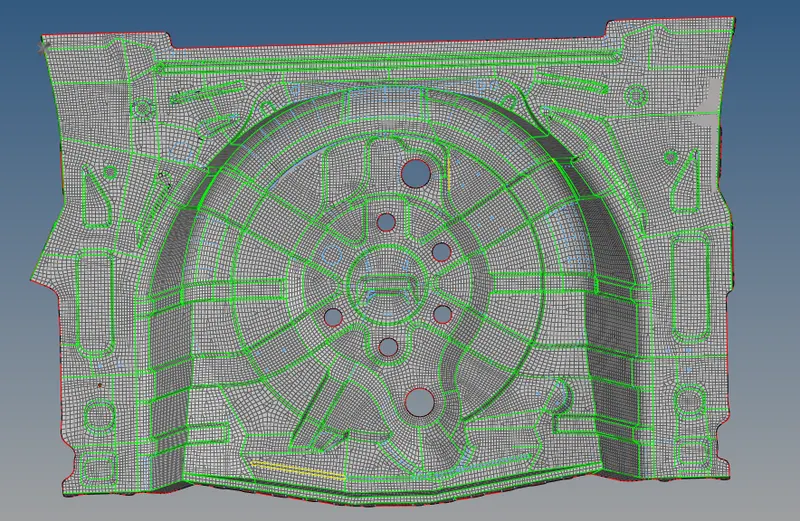

Thus the component was meshed with the following criteria.
