Week 12:Project 2-Meshing of Rear Wheel Holder challenge

Follow the below-mentioned quality criteria, mesh the component given below and assign thickness:

Target Element Length = 5 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	8 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

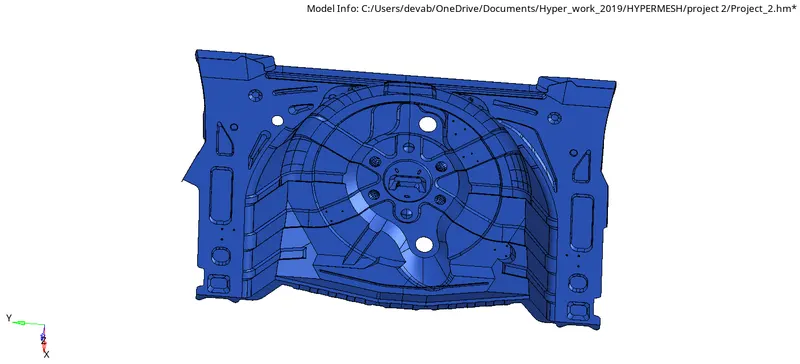

Given Model:



Here we begin with the division of the Model into 2 parts

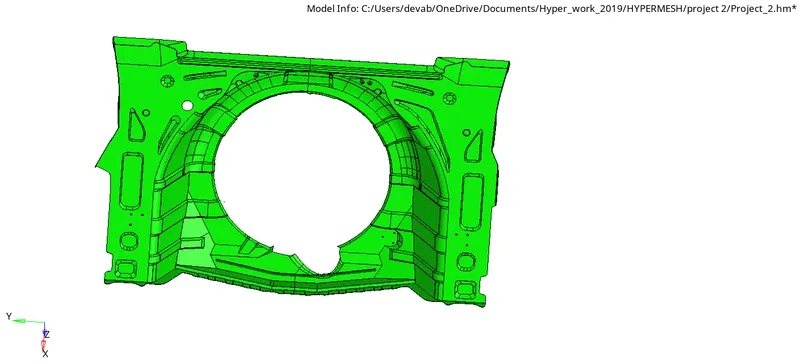

First -

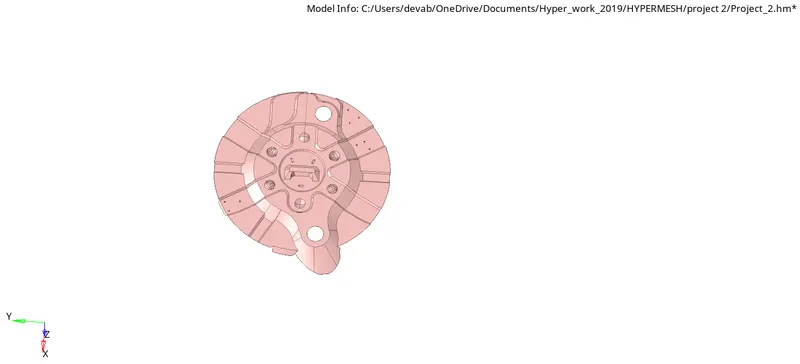

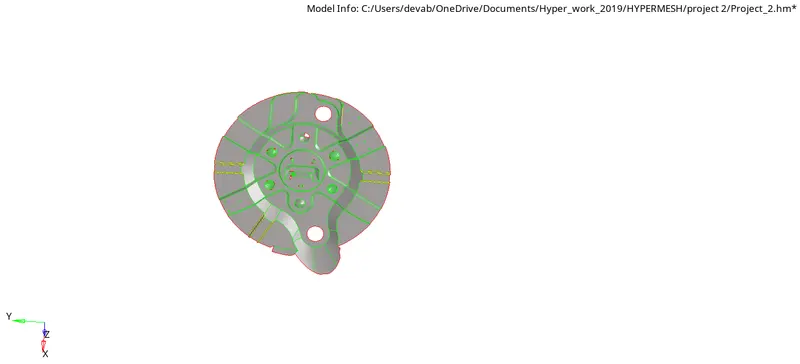

Second -

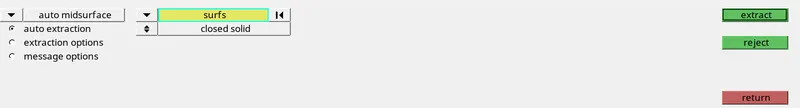

After dividing the model into 2 parts, we extract the mid surface of both part

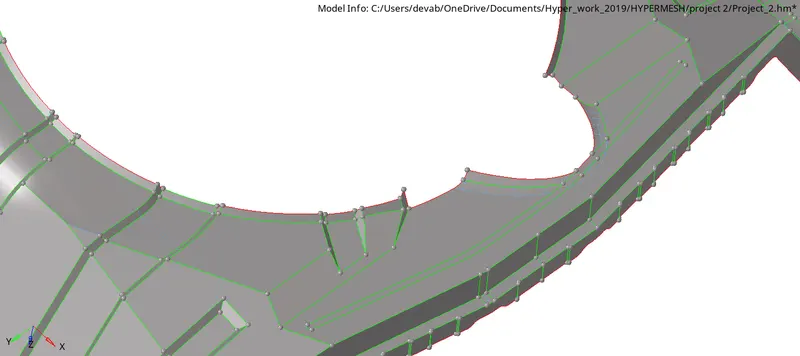

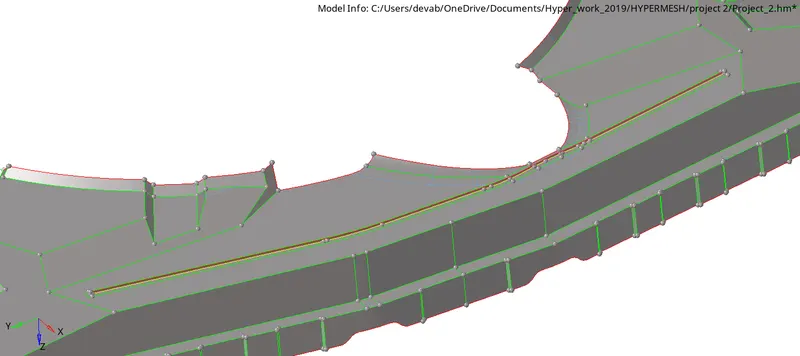

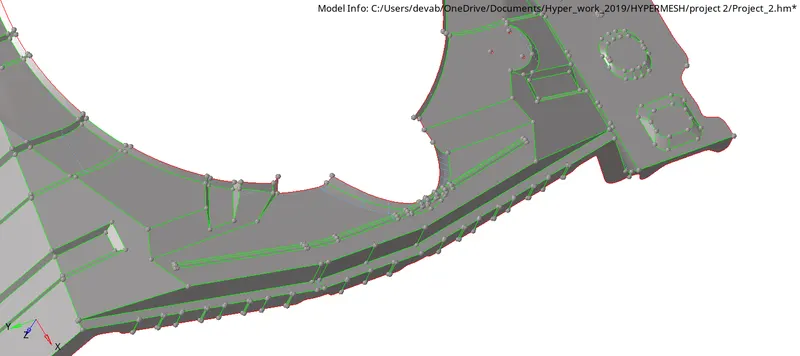

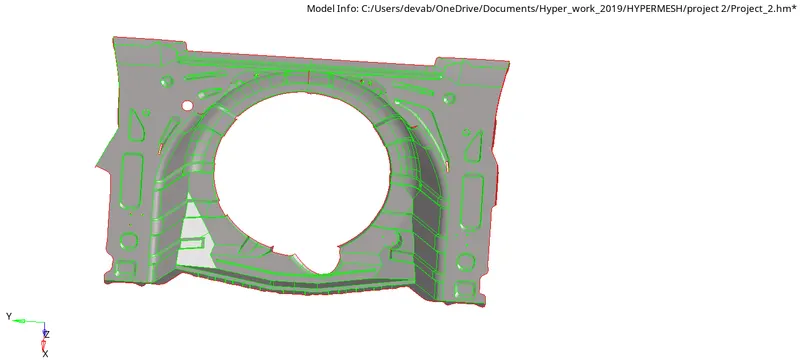

After getting the required mid surfaces, we start its geometry cleanup and also provide the details to the surface.

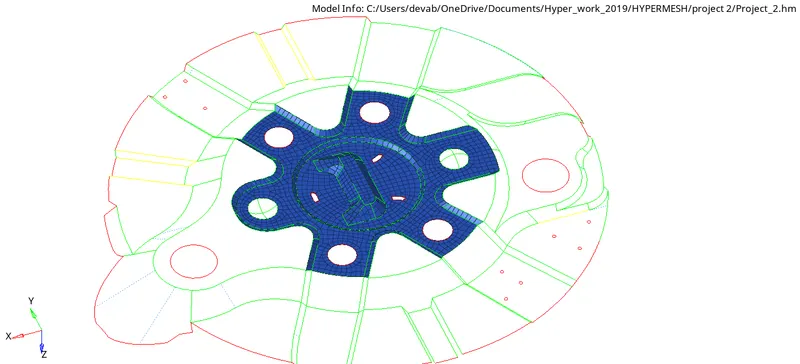

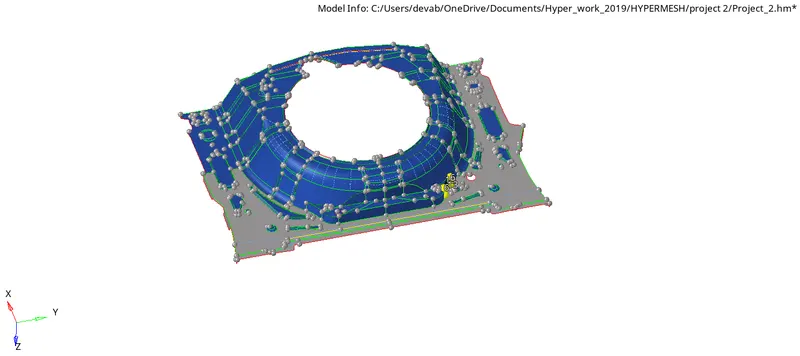

 After getting the proper surface, we start Meshing the surface

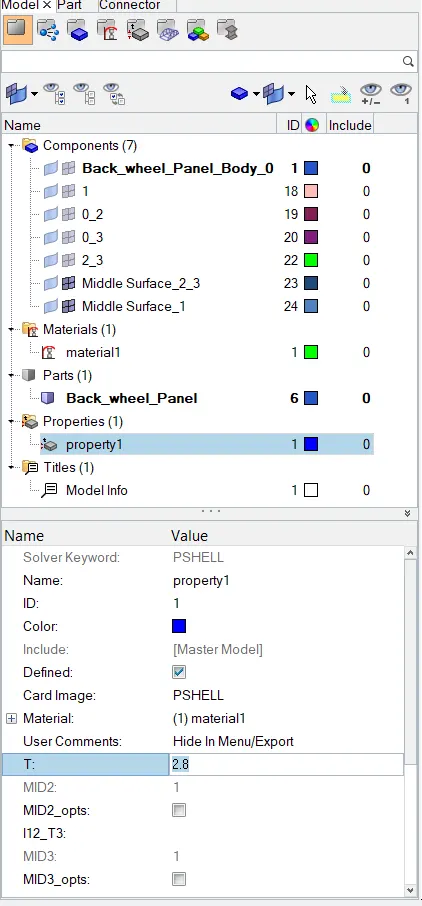

After getting the proper Mesh flow, we assign a thickness of 2.8,

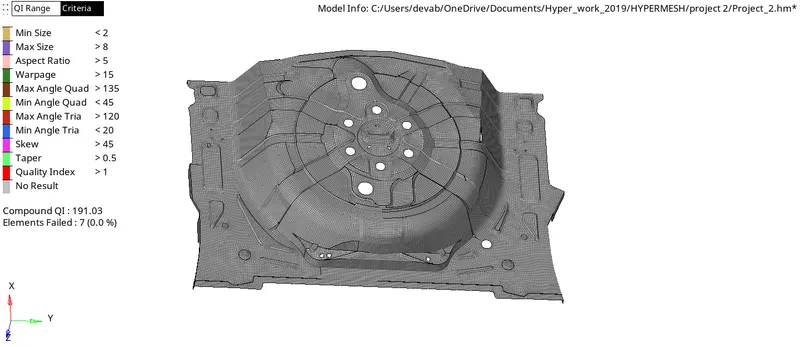

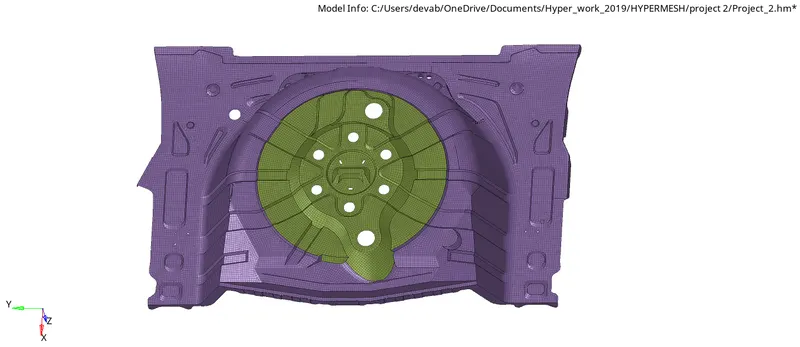

After assigning the property and material, we follow elemental cleanup for quality and also delete the free edges and provide equivalence

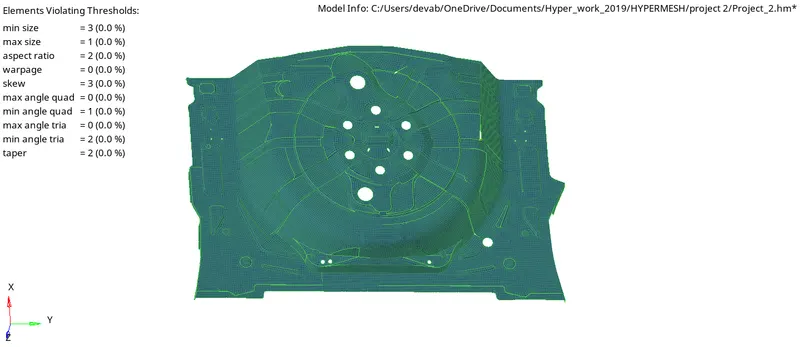

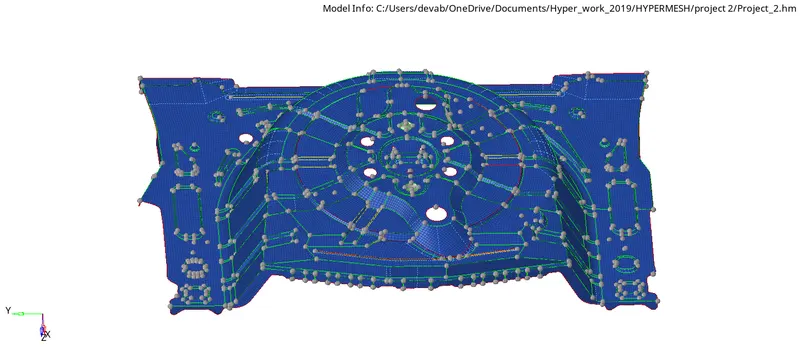

Finally, we get our Required Mesh:

Conclusion: Here we divide the surface and provide the Mesh flow accordingly, capturing the required details accordingly.
