Week 12:Project-1-Meshing of Door Inner Panel Challenge
OBJECTIVE :
To mesh the given component for the given quality criteria and assign the thickness.
Target Element Length = 4 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 6 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |

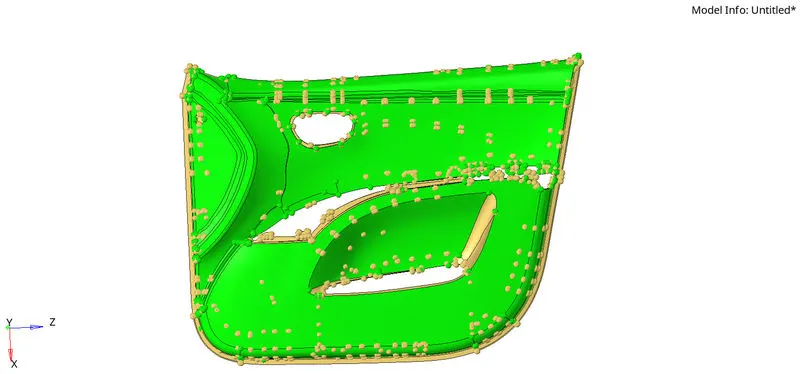

CAD MODEL :
PROCEDURE :
1. Import the cad model in hyper mesh.

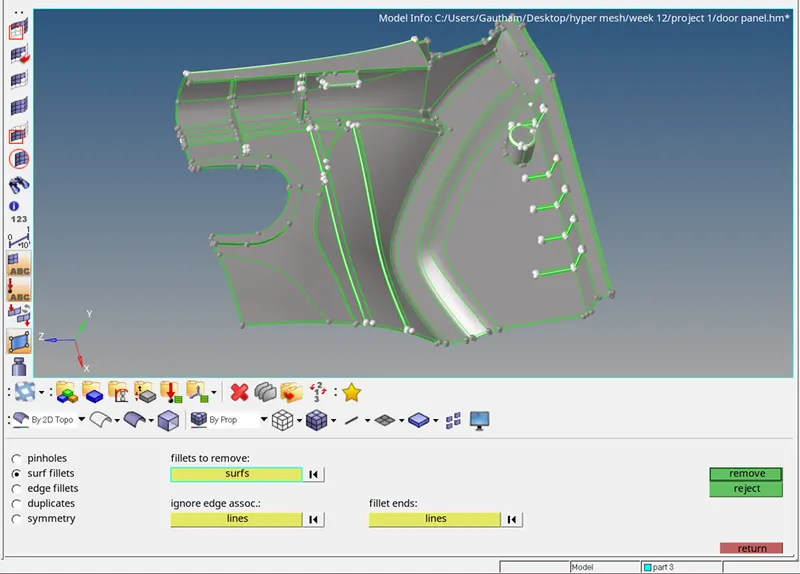

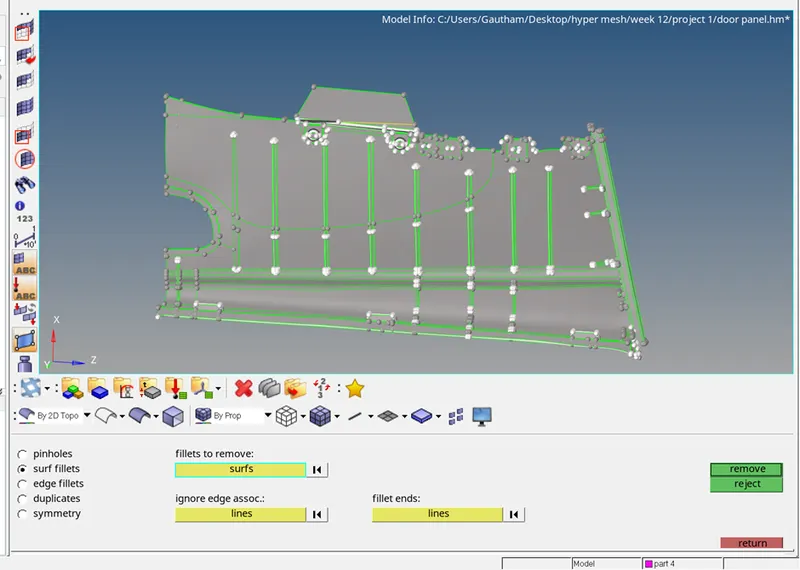

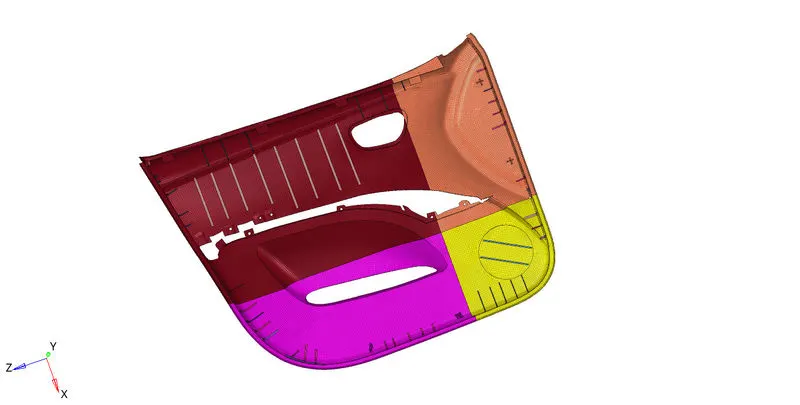

2. Model is divided to 4 equal parts using Surface edit tool and also remove the surface fillet areas by defeature option.

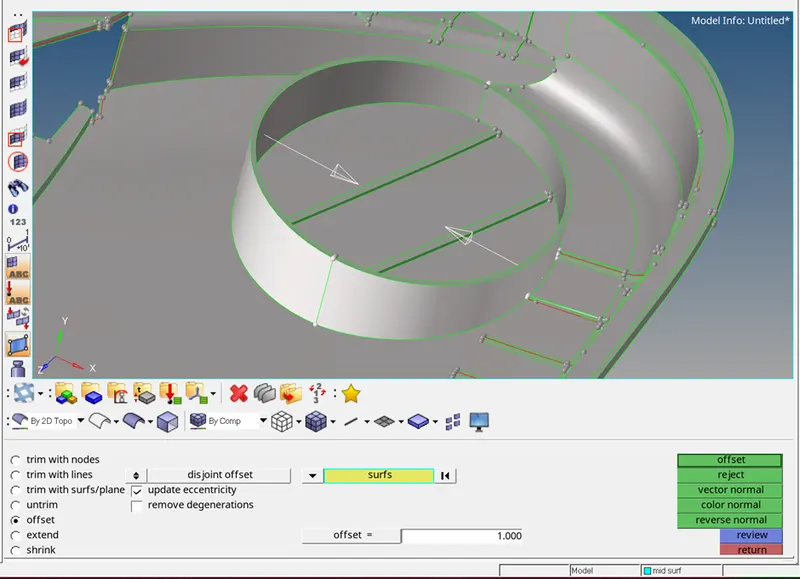

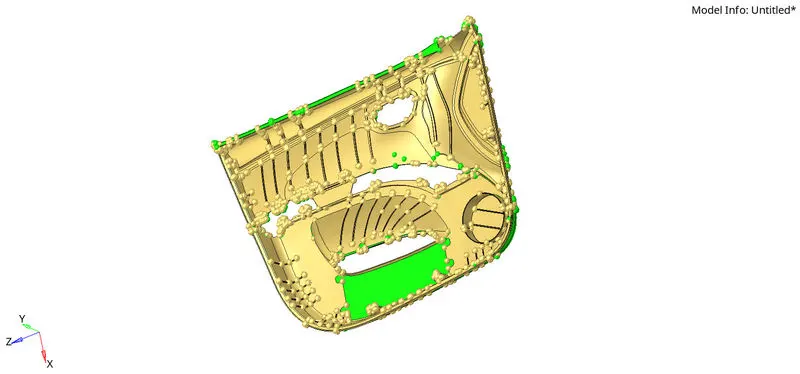

3. After the model is divided, midsurface of each part is extracted by offset option under surface edit tool.

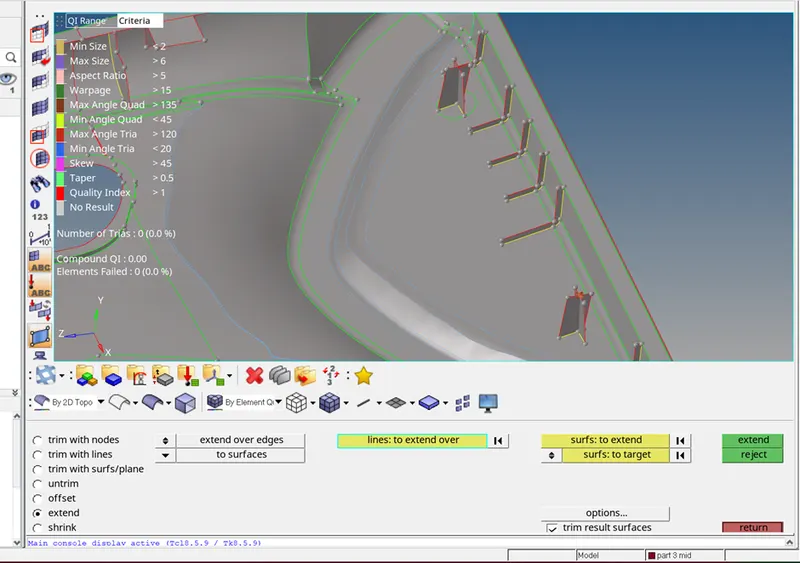

4. The rib extracted are extended to the surfaces for the connection projection.

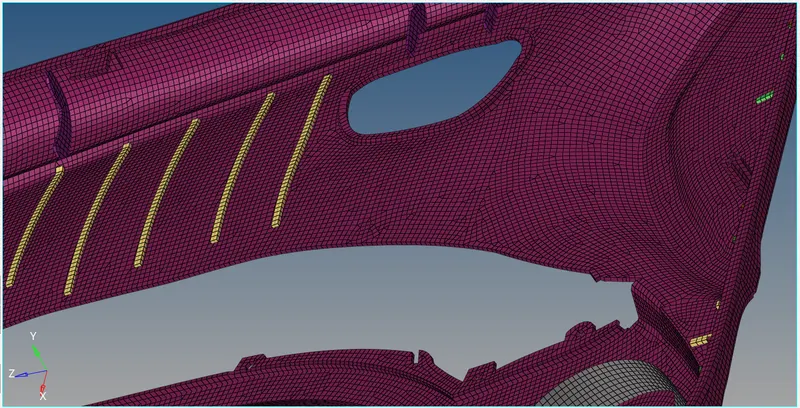

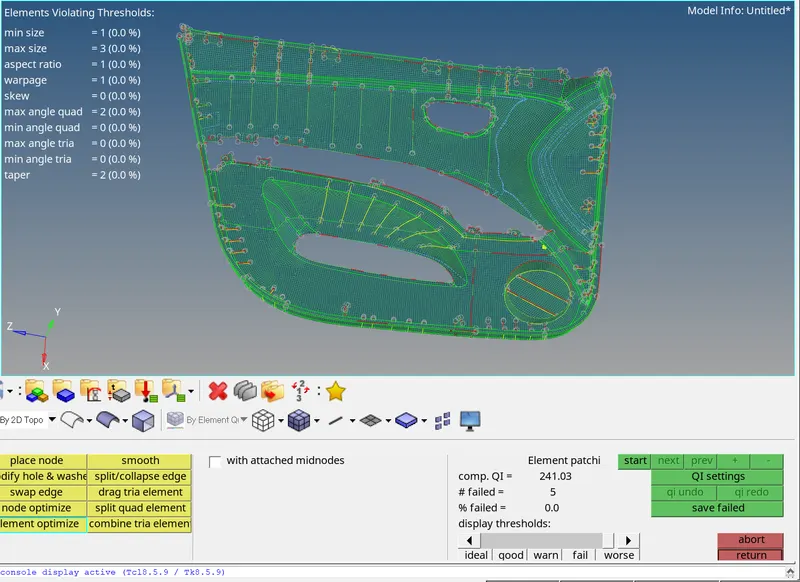

5. The extracted surface is meshed and clear the quality issues by the clean up tools.
6. All the surface are meshed and ready to assign the property and thickness.

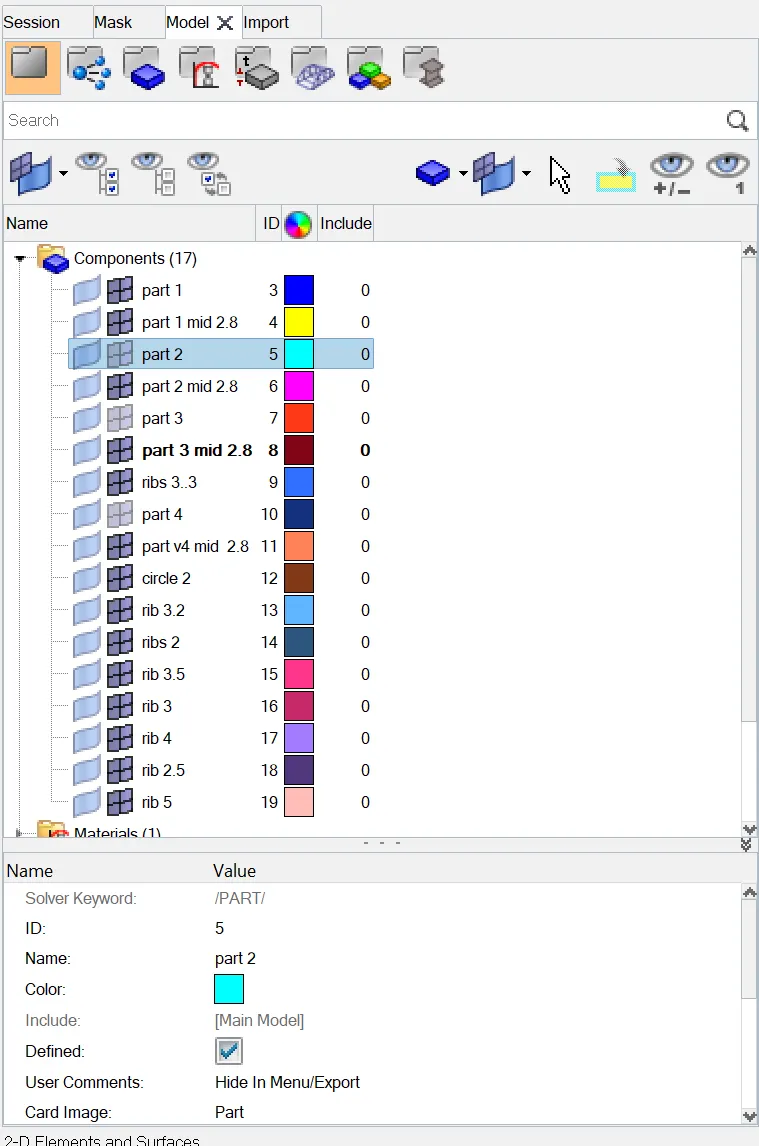

7. Seperate the componets as per the thickness.

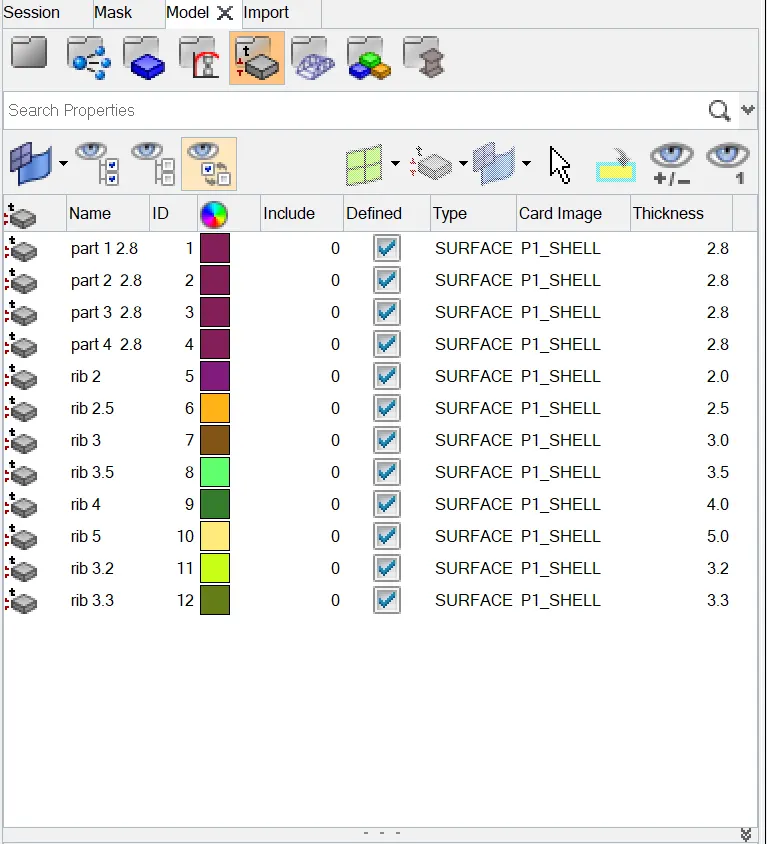

8. Create the property for the components with the thickness value.

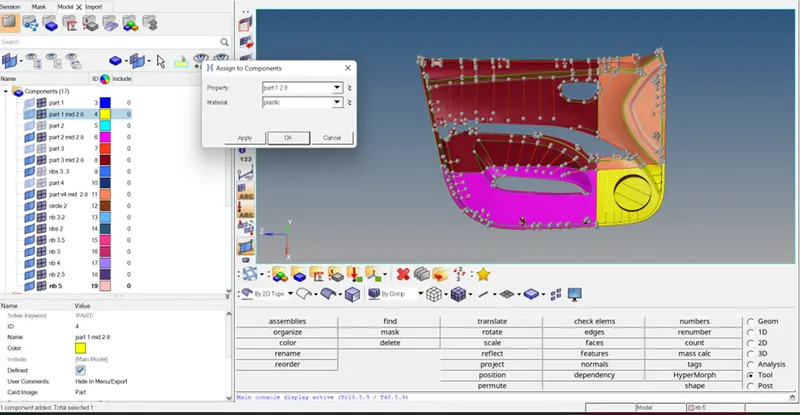

9. Assign the property to the components.

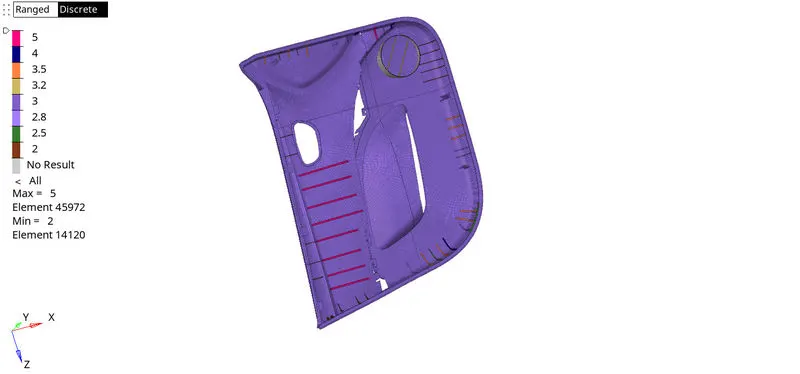

Here the thickness are assigned to the various components.

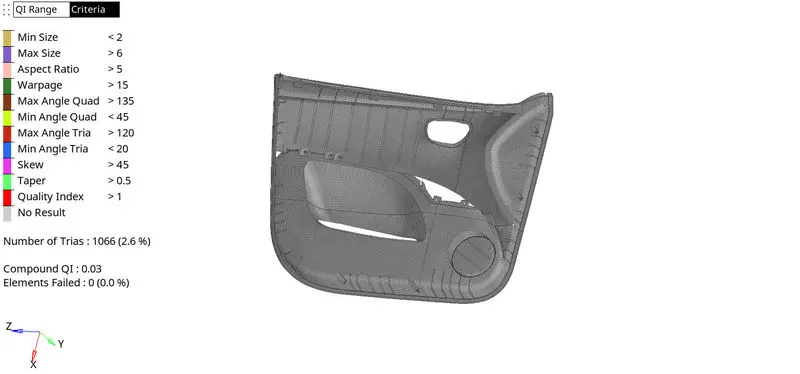

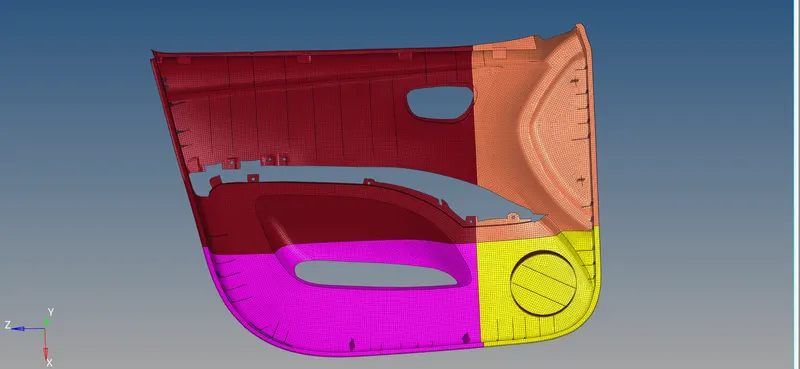

FINAL MODEL:
RESULT :

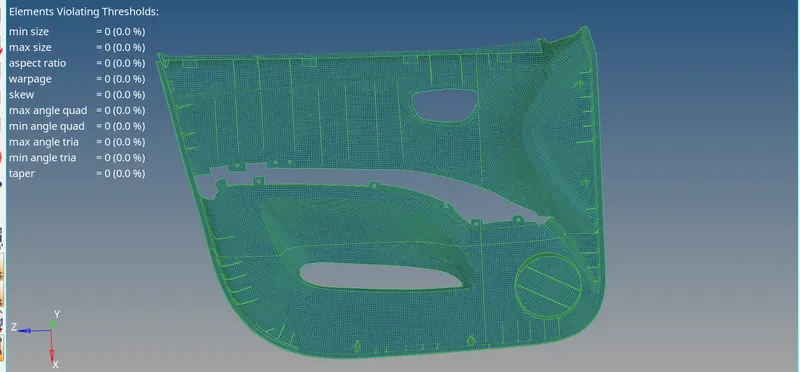

The given model is meshed with out fail of quality criteria and also assigned the thickness for the components.
