Week 12:Project-1-Meshing of Door Inner Panel Challenge

Report

Aim:Meshing of Door Inner Panel Challenge

Follow the Quality Criteria and mesh the following component and assign thickness:

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:

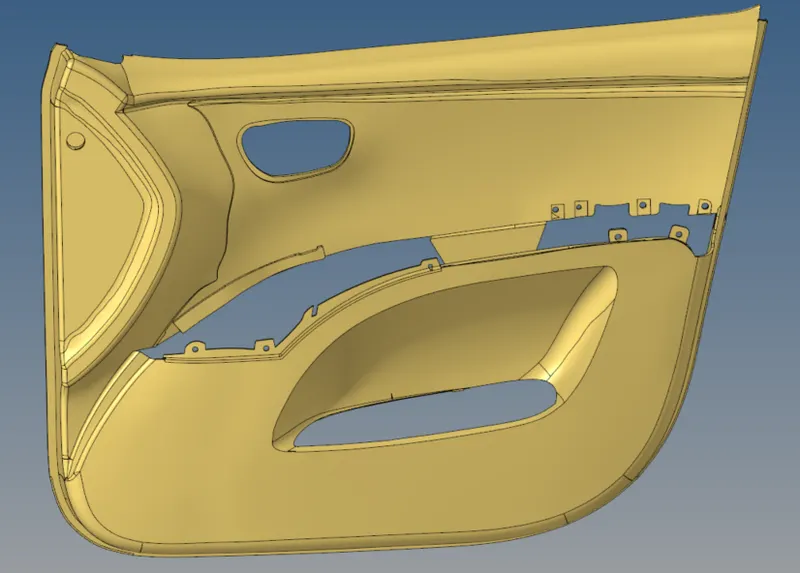

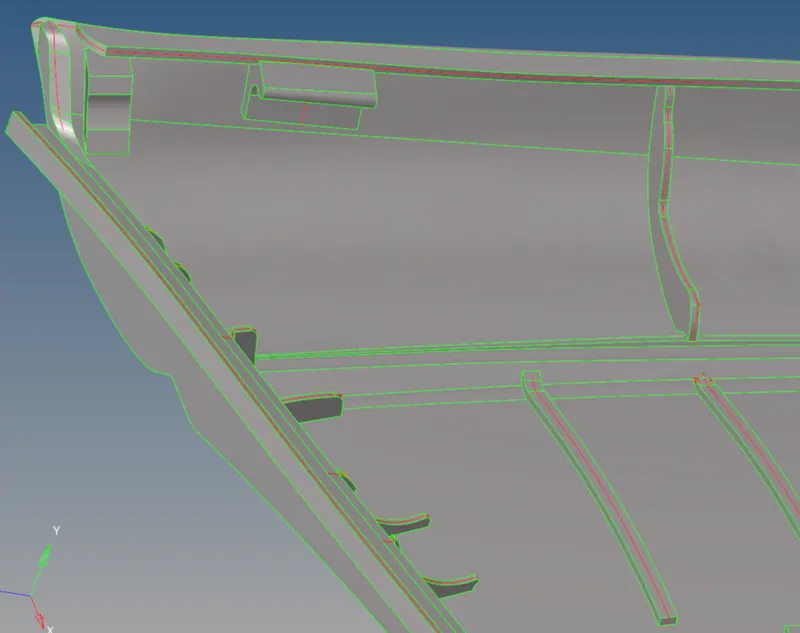

import geometry

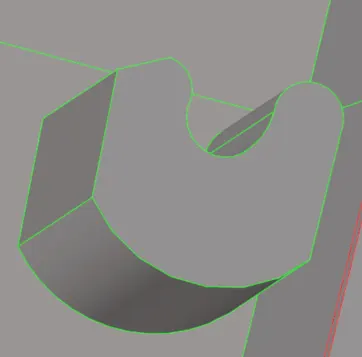

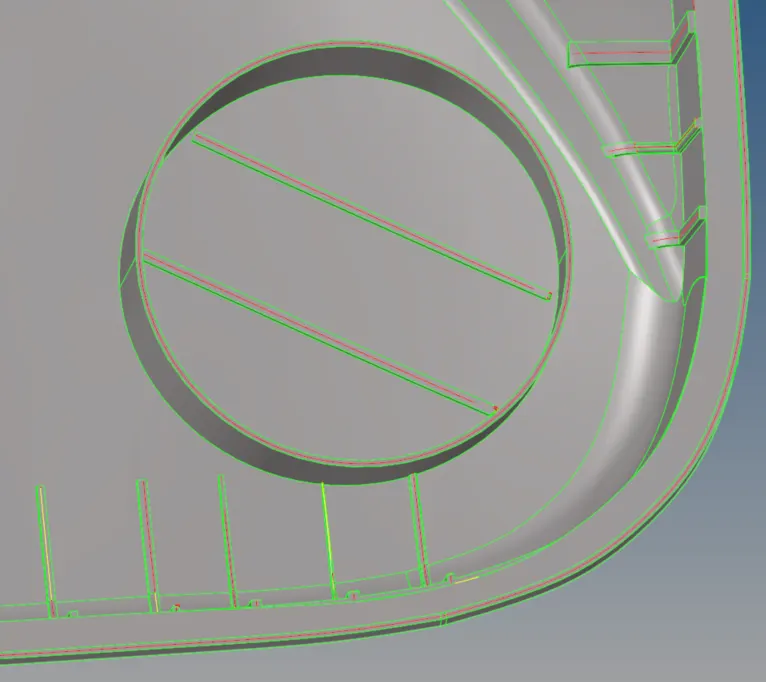

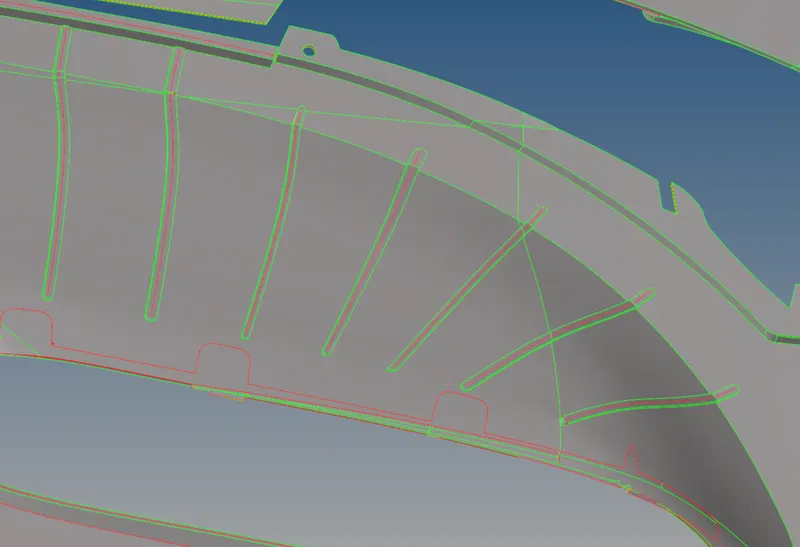

geometry cleanup, remove fillets

remove fillets

devided part to 4 parts

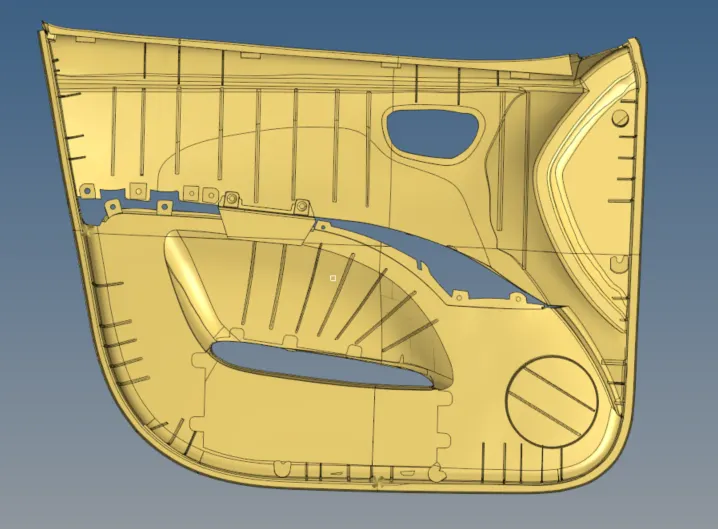

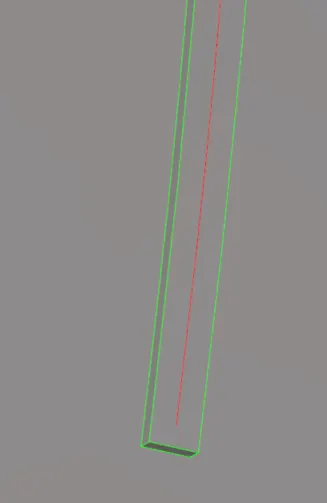

extract mid surface of the part

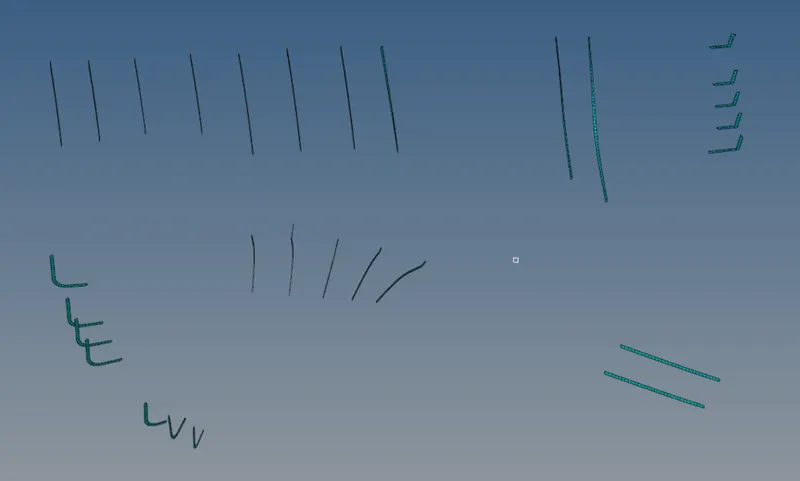

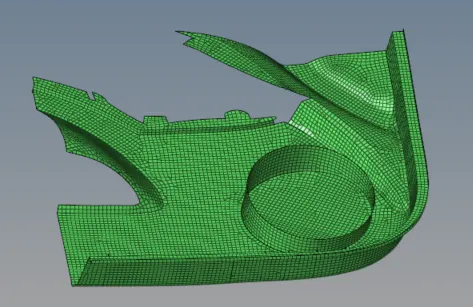

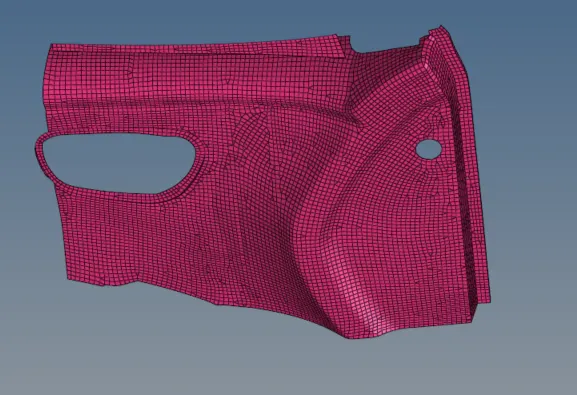

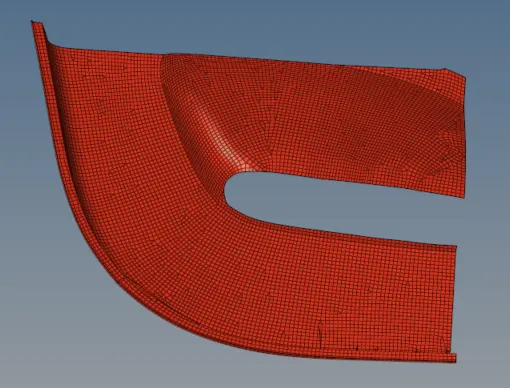

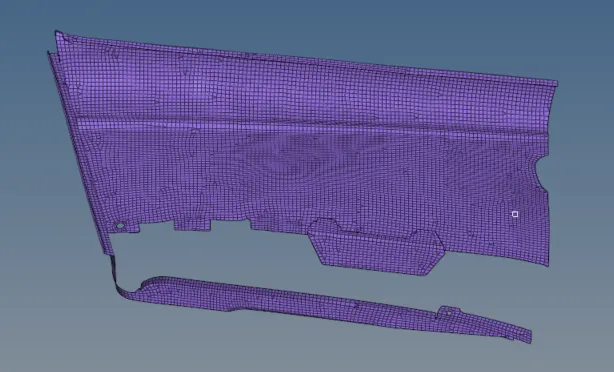

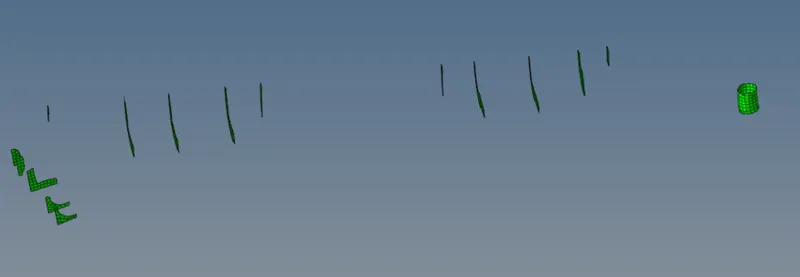

mesh each part

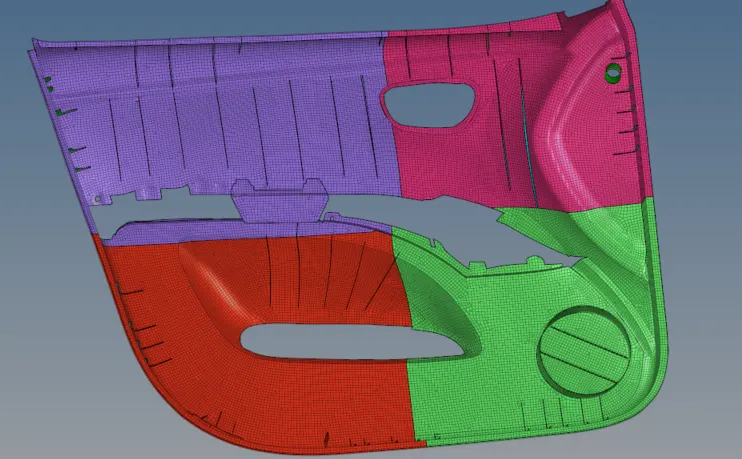

The whole mesh

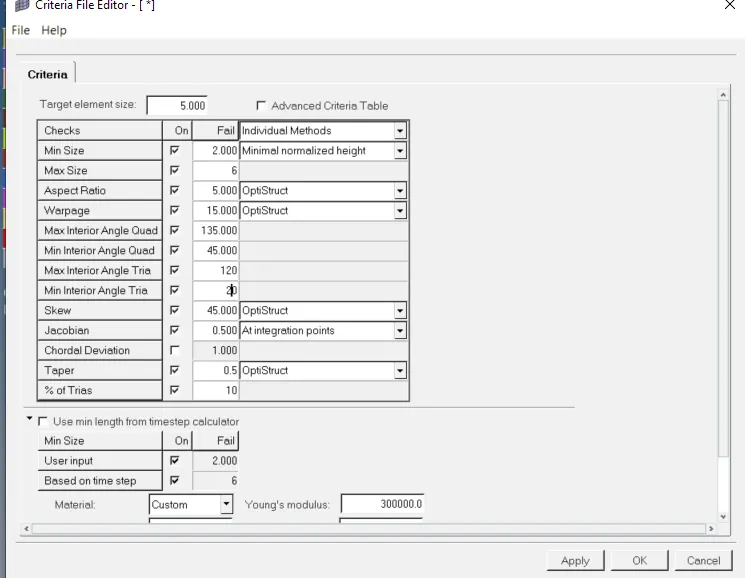

Set up quality criteria

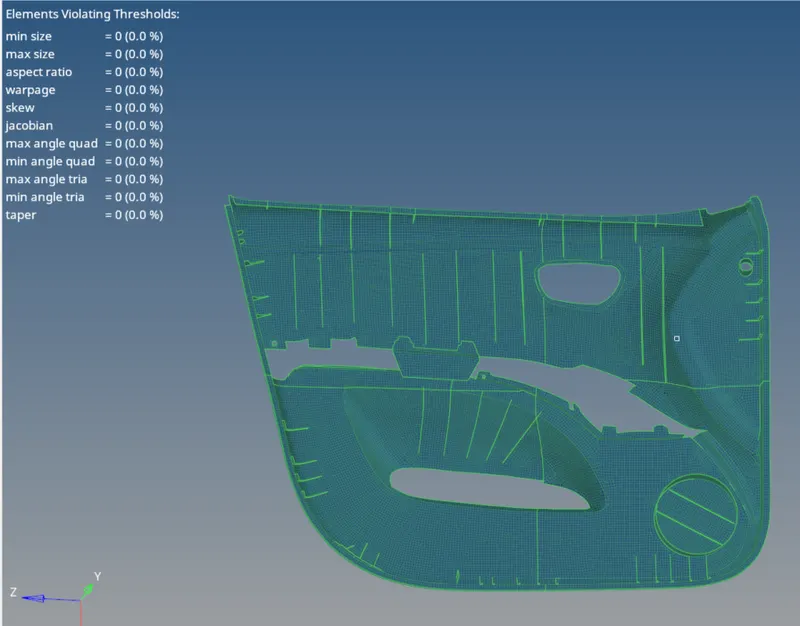

check quality, there is no failing

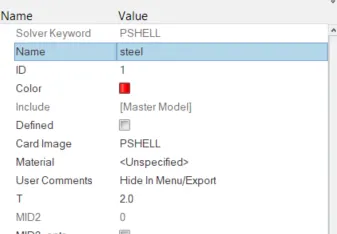

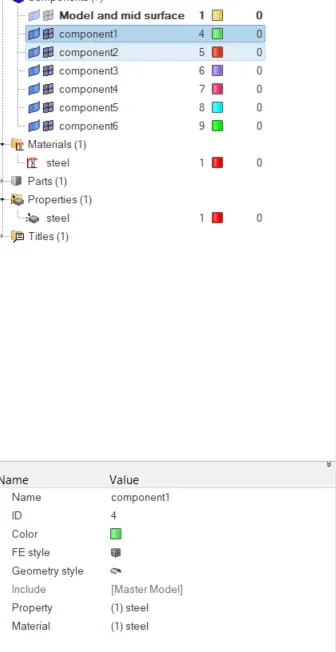

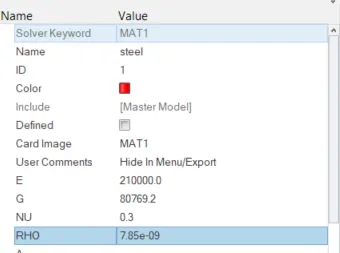

assign material and property
