Week 12:Project-1-Meshing of Door Inner Panel Challenge

AIM:

To Meshing of Door Inner Panel Challenge

1. Car Side Door Panel
The side door panel is the plastic part. materials used for the door panel are acrylonitrile-butadiene-styrene (ABS), ABS/polycarbonate alloys, Polypropylene (PP).
Properties
1. High weathering resistance
2. High strength and toughness up to 140°C
3. Very good heat resistance
4. good processing characteristics
5. Remail flexible down to -150°C
6. High rigidity
7. Good impact resistance

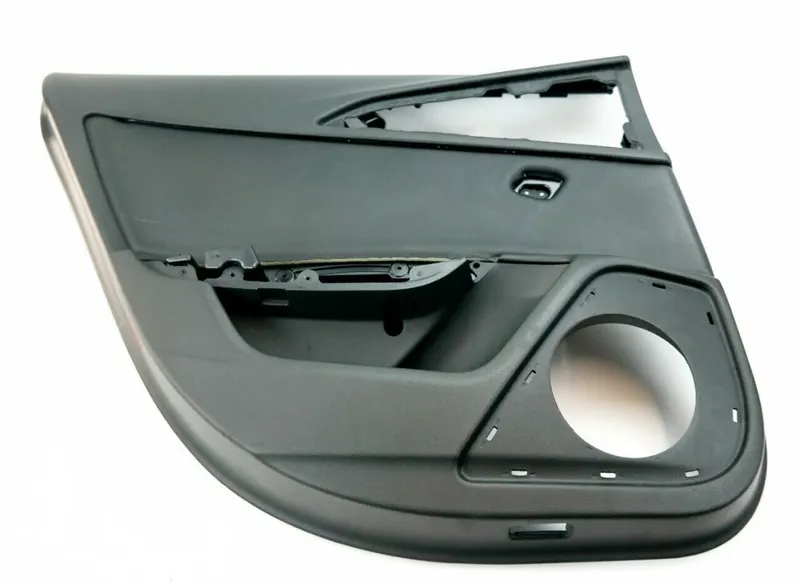

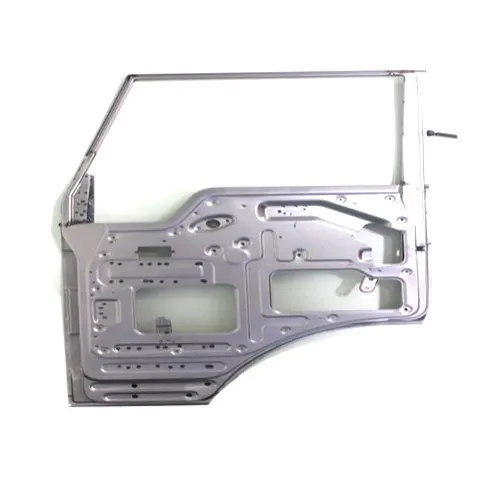

below fig. Shows the example for the side door panel.

1)

2)

Finite Element Analysis
The finite element method is a numerical technique for obtaining an approximate solution to a wide
variety of engineering problems. FEA (Finite Element Analysis) is done by three phases.
1. Pre-processing
2. Solution
3. post-Processing

This project comes under Pre-processing.

• The goals of Pre-processing are to develop an appropriate finite element mesh, assign suitable material ID and boundary conditions.
• ANSA And Hyper-mesh are the example tools and in this project Hypermesh is used.

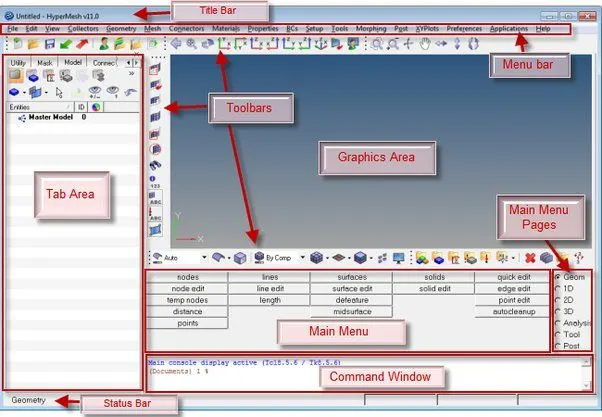

Hypermesh interface

all types of elements are done under user-defined Quality criteria.

Project:

Target Element Length = 4 Units

Quality Criteria

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Procedure:
The meshing is done by following steps
1. Import side_door_panel.hm in to Hypermesh
2. CAD Geometry clean up and topology
3. Mid-surface extraction
4. Defeaturing
5. Shell meshing
6. Creating properties and Thickness assigning.

1. Import side_door_panel.hm in to Hypermesh

Import Side_door.hm in to Hypermesh :file>open>model, browse the file and open. in the figure below

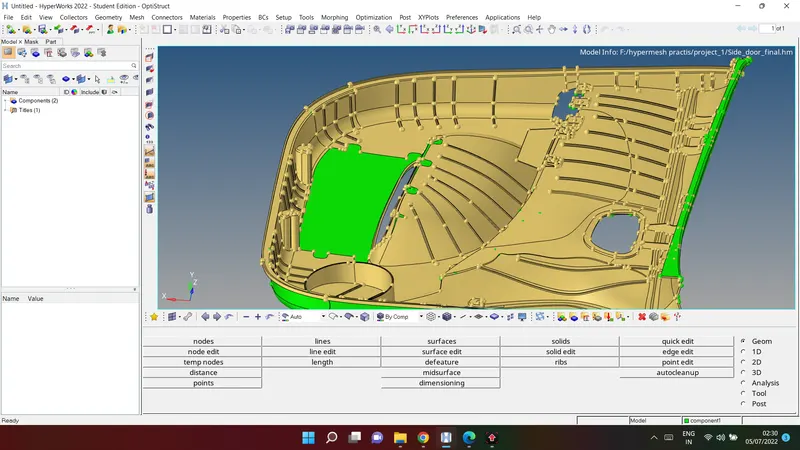

shows the model.

From the imported file we can see so many features such as Ribs, Locators etc. So that this component
has different thickness on each feature.

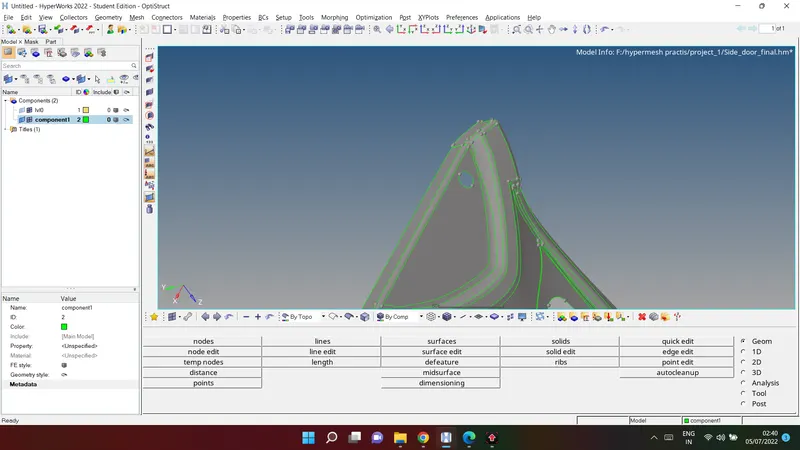

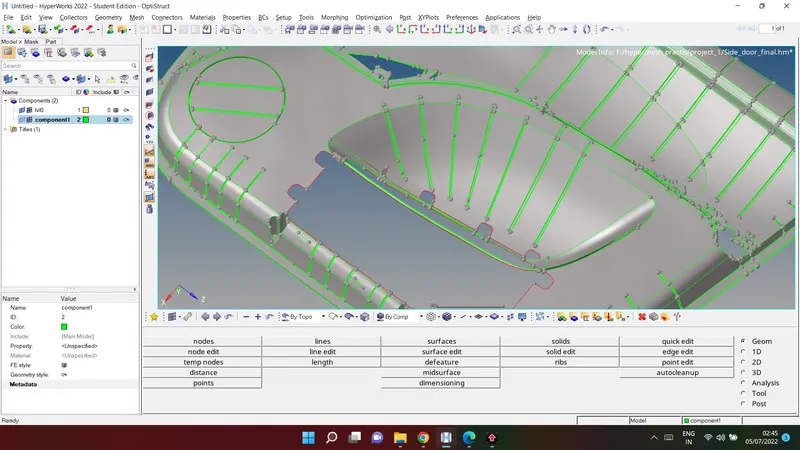

2. CAD Geometry clean up and topology

CAD Geometry clean up and topology step the given model undergoes geometry check.
Where all the defects such as collapsed faces, cracks, free edges, T-edges are clear.

show description on surface.

Tools used in topology

• Equivalence (multiple edges at a time) Search surfaces for pairs of free edges and combine into
  shared edges
• Toggle (edge pair at a time) Select an edge; equivalences with other free edges found within a user
  specified tolerance
• Replace (1 edge pair at a time) Select 2 edges to equivalence together. Control which edge to retain
  and which to move.
• Geom>Surfaces>Ruled or Geom> Quick edit > filler surface or 2d> spline> surfaces only (to create
  missing surfaces).

Defeature all small fillets by using
steps
a. Geom>Defeature>surface fillets

b. Use the Surf Fillets subpanel to identify and remove surface fillets (curved surfaces that create a
smooth transition between relatively perpendicular geometric entities). You can identify fillets based
on radius, because fillets are always uniform arcs. You can also select a fillet by picking one of the
edges that it connects. Once found, fillets can be removed using tools that display automatically after
the find process.

c. By clicking on remove all selected fillets will be removed. in the fig.2.3 shows the fillets removed by
surface fillets.

Fill missing surfaces using line drag: Use the Drag Along Line subpanel to create surfaces by dragging
lines or a node list along another line, called the "drag line".
Steps
a. Select the lines or node list to drag.
b. Select the lines that the drag will follow. This can also be a series of connected lines.
c. Merge the input lines into smooth lines when possible, and create a surface for each group that
forms a tangentially continuous line.Clear this checkbox to create a surface for each input line, with
shared edges connecting surfaces where relevant.
d. Choose where to organize the resulting surface component.

3. Mid-surface extraction

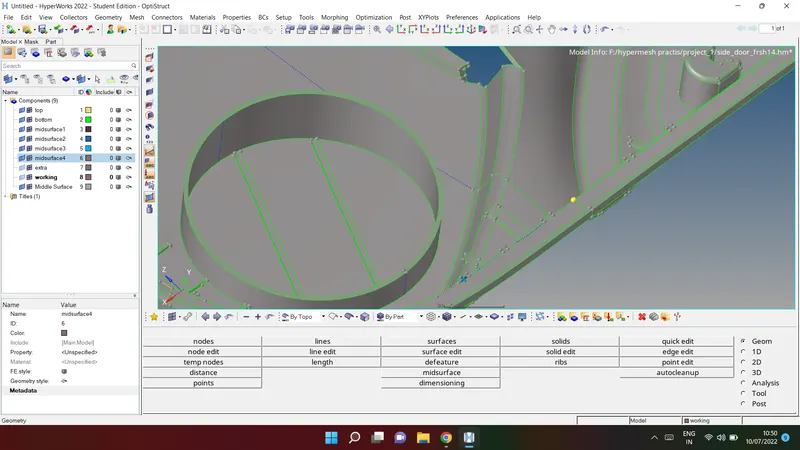

Mid-surface extraction on the given model is a side door panel and before going to the Mid surface
extraction check for thickness of entities and measure (Geom>distance).

We found different thickness on each feature. To simply extraction of mid surface. models divided
in to two components

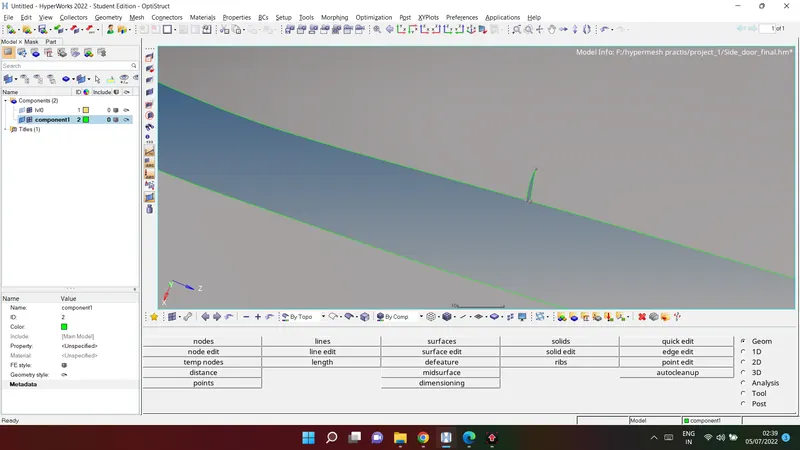

Mid surface is done by manually using offset

(Geom> surface edit> offset). offset panel

Steps
a. select offset
b. Offset moves the selected surfaces without retaining their connections to surrounding geometry.
c . select the surface and make a duplicate of same surface
d. input the value which is half of the thickness
e. to check the direction click on vector normal so that we can see the offset direction, also one can
change the direction by reverse normal

for all ribs extraction of mid one file final edit tool from Midsurface. (Geom>midsurface>final edit tool)
show panel below

• Select a surface that represents one side of the solid.
• Select a surface that represents the second side of the solid.
• Select extraction options accordingly to define which surfaces to take into account when constructing
  midsurface.
• By default, only two surfaces that are selected with the side1 and side2 surf selectors are considered.
  To take into account offset directions of the adjacent pre-existing midsurfaces, select the use adjacent
  midsurfaces checkbox.
• To allow modifying pre-existing adjacent midsurfaces, select the combine with adjacent
  midsurfaces checkbox.
• Extend all the ribs to the base surface using Extend.
  Select the line of Extend a surface over edges to another surface.
  Select the target surface.

4. Defeaturing

Defeaturing is to update the Criteria length as per given element Quality criteria which
is Target/Average length

Removing all unnecessary edges, fillet radiuses etc. also maintain distance
between two edges or nodes not less than Minimum Length of 2.

tools to Defeaturing
A. Toggle edge
Left-click a free edge (red) to make it shared (green), or a shared edge to make it suppressed (blue).
Right-click a suppressed edge to make it shared, or a shared edge to make it free.
In either case, the edge must meet the criteria for the type of edge you wish to change it to. For
example, toggling a free edge to a shared edge requires the presence of a similar edge within the
distance you specify in the tolerance field.

B. Replace (1 edge pair at a time) Select 2 edges to equivalence together. Control which edge to retain
and which to move.

C.filler surfac
Geom> Quick edit > filler surface (to create missing surfaces)

i.e image shows the removed fillet around the cylender :

5. Shell meshing

Shell Meshing is Before meshing Assign given element Quality criteria in to hypermesh by
Preferences>criteria file setting shown

Target Element Length = 4 Units

S.N	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
10	Tria %	10

Start meshing Process by Automesh (2D>Automesh )
steps to mesh
a. Select surfaces for initial mesh and for remesh select elements.
b. select size and bias abd select mesh size which is Target/Average length 5. Use the Size and Bias
subpanel to perform size and bias meshing, a flexible and powerful meshing method. A minimum of
inputs are required for the element criteria settings. The algorithm options set preferences on how to
handle certain situations when encountered in the geometry. When using existing finite elements as
the basis for mesh generation, feature recognition settings allow the mesher to break up the areas
defined by the selected elements into logical groupings with mesh controls set for each group
boundary.
c. Select the type of mesh as mixed (Quad, Tria, mixed, R tria etc) and clock on alin and size in order to
get proper mesh near features.
click on mesh or middle mouse button

Modify mesh flow by changing surfaces to elements and select the elements. Make sure that while
doing mesh all the element Quality criteria must be satisfied. Avid maxim opposite traits and. In fig.5.2
show the mesh flow

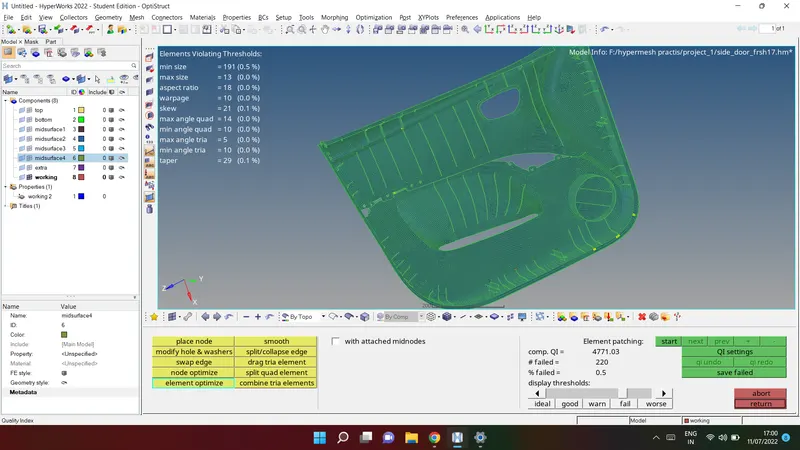

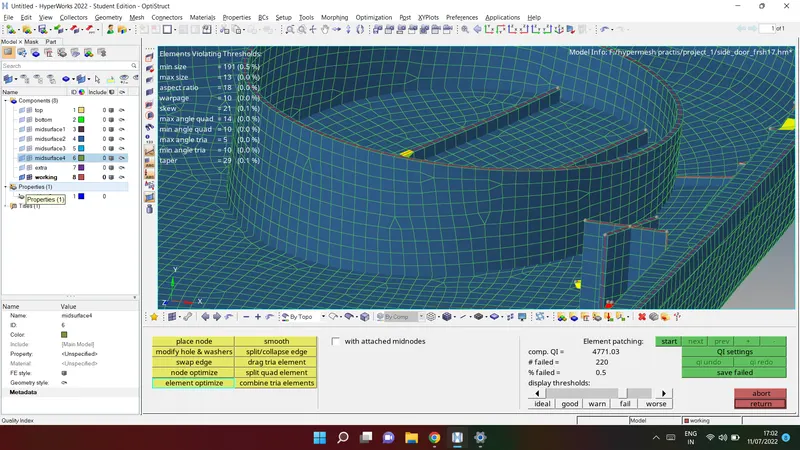

Remove all quality failing elements by smoothing, by changing distance, angle b/w the nodes of failing
elements we can see 0 elements are failed

check quality criterea

6. Creating properties and Thickness assigning.

6. Creating properties and Thickness assigning: Not only property we can create components,
material, Cross sections etc by right click on Tab area and select requirement

Before creating properties we need to create components for elements as per the different thickness.
right click on the Tab area and select component to create components. in the fig.6.2 shows the
components as per the thickness. If we have varying thickness (taper).Then divide that region with
respect to mesh flow and assign thickness value from maximum to minimum with equal intervals.

Create property as per the components thickness. To create right click on the Tab area and select
property to create properties.
a.select property, we can see the properties in the tab area.
b. Click on the property and rename, change the thickness, select material, card image and etc. for
each component we need to create property shown in the

Each property card has following properties
Slover keyword
Id
color
card image
thickness T etc

Assign properties to each component by right click on

comp> assign> select property.

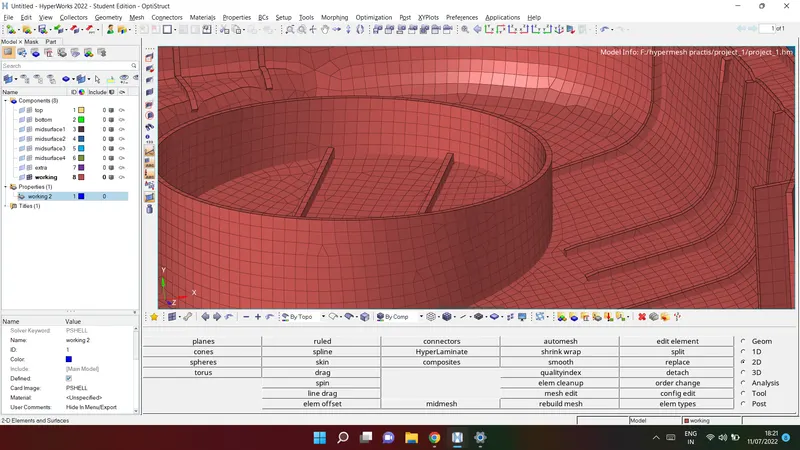

In the graphics area we can see the model after applying properties

note: here I have taken avarage thickness 2

view through 2D detailed element reprentation

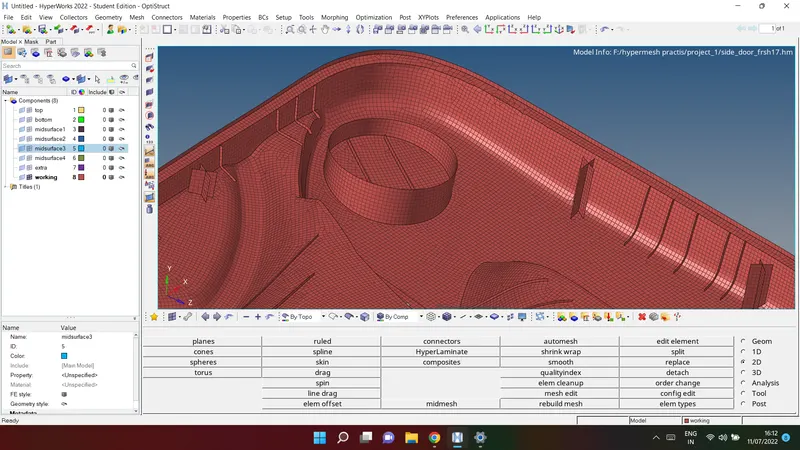

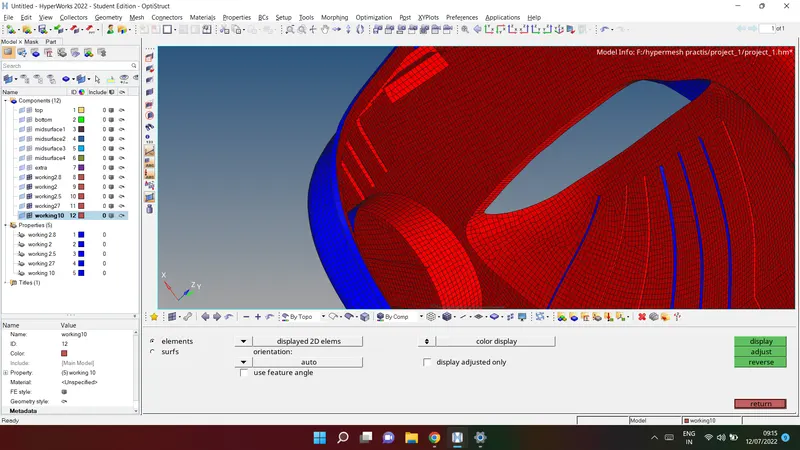

7) 2D detailed elements representation as Result

8) Find Free Edges:

Use the Edges panel to find the free edges in a group of shell elements, find "T"
connections in a group of shell elements. Free edges are defined as a pair of nodes identifying an
element edge that is not shared with another element. Free edges are normally found around the outer
perimeter of a part or around openings within the part.
Free edges found in your model are displayed as red plot elements in their own component called
^edges. Free edges within a field of elements typically indicate a discontinuity within the mesh. Such
discontinuities may be intentional, such as crack modeling for durability simulation, or unintentional,
due to geometry discontinuities, meshing methods or component boundaries. In cases where the
mesh has a discontinuity, there will typically be more than one node at approximately the same
location in space. Such nodes are called "coincident". You can use equivalence to remove the
coincident nodes, based on a search tolerance that you specify.
Steps
a. Go to tools>Edge
b. Select the elements whose associated edges you wish to find.
c. Specify a spherical search radius around each node in the selected component or group of
elements. If multiple nodes are found within this search tolerance they are considered coincident, and
can be resolved with the equivalence function. tolerance is approximately60 to 70 % of the thickness
d. Click on preview equivalence. and equivalence to join nodess.
e. Click on find edges to see the free edges in Red color for mesh

Check for normals:

use the Normals panel to display and reverse the normals of elements or
surfaces. The orientation of element normals can also be adjusted. The normal of an element is
determined by following the order of nodes of the element using the right-hand rule.
Steps
a. Use the Elements subpanel to display and reverse the normals of elements. Select elements
indirectly by components or directly by elements, or elect to have all of the displayed 2D elements
selected automatically. Click display to review the current normal orientation of the selected elements.
Optionally, click reverse to flip the normals to the opposite side (reverse the normals).
b. Adjust normals based on the orientation method you specified
c. Flip all of the normals of the selected elements

Result:
Shell (2-D) mesh is done Successfully for Side Door Panel model by eliminating geometrical errors and
considering the given element quality criteria also assigning thickness using Hypermesh
