Week 12:Project-1-Meshing of Door Inner Panel Challenge

Aim :

To mid surface and mesh the given model in hypermesh.

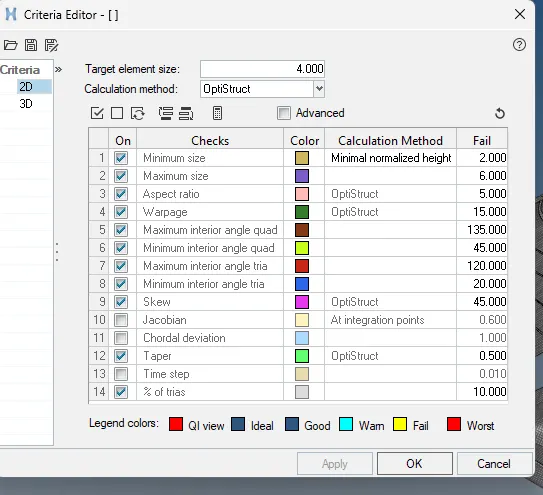

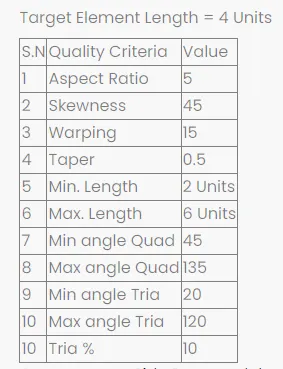

Quality Criteria :

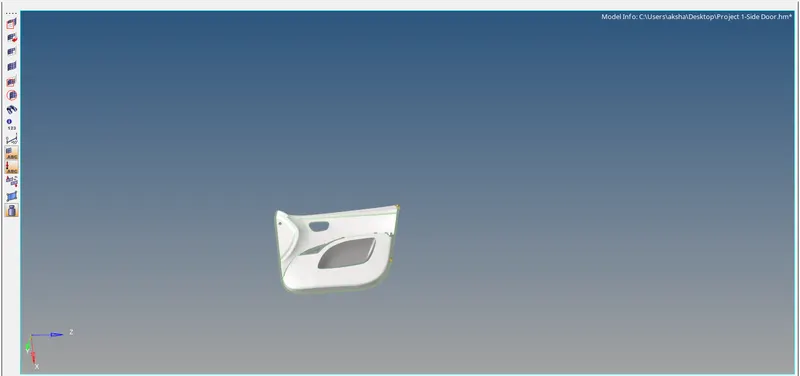

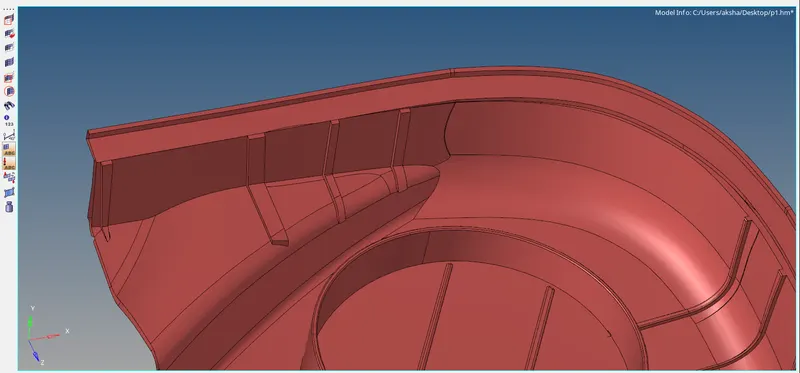

Open the model in hypermesh as shown :

Procedure :

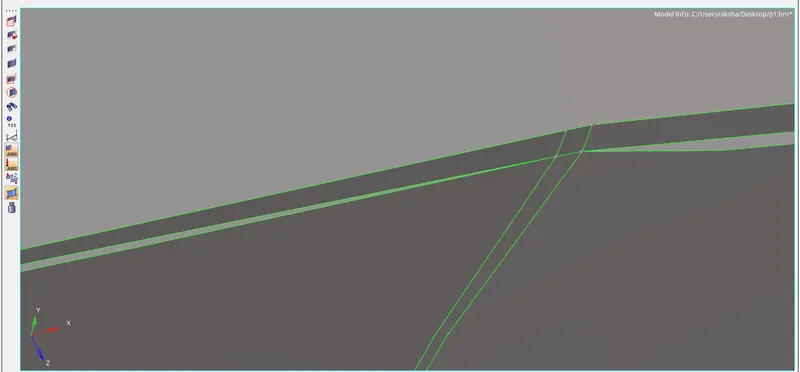

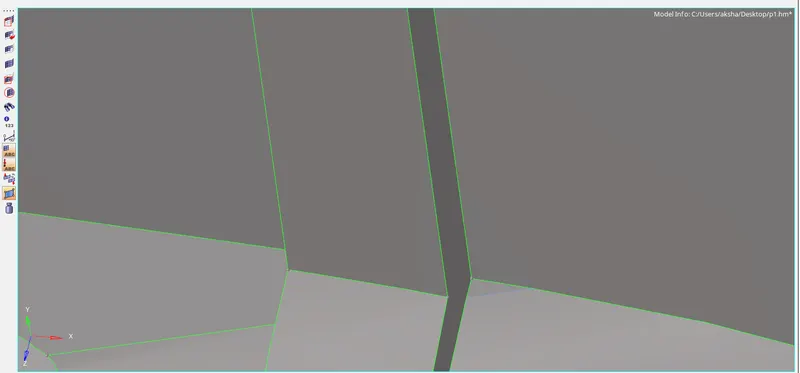

Fixing Geometrical Issues :

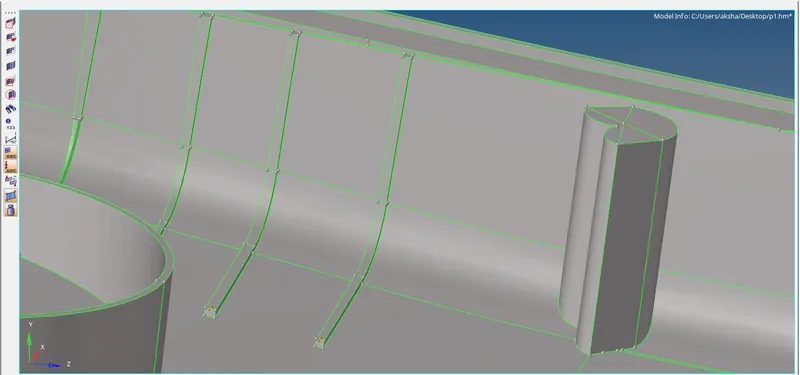

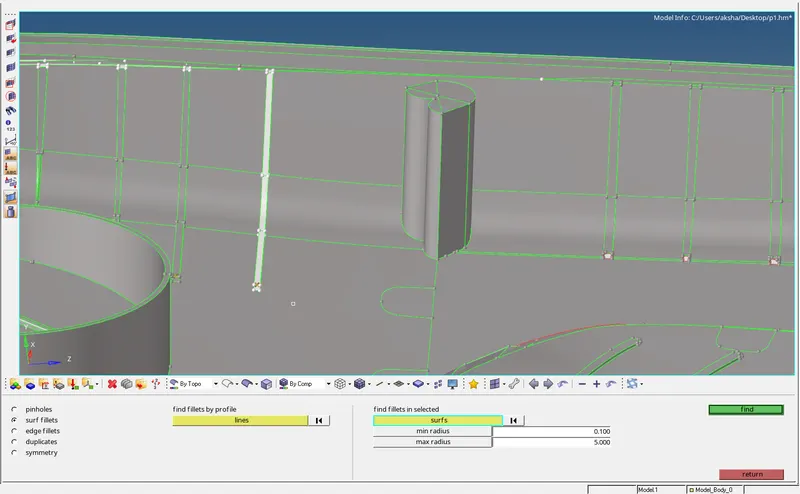

Defeaturing :

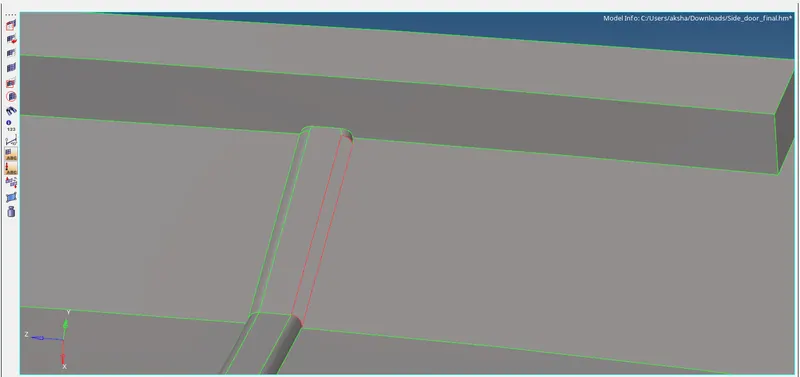

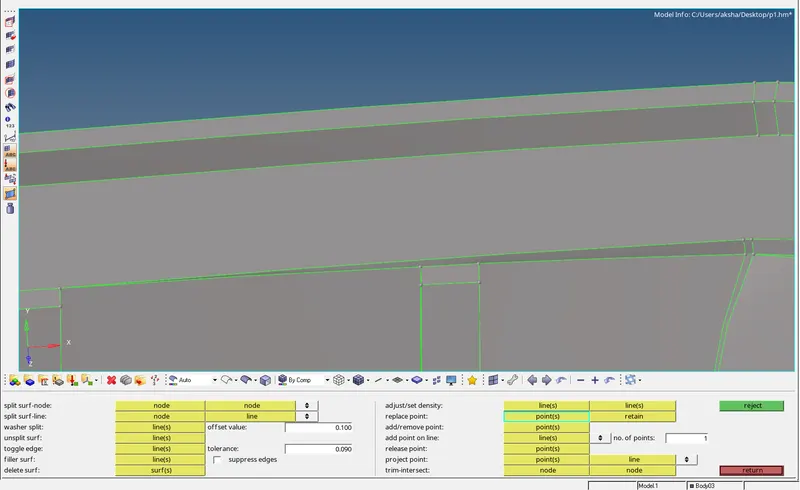

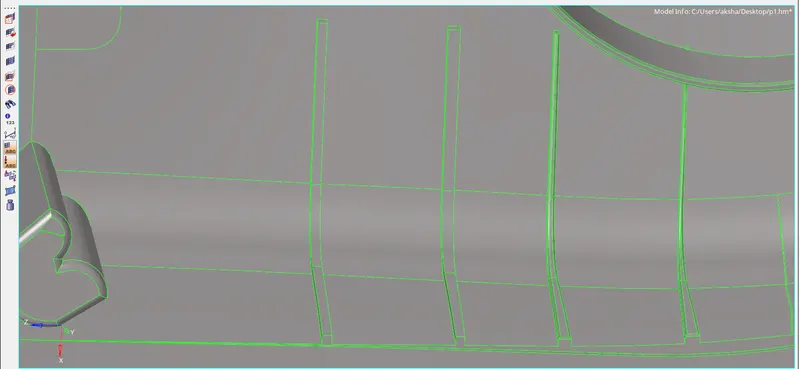

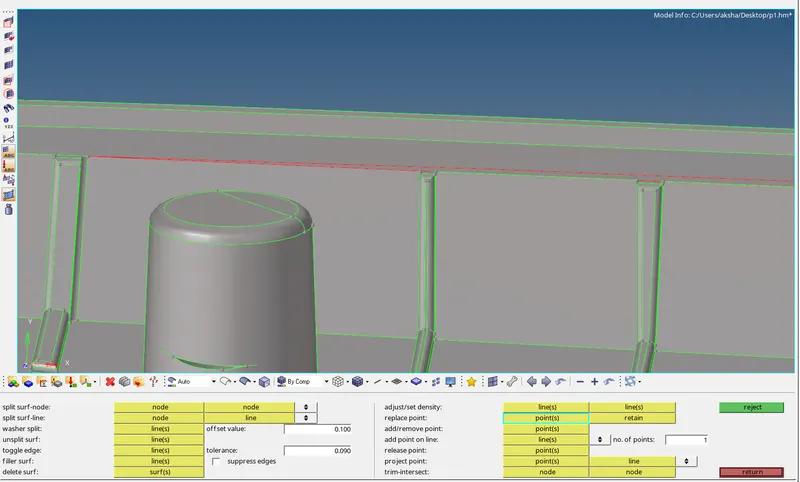

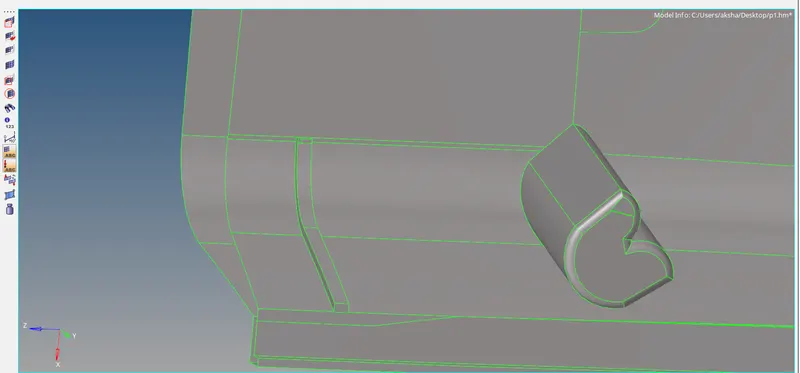

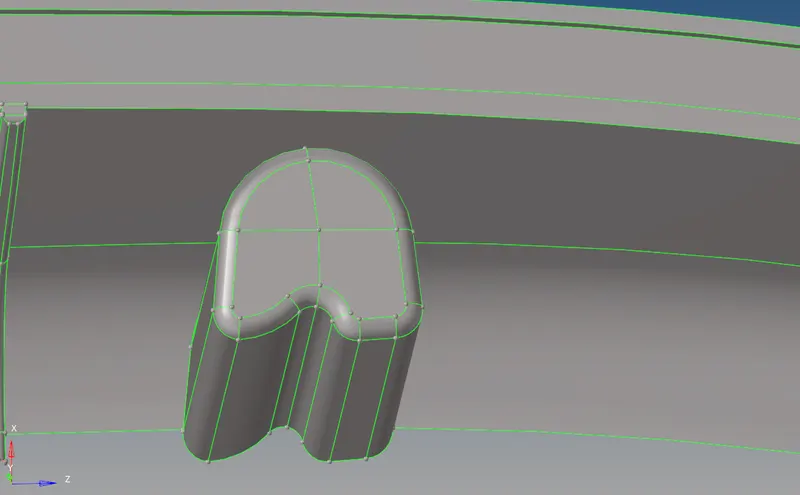

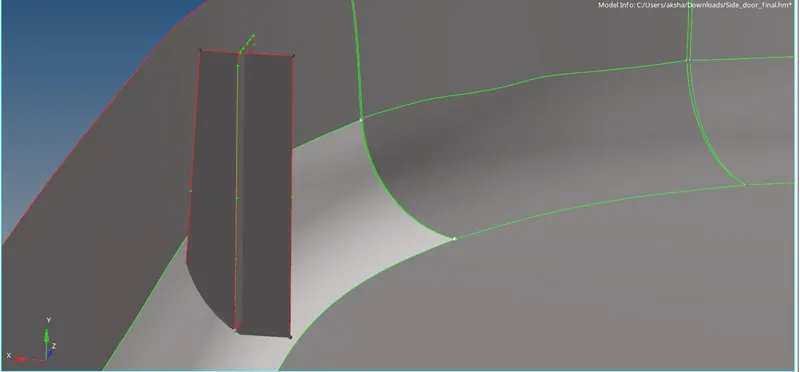

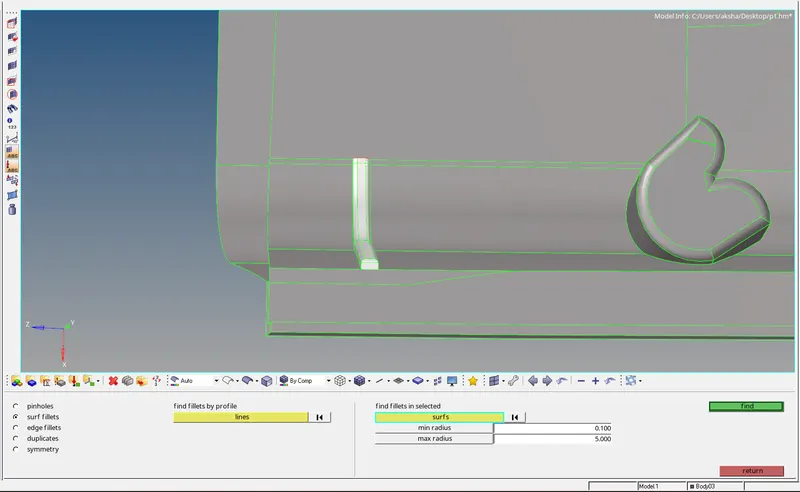

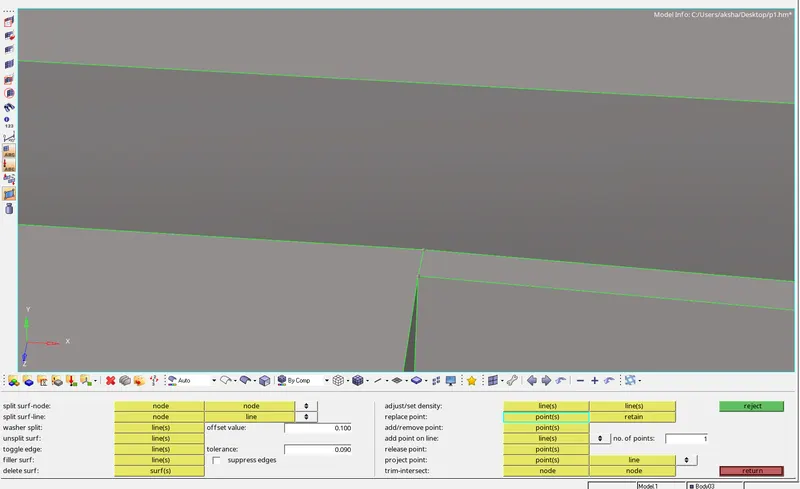

Replacing points, toggling edges, removing surface fillets etc. to fix geometrical issues :

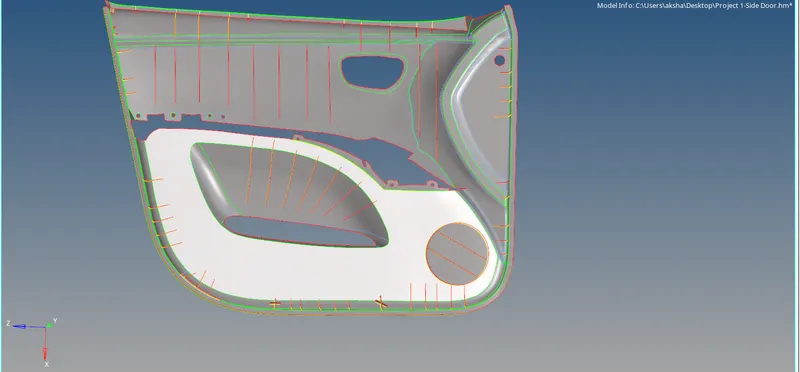

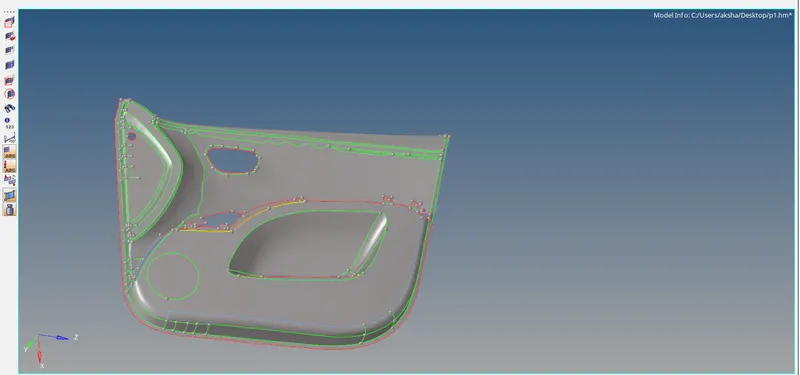

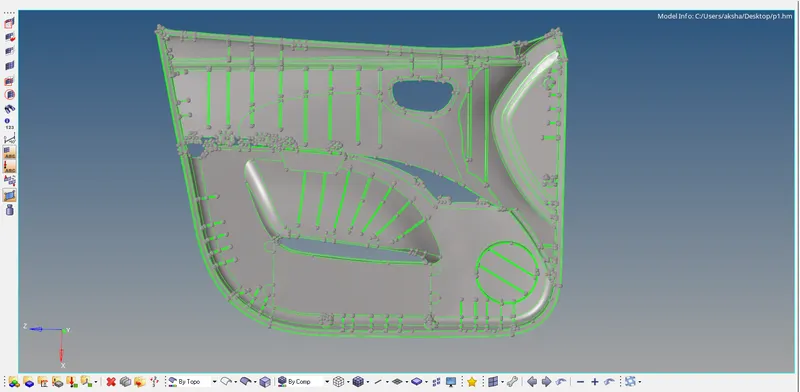

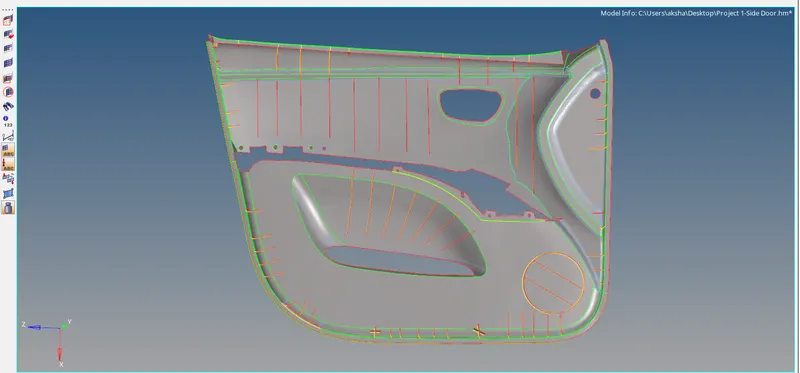

Final Model after fixing geometrical issues :

Midsurfacing :

Since it is a complex geometry we take the mid surface by manual offset method, the areas with varying thickness have been captured by average thickness of the area :

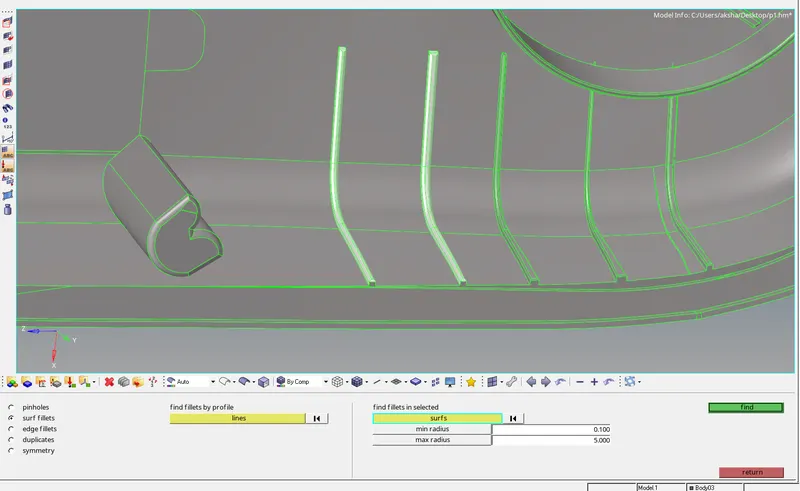

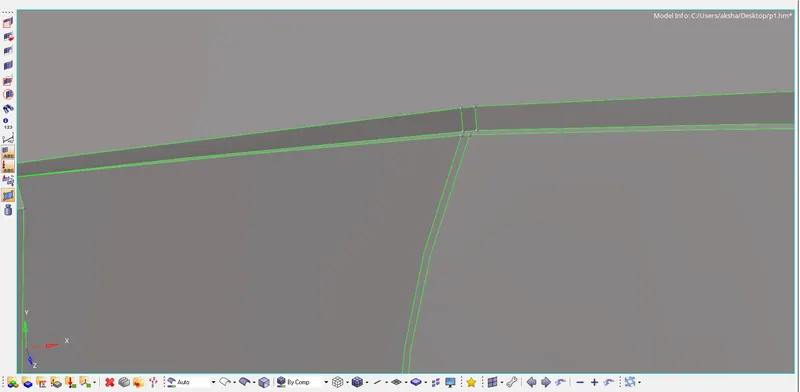

Now we capture mid surface for each feature by defeaturing the surface fillets as shown :

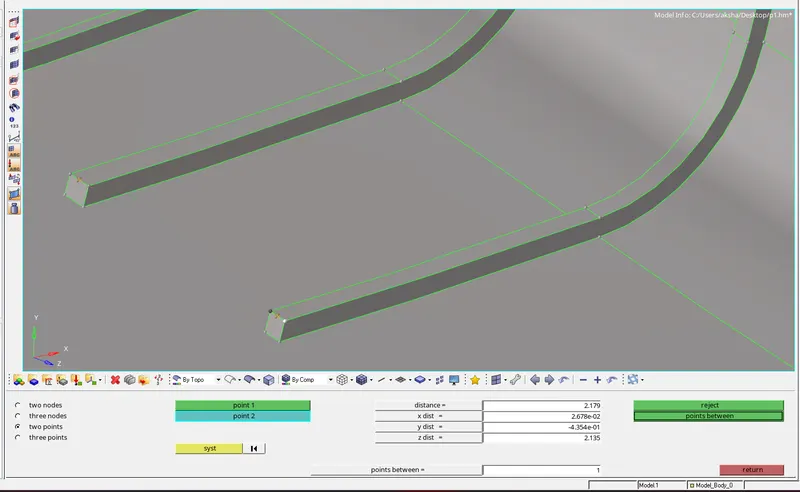

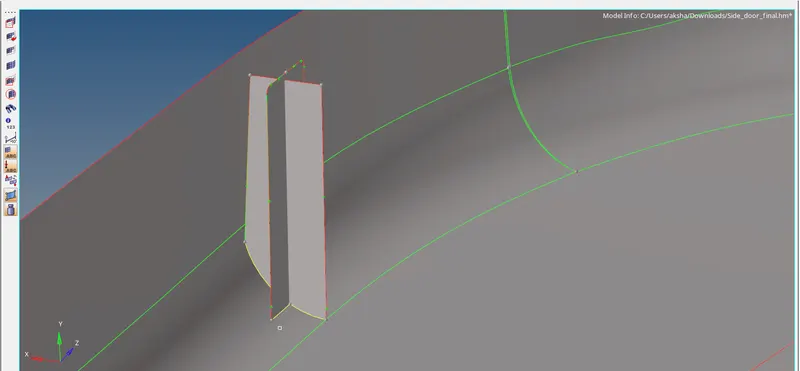

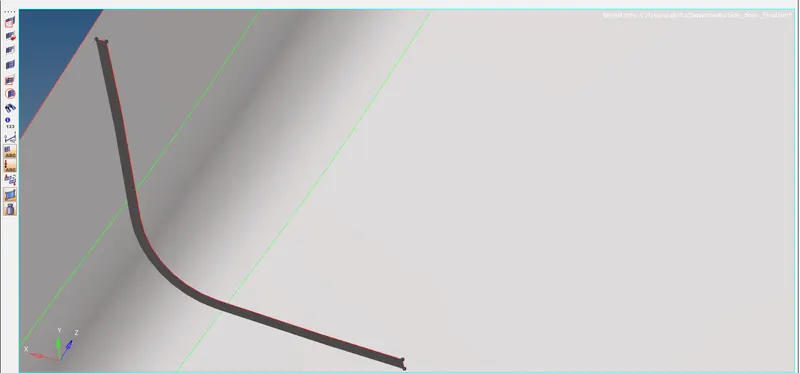

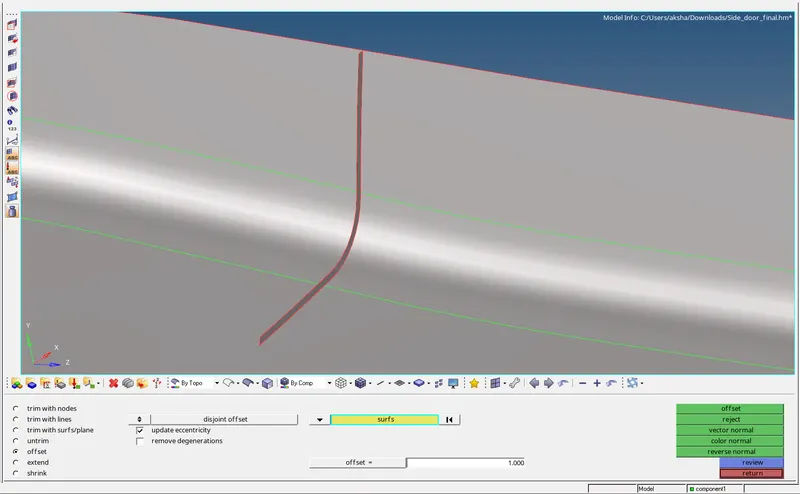

Measure the distance and manually offset to take the mid surface :

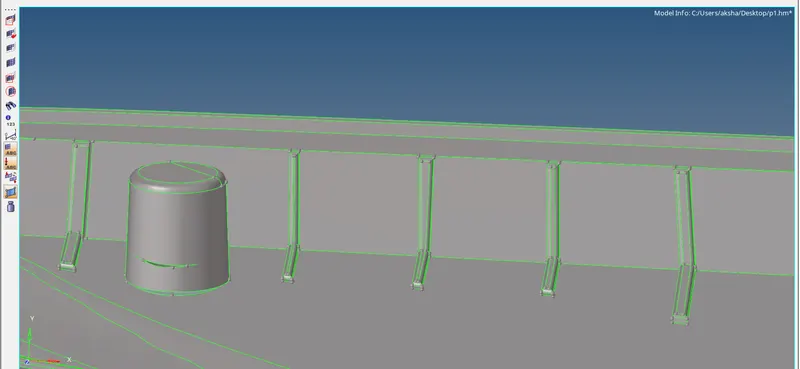

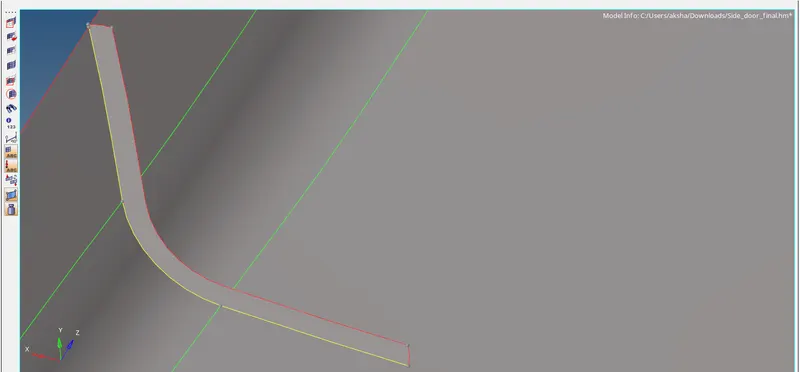

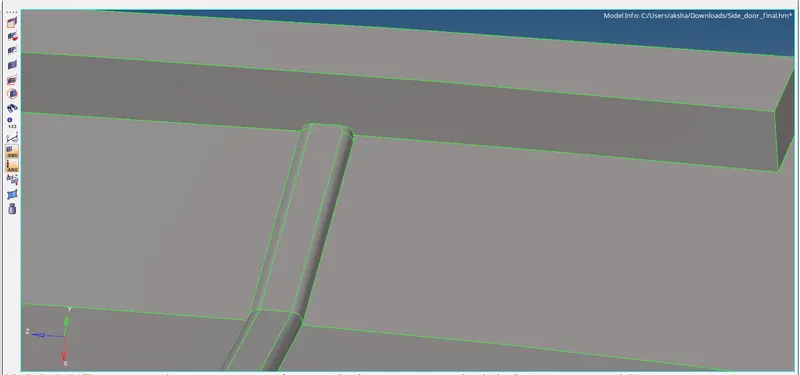

The below-mentioned features are captured as shown :

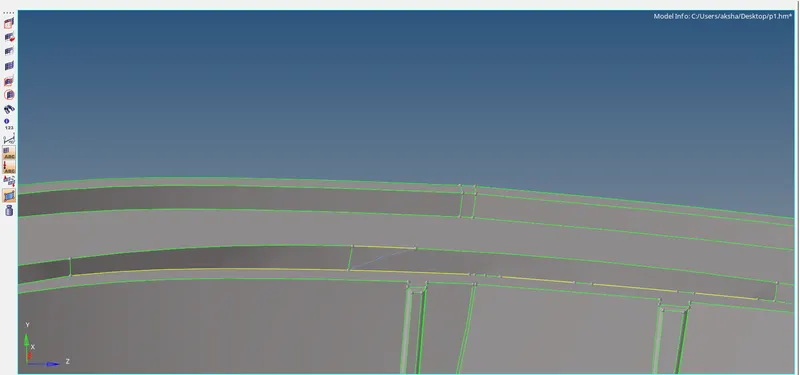

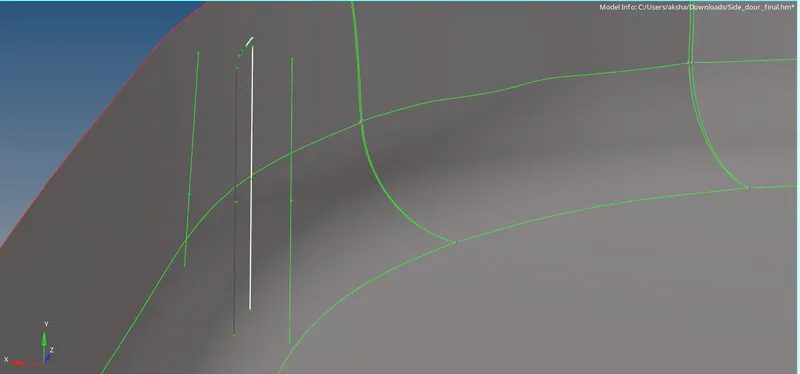

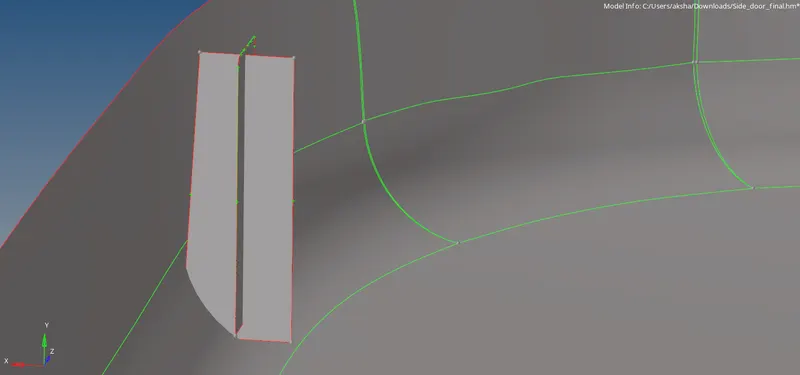

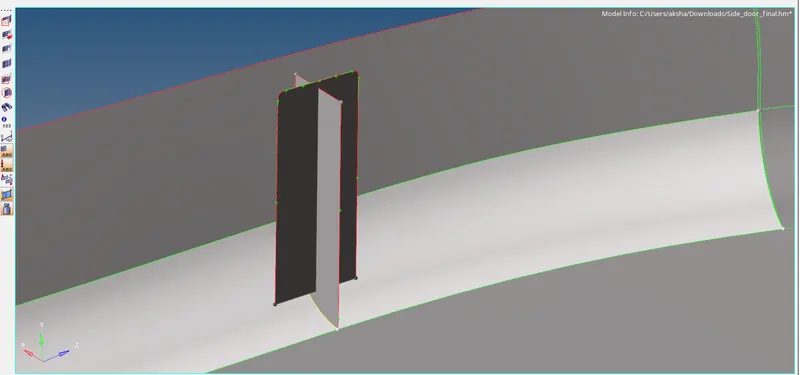

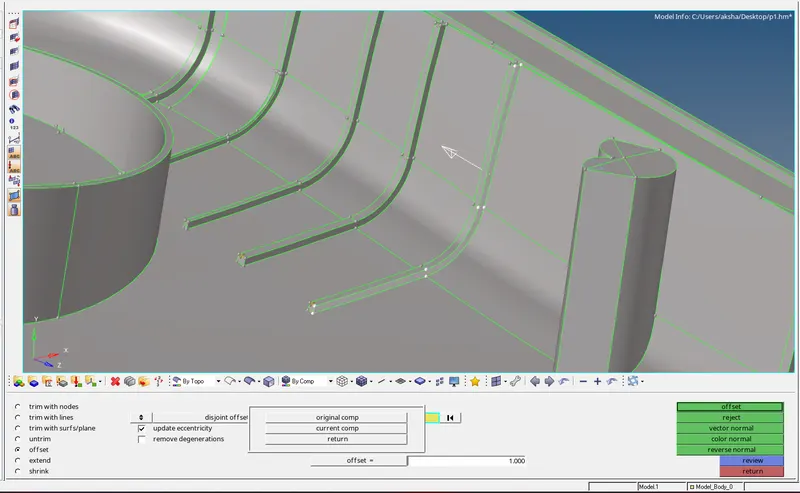

Connect the features to the mid surface by extending the surfaces as shown :

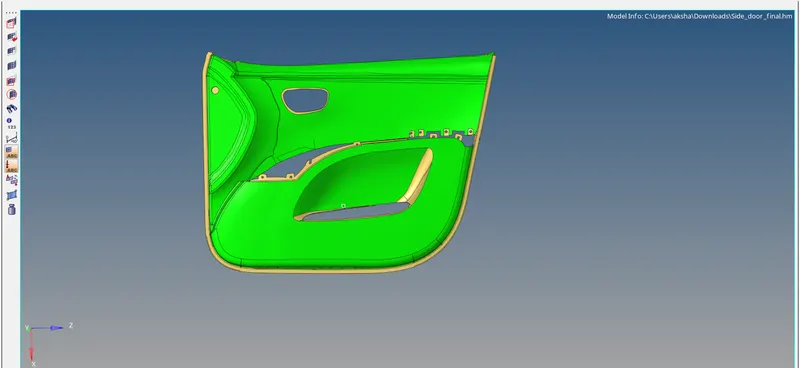

After taking the mid surface the model is as shown :

2D auto mesh is used for meshing the model :

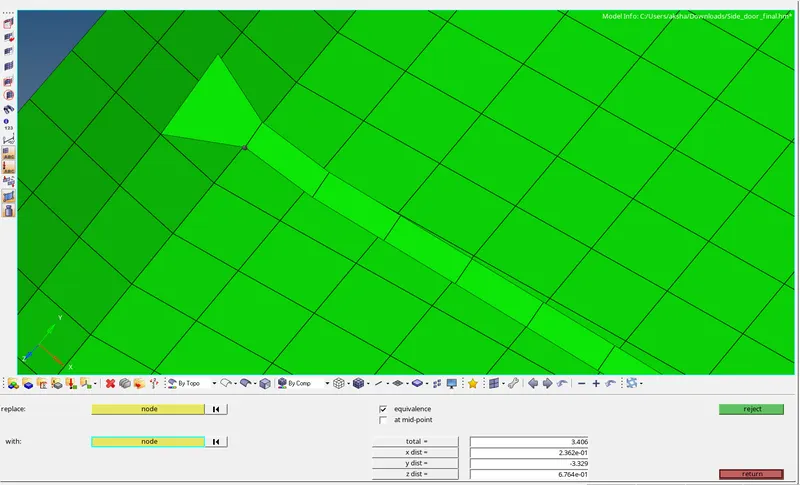

Some features are connected to the mid surface after meshing the model by replacing the node with the node as shown :

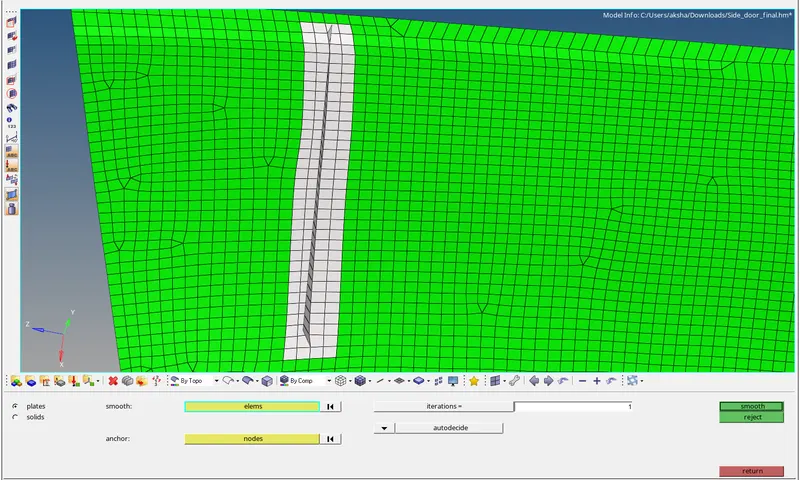

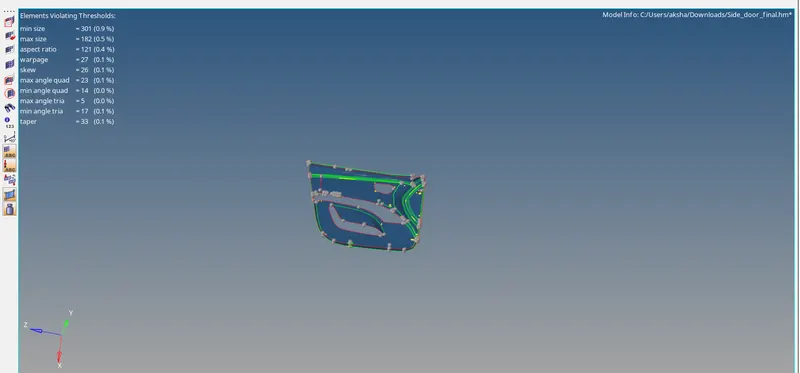

Quality parameters are entered and quality refinement is carried out on the model :

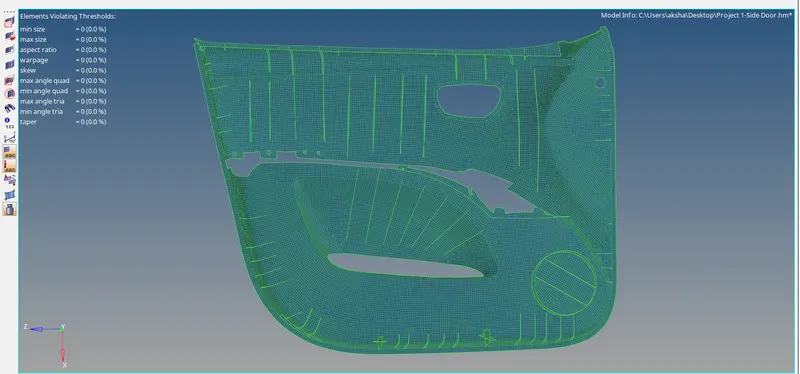

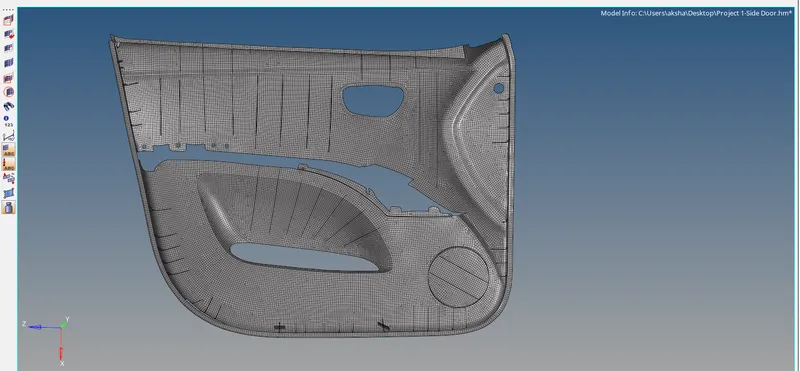

The model is passed for each quality criteria, the final model is as shown :

Assigning thickness :

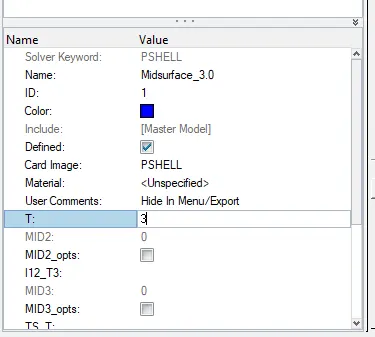

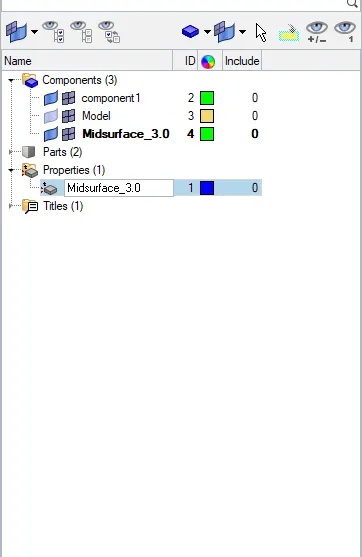

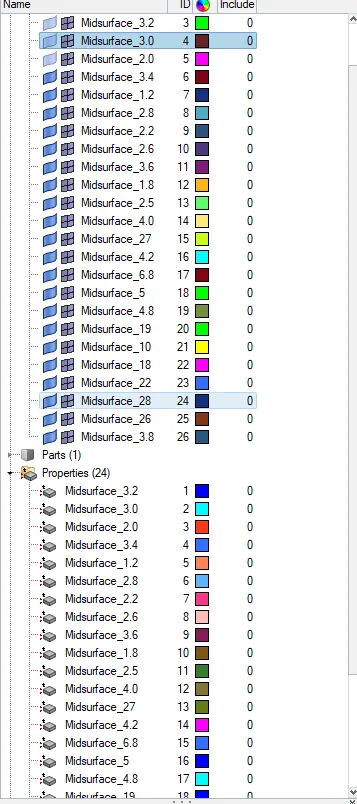

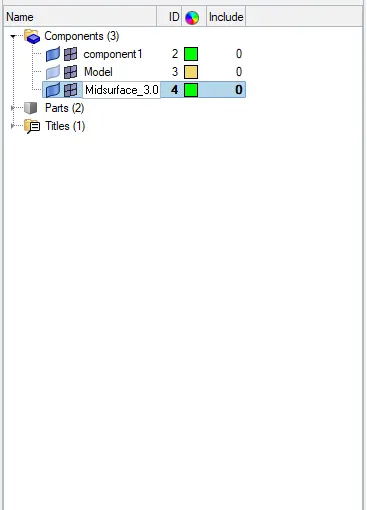

Thickness is assigned to the mid surface and features by creating property cards and collectors for each component as shown :

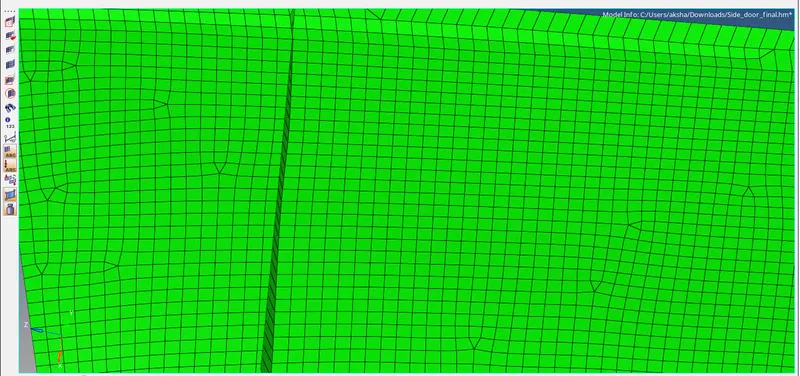

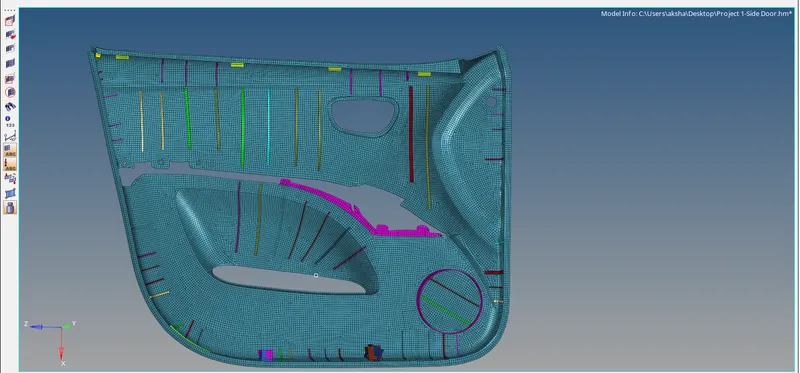

2d Detailed representation of the mesh is as shown :

Learning Outcomes :

Learned to model complex geometries in hypermesh.

Learned to connect mid surfaces and model complex geometries.

Learned to mesh and refine surfaces.

Learned to assign proper thickness to components.

Result:

The given model has been successfully meshed and midsurfaced using hypermesh.
