OBJECTIVE: To mesh the side door component and assign thickness.
Quality Criteria:
arget Element Length = 4 Units
| S.N | Quality Criteria | Value |
| 1 | Aspect Ratio | 5 |
| 2 | Skewness | 45 |
| 3 | Warping | 15 |
| 4 | Taper | 0.5 |
| 5 | Min. Length | 2 Units |
| 6 | Max. Length | 6 Units |
| 7 | Min angle Quad | 45 |
| 8 | Max angle Quad | 135 |
| 9 | Min angle Tria | 20 |
| 10 | Max angle Tria | 120 |
| 10 | Tria % | 10 |
Procedure:
1) Import The geometry
2) Measure the thickness of the component using the distance command (Thickness is 2.8 in this component)

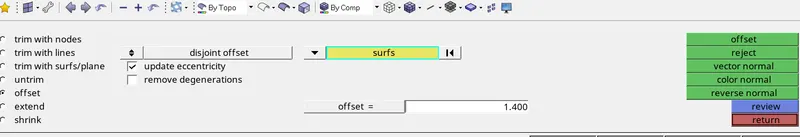

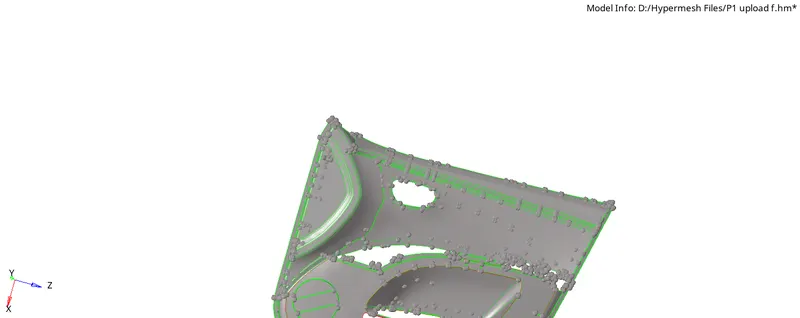

3) Use surface offset option to extract the base mid surface

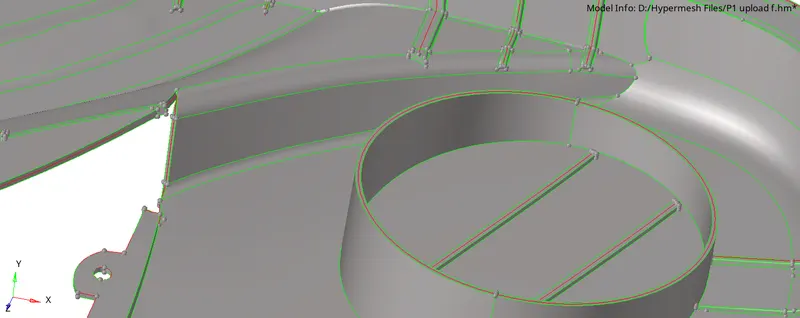

4) To capture other features like cylinder use the offset surface after measuring the thickness

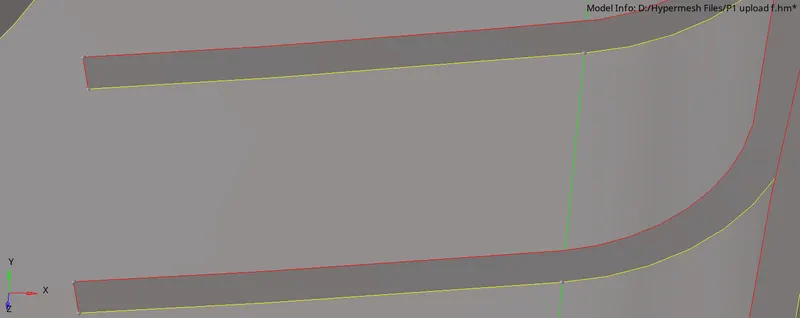

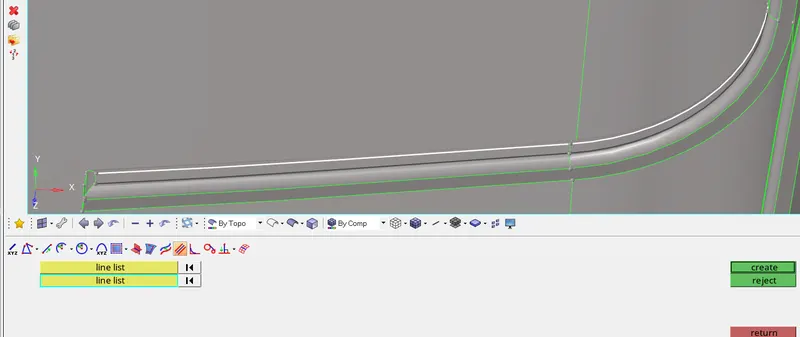

5) To capture the ribs use the midline option then trim the surface and then create the surface using the ruled option.
6) After capturing all the features perform manual geometry cleanup

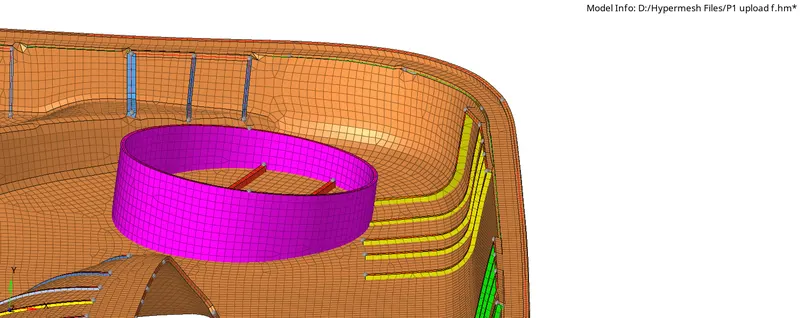

7) Mesh the component as per the required quality criteria

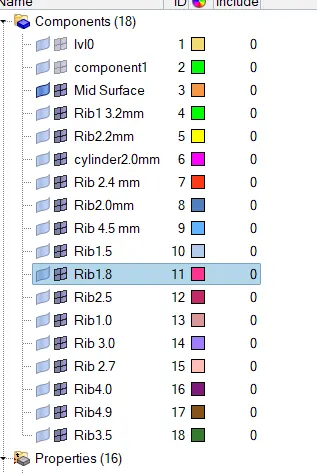

8) Create different components for different features and move their elements into the created components.

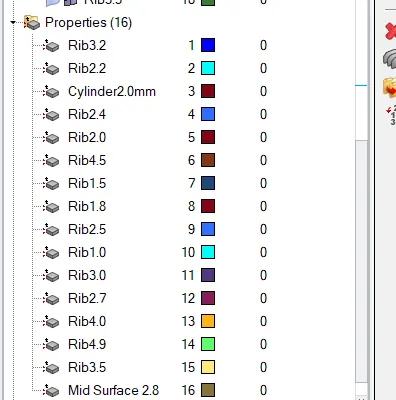

9) Create the properties as per the thickness.
10) Assign thickness to the components.

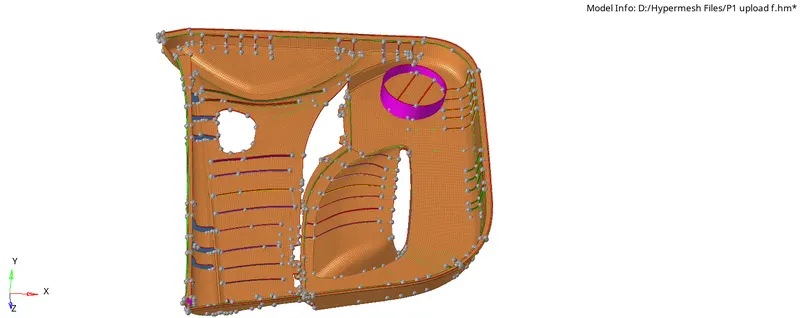

Result :
Meshed the side door component and assigned thickness.
