Week 12:Project-1-Meshing of Door Inner Panel Challenge

Objective:

To follow the Quality Criteria and mesh the Side door Inner panel component and assign thickness

Target Element Length = 4 Units

S.No	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2 Units
6	Max. Length	6 Units
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
11	Tria %	10

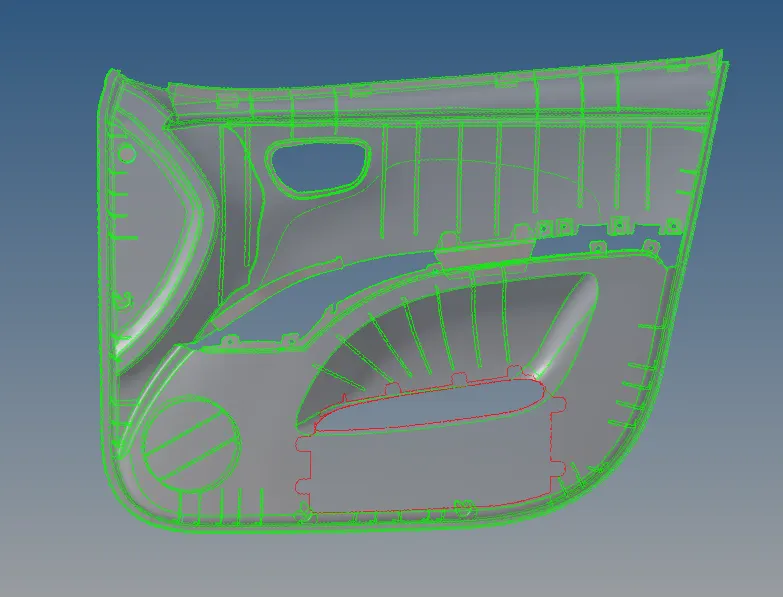

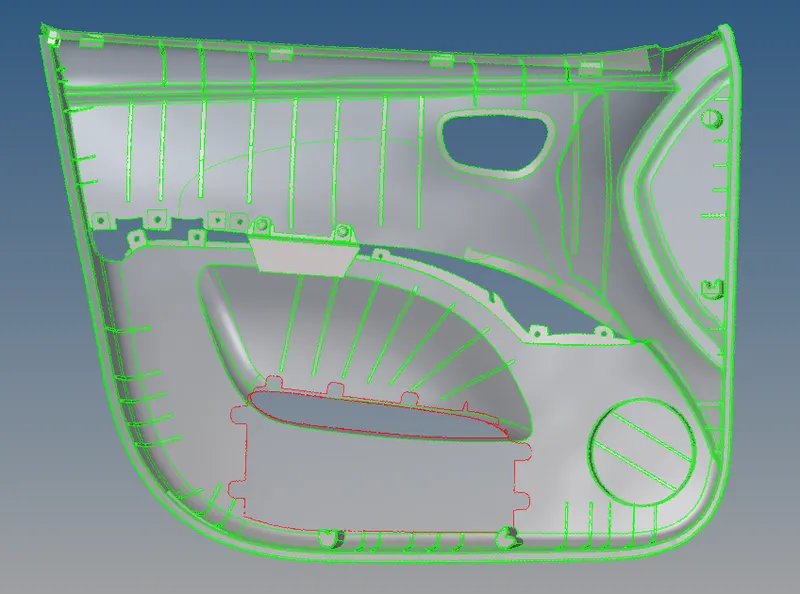

Model:

Procedure:

• Import the model onto the workspace

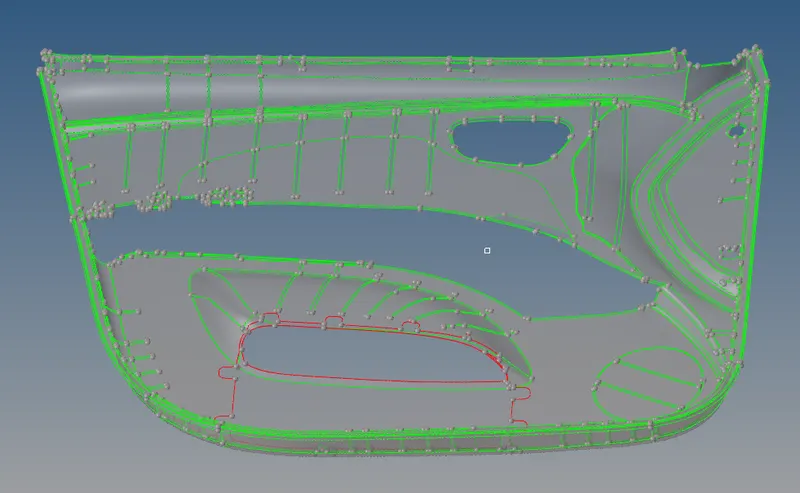

• Perform geometry cleanup at all areas

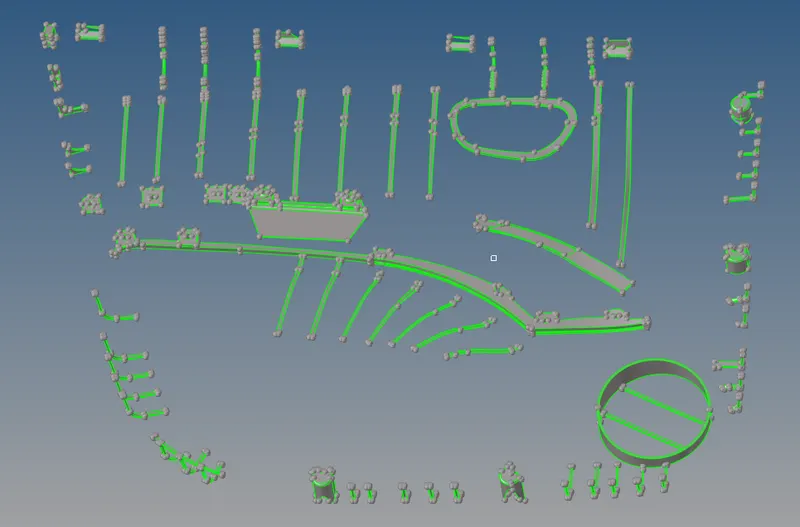

• Segregate the component into parts like the surface and its mountings
•
•
• Extract the midsurface of each and every part by auto extraction or by manual method(Offsetting the surface)
• Create a criteria file and input all values mentioned above

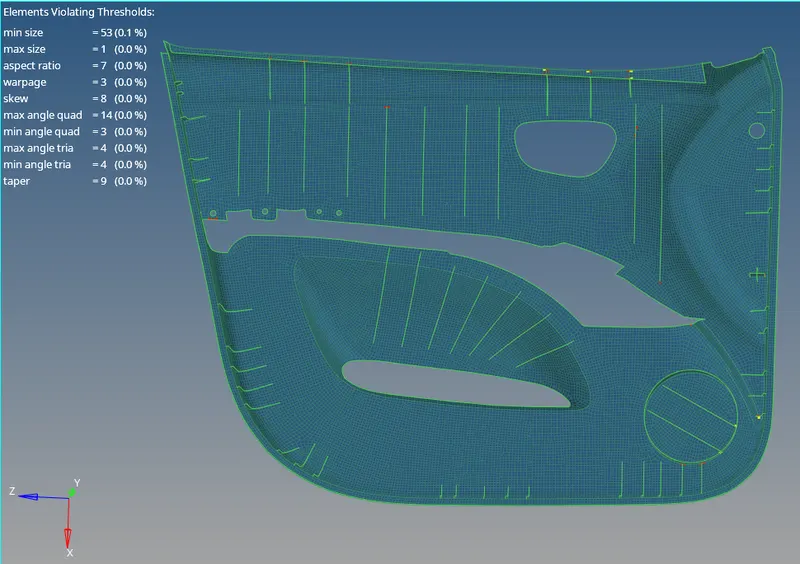

• Perform meshing of all these extracted surfaces by following the quality criteria
• Rebuild the mesh so as to get a proper mesh flow
• Avoid opposite tria elements and rotational quad elements
•

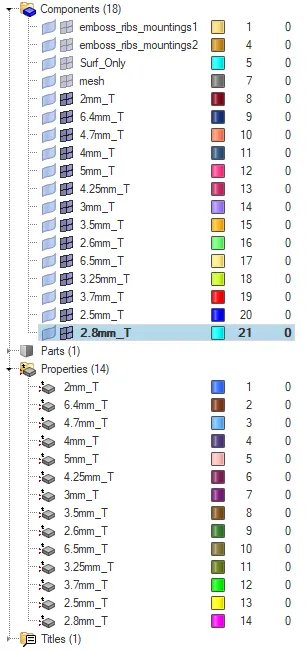

• Now assign property cards to the meshed elements
• Thickness is assigned to elements by using property cards
•

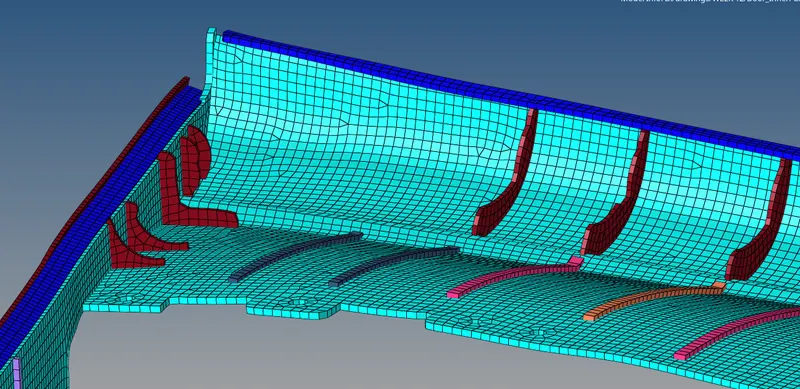

• 2D detailed element representation gives the thickened view of the meshed model
•

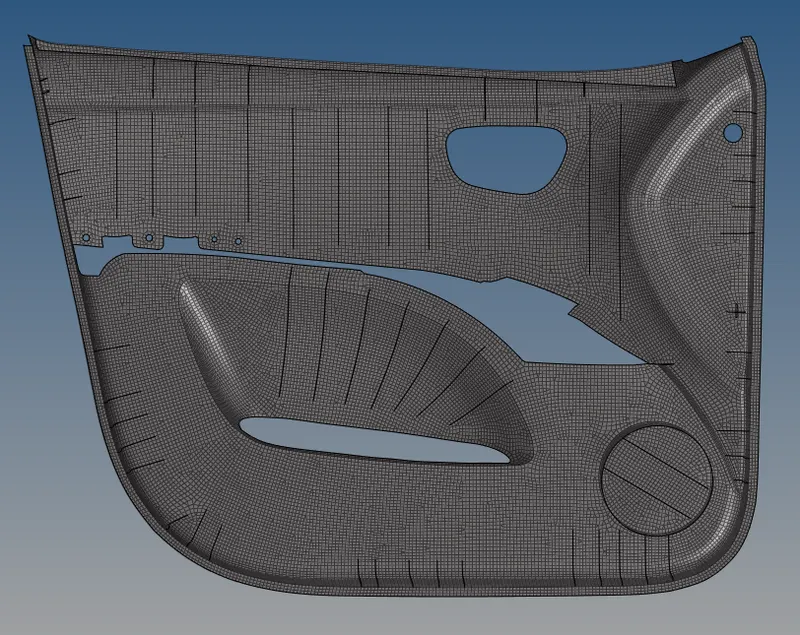

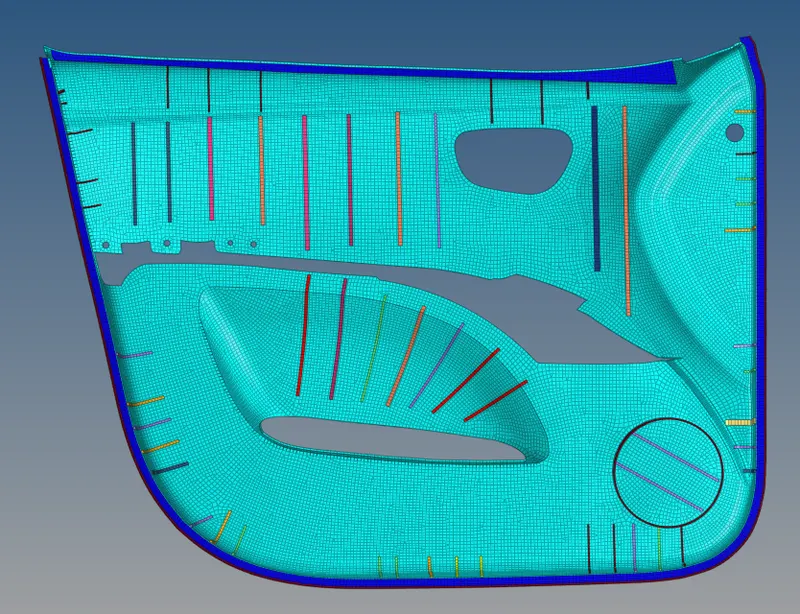

Meshed Model:

File : https://drive.google.com/file/d/1k9dDoPZihHEzQM2cT2VNHSRAEm3f-Ygy/view?usp=sharing
