Week 12- Final project
AIM: Development of door trim panel.
SOFTWARE: CATIA V5.
MATERIAL: Plastic material (Polypropylene) is used.
MACHINE: INJECTION MOLDING MACHINE.
PLASTIC COMPONENTS:
- MAP POCKET
- ARMREST
- BOTTLE HOLDER
- LOWER SUBSTRATE
INPUT: CLASS A SURFACES
PROCEDURE:
Tooling axis, Class B, C & closed surface, Draft analysis, solid part, Attachment feature creations.
STEP 1: Creation of class B & class C from input (class A).
The class A surfaces are given as input. First, we need to create the tooling axis. According to this tooling axis, a class B surface is created (thickness 2.5 mm) through surface modeling with reference to class A. And then class C surface is created. Class A and B&C are trimmed to create a closed surface.
STEP 2: Creation of solid part.
The closed surfaces are converted into a solid part. Draft analysis to detect the part will be easily removable from the cavity. This is denoted by some colors like green is >=5 degrees (safe), blue is 5-0 degree, and red is <0. we can edit the surfaces according to the draft analysis result.

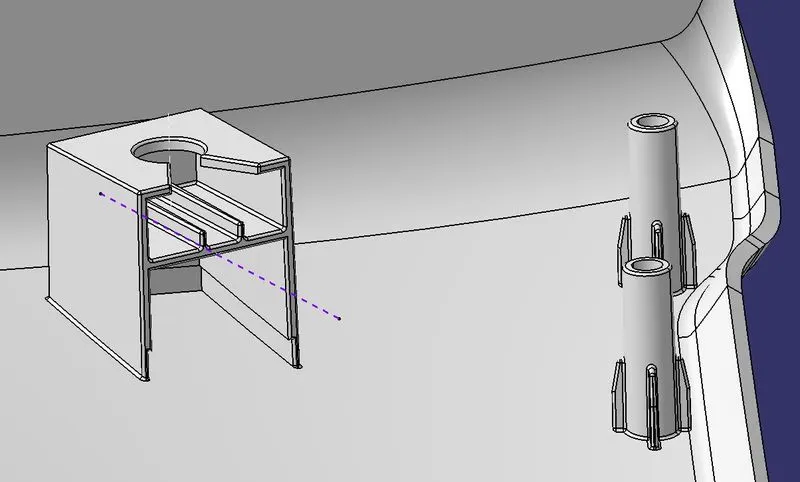

STEP 3: Creating heat stakes, locators, flange & dog house.

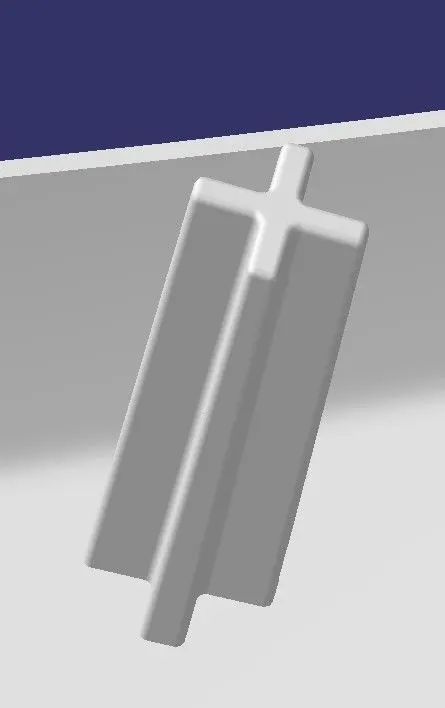

LOCATER

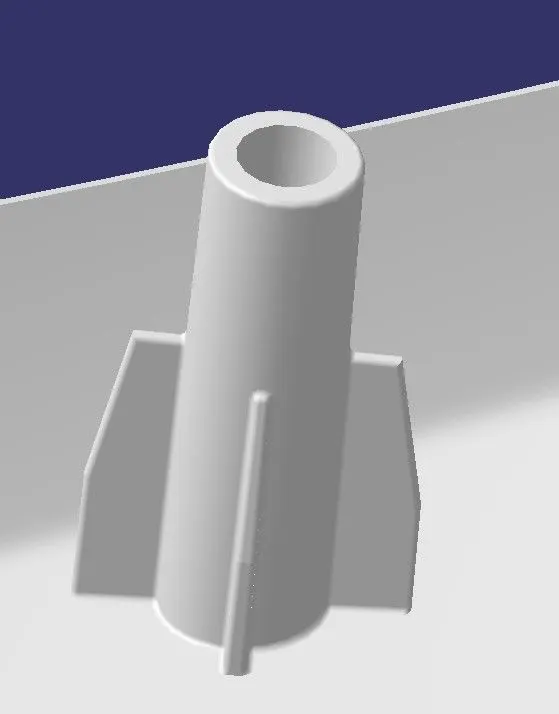

HEAT STAKES

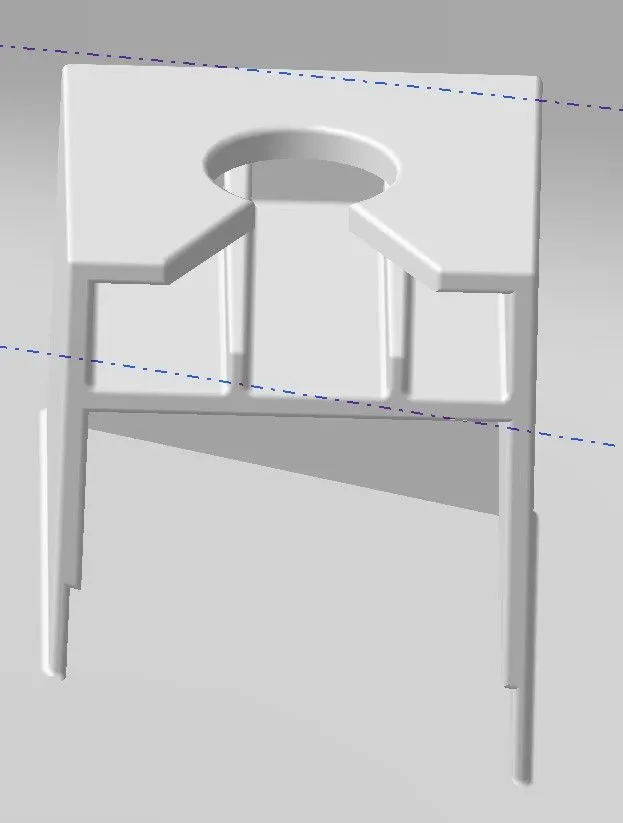

DOG HOUSE

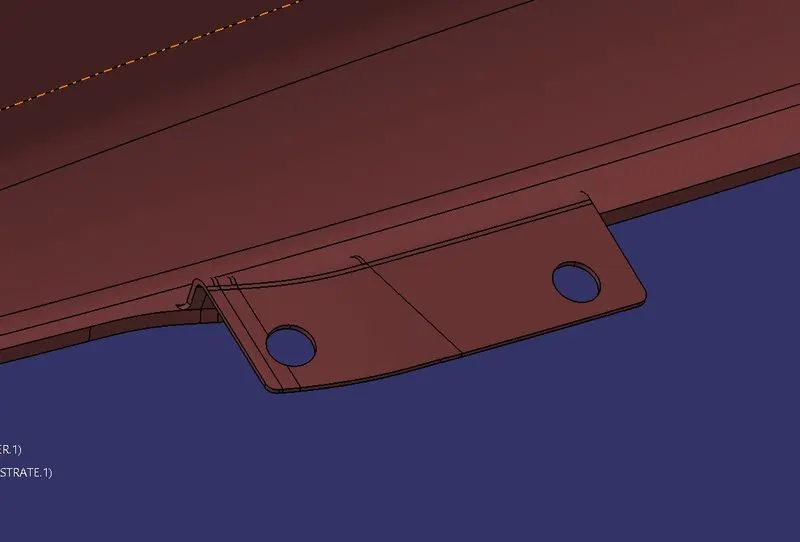

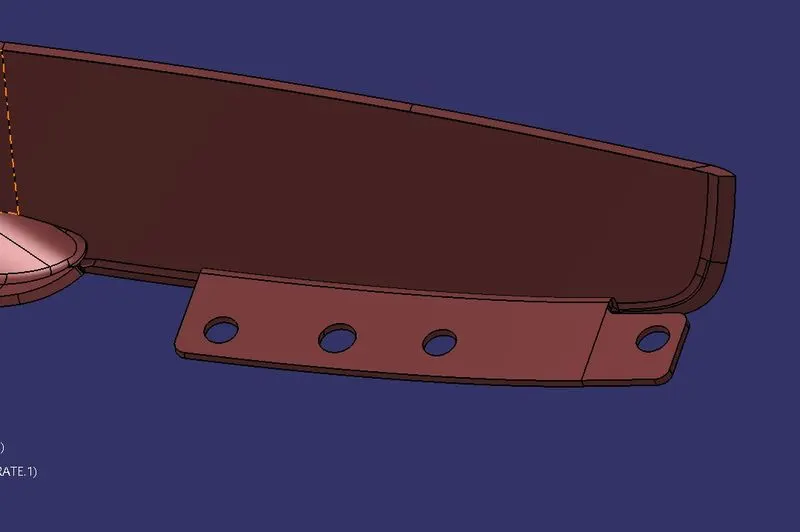

FLANGES
STEP 4: Assembling the part to the product.

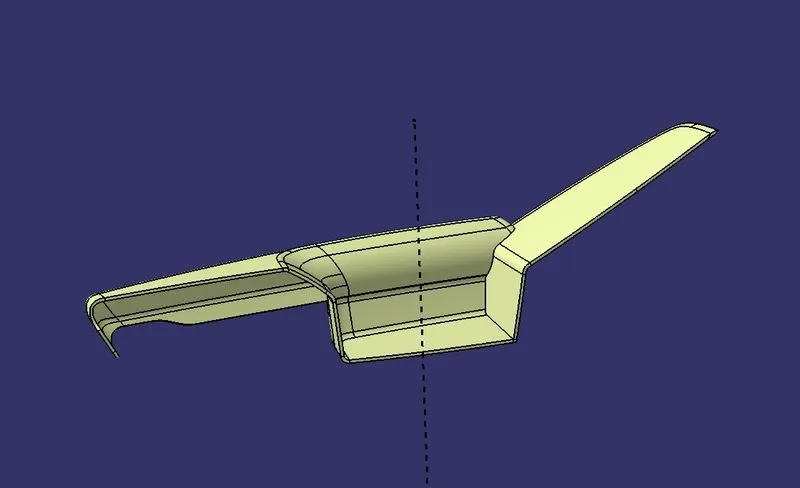

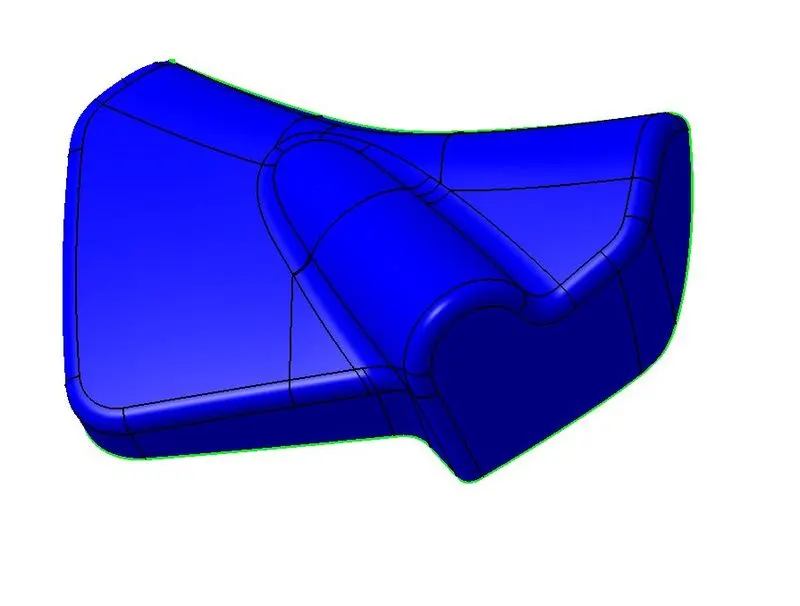

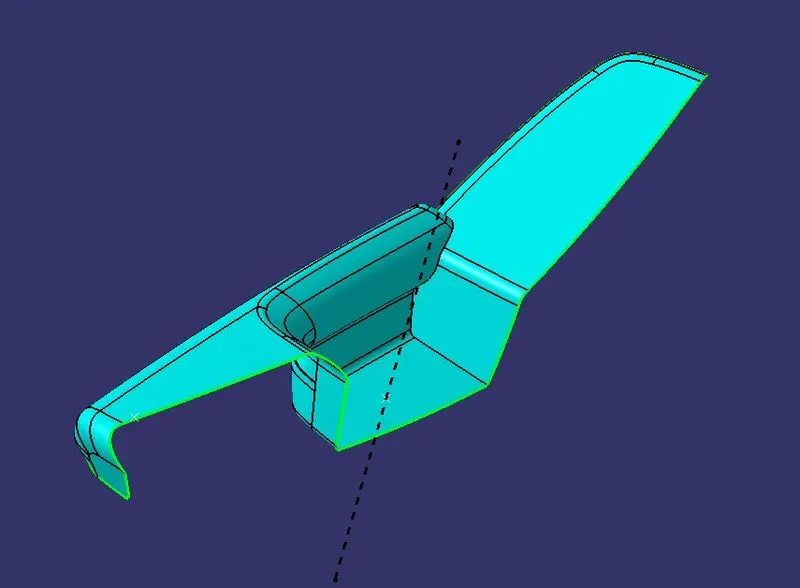

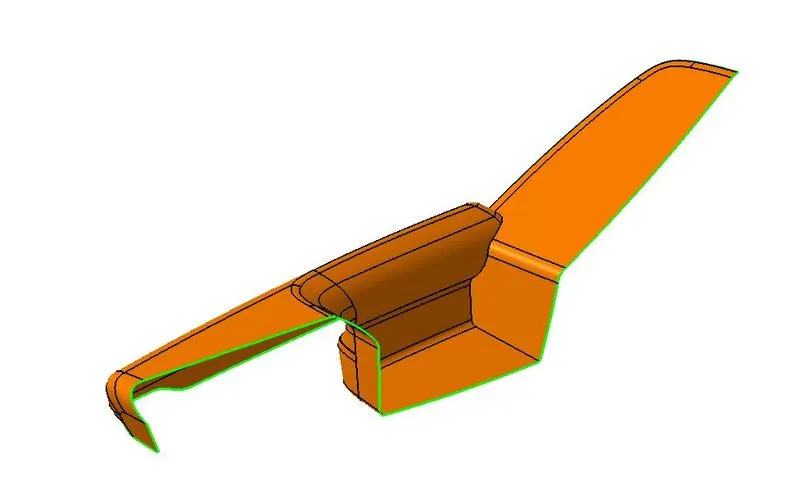

ARMREST:
CLASS B
CLASS C

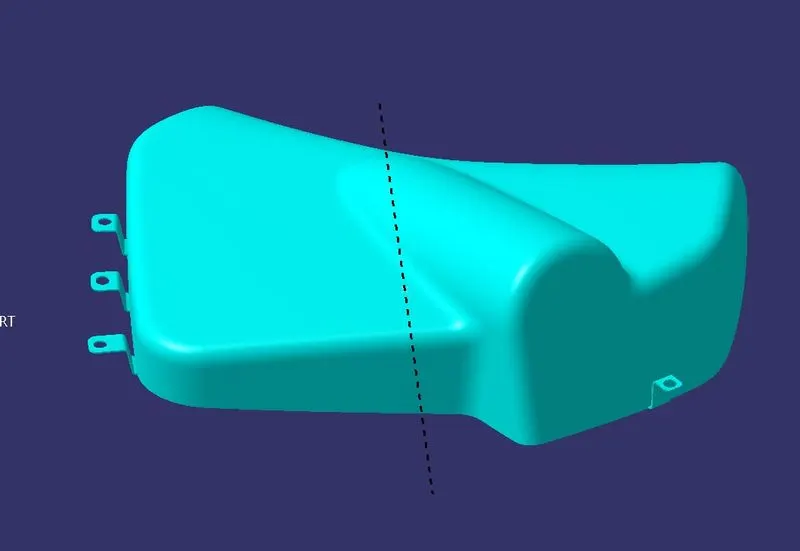

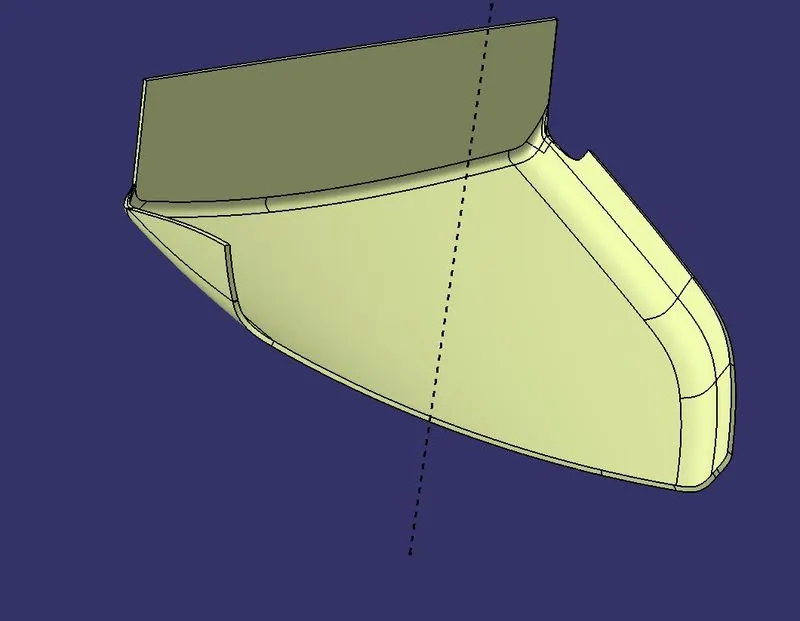

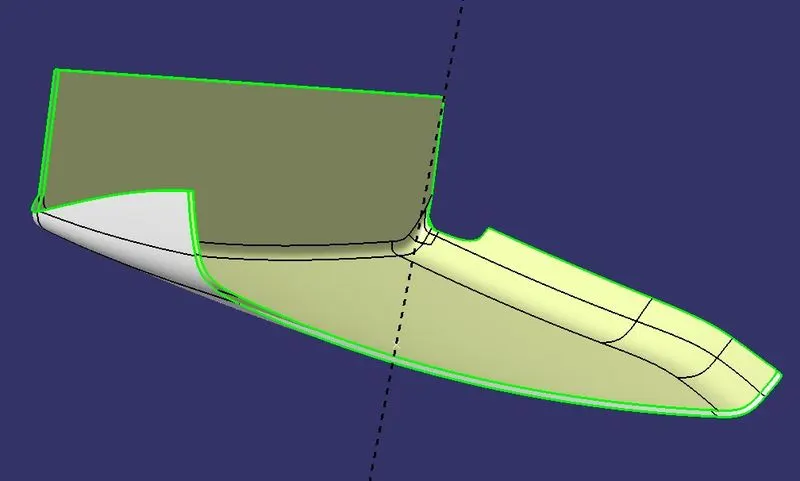

CLOSED SURFACE OF ARM REST

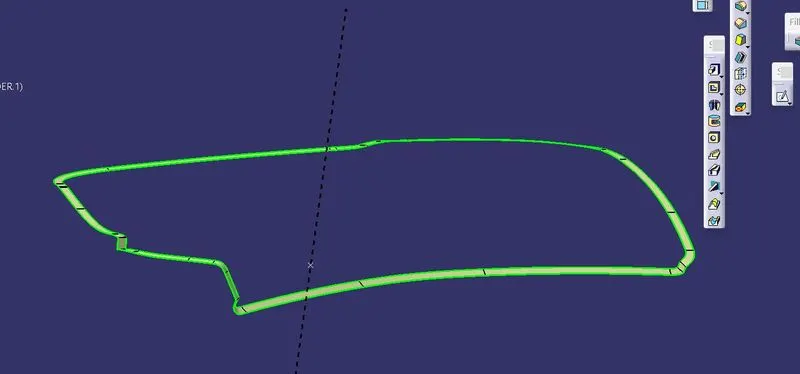

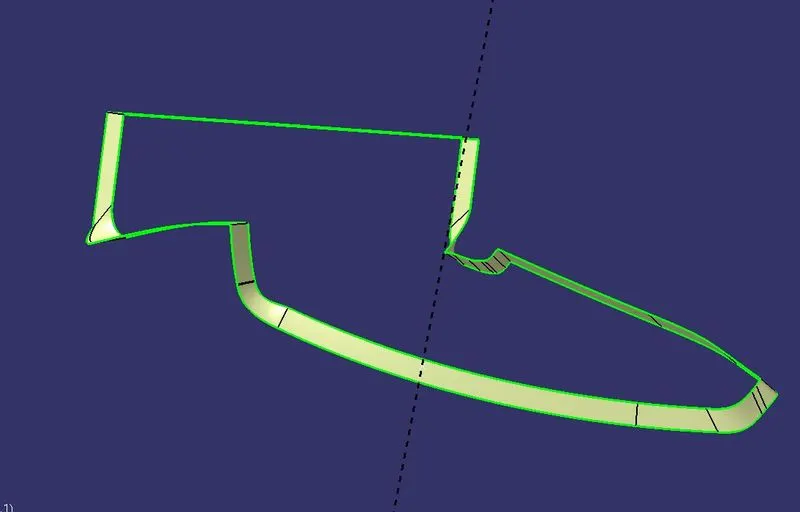

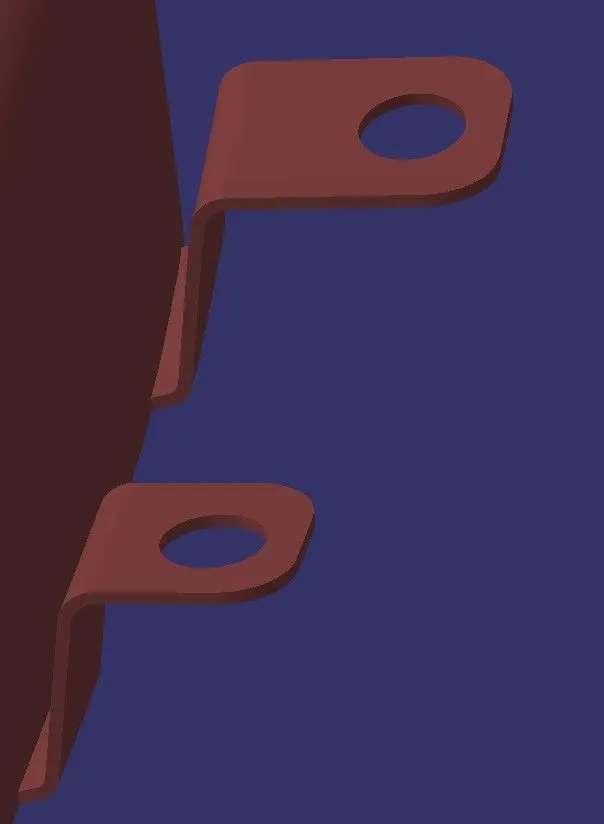

FLANGE

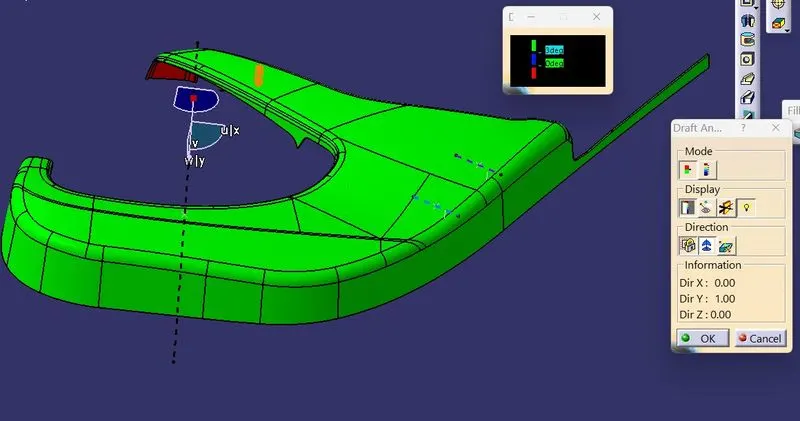

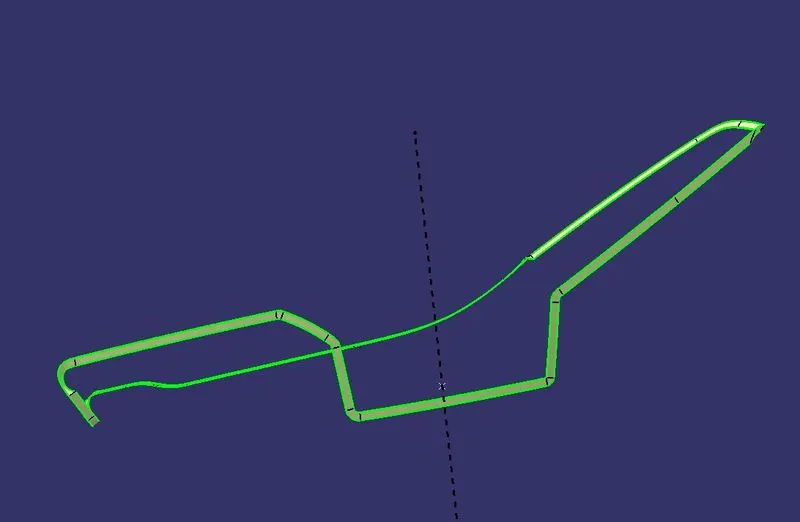

DRAFT ANALYSIS WITH REFERENCE OF THE TOOLING AXIS
1. HERE DRAFT ANALYSIS FOR FLANGE 0-0.5 DEGREES (GREEN)
TOP TOOLING AXIS TESTING GREEN 5 DEGREES
SIDE TOOLING AXIS DRAFT CHECKING

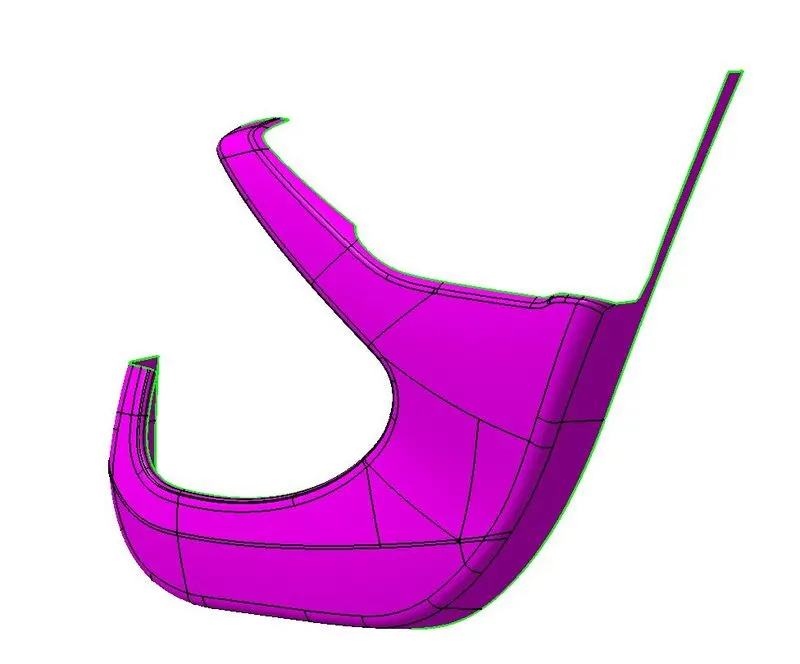

BOTTLE HOLDER
CLASS A&B
CLASS C

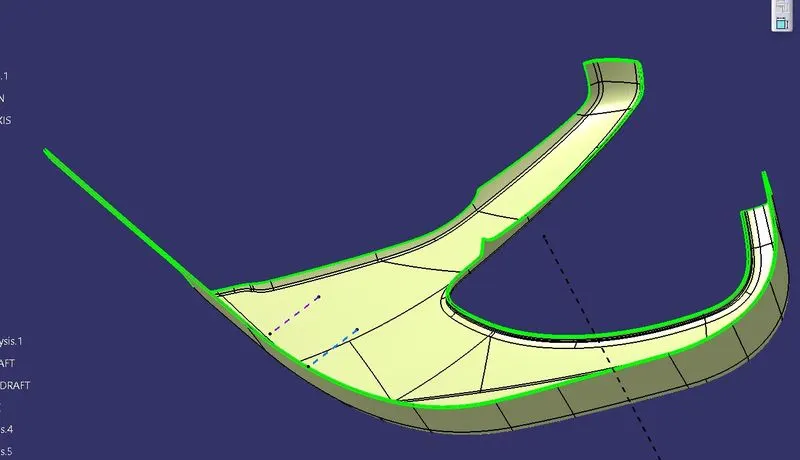

CLOSED SURFACE

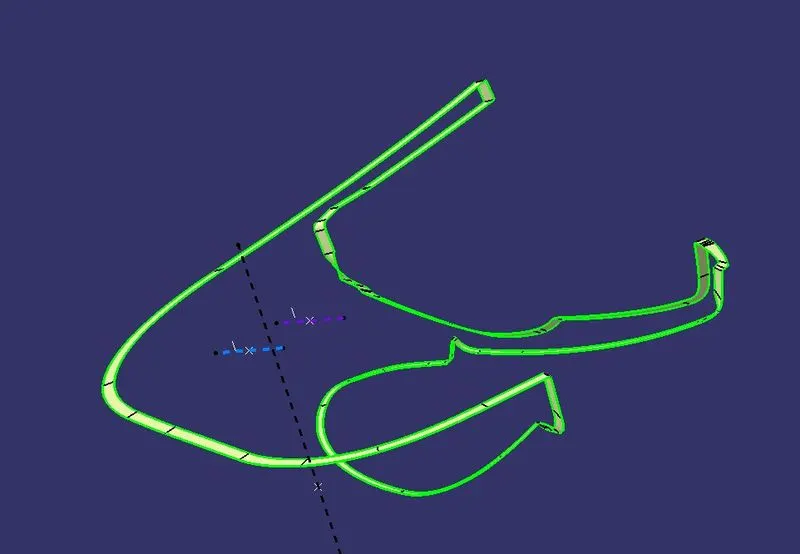

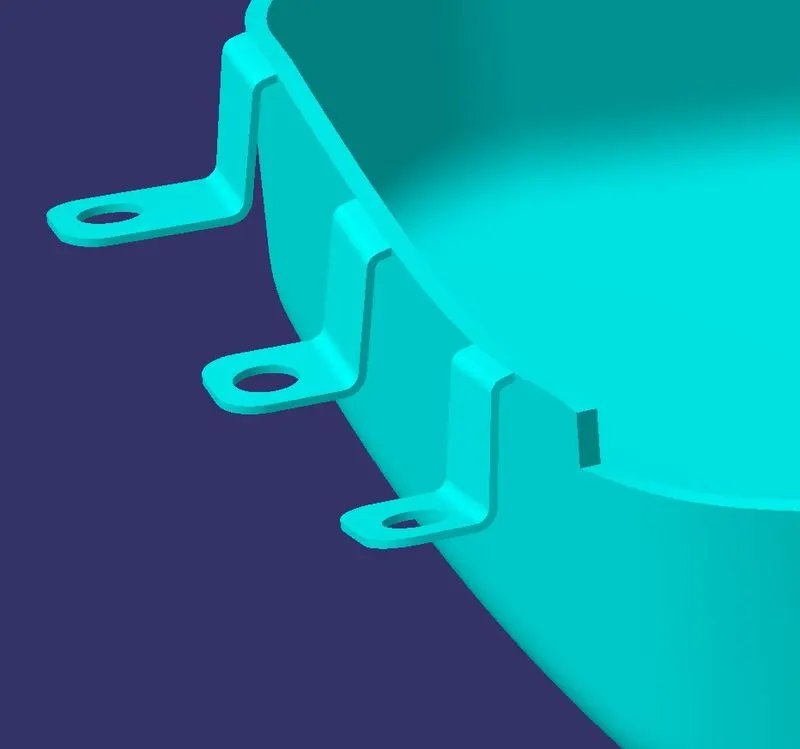

FLANGES

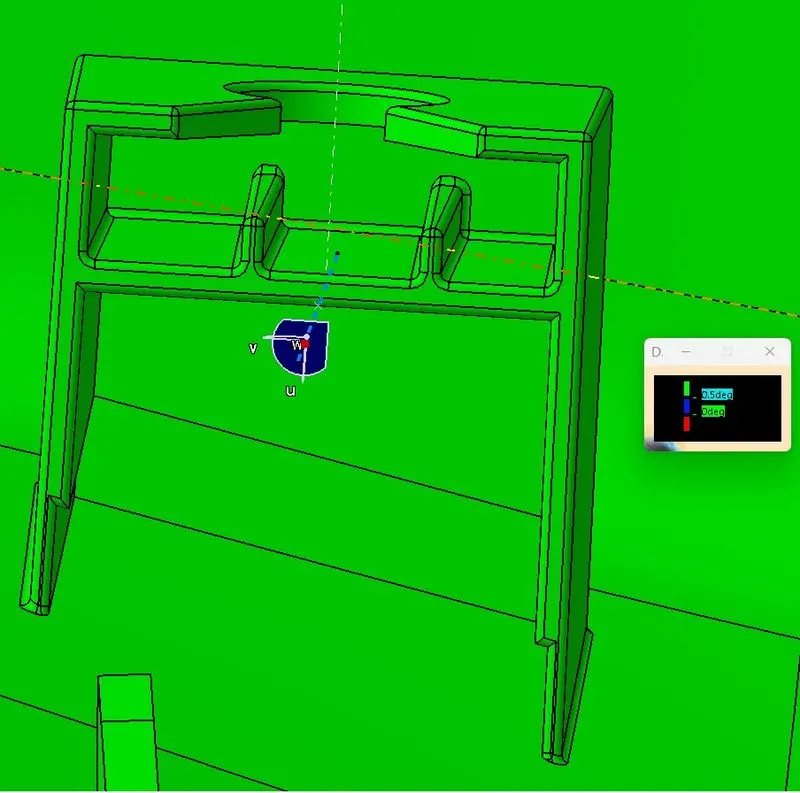

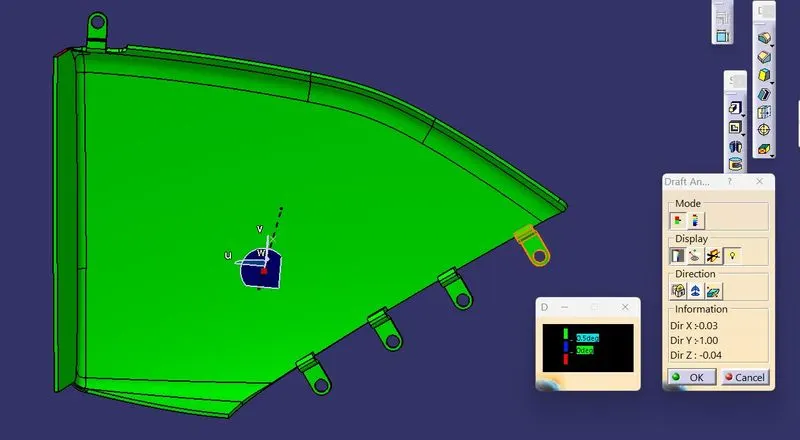

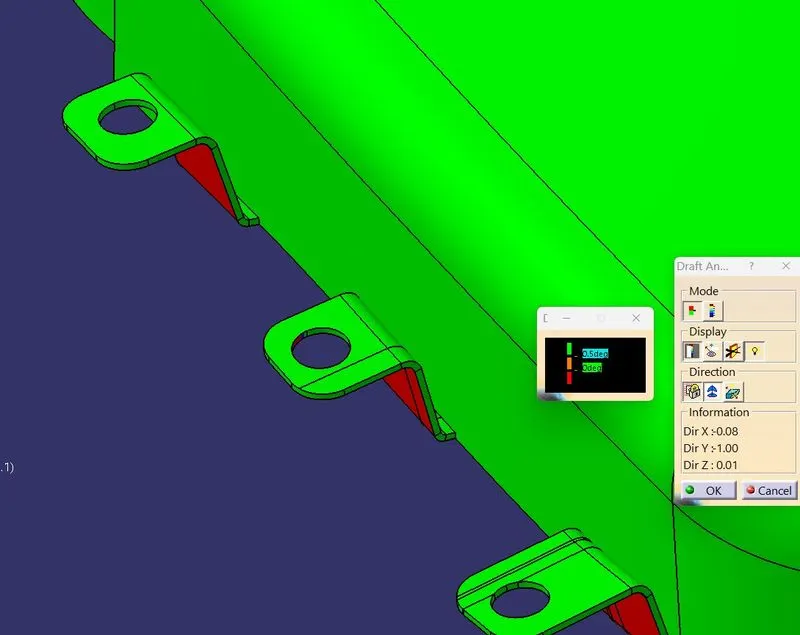

FLANGE DRAFT ANGLE TEST

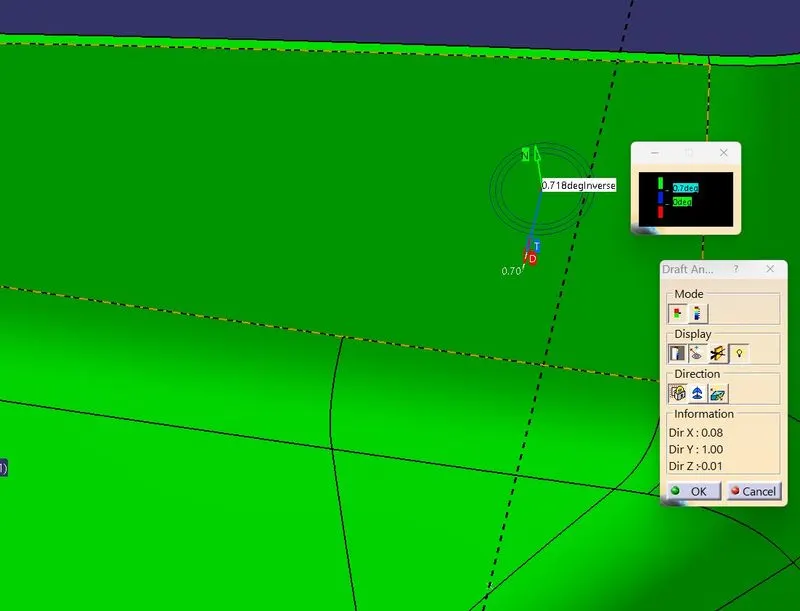

ONE OF THE SURFACES OF CLASS A HAVING APRX 0.7 DEGREE

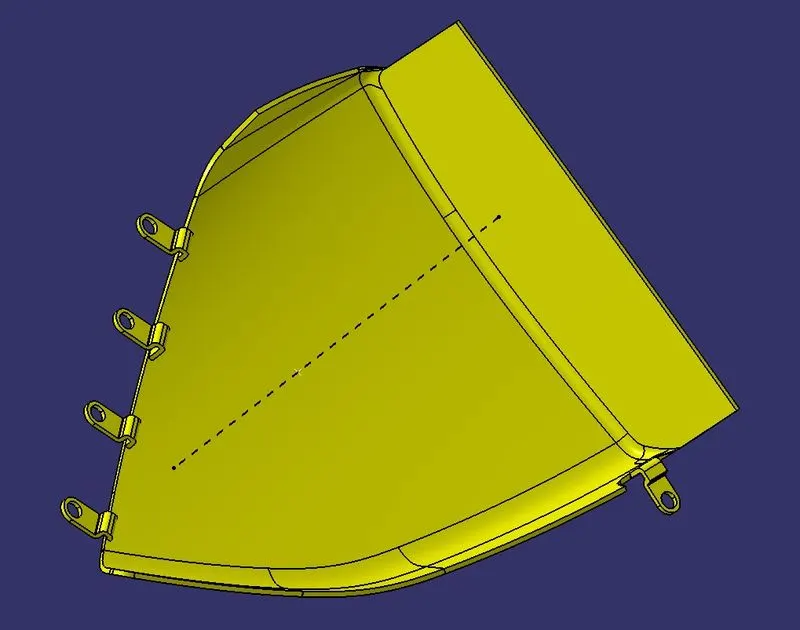

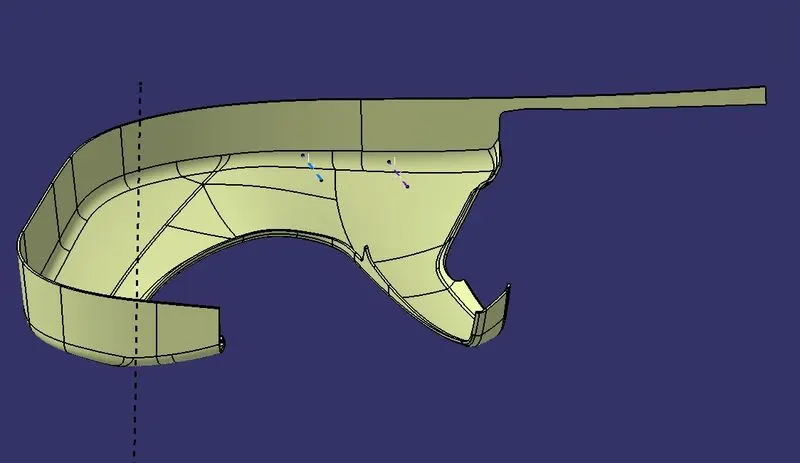

MAP POCKET
CLASS A& B
CLASS C

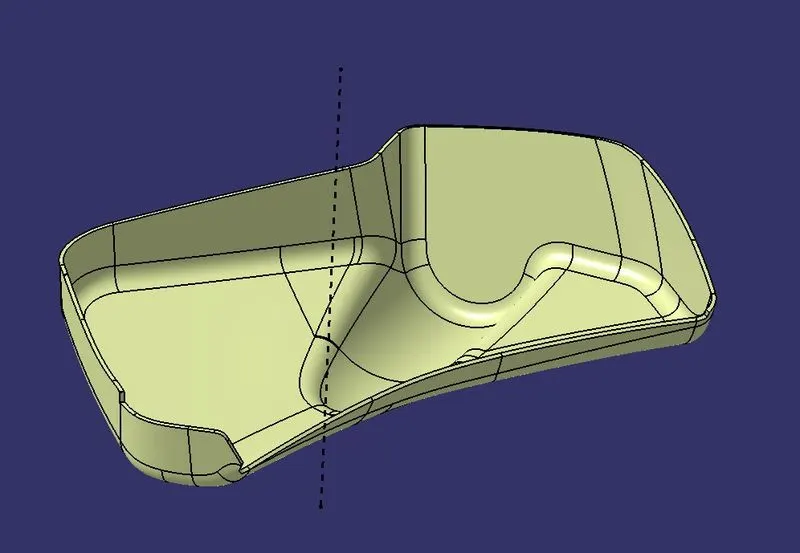

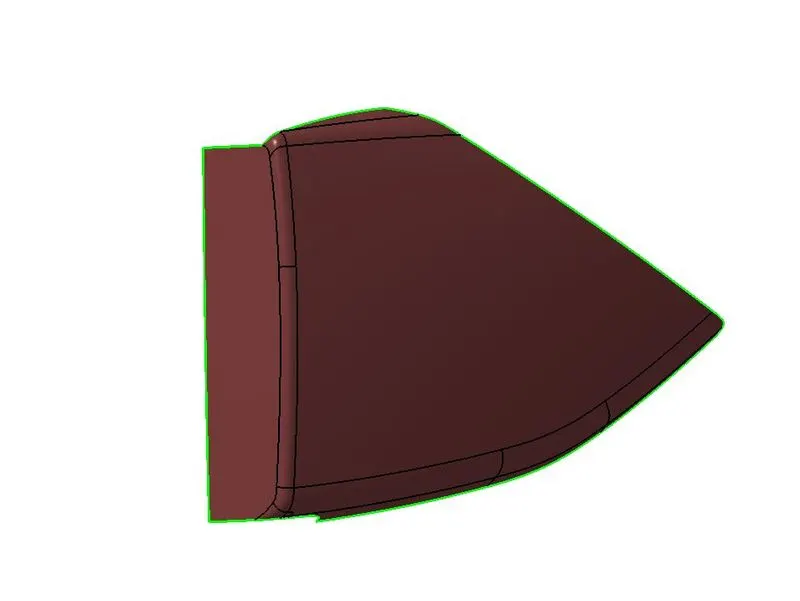

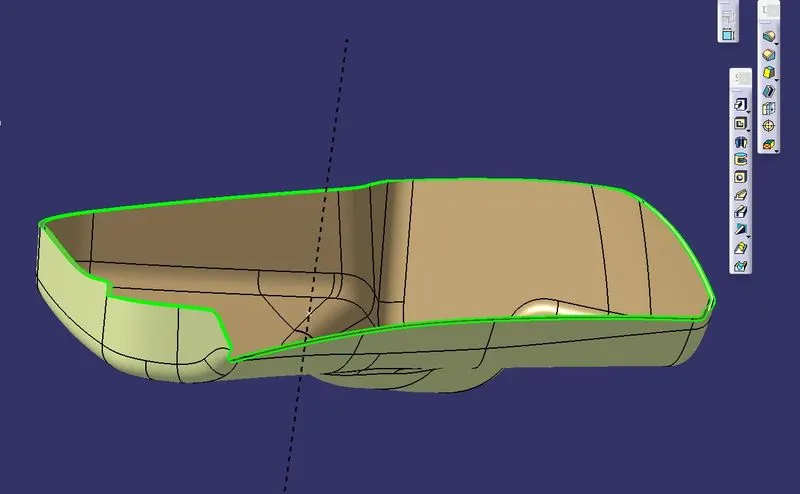

CLOSED SUREFACE

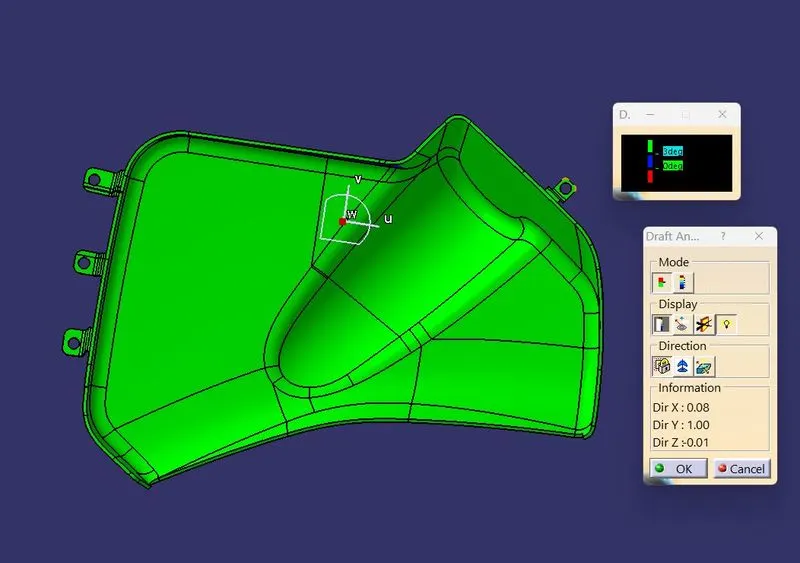

DRAFT ANGLE TESTING
LOWER SUBSTRATE
CLASS B
CLASS C

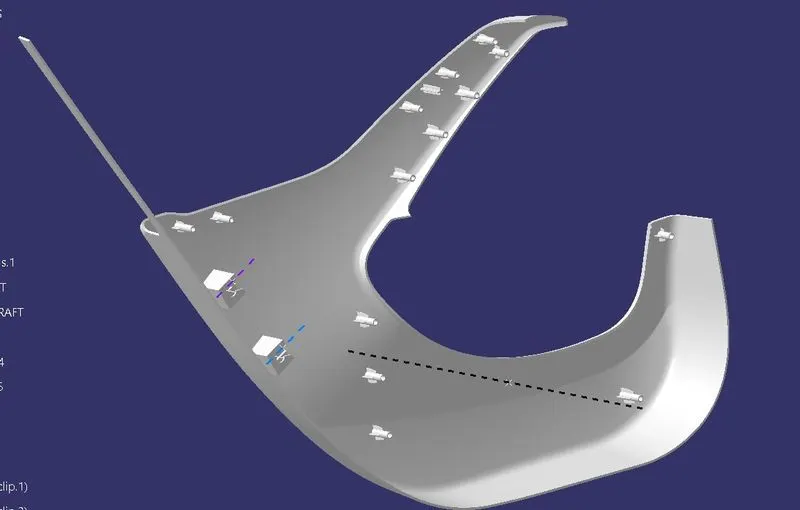

CLOSED SURFACE

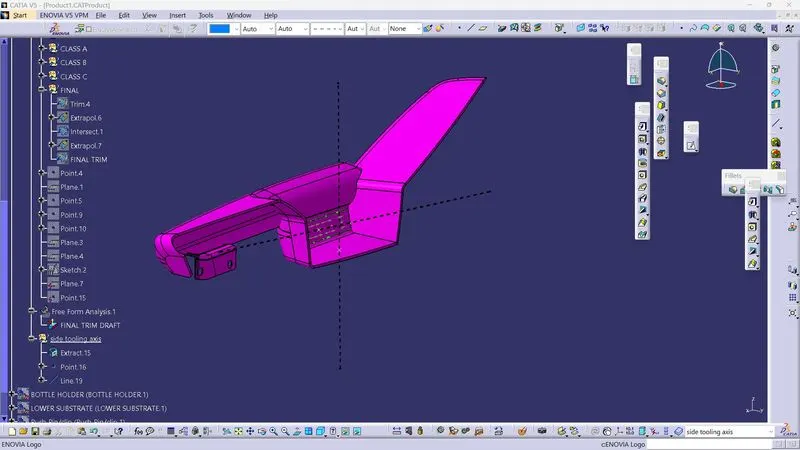

DOG HOUSE WITH SIDE TOOLING AXIS

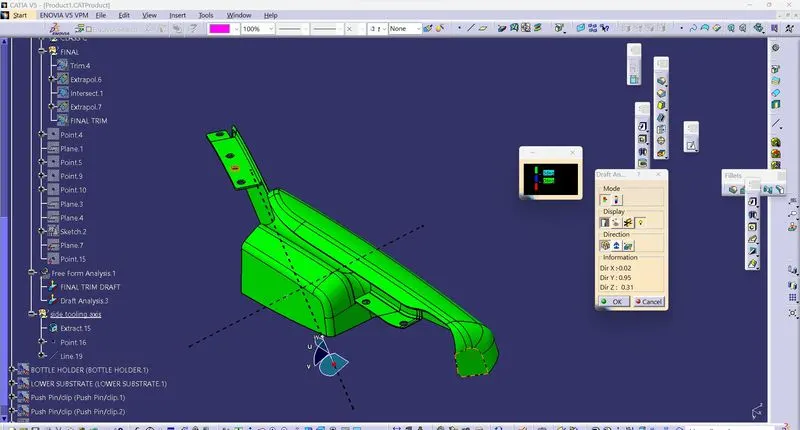

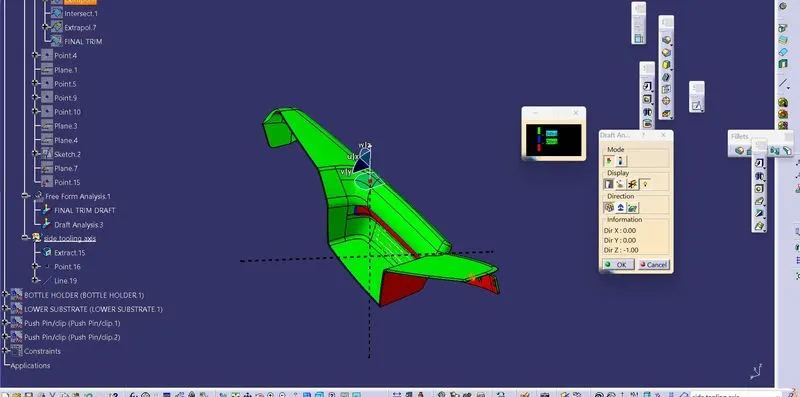

DRAFT ANGLE TESTING FOR DOG HOUSE WITH SIDE TOOLING AXIS

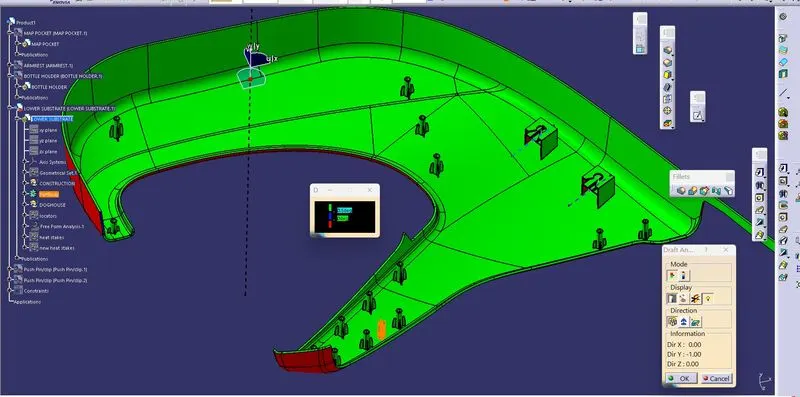

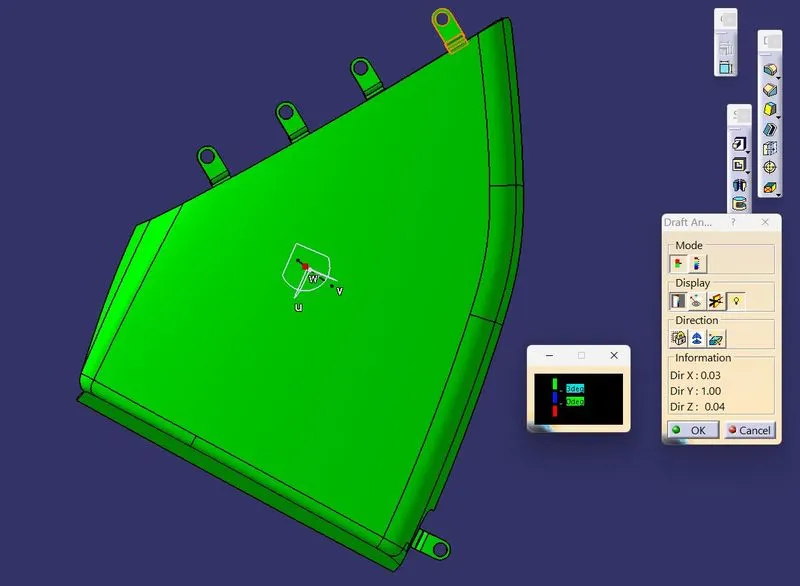

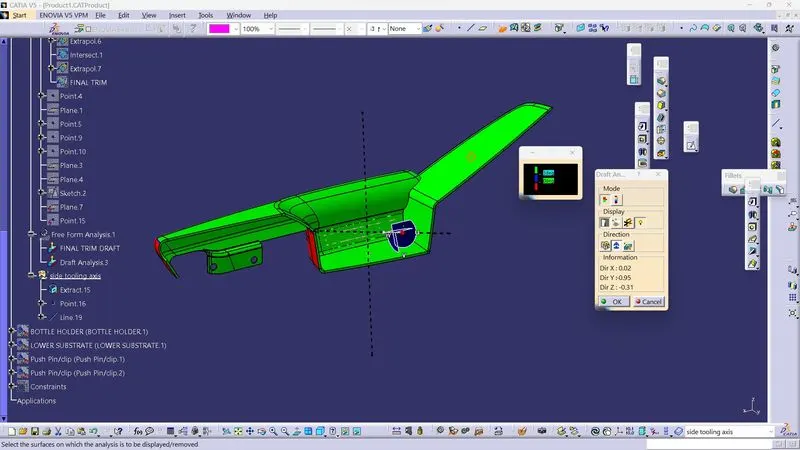

DRAFT ANGLE ANALYSIS WITH MAIN TOOLING AXIS MAINTAINING 5 DEGREES
RESULT:

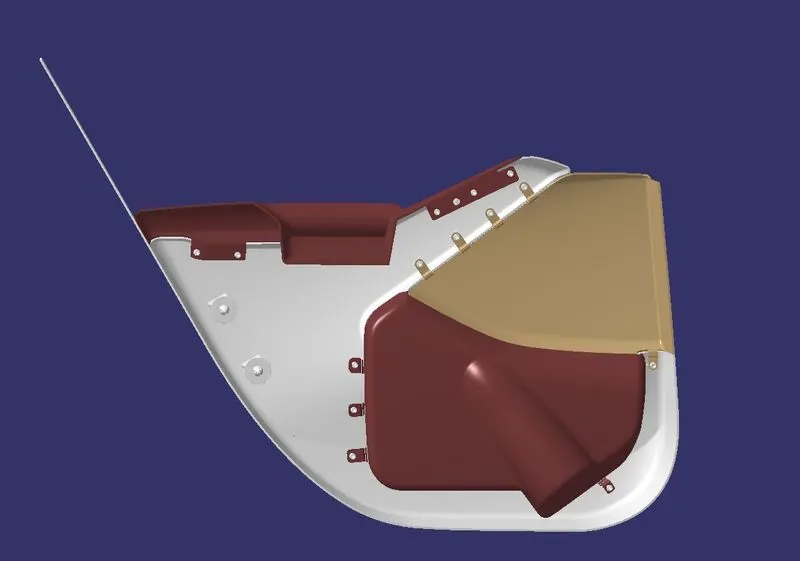

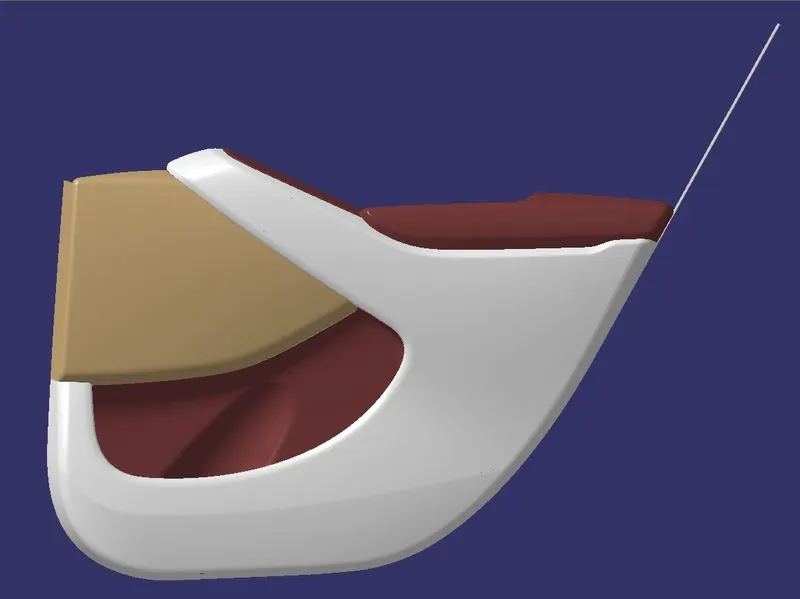

COMPLETE ASSEMBLY PRODUCT OF DOOR TRIM PANEL.
The door trim panel is created with the mounting features per industry design guidelines and with given master sections.
