Week 12- Final project

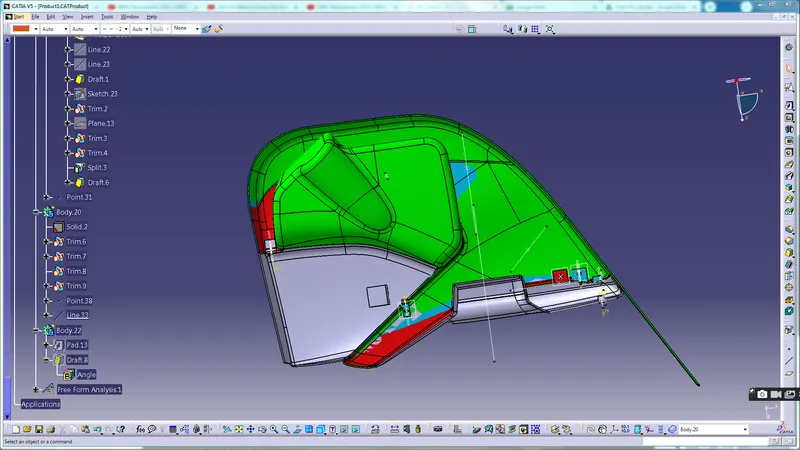

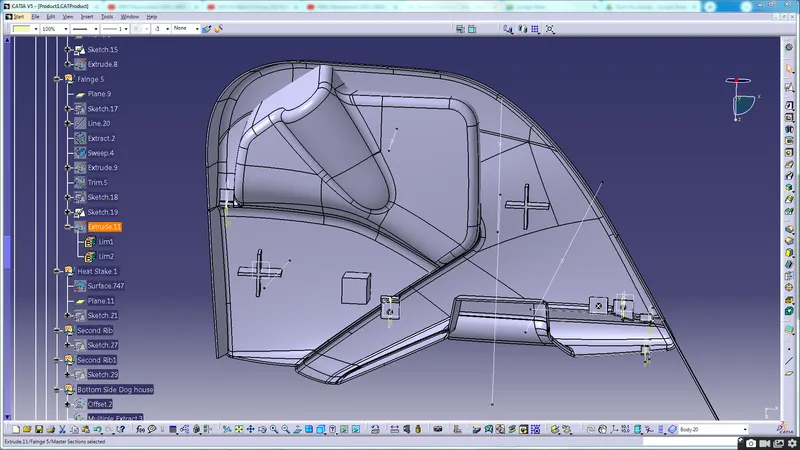

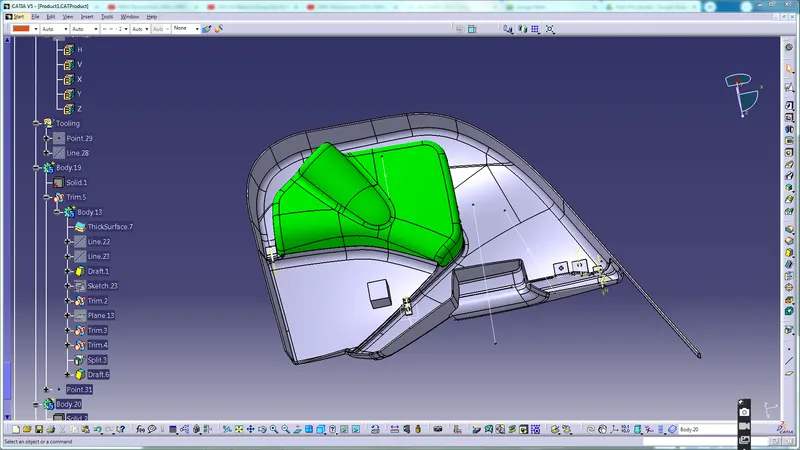

We have given Class A surface for each body.Total 4 bodies were given.Class A surface of each body is given.Then using the class A surface we have created 4 individual bodies.Then we have created features like dog house and heat stake and 4 way locator over here. Creation of Tooling Axis: We have used surface and created…

Class A Surface: We have given with class A surface. Class B surface: We have created a class B surface by sweep method.The first step was to offset the complete class A surface and the next step was to use sweep comand . Class C surface: We have created the Class C surface in the follwing way by using the sweep comand.…

Aim:To Create a body according to given master section. Class A surface: We are provided with Class A surface along with the master section. Class B Surface: After offseting the surface to 2.5 mm we have created class B surfaceafter solving some missing patch errors. Class C surface: We have created class C surface by…

Class A: We have given Class A surface.   Class B: We have Offested Class A and created Class B and solved the errors. Creation of tooling axis : Take a point on the surface then by using the line command create a line pnormal to the surface and give point that we have created .This is outr tooling axis that can be…

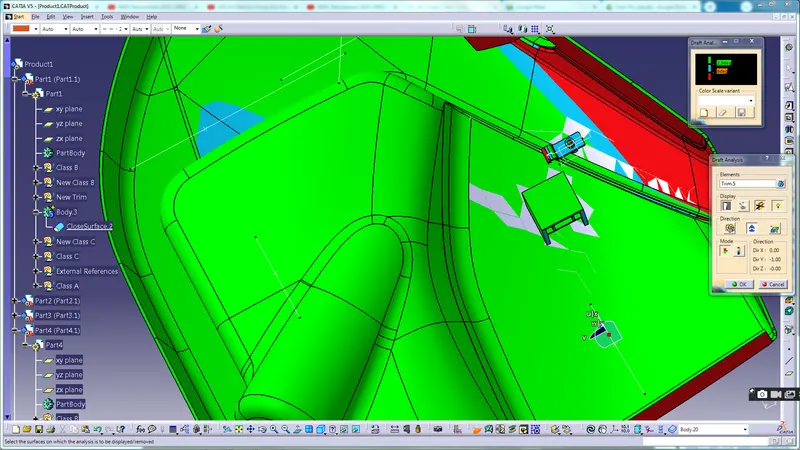

Creation OF Dog House Challenge Aim:In this Challenge we have to create dog house on the door trim and then have to draft it and check it. Class A surface   CLass B surface: We have offseted the Class A surface by 2.5mm and created a Class B surface.Initially there were errors but we fixed them by extrapolation and…

Creation of Class B and Class C surfaces and Performing Draft Analysis on the Bumber Body. Class A surface: We are given with the Class A surface Creation of Tooling axis: Creating point on any curve on x axis direction. Create a line by using point and direction.And give direction as X axis. Check wheteher the axis is…

Creating the close body and performing the draft analysis onto it. Creation of Tooling Axis: Exract the Base surface. Create a point o the surface. The next step is to create an axis system on the surface with the created point as the origin. Create a new positioned sketch with axis system and Base surface and take the…

1)We are given a class A surface.The first step is to create a dummy tooling axis for the surface.Give proper colour to the surface to extract them and to keep the other surfaces as it is.Create a plane in yz direction.Intersect it with the class A surface.Create the construction lines and bisecting line for the surface.…

  A)Quick Return Mechanism     B)CV Joint

Aim:To design the transfer function of mass spring damper system and add a pid controller. Objectives: Obtain the transfer function of a mass spring damper system and use it in the model. Add a PID controller to adjust the force on mass so that its position follows a reference signal. Take m = 3.6; %kg k = 400; %N/m c…

Aim: To Parse the Nasa Thermodynamic Data Using Matlab and to caluclate the properties of various gases. Objective:  1.. Write a function that extracts the 14 co-efficients and calculates the enthalpy, entropy and specific heats for all the species in the data file. You will be reading this file NASA thermodynamic…

Aim:To simulate the motion of a simple pendulum and to animate using the video file. Objectives: Write a program to solve the ODE Plot the displacement v/s time and velocity v/s time graphs Create an animation of the motion of the pendulum Introduction: In Mathematics an ordinary differential equation is a differential…

Aim: To calclulate the gloabAl maxima of a Stalagmite function. Theory: Using Genetic Algorithm in matlab we can easily find the global maxima of stalagmite function. What is stalagmite function? A family of algorithms known as "genetic algorithms" was invented by Holland and is based on the abstraction of Darwin's theory…

Aim: To simulate the forward kinematics of 2R Robotic arm using Matlab Robotic arm: A robotic arm is a type of mechanical arm, usually programmable, with similar functions to a human arm; the arm may be the sum total of the mechanism or may be part of a more complex robot. The links of such…

Rankie cycle simulator: Aim: Creation of Rankine cycle simulator from given input and reading the data from standard thermodynamic library of steam table. Objective: To create a Rankine Cycle simulator in MATLAB. To calculate the state point using function XSteam. To plot the T-S and H-S curve for given input in Rankine…
