Week 12- Final project
The Door Trim Panel is divided into four sub elements are:
- Arm Rest
- Upper Map Pocket
- Lower Map Pocket
- Lower Substrate
The following report is explained below

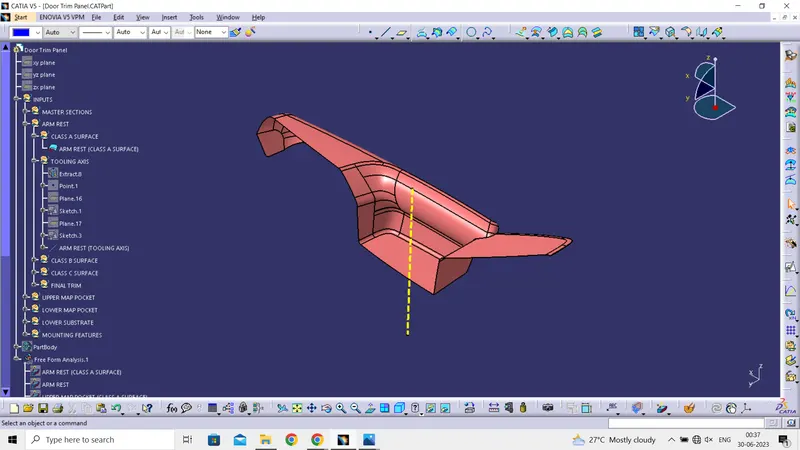

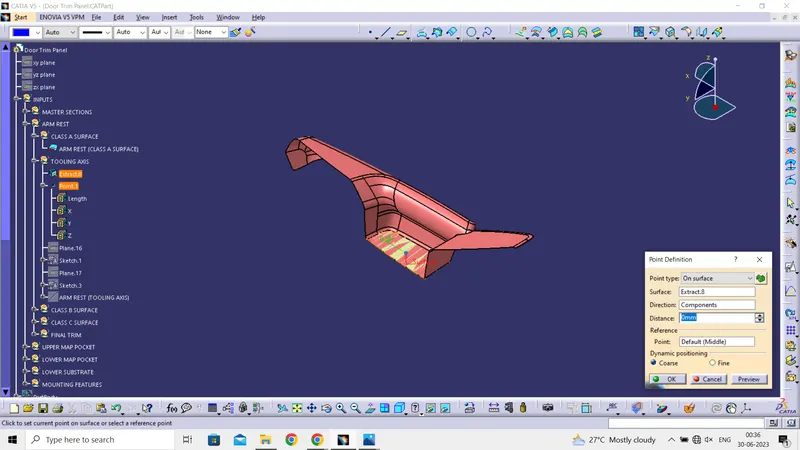

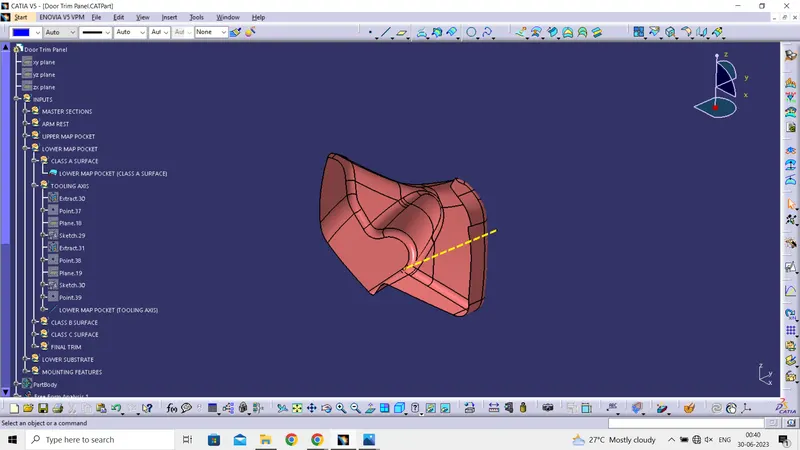

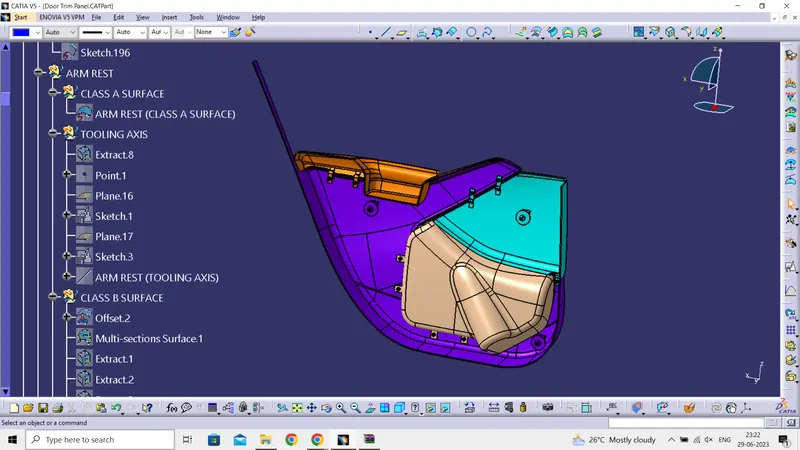

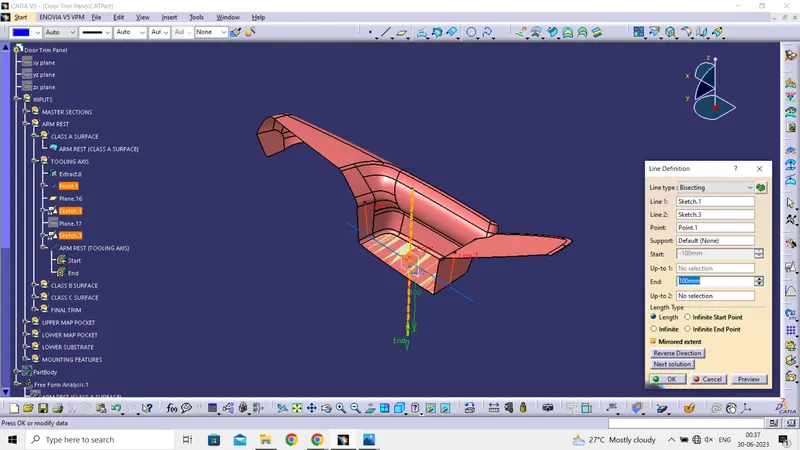

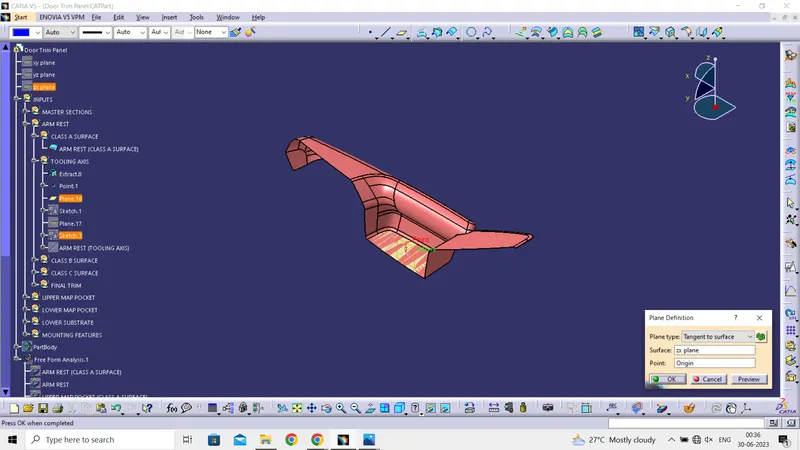

Tool Axis Creation:

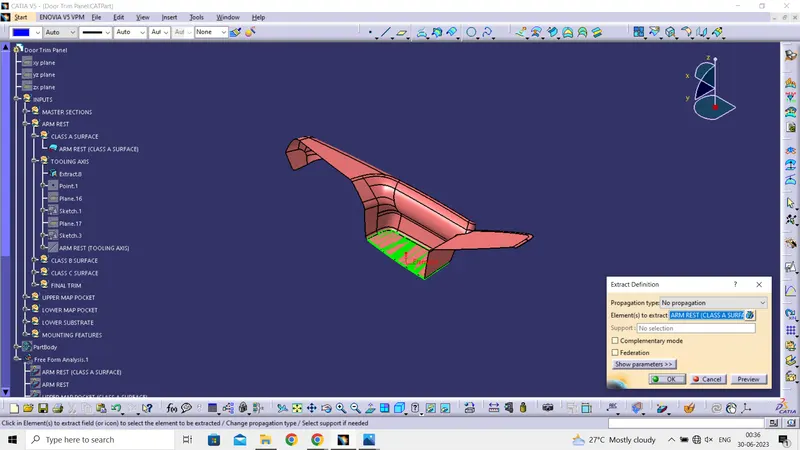

- For the tool axis base is taken as reference and extracted
- Point is defined in the middle of the base surface
- Based on the point an plane is defined
- The line which effect the tool axis those lines are defined
- After creating the lines, the axis is defined by using bisecting in the line definition by taking point and lines as reference
- Therefore, Tooling axis is created and published

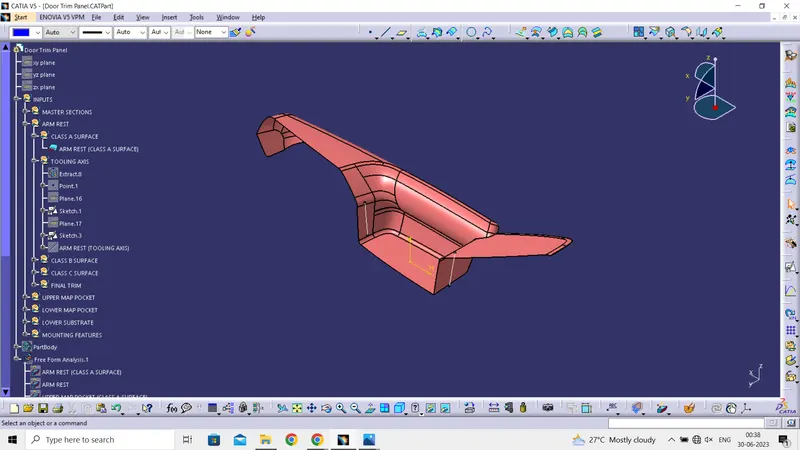

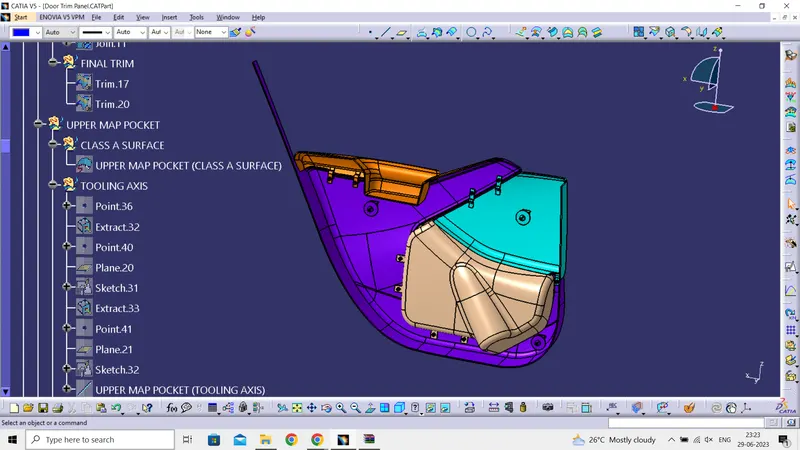

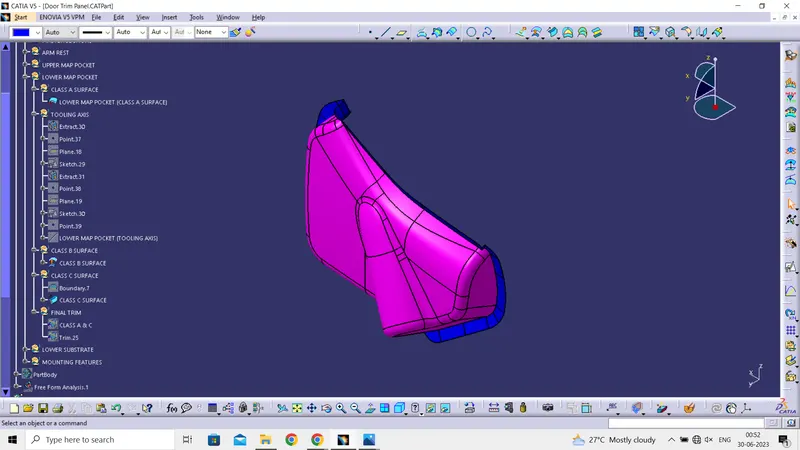

1.Arm Rest:

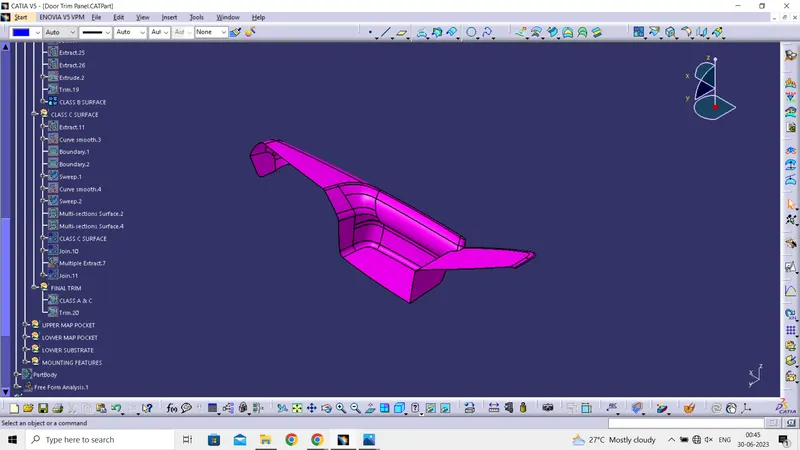

2. Upper Map POcket:

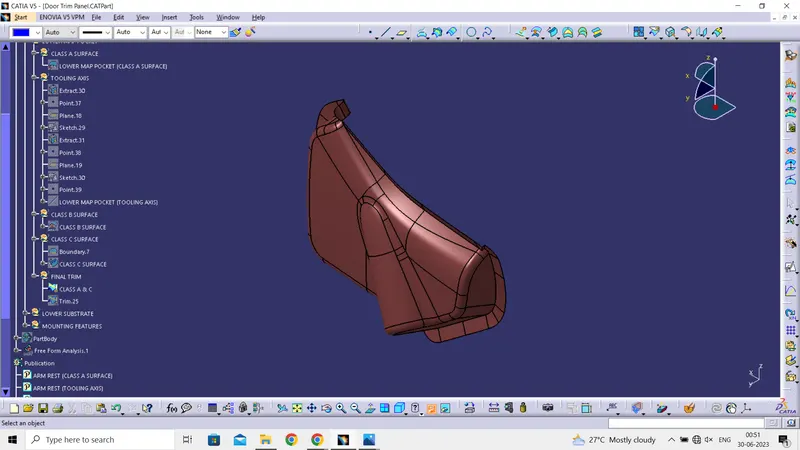

3. Lower Map Pocket:

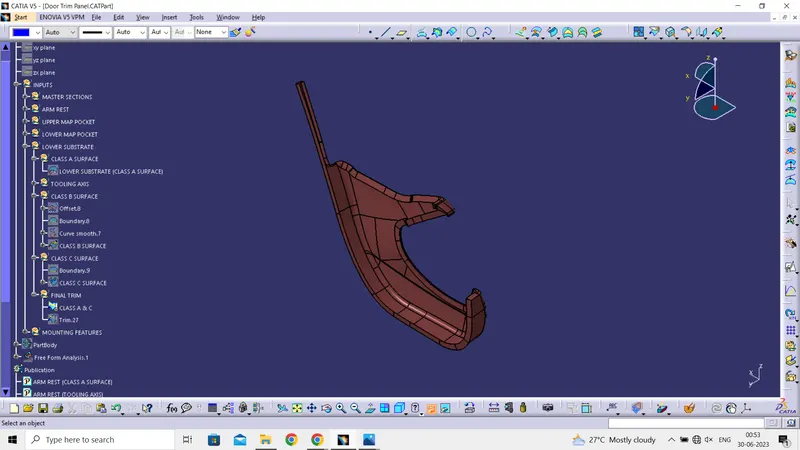

4.Lower Substrate:

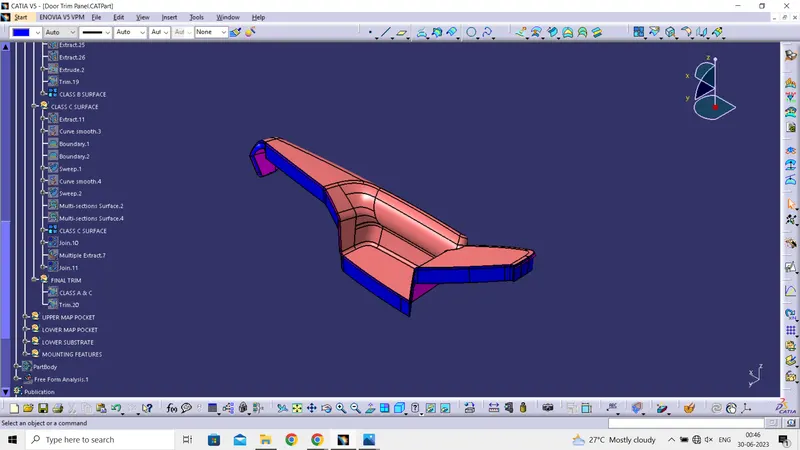

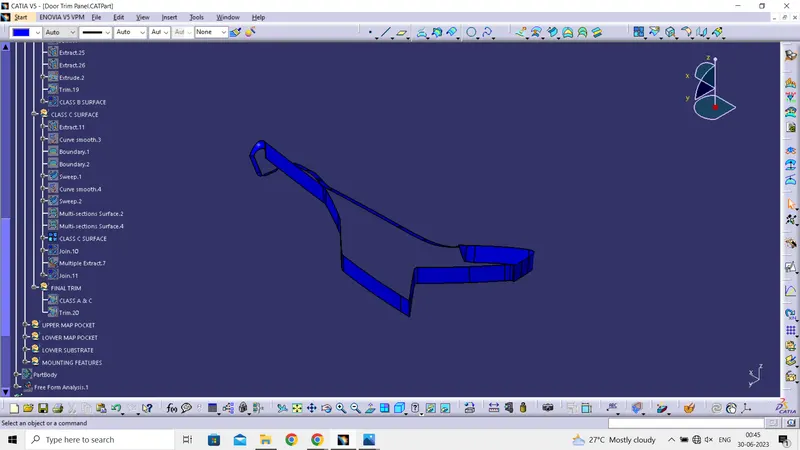

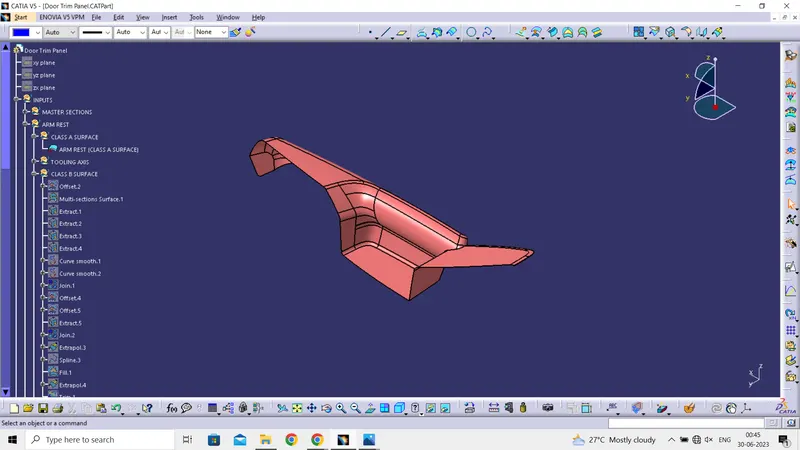

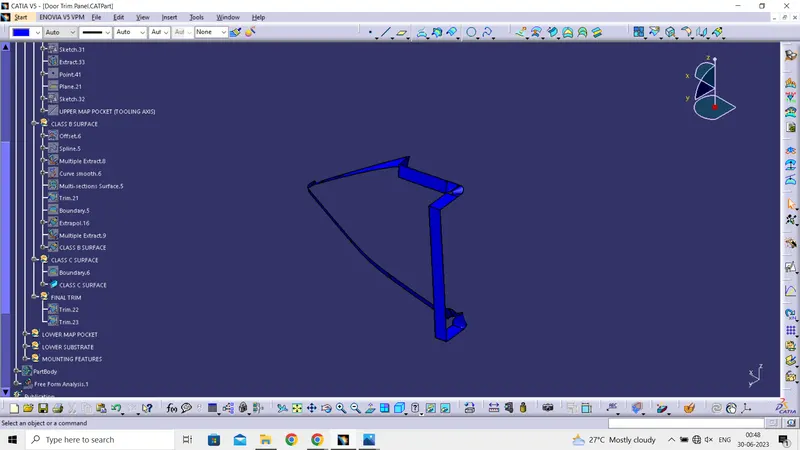

Class surfaces and close surface creation:

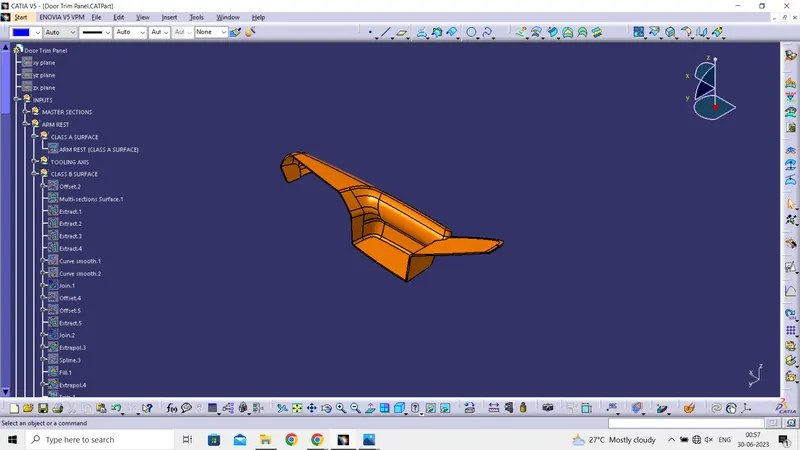

1. Arm Rest
- Class A Surface
- Class B Surafce
- Class C Surface
- Class A & C Join
- All Class A, B & C
- Close Surface

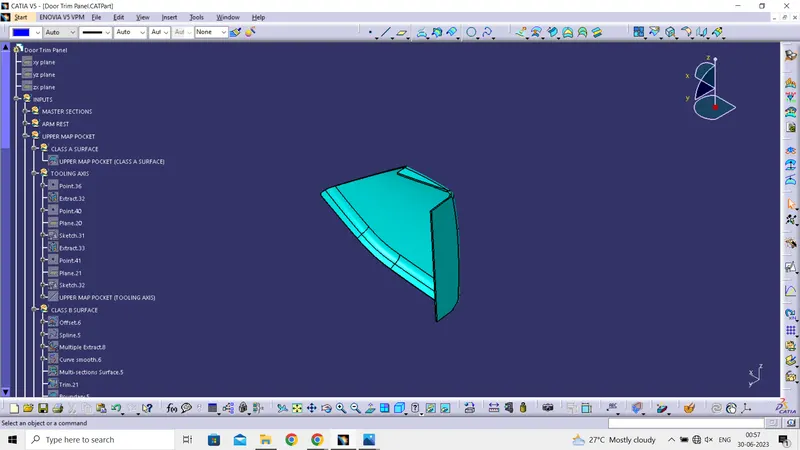

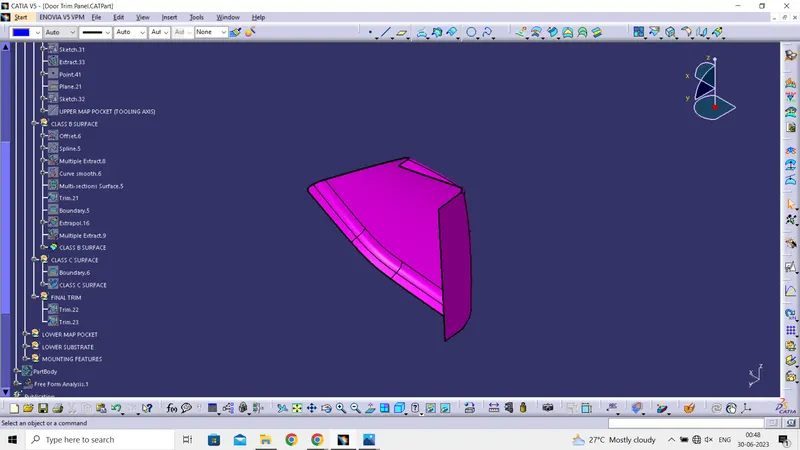

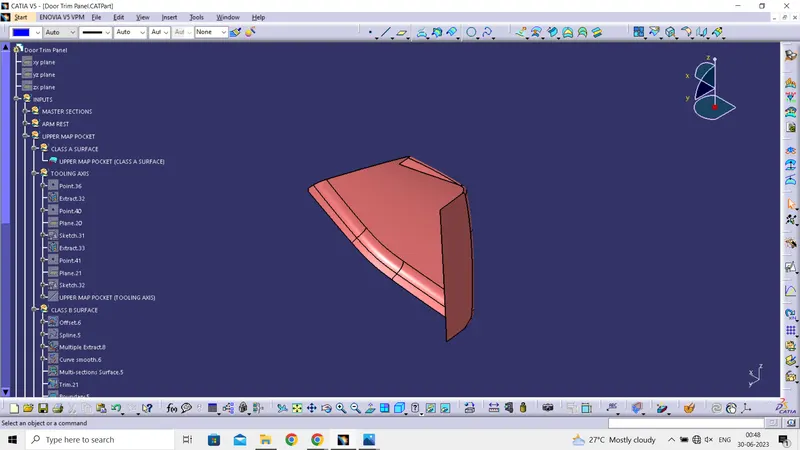

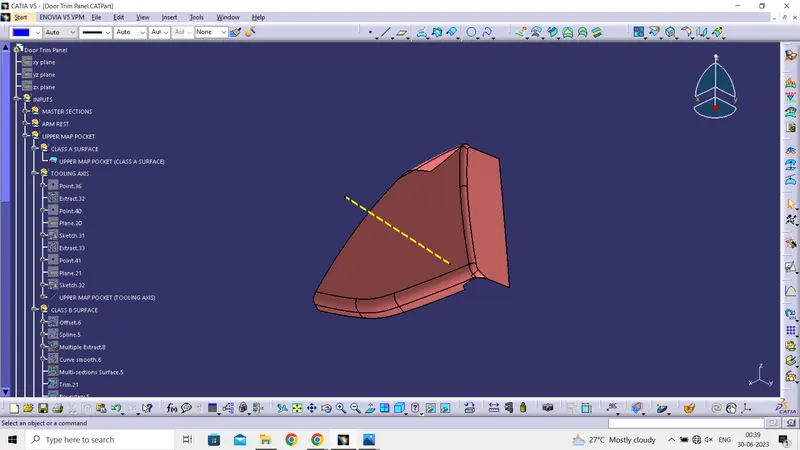

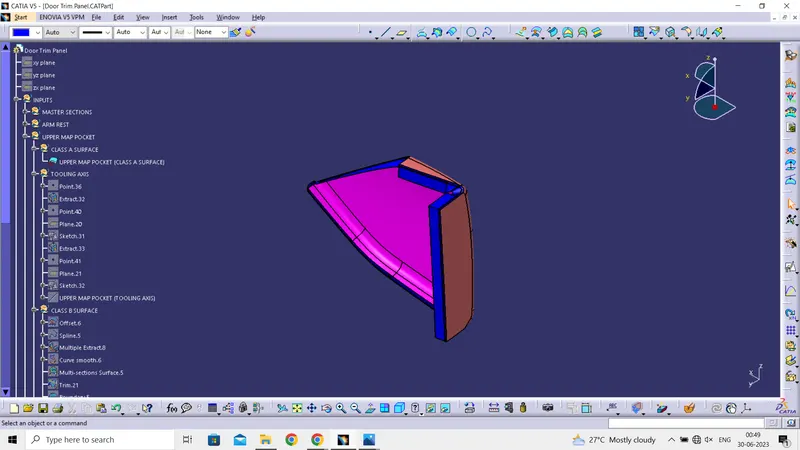

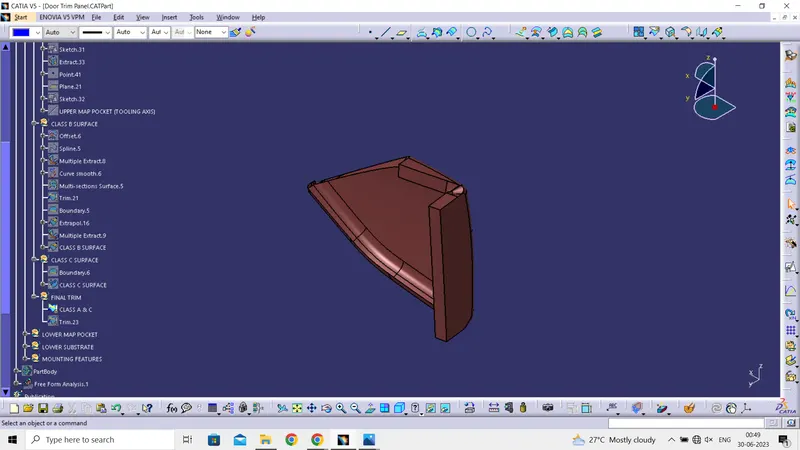

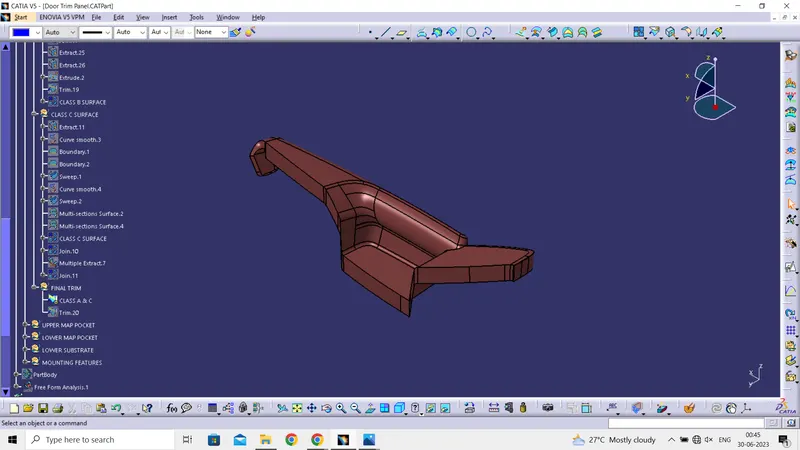

2.Upper Map Pocket
- Class A Surface
- Class B Surface:
- Class C Surface
- Class A & C Join
- All Class A, B & C Surfaces
- Close Surface

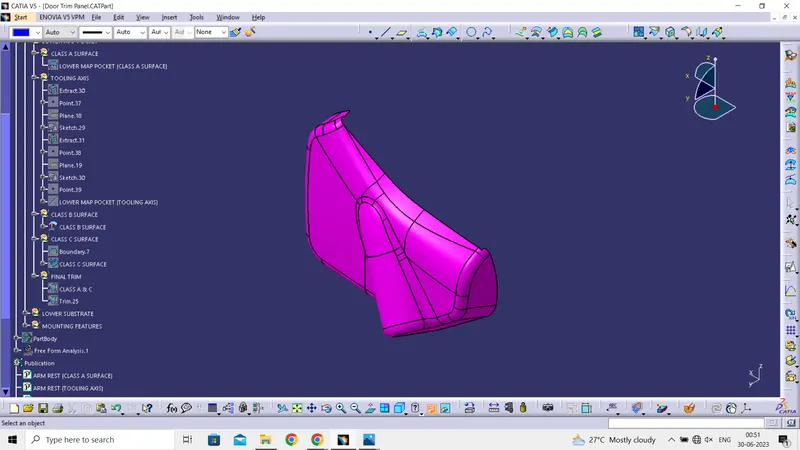

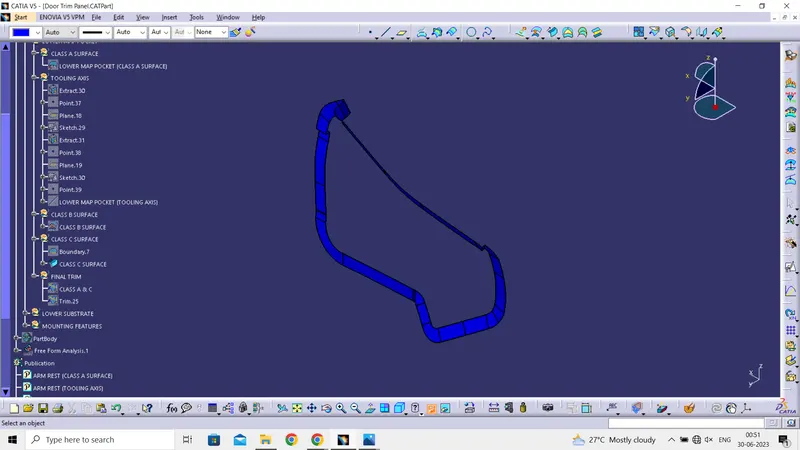

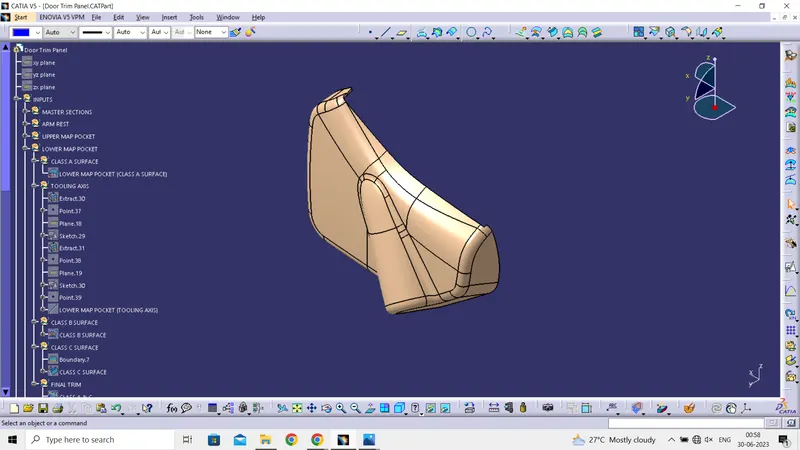

3. Lower Map Pocket
- Class A Surface
- Class B Surface
- Class C Surface
- Class A & C Join
- All Class A,B & C Surfaces
- Close Surface

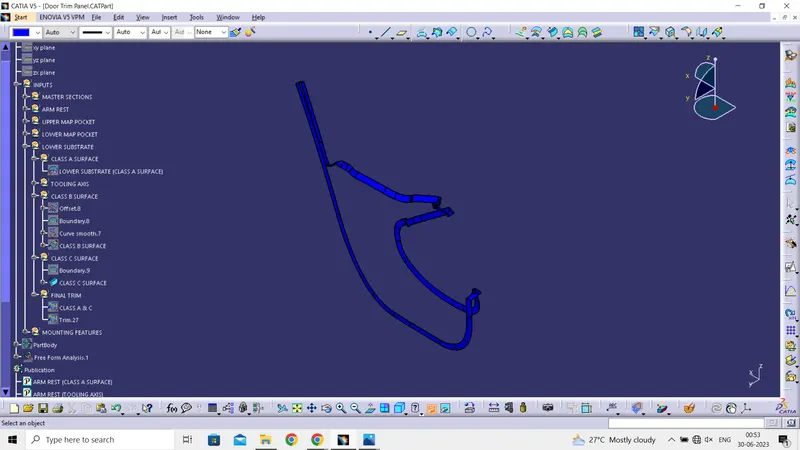

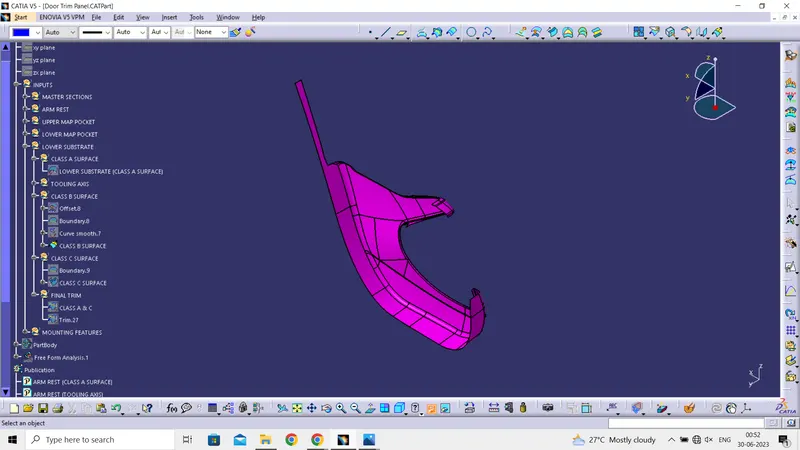

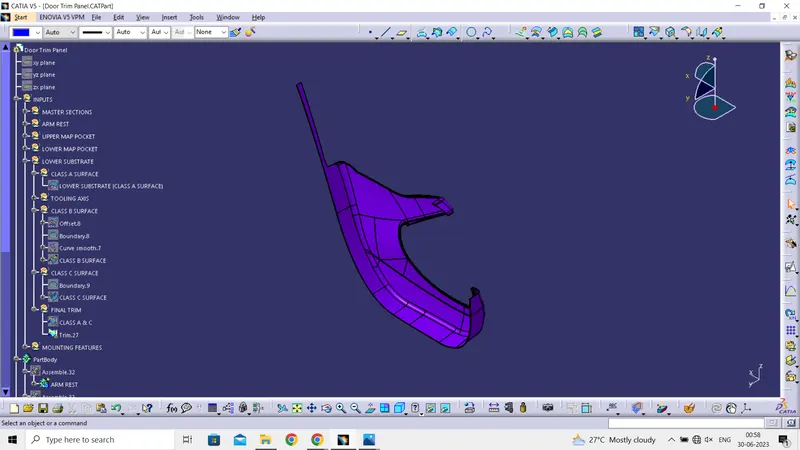

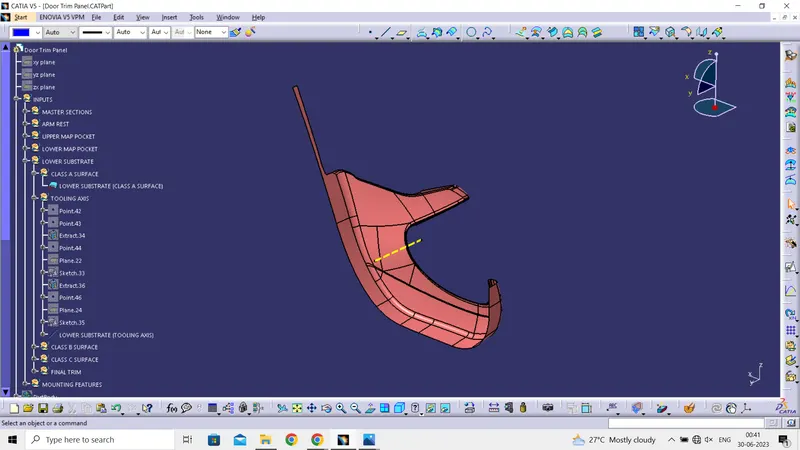

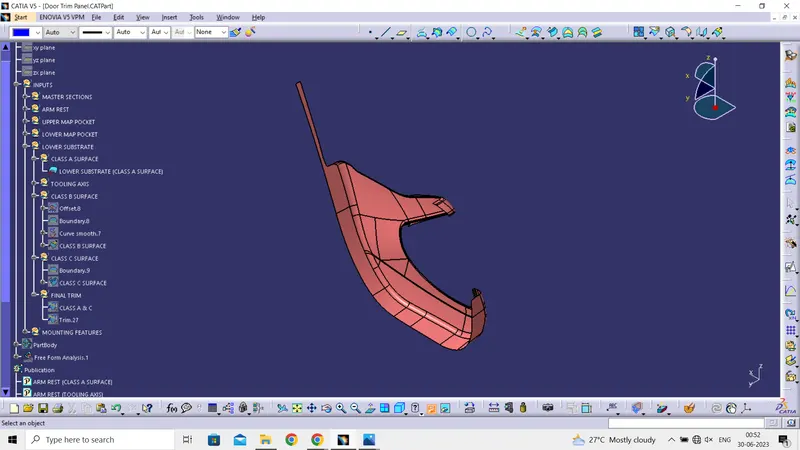

4.Lower Substrate
- Class A Surface
- Class B Surface
- Class C Surface
- Class A & C Join
- Close Surface

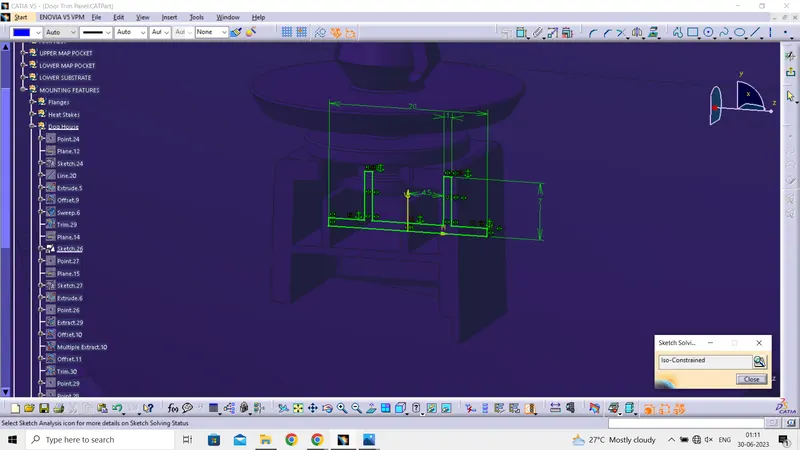

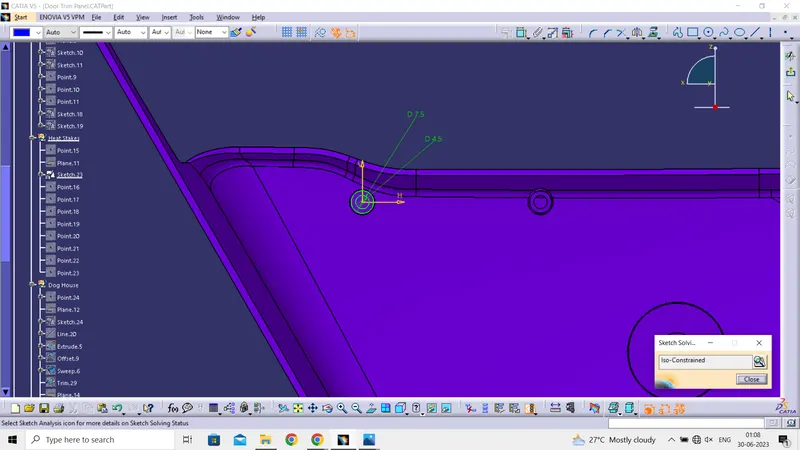

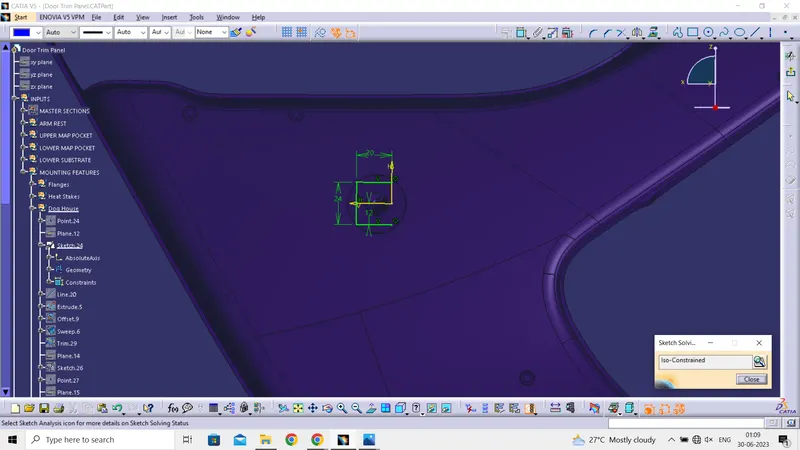

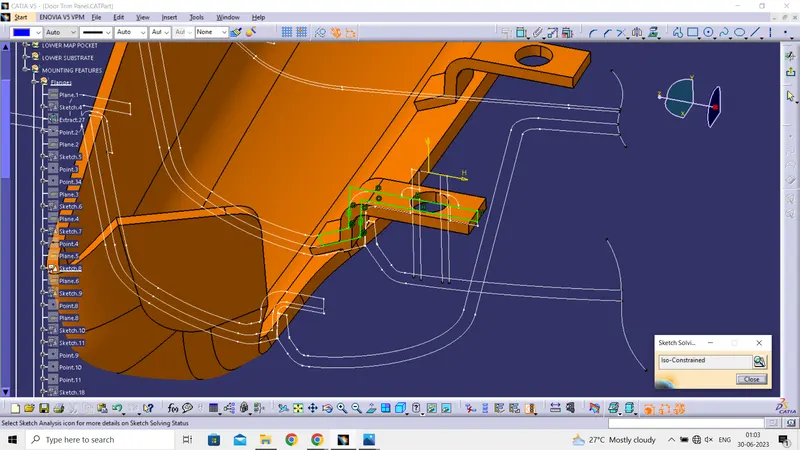

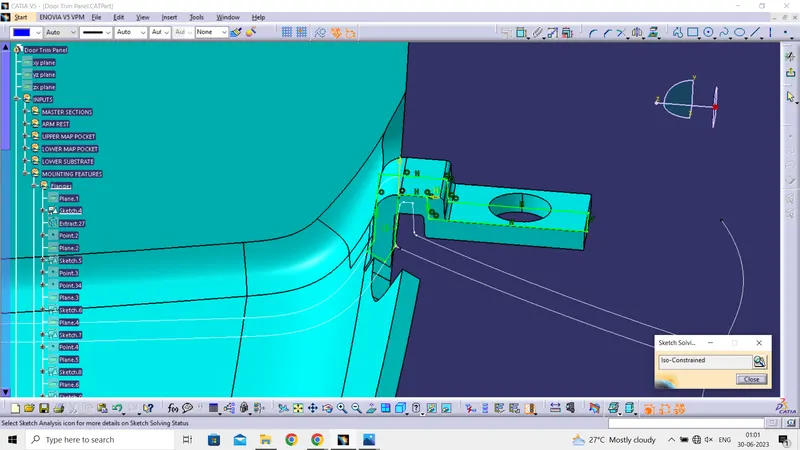

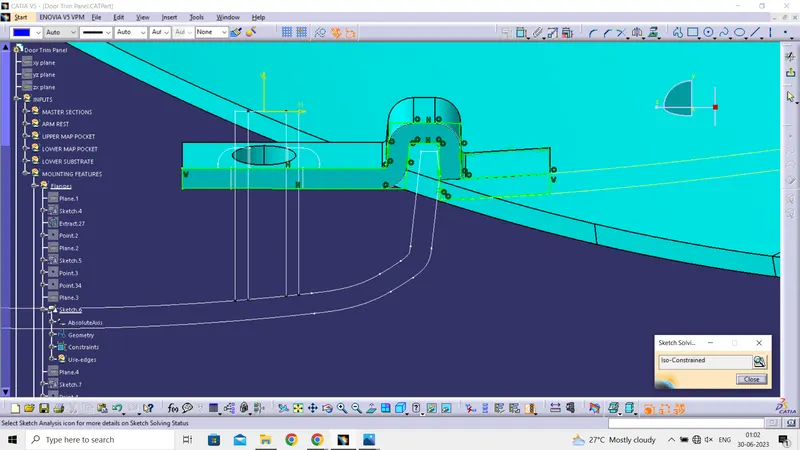

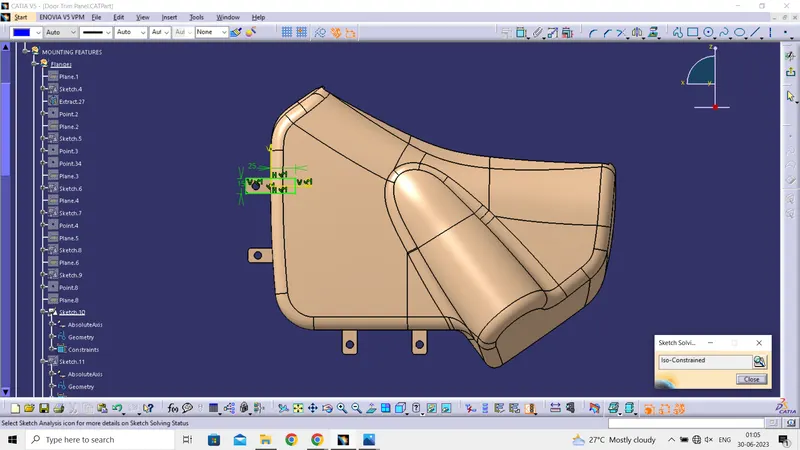

Skecth Solving Status:
- Flanges:
- Heat Stakes:
- Dog House:

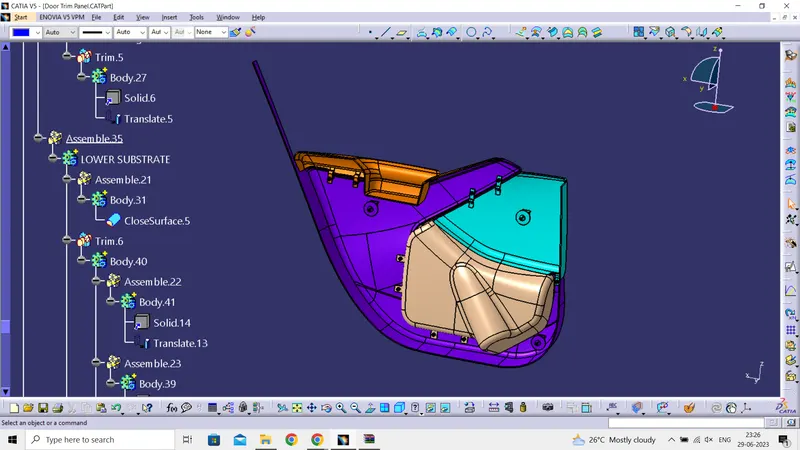

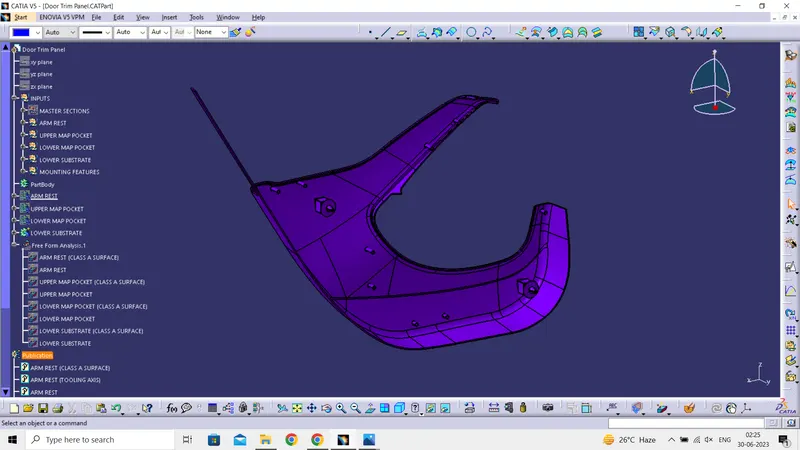

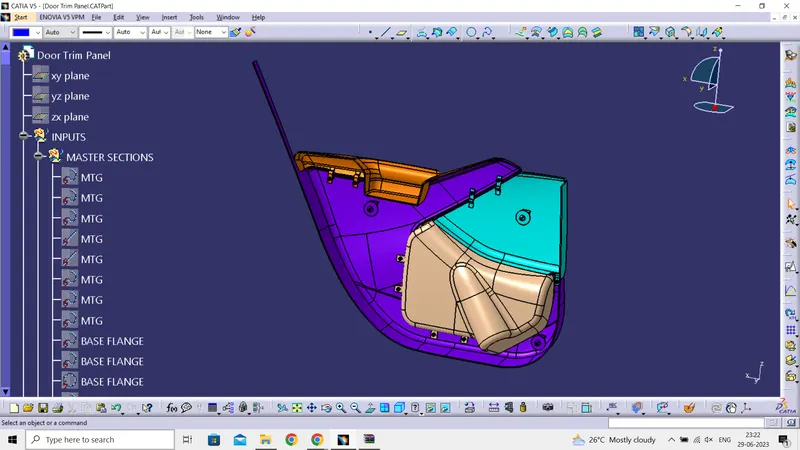

Final Component:

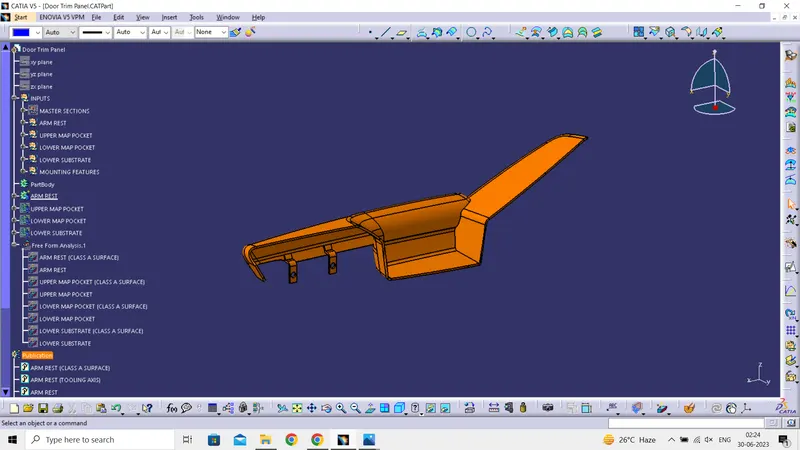

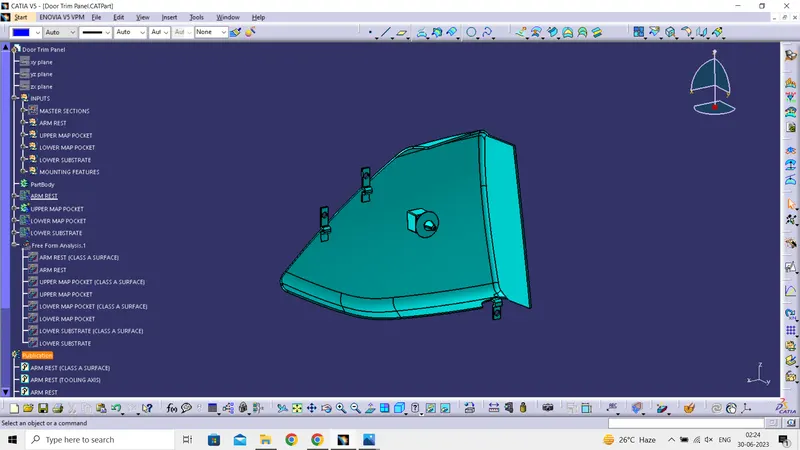

- Arm Rest:
- Upper Map Pocket
- Lower Map Pocket
- Lower Substrate

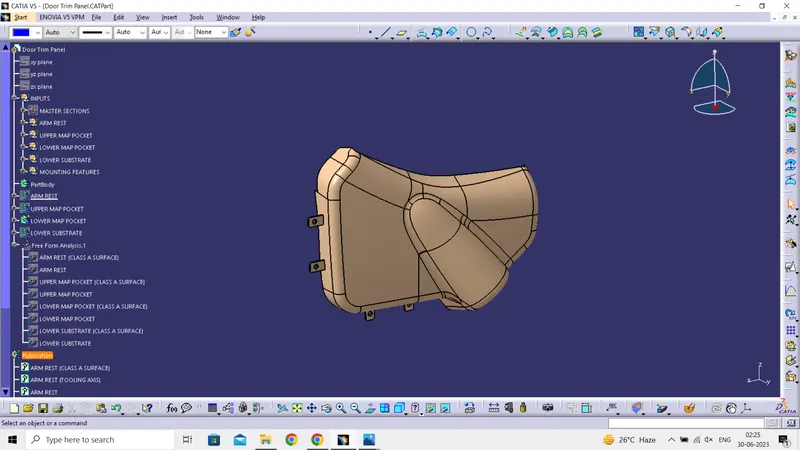

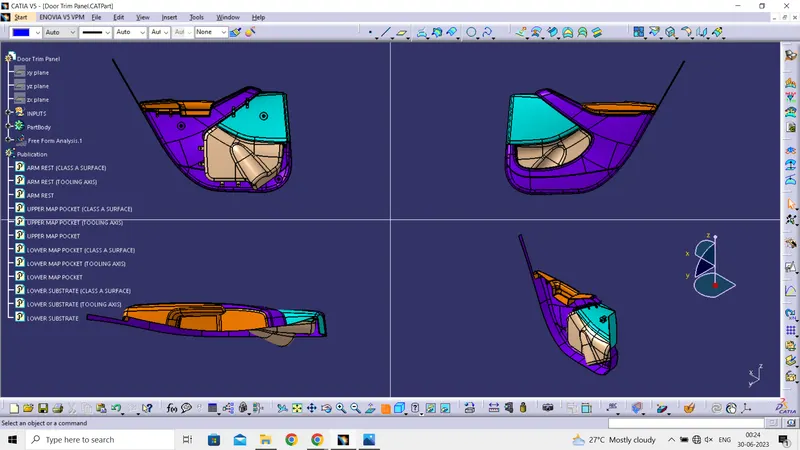

- Door Trim Panel - Front, Top, Back and Isometric views

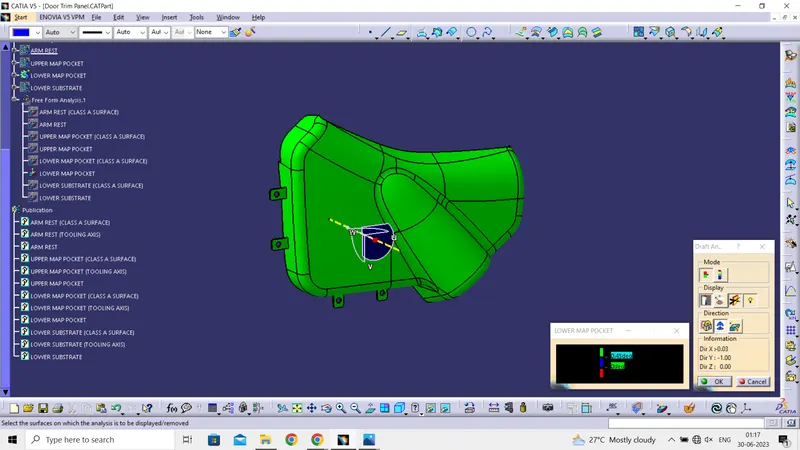

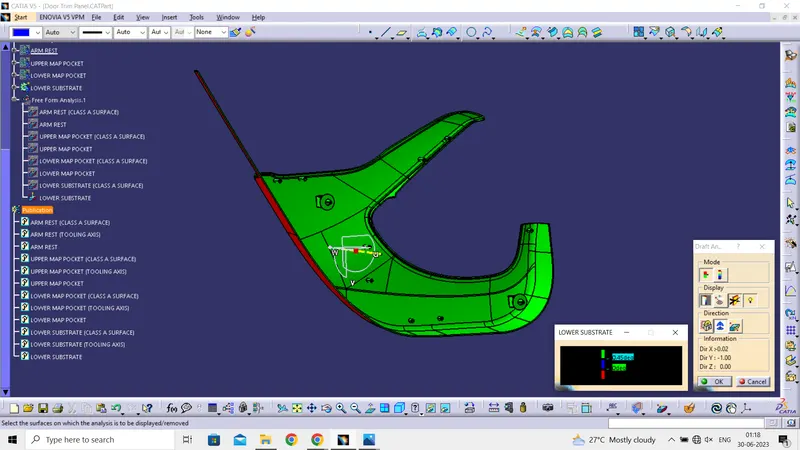

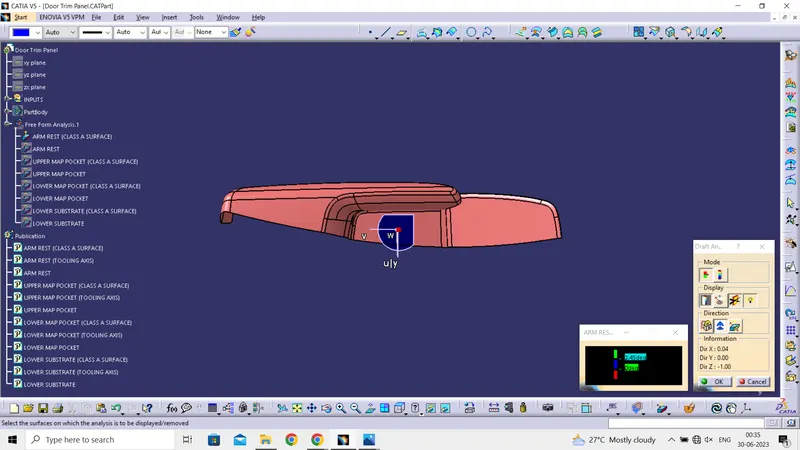

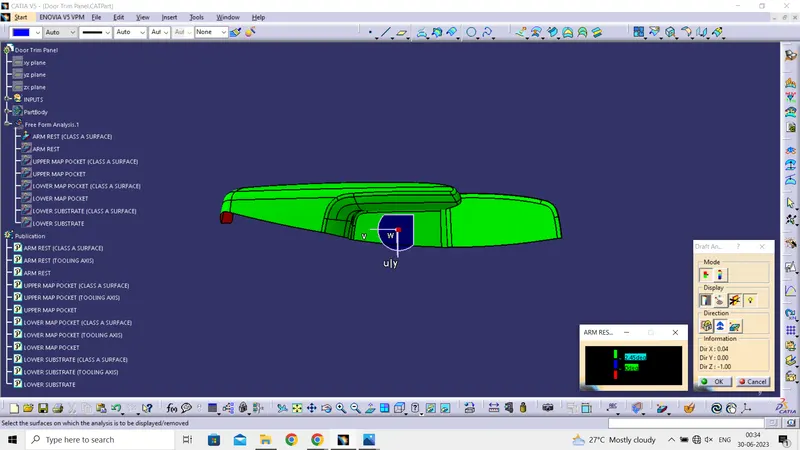

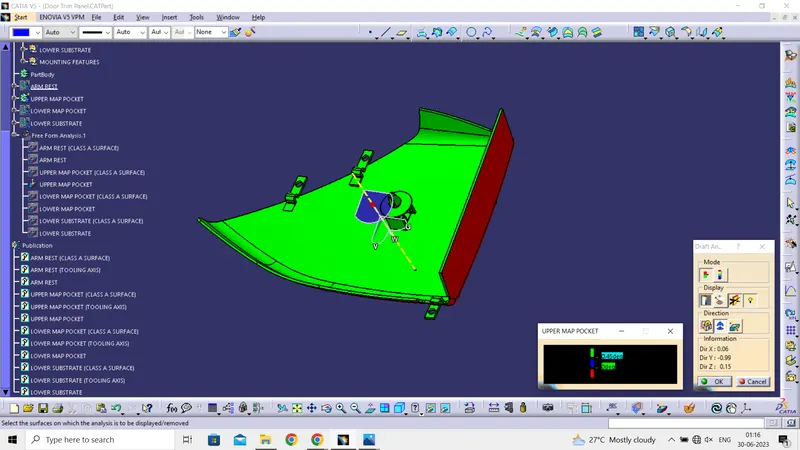

Draft Analysis:

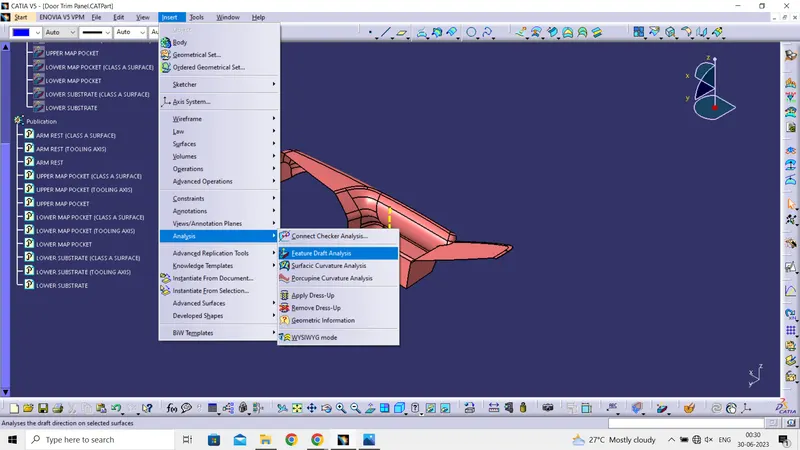

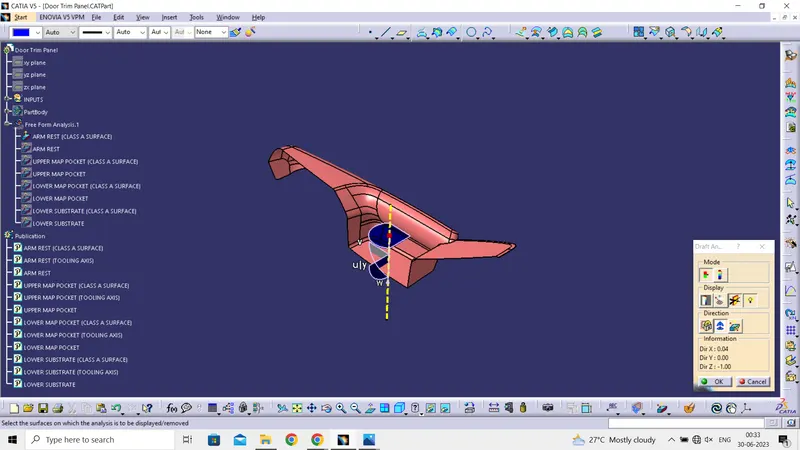

- After creating the tool axis then add the feature draft analysis in the insert section

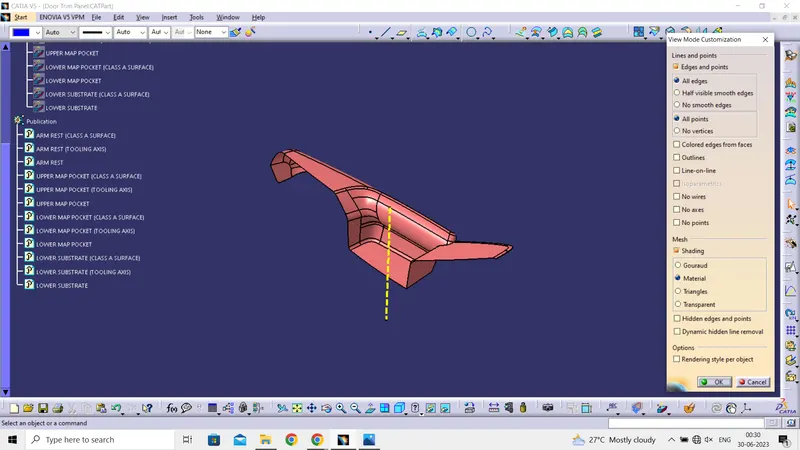

- Change the view mode into customize view parameter then in mesh section pick material
- For direction section use the compass to define the draft direction by taking tool axis as reference and lock the direction
- switch to the qiuck analysis mode and display the color scale
- Then select the surface, therefore draft analysis is performed
Arm Rest:
Upper Map Pocket:

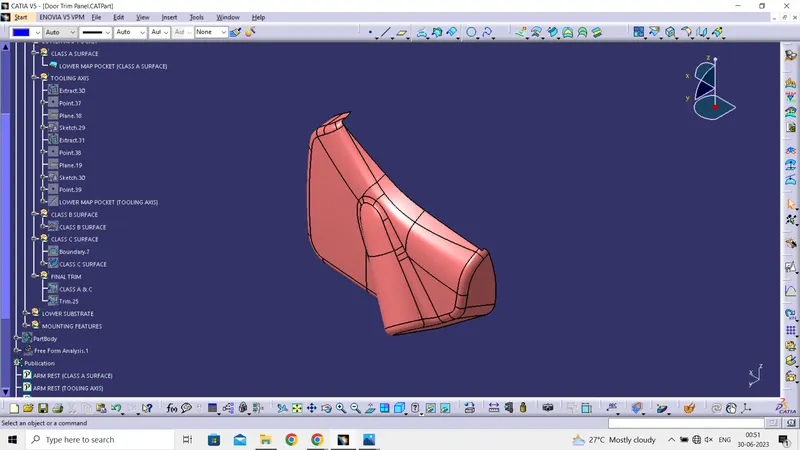

Lower Map Pocket
Lower substrate

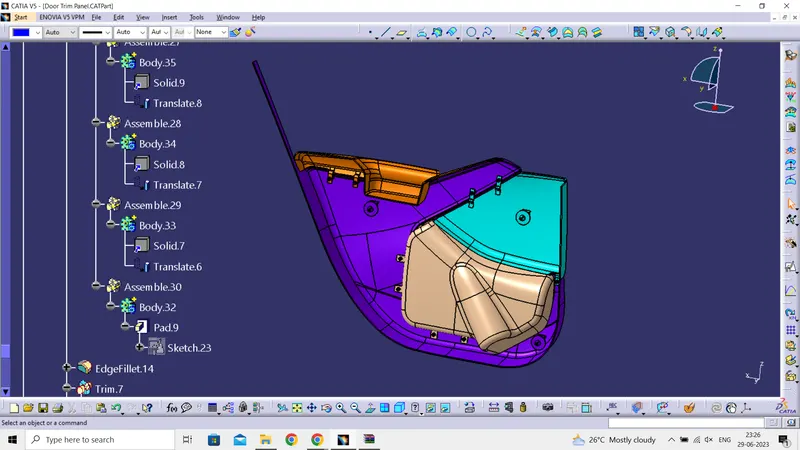

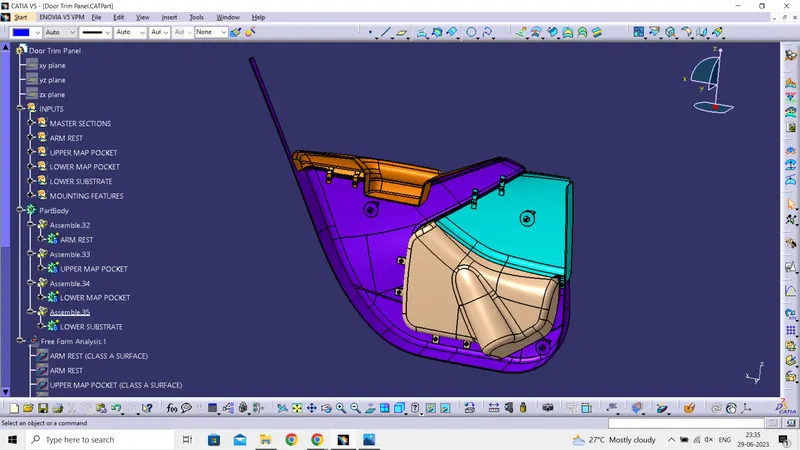

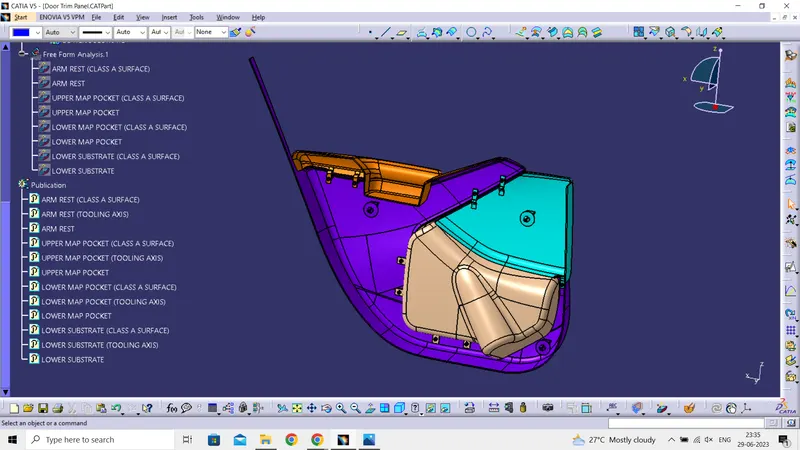

Tree Structure and Publications:
Collapse:
Expanded:
