Week 12- Final project

CERATION OF DOORM TRIM

 HERER I HAVE THE CLASS A SURFACE  FOR  REFERENCE AND ITS THICKNESS IS 2.5 MM GOT FROM THE MASTER SECTION

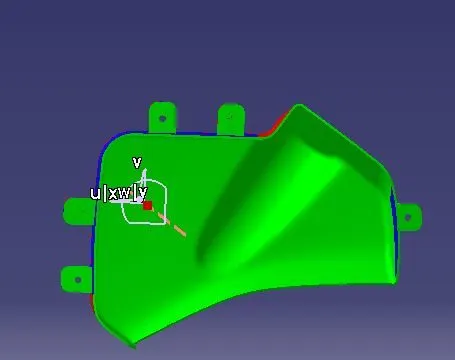

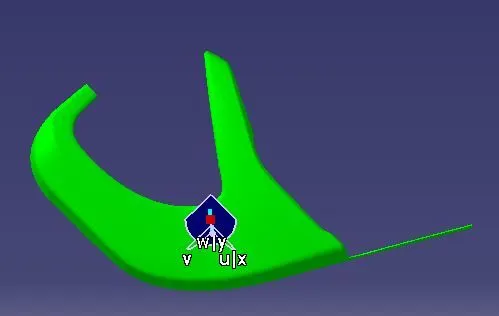

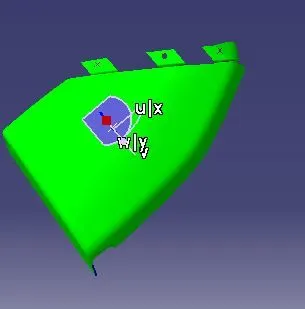

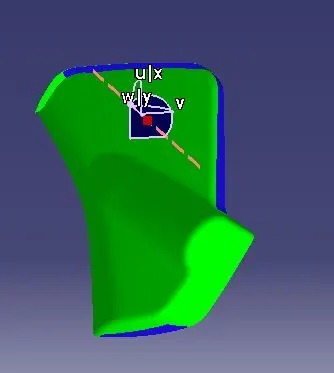

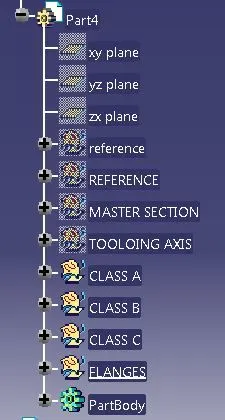

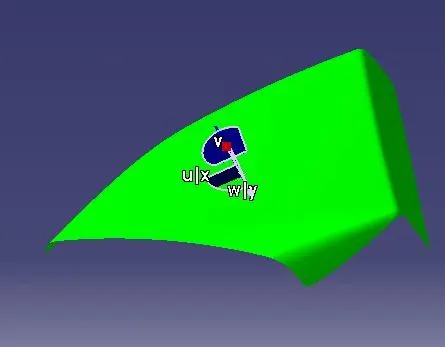

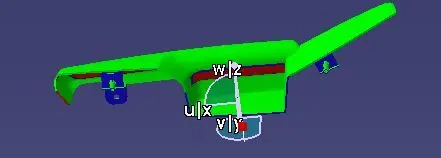

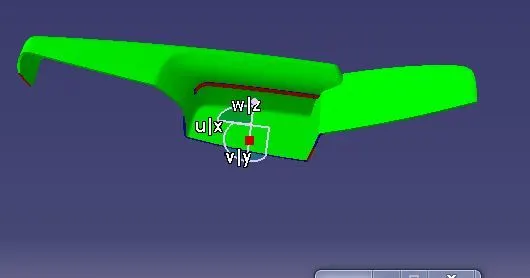

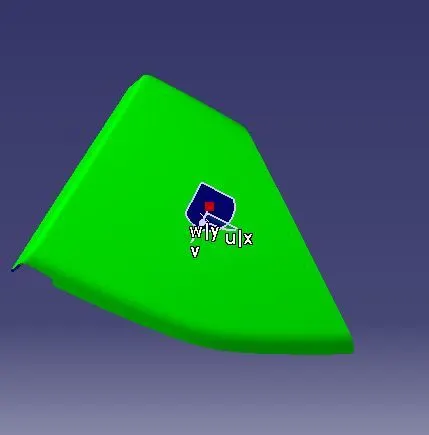

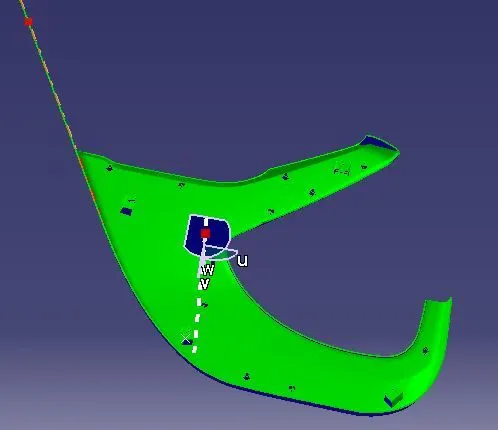

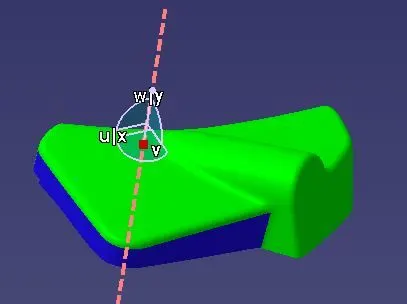

TOOLING AXIS IS CREATED AND CHECK THE DRAFT ANALYSIS FOR CLASS A SURFACE

ARM REST

LOWER MAP POCKET

LOWER SUBRATE

UPPER MAP POCKET

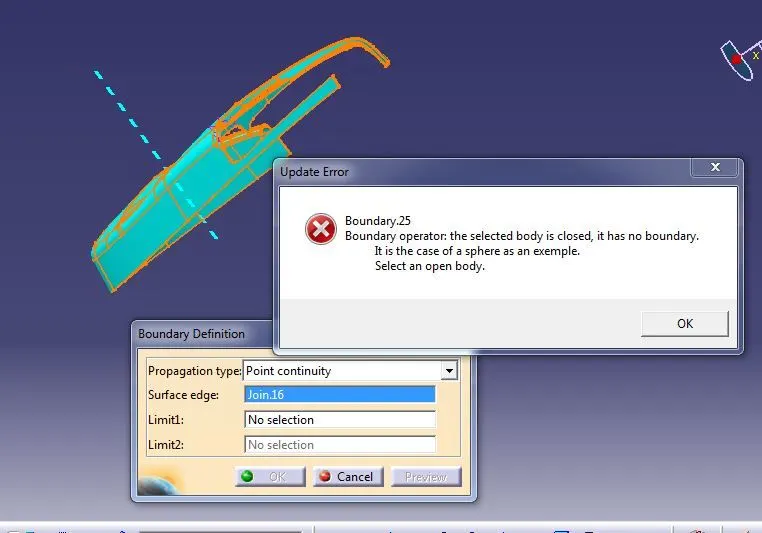

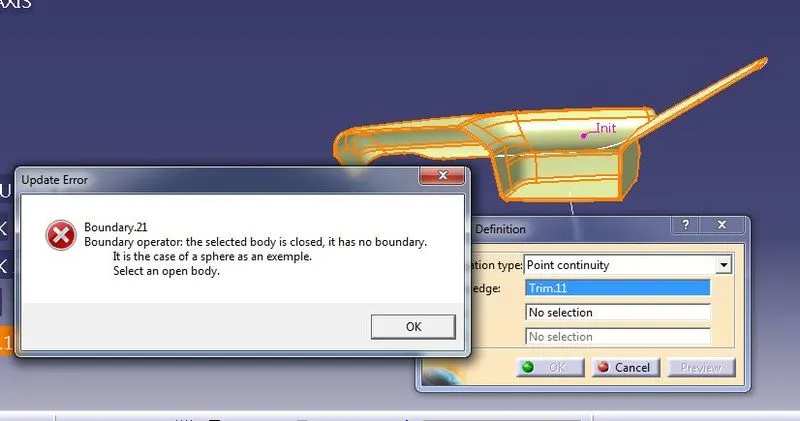

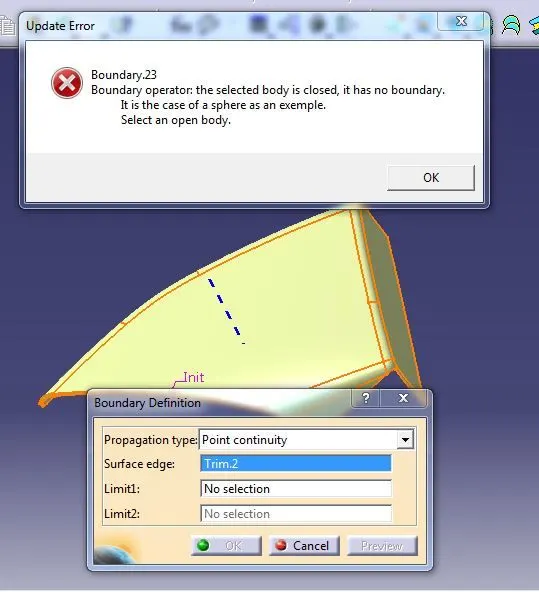

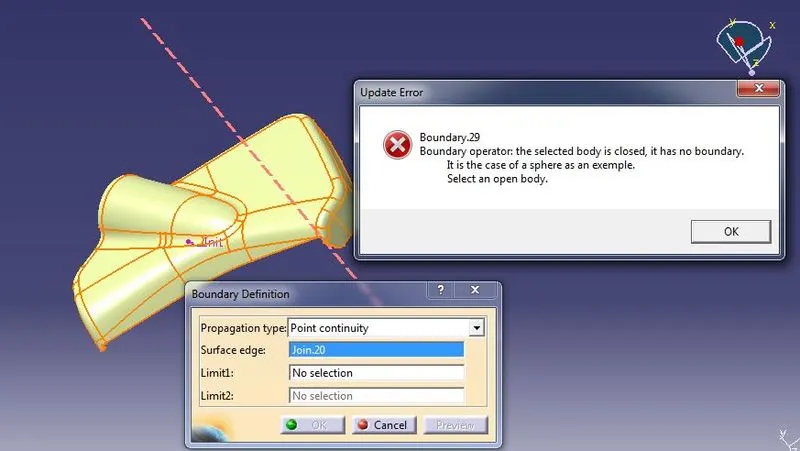

AFTER CREATION OF CLASS B AND CLASS C SUFRFACE THEN FINAL TRIM DONE THE FINAL TRIM SHOULD NOT GET THE BOUNDARY WICH ARE FULLY CLOSED

ARM REST

LOWER MAP POCKET

LOWER SUBRATE

LOWER MAP POCKET

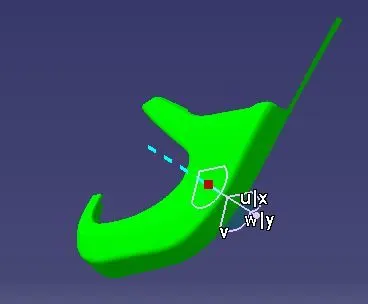

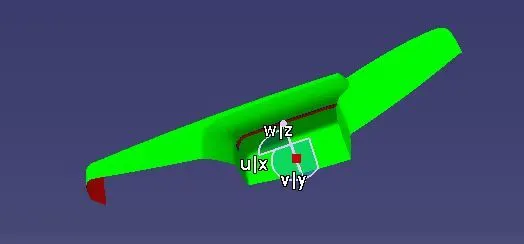

THEN USING CLOSED SURFACE THE PART IS CREATED AND DRAFT ANALYSIS IS DONE.

ARM REST

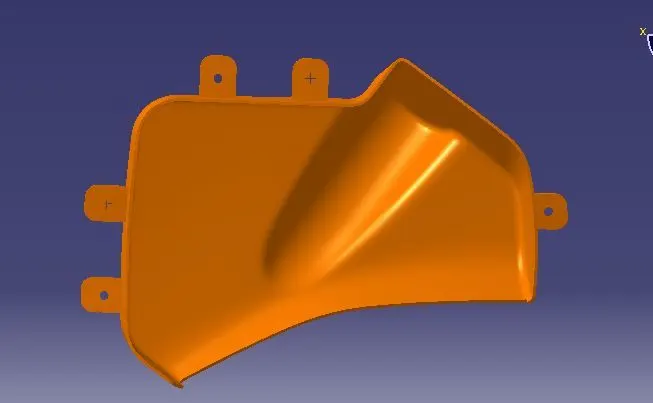

LOWER MAP POCKET

LOWER SUBRATE

UPPER MAP POCKET

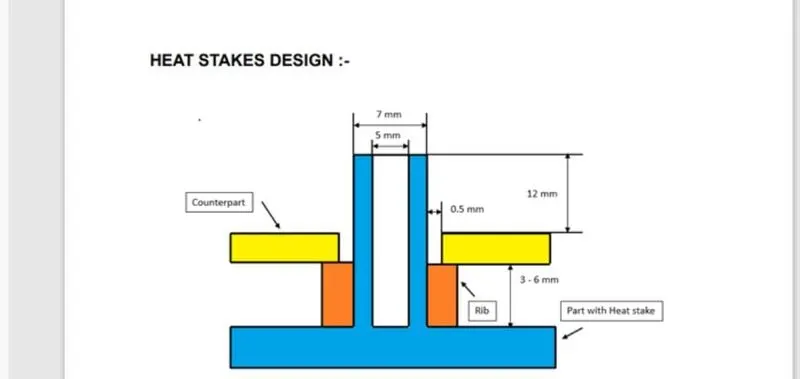

HEAT STAKE , LOCATER , DOG HOUSE AND FLANGE  CREATION

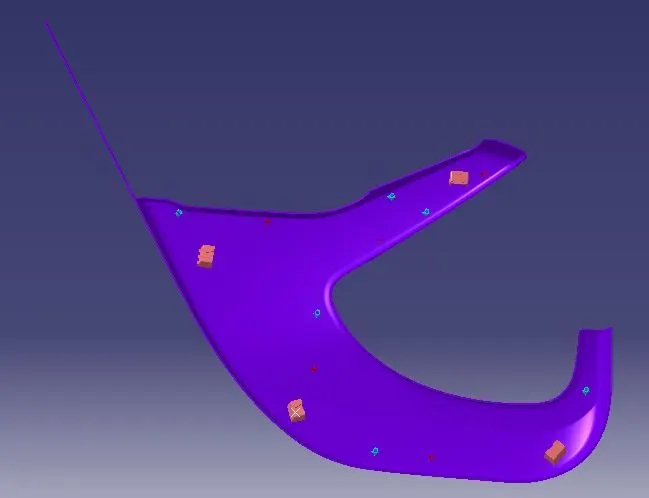

HEAT STAKE , LOCATER AND DOG HOUSES ANRE CREATED IN THE LOWER SUBRATE PART

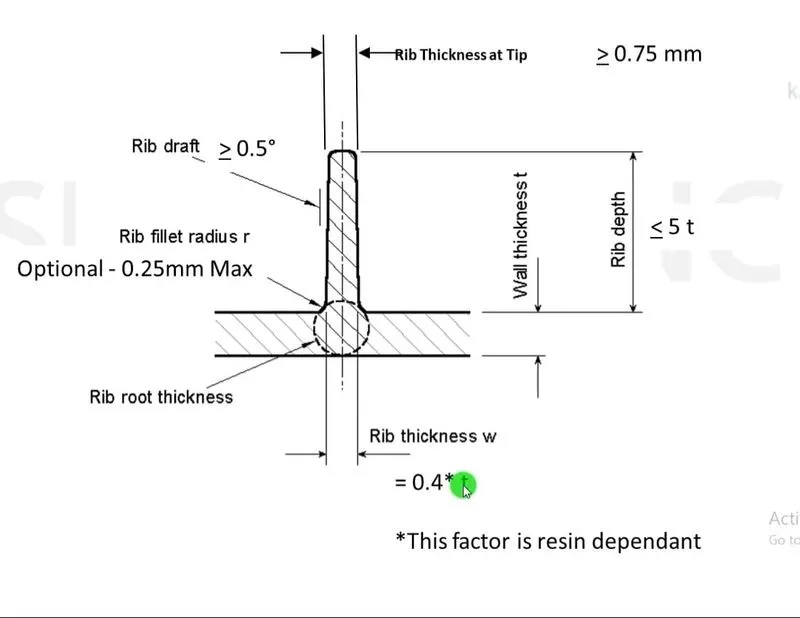

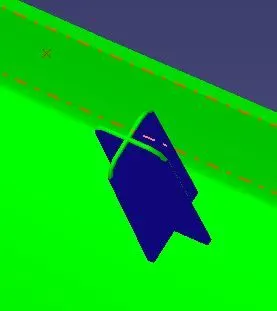

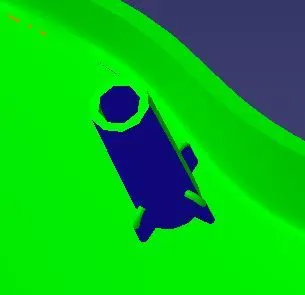

AS FOLLLOWING THE ABOVE RULES THE HEAT STAKES AND LOCATER RIBS ARE DESIGNED.

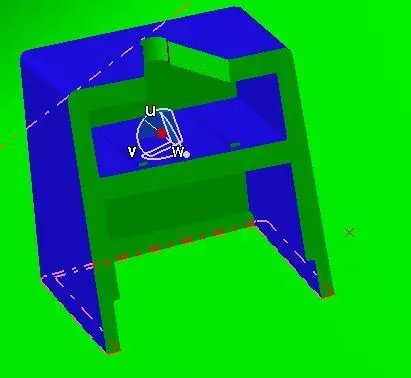

DOG HOUSE

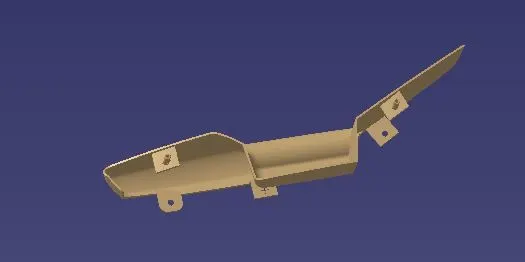

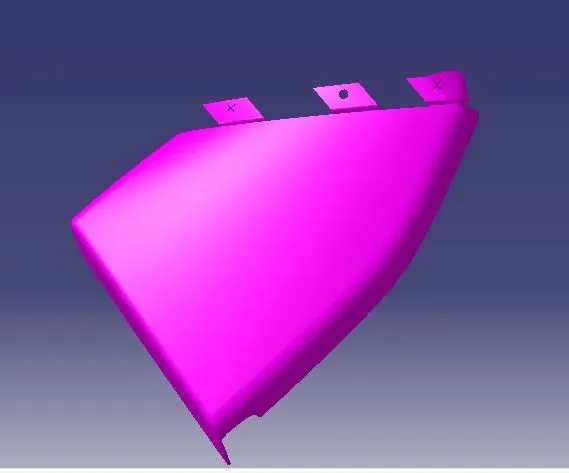

FLANGE CREATION







EACH AND EVERY FLANGES ARE DRAFT WORK IS DONE OPPOSTE DIRECTION TO THE HEAT STAKES AND  LOCATERS

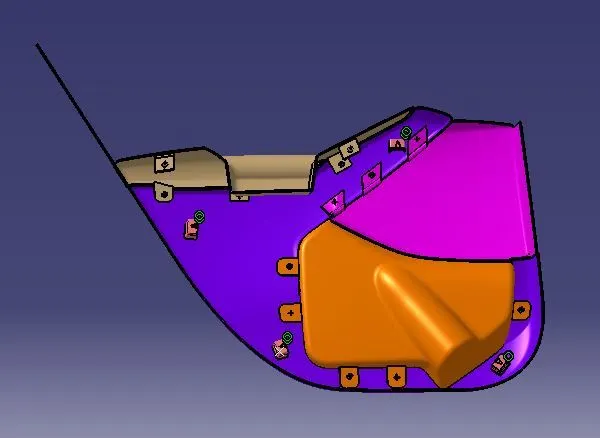

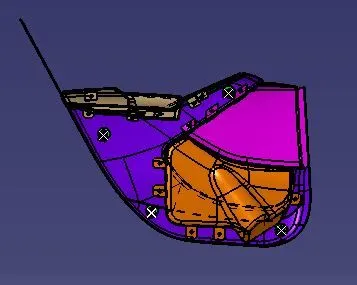

OVER ALL VIEW

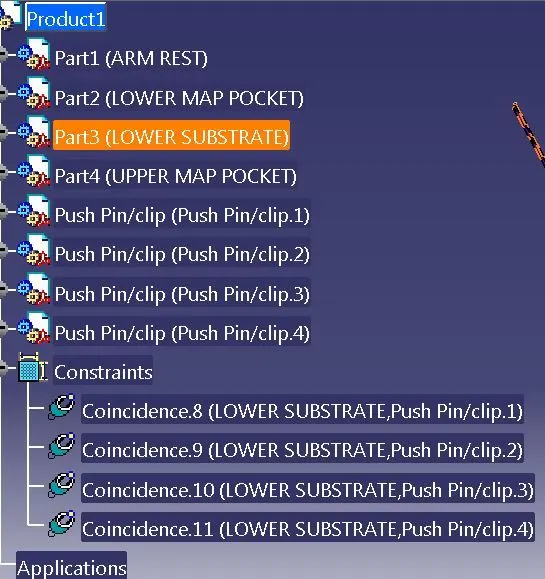

ASSEMBLY OF PUSH PINS

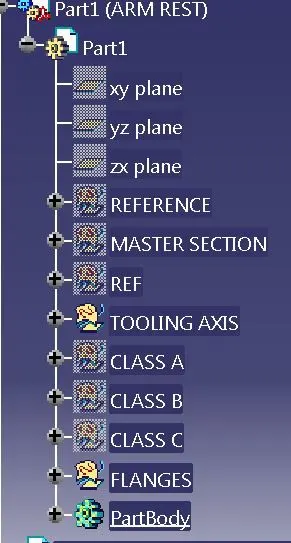

WORKING STEPS



CONCULUSION

 AS PER TASK THE DOOR PLASTIC COMPONENTS ARE DESIGNED AND ASSEMBLED.
