From the given master section and class A surface the parts are thicken to 2.5 mm distance and with the draft angle of 3 drgress with the tooling axis and the doog house is created with the help of side core axis

draft angle is given for every part 3 degress

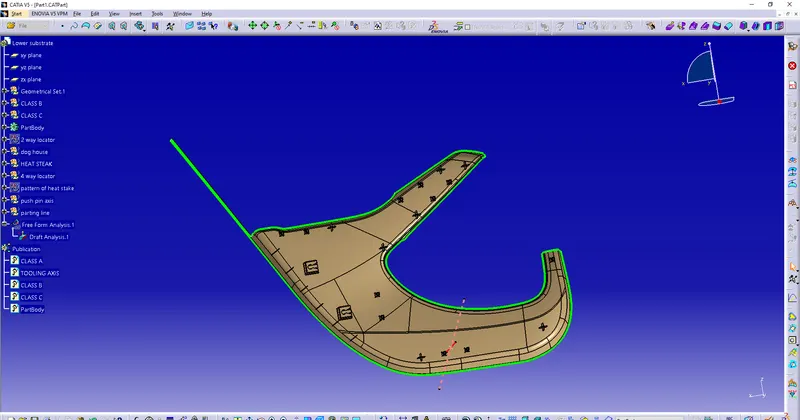

heat steak,4 way locatorsand 2 way locators are placed on the Lower substrate with the given master section and paded in the direction of tooling axis with all given dimensions and requried draft angles

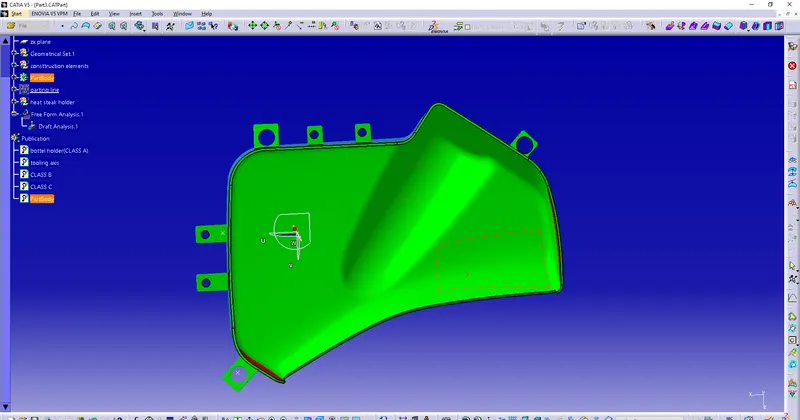

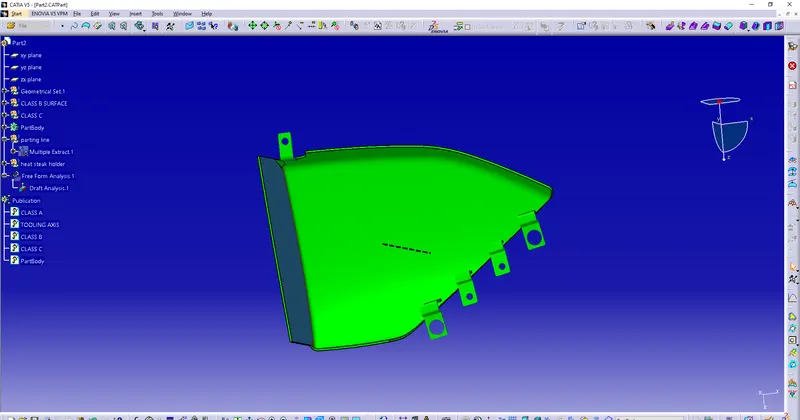

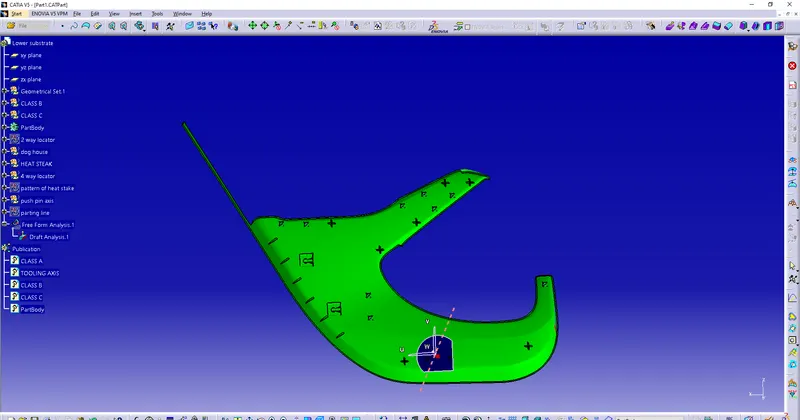

the above puictures are draft anylsis for every part of the panel

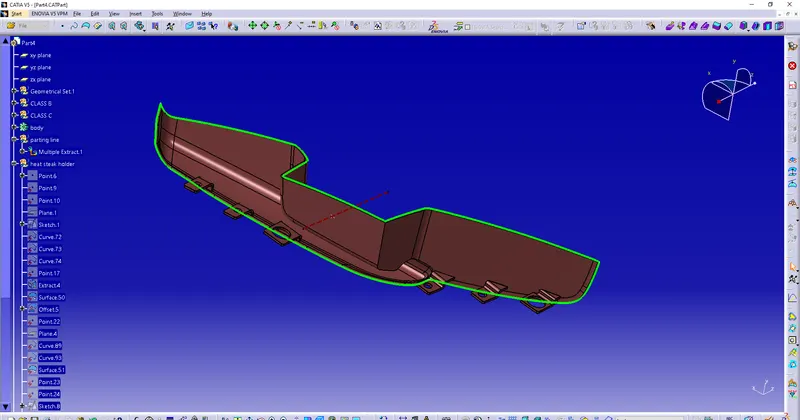

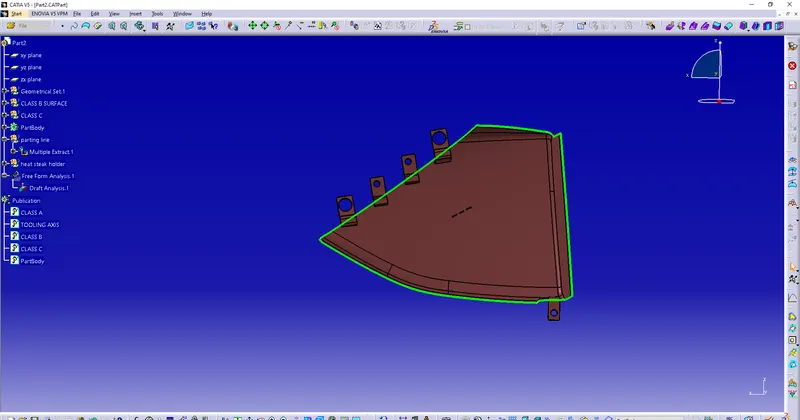

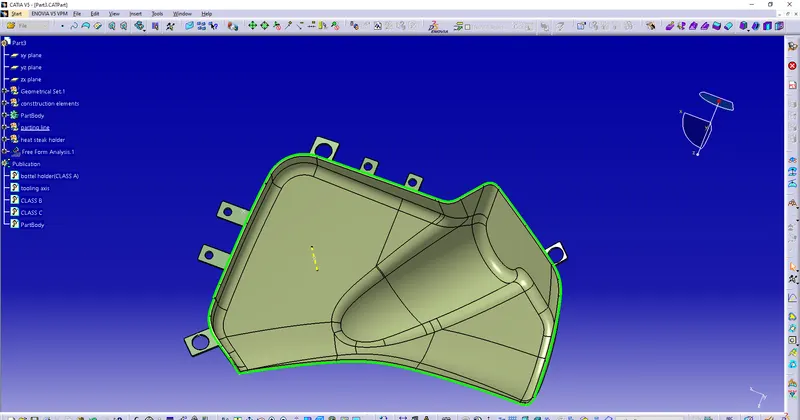

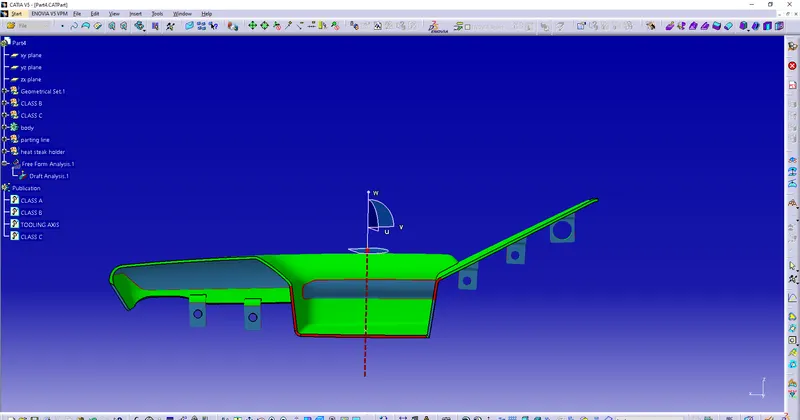

the above pictures are parts of door panel the parting line which separates core and cavity is created for every part of the door panel
