Week 12 Challenge

Aim-: calculte barge force and analyse it in stadd pro

Given Data:

Bridge span =12m, bridge width =7m, Piers dia 2.5 m x 2.5m, Rise of the bridge = 5m, Deck slab thickness 500mm

cross Girders=0.75 m x 1.8 m, Hydrodynamic coefficient(CH)= 1.25, W=52500 DWT, Speed of the Barge(V) = 60Km/hr

Calculations;

Barge Collision Energy, KE=500*CH*W*V^2

where,

Hydrodynamic coefficient(CH)= 1.25, barge displacement tonnage(W)=52500 DWT, barge impact speed(V) = 60Km/hr.=16.6667m/s

KE=500*1.25*5.2500*(16.667)^2, KE=911822.95 N-M.

Barge Damage depth,aB=3100*([1+1.3*10^-7*KE]^0.5-1)=3100*([1+1.3*10^-7*911822.9531 ]^0.5-1)

Barge Damage depth,aB=178.58mm

Barge collision impact force,PB

For aB≥100mm,pB=6*10^6+1600*aB=6*10^6+1600*(178.5881741m), pB=6285741.079N=6285.74kn

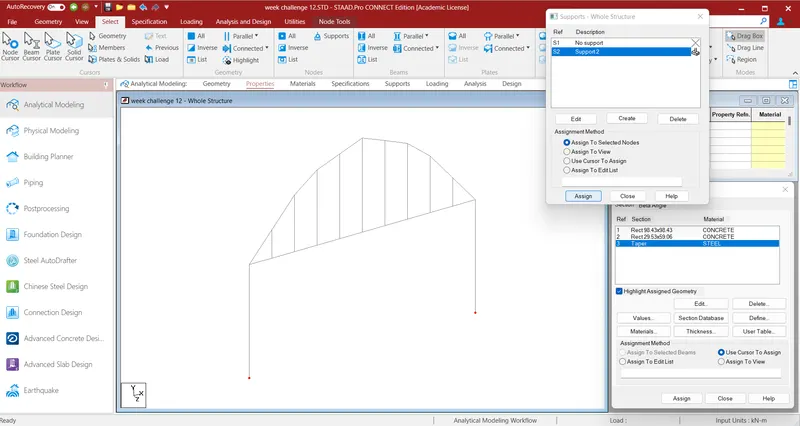

Analyse it in Staddpro-:

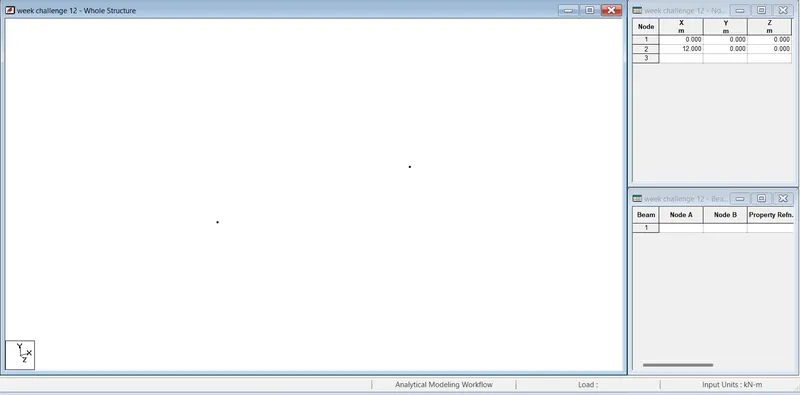

create a node @ origin (0,0,0) and another @ x direction at 12m as span of bridge is 12m

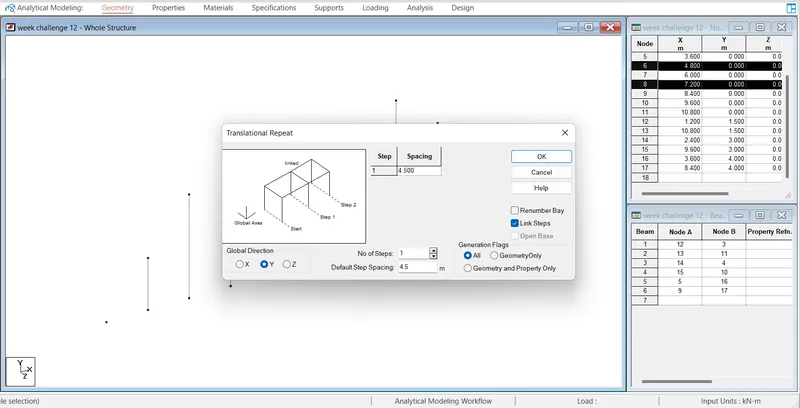

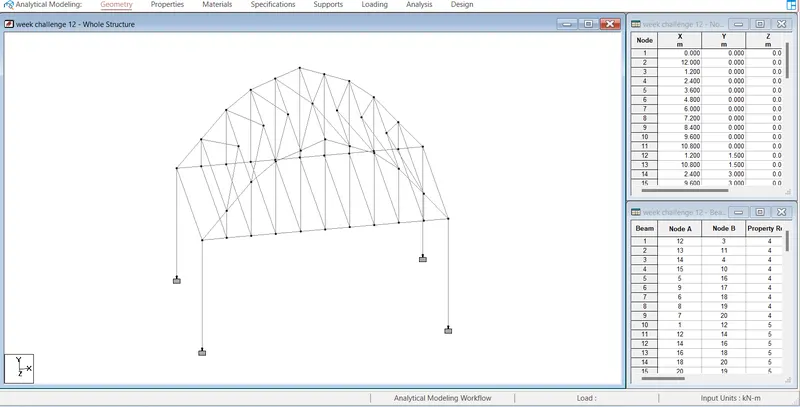

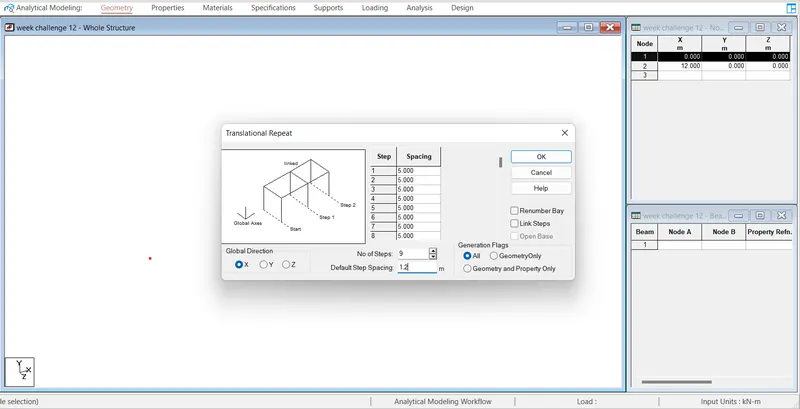

as it is a truss membder create nodes as steps 9 at 1.2 m spacing

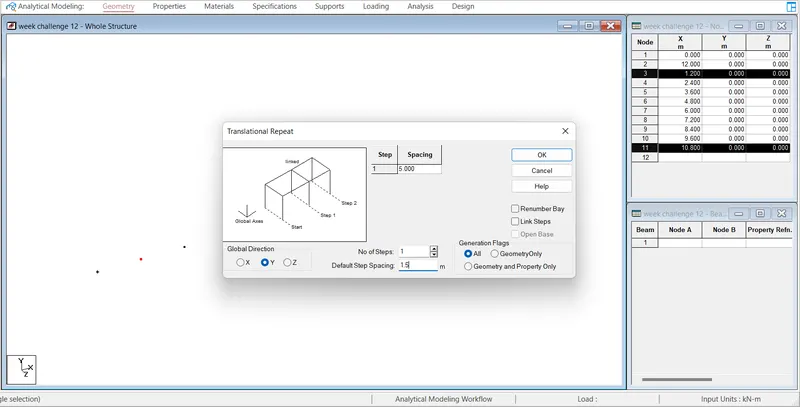

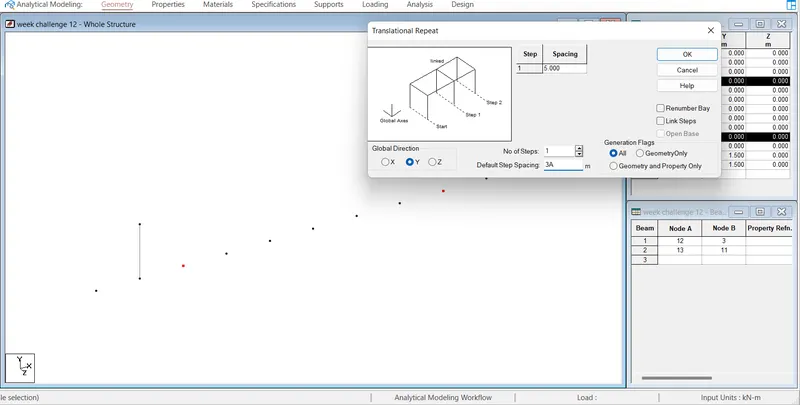

now select 2nd node and 10th node and by using translitional copy node @ y dir at 1m spacing

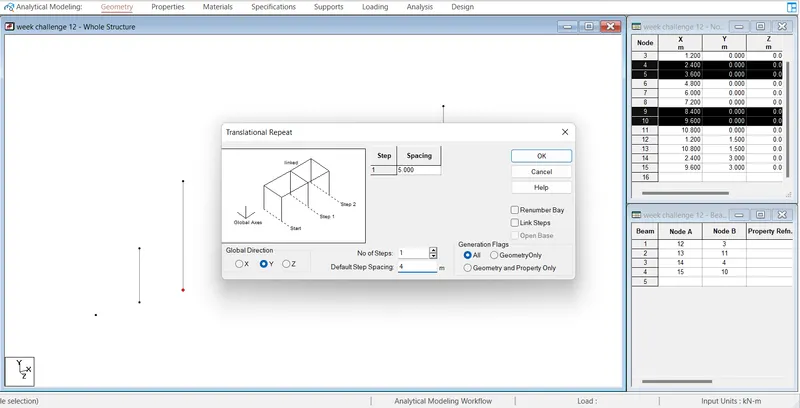

simillarly for rest node as 3m, 4m, 4.5m, 5m repectively @ y direction and add beam and top string to create structure

add 6m pier to bridge by using translitional copy node @ -6m @ y direction and add properties to related member

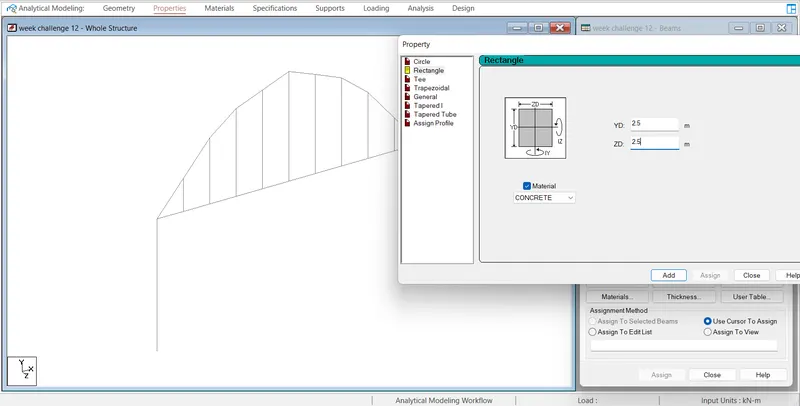

pier as rectangular 2.5*2.5m

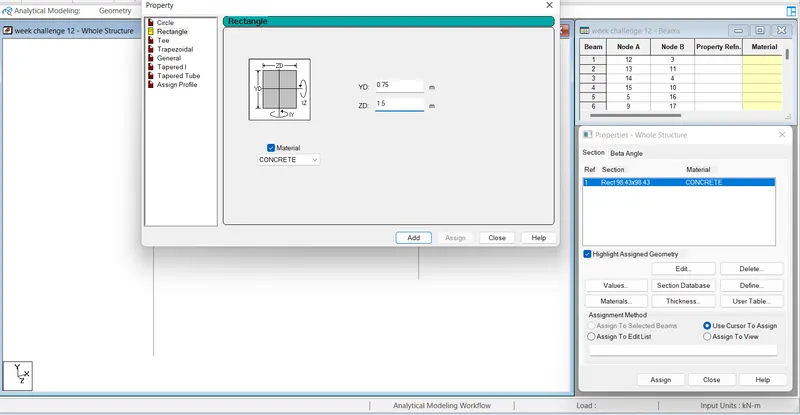

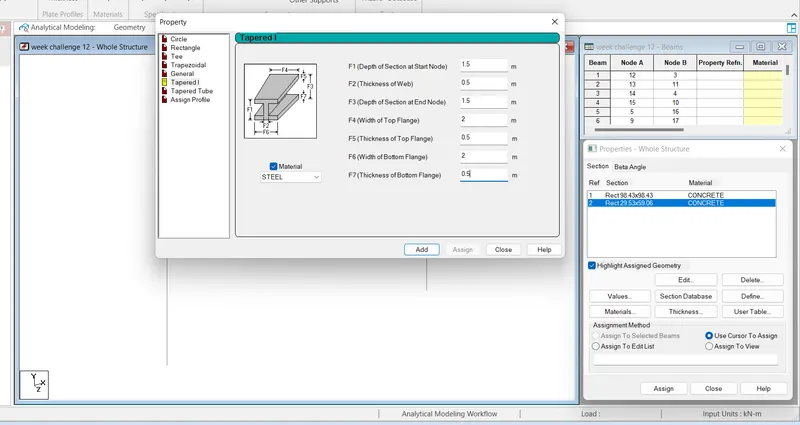

cross sectional beam as 0.75*1.5m

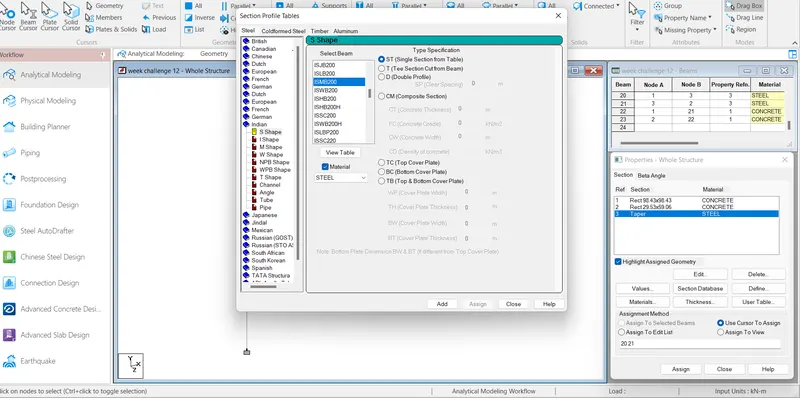

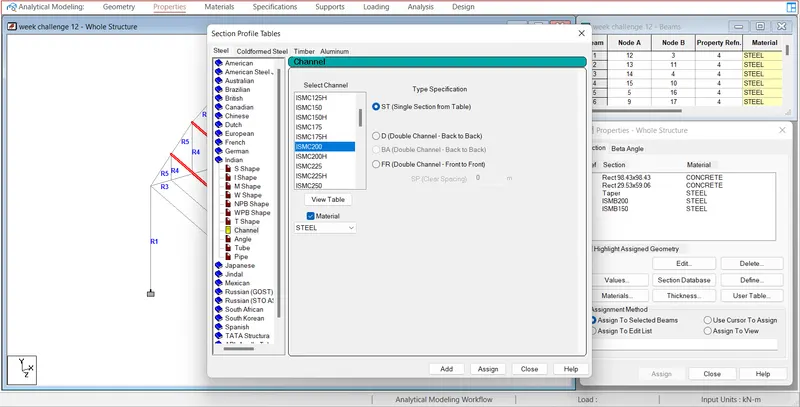

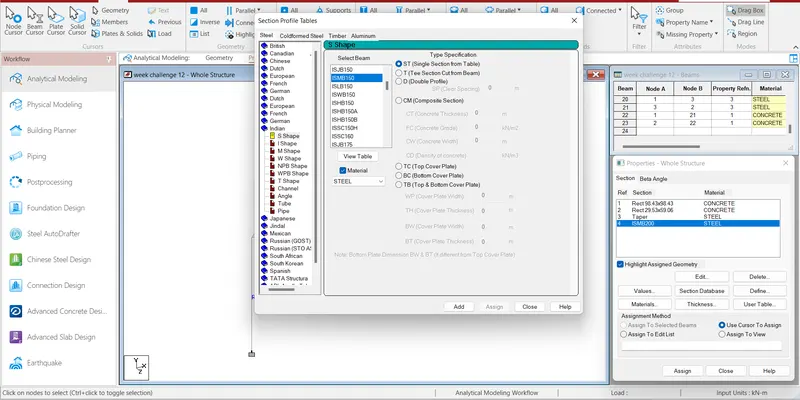

longitudinal beam as following dimension

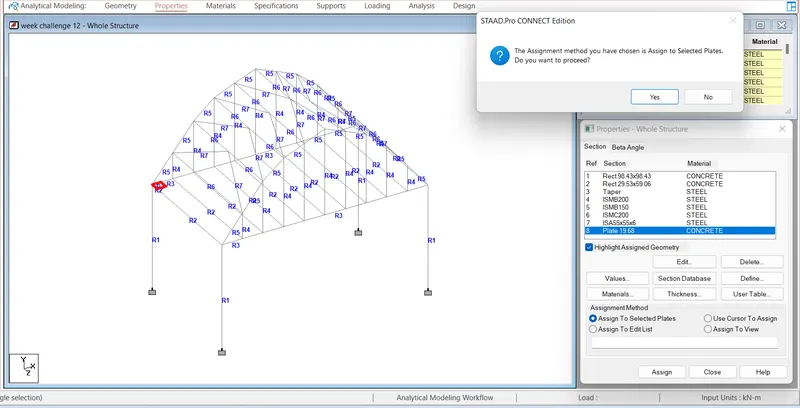

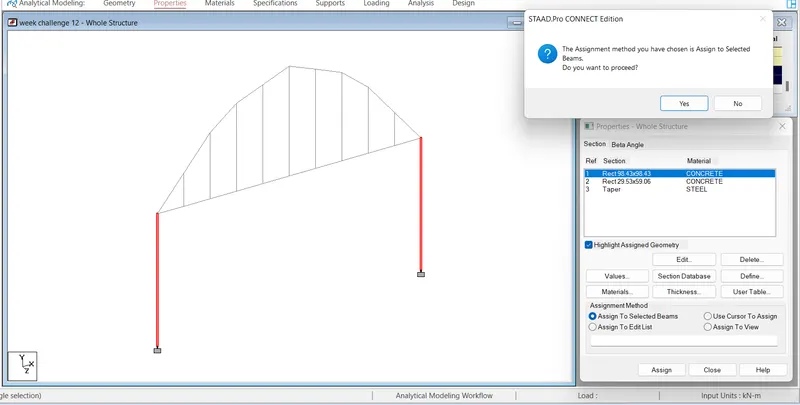

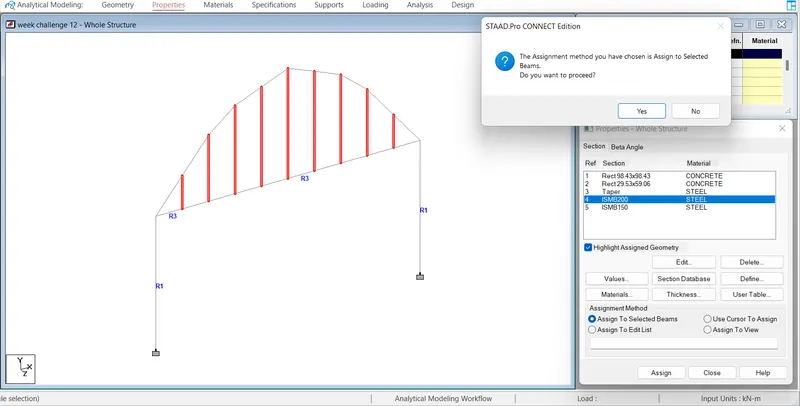

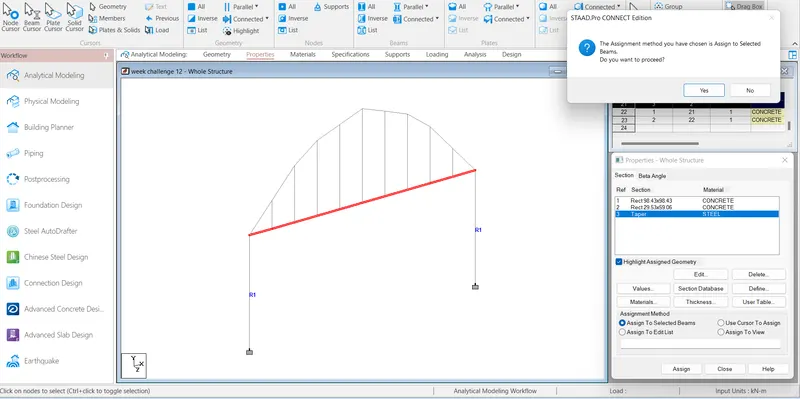

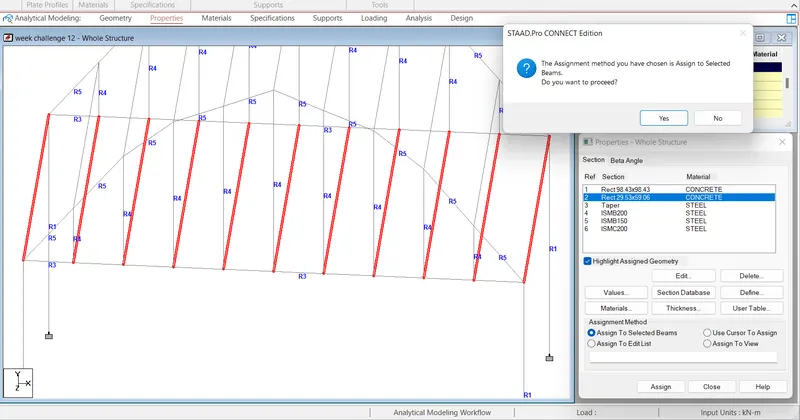

after adding the whole properties assign to that property to respected member

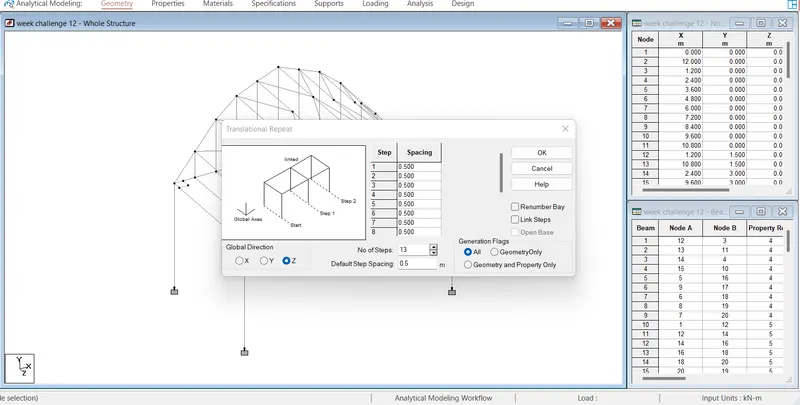

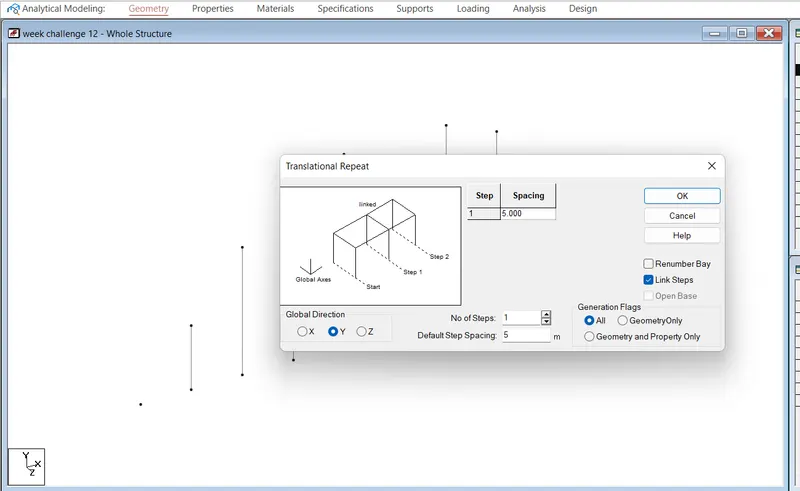

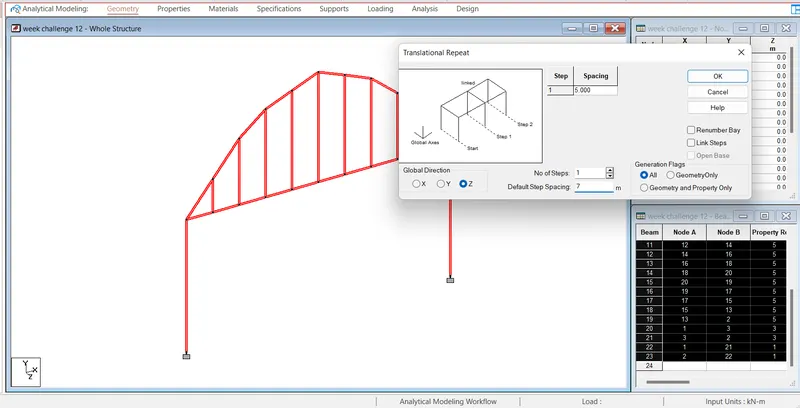

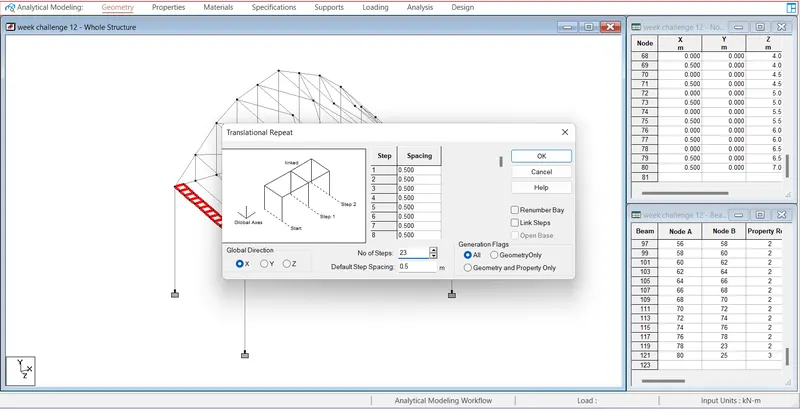

now select the whole structure and by using translitional copy the whole structe as width ofd deck slab is 7m this copy select all in which the structure copy with its whole property

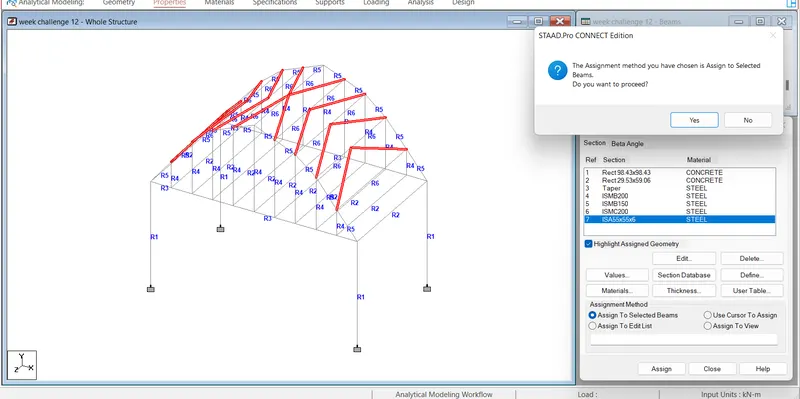

now assign other member property which is created by copy the structure @ 7m

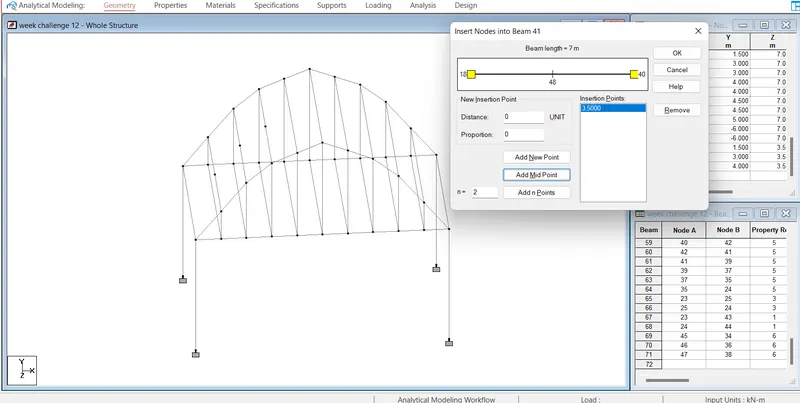

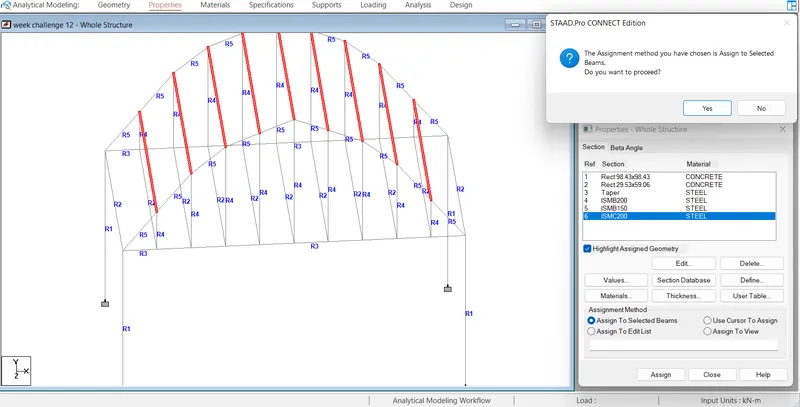

insert node to top C channel and add beam siign property to them

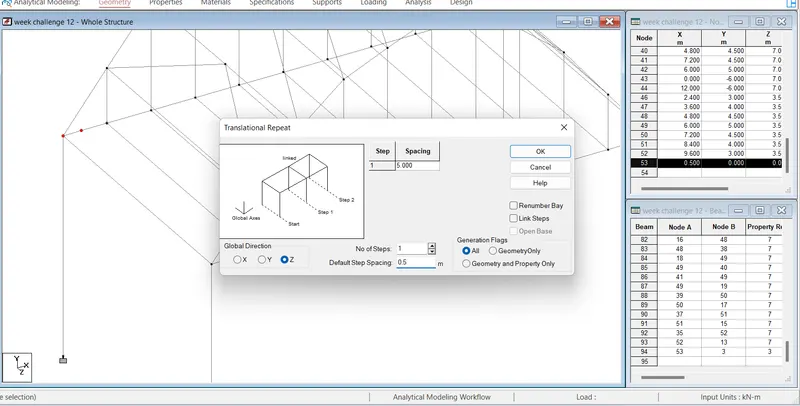

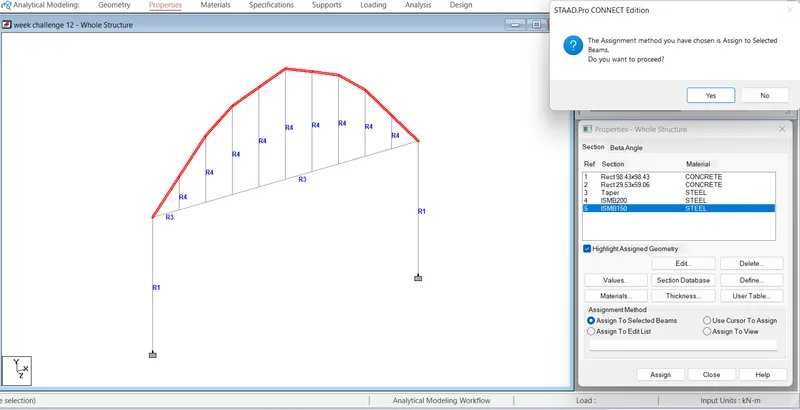

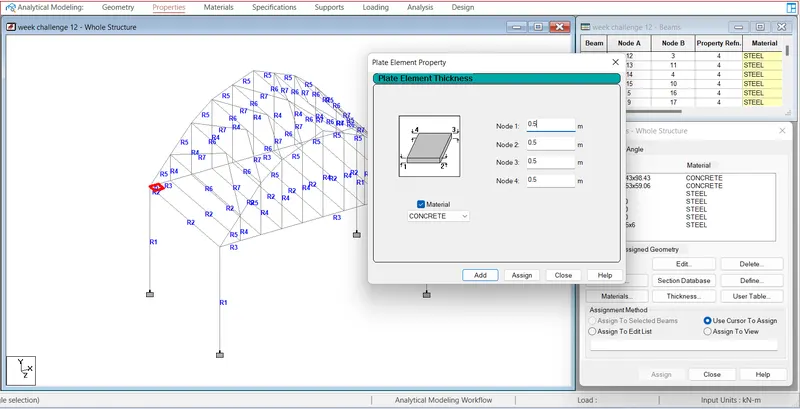

now create plate for deck slab and give thickness to plate as 0.5m and copy that plate to both X and Z dir by length/0.5 for no. steps

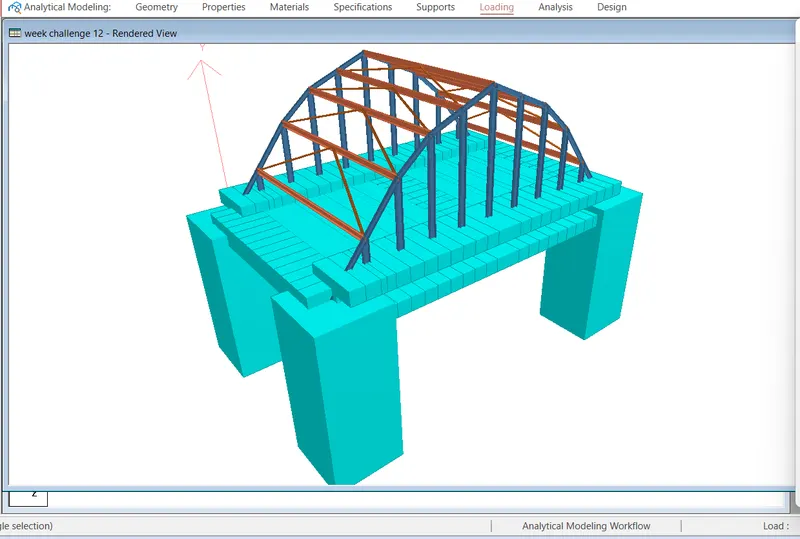

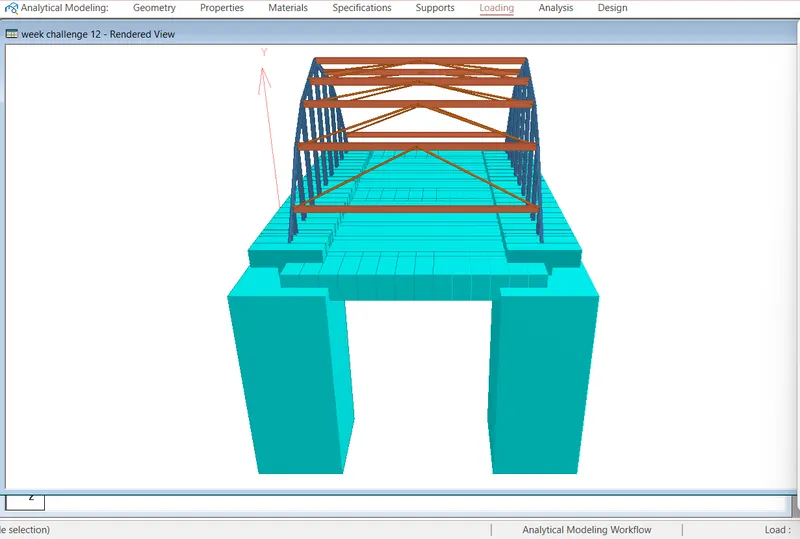

final structure in 3d

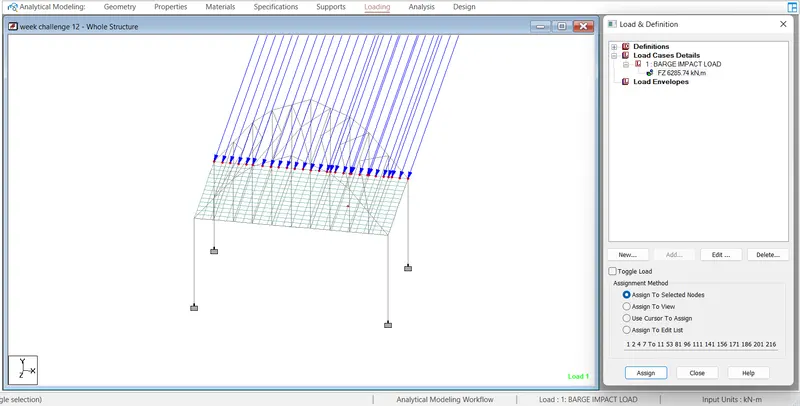

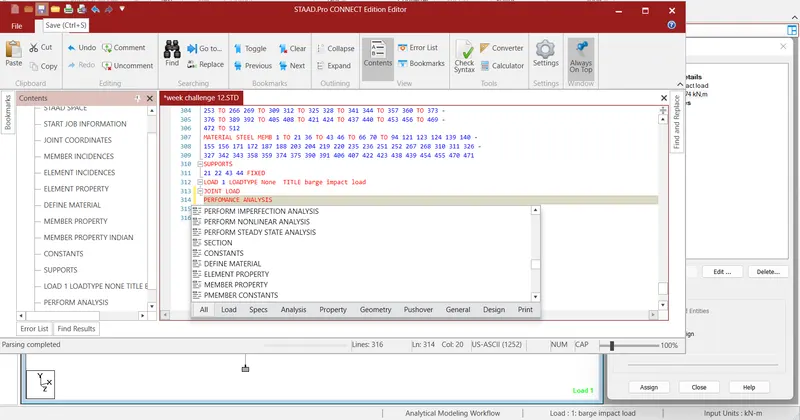

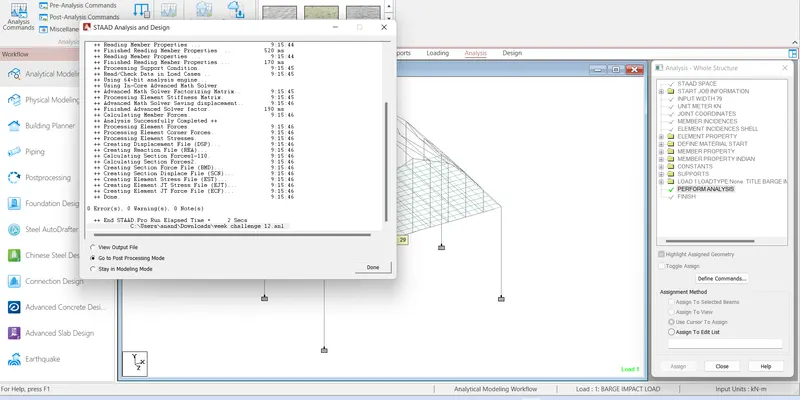

add load case as barge impact load and run the analysis after get 0 error and warnings go to post processing the loading and resuklt we get

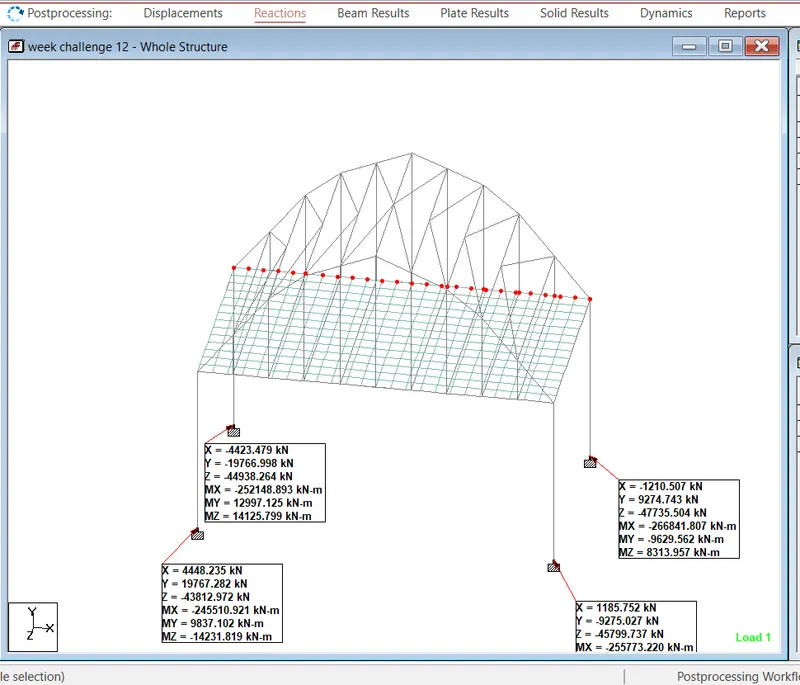

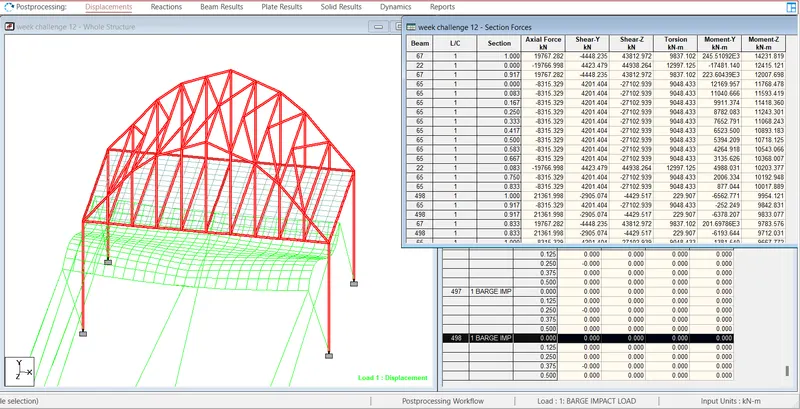

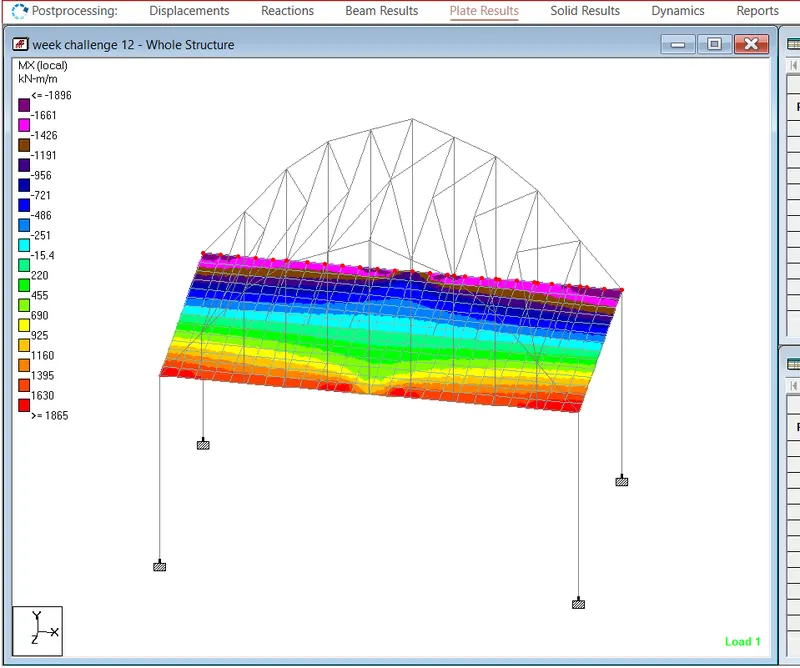

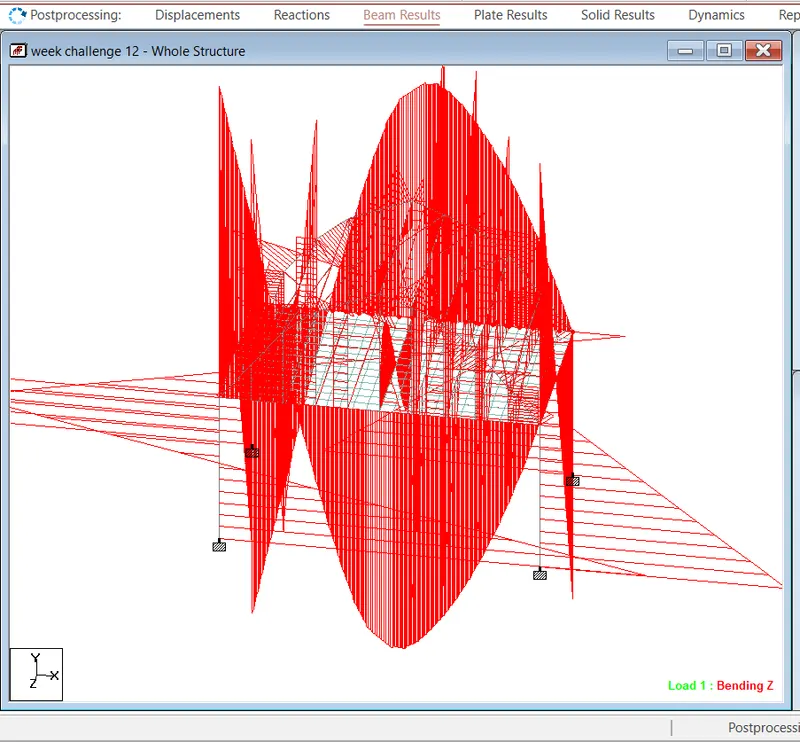

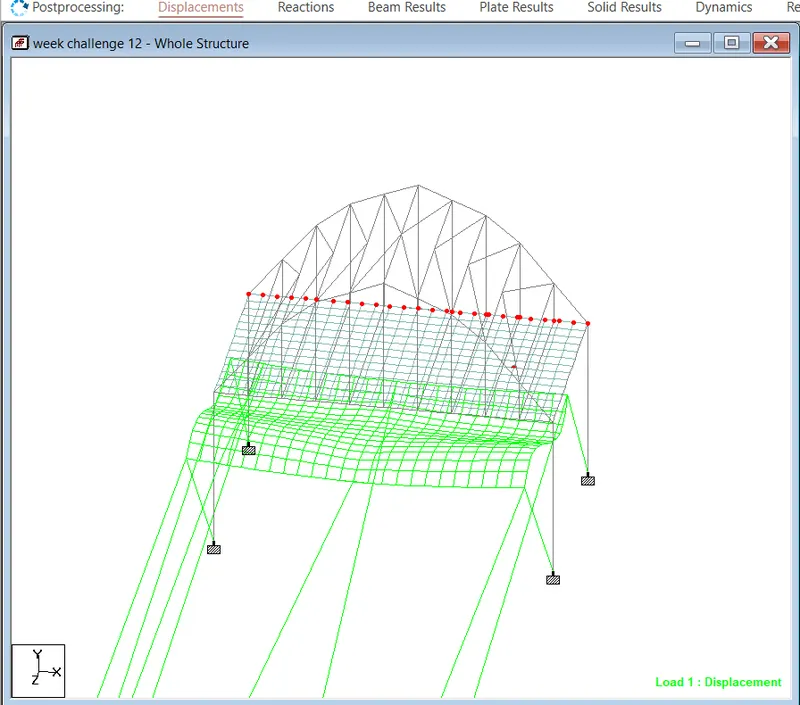

plate stress @ mx local and displacement reports of sectional forces are as shown below
