Week 11 - Project - A pillar Design with Master Section
SURFACE A IS GIVEN AS INPUT.
TOOLING AXIS: TO CREATE THE TOOLING AXIS, I USED THE MASTER SECTION DOG HOUSE REFERENCE TO CREATE THE AXIS.CREATED TWO POINT-POINT LINES AND CREATED BISECTING LINES BETWEEN THEM.
DRAFT ANALYSIS FOR SURFACE A IS CREATED. THE FOLLOWING IMAGES ARE ATTACHED BELOW.
SURFACE B: FROM THE GIVEN SURFACE A, I CREATE SURFACE B BY OFFSETTING IT TO 2.5mm. I FOUND ONE FILLET AREA THAT NEEDS TO BE DEVELOPED.SO HERE I USED THE SWEEP COMMAND TO CLOSE THE AREA AND I GOT SURFACE B.
SURFACE C: TAKING REFERENCE FROM THE CLASS A BOUNDARY, BY USING THE SWEEP COMMAND I CREATED A CLASS C SURFACE AS OUTPUT. HERE I JOINED THE SURFACES B AND C.ALSO I MADE AN INTERSECTION BETWEEN CLASS B AND JOIN THE SURFACE OF A AND C. I GOT SOME AREAS AS OPEN PROFILES. I CLOSED THOSE GAPS BY USING THE EXTRPOLATE COMMAND.

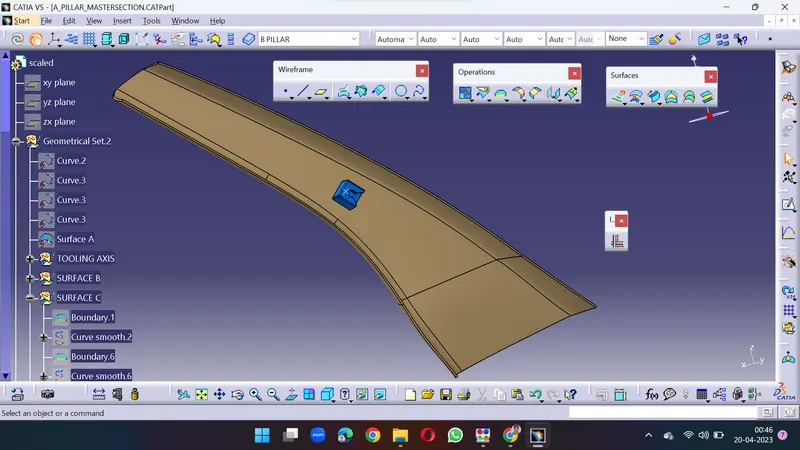

FINAL SURFACE: I TRIMMED THE BOTH SURFACE TO GET A CLOSED SURFACE AS A RESULT. BY USING THE CLOSE COMMAND, I MADE THE SURFACE INTO A THICK COMPONENT.
DOG HOUSE CREATION IS DONE BY USING A MASTER SECTION AS A REFERENCE TO CREATE A PROJECTION FROM IT. AFTER PROJECTING IT I ISOLATED THAT PROJECTION AND JOINED THE OUTER SURFACE OF THE DOG HOUSE AND EXTRUDED IT TO THE REQUIRED DIMENSIONS. I CREATED THE INSIDE BOTTOM FLAT SURFACE BY TAKING OFFSET OF THE OUTER LAYERS OF THE DOG HOUSE. THEN I CREATED THE TWO VERTICAL RIBS IN THE SAME AS THE ABOVE METHOD. THEN I DRAFTED THE OUTER LAYER OF THE DOG HOUSE TOWARDS THE TOOLING AXIS.
ALSO, I CREATE A SIDE CORE AXIS BY CREATING THREE POINT PLANE AND USING THE DIRECTION OF THAT PLANE TO CREATE A POINT-DIRECTION LINE. THEN I DRAFTED THE INNER SURFACES TOWARDS THE SIDE CORE AXIS.
FINAL DRAFT ANALYSIS IS CREATED FOR BOTH THE MAIN TOOLING AS WELL AS SIDE CORE AXIS. THOSE IMAGES ARE ATTACHED BELOW FOR REFERENCE.PPT IS ATTACHED BELOW ALONG WITH CATPART.
