Week 11 - Project - A pillar Design with Master Section

A PILLAR DESIGN WITH MASTER SECTION

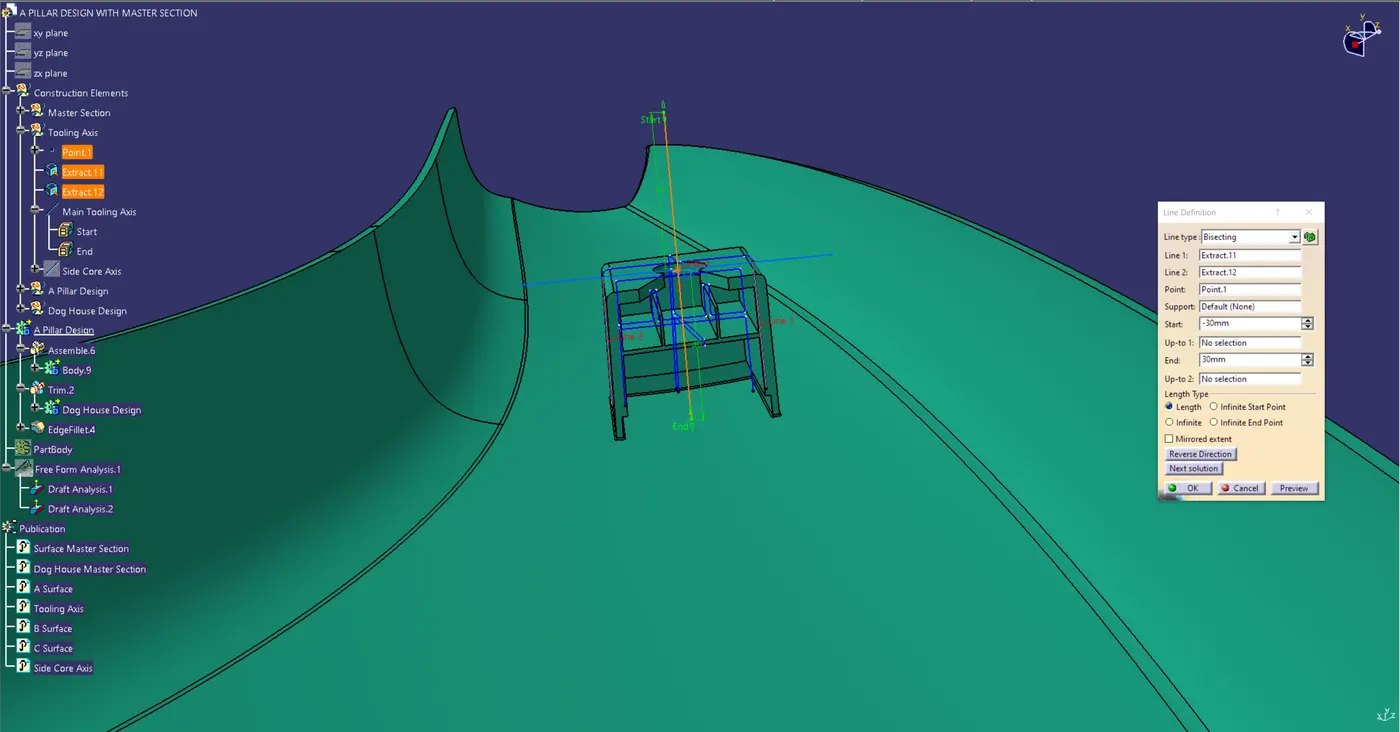

TOOLING AXIS :-

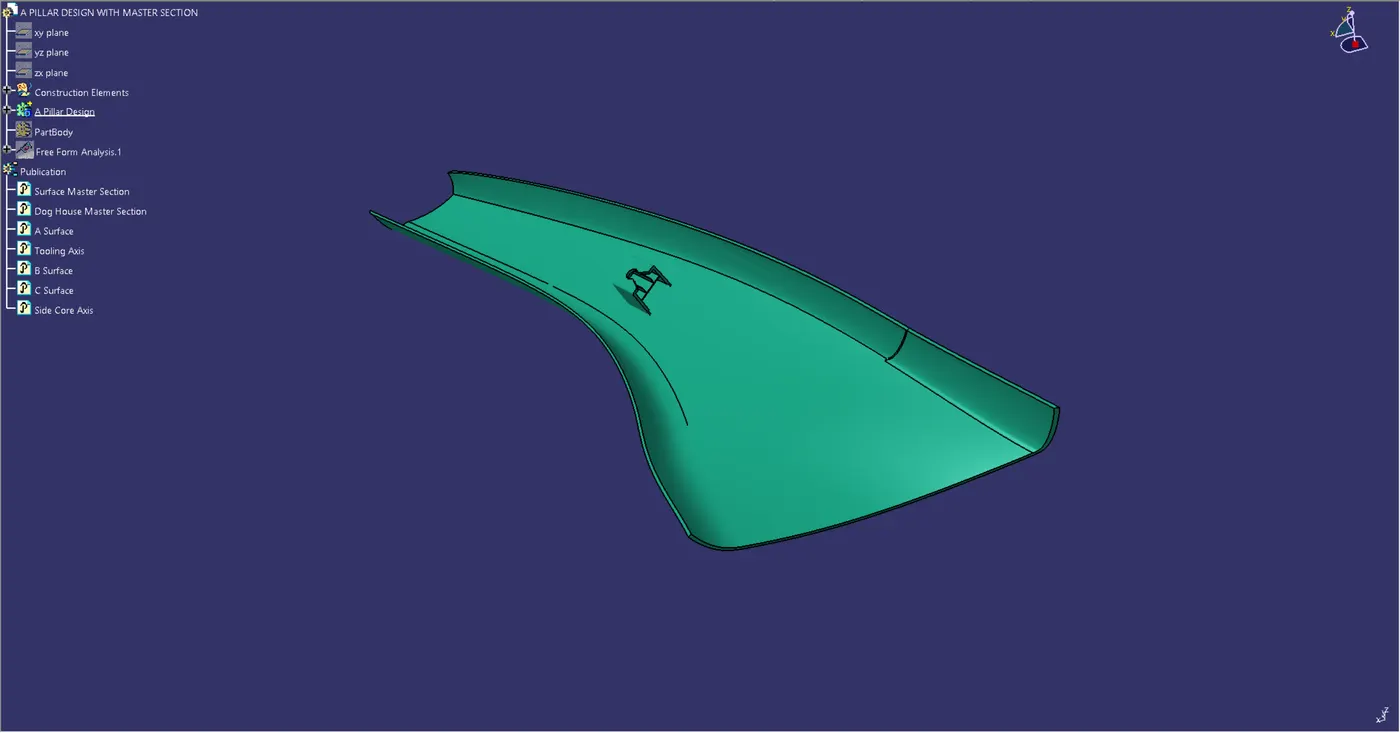

The Tooling Axis Construction For This Item Is Carried Out By Utilizing The Master Section Provided Along The Class A Surface. Because The Dog House Is Located In This Master Area And The Tooling Axis Provides The Draft For The Dog's Wall. Tooling Axis Can Therefore Be Taken From The Master Section. Below Are The Class A Surface And Master Section.

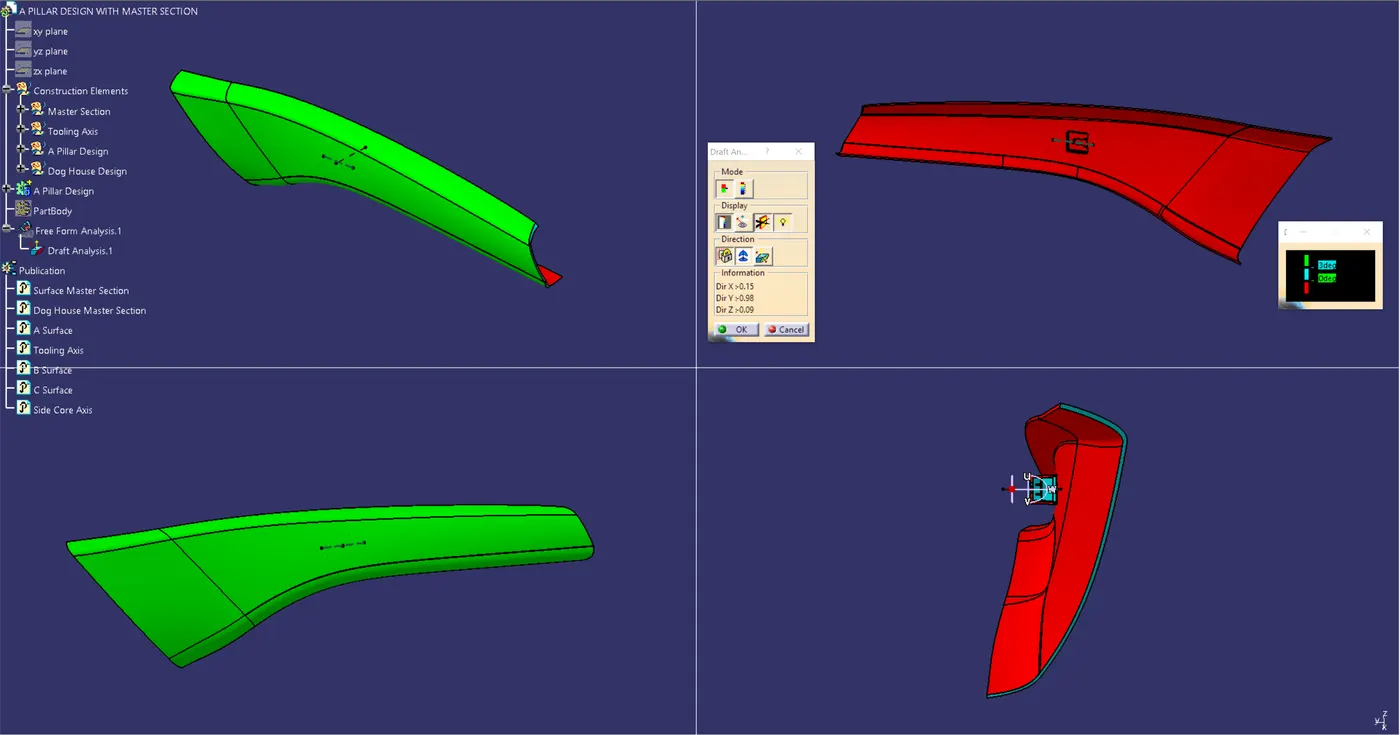

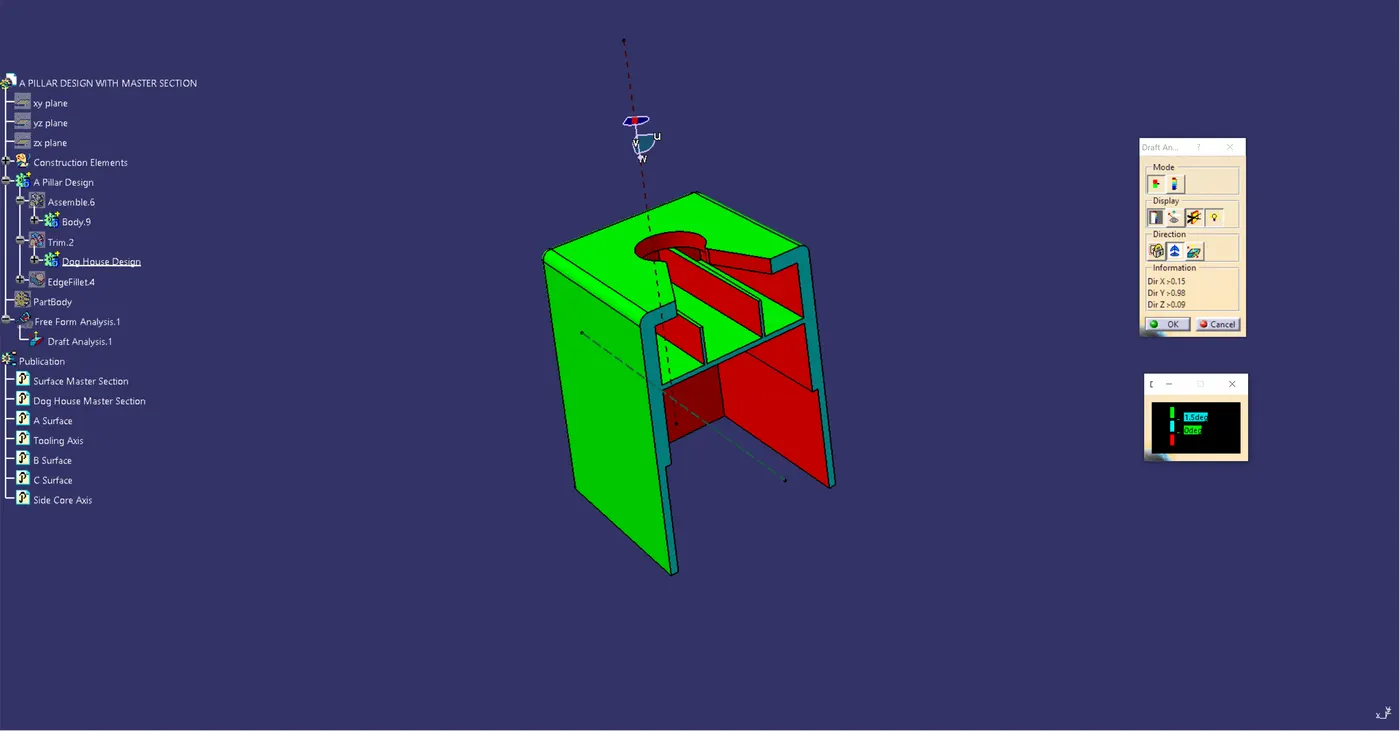

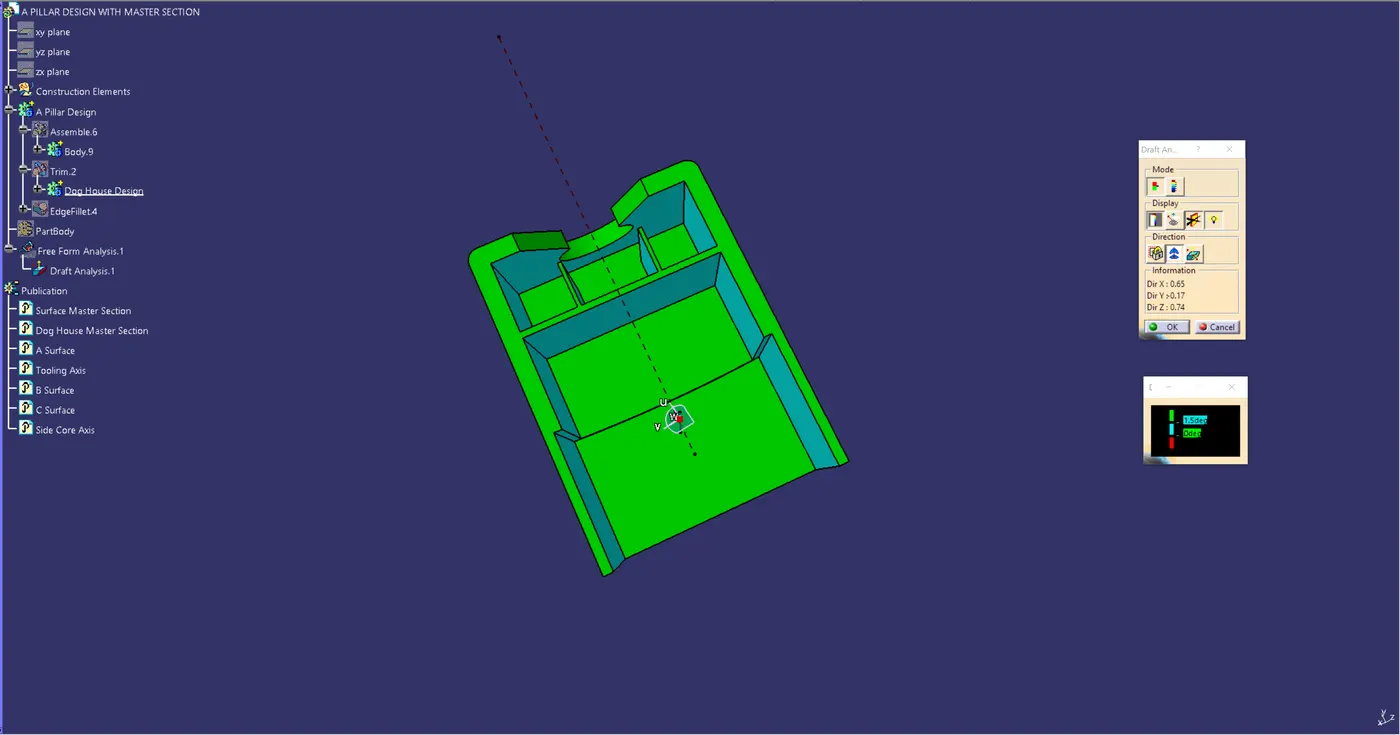

DRAFT ANALYSIS :-

The Amount Of Taper For Cast Or Molded Pieces Perpendicular To The Parting Line Is Known As The Draft Angle. It Is Definable In Degrees. For Safe Ejection And Reduce The Possibility Of Part Damage, A Functional Injection-Molded Part Must Have Drafts Facing Both The Cavity And Core Sides. For The Part To Release Correctly, It's Also Critical To Displace The Vacuum Forces By Allowing Air To Pass Between The Metal And The Plastic. Adding And Keeping A Respectable External Appearance.
