Week 11 - Project - A pillar Design with Master Section
A PILLAR DESIGN WITH MASTER SECTION
OBJECTIVE
- Creation of proper tooling direction following the master section to create the part that meets the requirements
- Creation of Class B and class C surface
- Creation of Dog house which meets the draft analysis along the side core axis for dog house
- Write A detailed report explaining the draft analysis of class A surface, final component and engineering features

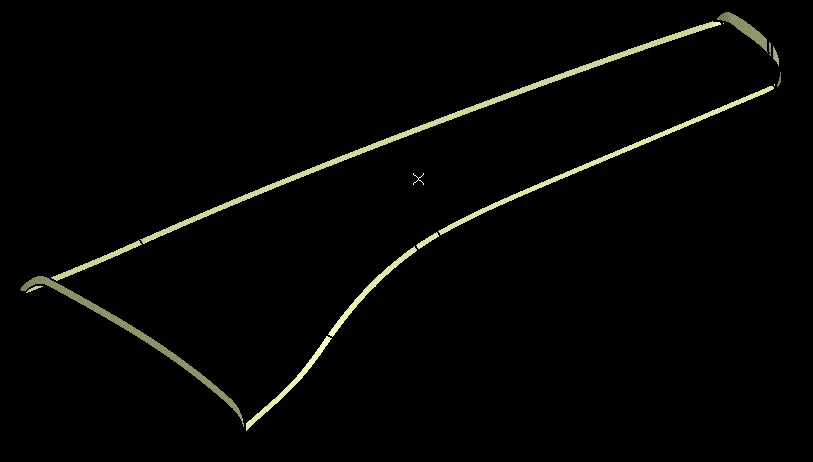

Given class A surface with master section

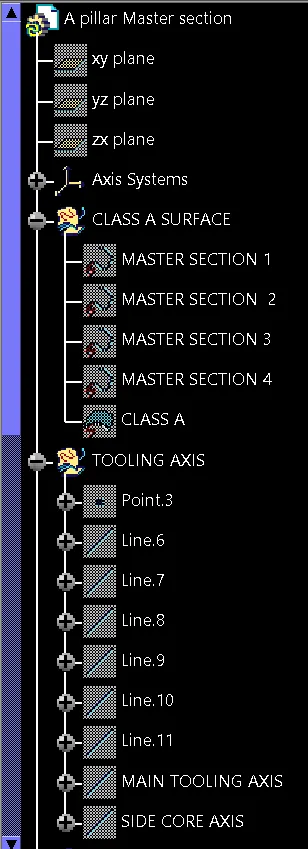

CREATION OF TOOLING AXIS

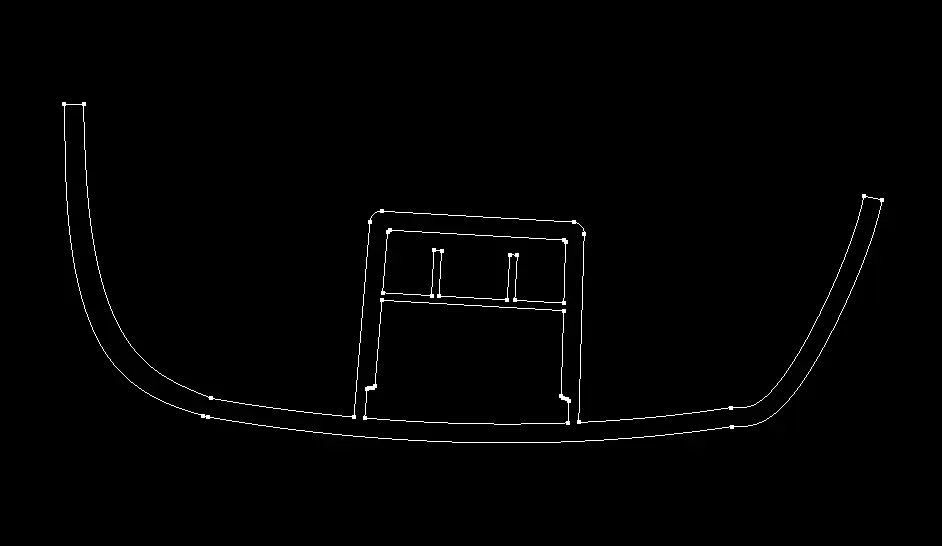

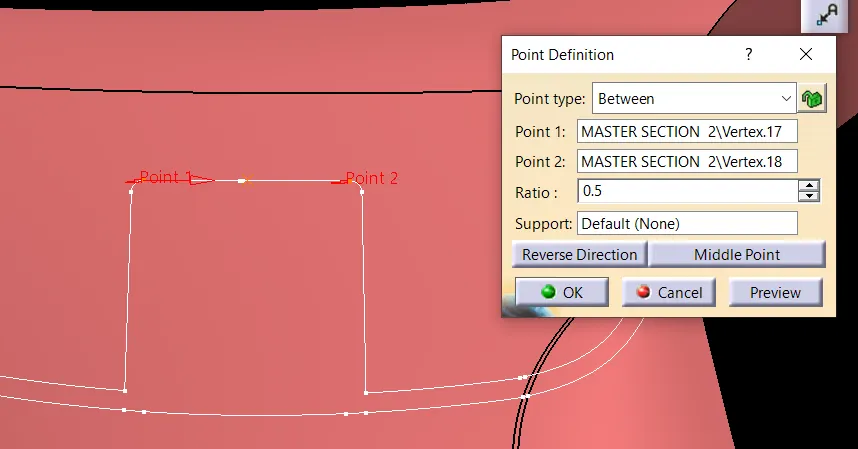

Create a center point with the help of master section as show below

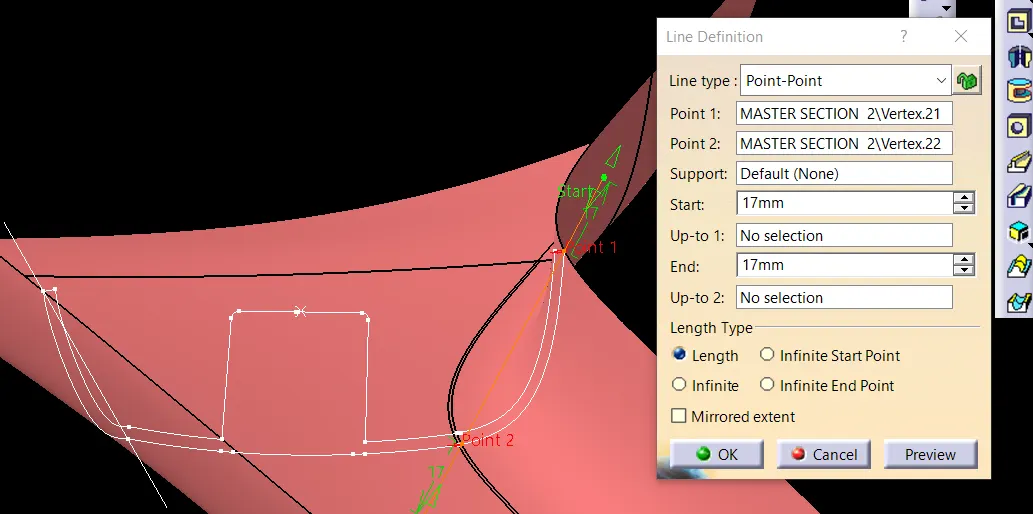

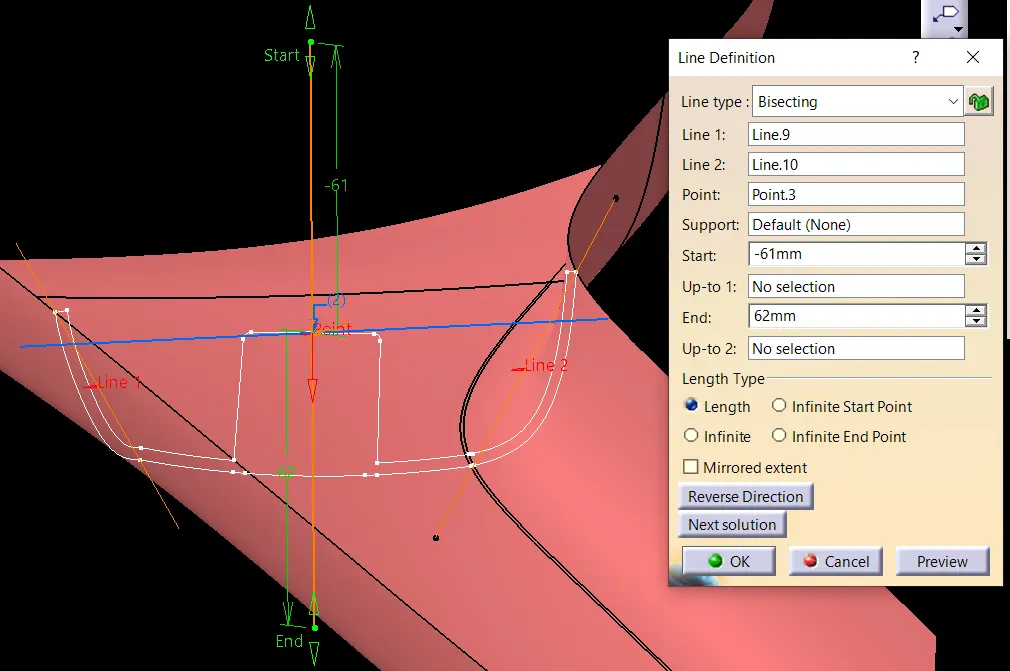

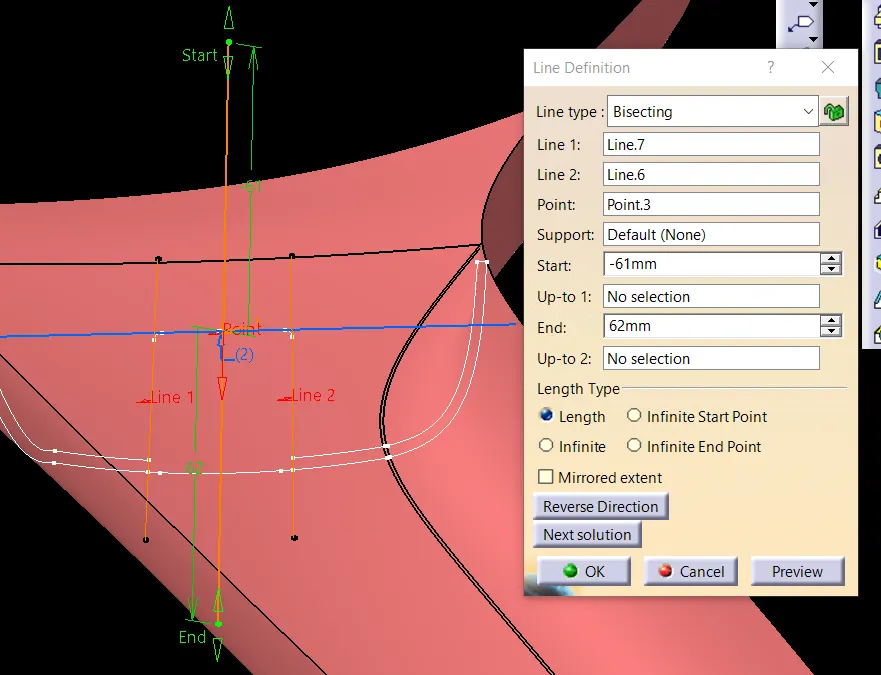

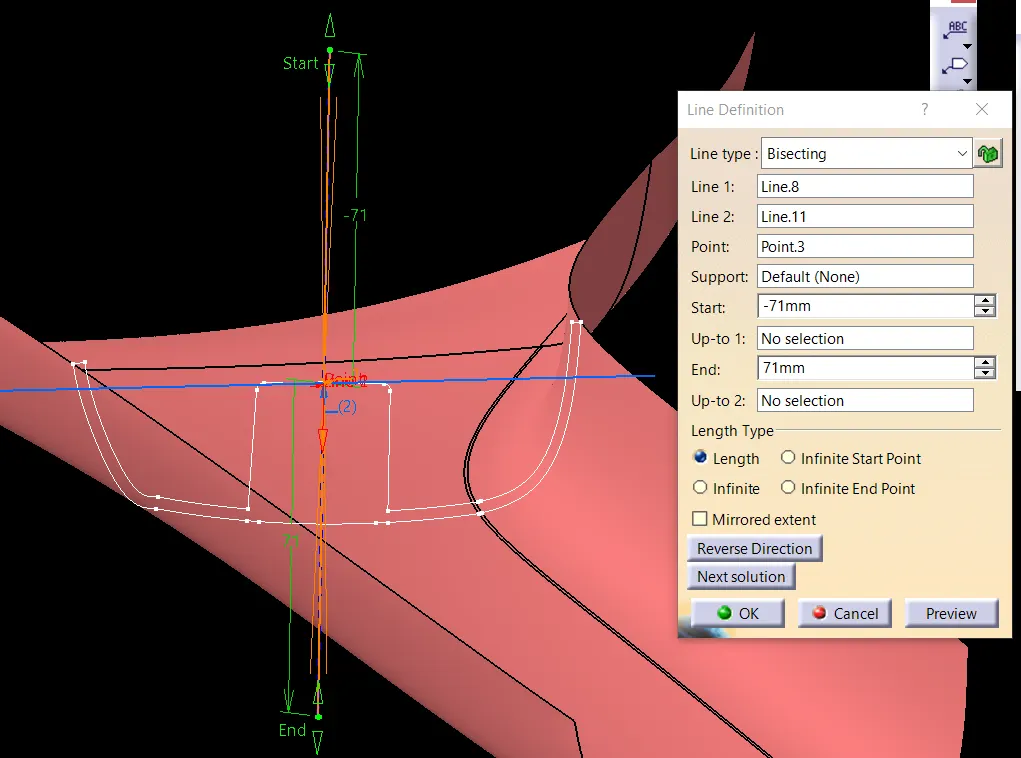

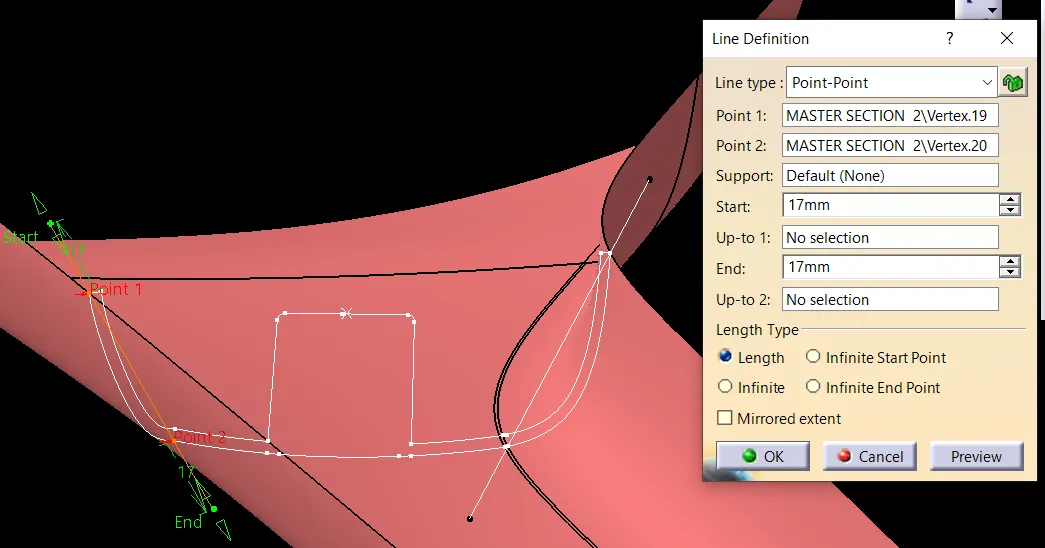

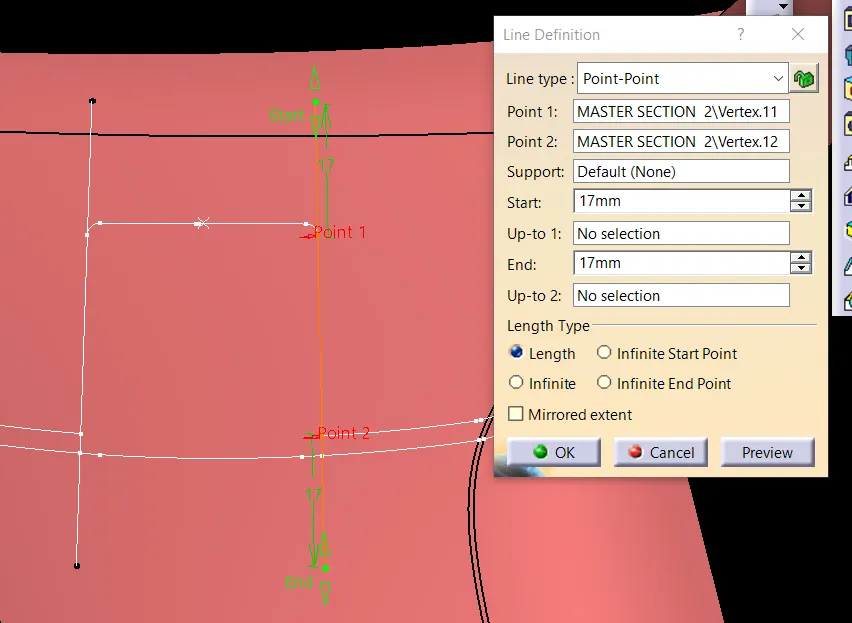

Create two lines with master section and then create a bisecting line where the two lines and point will be selected as inputs name this line as BISECTING LINE 1
Again repeat the same process to create another bisecting line as show below and name this line as BISECTING LINE 2
Now create another bisecting line with the above two bisecting lines name this as MAIN TOOLING AXIS
CLASS B SURFACE

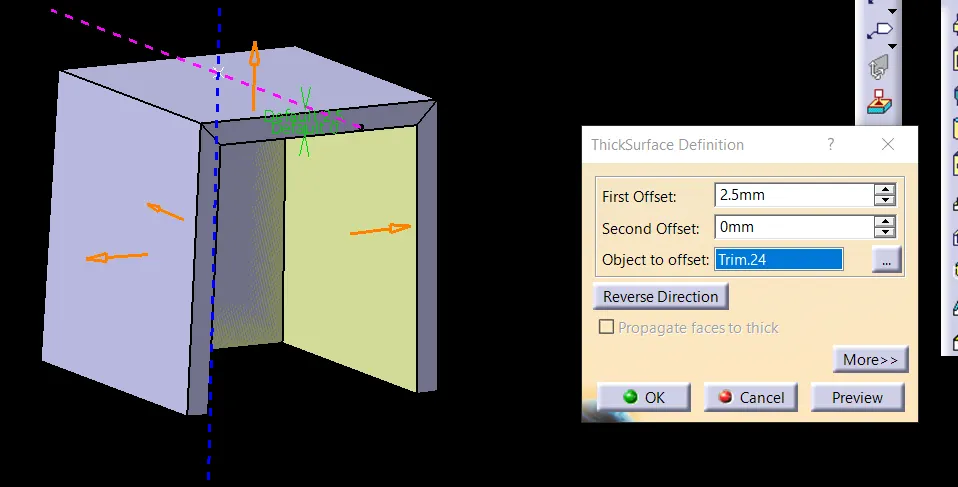

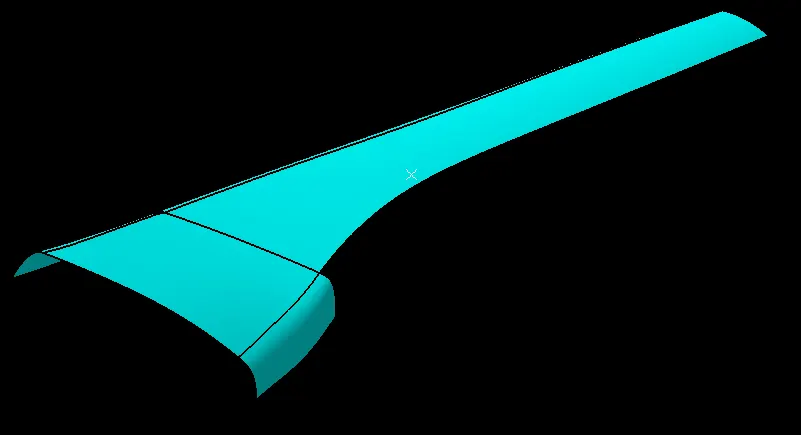

To create CLASS B SURFACE take offset of 2.5mm from CLASS A

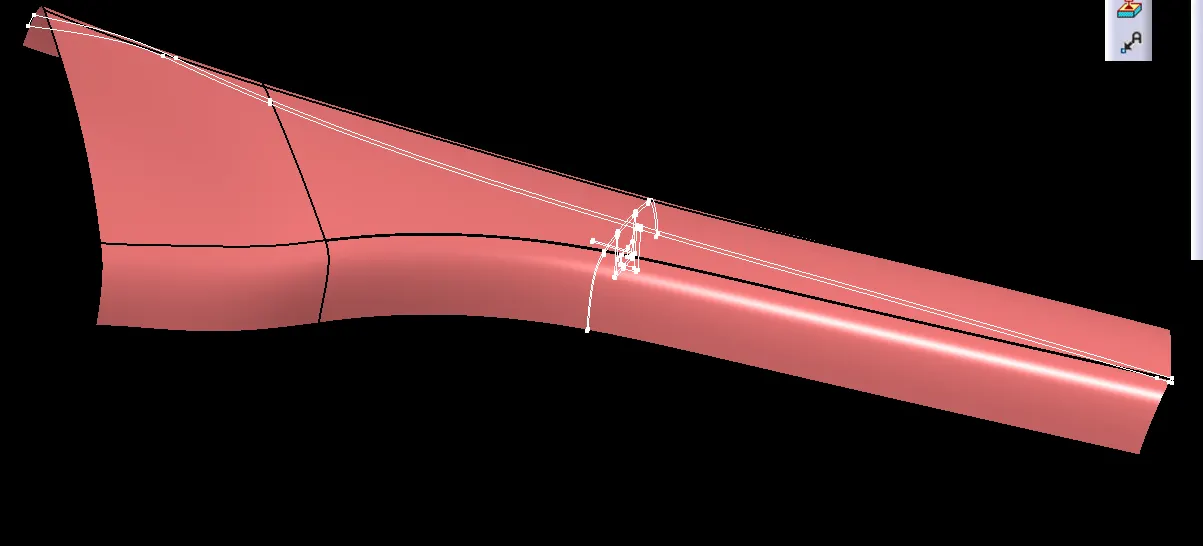

Missing surfaces are created with the help of multi section and fill command
CLASS C SURFACE

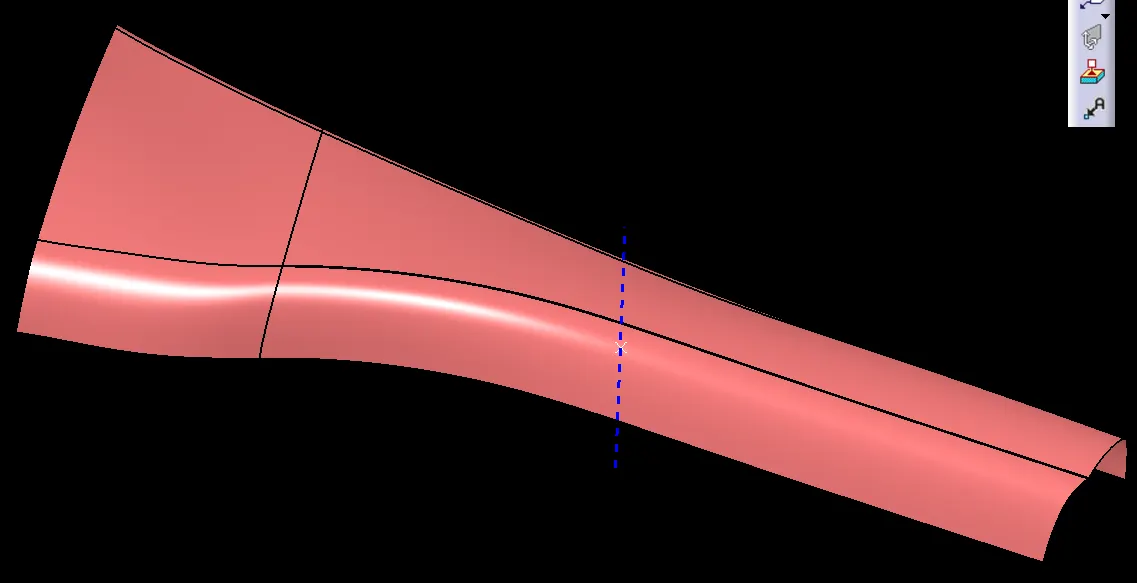

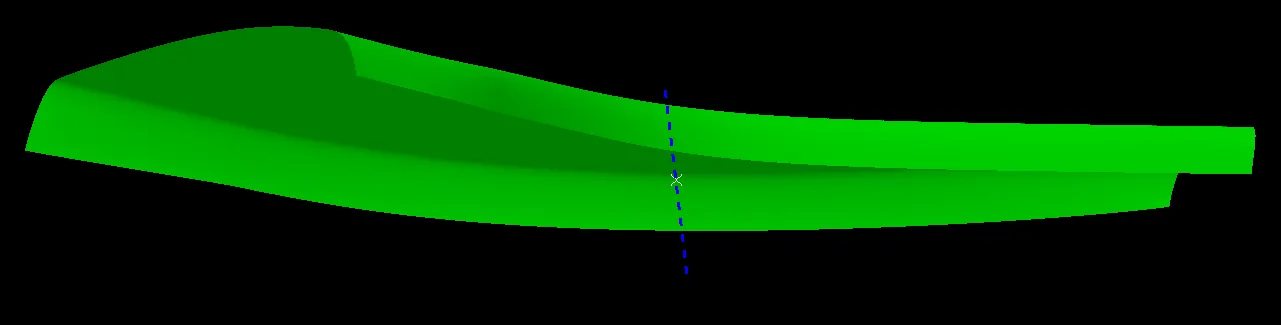

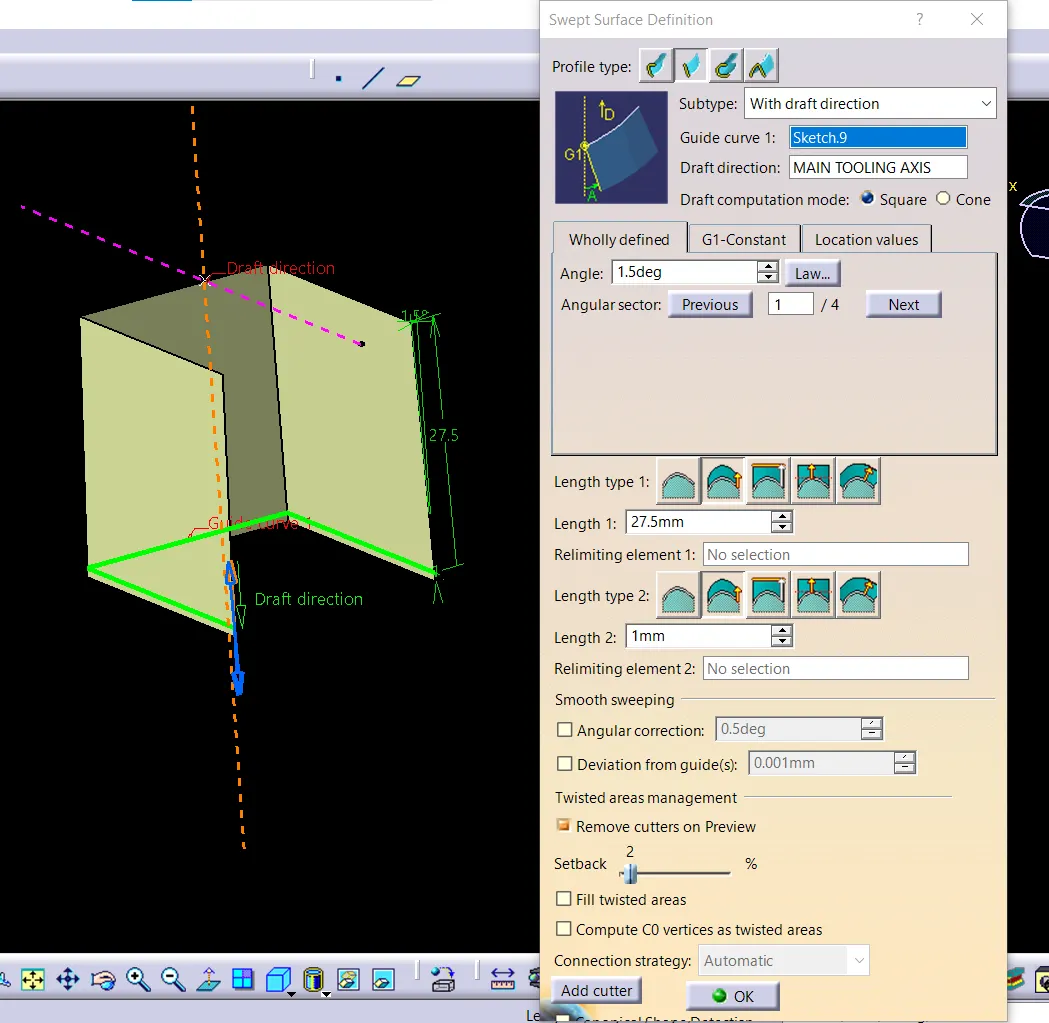

Create class C surface with sweep and multi section command

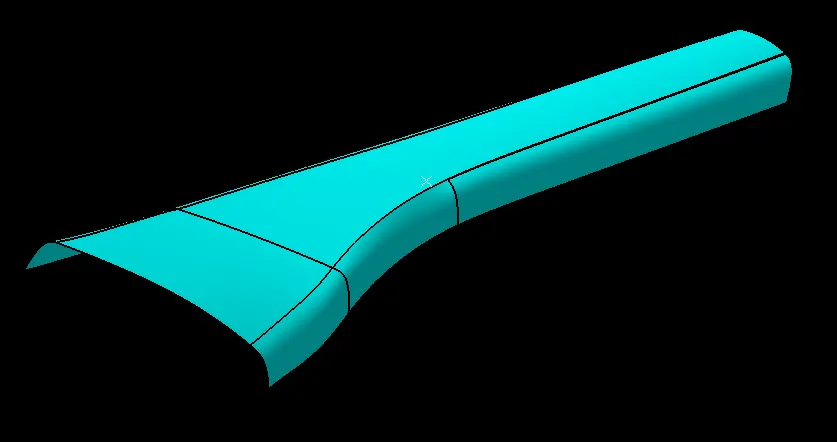

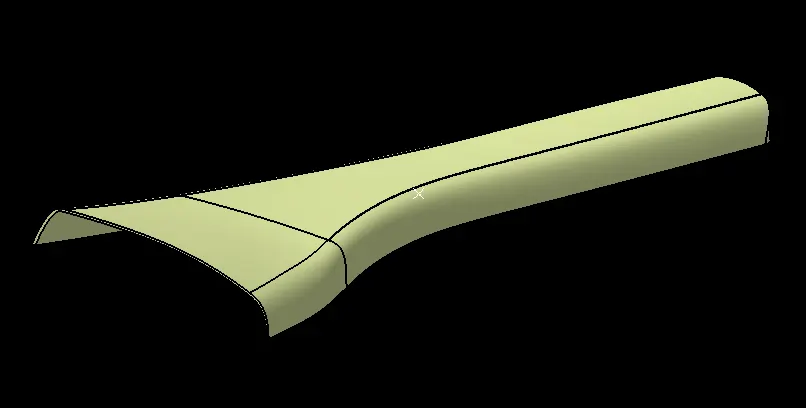

FINAL SURFACE
DRAFT ANALYSIS

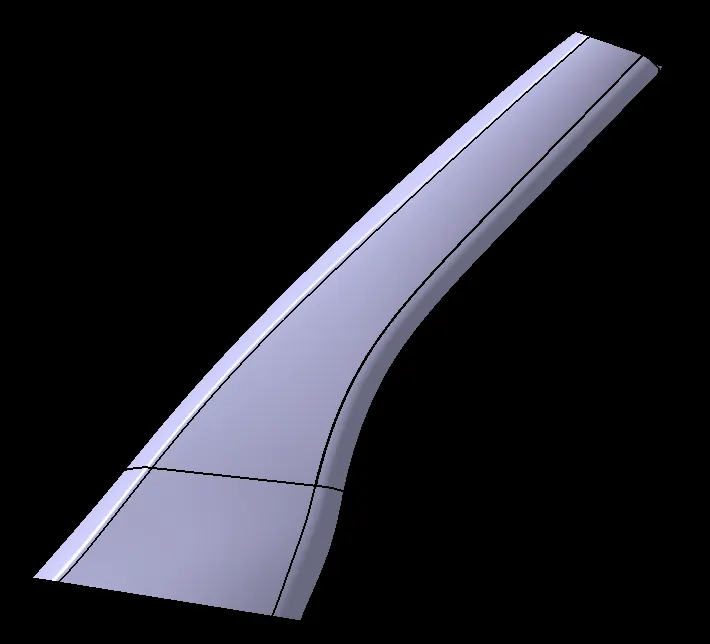

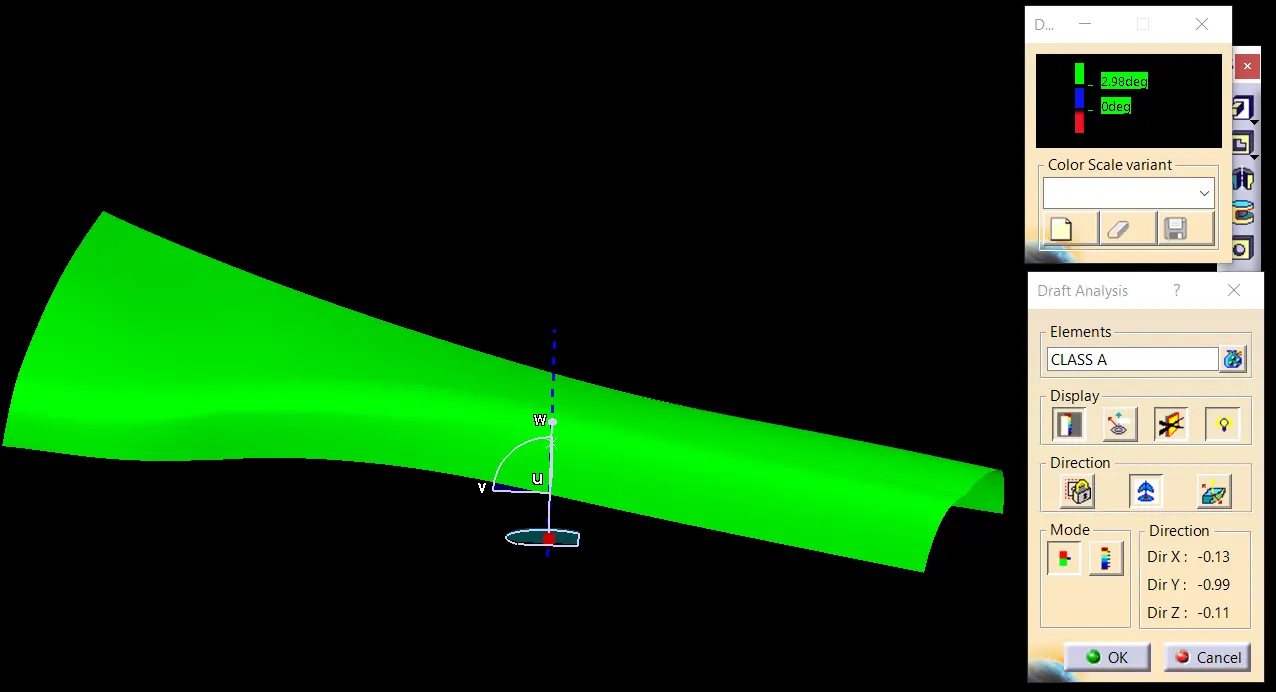

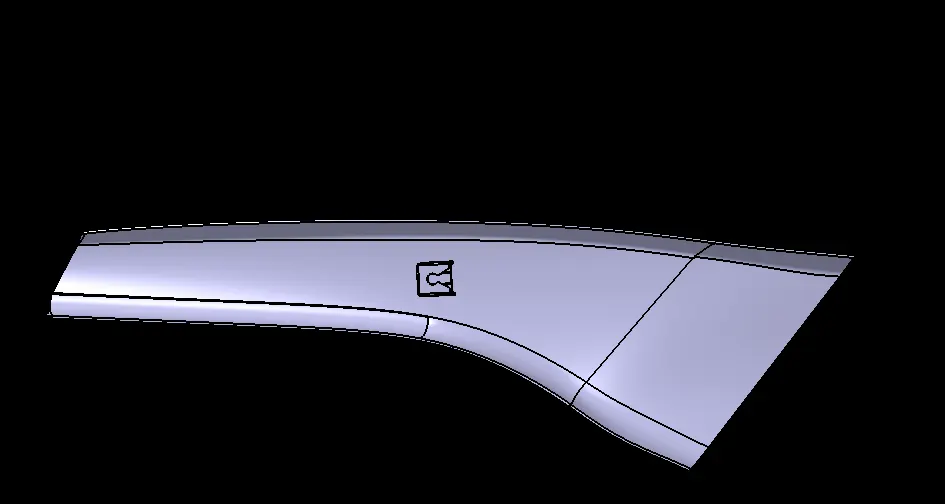

CLASS A SURFACE
FOR DRAFT 3deg

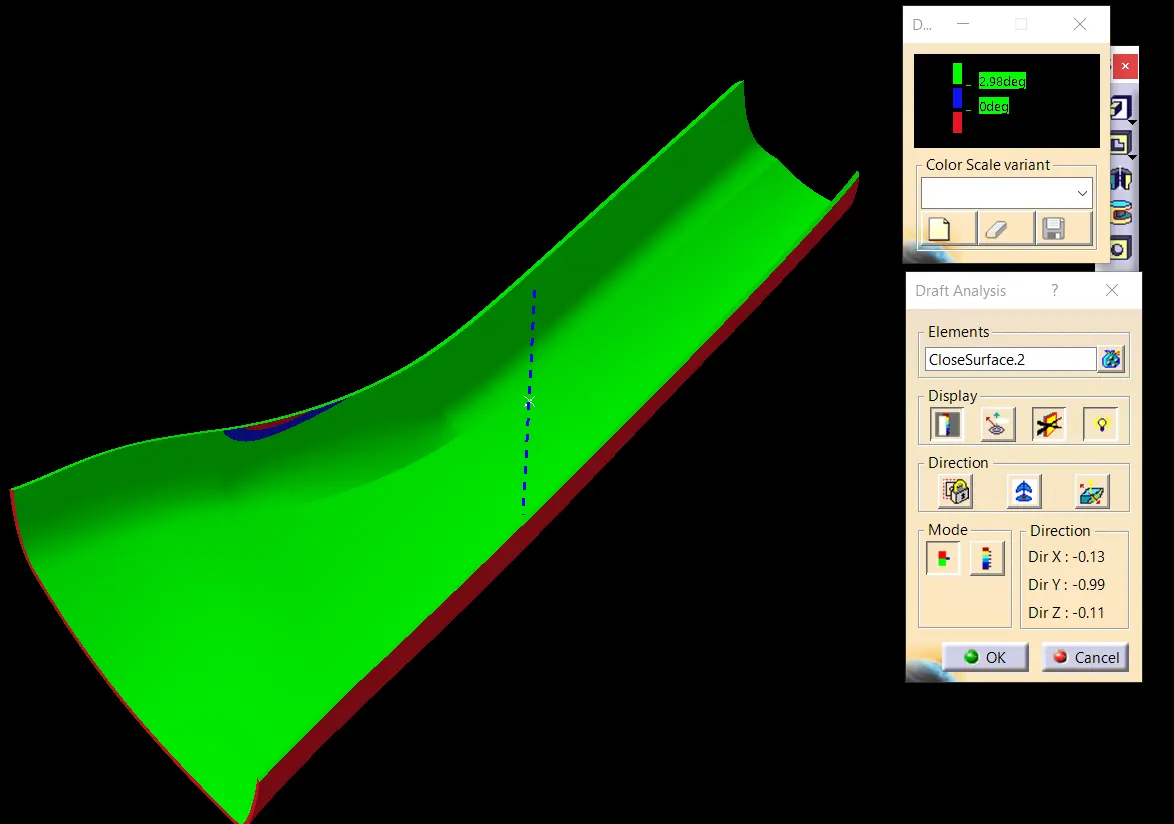

All areas are within minimum draft value
CLASS B SURFACE
FOR DRAFT 3deg

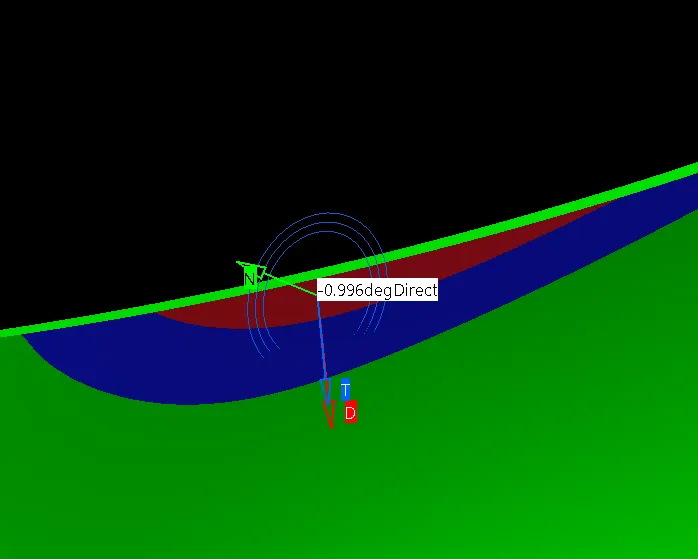

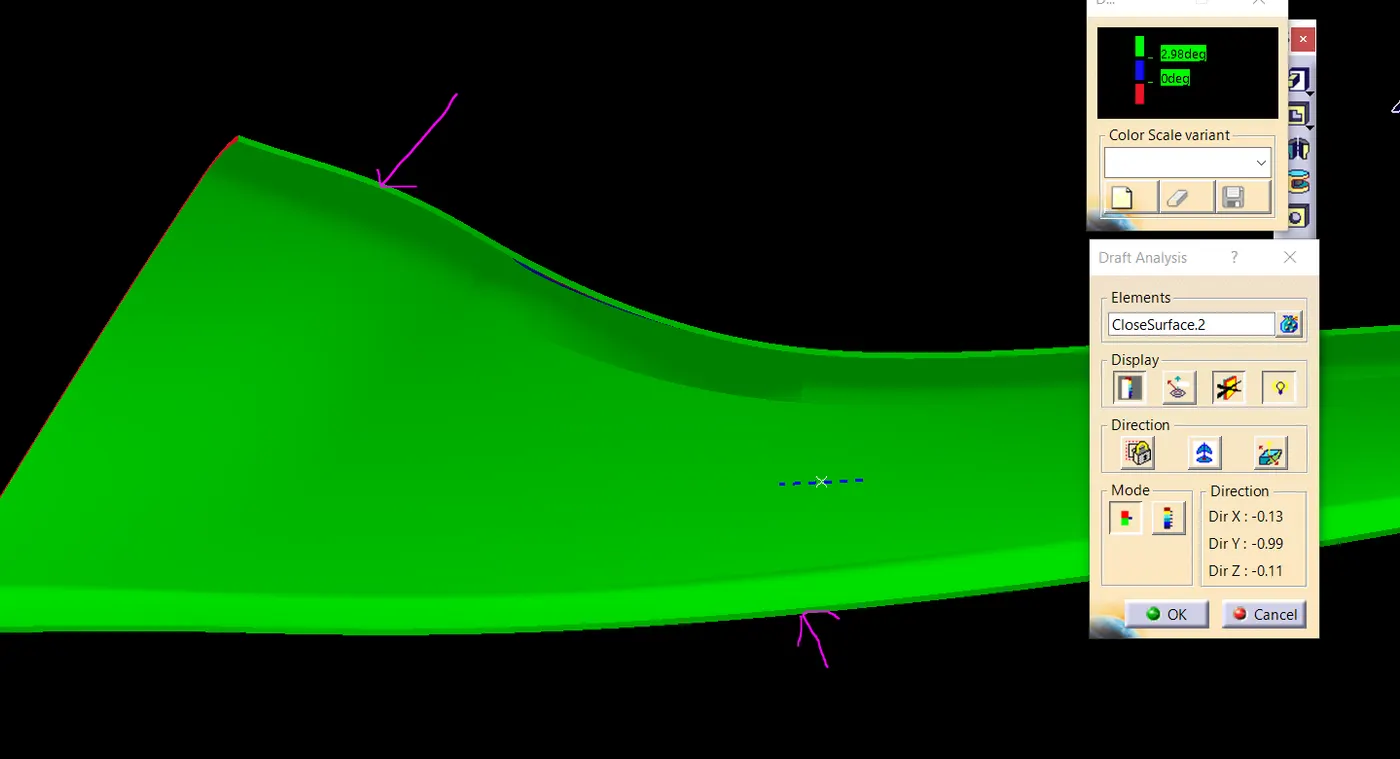

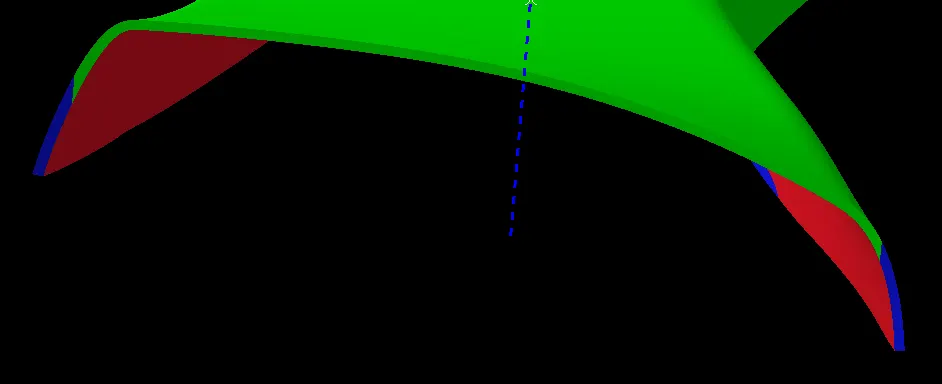

All areas are within minimum draft value except the area show below
CLASS C SURFACE
FOR DRAFT 3deg
All areas are within minimum draft value

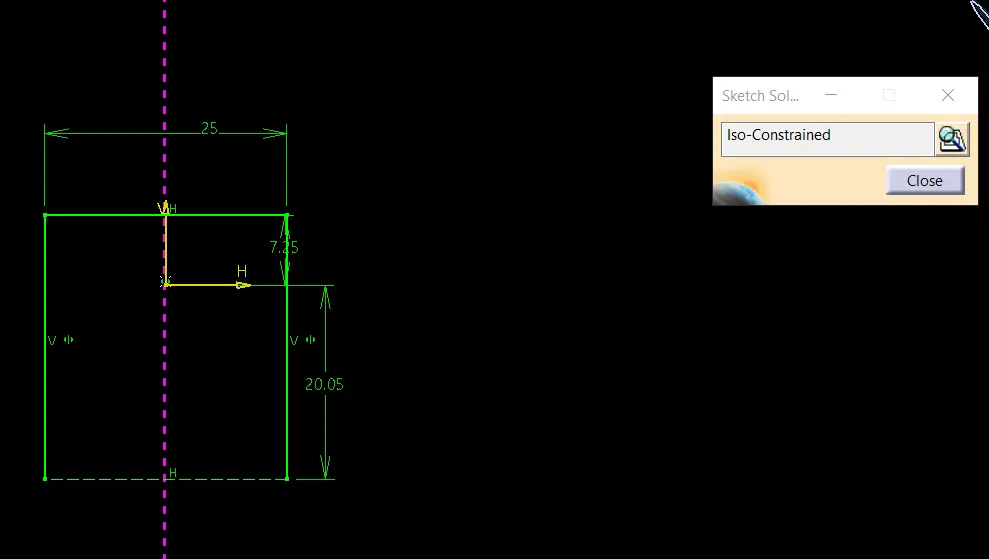

CREATION OF DOG HOUSE

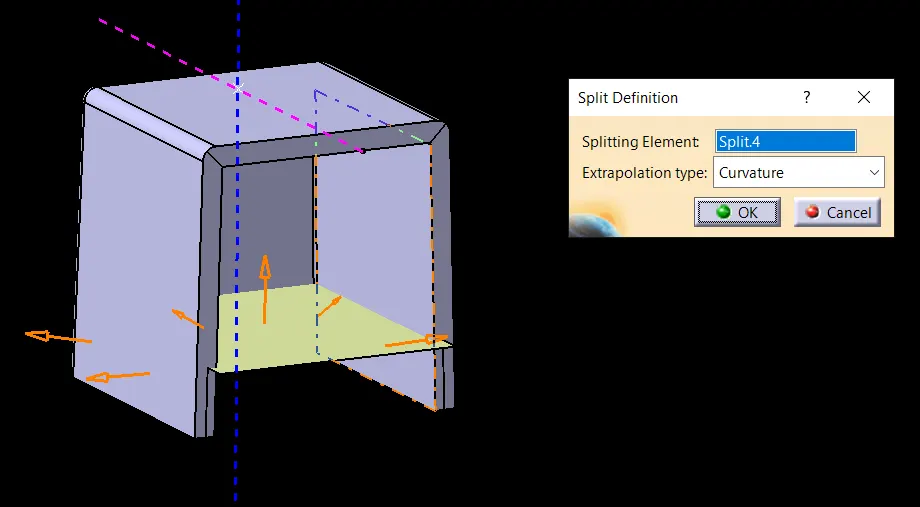

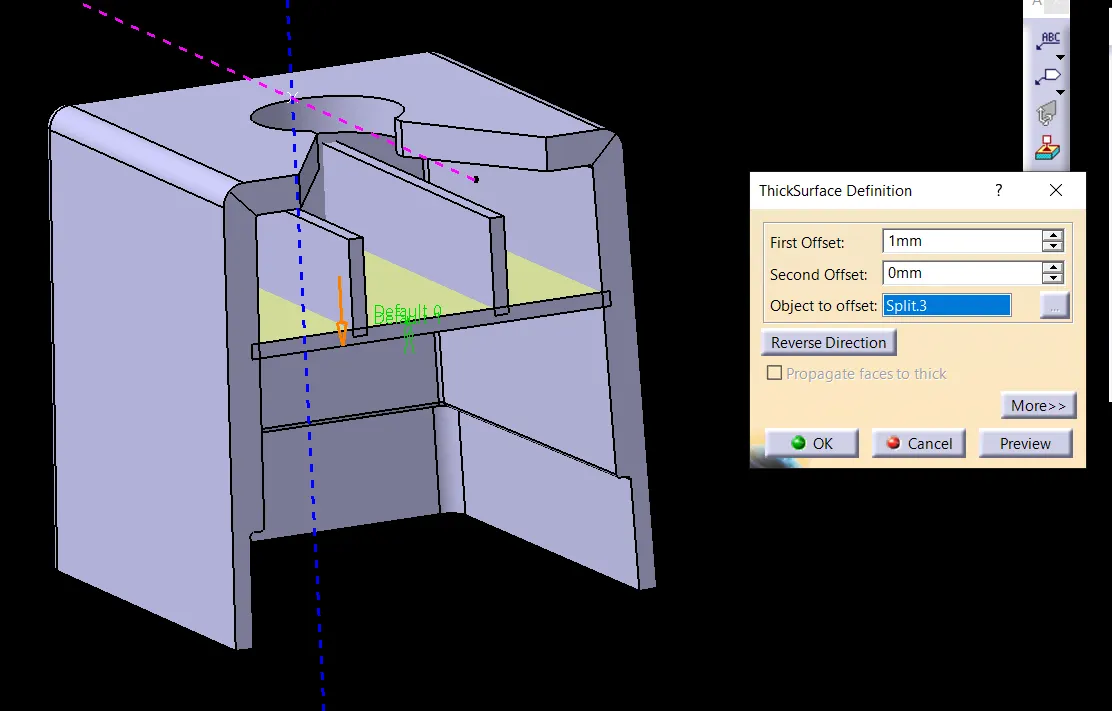

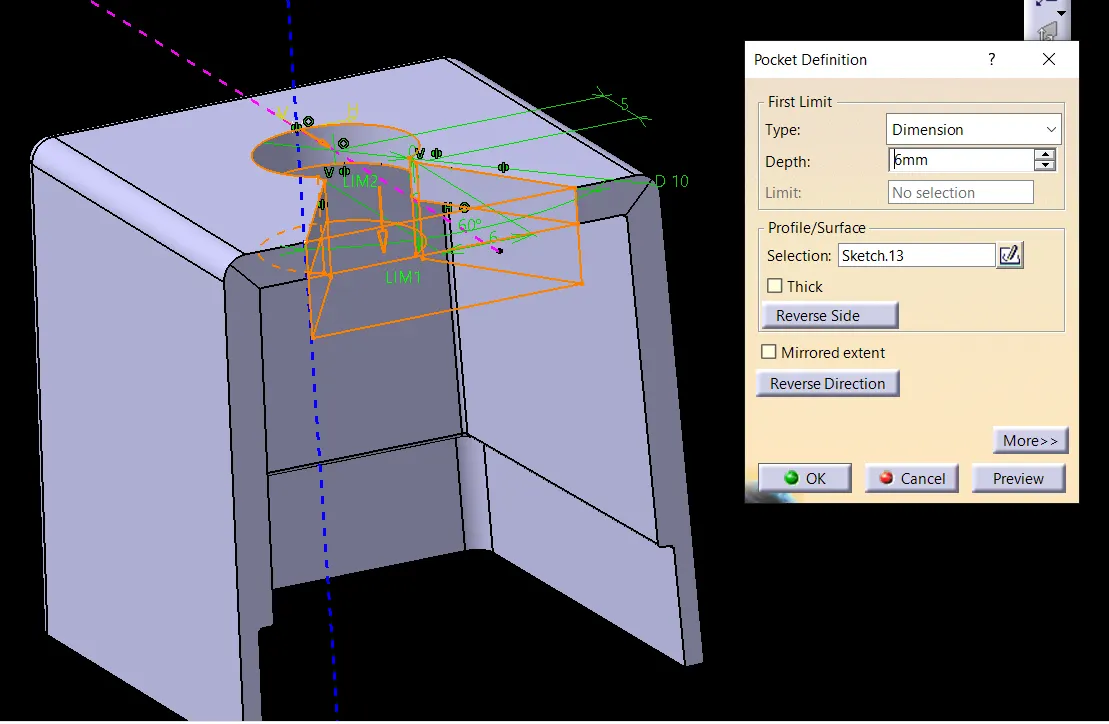

Sweep the sketch and convert it into solid by using thick surface command

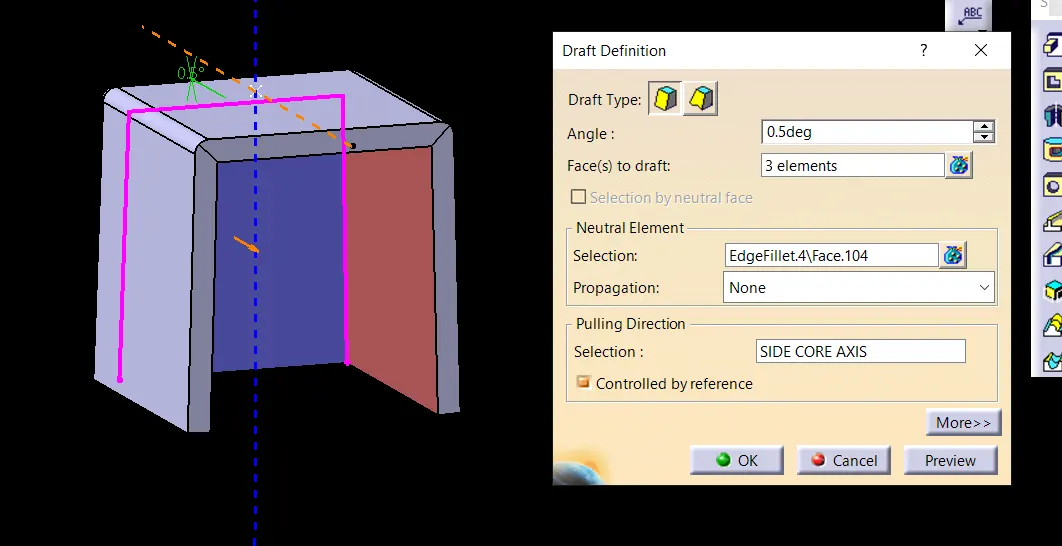

Give draft of 0.5deg to inside surfaces
To reduce sink marks

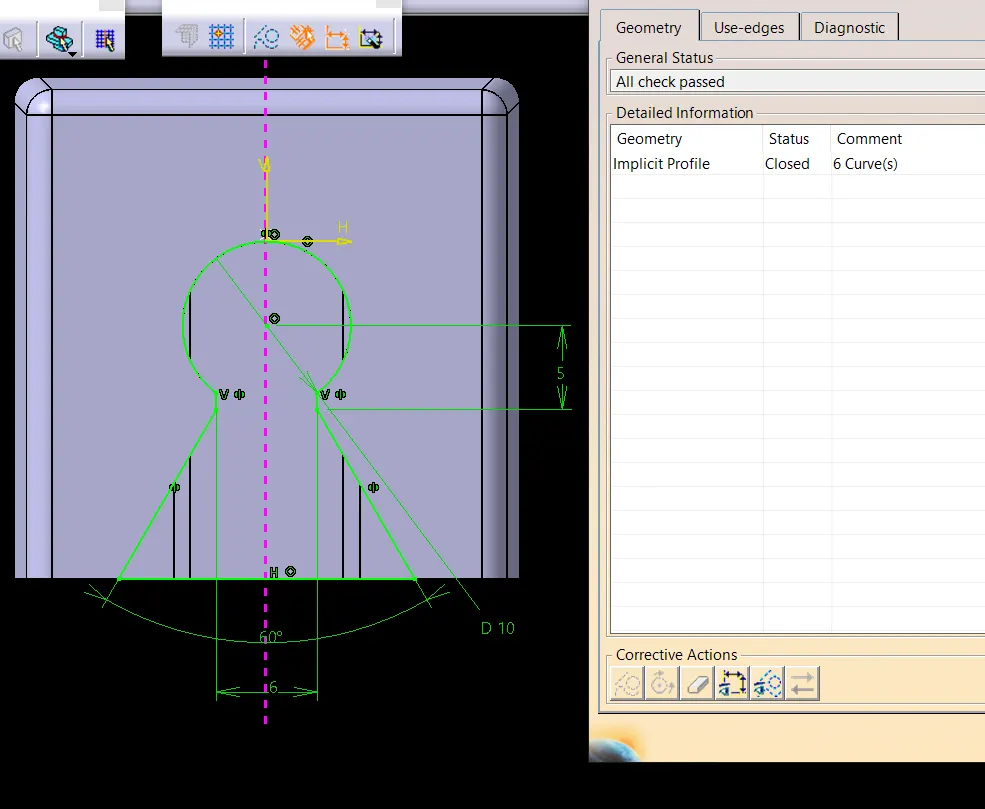

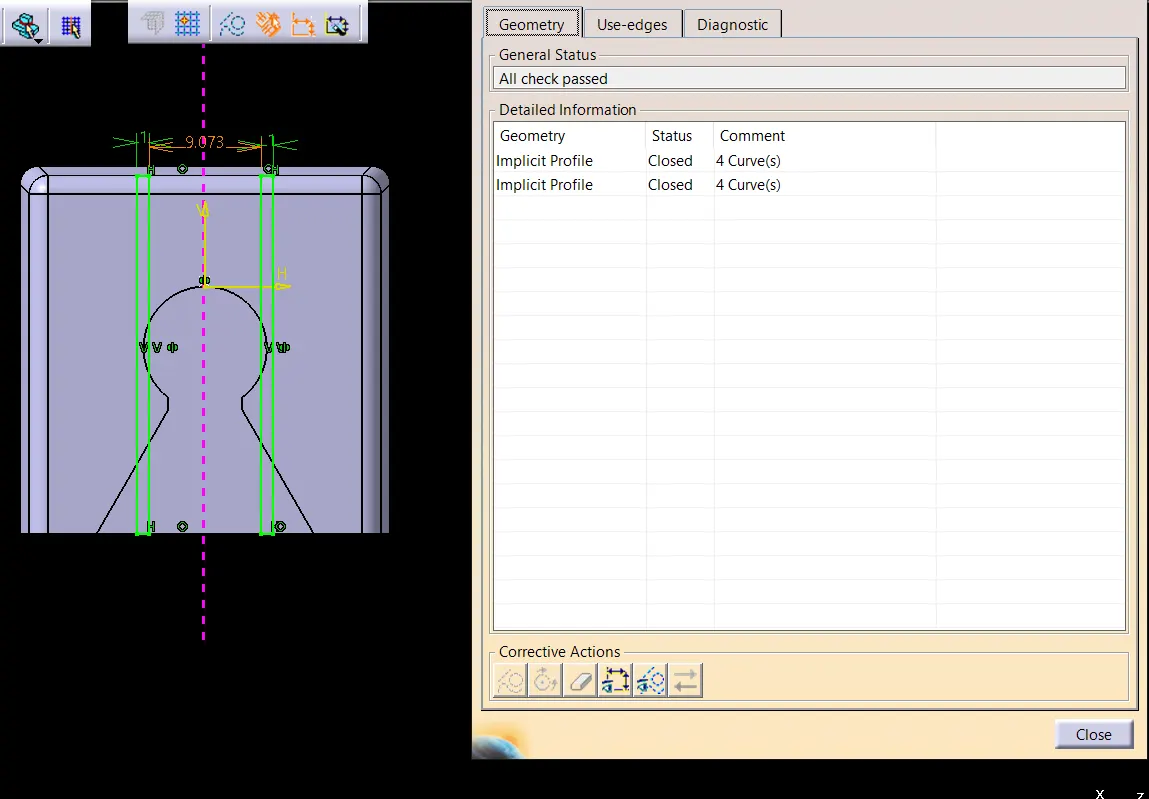

TOP PROFILE OF DOG HOUSE
RIBS

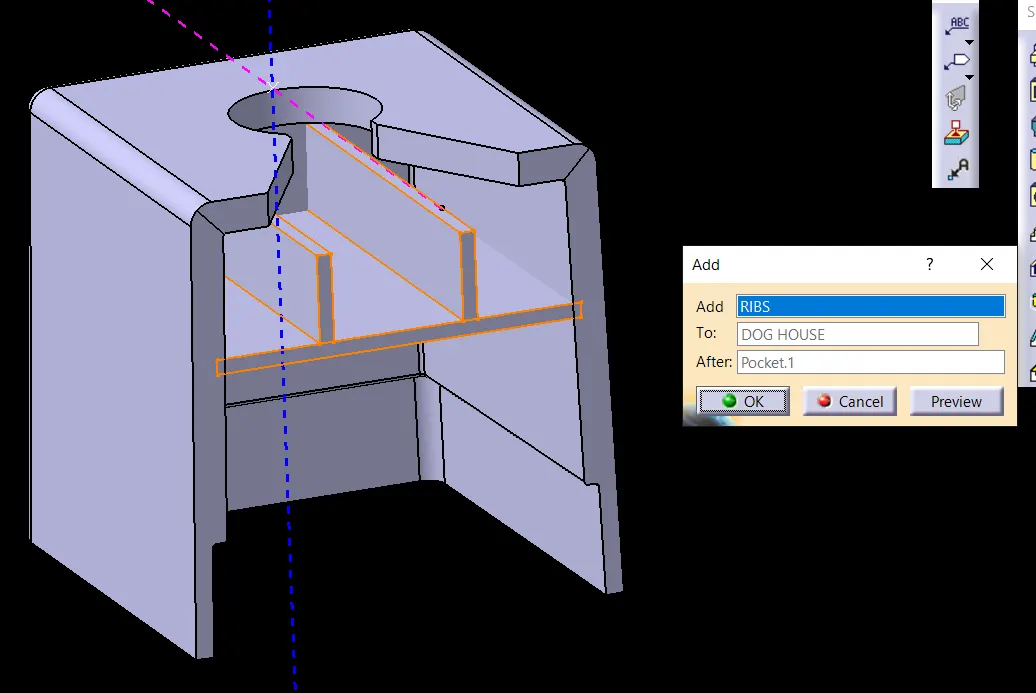

ADD RIB TO DOG HOUSE

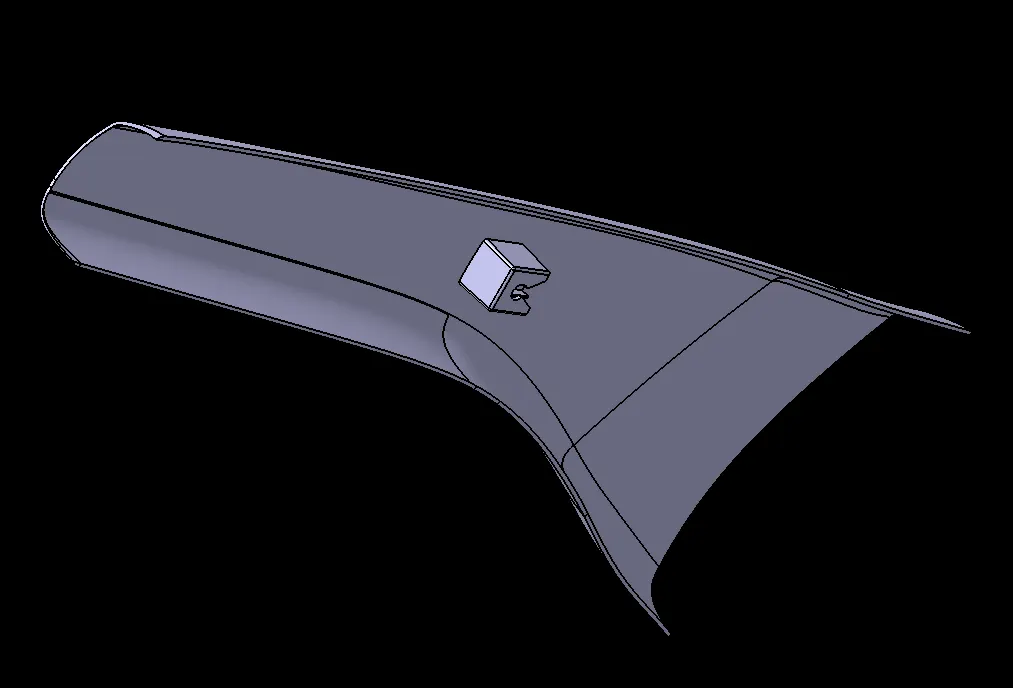

FINAL PART

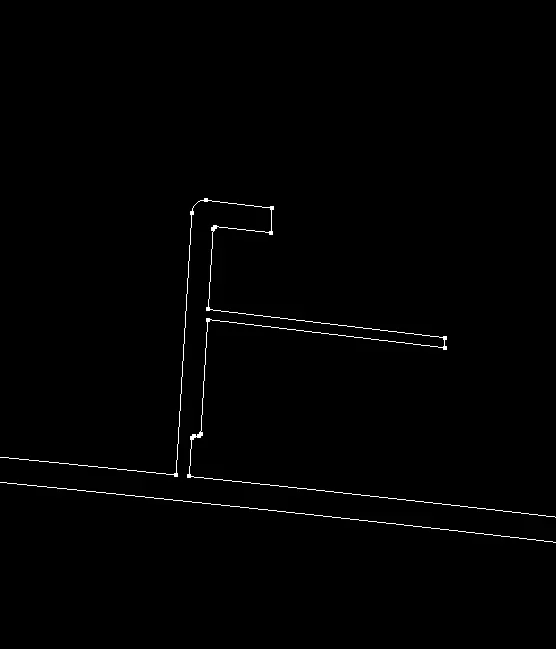

take intersection to check with master section
DRAFT ANALYSIS OF DOG HOUSE
WITH RESPECT TO TOOLING AXIS

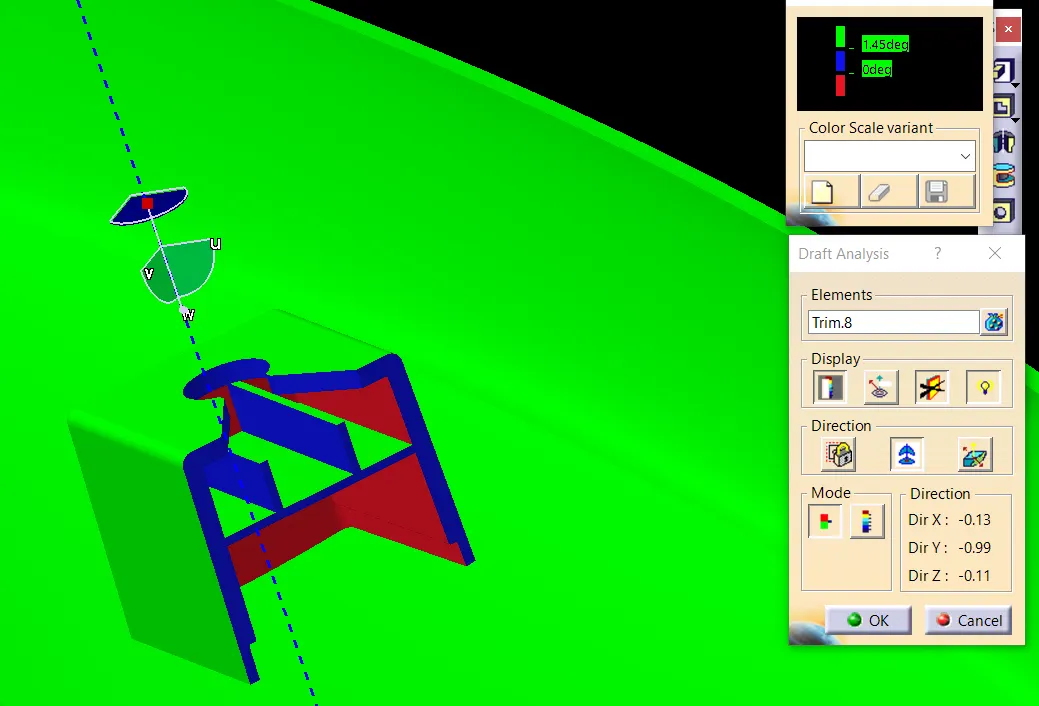

FOR DRAFT 1.45deg
WITH RESPECT TO SIDE CORE AXIS

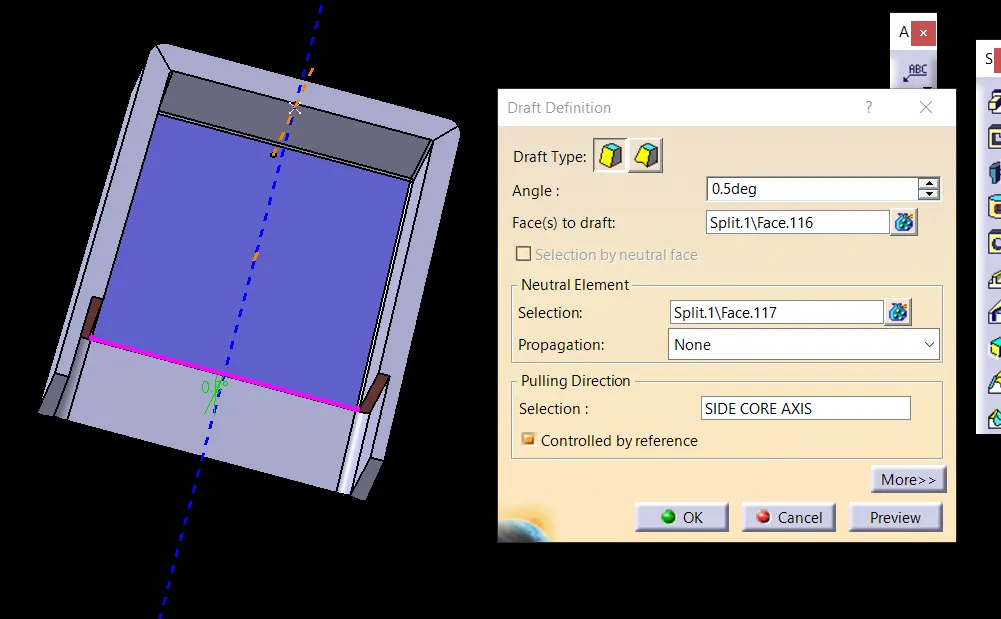

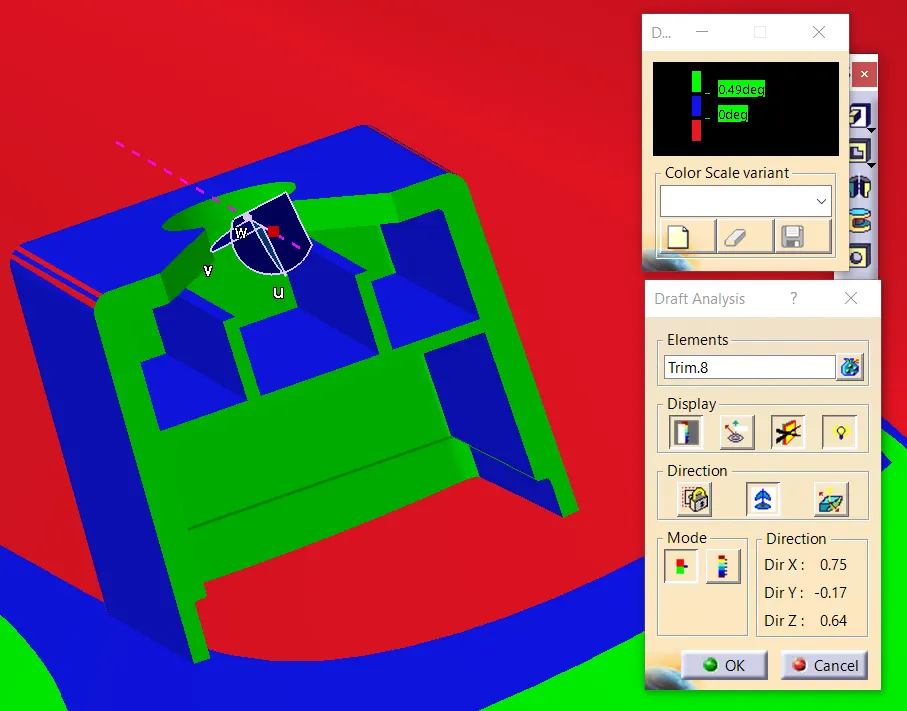

FOR DRAFT 0.5deg
DIFFERENT VIEWS

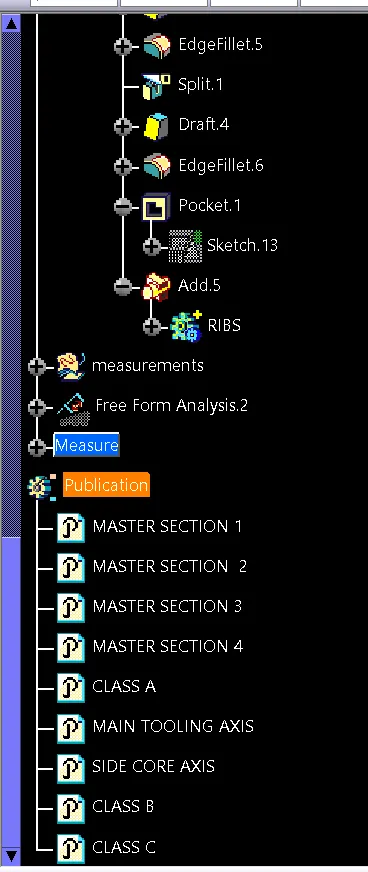

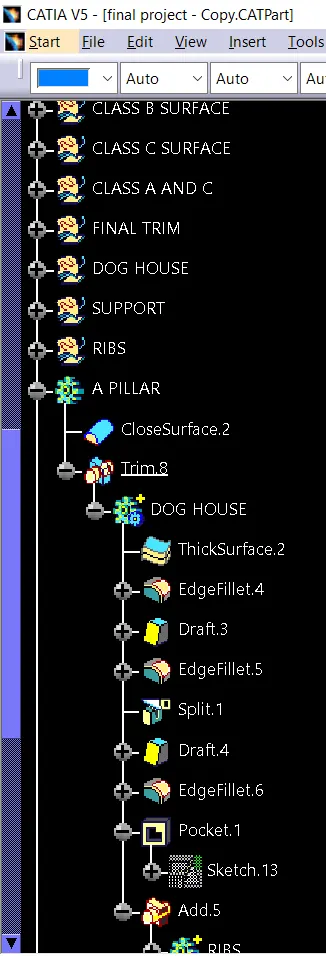

TREE STRUCTURE
