Week 11 - Project - A pillar Design with Master Section

A PILLAR CREATION FROM MASTER SECTION

• Identify the plastic feature , which direction it is facing.
• Insert a geometrical set and name its as construction.
• Insert a geometrical set for tooling axis
• when mastersection is given, some reference is given to create the tooling axis
• So take 4 points from mastersectionn of dog house, isolate them and provide coordinates
• create a point in the middle of 2 points and connect the points and create 2 lines , this line should bisect so we can use bisecting method to create the tooling axis
• Conduct a draft analysis for class A , make sure it is clearing or not
• do the publication of A surface and tooling axis
• Insert a geometrical set for class B under construction
• Offset the class A by 2.5mm to form class B
• Extrapolate all the boundaries of class B using boundaries and extrapolate tool
• Start working on class C surface unhide the class A create a geometrical set for class C
• create boundaries and then sweep, provide multisection for some difficult surfaces
• provide a draft angle of 3 degree if the c surface is parallel to the tooling axis
• Extrapolate some edges
• Trim the surfaces
• create a geometrical set for A+c , use Join tool to join A surface with with c surface with a merging distance of 0.003mm
• intersect A+c surface with extrapolated B surface
• make sure there is no gap in between
• insert a geometrical set and complete it by trim
• change the work bench and closed surface and make it as a solid closed component
• Do the draft analysis
• Insert a geometrical set for dog house creation
• Now it is the time to crate feature from the mastersection
• No need to consider any design rules hust follow the mastersection
• Create a plane using parallle through point method
• Create a sketch, use the 3D project element tool and project the outer walls
• isolate the references and extend the lines using trim and isoconstrain it
• Insert a new body , dog house and pad it provide a random value
• create a plane on the same point and and thenn a sketch using refrence , here sketch is a line, extend it , constrain it
• Extrude the line on the surface workbench'
• Copy the sketc and paste it and delete it
• take the oppositeline and project it, extend it, constrain it,, extrude it
• Once we got thethe front wall and back wall, check whether both surfaces are intersecting with each other or not
• use 3d spilt in part design work bench to split the unwanted parts
• once the solid is splitted , provide the shell , with shell thickness as 2.5mm

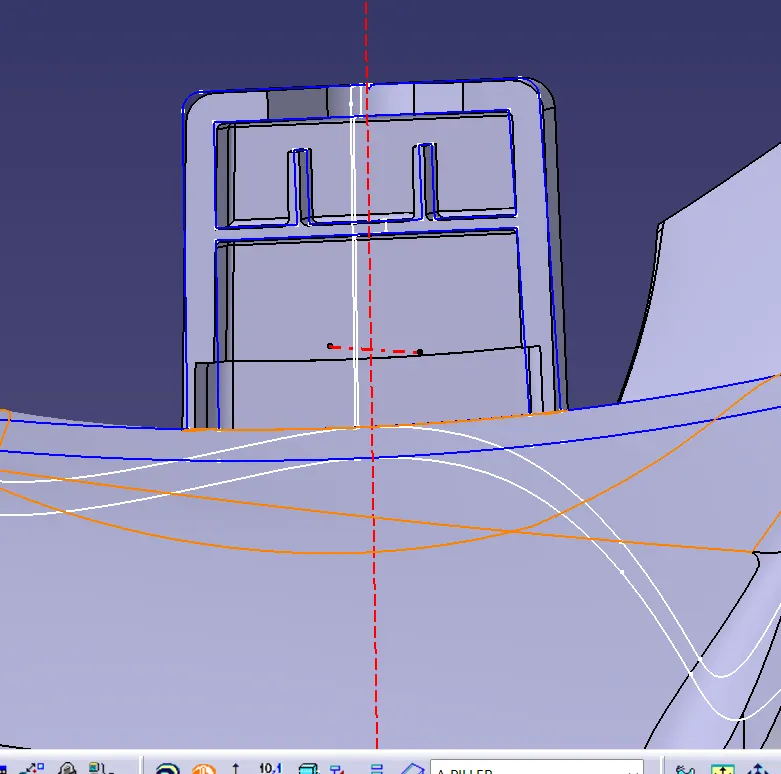

• So finally got the outershape of the dog house
• Create a side core tooling axis using normal to curve method, here normal to flat front surface
• provide the draft for inside walls with 0.5 degree

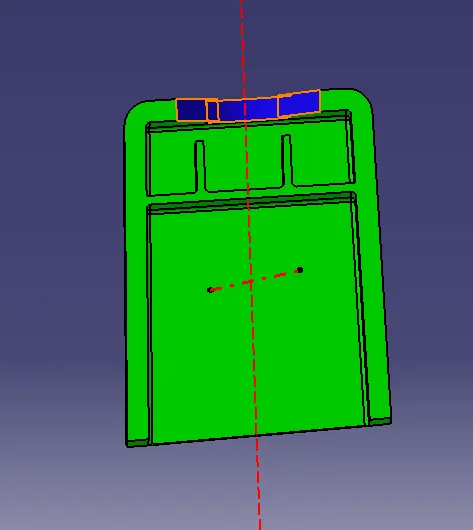

• do the draft analysis and check whether it is clearing or not

DOG HOUSE HOLE

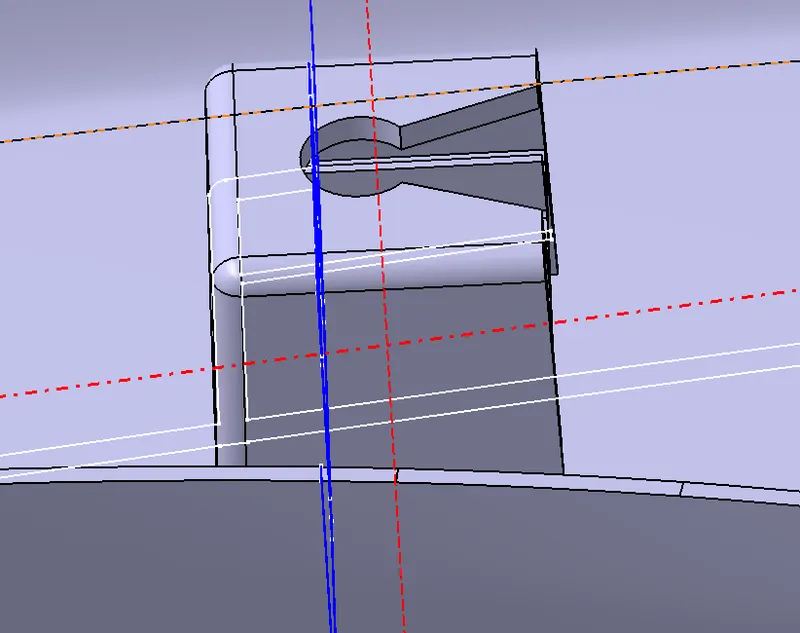

• Now we need TO CREATE a hole a the top of the dog house to place the locators and push pins
• create a new geometrical set
• we need to create a plane paralle to zx plane , from that plane create another plane on the top surface aftre measuring the distance
• Measure the diameter of the hole
• sketch it and provide the dimension
• Extrude the line to a surface
• Define the dog house and use the 3d split to remove that unnecessary part
• Draft the hole with main tooling axis
• Do the fillet.
• Create a point for the second dog house, for that create it on the middle of the mastersection sketch of dog house, isolate it and provide the coordinates
• create a line on the same point for rotation of dog house
• Copy the dog house body and paste special on it
• Now translate the body and rotate it by 180 degree

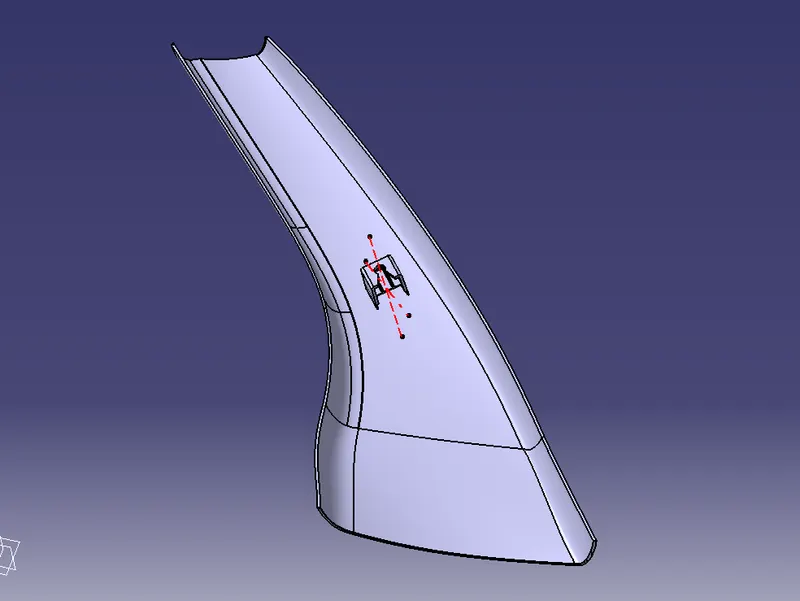

• time to do the boolean operation , define the partbody and add the closed component
• Union trim the dog house one by one

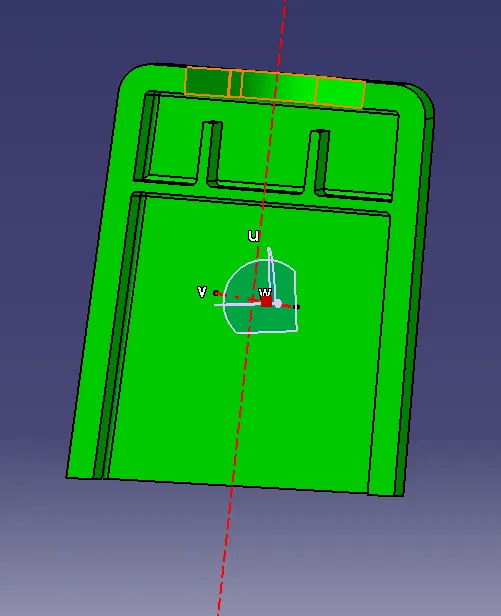

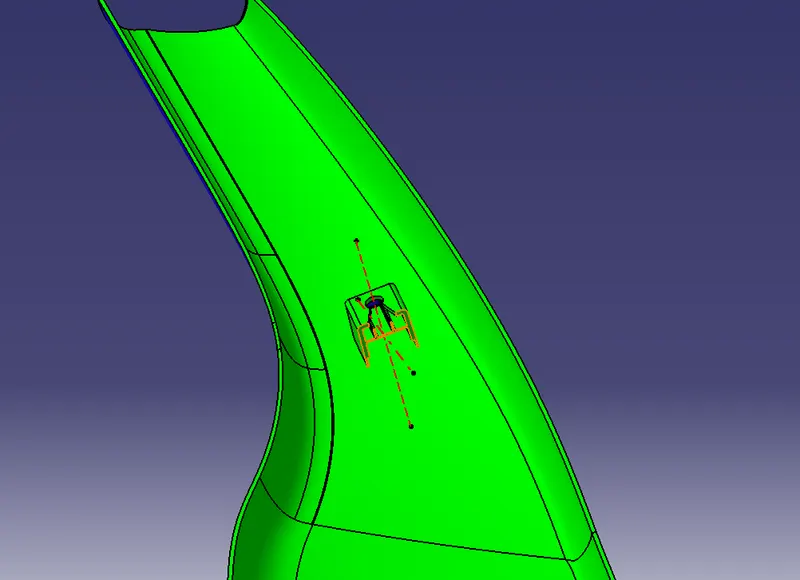

• finally do the draft analysis with main tooling axis and side core tooling axis
