Week 11 - Project - A pillar Design with Master Section

TOOLING AXIS -

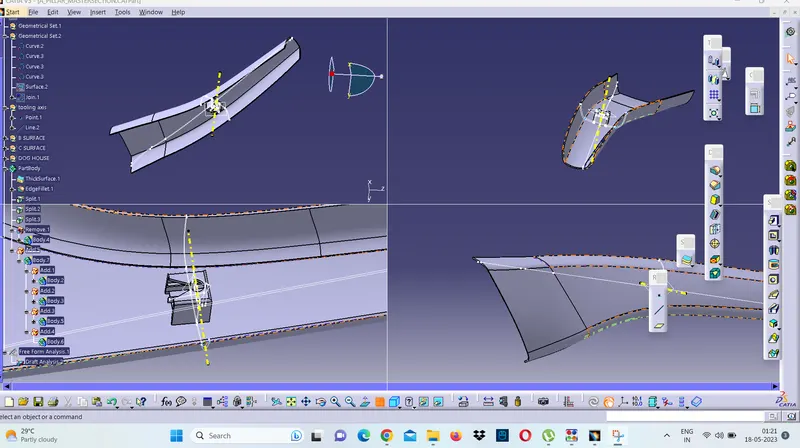

in this componant tooling is made by simple method . first make draft analysis and then select a plane surface and crate o point on centre and made line this line is the tooling axis.

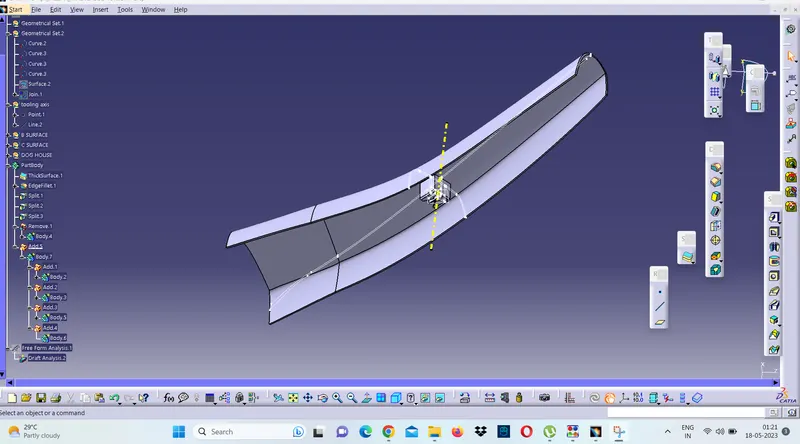

DRAFT ANALYSIS:-

Draft analysis is donr by the option present in catia .
