Week 11: Project 2 - Emission characterization on a CAT3410 engine
Aim:
To do the case set up for the bowl profile for the baseline engine and 3D geometry of the open-w piston is provided.
INTRODUCTION: During this project, I will be able to demonstrate the diesel motor simulation and also the characteristic distinction between open w kind piston and omega kind piston.
The simulation is going to be a detailed sector analysis with a 60-degree angle and this includes on fuel convenience nozzle.
THEORY: I will be able to illustrate the stepwise procedure to construct an entire setup to start and analyze the simulation.

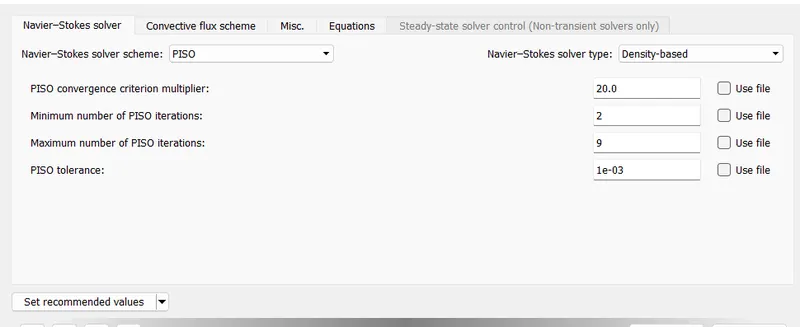

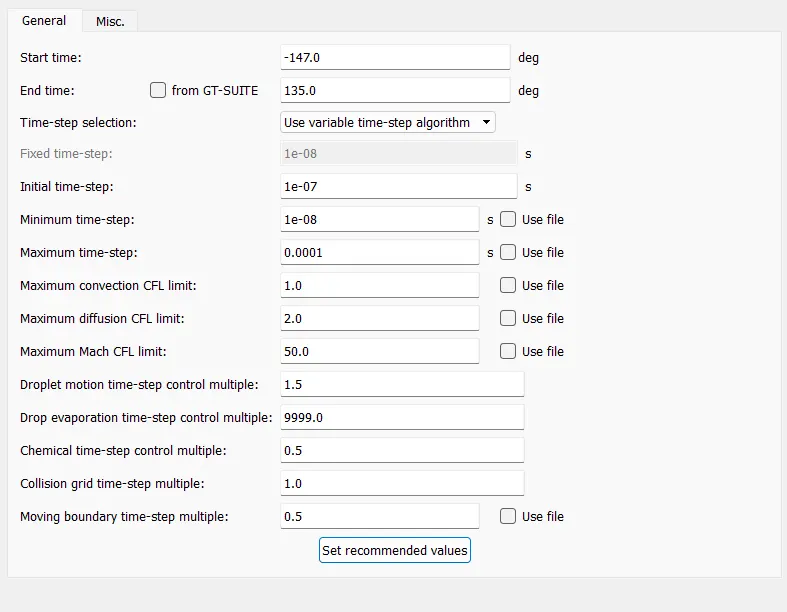

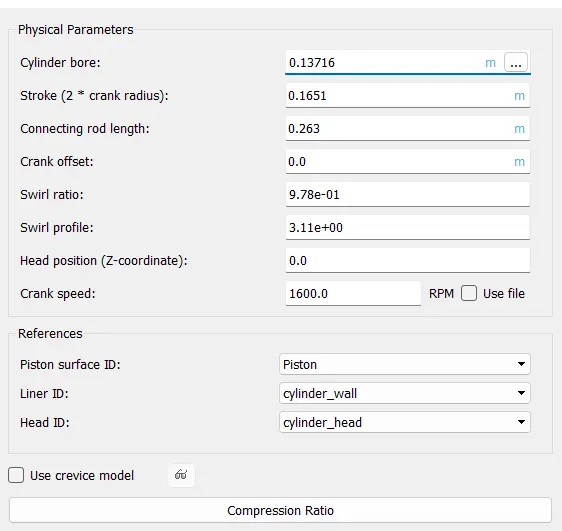

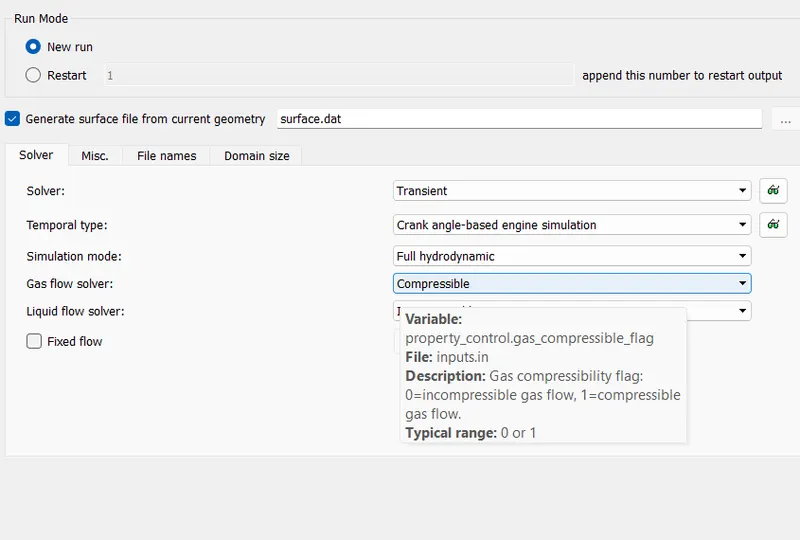

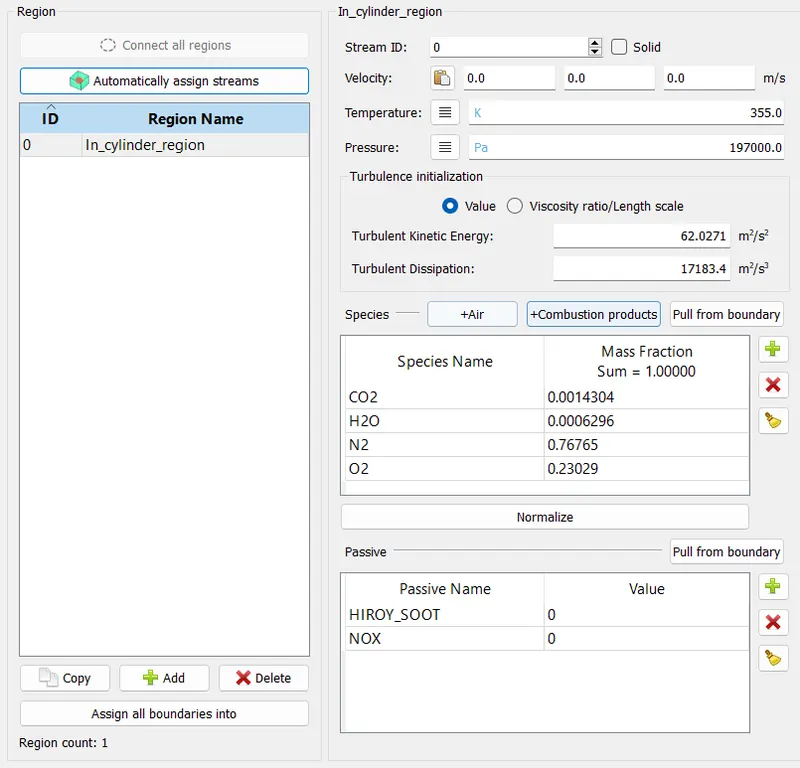

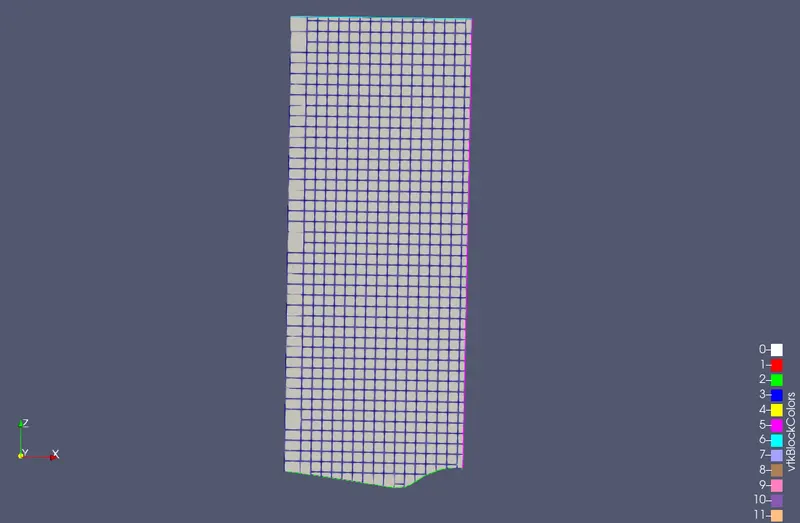

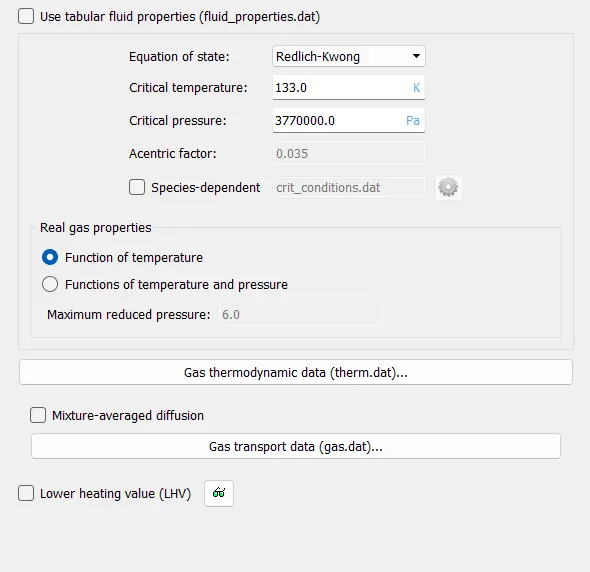

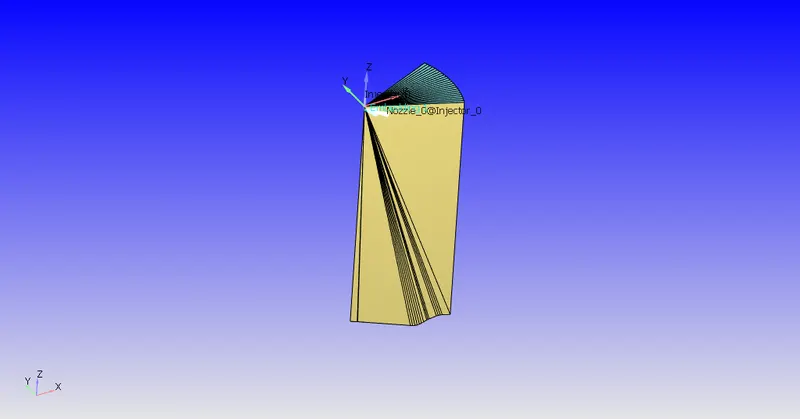

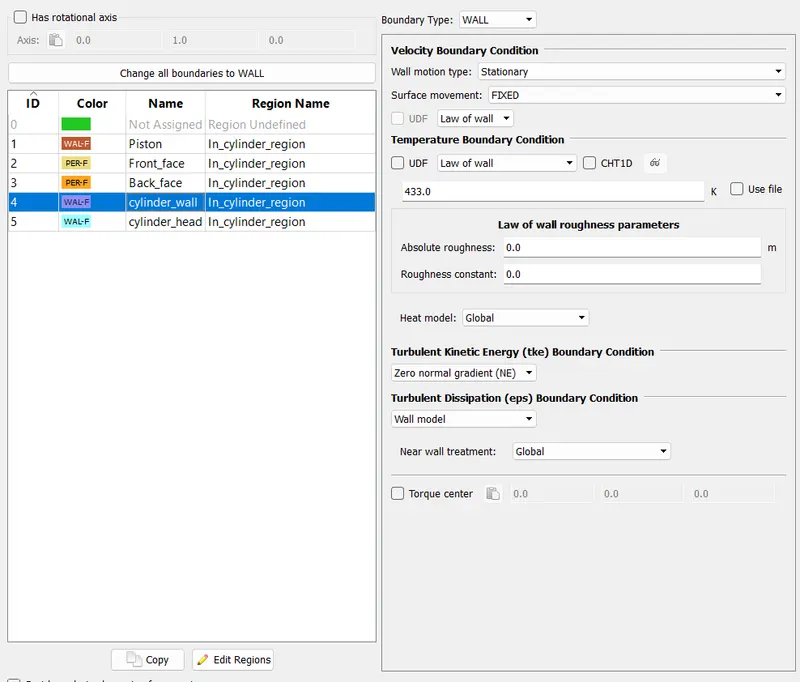

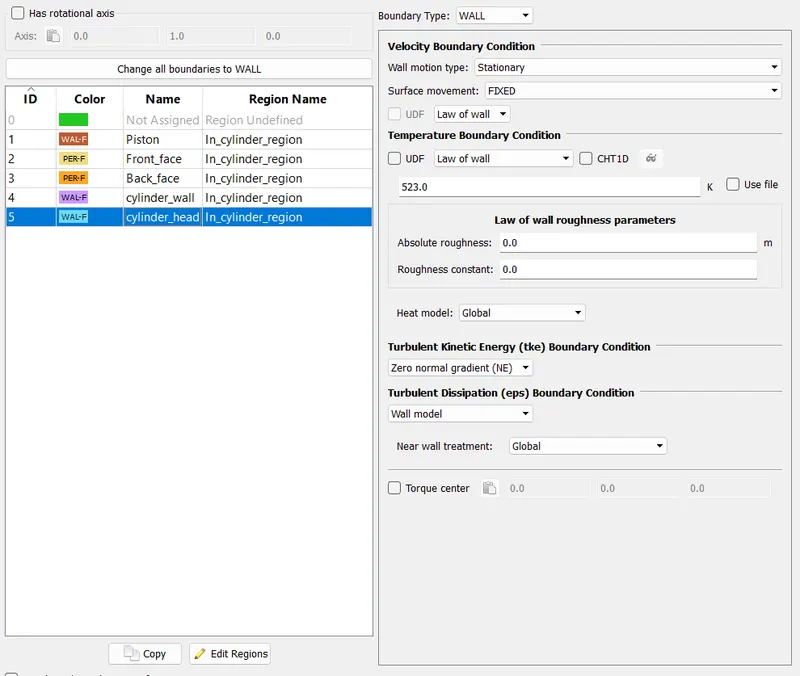

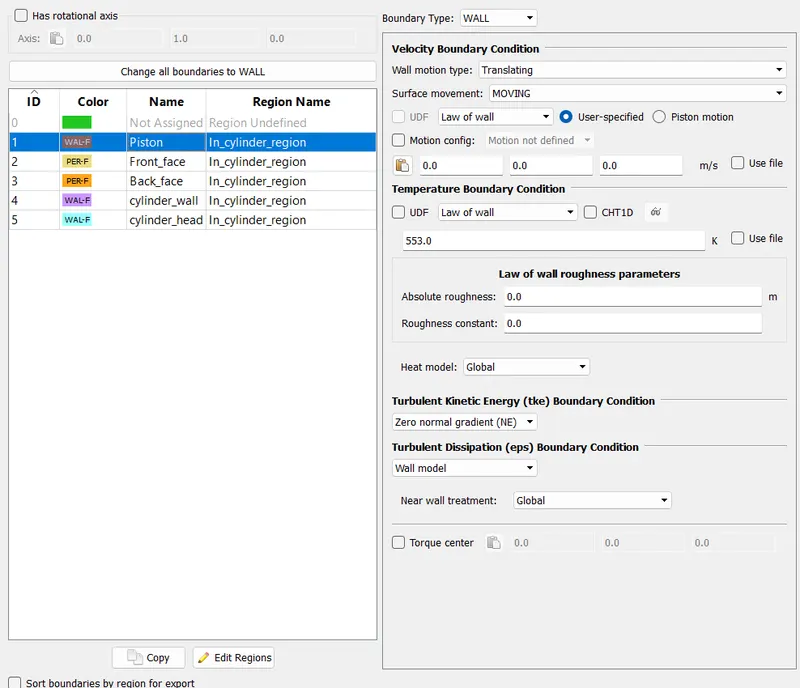

GEOMETRY:
In this analysis, I even performed a simulation on shut sector surface/geometry.
To make the world surface we want the pure mathematics file. By mistreatment of the "Make engine sector surface" tool we are able to produce a surface file.
To extract the world files, transfer the surface move into the below-shown window and click on extract.
A set of files ar generated within the directory as shown within the second image.
NOZZLES & SPRAY MODELING:

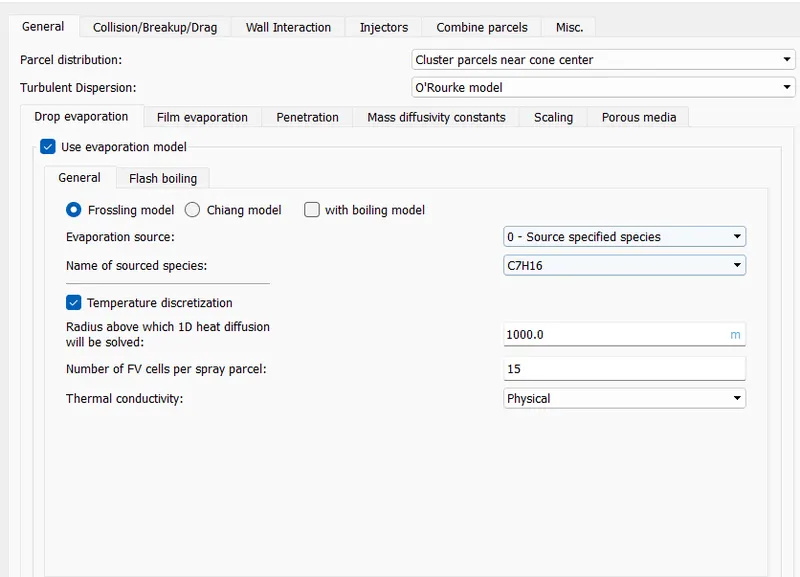

Parcel distribution is about to "cluster parcels close to center", this model injects the fuel to the middle of the cone.
This type of model is appropriate for compression ignition engines.

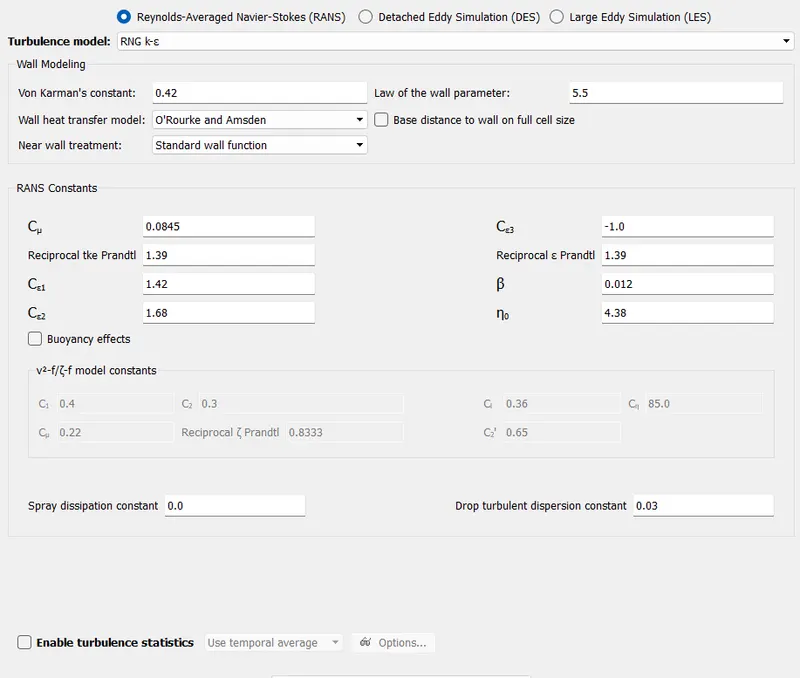

Fuel once getting in the combustion chamber is affected because of the turbulence characteristics. O'Rourke model offers higher performance in resolution the turbulence modeling.
Collision: To calculate the collisions within the Lagrangian spray simulation NTC model is employed. In general, once the fuel enters the droplets per parcel isn't an equivalent all the time the amount varies. So, the NTC (no time counter) is many orders of magnitude quicker and slightly additional correct than strategies.
Wall Interaction: I even have enabled the spray wall interaction model to wall film, this helps in reflective or splashing the drop once it hits the wall. The film model is about to the O'Rourke methodology.

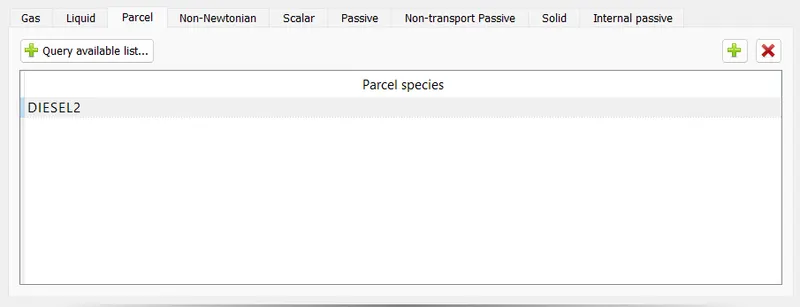

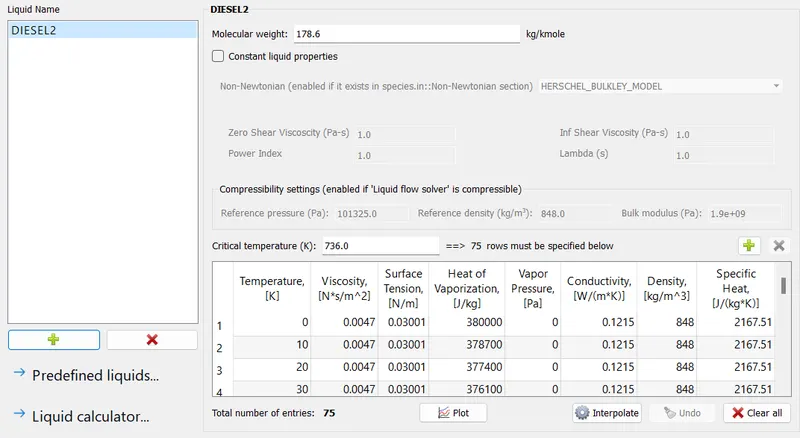

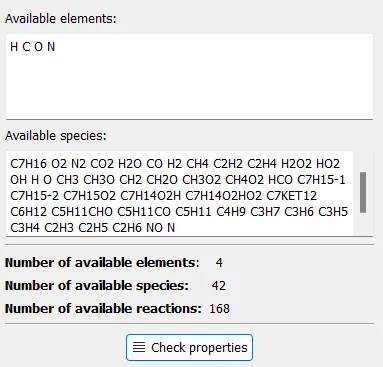

Injector: within the gadget, I even have enclosed the fuel that i'm exploitation for the simulation i.e, Diesel2.
I have conjointly provided a profile for rate form to a trapezoid. Converge utilizes this profile to inject the overall mass per the given time that I even have provided.
Kelvin-Helmholtz and Rayleigh-Tailor models area unit the economic customary models for fuel injection system with customary values. These values describe the parcel breakup and time taken for a parcel to urge unstable.
Nozzles: during this simulation, i'm employing a compression ignition engine the gadget is set at the middle of the cylinder.
On the opposite hand, we are able to conjointly find the middle by exploitation the live possibility.
The final a part of the nozzles is that the injection pressure. The injection pressure is mechanically solved by the converge by exploitation the initial conditions like revolutions per minute, injection period, total mass injected, discharge constant.
COMBUSTION MODELING:
SAGE kind of combustion model is employed and multi-zone model to hurry up the combustion calculations.

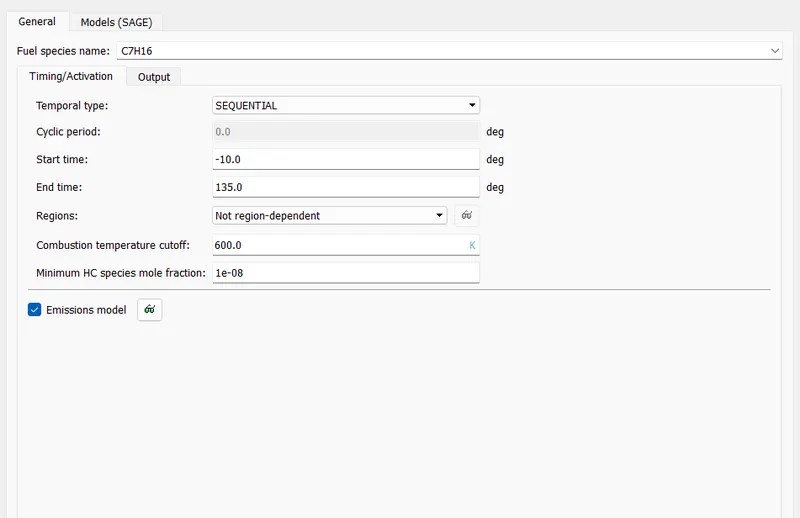

Firstly, the kind of fuel used for combustion is mentioned, Next the beginning time, end time, and therefore the cyclic amount.
For the beginning time, the combustion model is ready to begin many degrees before the spark takes place therefore on initiate the combustion calculation.
The end time is that the same because the valve time of day.

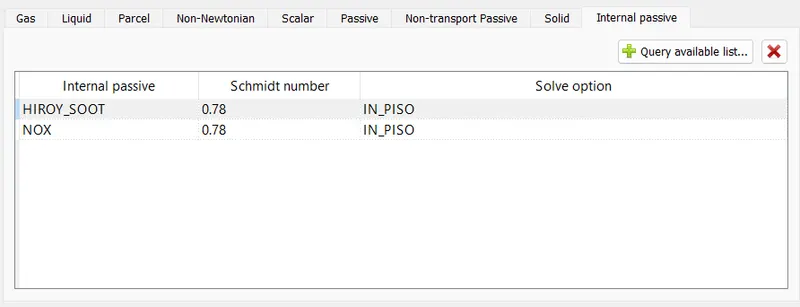

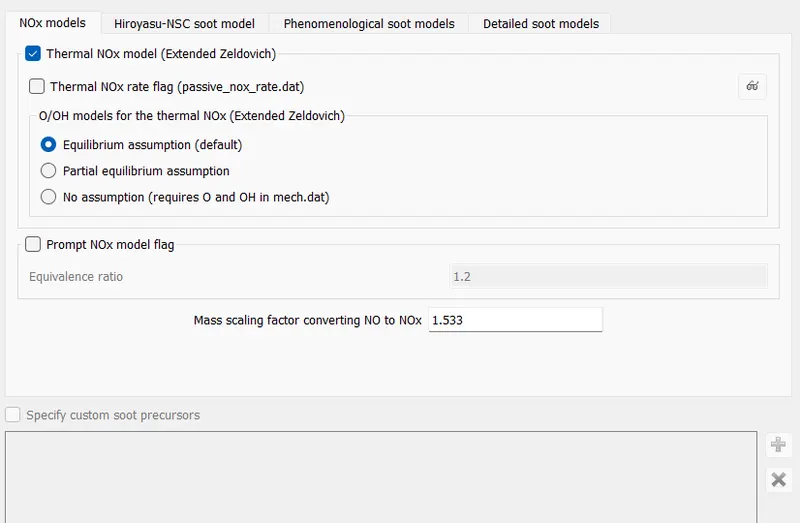

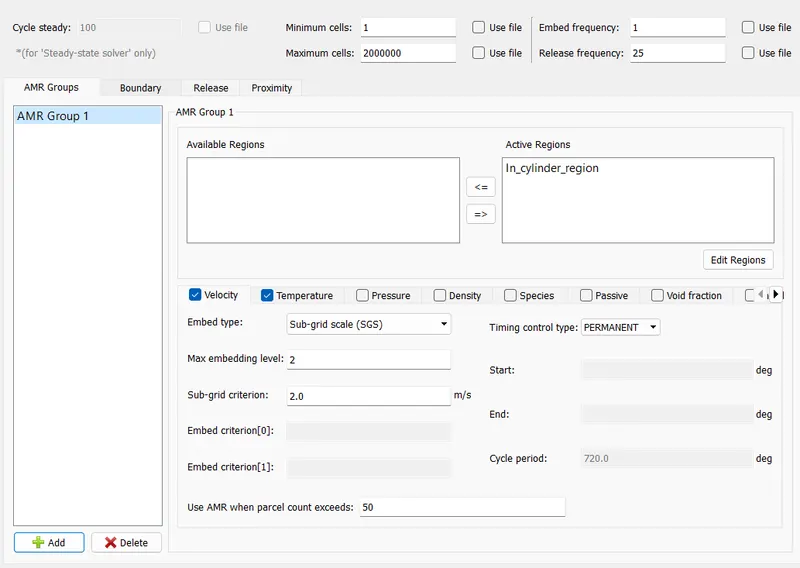

ADAPTIVE MESH REFINEMENT (AMR):
In numerical analysis, AMR could be a methodology of adapting the accuracy of an answer among sure sensitive turbulent regions of simulation, dynamically and through the time the answer is being calculated.
When solutions square measure calculated numerically, they're typically restricted to pre-determined quantified grids as within the plane that constitutes the machine grid, or mesh.
Many issues in numerical analysis, however, don't want a regular exactitude within the numerical grids used for plotting or machine simulation and would be higher suited if specific areas of graphs want exactitude. AMR provides such a dynamic programming setting for adapting the exactitude of the numerical machine supported the necessities of a computation drawback in nominative locations.
Subgrid criteria (SGS) is Associate in Nursing integral a part of AMR. because the AMR is employed for various parameters Temperature, Velocity, Pressure, and Species, etc.
The SGS is supplied with a predefined price. If the parameter exceeds the required price within the SGS, the AMR mechanically permits.

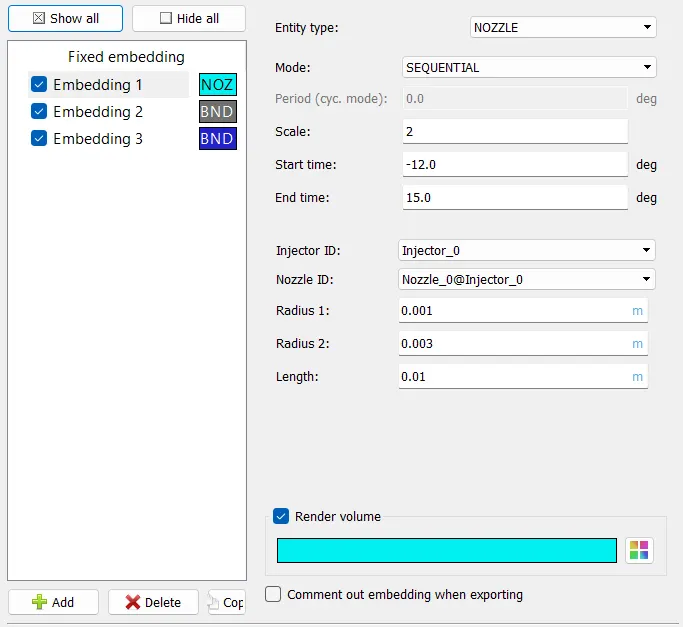

FIXED EMBEDDING:
Fixed Embedding could be a good feature. It helps in adding additional mesh in nominative locations.
This offers various edges as well as the power to use additional cells close to a wall and acquire a rise in accuracy and running a quick coarse mesh while not distorting the geometric illustration.
The following regions and limits enclosed in mounted embedding as well as, Intake valves, Exhaust valves, Cylinder region, nozzles, and sparkplugs.
The mounted embedding act as an extra refinement in this areas.
For example within the cylinder region, the energy emitted through the supply term resides for a extended amount of your time and numerical diffusion takes place.
The mounted embedding is active for a really tiny period of your time, helps in capturing the higher seed values, temperature gradients.
This conjointly initiates AMR to be activated in this region or a selected space.

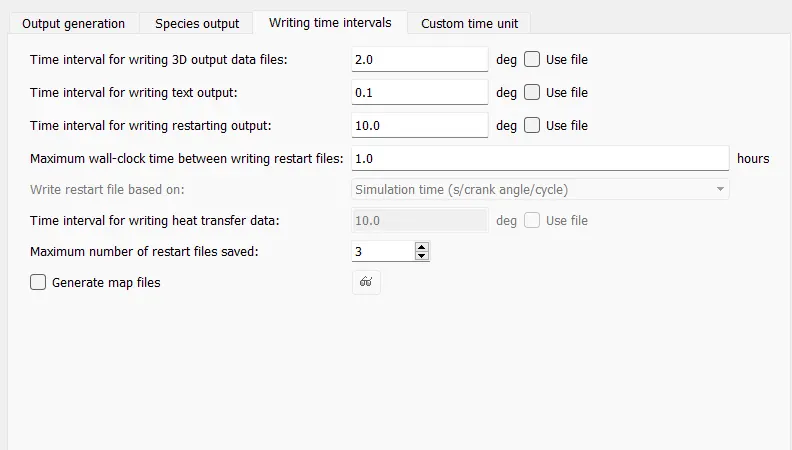

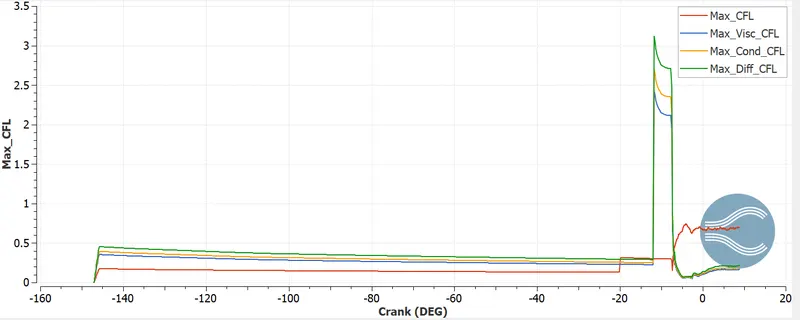

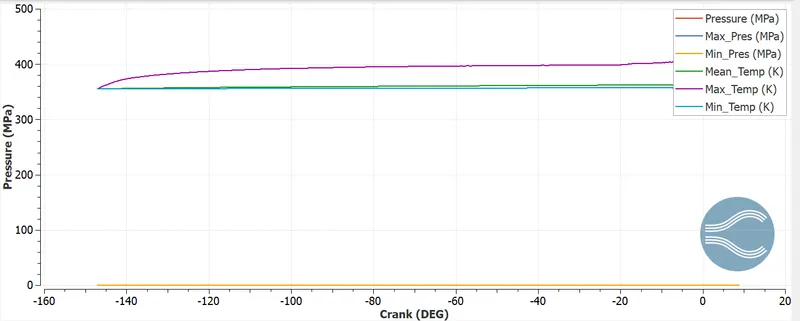

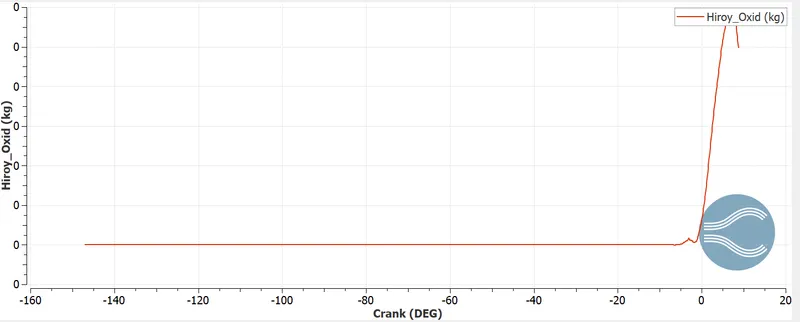

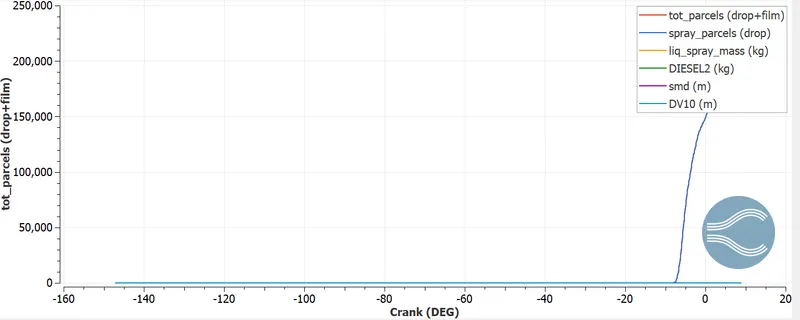

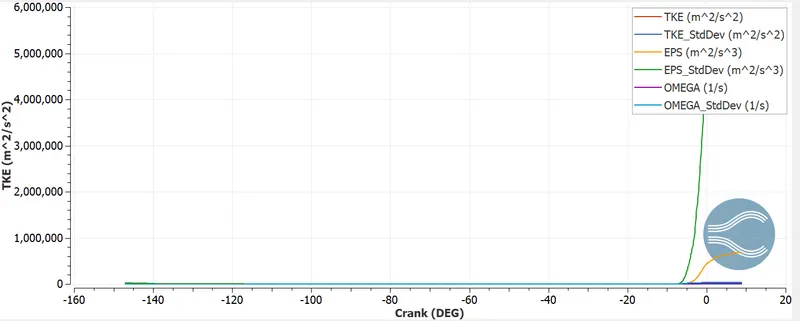

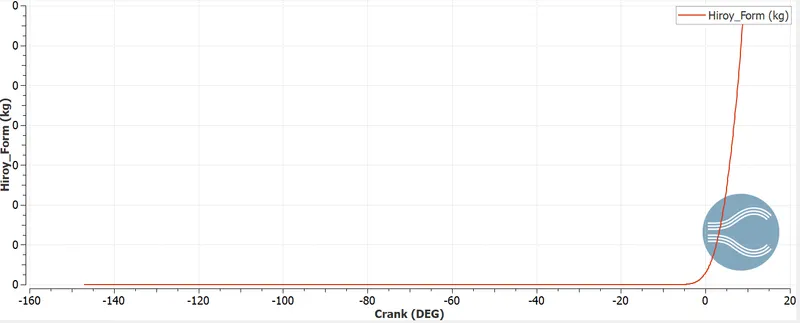

Results:

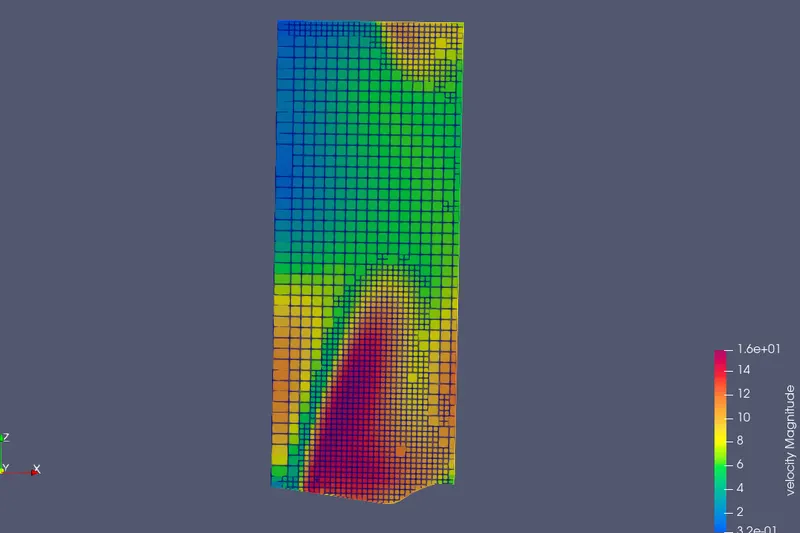

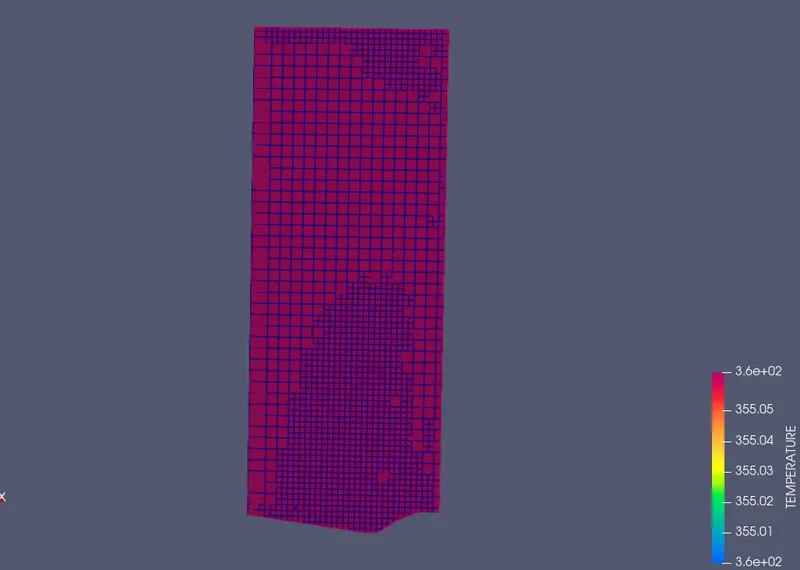

Paraview Results:
Animations:
