Week 11 - Final project

BUGATTI V16 ENGINE WIRING HARNESS PROJECT-1 Aim- To route the wiring harness on given Engine and flatten view drawing in CATIA V5. Objective- The objective of the project is to route the wiring harness on given Engine and prepare flatten view drawing in CATIA V5. All types of packaging rules have to be considered while…

AIM:To flatten the wire harness assembly completed in week 7 assignment and place the flattened view on a drawing sheet. OBJECTIVE: To flatten the wire harness assembly completed in week 7 assignment. To orient the wire bundle as shown in the layout. To place the flattened view on a drawing sheet. To ensure bundles…

AIM-  Route two electrical harnesses as per the given layout and interconnect them as a single harness assembly and then check for bundle continuity, bundle warnings, and then give annotations to the final harness assembly. OBJECTIVE-   The objective of this project is to first route the two Harness A and Harness B as…

OUTPUT: TREE CHART: WIRING BUNDLE : PROTECTIVE COVERING: START AND END EXTREMETY GIVEN AS 20MM & 30MM RESCPECTIVELY:

CONNECTOR -Deutsch DT06 – 08SA CONNECTOR-Tyco 174357-2 CATLOG:

Design of Backdoor Objective:  To design Back door of car using the given Class ‘A’ surface. Introduction: It is a hinged board or door at the rear of the vehicle that can be moved up or down during loading and unloading. Back Door is also referred as 'Hatch' or 'Tailgate' or 'Trunk-lid' or 'Boot-door'.…

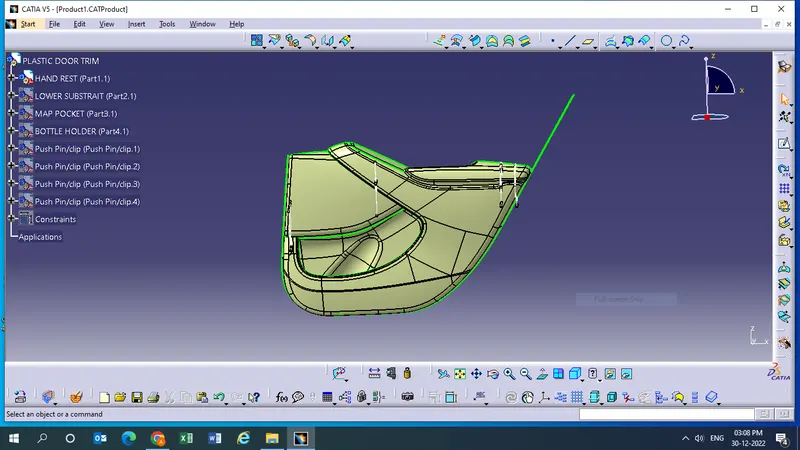

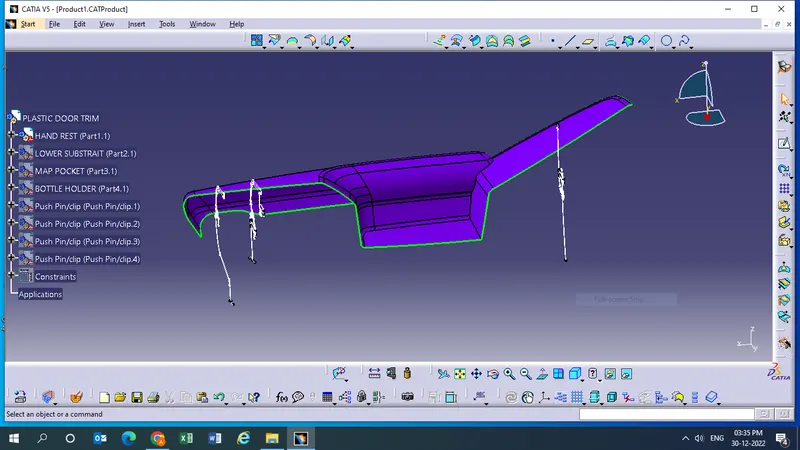

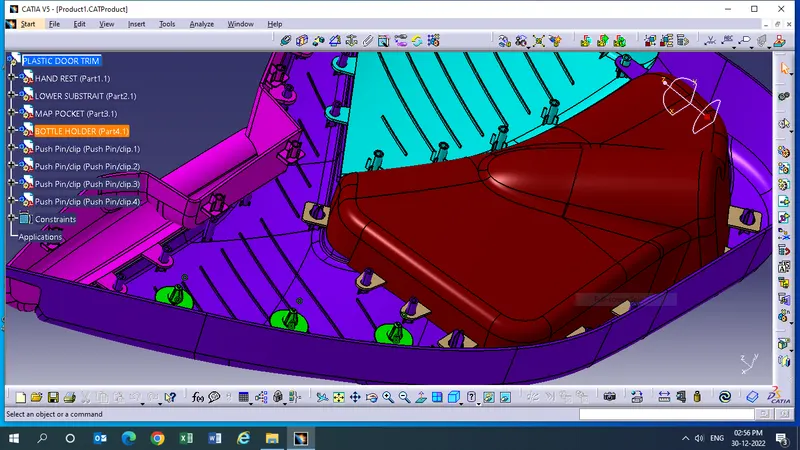

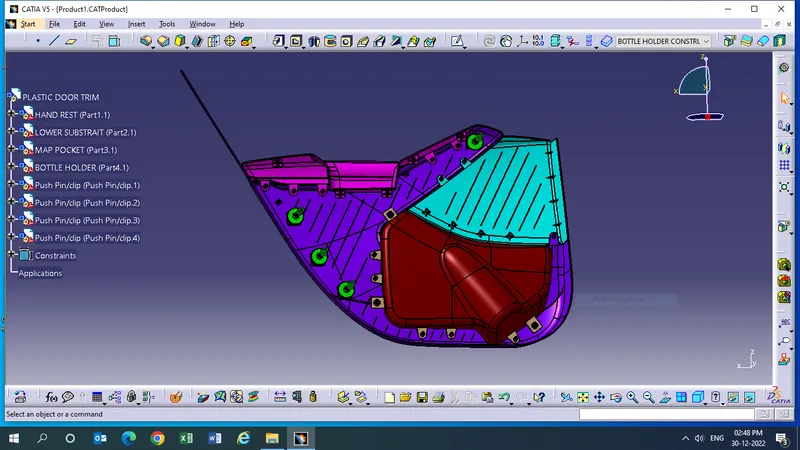

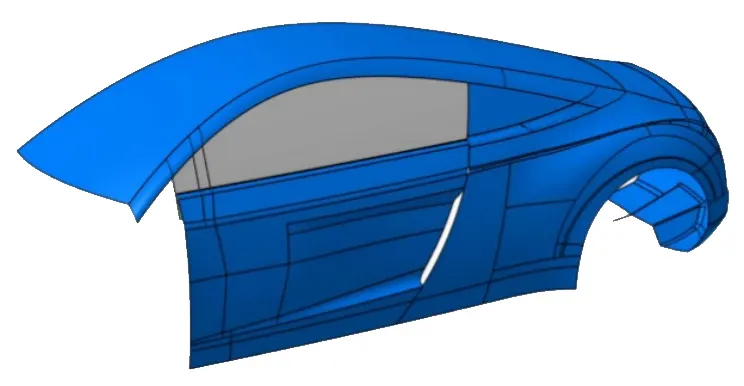

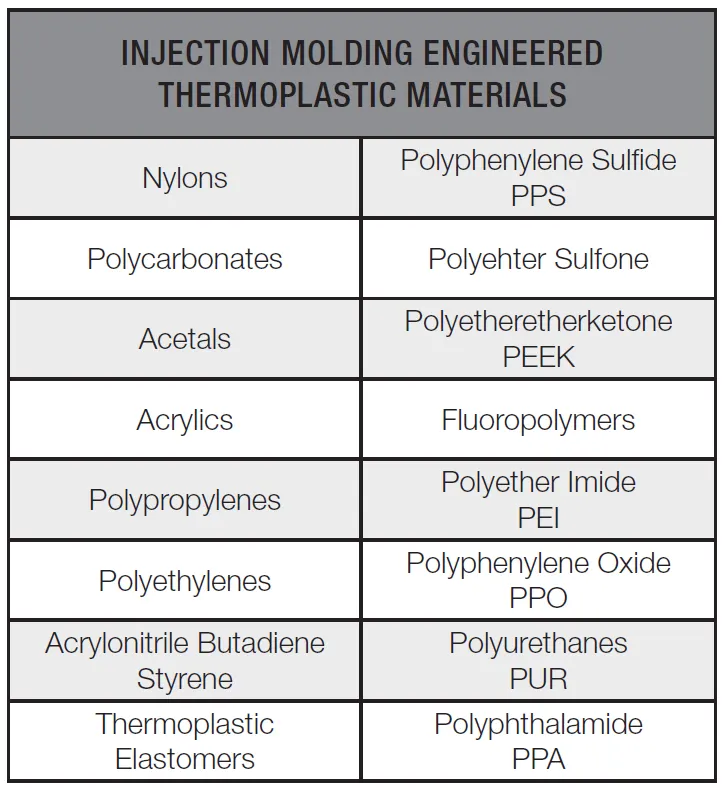

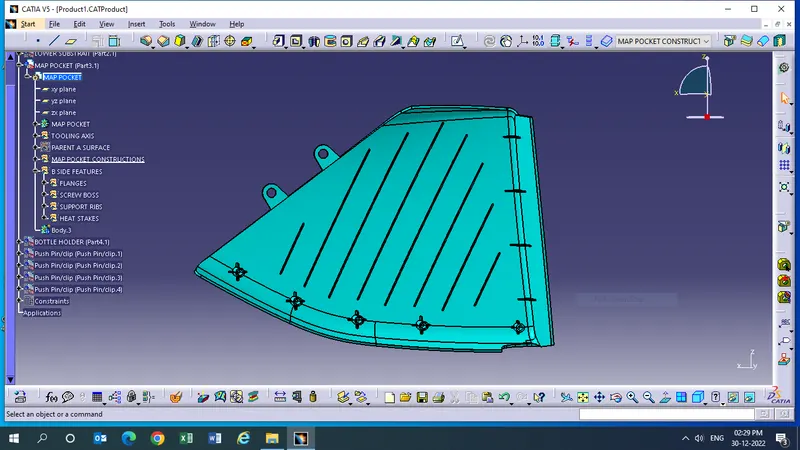

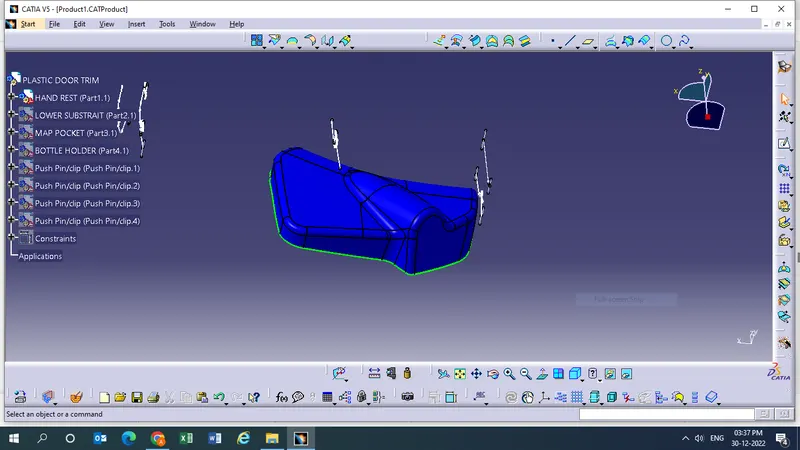

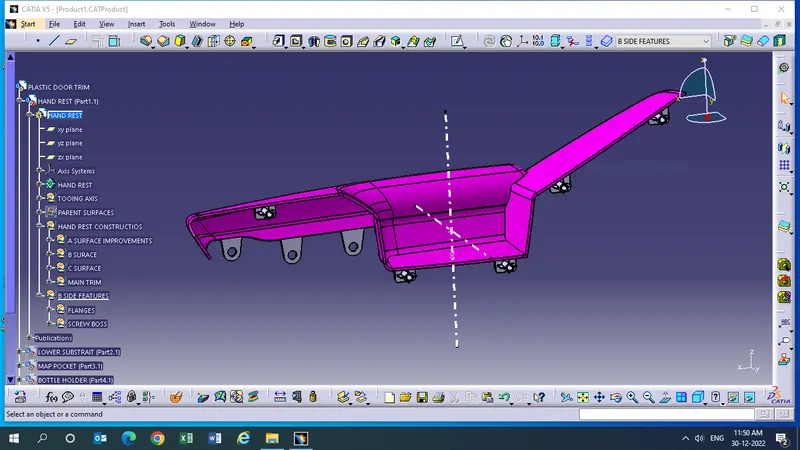

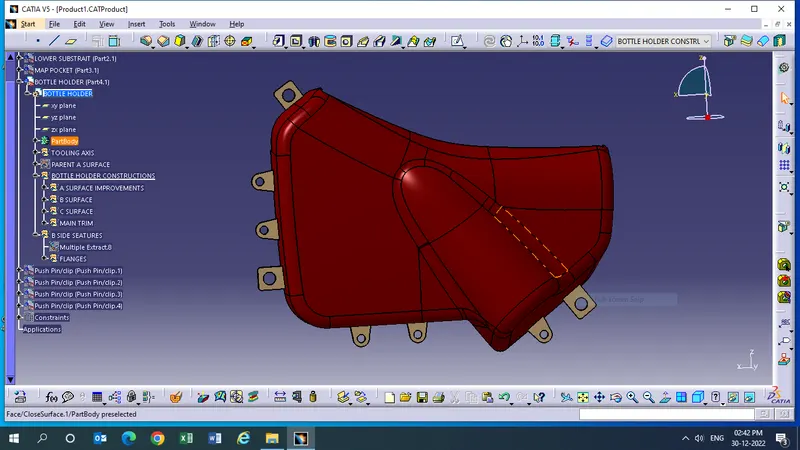

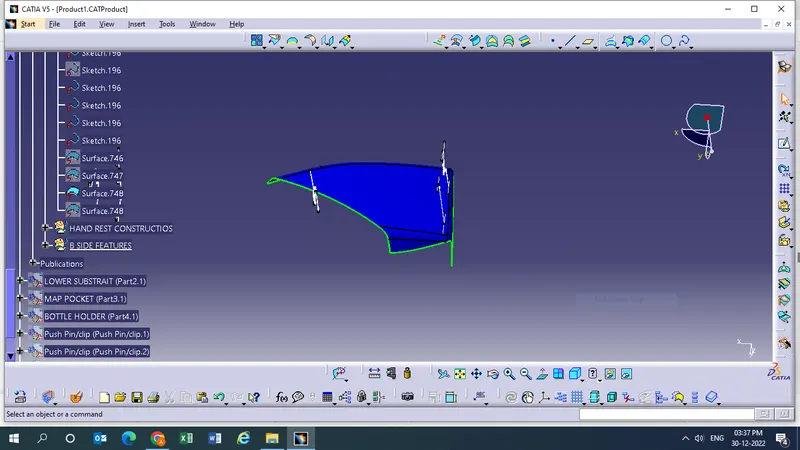

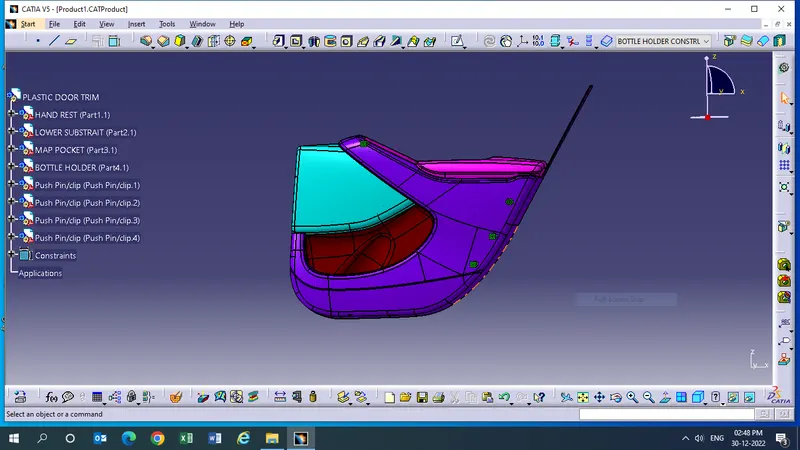

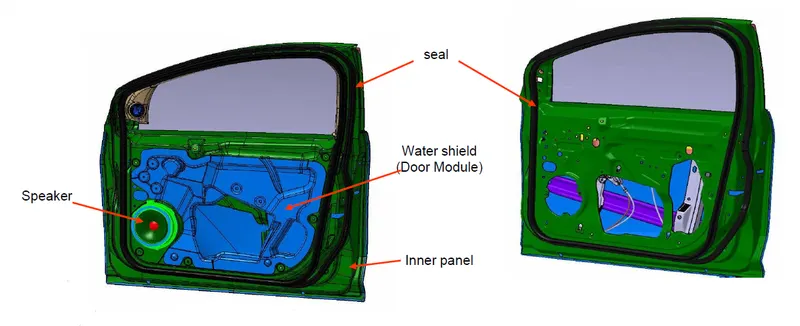

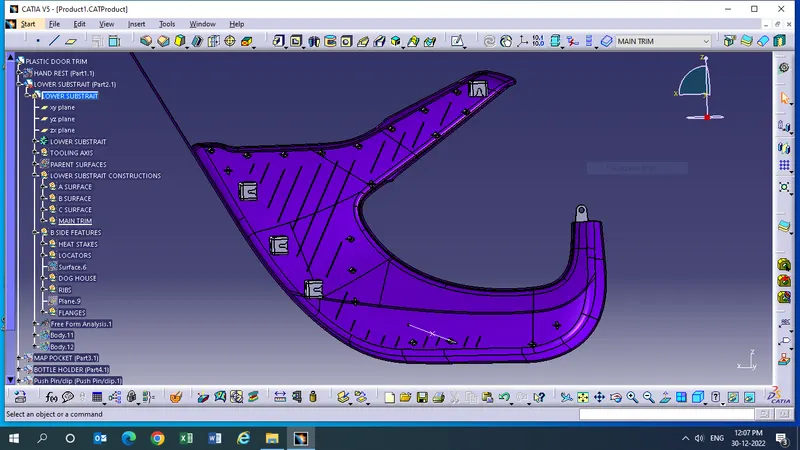

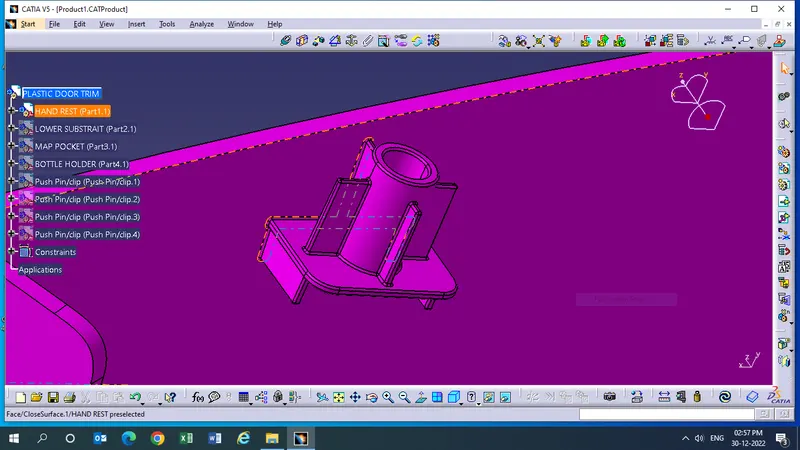

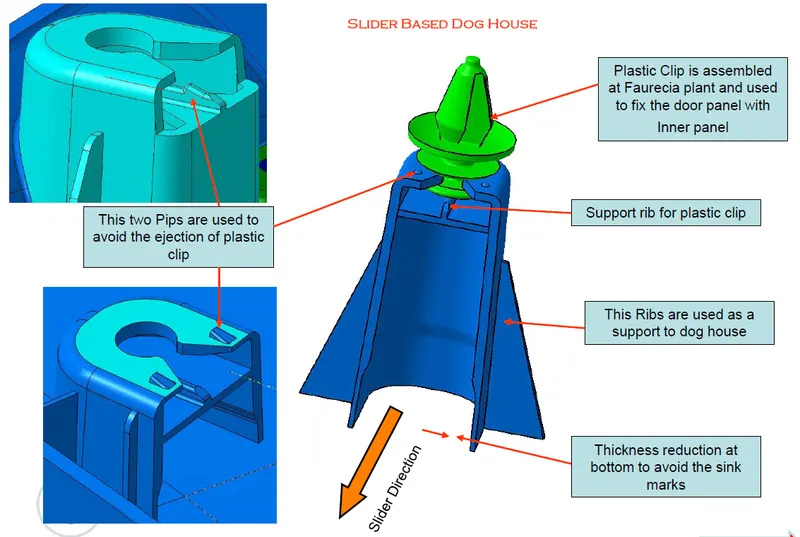

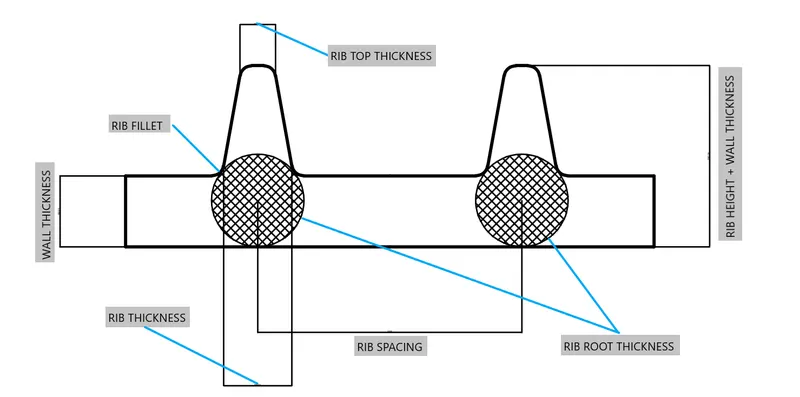

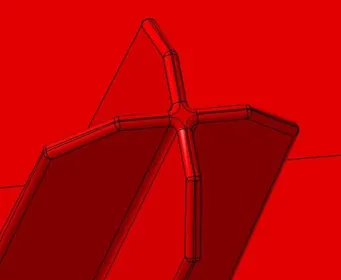

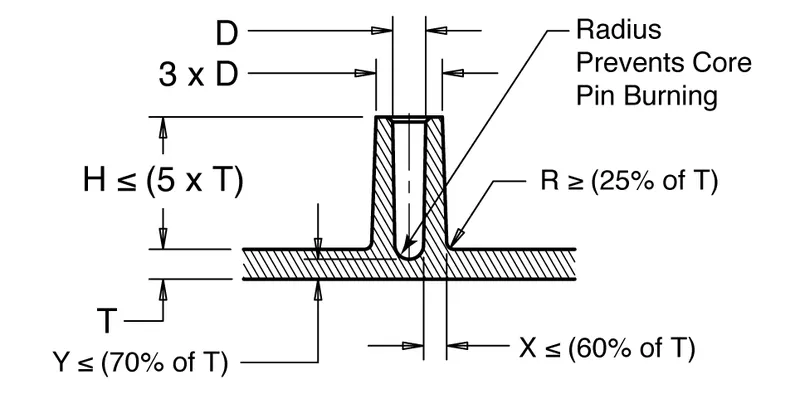

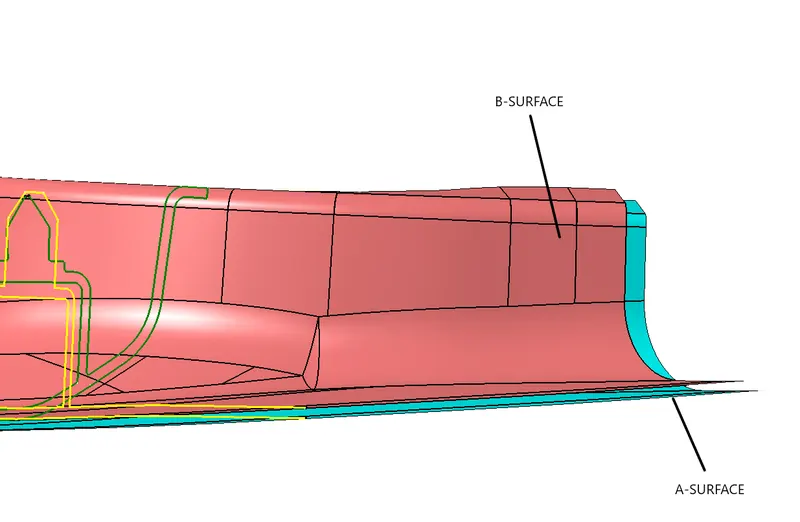

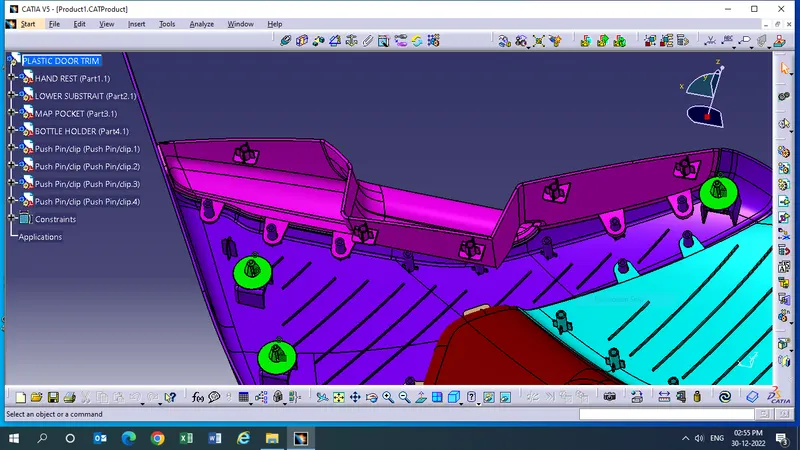

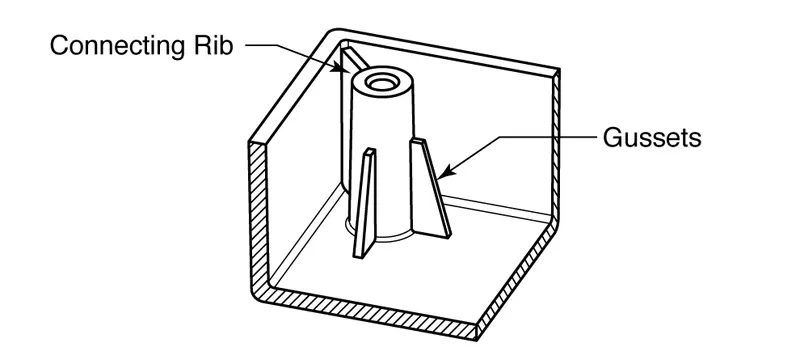

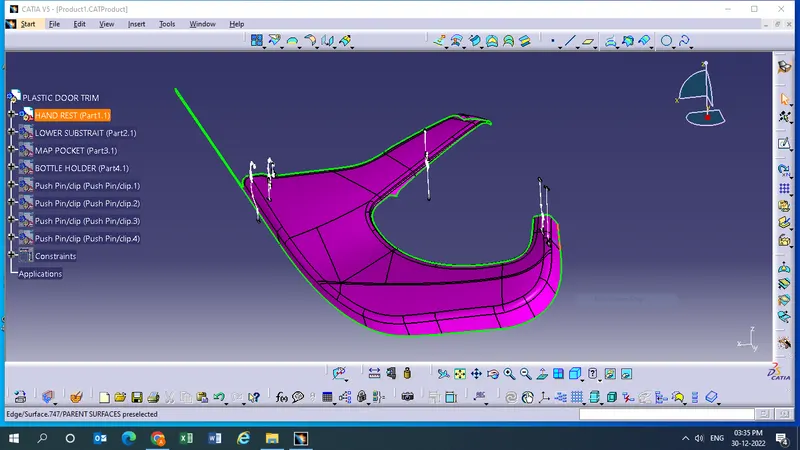

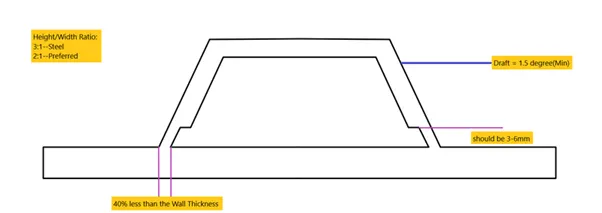

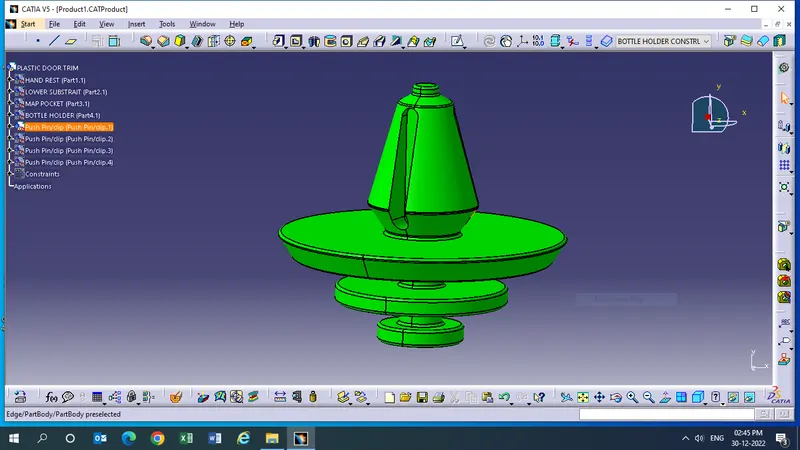

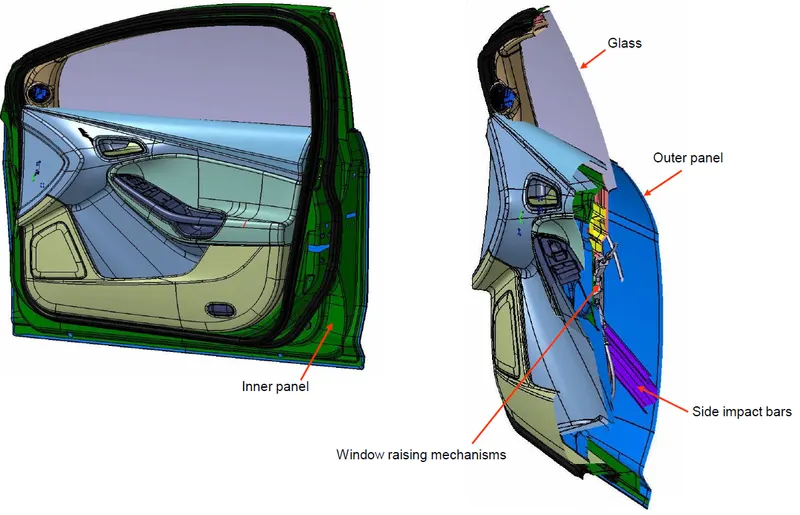

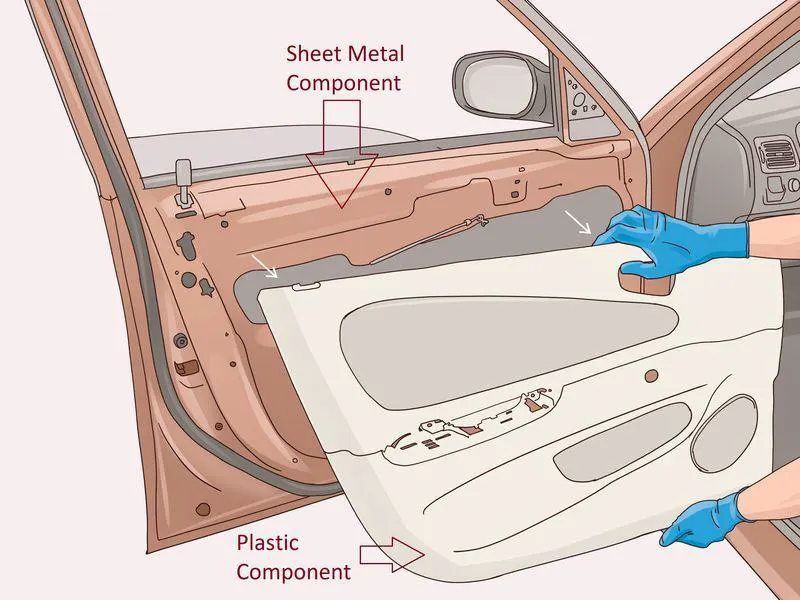

AIM:- To create a CAD model considering the OEM standards from the Class-A surface of a Door Panel. Software USED:- CATIA V5 INPUT SURFACE:- A SURFACE:- INTRODUCTION: Door panels serve as an interface between the interior of the car and the inner workings of the door, and between vehicle occupants and the door. They…

Aim: Design of the front roof rail, rear roof rail, and bow roof for the roof of the vehicles with the help of the given skin data of the roof according to snow load condition and hear distortion criteria. Objective: Study different type of the roof available in the market. Study about the heat distortion criteria to adjust…

DESIGN OF CAR FENDER Fender is  the part of an automobile, motor cycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can…

DESIGN OF CAR FENDER:- Fender is  the part of an automobile, motor cycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and…

AIM :-Challenge is to calculate the wheel arc area and to prove whether the given fender of car will pass the European standards or not. INTRODUCTION:- WHEEL ARC:-The wheel arch is the semicircular part positioned above the wheel of a vehicle. The most important body change was that the front wheel arch was cut higher…

SECTION MODULUS:- The section modulus (S) is geometric property of the cross section used for designing beams and flexural members. It does not represent anything physically. Formula of Section Modulus: It may be defined as the ration of total moment resisted by the section to the stress in the extreme fibre which is equal…

REPORT HOOD:-The hood is the outer panel covering the front engine of the vehicle.IT opens to allow access to the engine compartment for the ease of maintenance or repair of the vehicle.It consist of the outer panel and inner panel. OUTER PANEL:-Outer panel is the aesthetic part of the hood,or we can say it as the outer…

AIM:To make report on under-body coating and its purpose,its type in details,and its pros and cons THEORY: What is under-body coating ? Underbody caoting is a thick resilient coating applied to the underbody or chassis of an automobile to protect against impact damage from small stones, which would rapidly chip ordinary…

BENCHMARKING: It is a process of measuring or comparing the performance of a companies producr,services,or process against other companies considered to be the best in the industry.There are two types of Benchmarking-PREDESIGN & DEVELOPMENT.

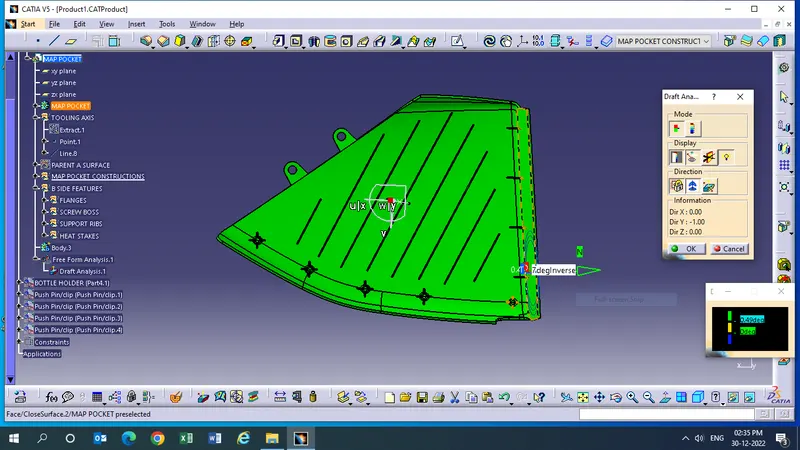

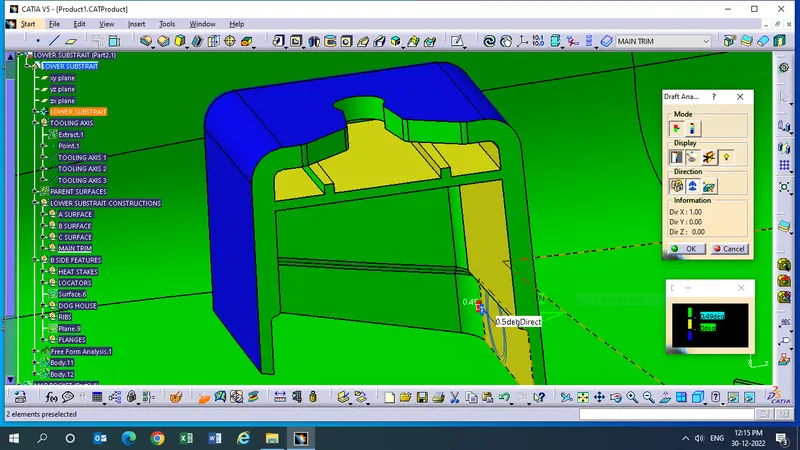

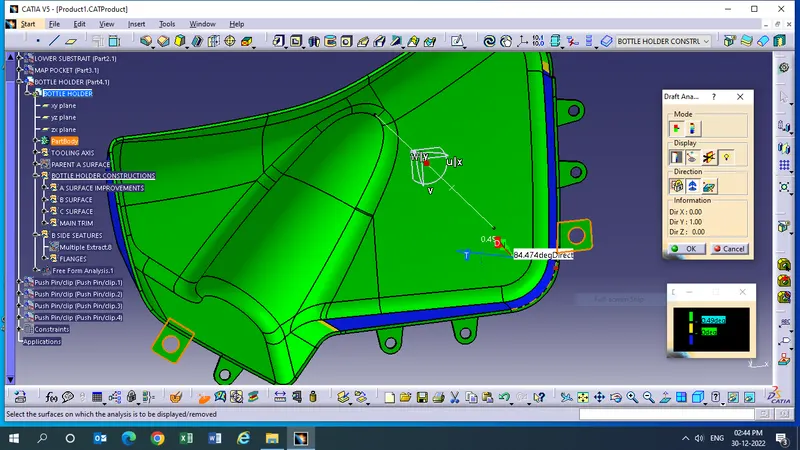

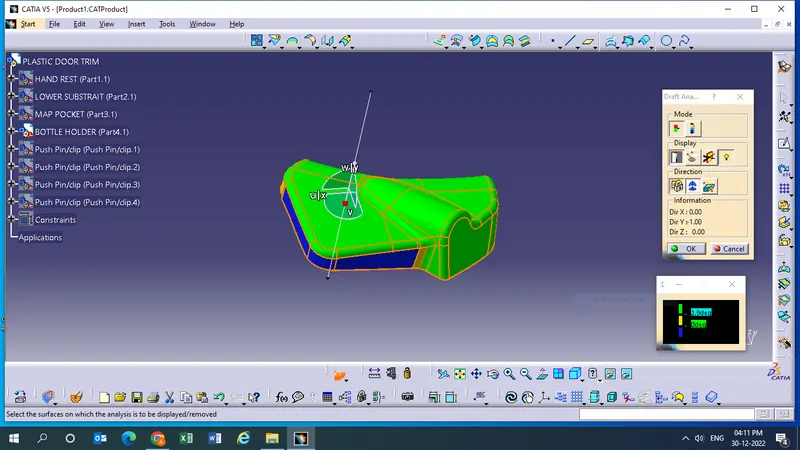

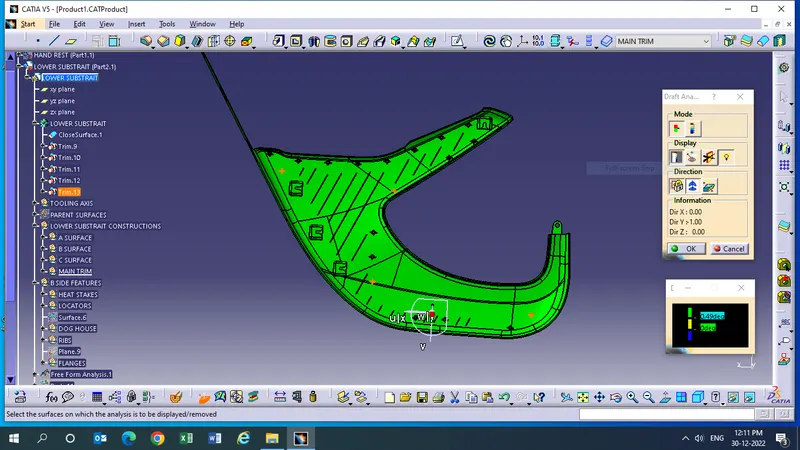

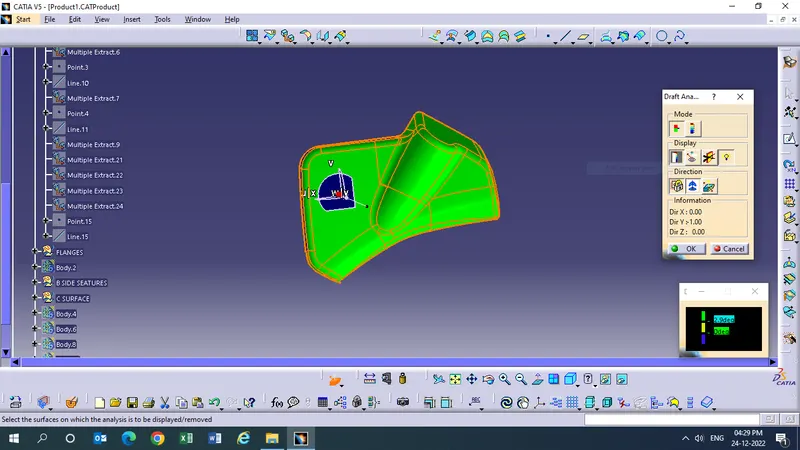

IS THE DRAFT ANALYSIS RIGHT ?

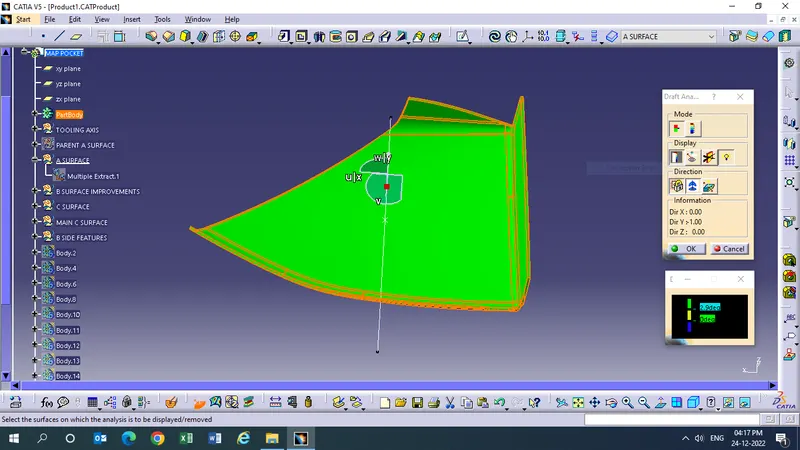

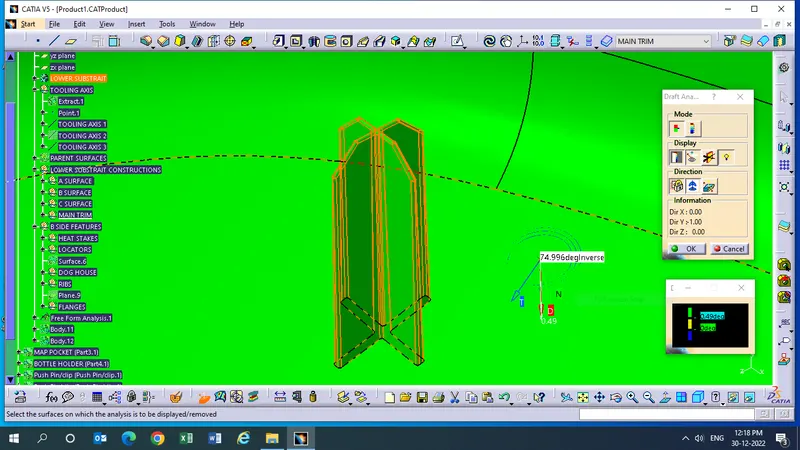

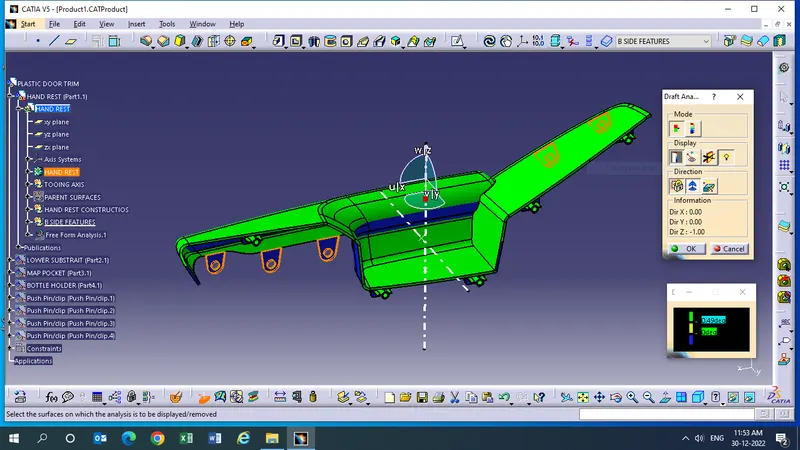

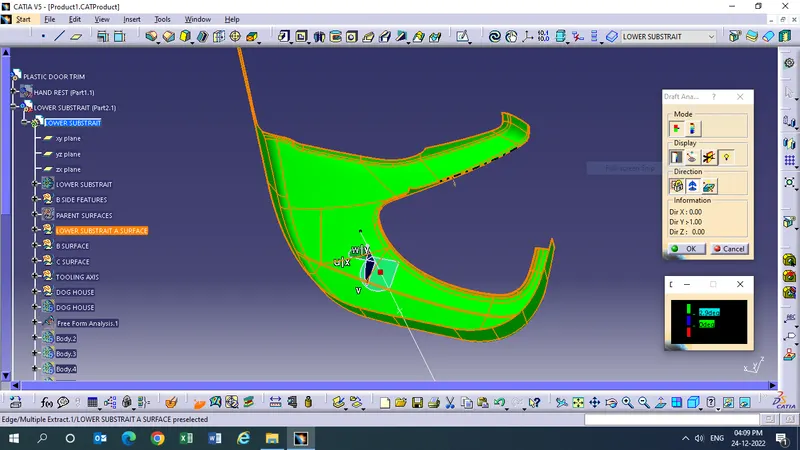

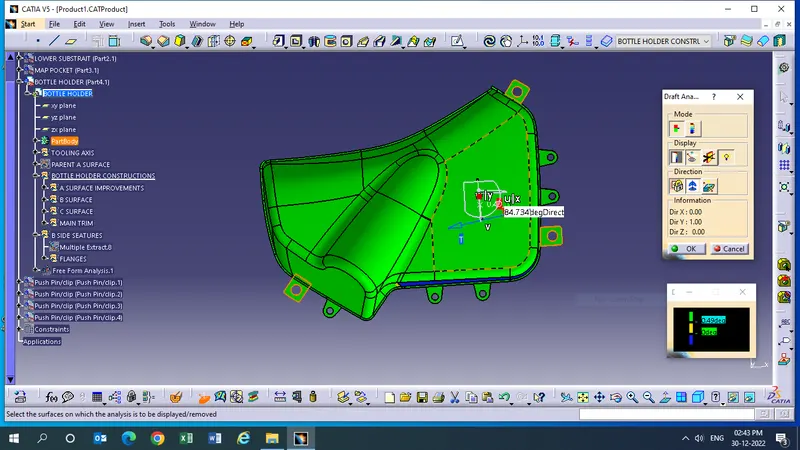

IS THE DRAFT ANALYSIS RIGTH,IF NOT I WILL DO IT AGAIN IS THIS METHOD RIGTH ?

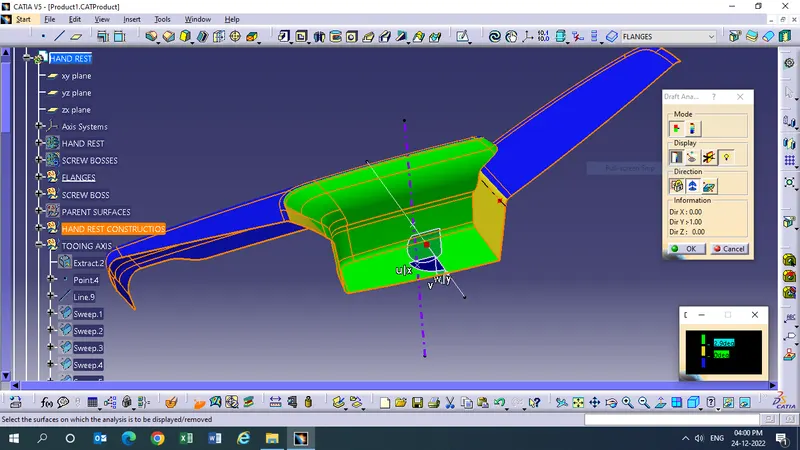

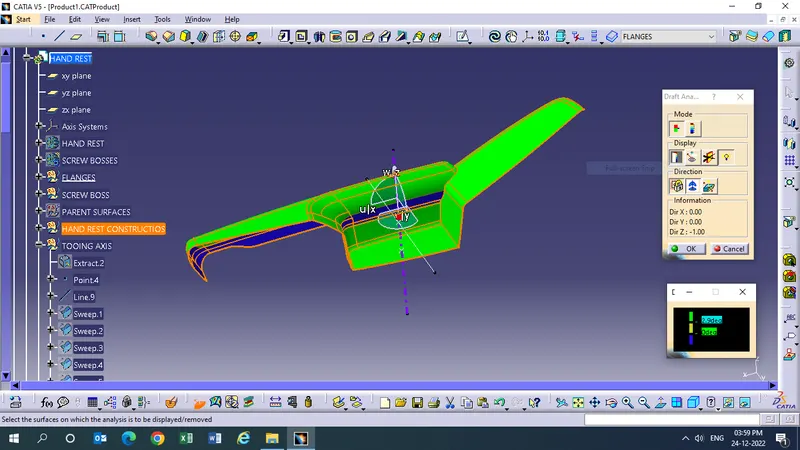

REPORT: For creation of Tooling Axis: while selecting the tooling axis first check in which direction it can be suitable to solve the surface and the slot and accordingly go for it. then check the surface parallel to direction you are going to select. then create a dummy tooling axis to identify the x,y,z direction. then…
