Week 11 - Final project

 OBJECTIVES

TO perform draft analysis on the class a surface

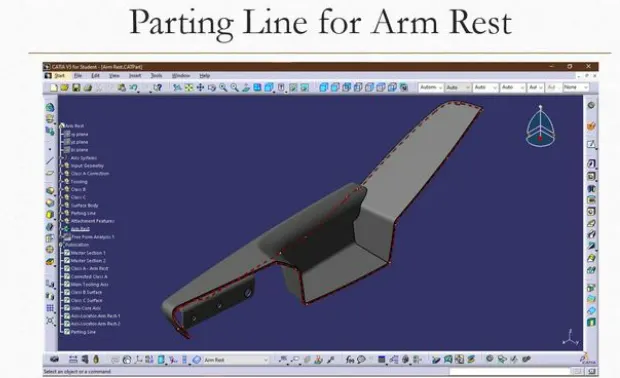

to create part line for each part

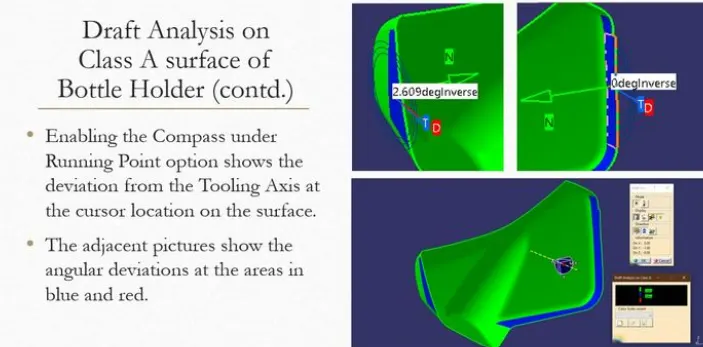

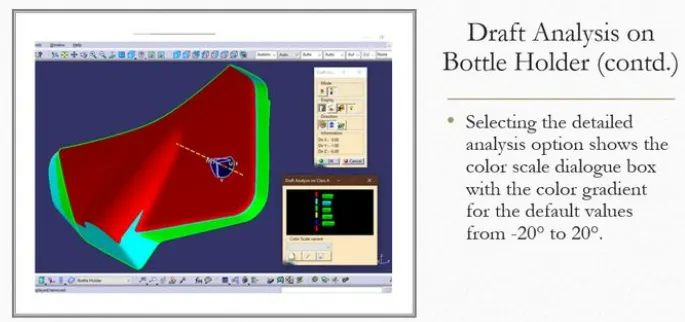

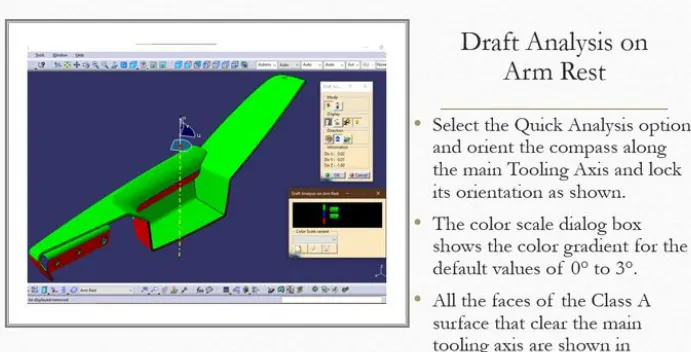

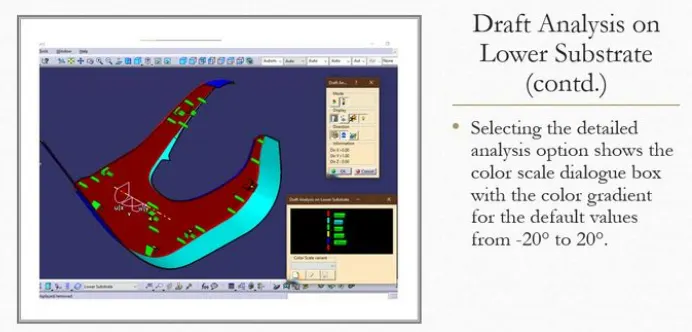

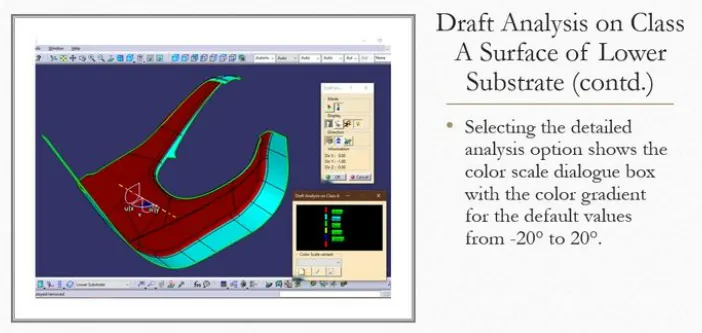

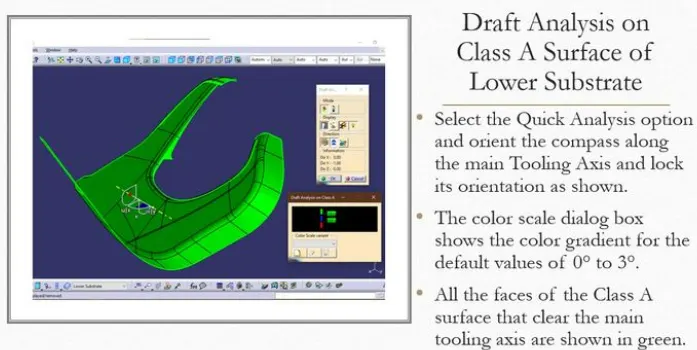

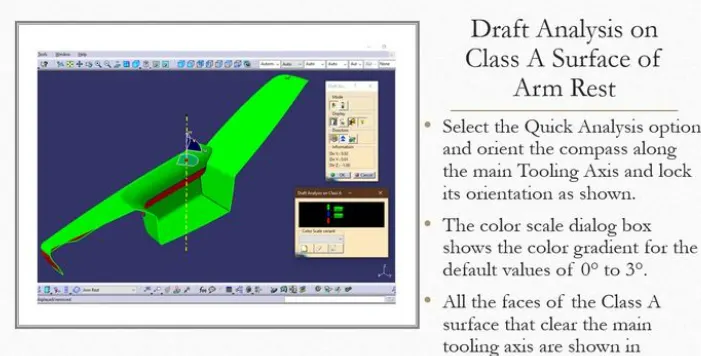

to perform draft analysis on the each part

MASTER SEDCTION

Master section are the reference for the developing a product basedon the engineering design requrimentm and also to develope certain parameter of individualcomponents an over all assembly to provide well clearance

CLASS A SURFACE

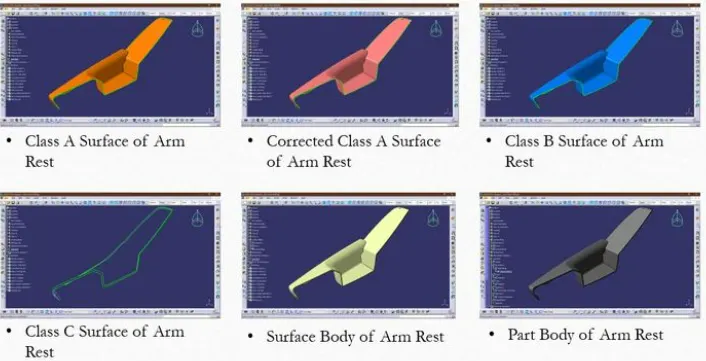

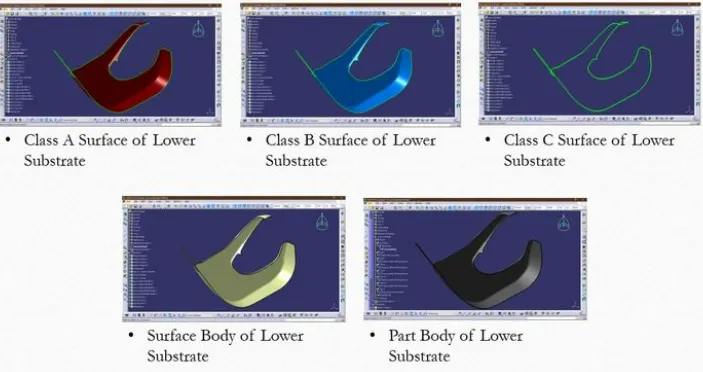

Class a surfce is a final form of surfce data create from the cincept sketching in term of an efficiency

the given class a surface is to be examination properly for any gaps or discontinious
