DEVELOPMENT OF DOOR TRIM
AIM:
To Creation of CAD model considering Class A surface, Nominal thickness, and Attachment strategy.
OBJECTIVE:
- To Creation of CAD model USING Class A surface, Nominal thickness, and Attachment strategy.
- Create thickened part using the master section for reference
- Create the mounting features as per design guidelines USING MASTER SECTIONS
Tooling axis for all body concepts:
- THE FIRST STEP IS TO CREATE A TOOLING AXIS BY USING BISECTING METHOD.
- For circular object center point is the tooling axis
- For the plain surface center point is the tooling axis.
Steps in part body creation:
- First, we check the class A surface. if there are any surface patches that will be rectified using some blend, multi-section, etc.
- Next creation of offset the class a with the given thickness.
- While offsetting the class A surface some patches are created and the patches have rectified the use of blend and multi-section solid command.
- Then create the C surface using sweep, blend, and join.
- Then C surface joins with the class A surface and trim with the B surface.
- I am using part design to close body commands to create a solid body.

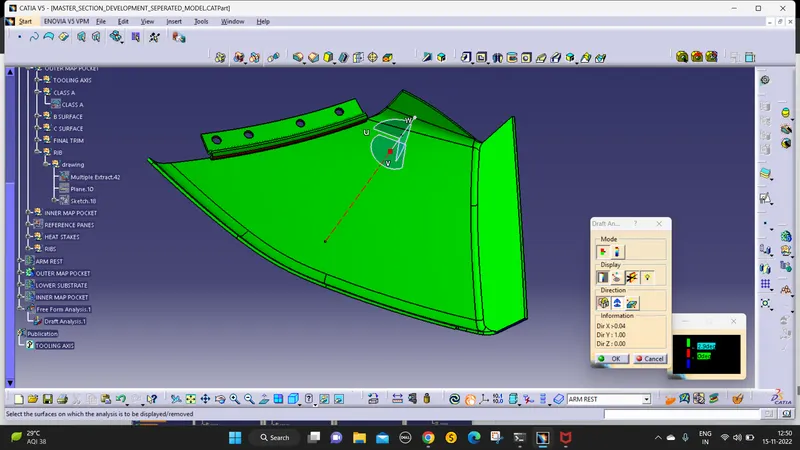

- Next using Draft analysis for all the solid bodies.
- Draft angle +or- 3°
- create the dog house with the design guidelines with 0.5°draft and heat stakes creation for attachment strategy.

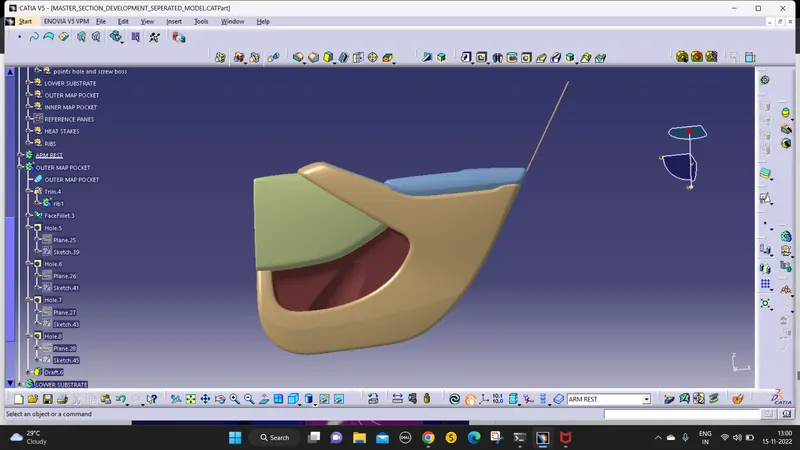

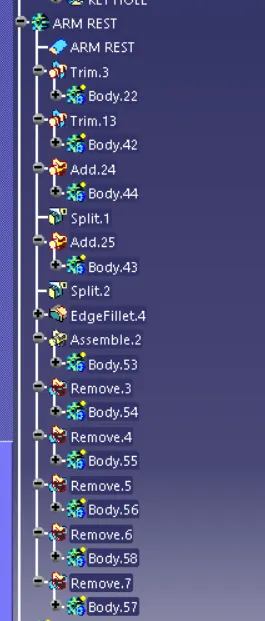

ARMREST

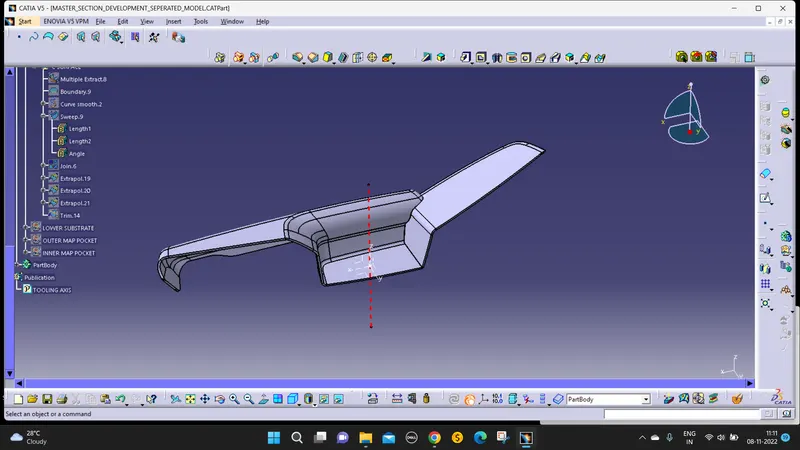

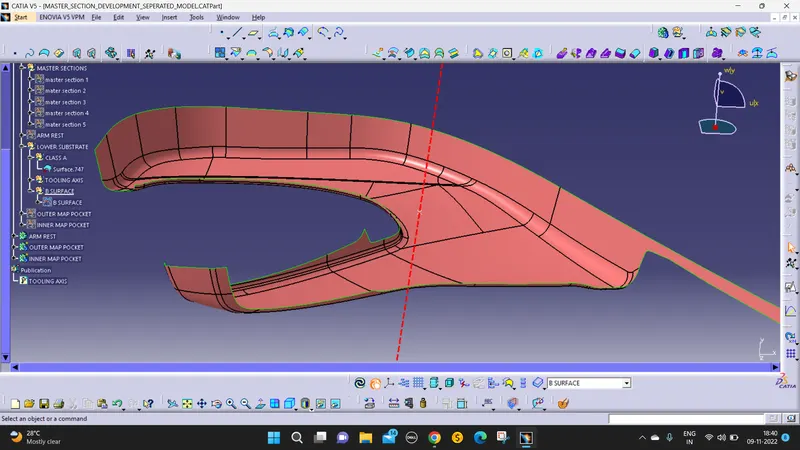

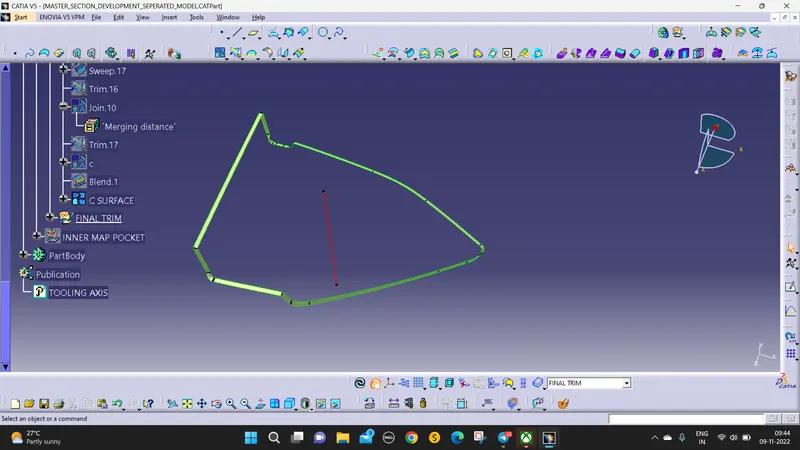

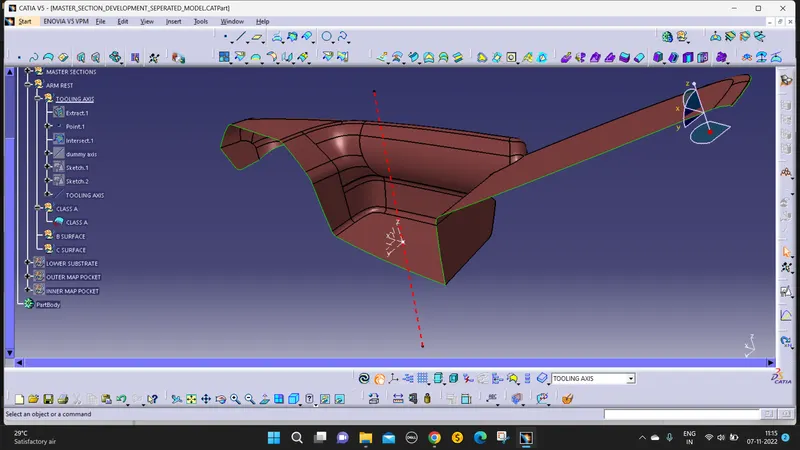

TOOLING AXIS IN CLASS A SURFACE

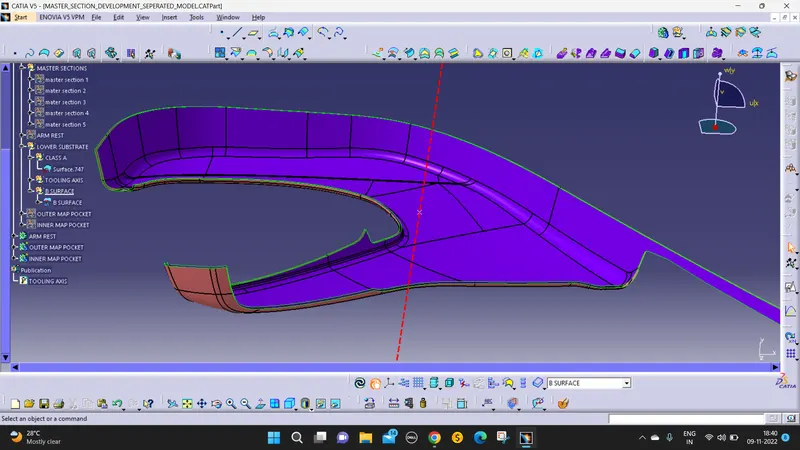

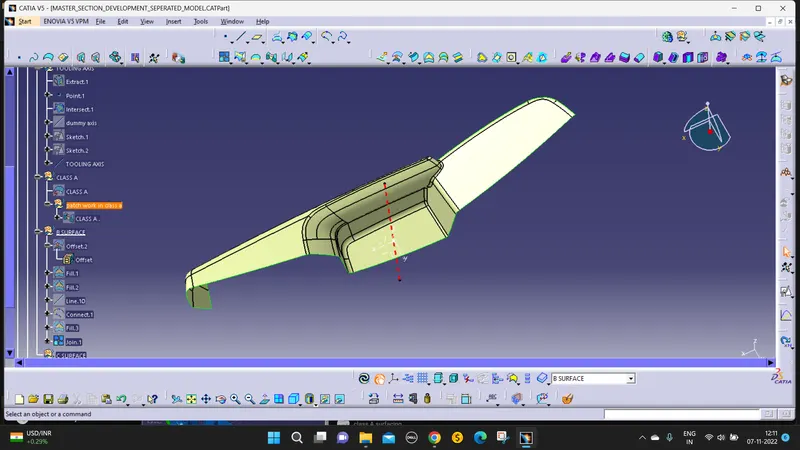

B SURACE

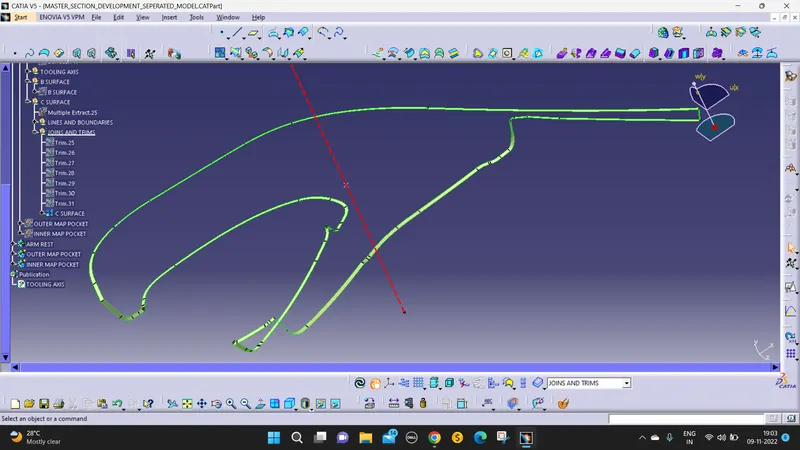

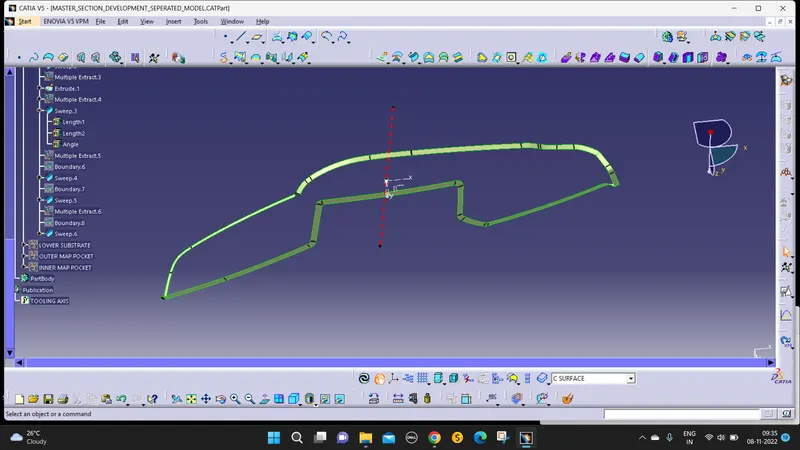

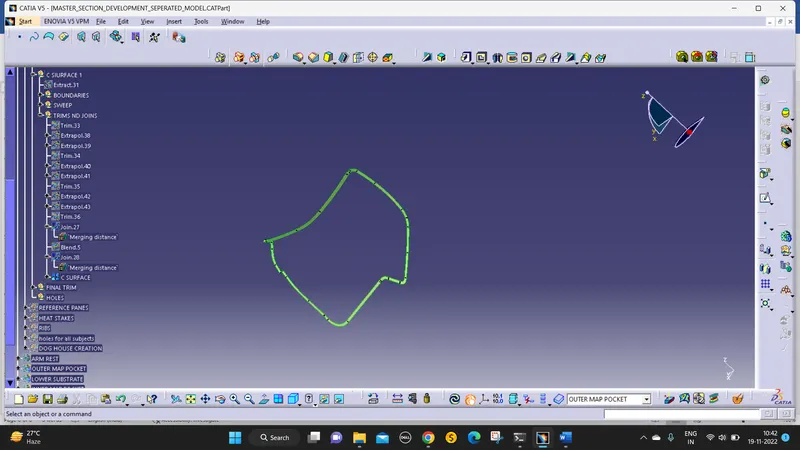

C SURFACE
FINAL TRIM

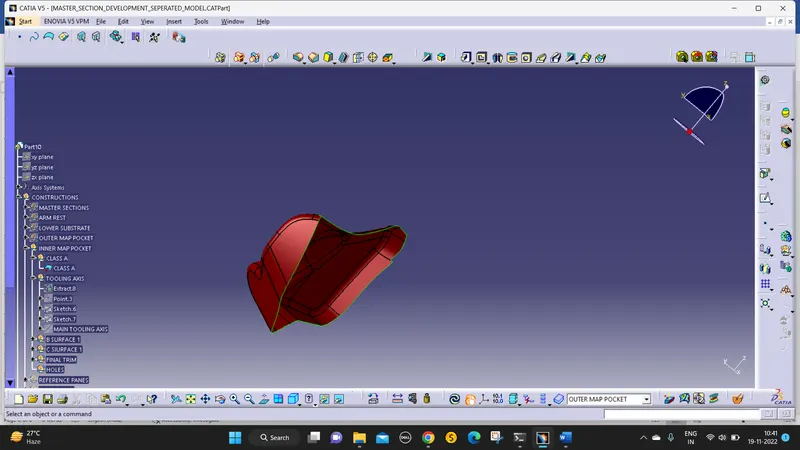

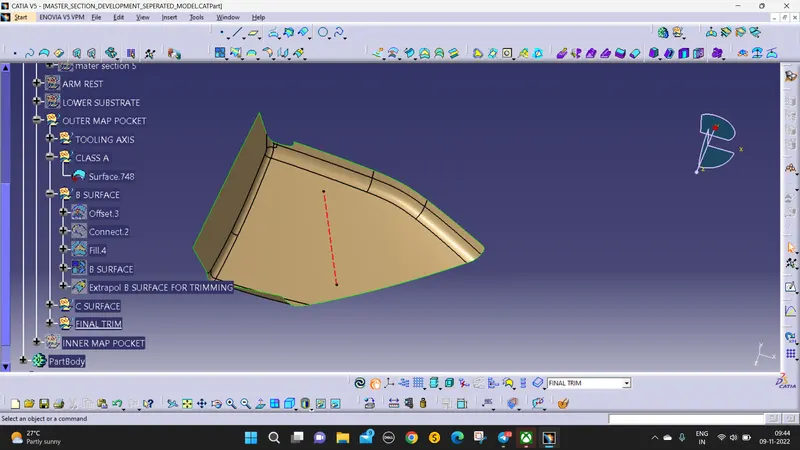

OUTER MAP POCKET
CLASS A
B SURFACE
C SURFACE
FINAL TRIM

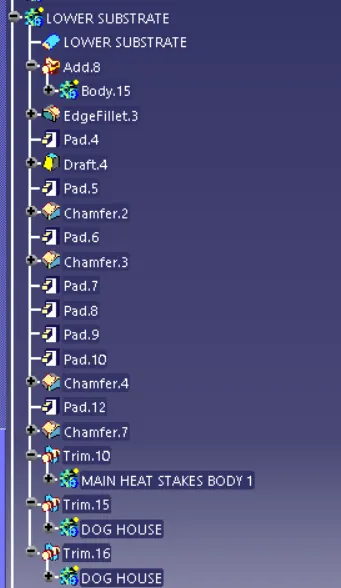

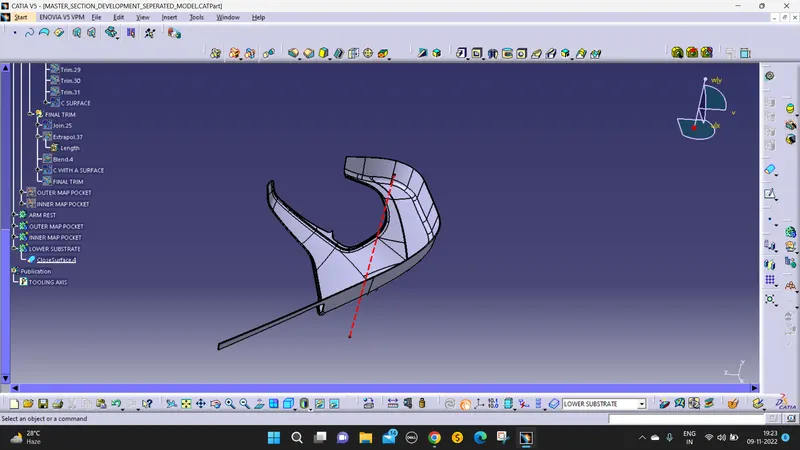

LOWER SUBSTRATE
CLASS A
B SURFACE
C SURFACE
FINAL TRIM

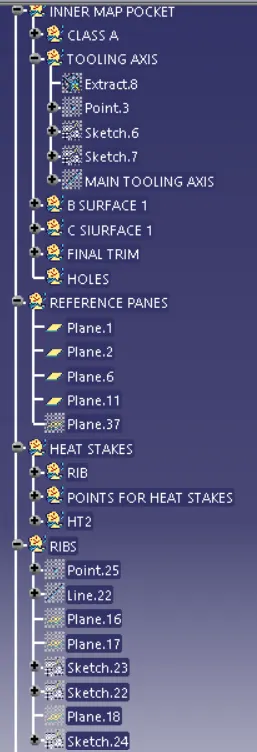

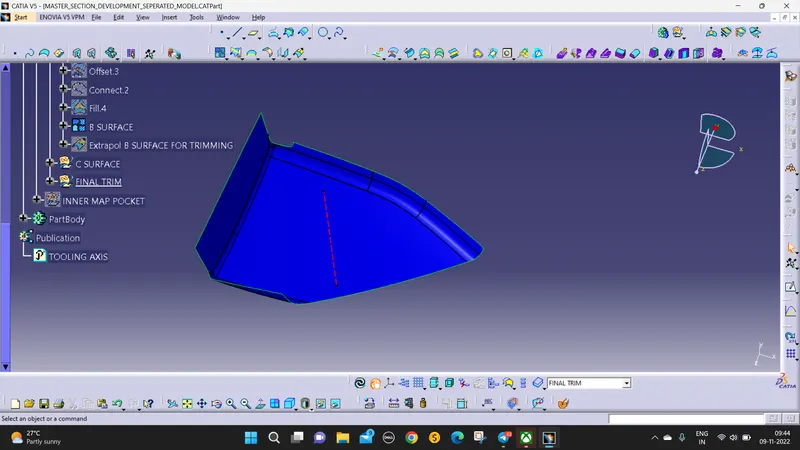

INNER MAP POCKET
CLASS A
B SURFACE
C SURFACE
FINAL TRIM

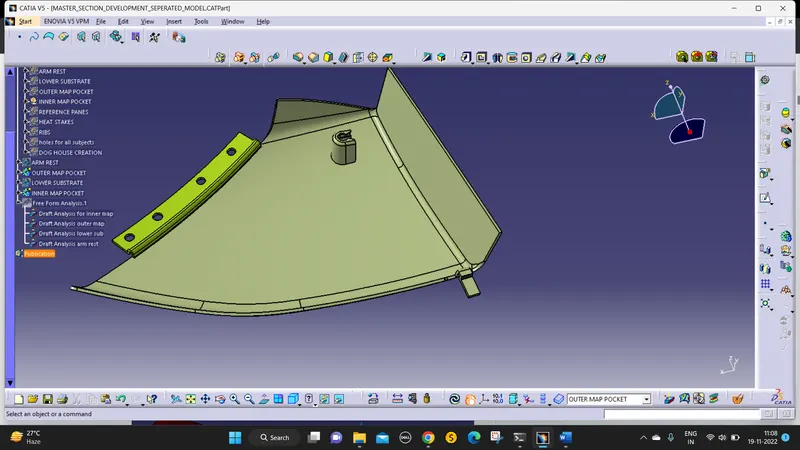

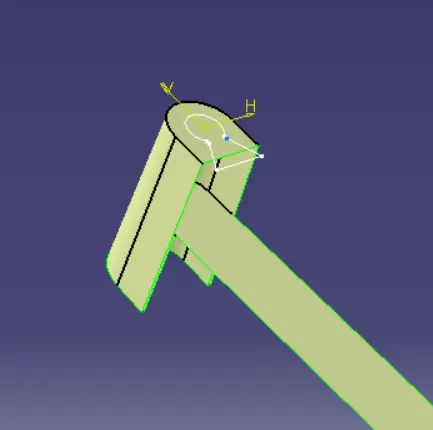

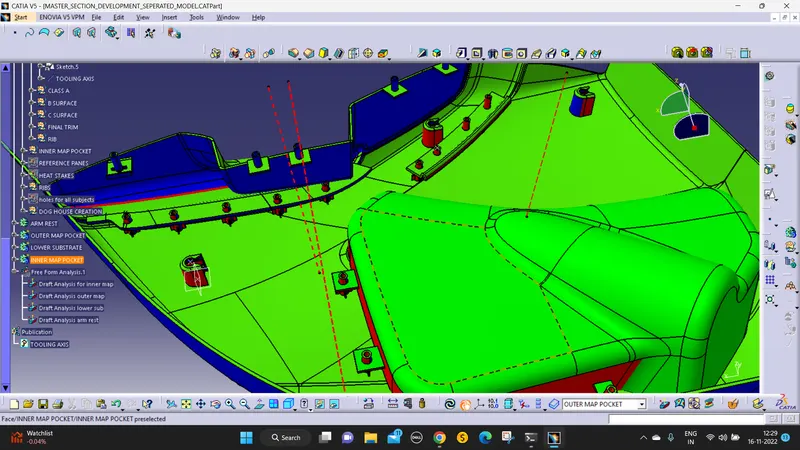

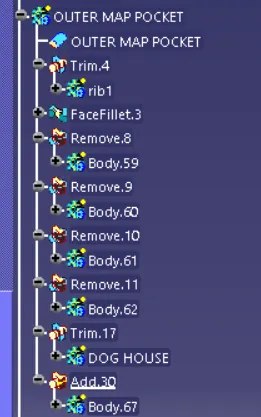

DOG HOUSE and heat stakes creation
For heat stakes, D7 and D5 the dia draft angle is 0.5°.

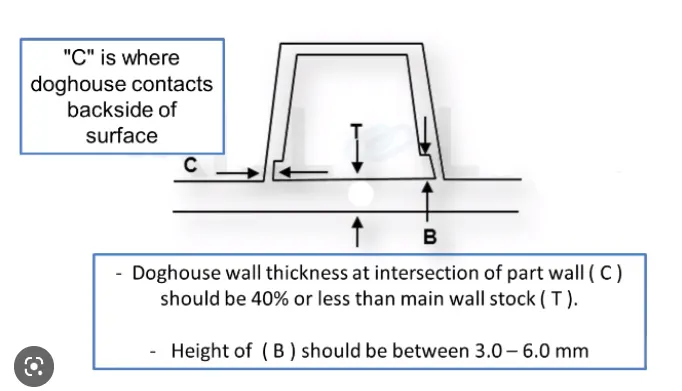

Creation dog house
- Wall thickness = 0.70 x Thickness of the plastic material
- Fillet on the inner side = 0.25 x Thickness of the plastic material
- Fillet on the outer side = 1.25 x Thickness of the plastic material
- Fillet on the coring edges = 0.25 x Thickness of the plastic material
- Coring thickness = 0.40 x Thickness of the plastic material
- Draft angle 2deg to 3deg

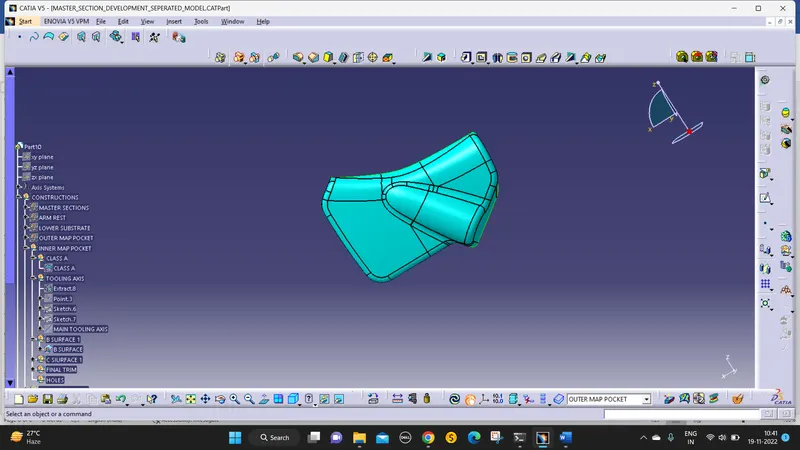

FINAL OUTPUT OF ALL THE ABOVE PARTS

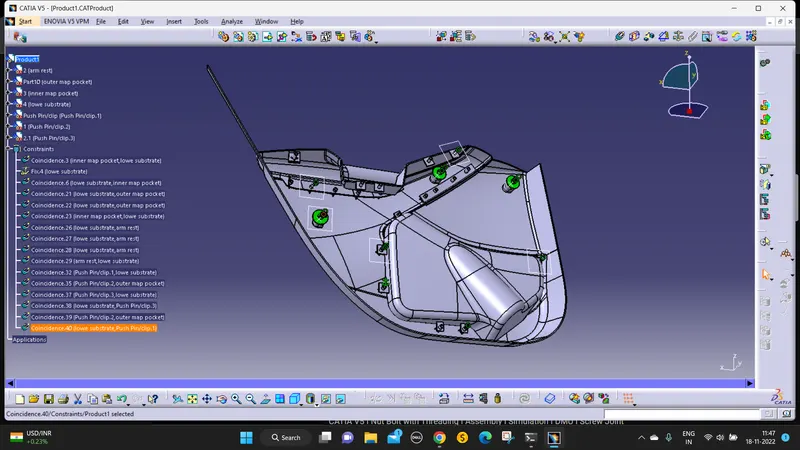

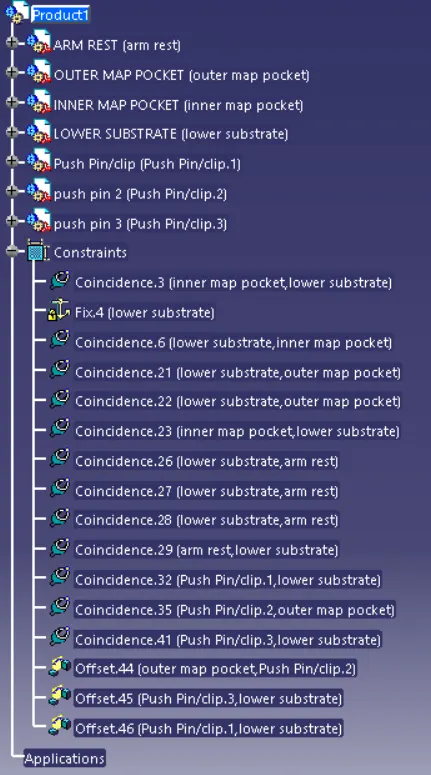

ASSEMBLY DESIGN
The assembly design coincides command and connects all the heat stakes axis with the hole axis to coincide easily.

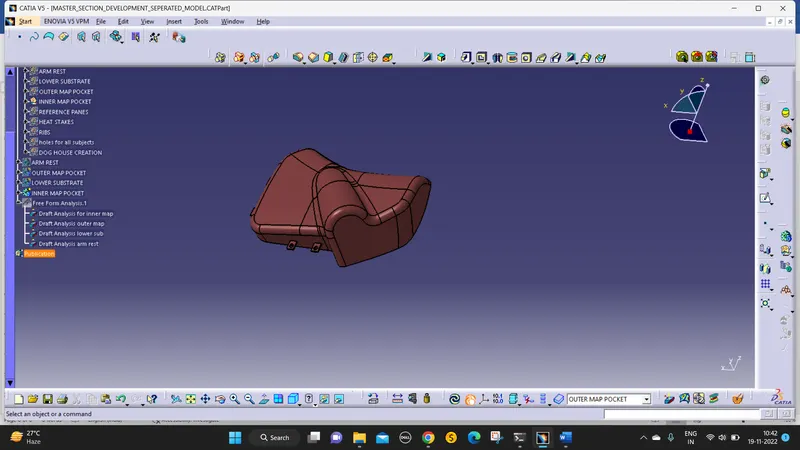

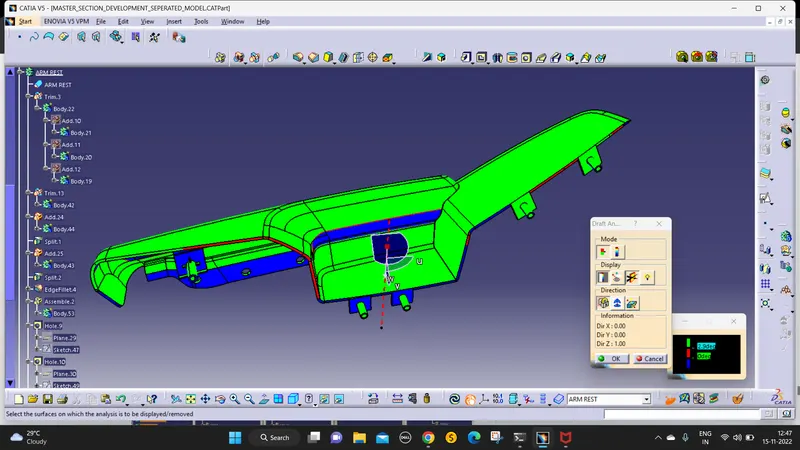

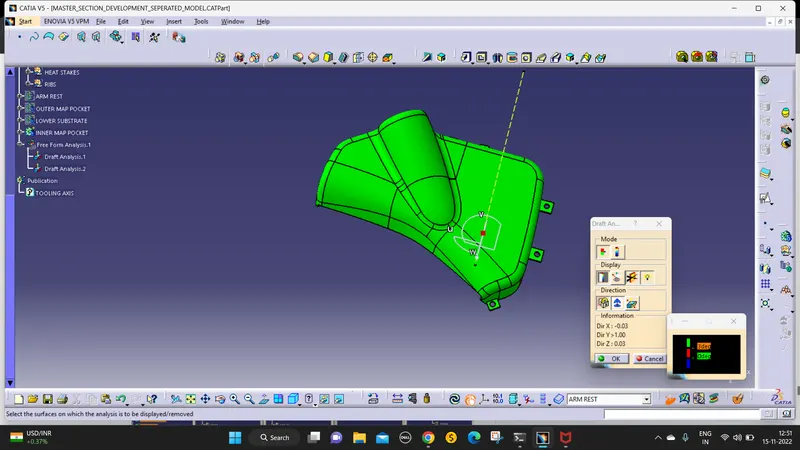

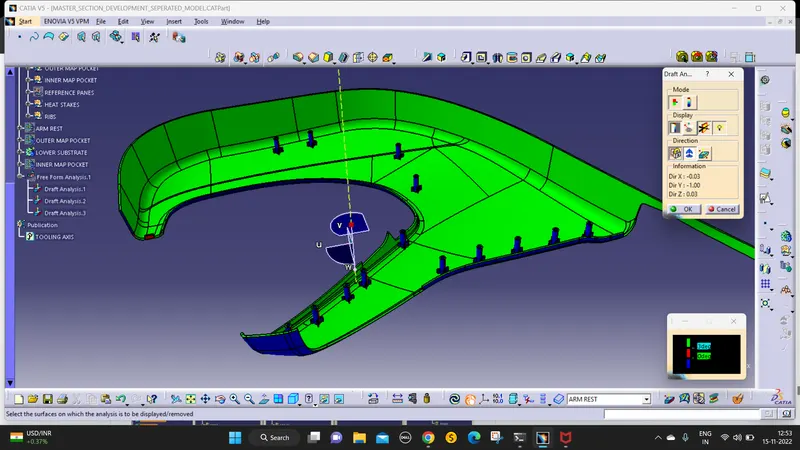

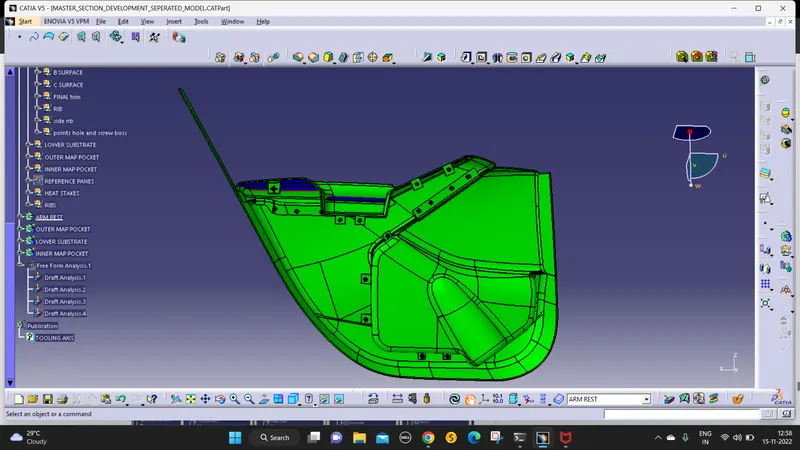

DRAFT ANALYSIS
the minimum draft degree is 3°
ARMREST
OUTER MAP POCKET
INNER MAP POCKET
LOWER SUBSTRATE
DOG HOUSE
DRAFT ANALYSIS OF DOOR TRIM

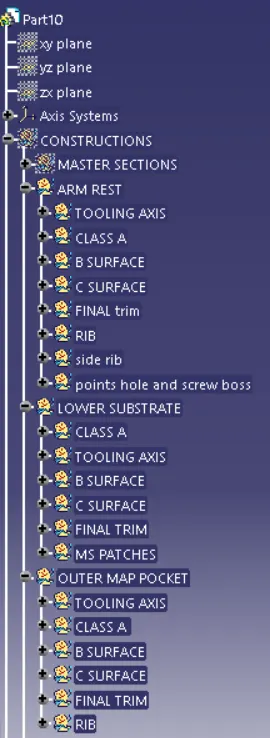

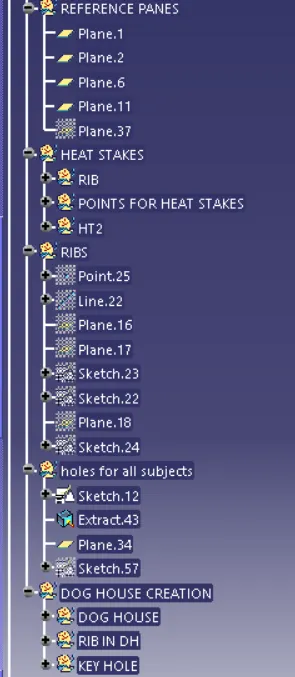

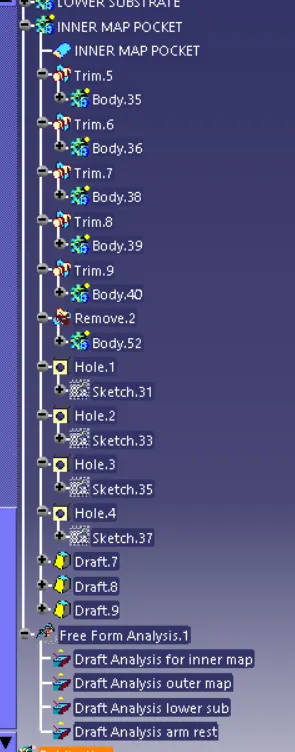

GEOMETRICAL TREE
