Week 11 - Final project

Draft analysis for each part is created. That determined the creation of tooling axis. Suraface creation for each part done sepearately. 2 of the inputs surface needed some corection. Did the needful and further proceeded with the required procedures. The flanges are created with reference to the master sections. The heat steaks are created for each of the flanges.

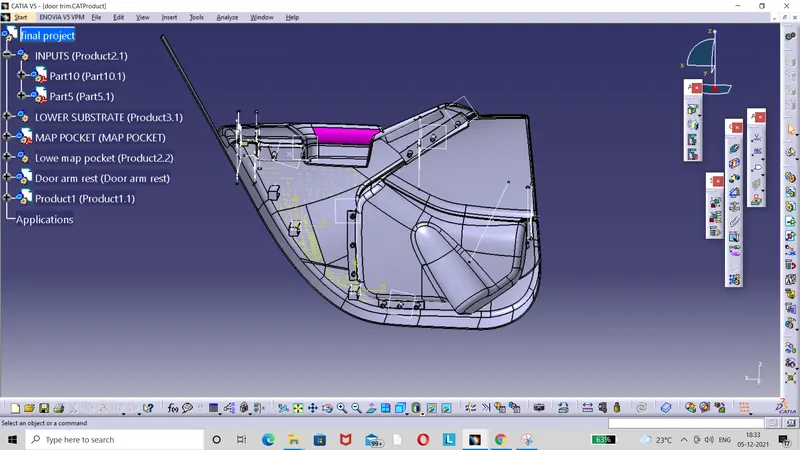

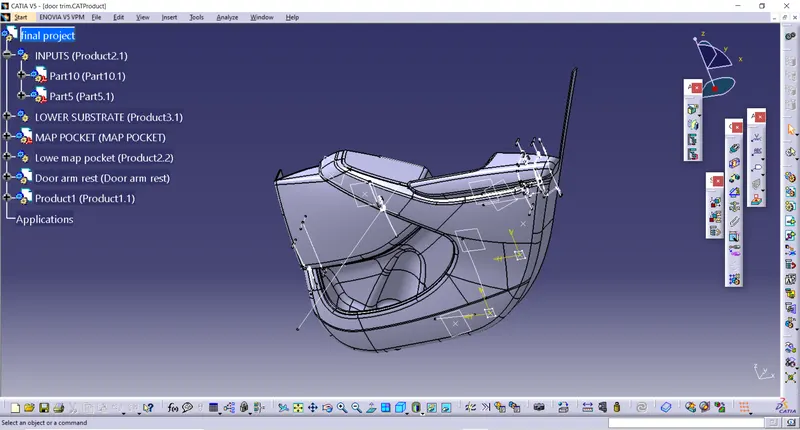

The tooling axis is created using intersection method. The connectivity of surfaces is analysed using boundary condition method.
