Week 11 Challenge

AIM: To design the Slab and foundation of the model

Procedure:

1. opening the model and assigning the load combinations

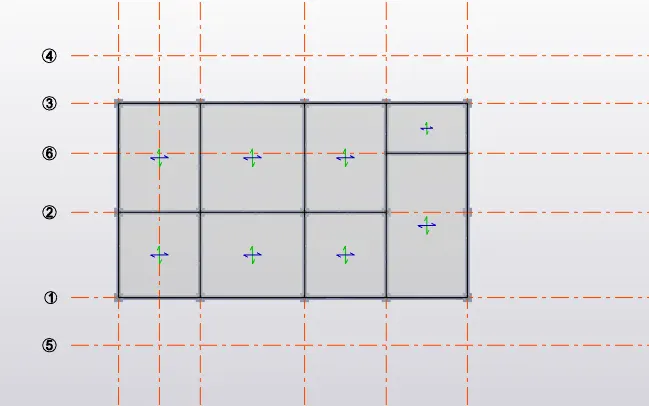

2. Assigning the slab properties

3. Right click on the slab and selecting the design element

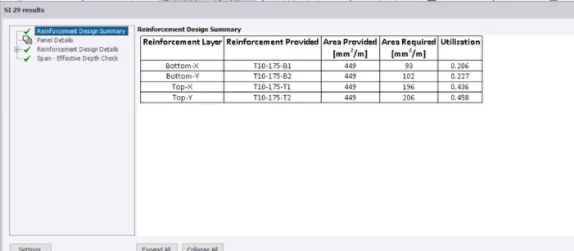

4. Checking it if it is satisfying all the cricertia

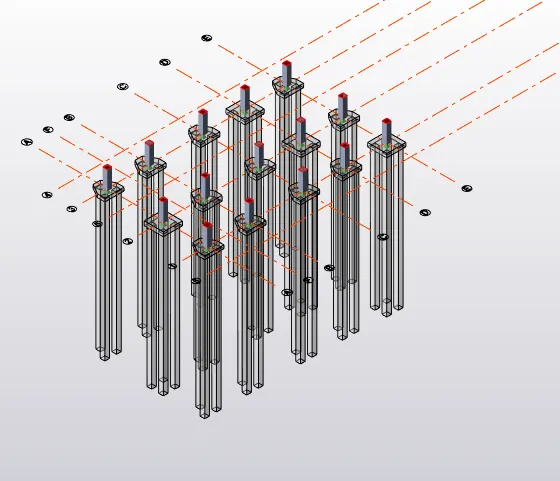

To design the Pile cap foundation

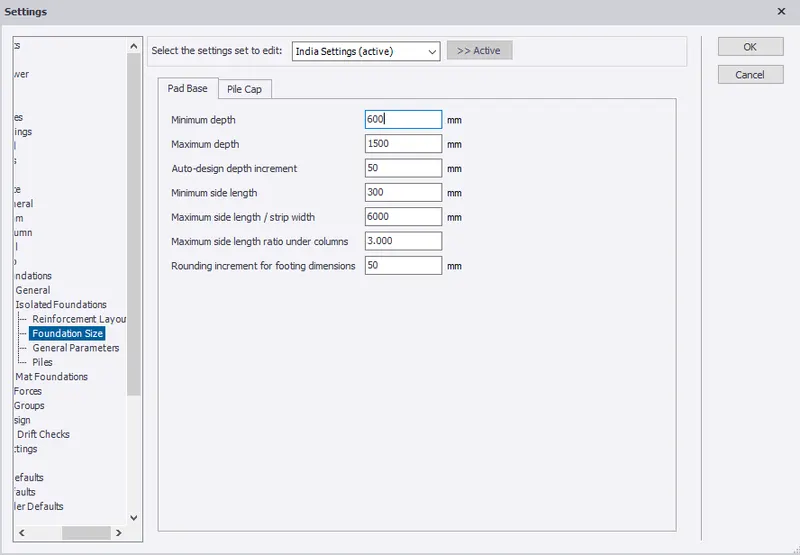

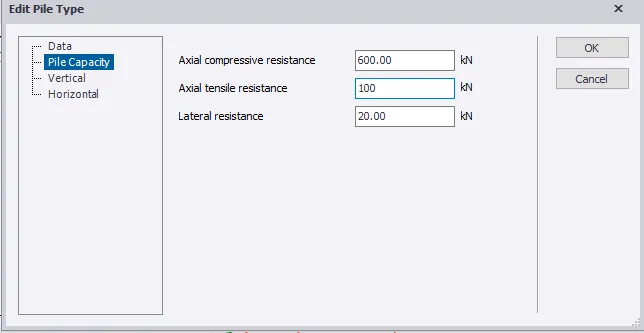

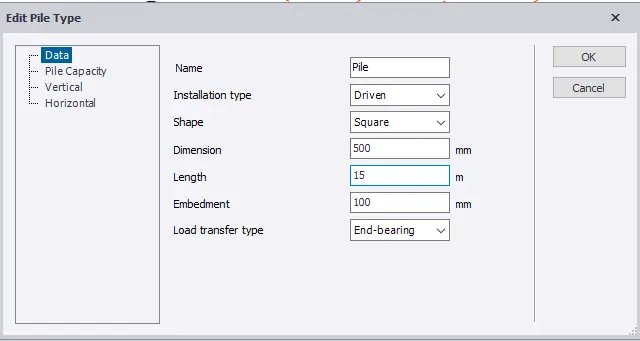

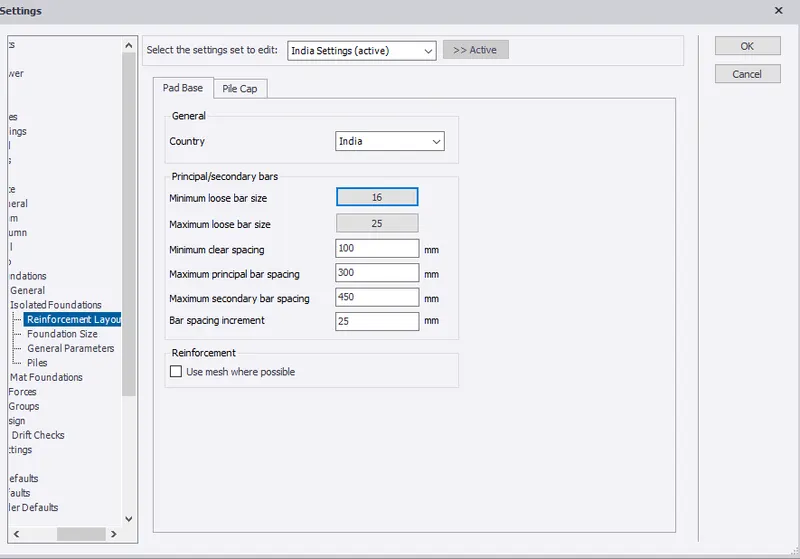

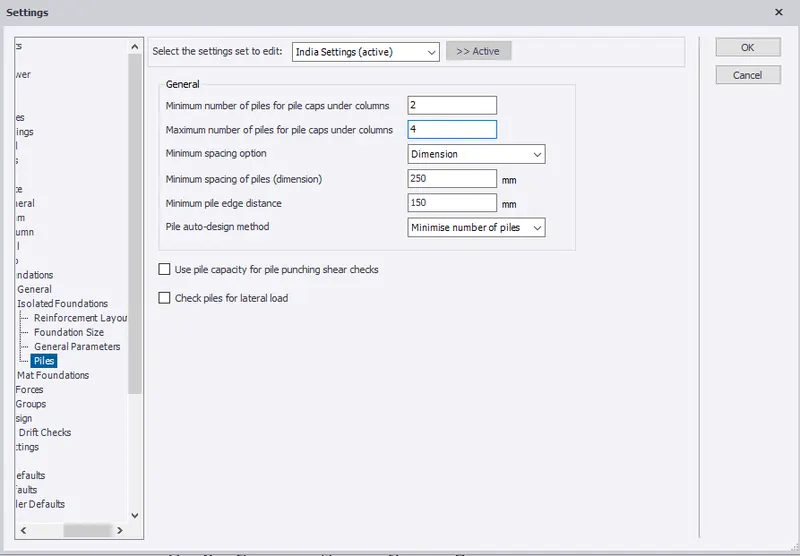

1. Setting up the initial settings

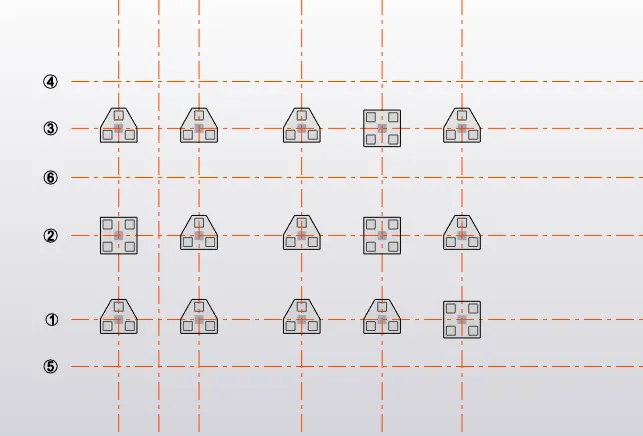

2. Clicking on the pile cap

3. draging it in to the footing

4. Right click and design members

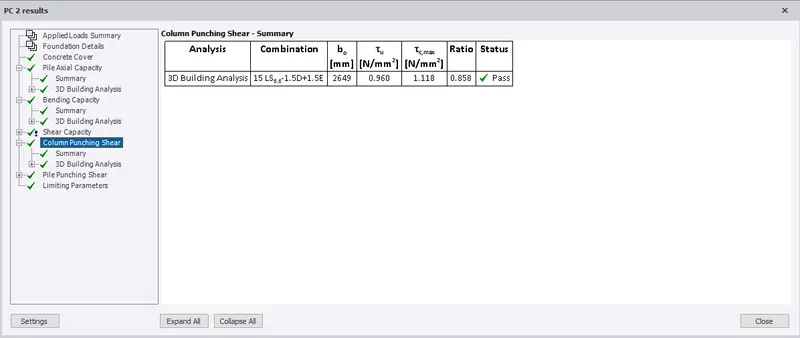

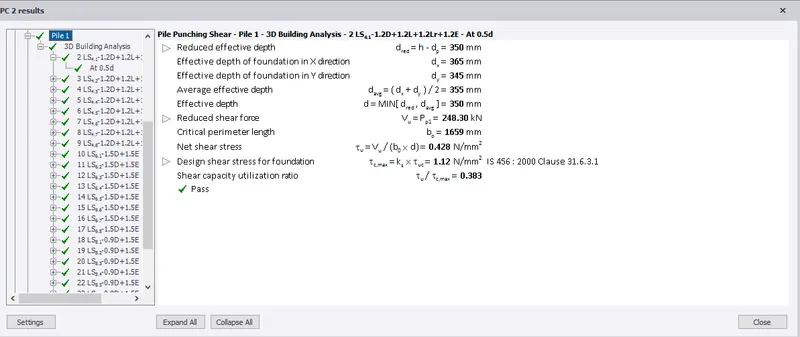

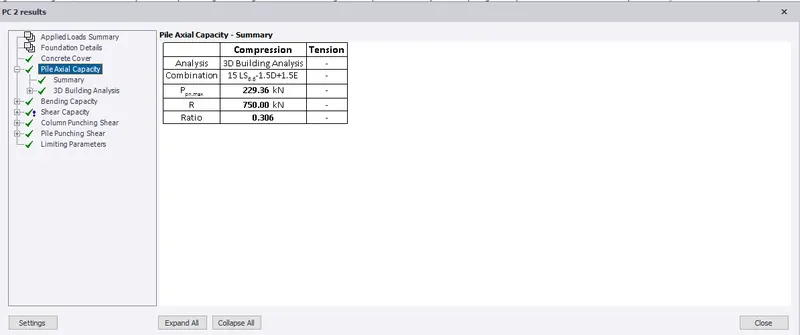

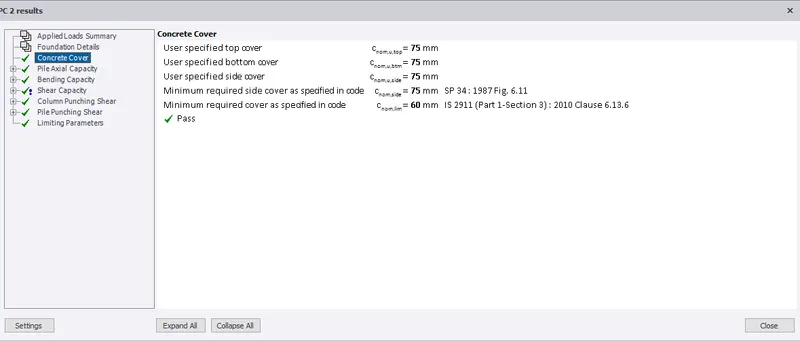

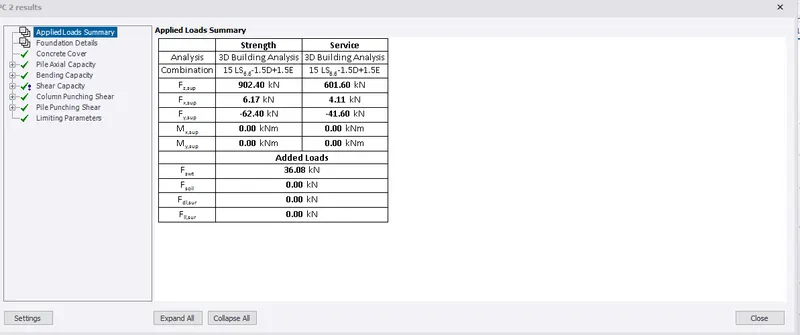

5. Checking if it satisfy all the criteria
