Week 11- Broadband Noise modelling over Ahmed body

Aim --> Broadband Noise modeling over Ahmed body

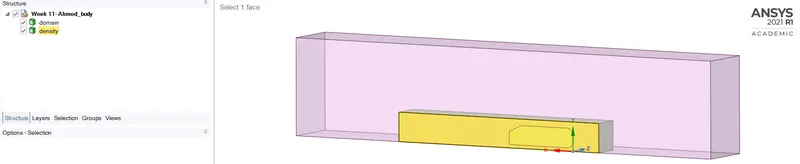

Geometry

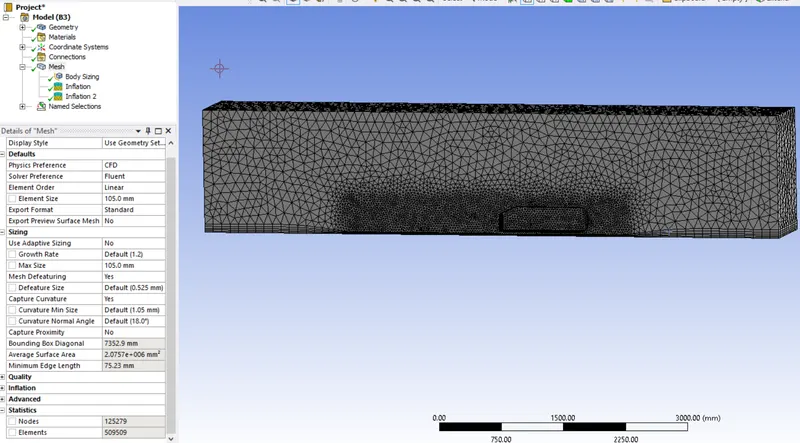

Mesh

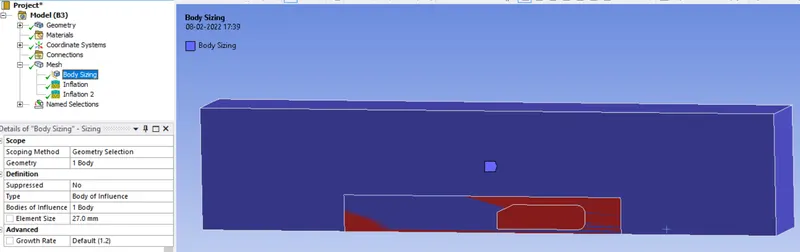

Body Sizing

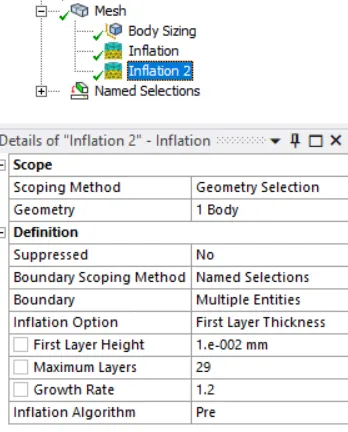

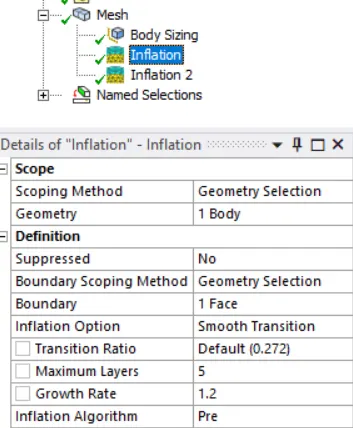

Inflation layers

inflation_2

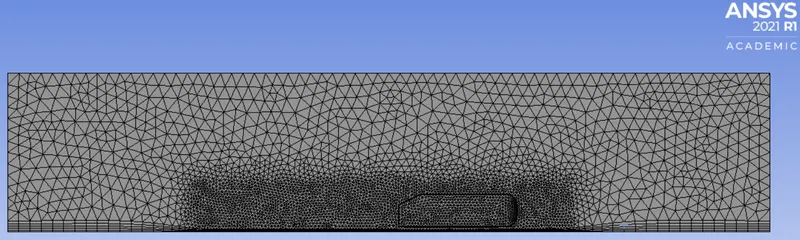

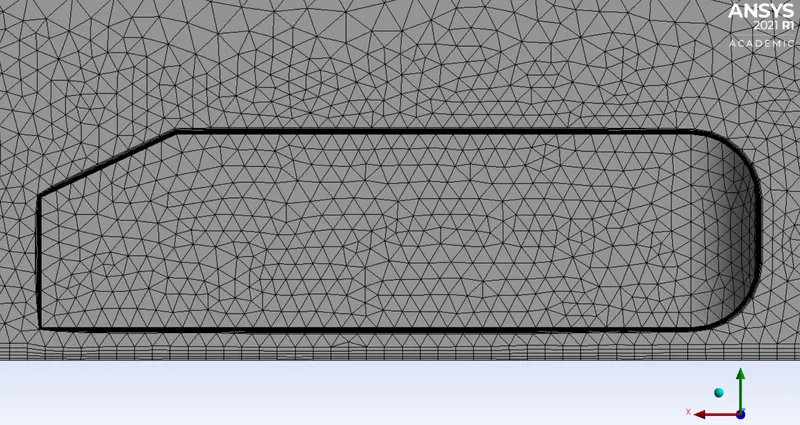

Mesh near the ahmed body

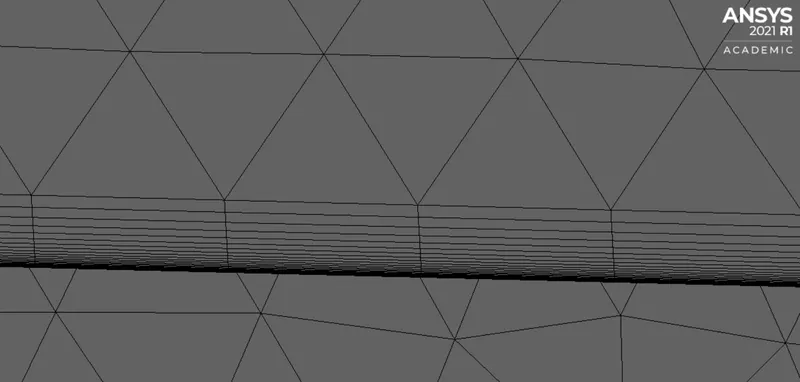

Inflation layers (first layer height = 0.01 mm)

Case setup

• pressure based, absolute steady-state solver
• Energy turned on.
• Viscous model --> k-w SST turbulence model
• material --> Air

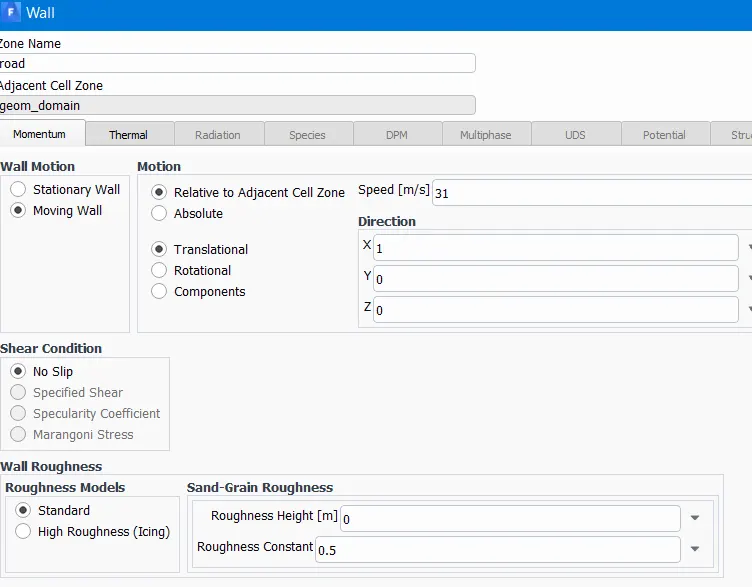

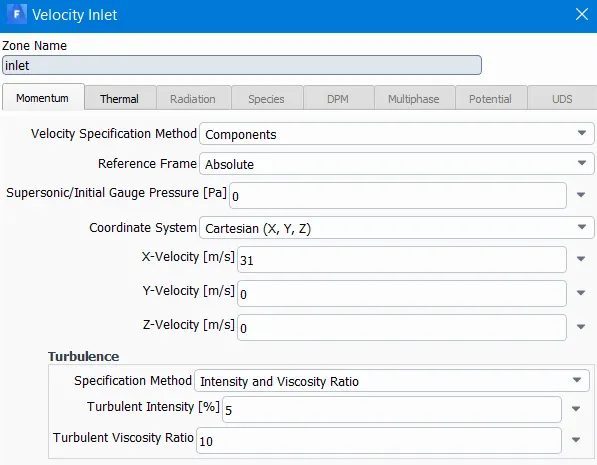

• road Boundary condition
•
•
• Coupled scheme
• flow control courant number --> 10
• Refference values --> compute from inlet
• standard initialization
• First run the case for some iterations and then set up the acoustic models.

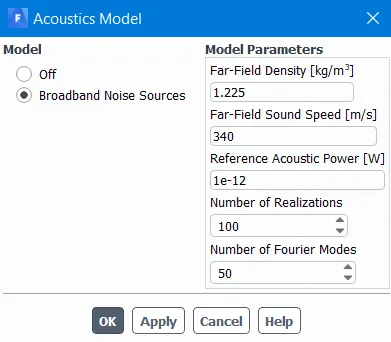

• Acoustic model
•

Results

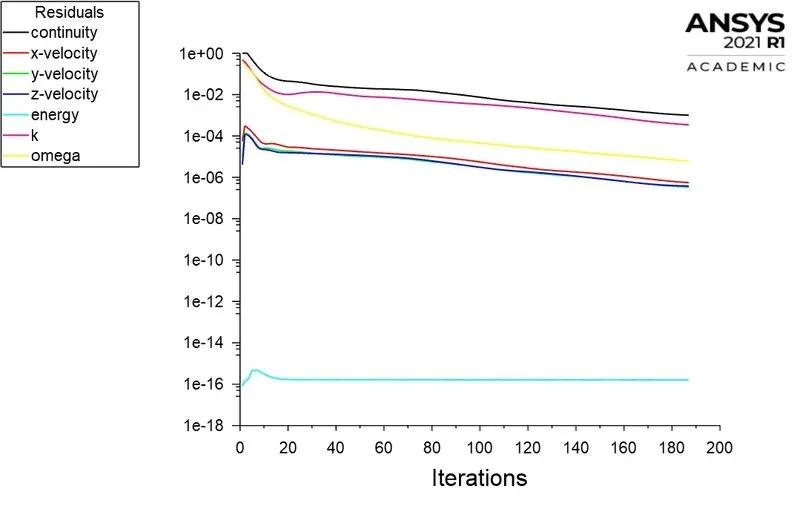

Residual plot

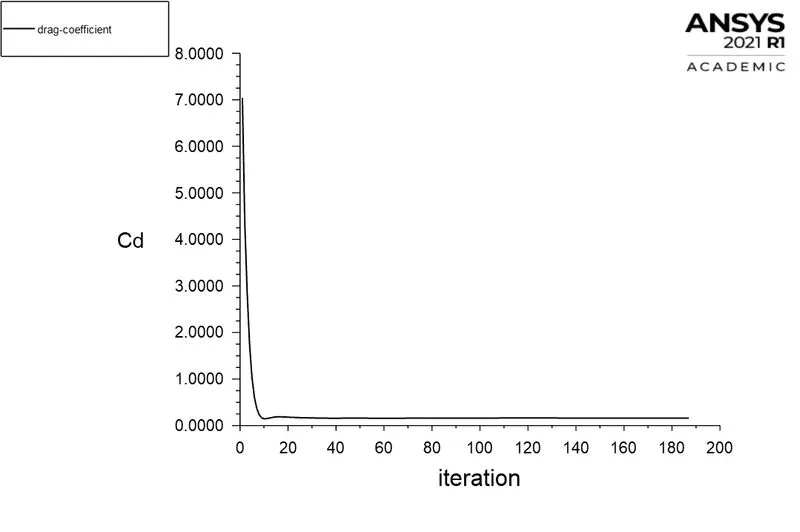

Cd

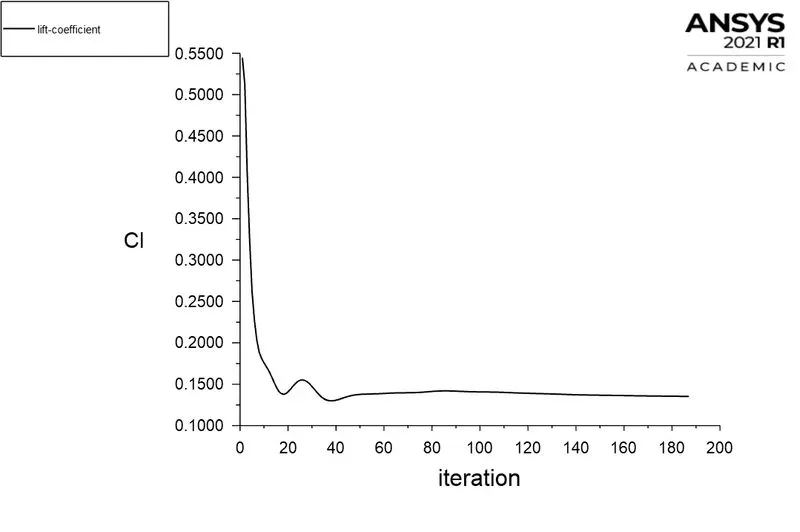

Cl

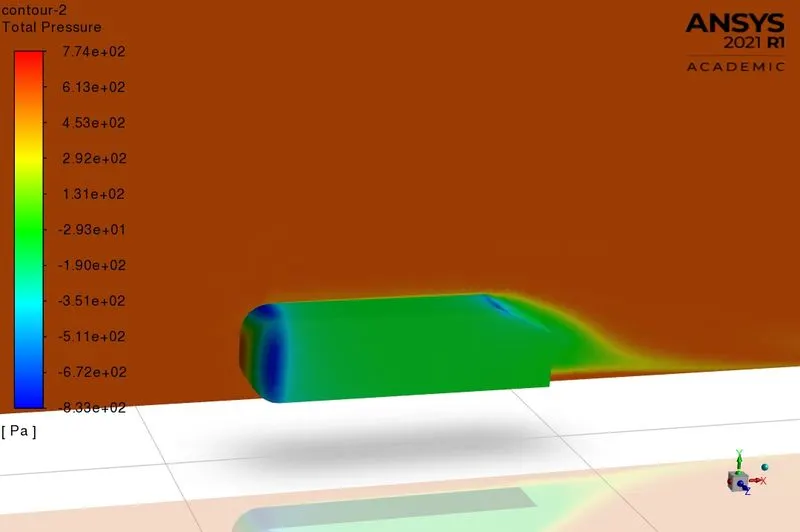

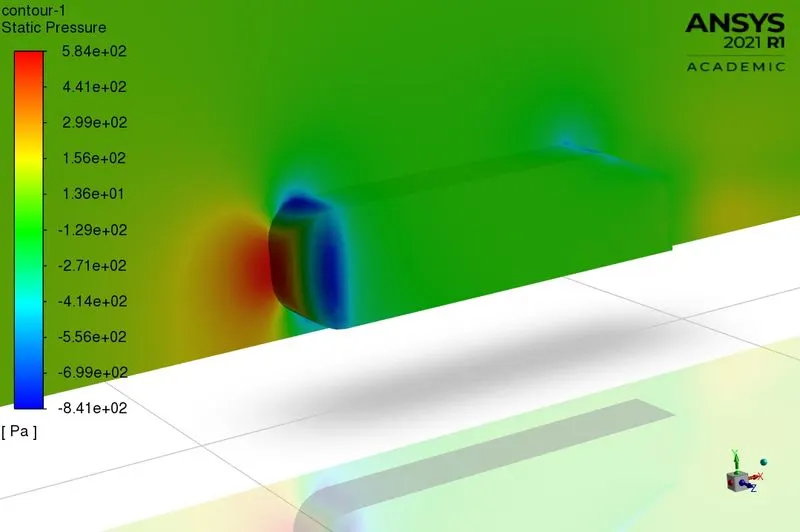

Pressure contour

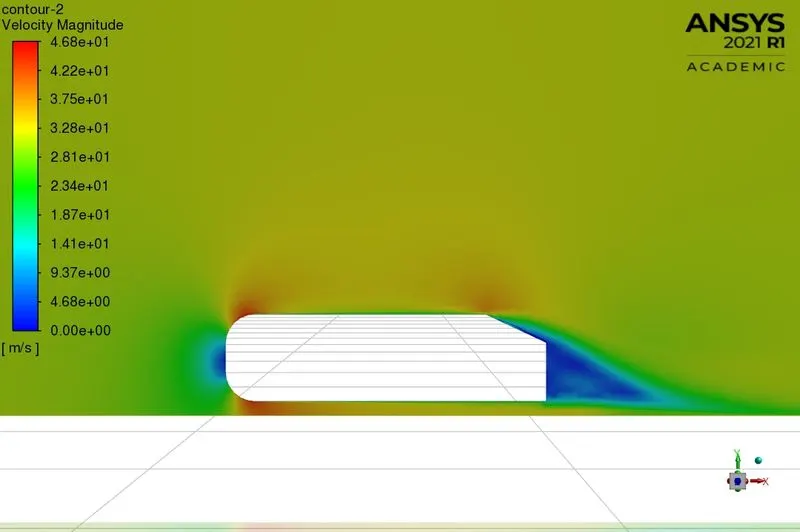

Velocity contour

Acoustic Results

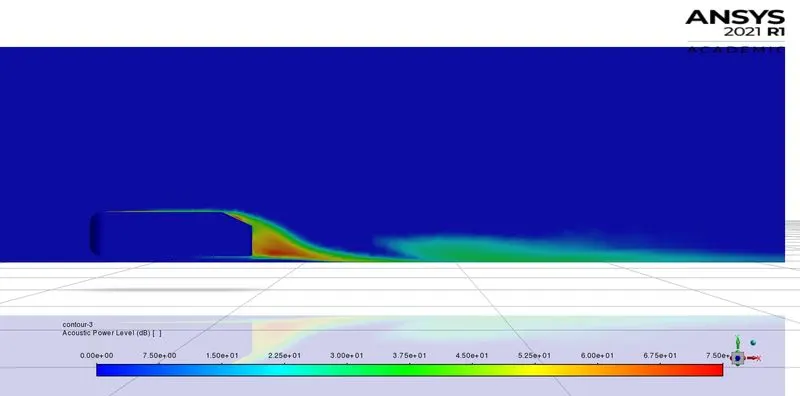

• Acoustic Power level

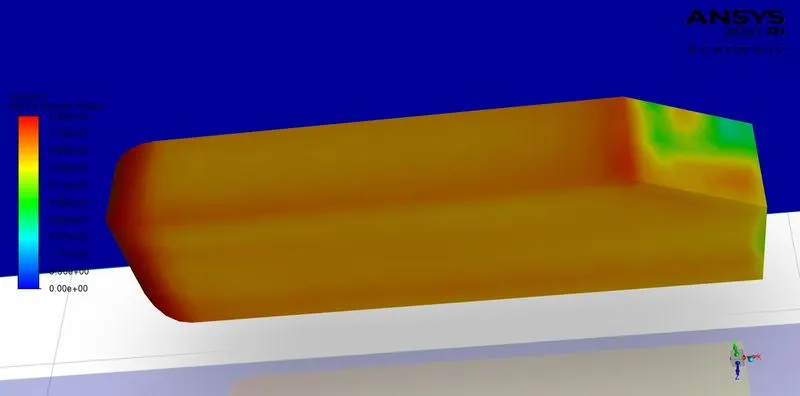

• Surface Acoustic power
