Week 11- Assembly Workbench
Aim - To convert dwawings into solid parts and assemble them and convert them into assembly drawings.
Assembly 1 :
- Now we have to convert the given 2d drawings into 3d objects in part design workbench.
- After completion of all the parts we have to assemble them in the assembly workbench.
- First we have to take the three planes and fix them as reference.
- Then we have to start giving the constrains which we have to give from reference plane so that the other constraints will be fixed.
- For any distance releated constrains we need to use the offest constrain tool.
- After the assembly is completed we have to go to the drawing workbench.
- In the drawing workbench we need to give the balloons for the assembled components and also we need to give the bill of materials to the components.

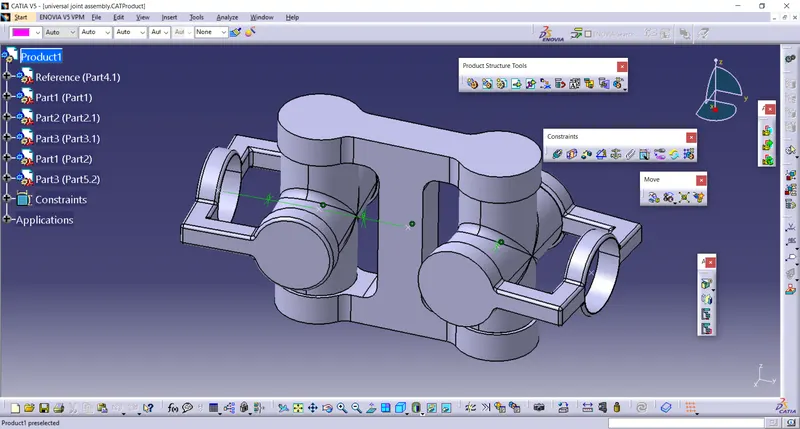

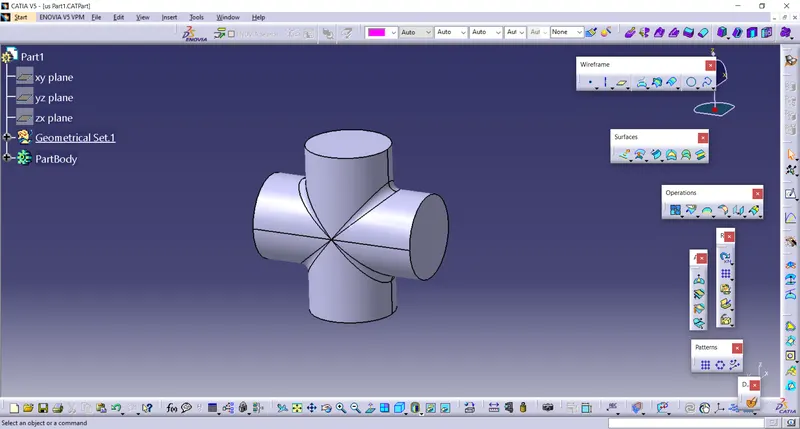

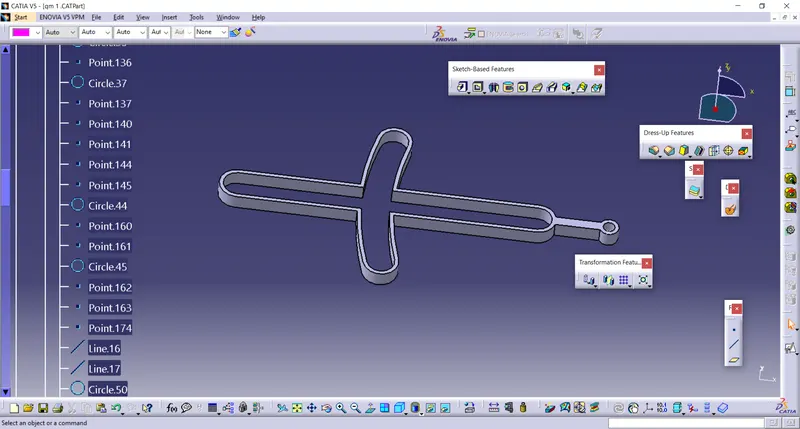

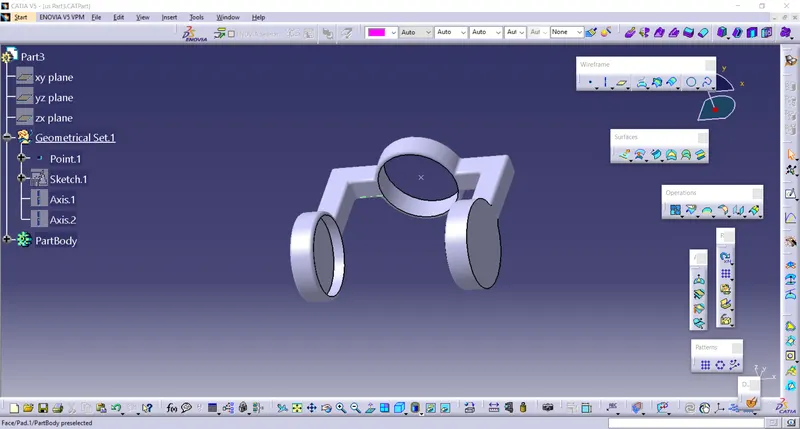

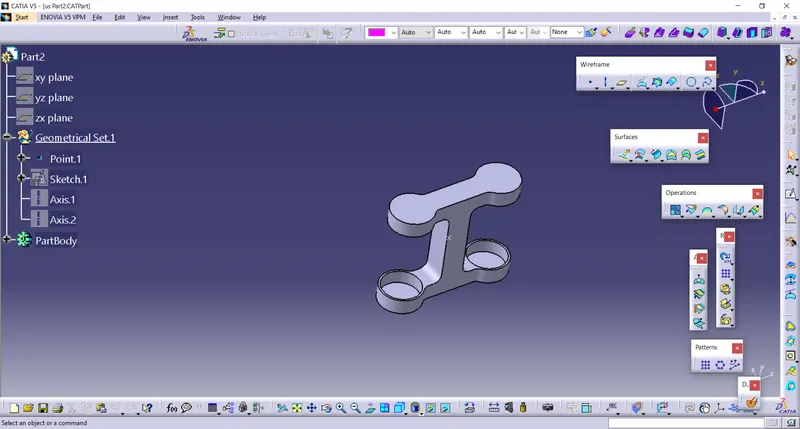

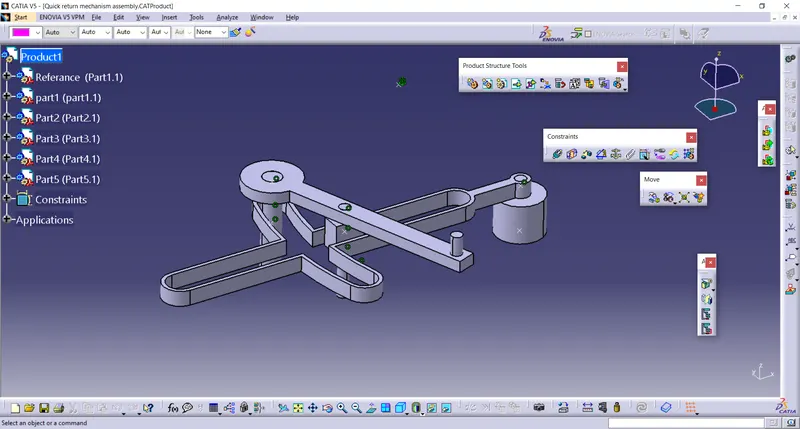

Images of Assembly 1 :
Assembly 2 :
- Now we have to convert the given 2d drawings into 3d objects in part design workbench.
- After completion of all the parts we have to assemble them in the assembly workbench.
- First we have to take the three planes and fix them as reference.
- Then we have to start giving the constrains which we have to give from reference plane so that the other constraints will be fixed.
- For any distance releated constrains we need to use the offest constrain tool.
- After the assembly is completed we have to go to the drawing workbench.
- In the drawing workbench we need to give the balloons for the assembled components and also we need to give the bill of materials to the components.

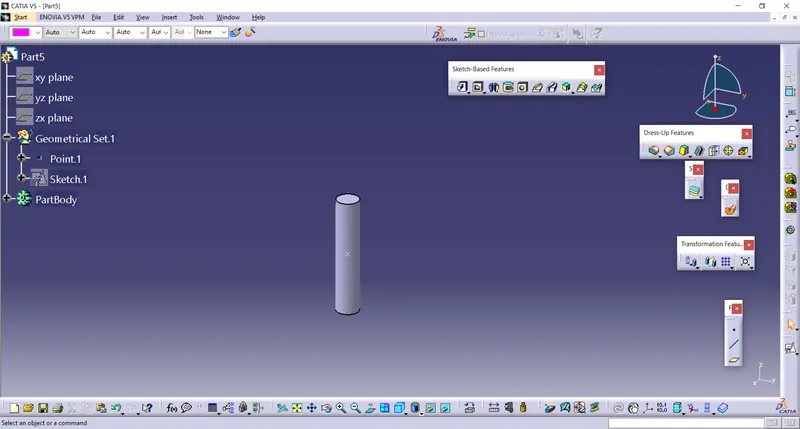

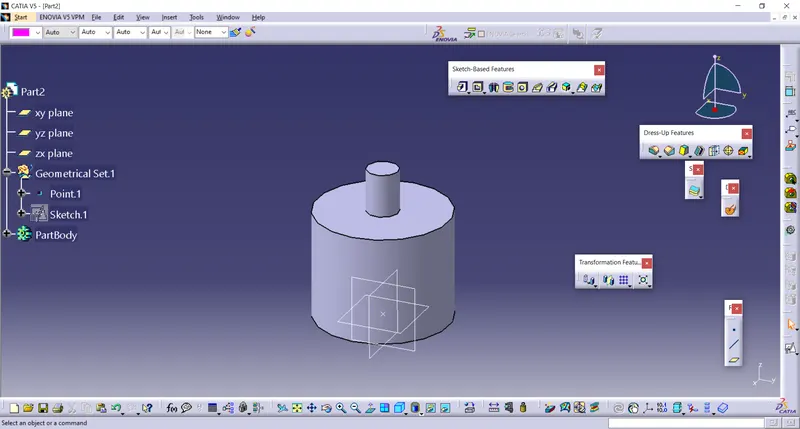

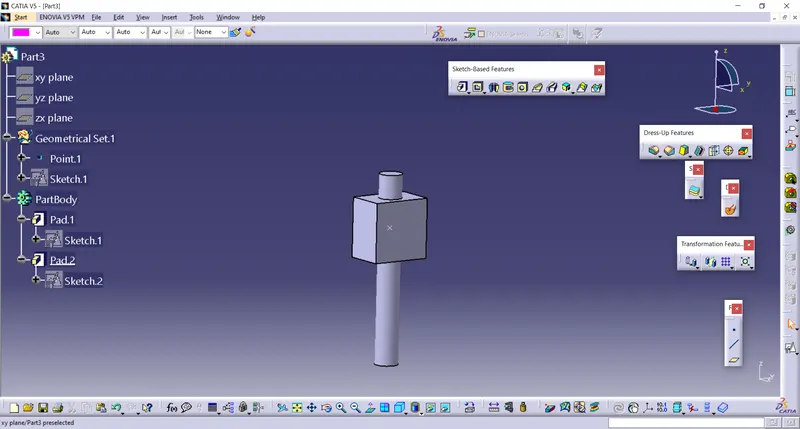

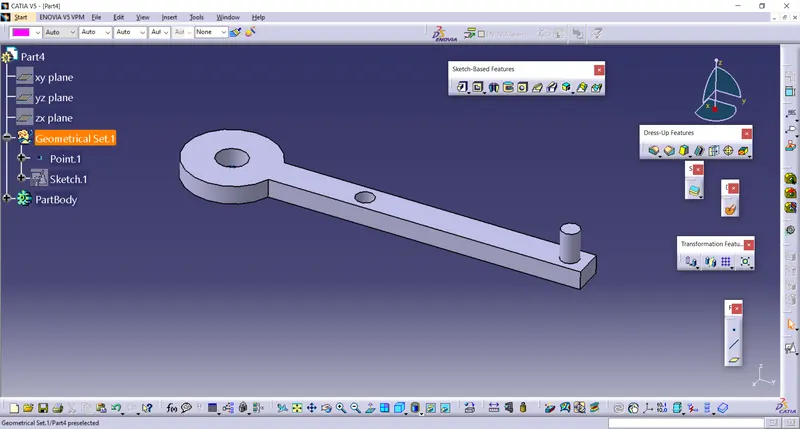

Images of Assembly 2 :
