Week 11:- 2D Detailing Challenge 2

Create 2D Drawing for each Clamp Units with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

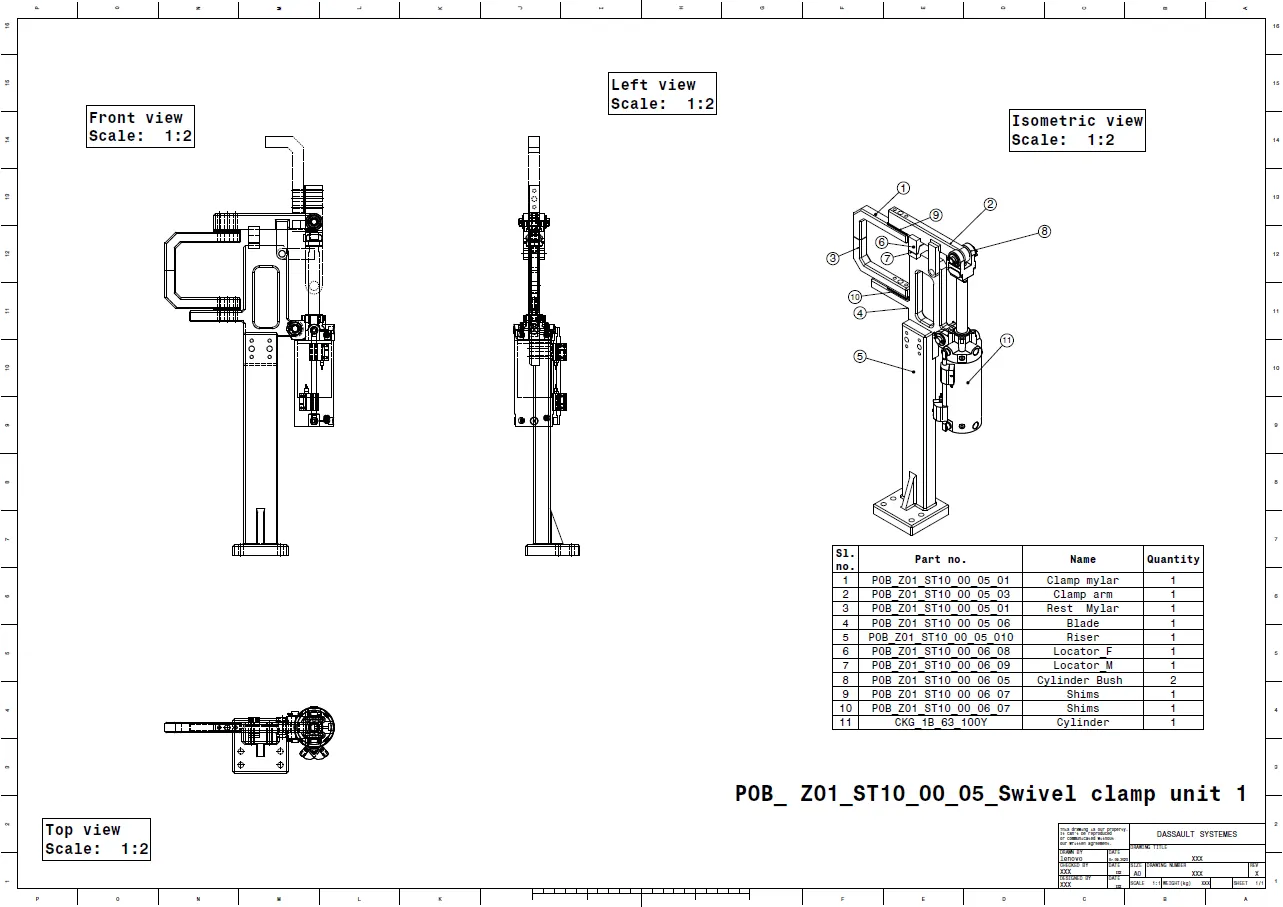

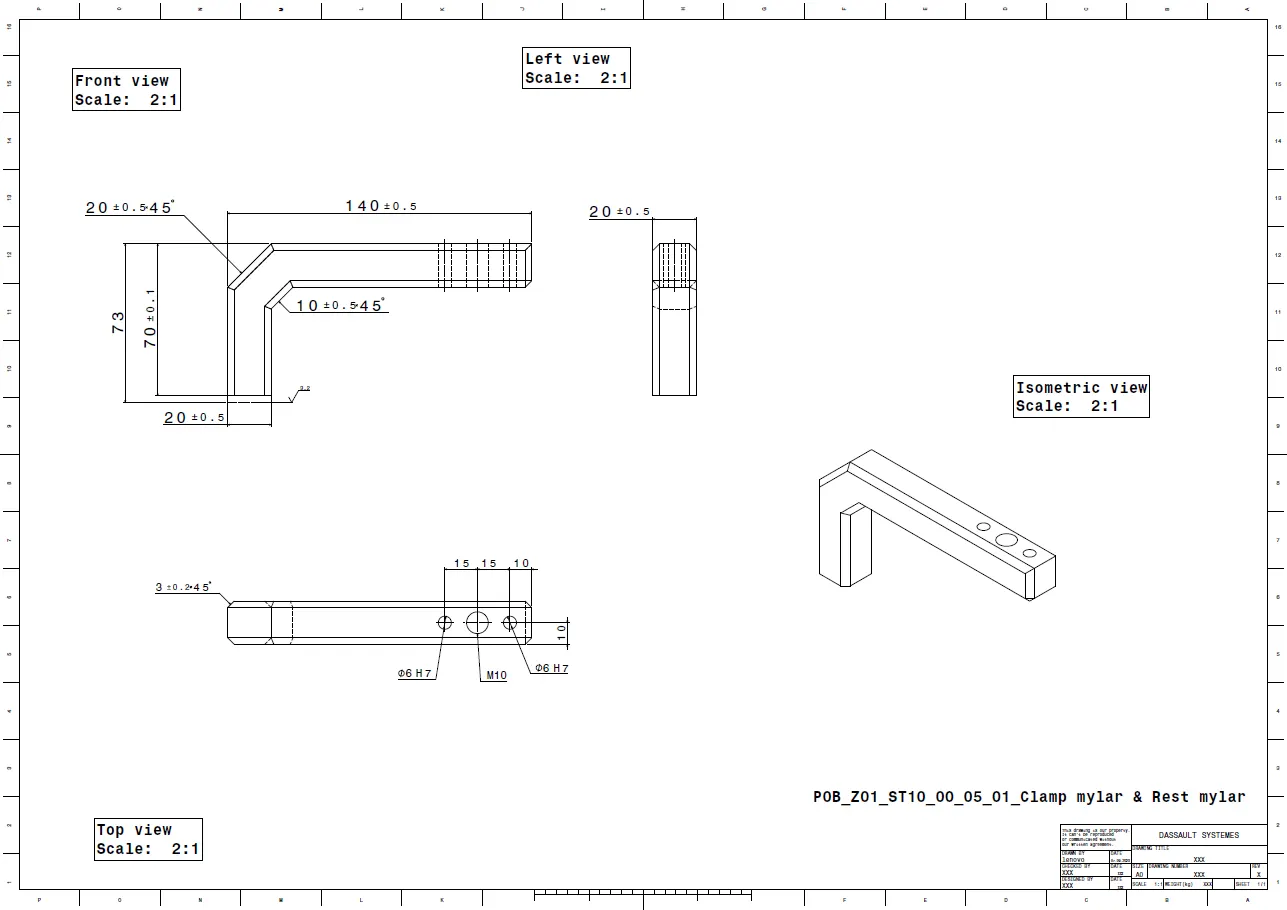

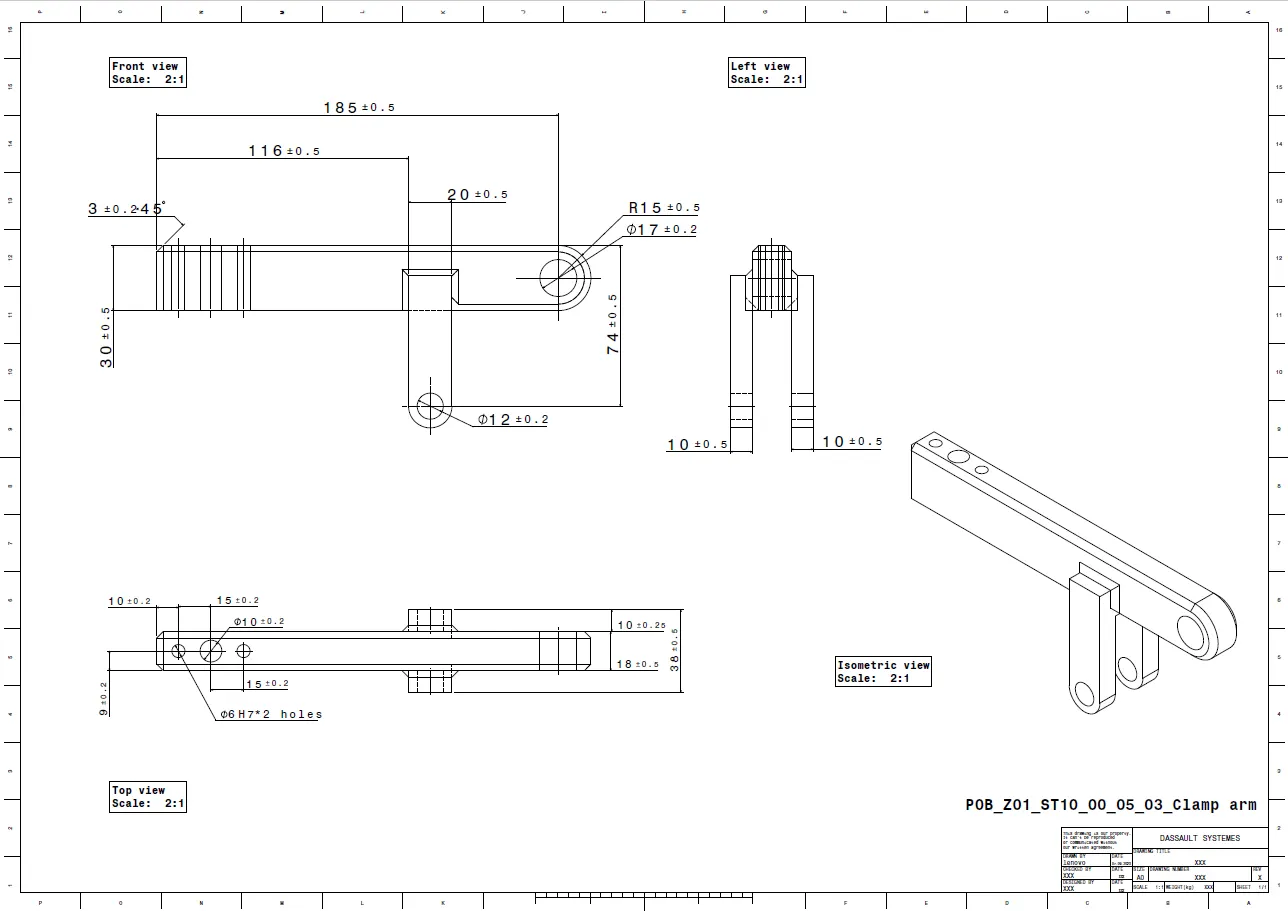

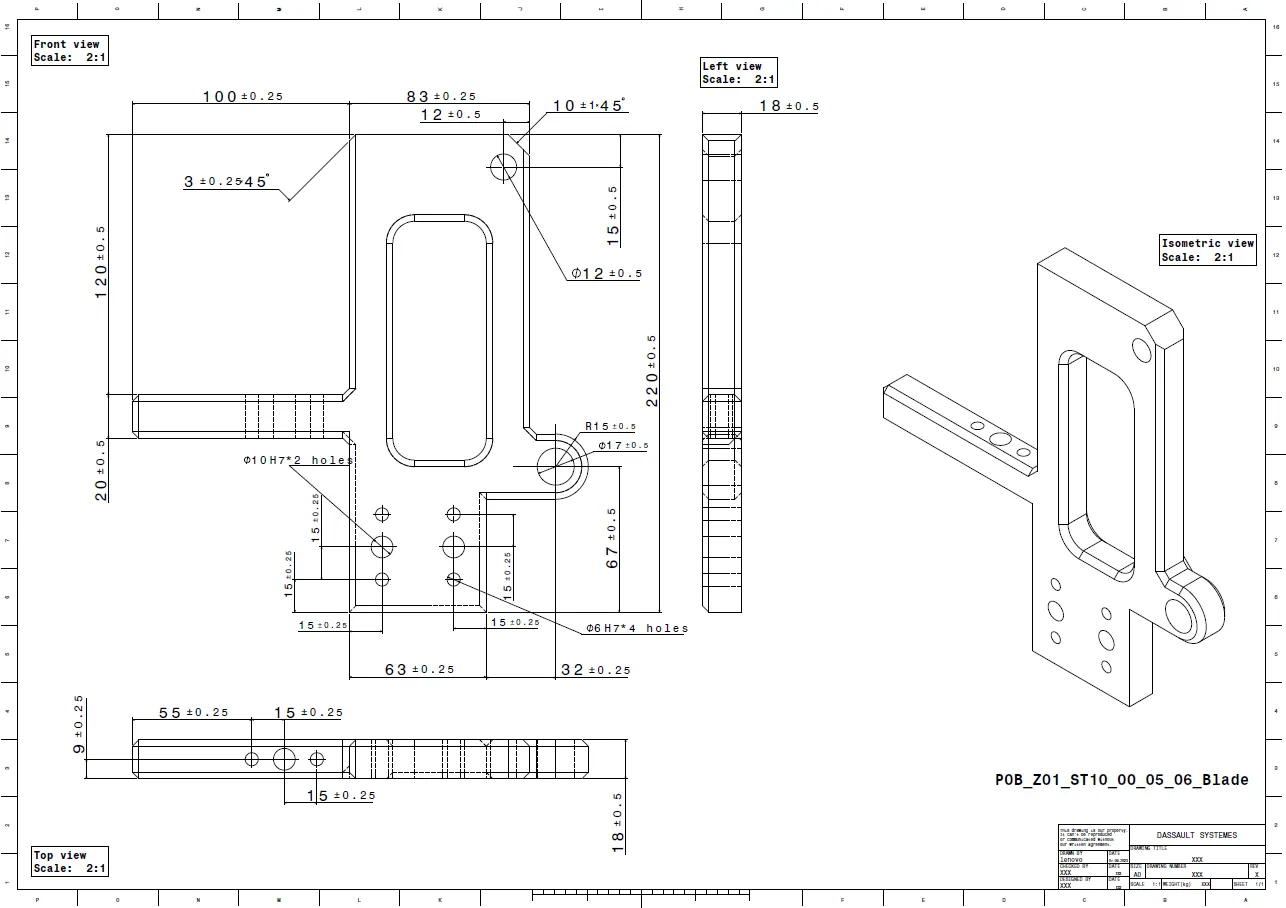

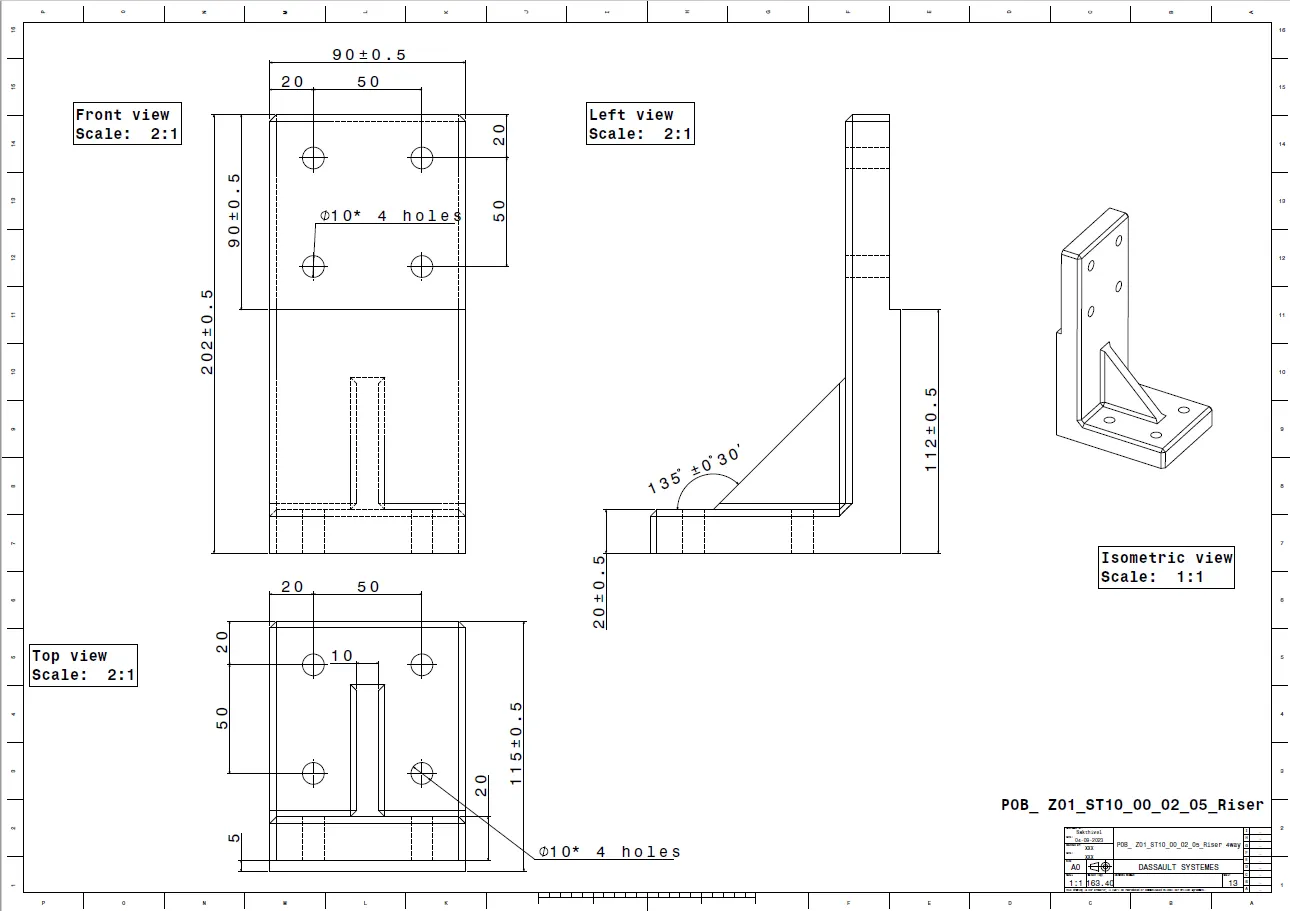

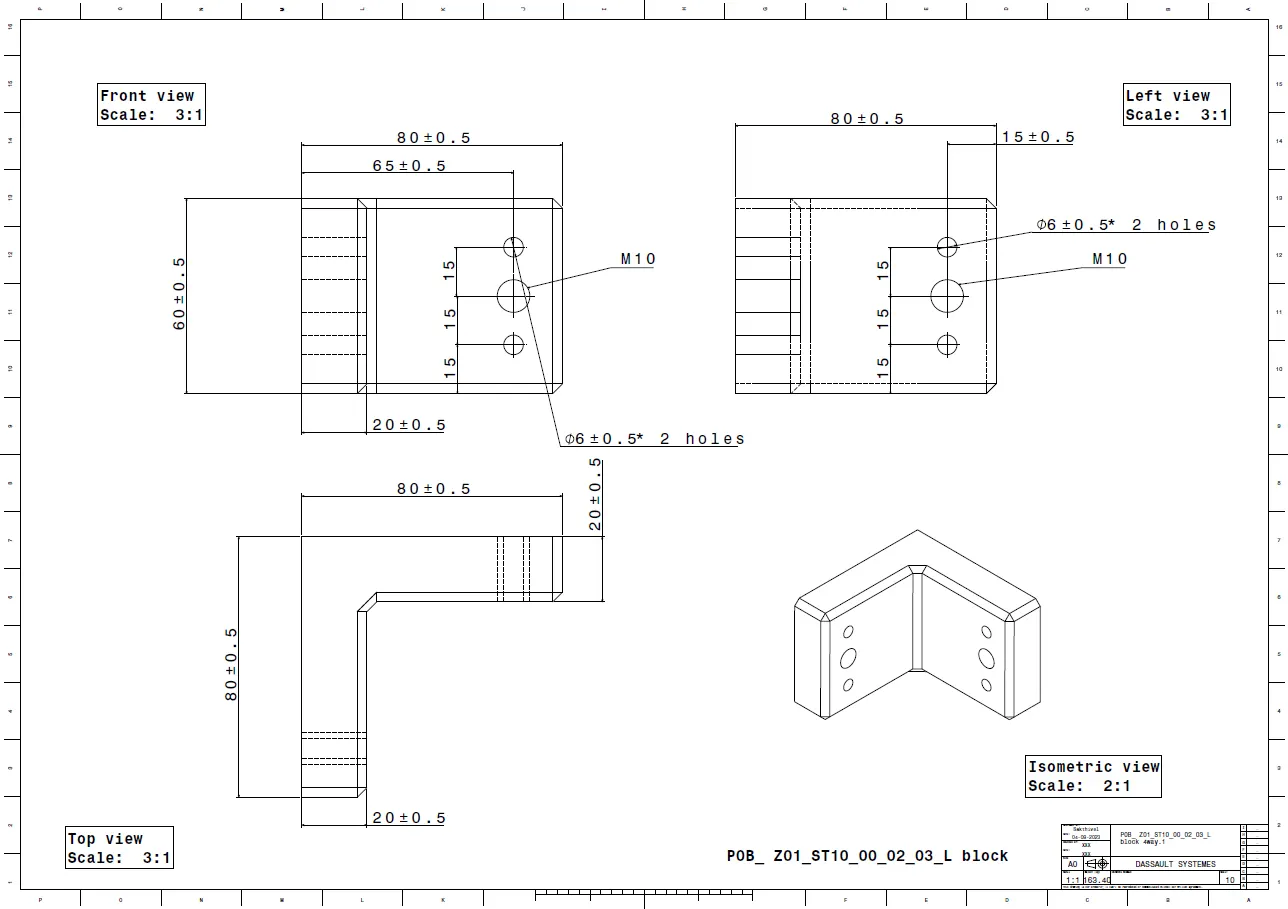

Swivel clamp unit 1

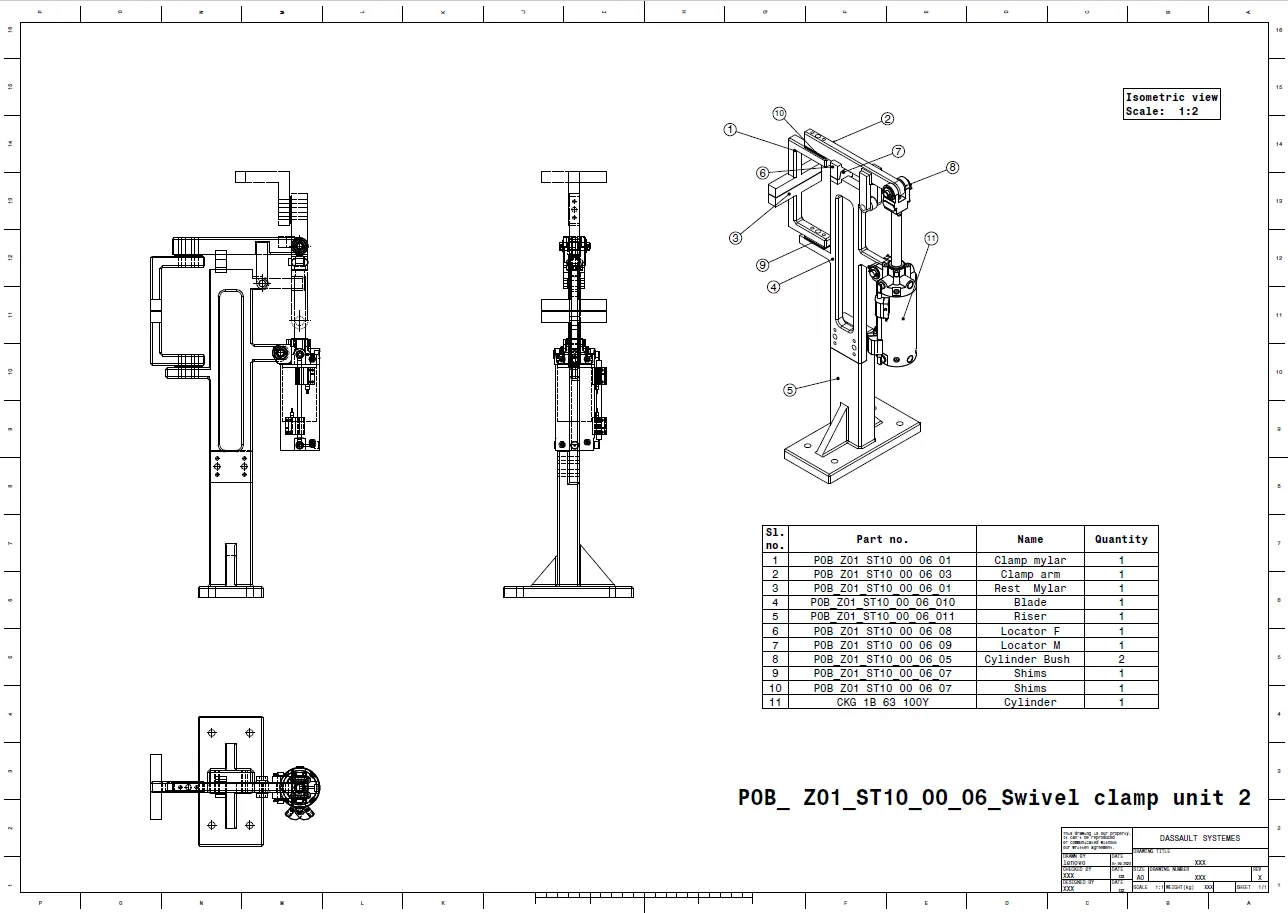

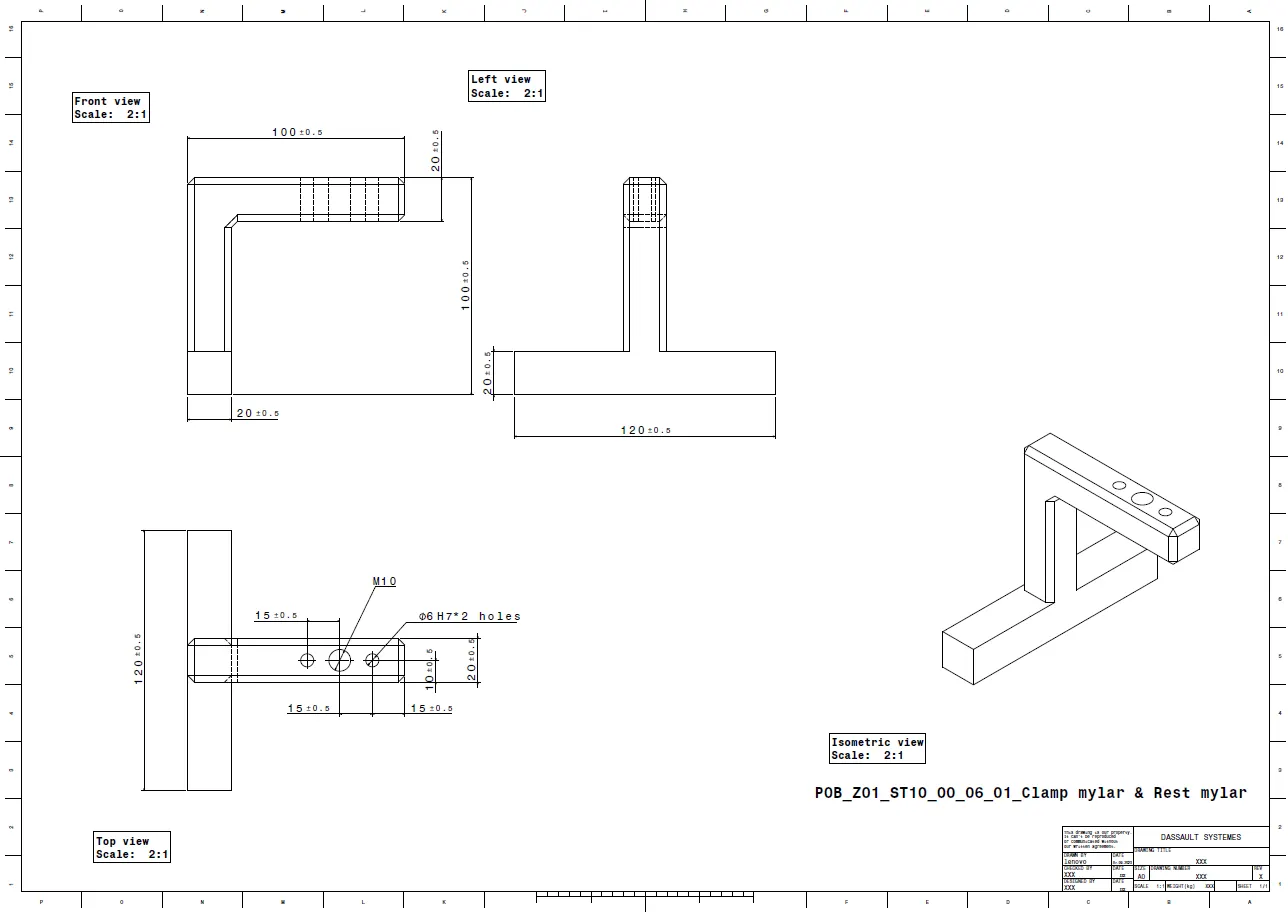

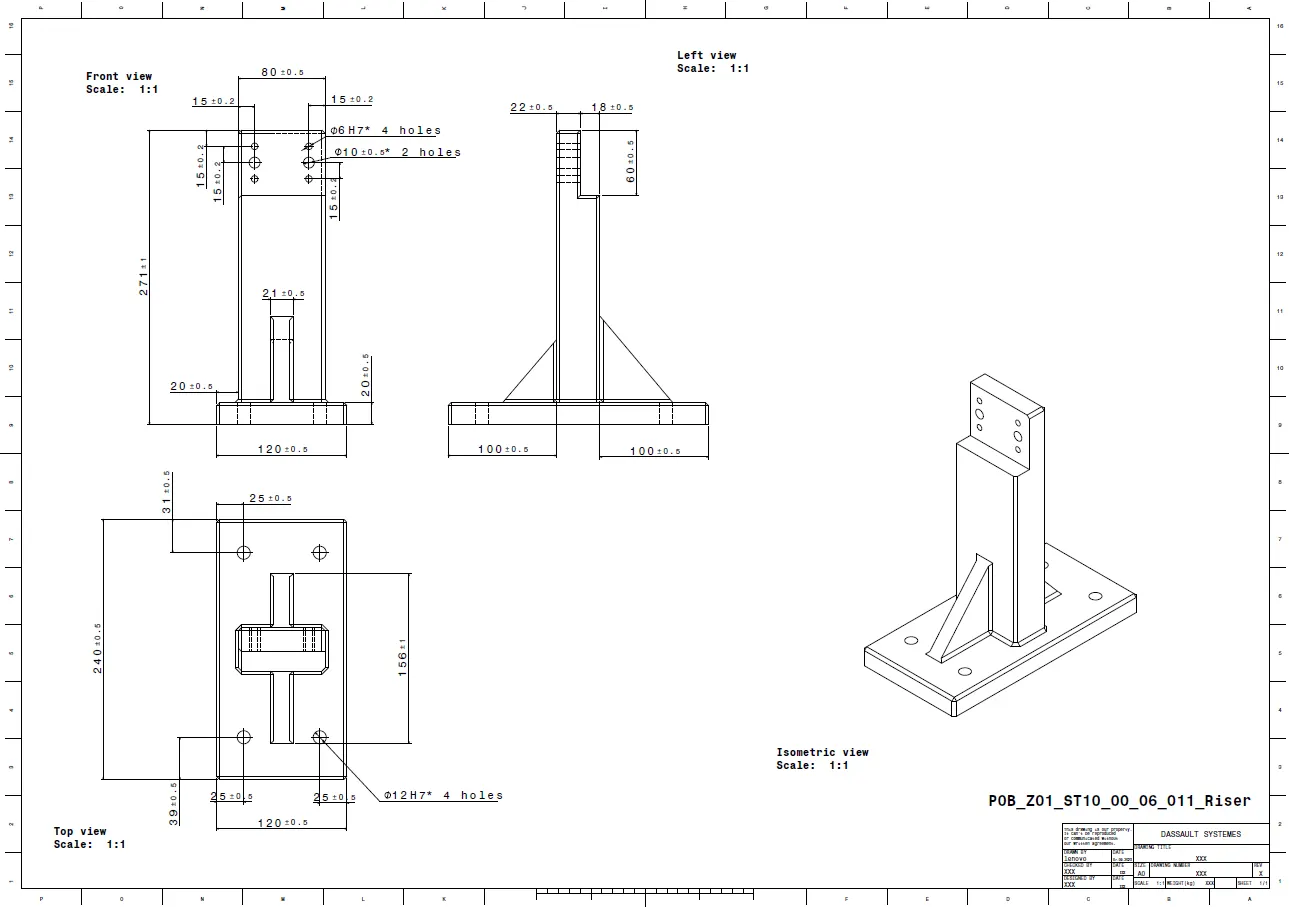

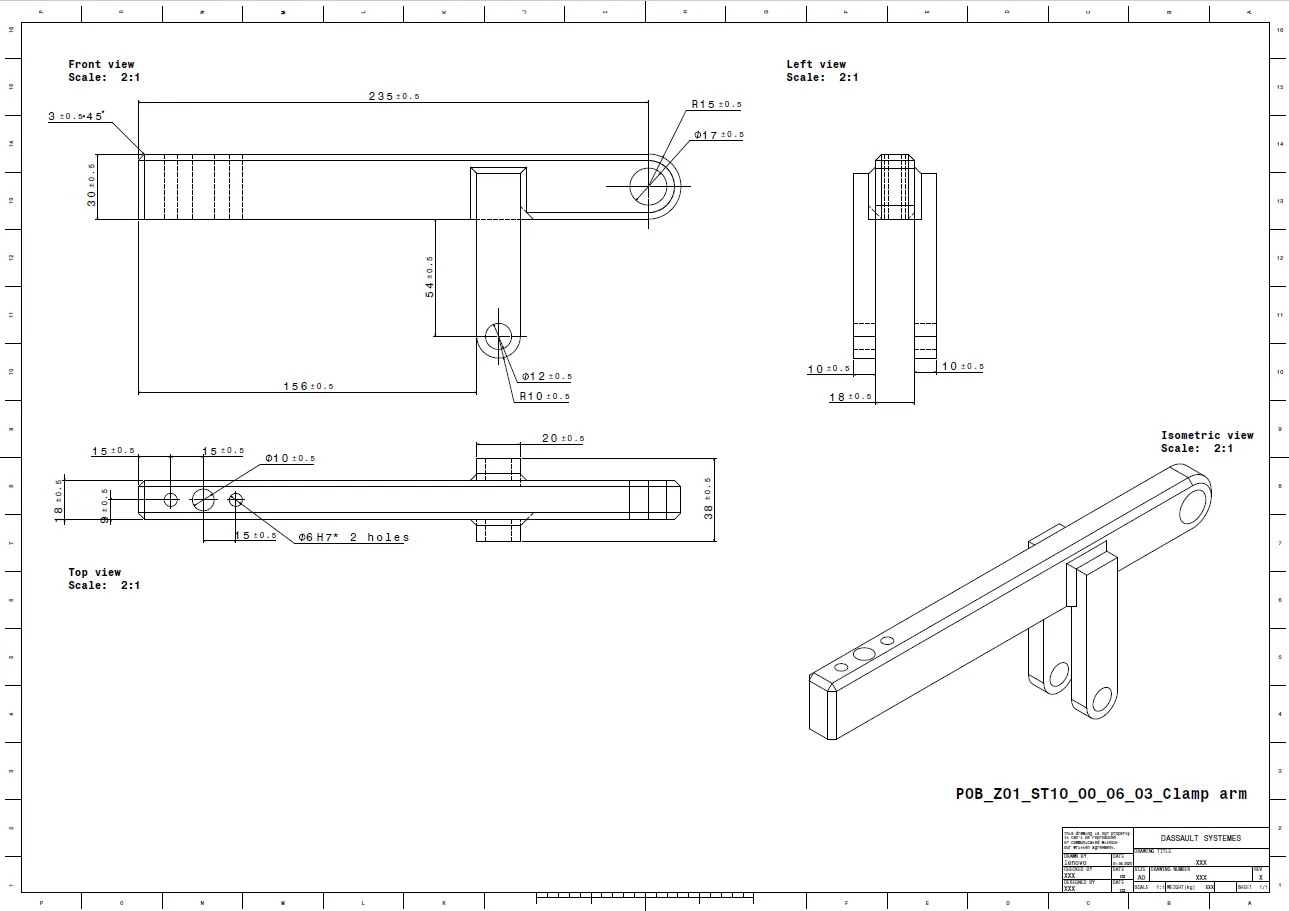

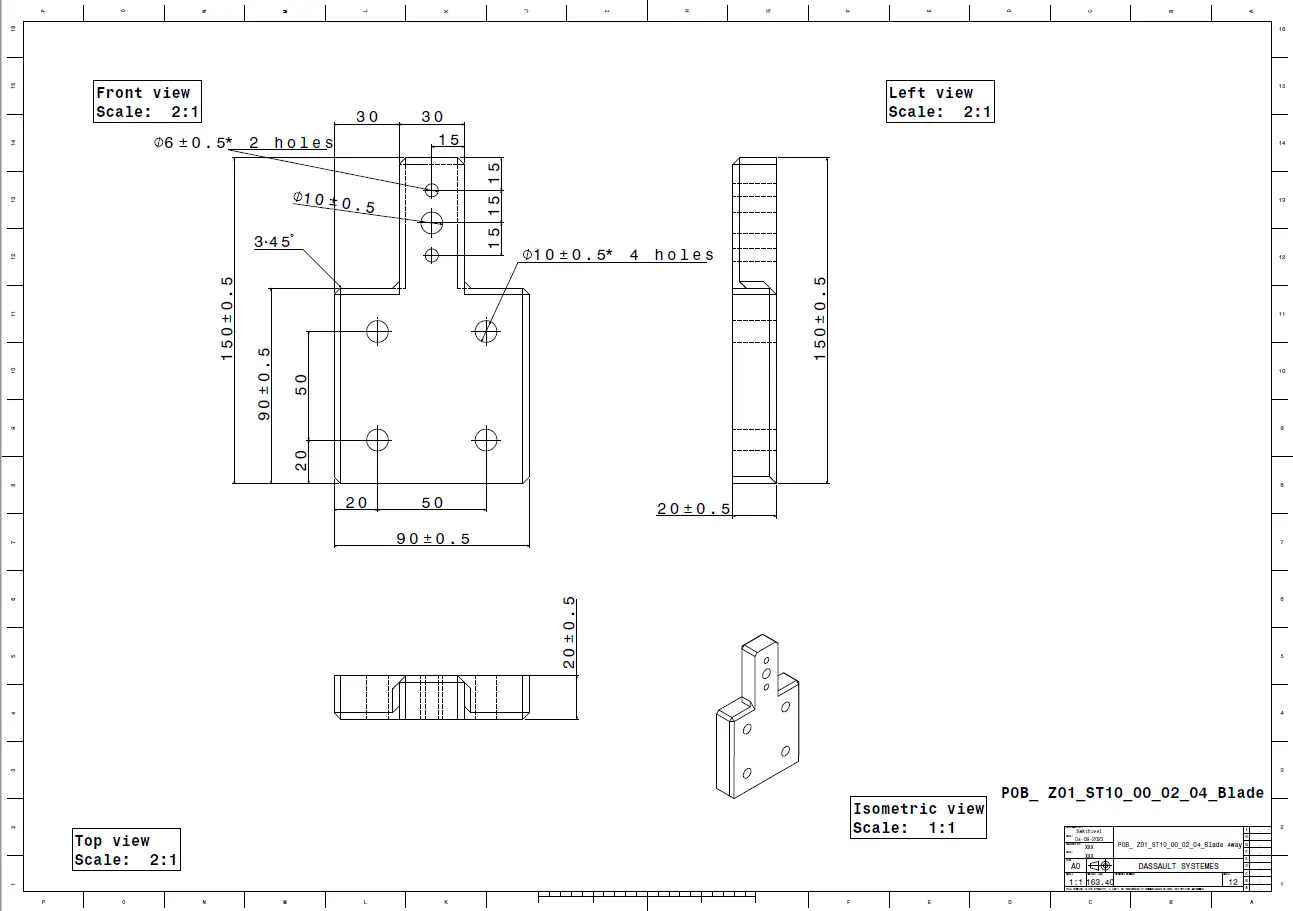

Swivel clamp unit 2

Create 2D Drawing for each Pin Units drawings with all child parts and also create Child pard drawing for the same for the Fixture assembly created in challenge 8.

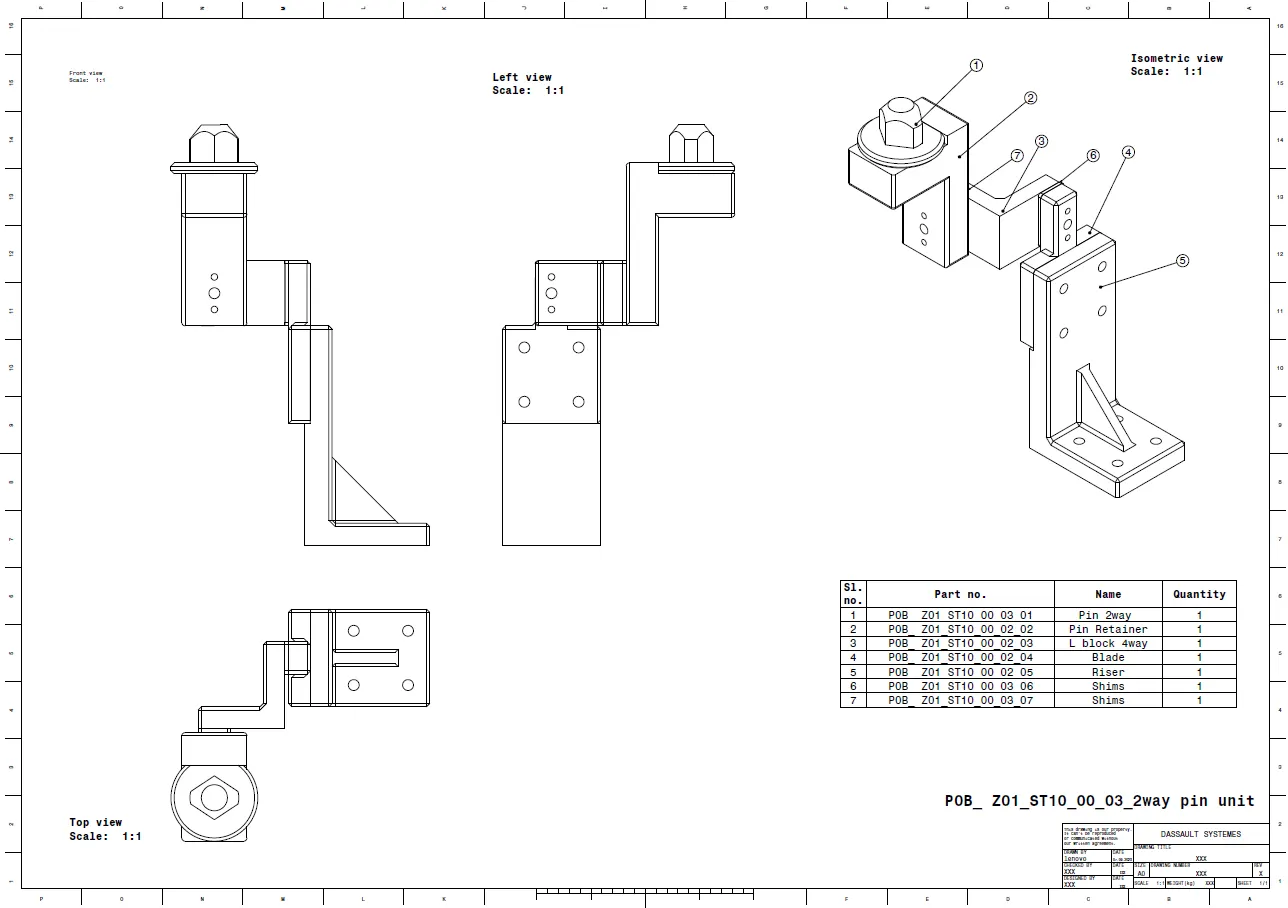

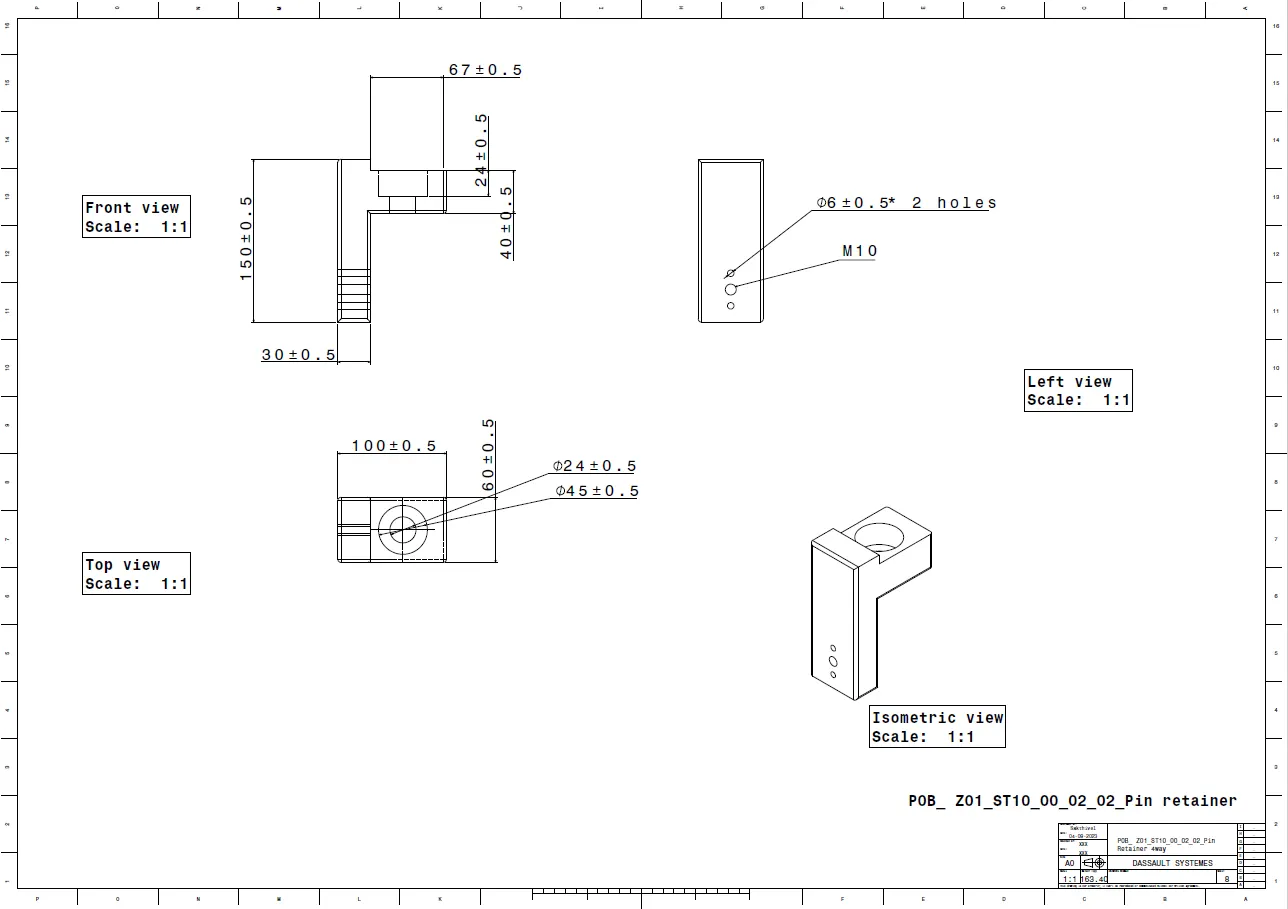

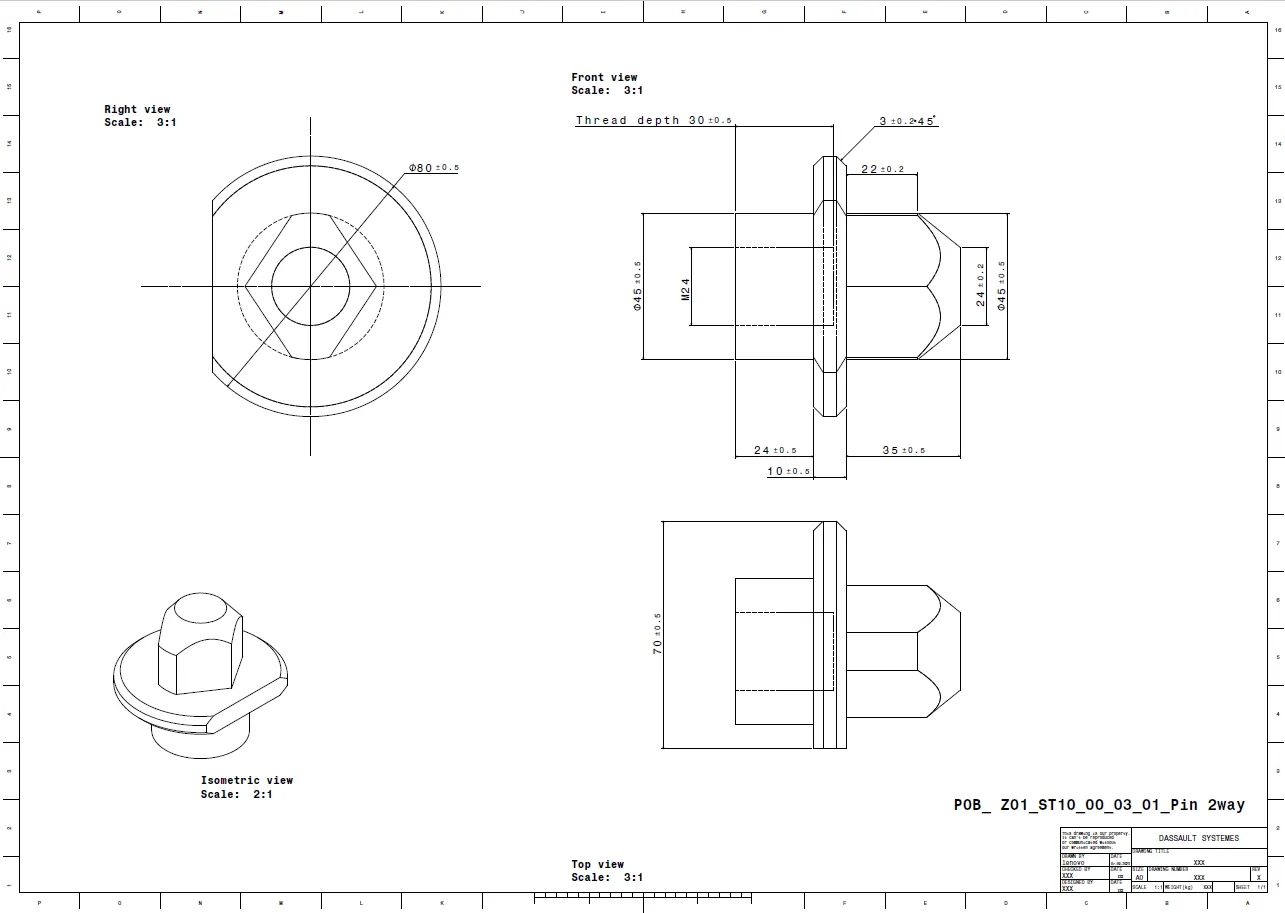

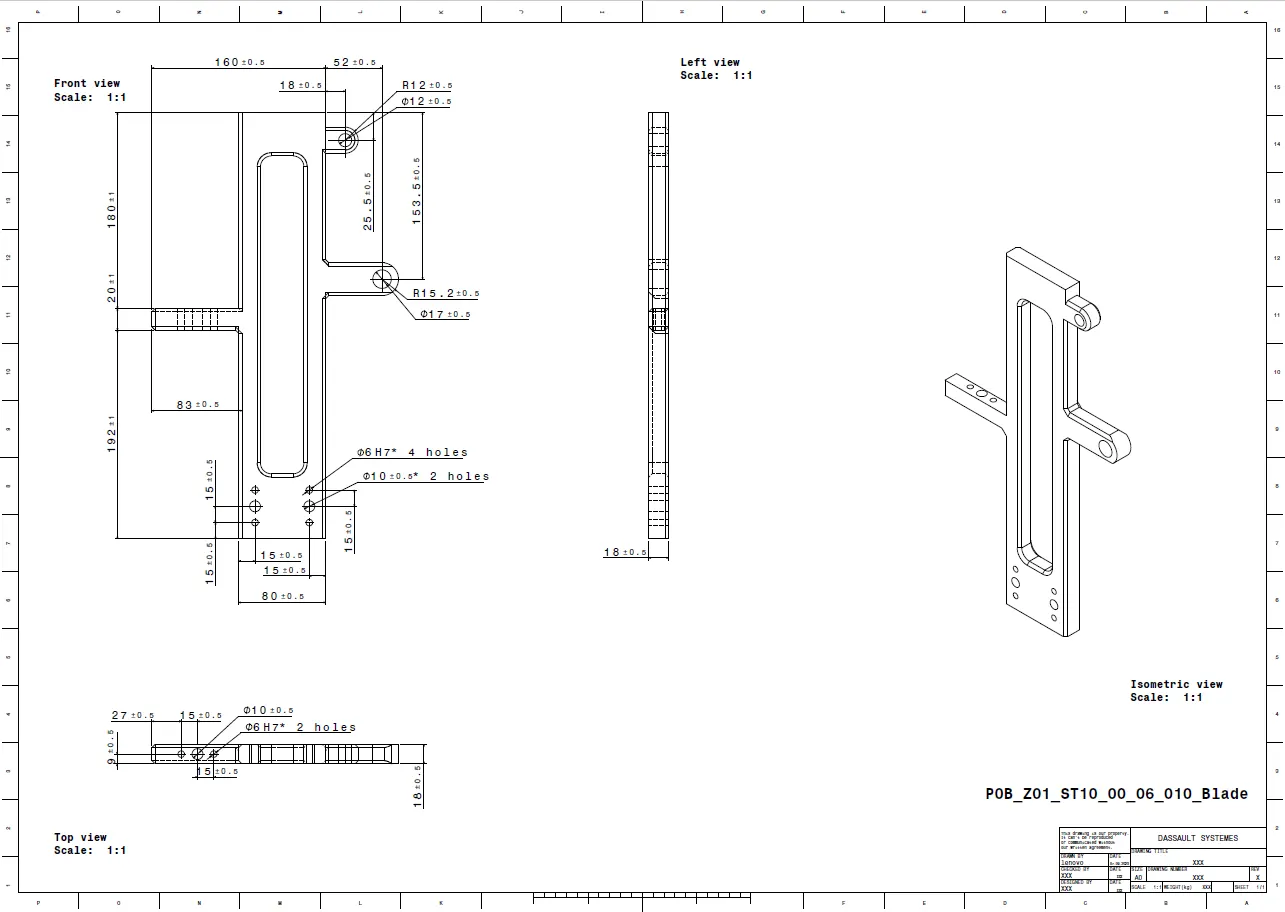

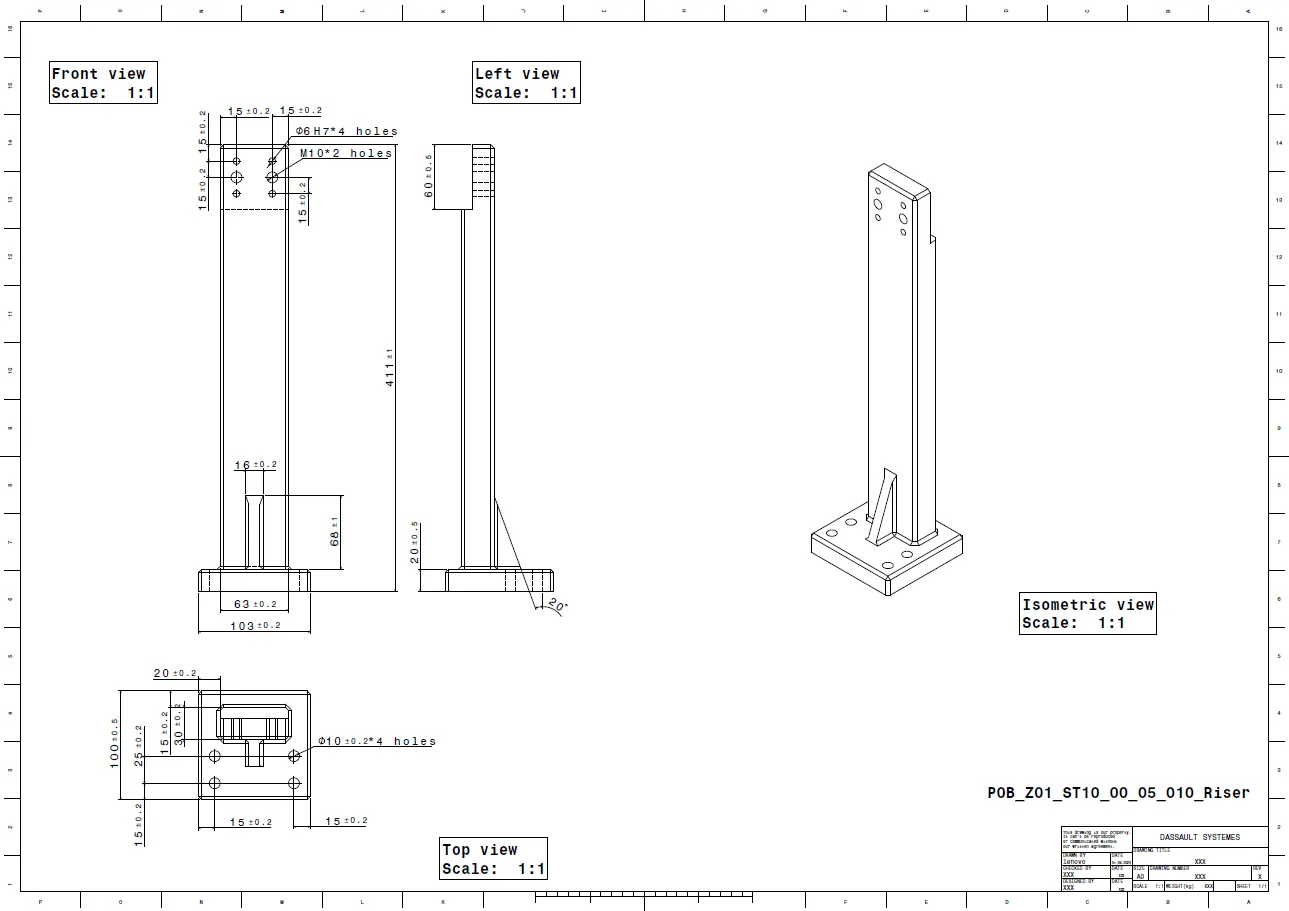

2way pin unit

Conclusion

A detailed drafing of the Clamp unit and pin unit were done. A proper dimensioning were provided to the parts.
