Week 11:- 2D Detailing Challenge 2
AIM:
1.Create 2D Drawing for each Clamp unit with all child part and also create child part drawing for the same for the fixture assembly created in challenge 8.
2.Create 2D Drawing for each pin units drawing with all child parts and also create child part drawing for the same for the fixture assembly created in challenge 8.
CLAMP UNIT DETAILNG :
Here we are detailing each and every part of unit.

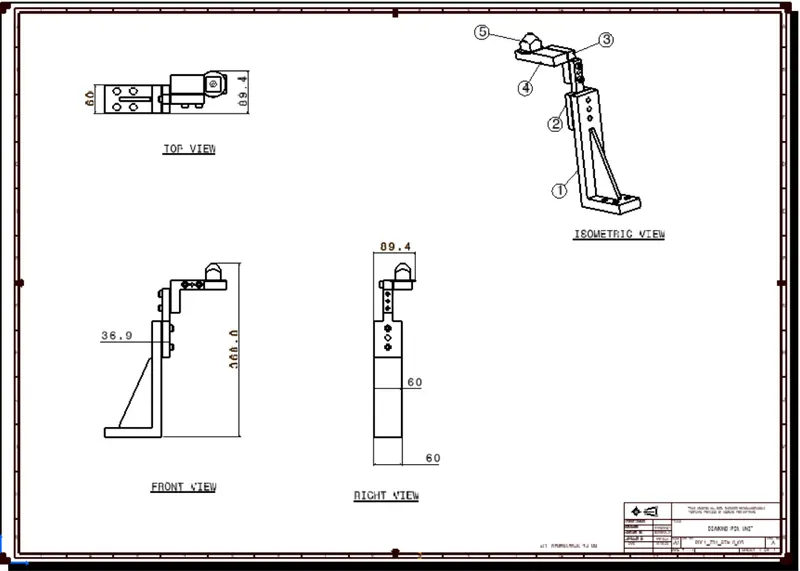

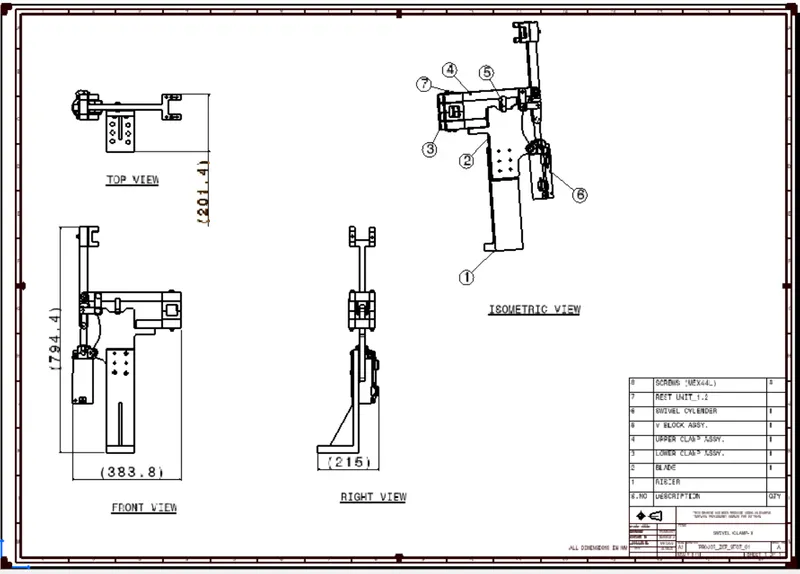

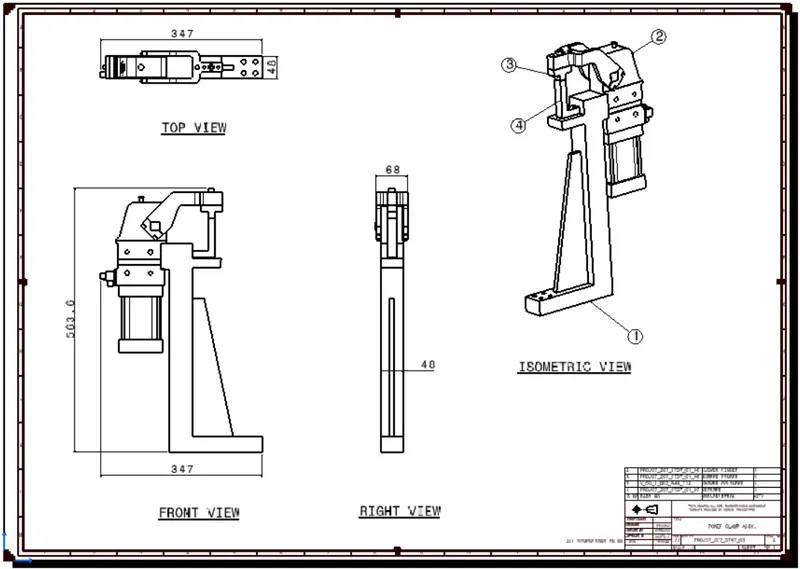

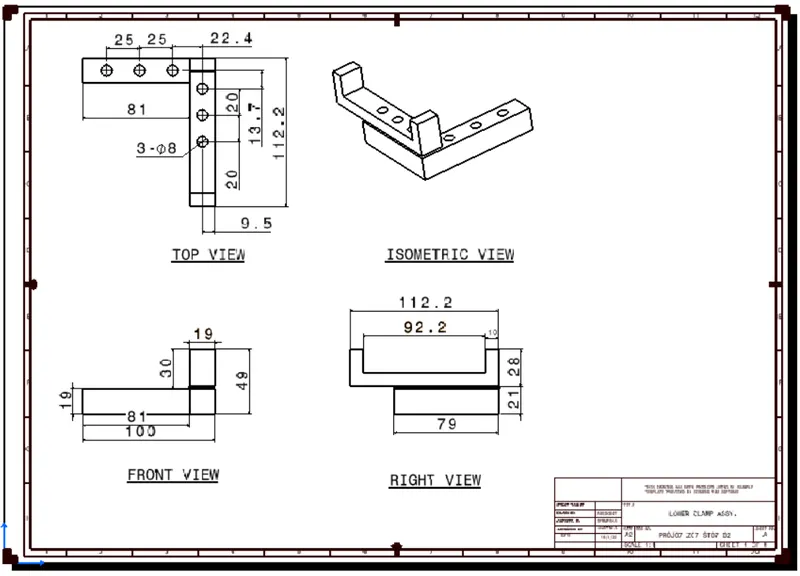

The first sheet shows an orthographic and isometric view which basically describes space requirement and parts that is used in this clamp unit.

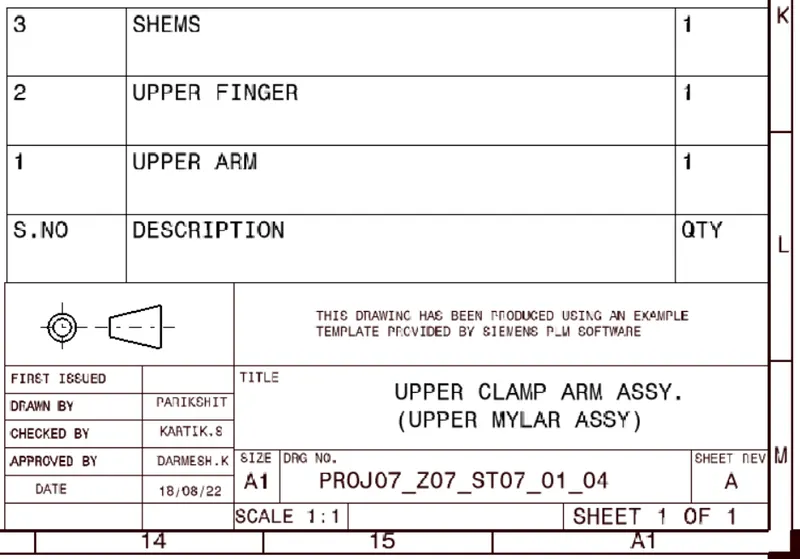

Mention a note if the part requires same special treatment like in clamp mylar and rest mylar(shown in image)

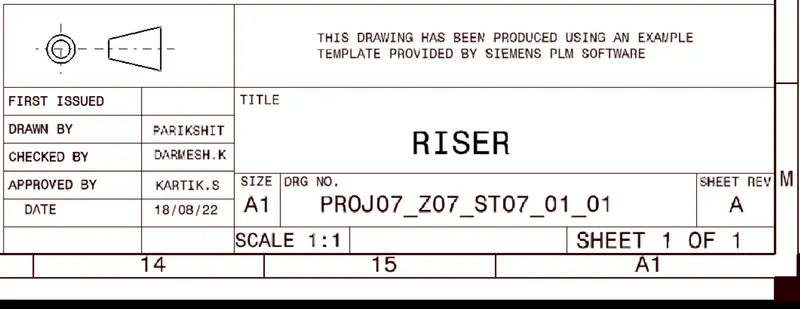

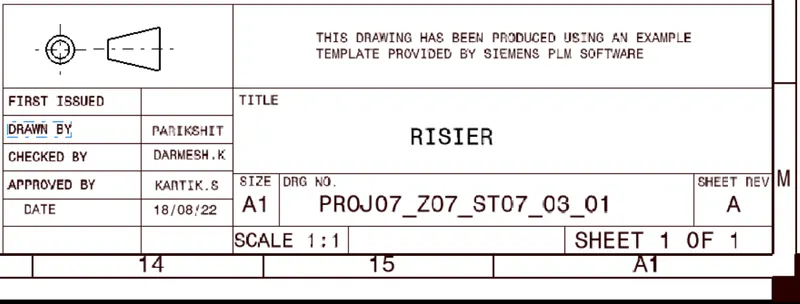

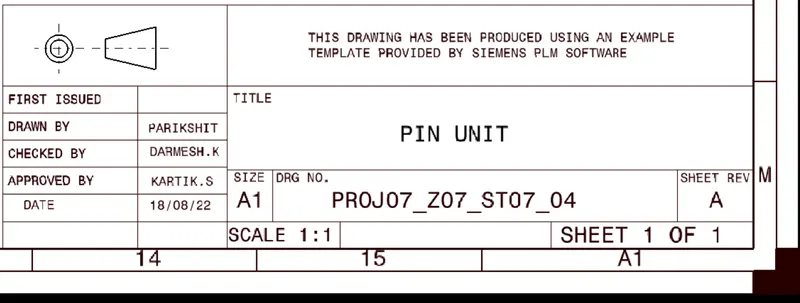

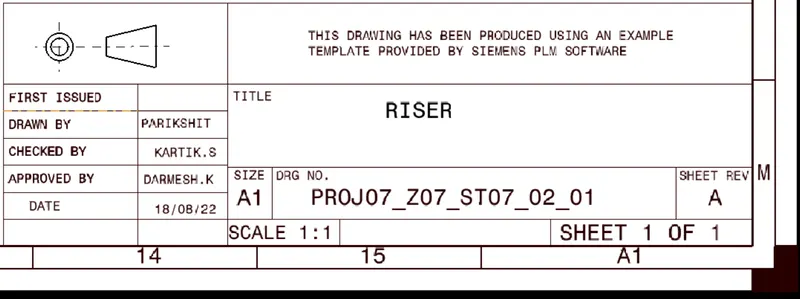

Fill all title box as per respective data so that is easier production line and designer .
Here i shown drawing of different clamp unit that i used my project:

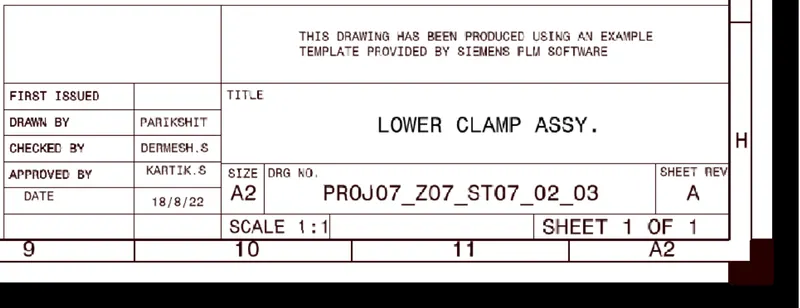

PROJ07_Z07_ST07_01:-SWIVEL CLAMP

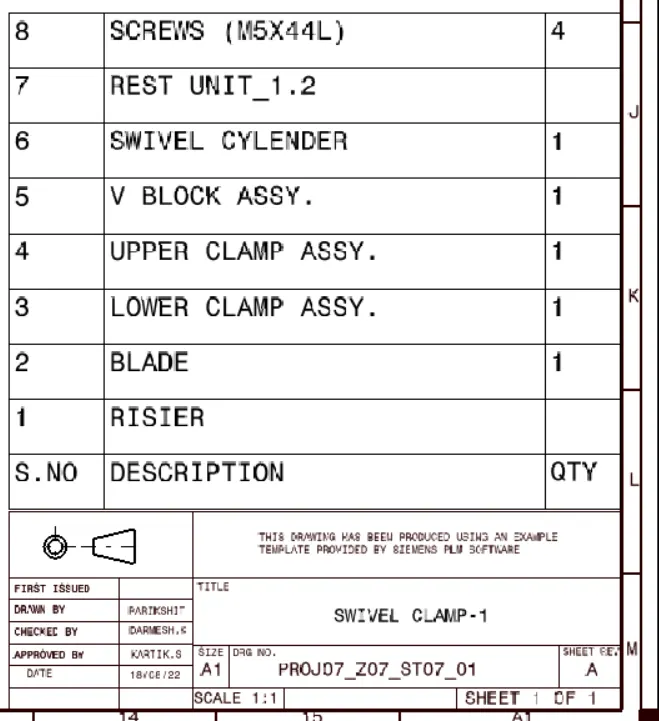

TEMPLATE AND BOM

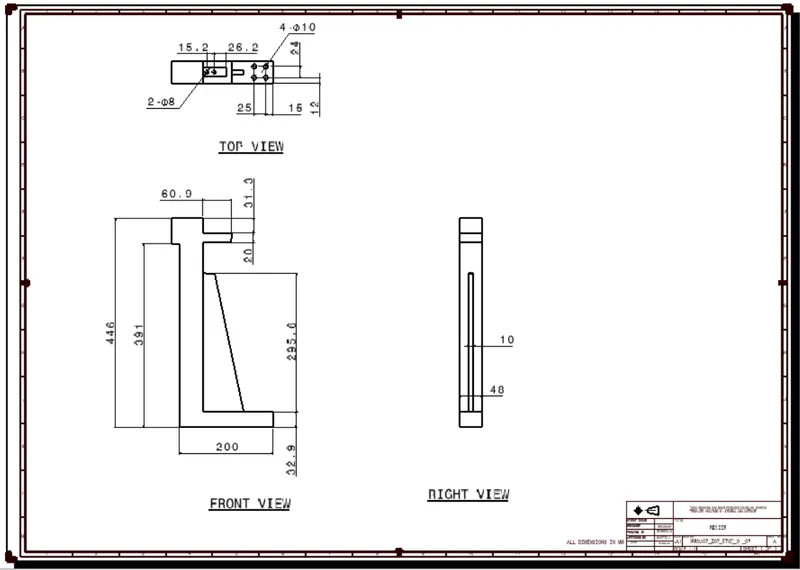

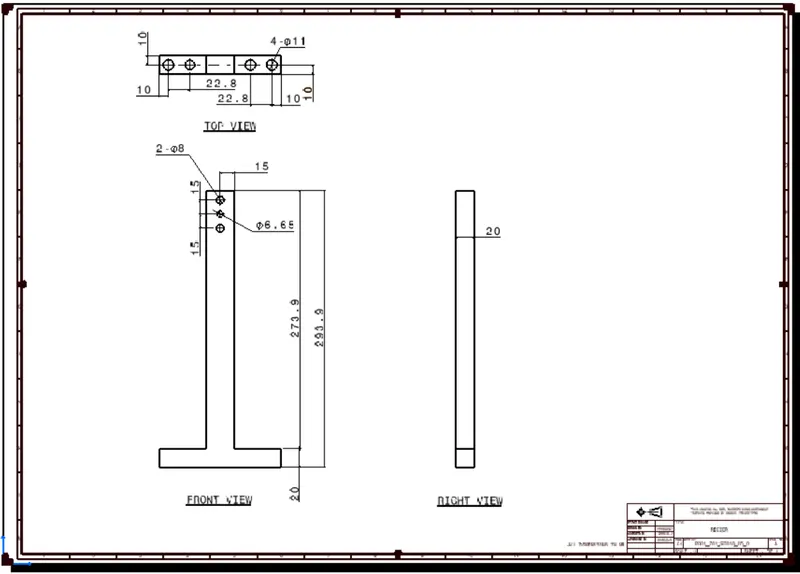

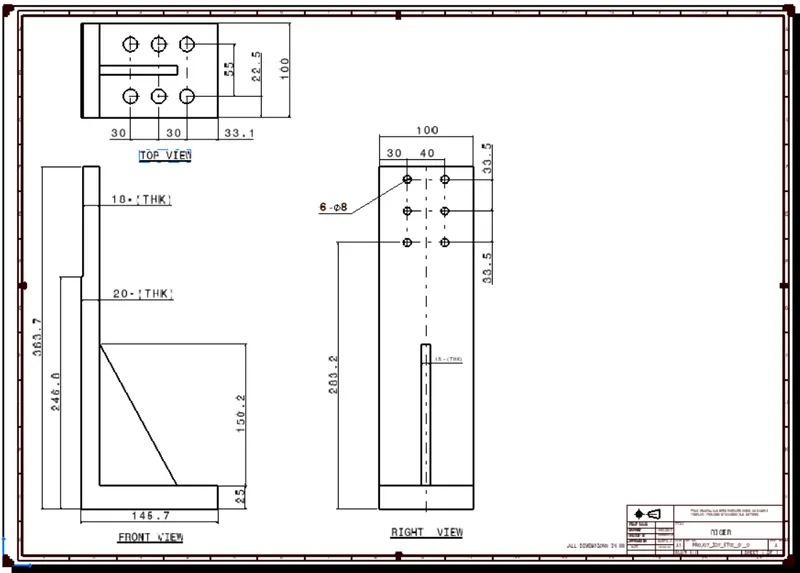

PROJ07_Z07_ST07_01_01-RISER:-
TEMPLATE

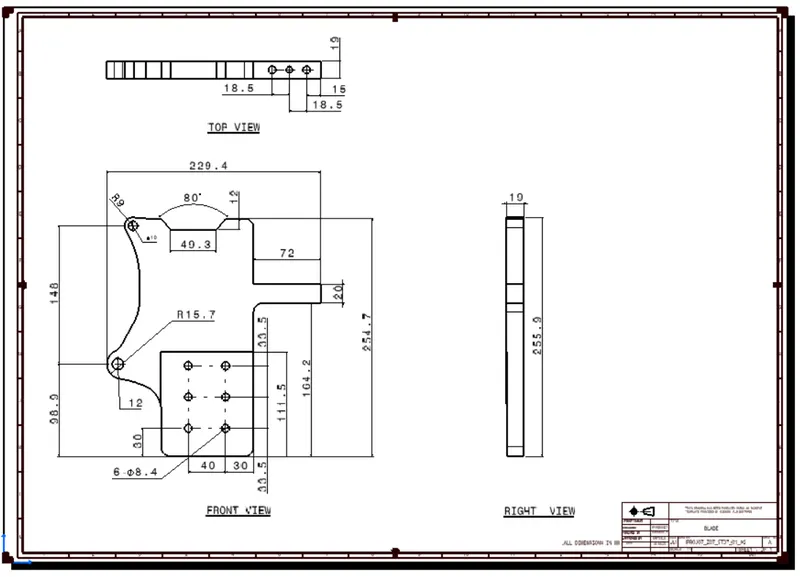

PROJ07_Z07_ST07_01_02-BLADE:-

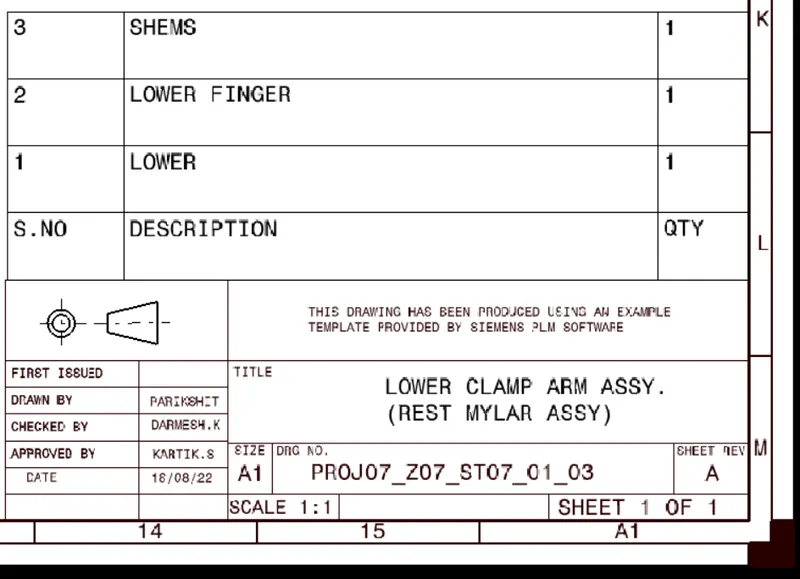

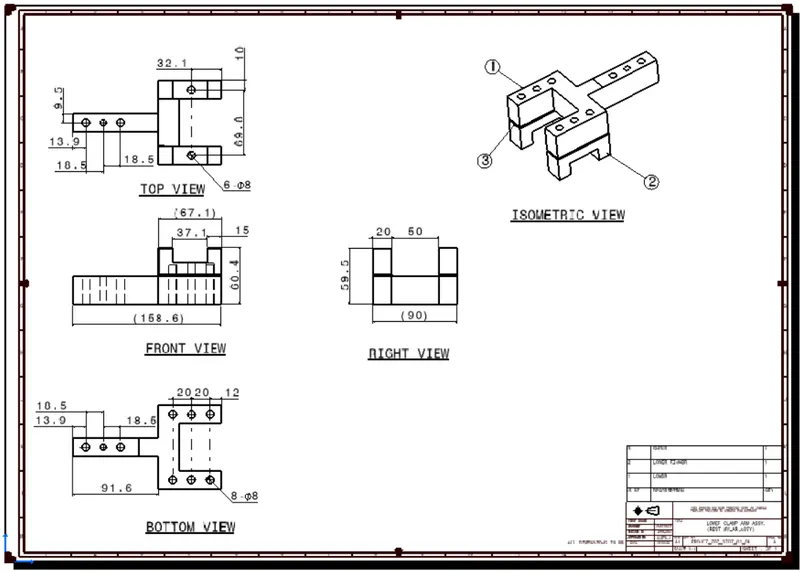

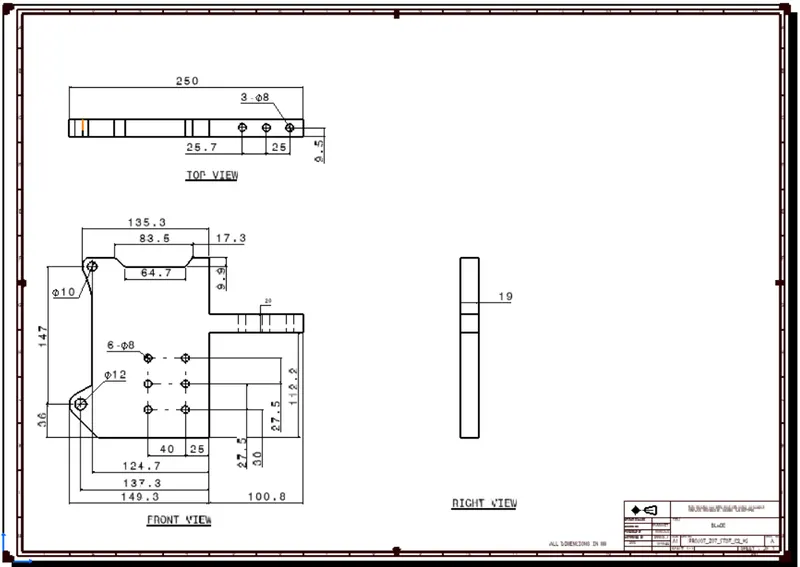

PROJ07_Z07_ST07_01_03-LOWER CLAMP ARM ASSY.(REST MYLAR ASSY)
TEMPLATE

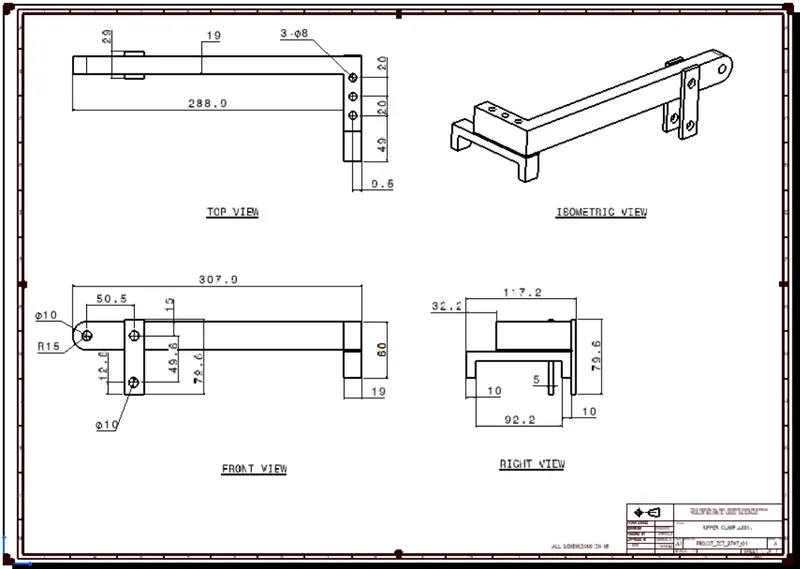

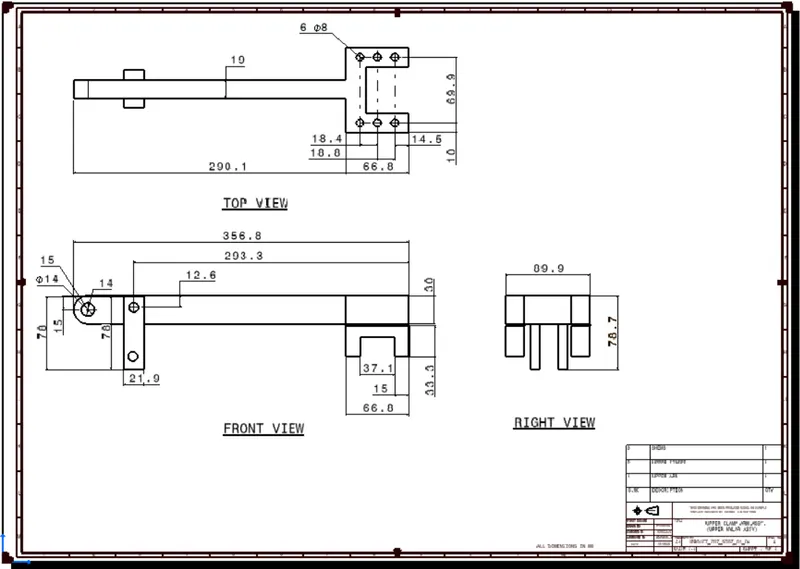

PROJ07_Z07_ST07_01_04-UPPER CLAMP ARM ASSY.(UPPER MYLAR ASSY)
TEMPLATE AND BOM

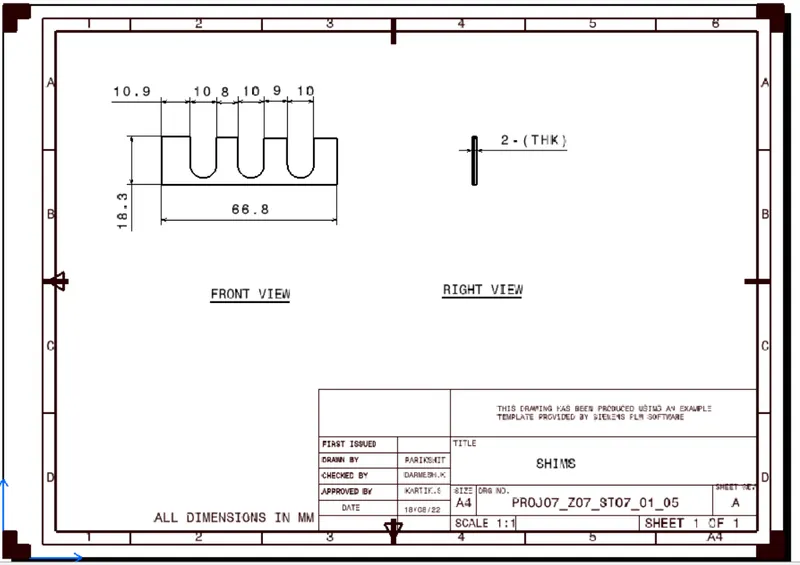

PROJ07_Z07_ST07_01_05-SHIMS:-

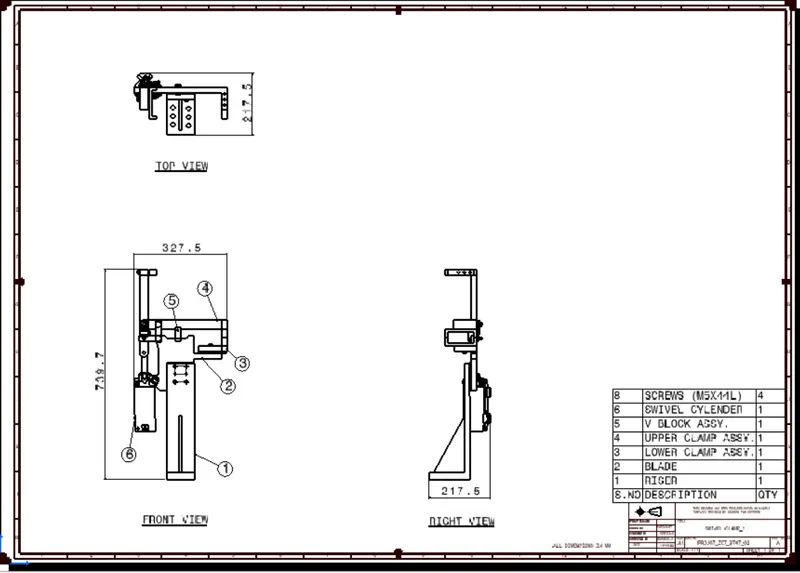

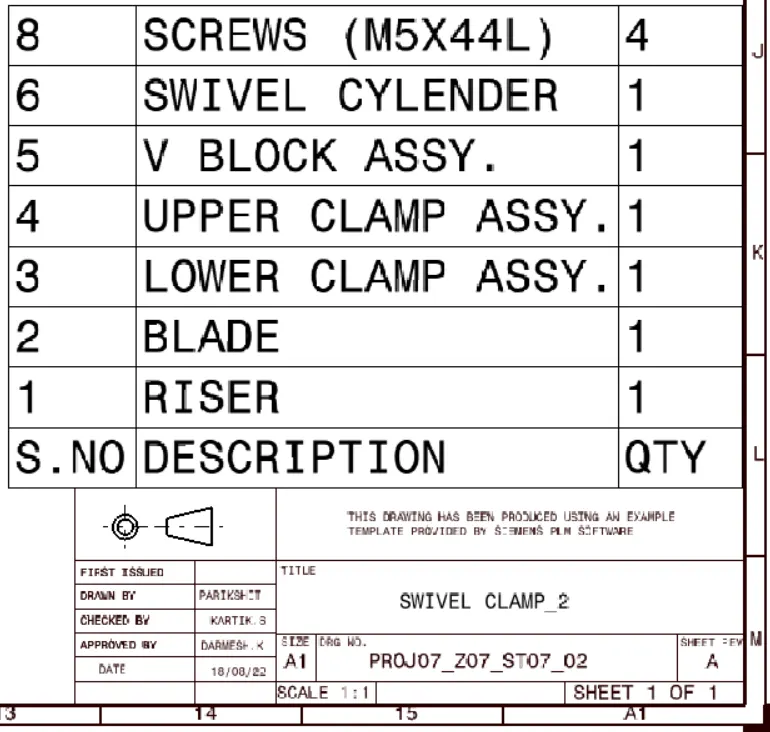

PROJ07_Z07_ST07_02-SWIVEL CLAMP

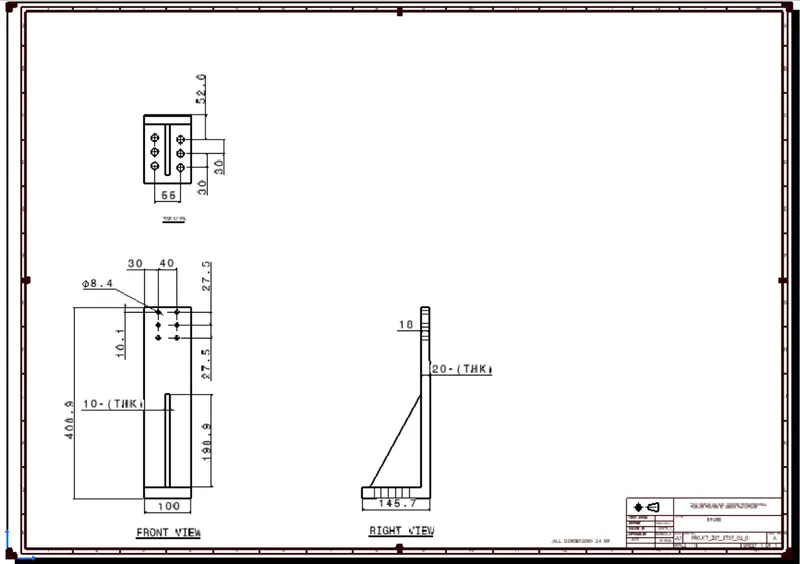

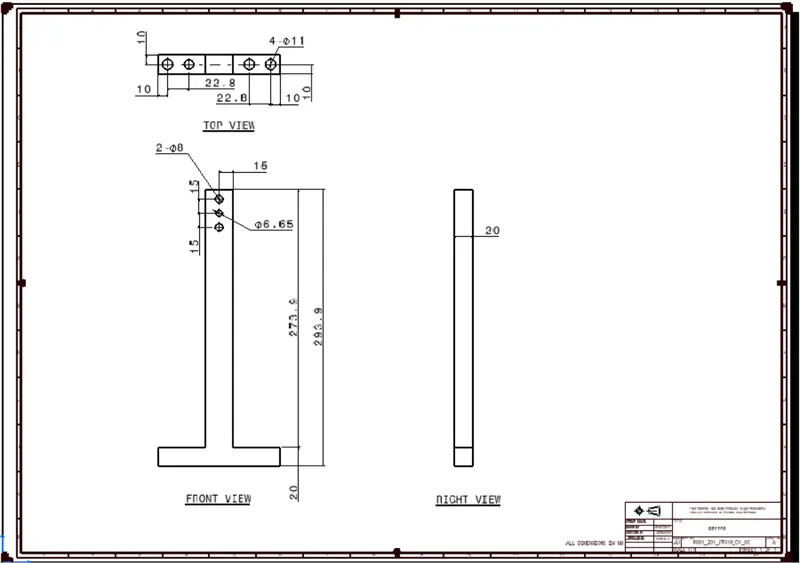

PROJ07_Z07_ST07_02_01-RISER

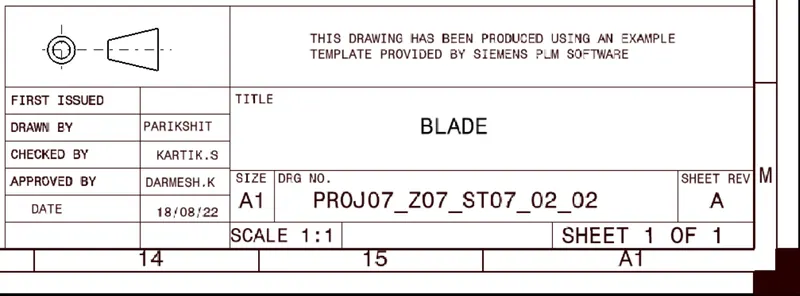

PROJ07_Z07_ST07_02_02-BLADE
TEMPLATE
PROJ07_Z07_ST07_02_03-LOWER CLAMP UNIT
TEMPLATE-
PROJ07_Z07_ST07_04-UPPER CLAMP ASSY.
PROJ07_Z07_ST07_03-POWER CLAMP ASSY
TEMPLATE

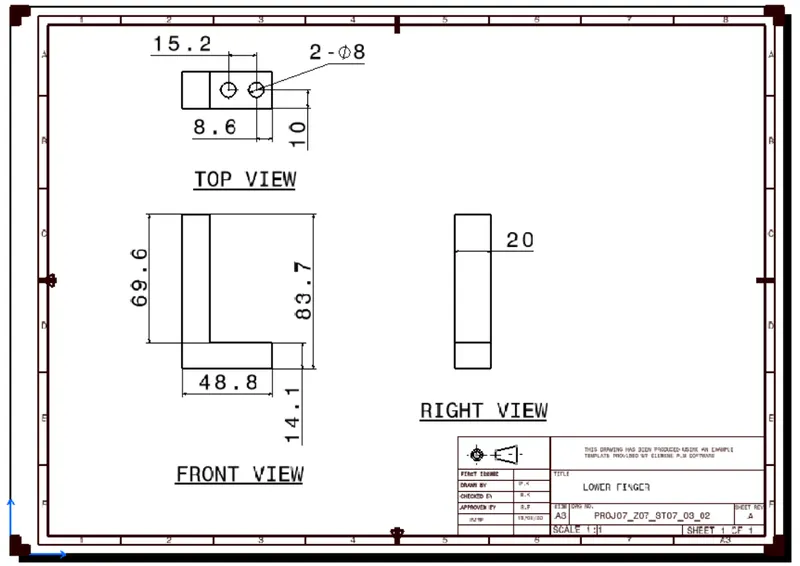

PROJ07_Z07_ST07_03_02-LOWER FINGER

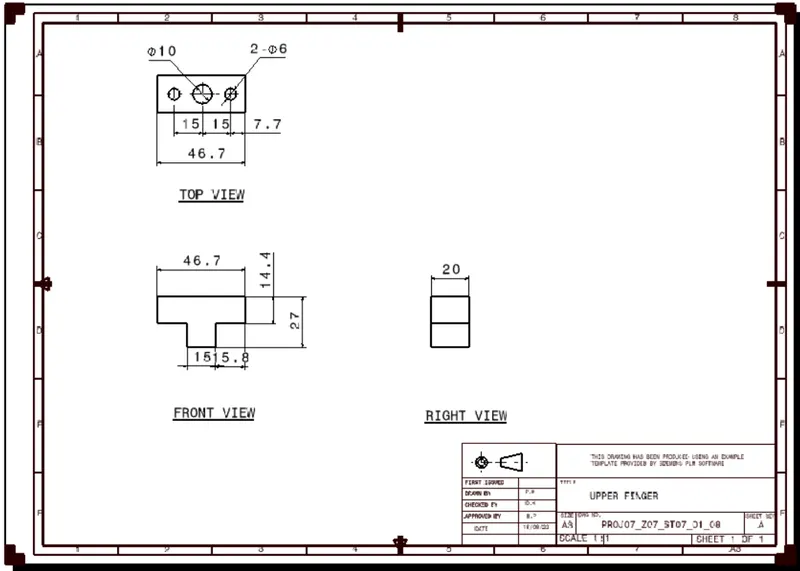

PROJ07_Z07_ST07_01_08-UPPER FINGER

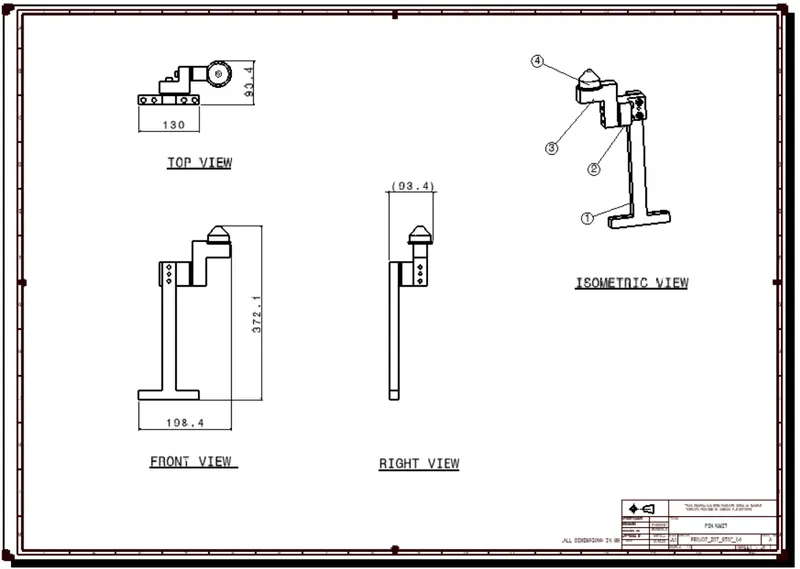

PROJ07_Z07_ST07_04-PIN UNIT
TEMPLATE
P001_Z01_ST010_04_01-RISER

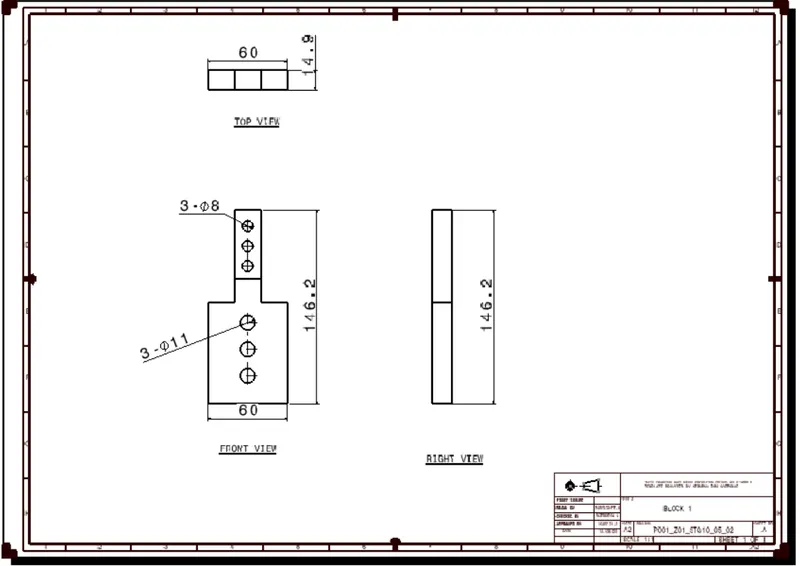

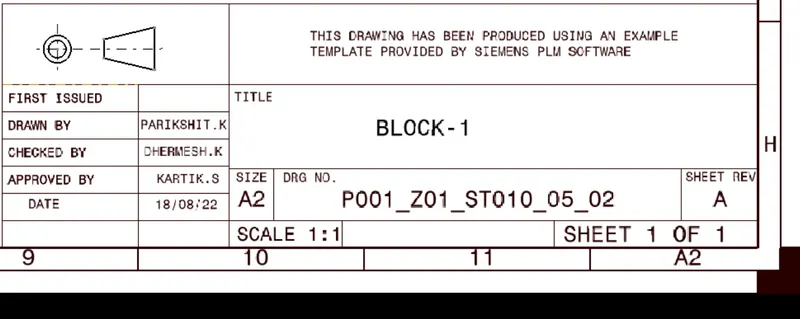

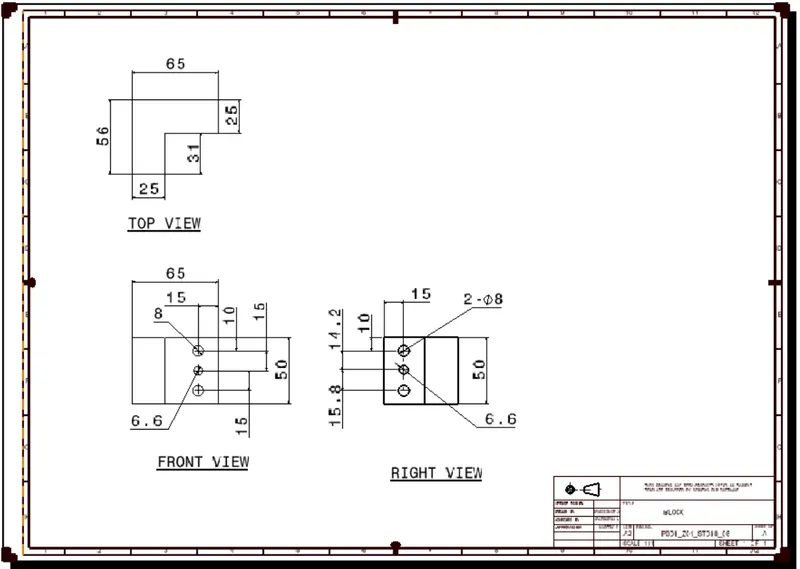

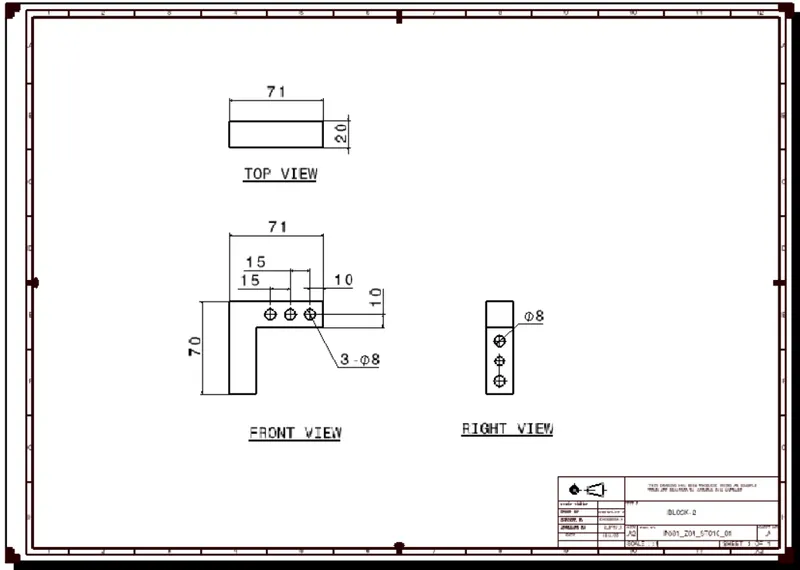

P001_Z01_ST010_04_02-BLOCK

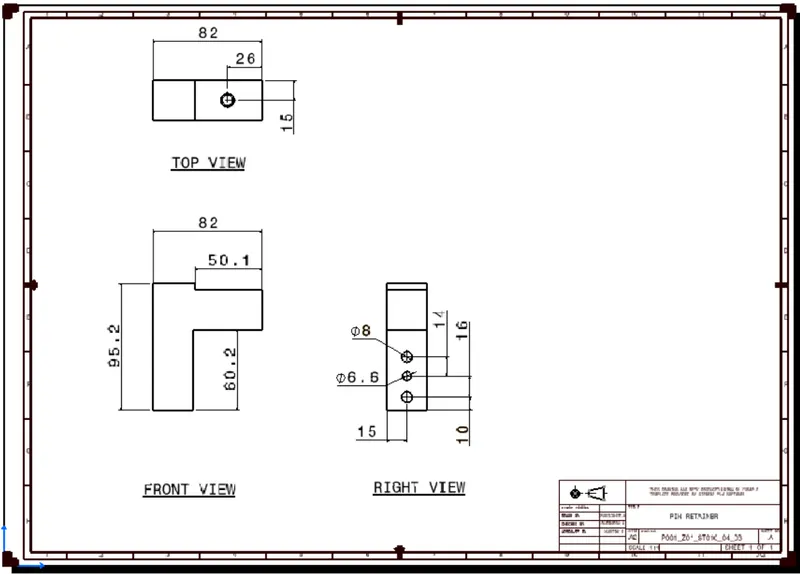

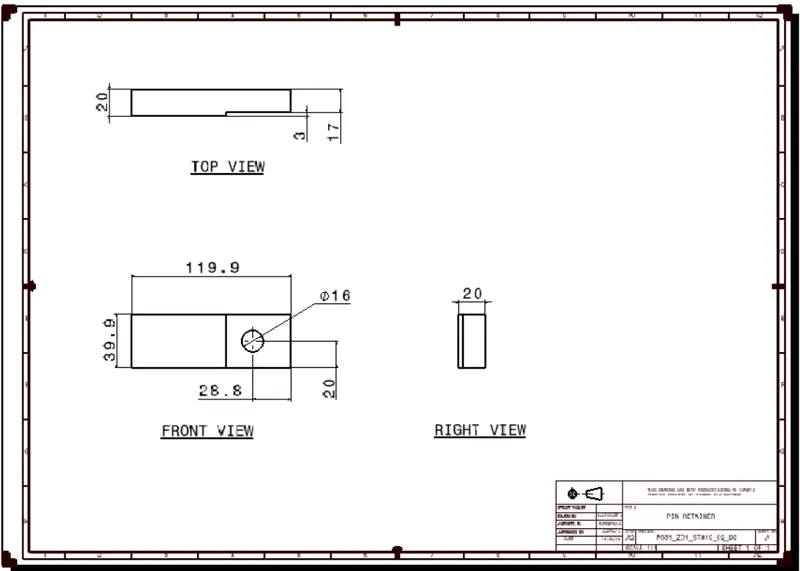

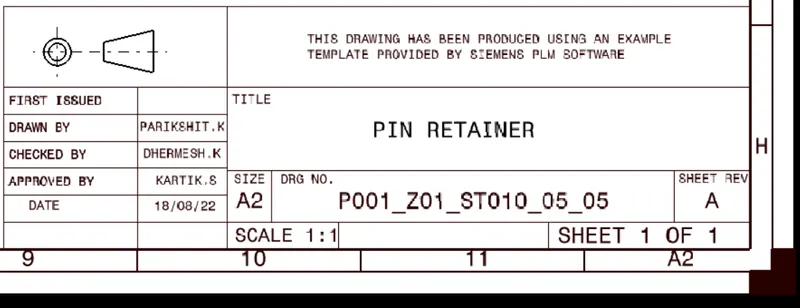

P001_Z01_ST010_04_03-PIN RETAINER

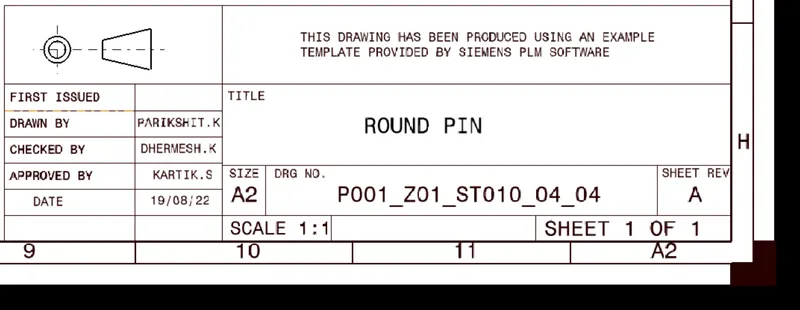

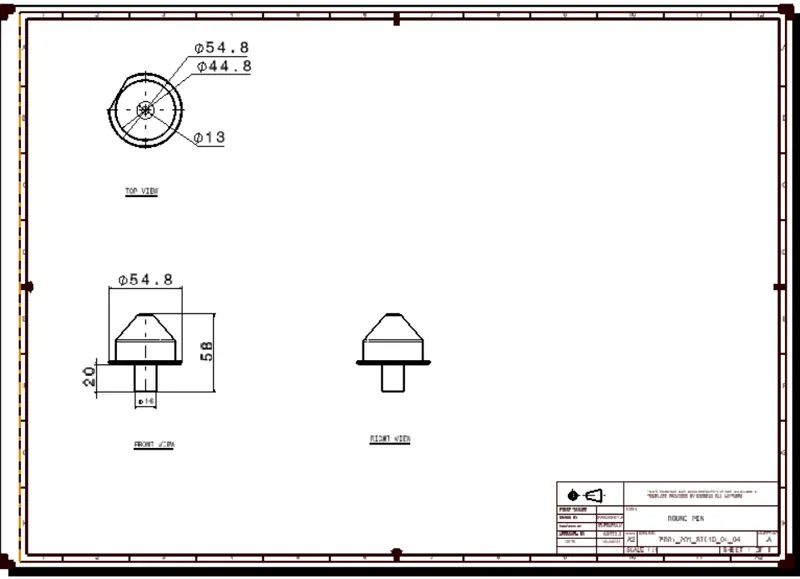

P001_Z01_ST010_04_04-ROUND PIN
TEMPLATE

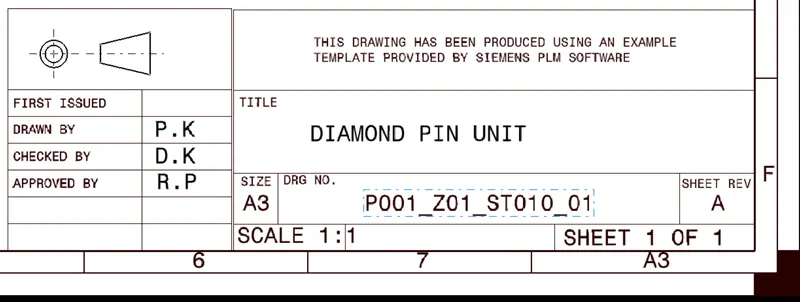

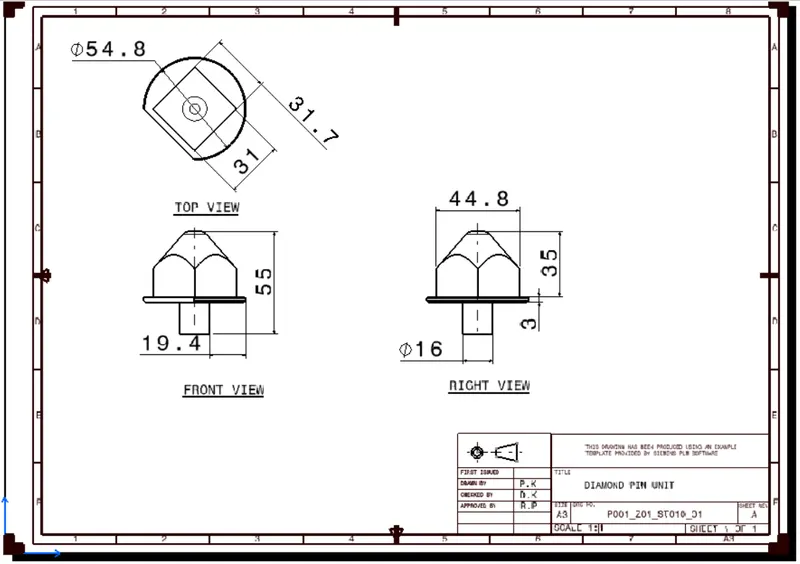

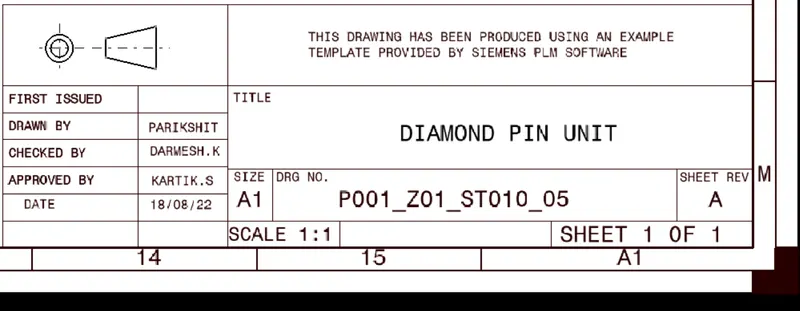

P001_Z01_ST010_05-DIAMOND PIN UNIT
TEMPLATE
P001_Z01_ST010_05_01
P001_Z01_ST010_05_02
TEMPLATE
P001_Z01_ST010_05_03
P001_Z01_ST010_05_05
P001_Z01_ST010_01
