Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

REPORT
ON
BRACKET
UNDER THE GUIDANCE

OF

SKILL LYNCE

OBJECTIVE:- TO BE DESIGN A BRACKET BY USING NX CAD.

INTRODUCTION :-In this project we learn how we design a sheetmetal bracket by the using NX CAD.During the designing we consider all the manufacuturing process. and also we learn the some NX CAD commands.

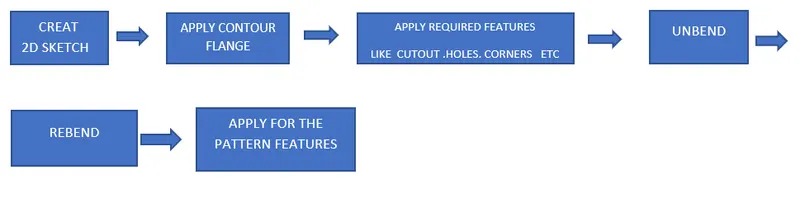

DESIGN METHODOLOGY:-

DESCRIPTIONS:-

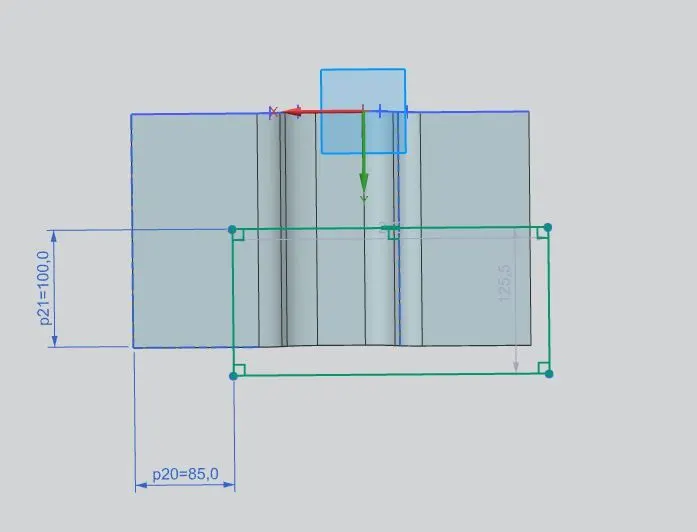

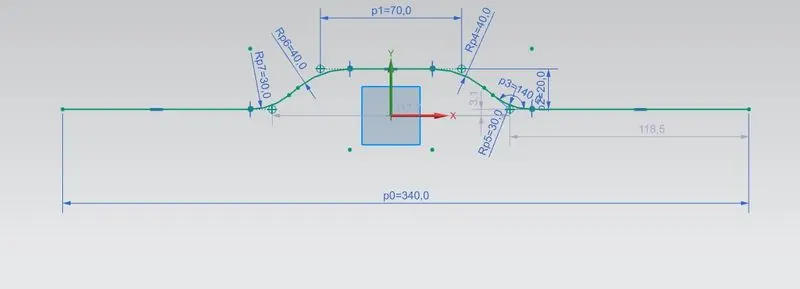

STEP:-FIRST WE CREAT THE SKETCH. ACCOUNRDING THE GIVEN DIMENSIONS

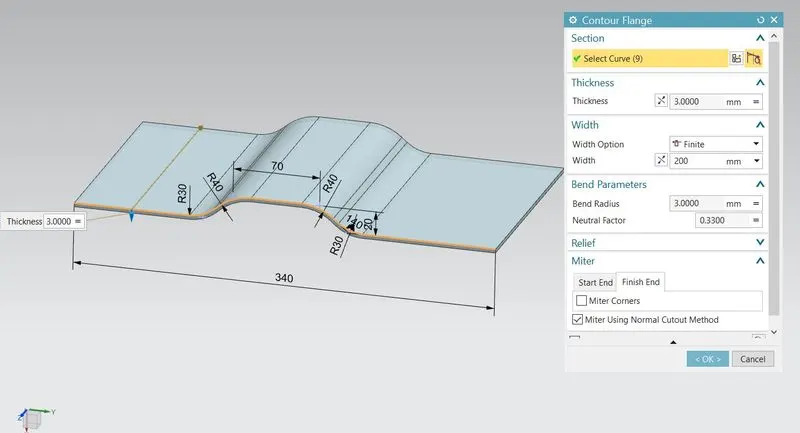

STEP:- CREAT A CONTOUR FLANGE .

STEP:- AGAIN CREAT A SKETCH ON THE TOP SURFACE FOR THE NORMAL CUTOUT.

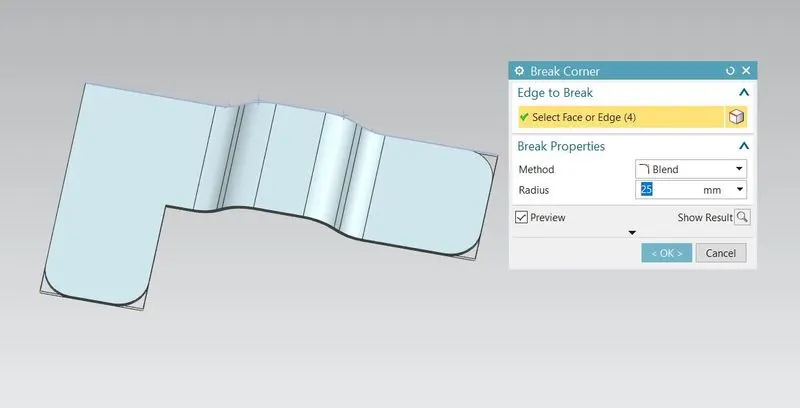

STEP:- GIVE A BREAK CORNER BECOUSE SHARP CORNER ARE NOT ALLOW IN THE SHEETMETAL .

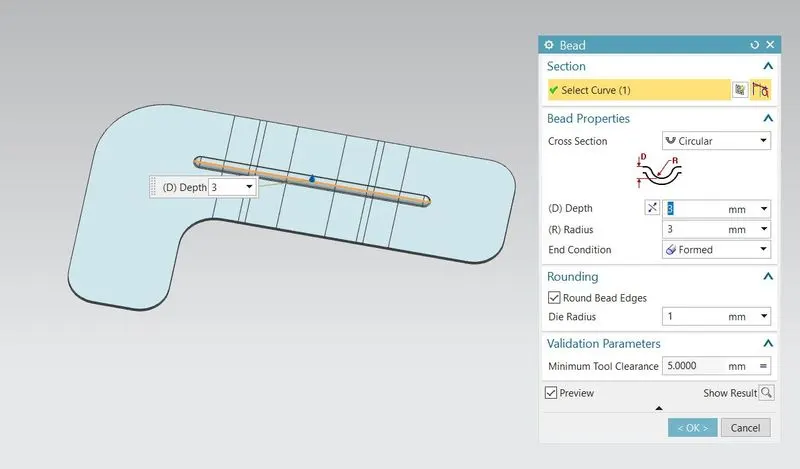

STEP :-CRETA THE BEAD ON THE TOP SURFACE AND CHANGE THE DIMENSIONS TO NEED.

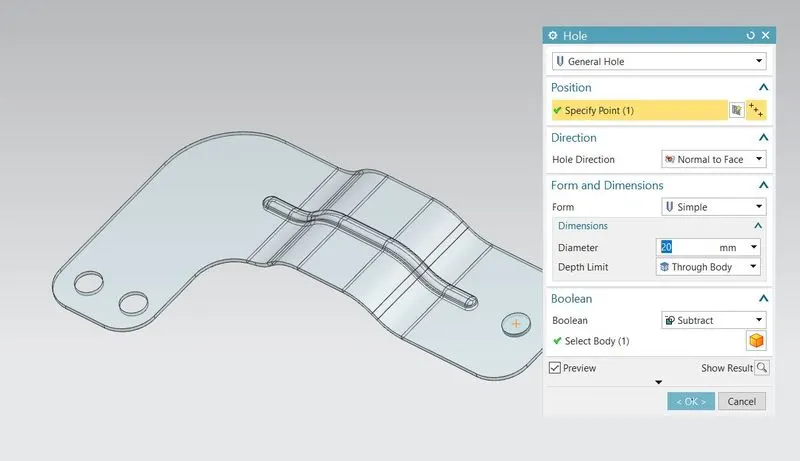

STEP :-CRETA THE HOLE AS PER REQUIREMENT.

PROPER STANDARD VIEW:-

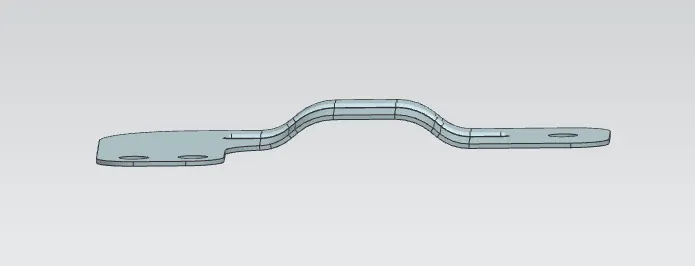

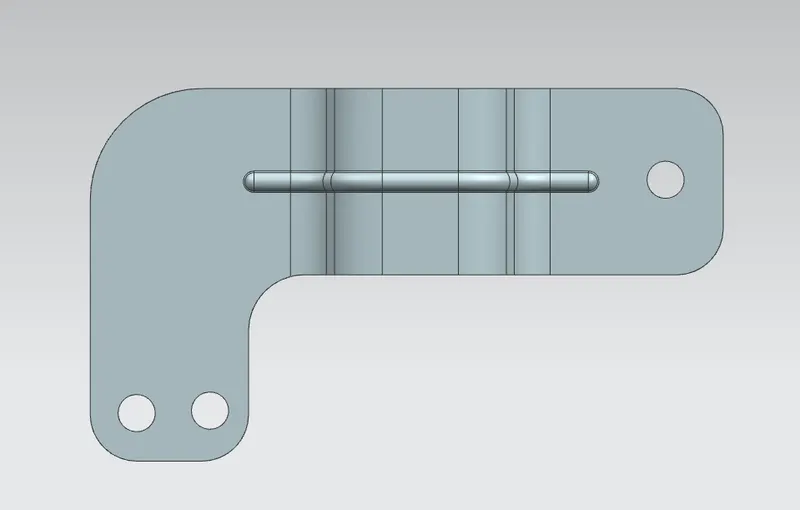

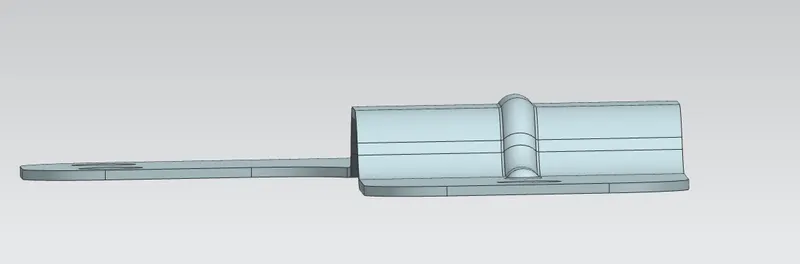

TOP VIEW SIDE VIEW FRONT VIEW

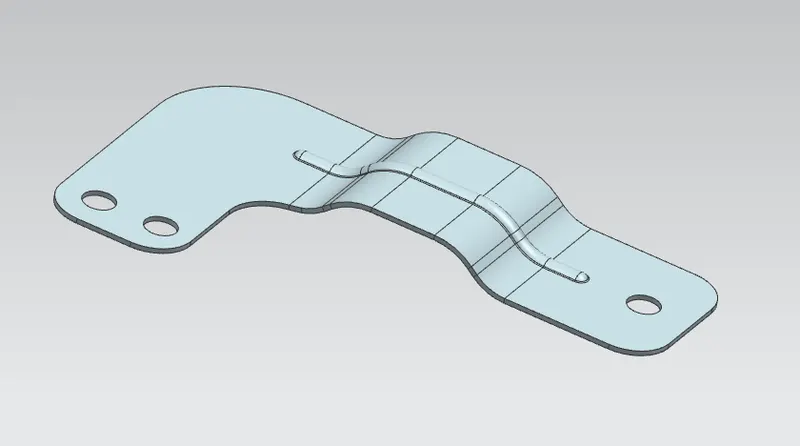

ISOMETRIC VIEW

CONCULSIONS:-In this we learn designing of sheetmetal brackets.
