Week - 10 Hyperelastic Material Models

Aim: To calculate Mooney Rivlin and Ogden material constants and compare both using Stress-Strain data from a Dogbone specimen tensile test with 100% strain.

Hyperelastic material: Material where the strains can be recovered up to 500% strain.

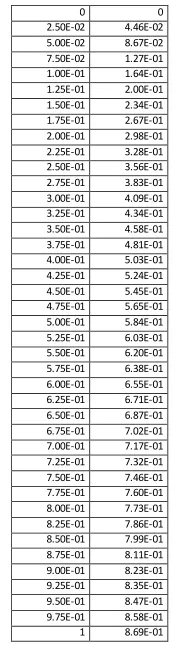

Given data:

_________________________________________________________________________________________

Solution Procedure:

_________________________________________________________________________________________

Mooney Rivlin

_________________________________________________________________________________________

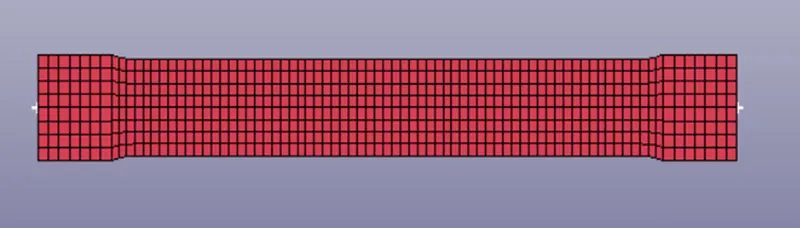

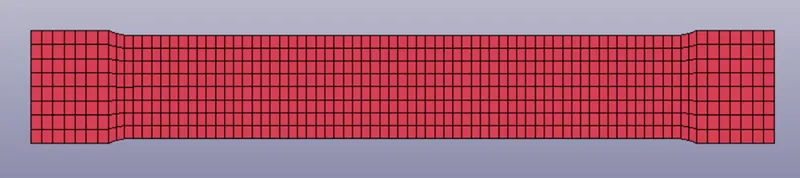

Step 1: Firstly dogbone specimen keyword file is loaded

Step 2: Stress-Strain Curve creation

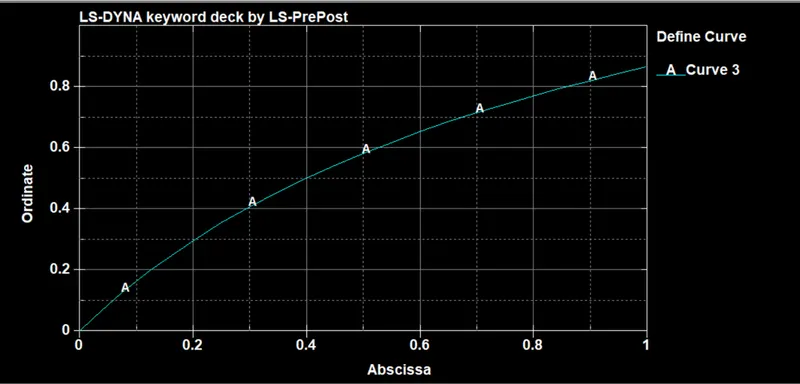

The given table is converted to curve by using *DEFINE_CURVE as shown in the following figure.

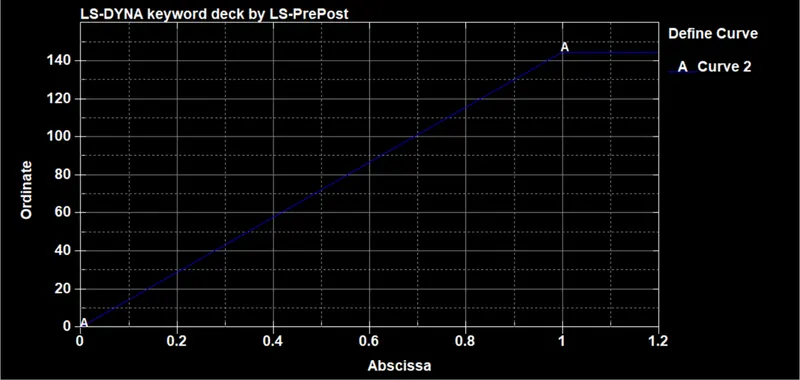

Step 3: Since the length of specimen is 145 mm, we create a displacement curve equal to 100% strain or 1 strain value as shown in the following figure:

Step 4: Material card.

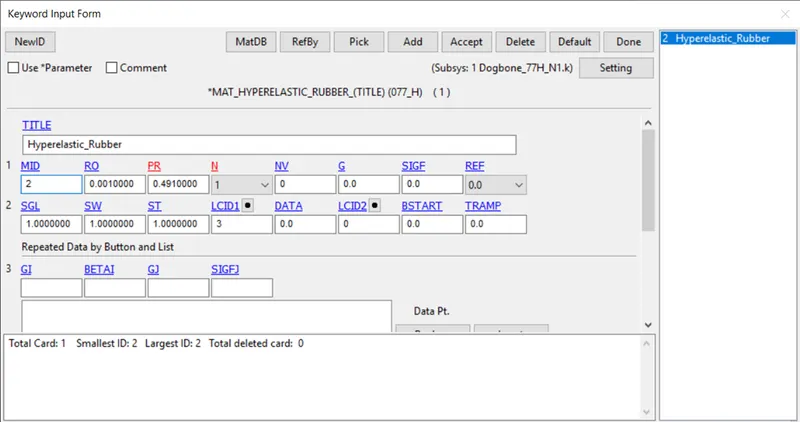

Hyperelastic material (*MAT_HYPERELASTIC_RUBBER) is created and LCID1 is assigned with previously defined stress-strain curve.

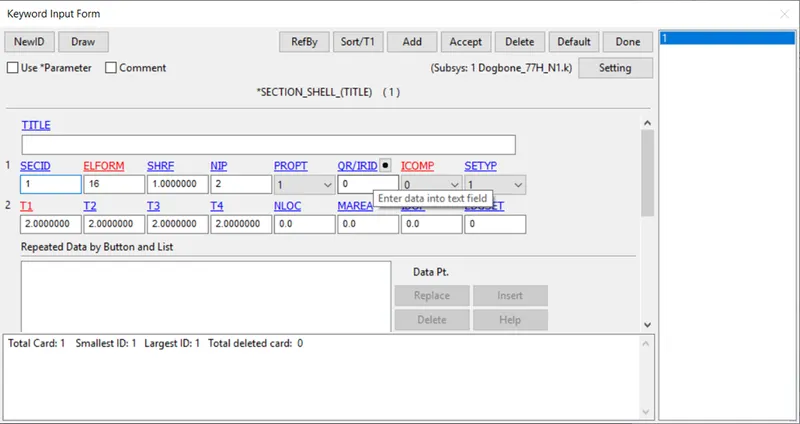

Step 5: Shell section creation

Step 6:Boundary Conditions:

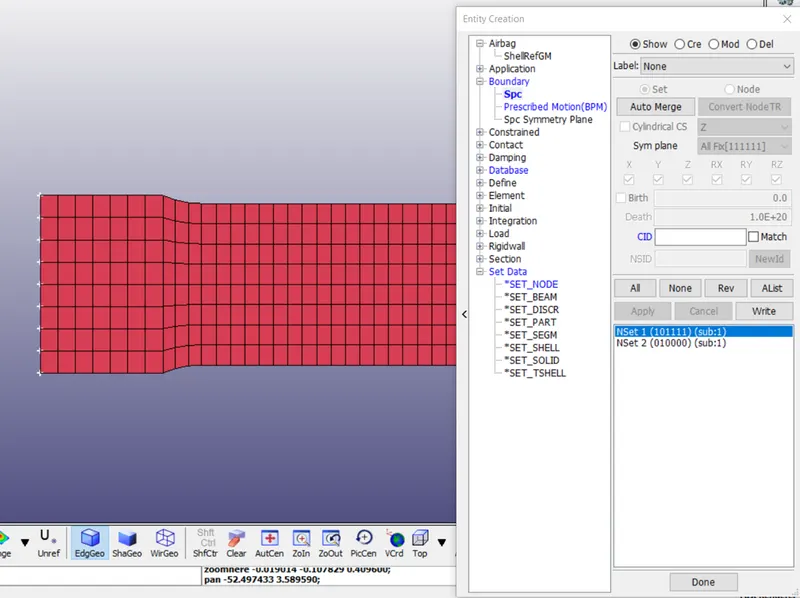

1. Left side edge nodes are constrained in all directions except Y direction as shown.

2. middle node on either sides are contrained as shown.

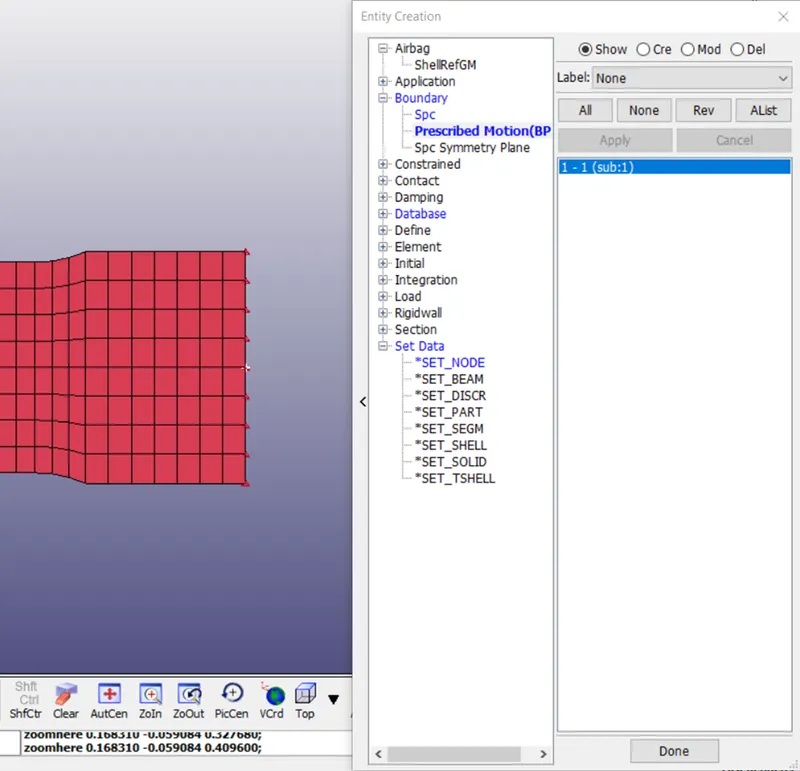

3. Displacement is assigned to right side edge nodes using *PRESCRIBED_BOUNDARY_MOTION

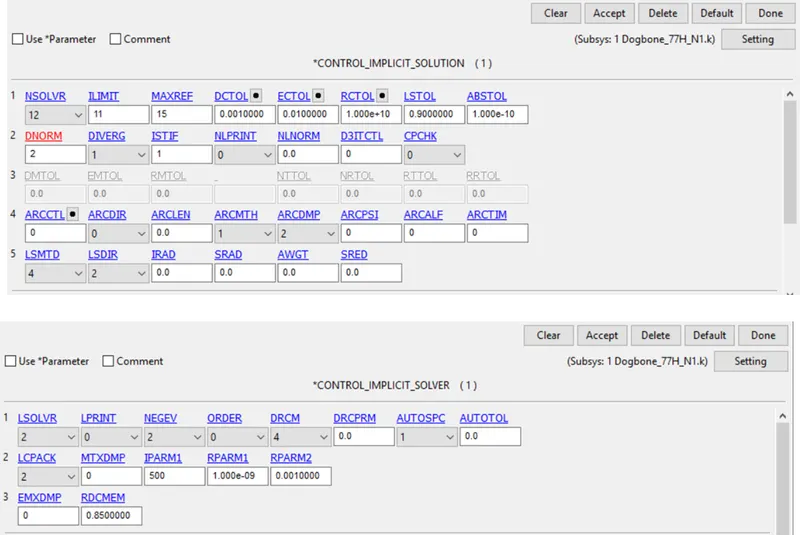

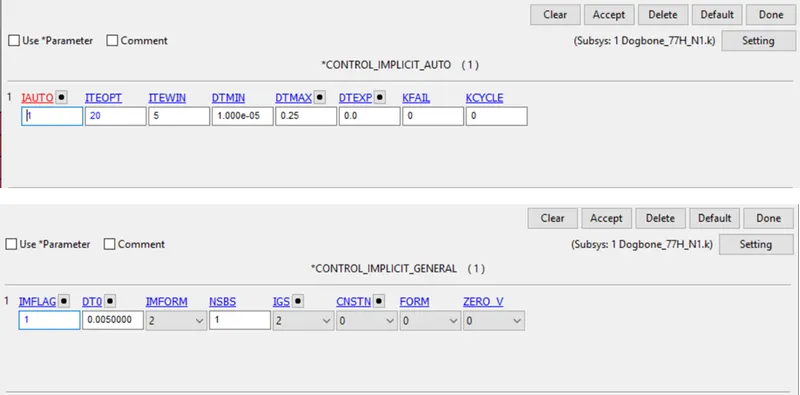

Step 7: Implicit solutions cards

_________________________________________________________________________________________

Ogden Material creation for Ogden constant

_________________________________________________________________________________________

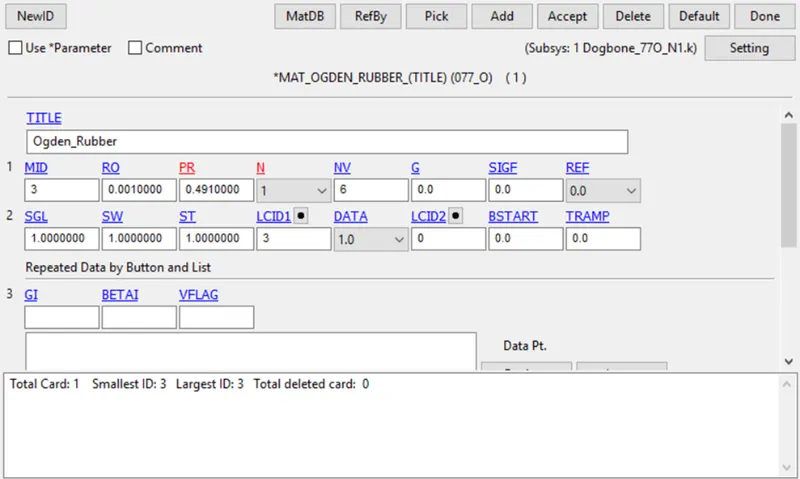

only material is changed in the next simulation as shown in below figure

_________________________________________________________________________________________

Results

_________________________________________________________________________________________

Constants obtained from d3hsp file

________________________________________________________________________________________

Ogden Constants

________________________________________________________________________________________

_________________________________________________________________________________________

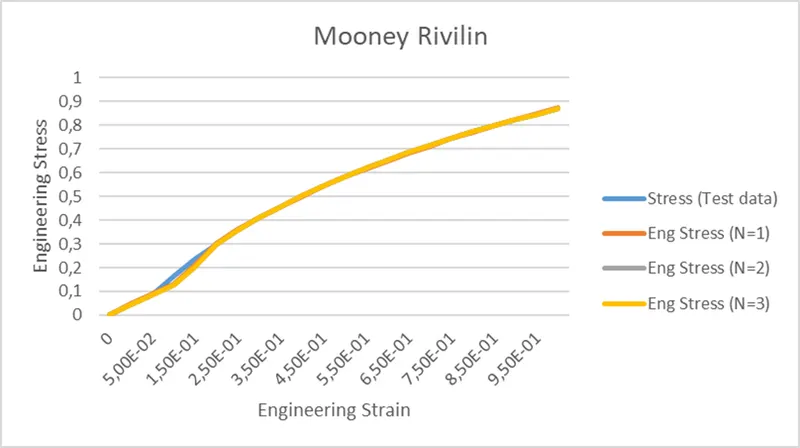

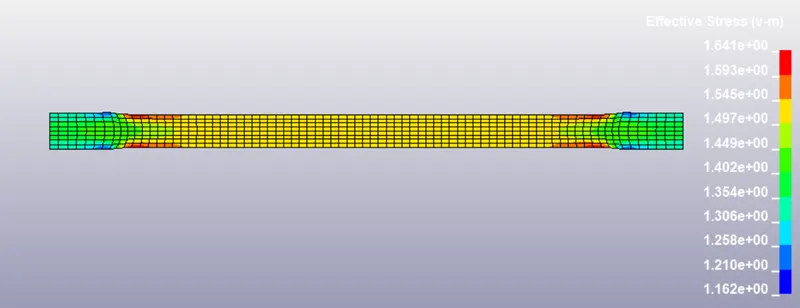

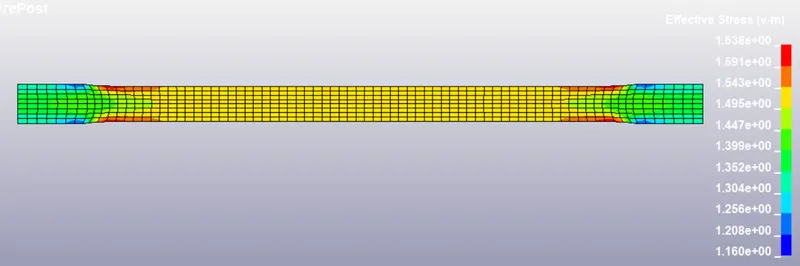

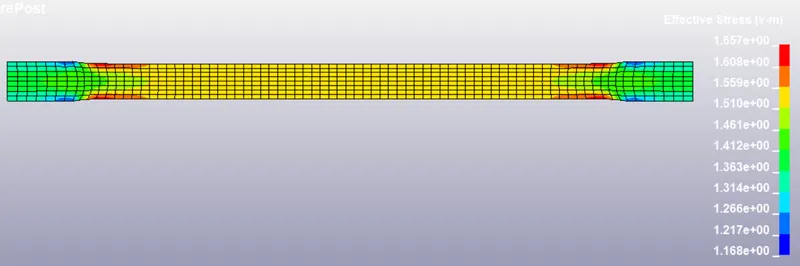

Stress Values Comparison

_________________________________________________________________________________________

Mooney-Rivlin

N=1

N=2

N=3

_________________________________________________________________________________________:

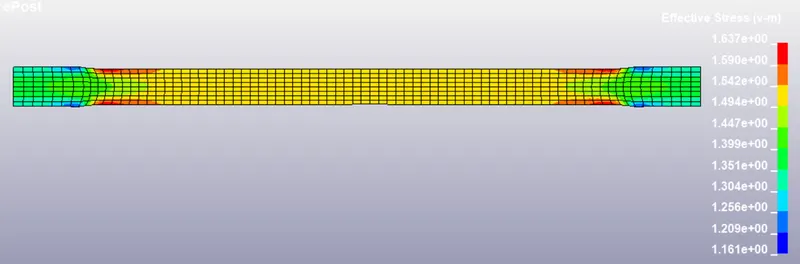

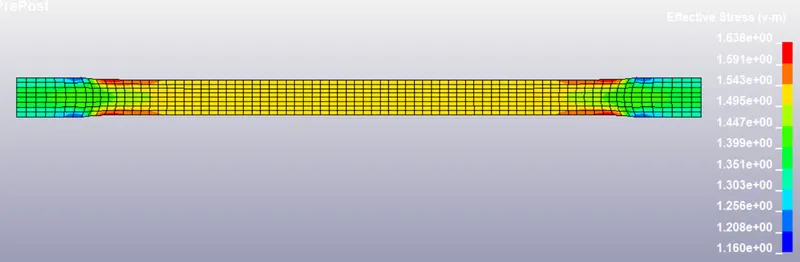

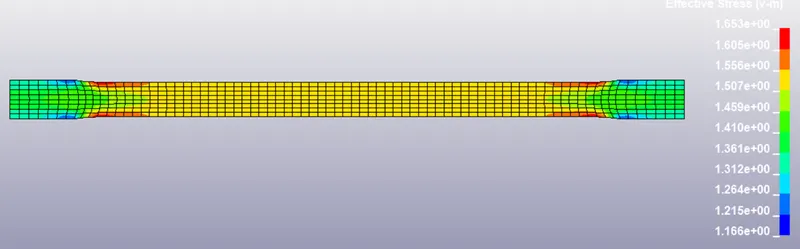

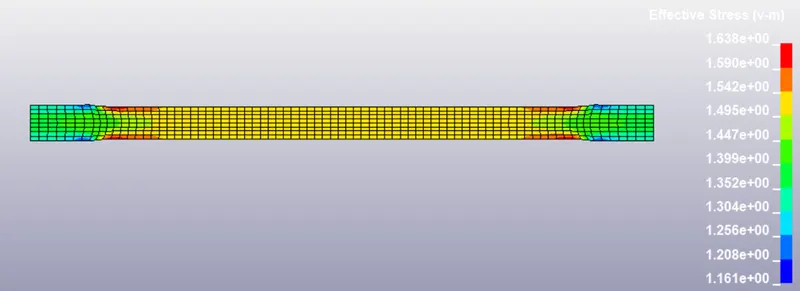

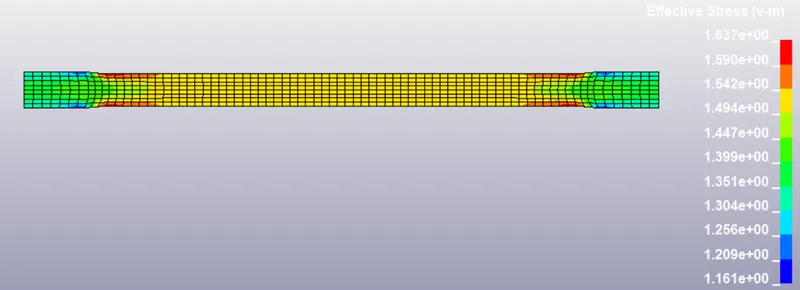

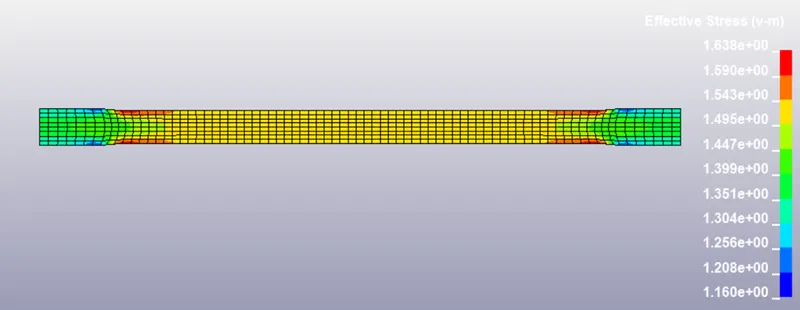

Stress values after inputing the constants back in material cards

_________________________________________________________________________________________

N=1

N=2

N=3

_________________________________________________________________________________________

Ogden Constants before using the constants in the material card

_________________________________________________________________________________________

N=1

N=2

N=3

________________________________________________________________________________________

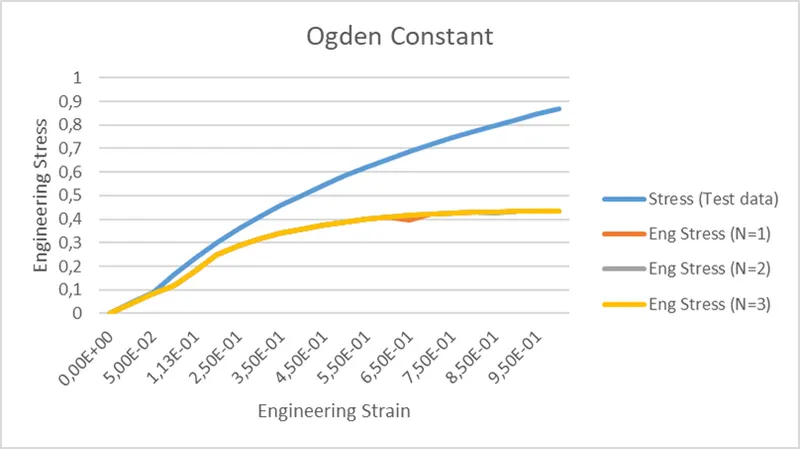

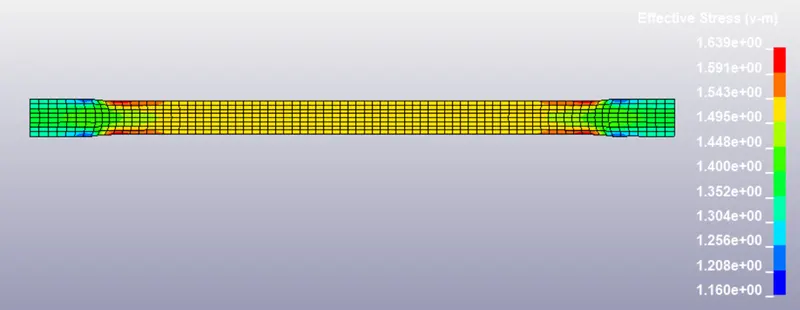

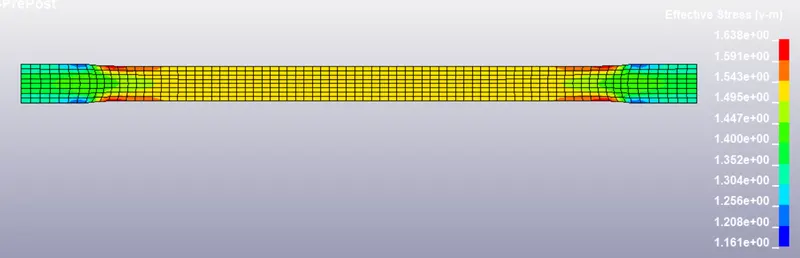

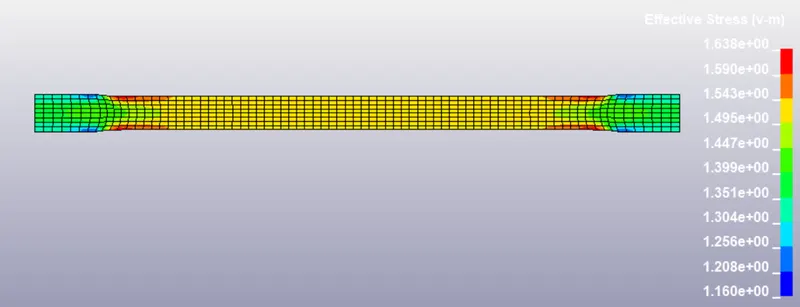

Stress comparison after using Ogden constants in material card

_______________________________________________________________________________________

N= 1

N=2

N=3

Conclusions:

We performed uniaxial tensile test using MooneyRivlin and Ogden material constants

We obtained d3hsp file and extracted constants the we used the constants back in material card and performed the simulation again.

Hyperelastic material 77H yielded better results than 77O material.

We compared the stress values which agree with each other.
