Week 10 Challenge

AIM:

Calculate the snow load accumulated in the bridge and analysis in STAAD pro softwer.

GIVEN:

• Span of the bridge is 10m .The snow is settled snow.
• The deck of bridge is flat with B <30 degree.
• The depth of accumulation of snow is 1250 mm.

PROCEDURE:

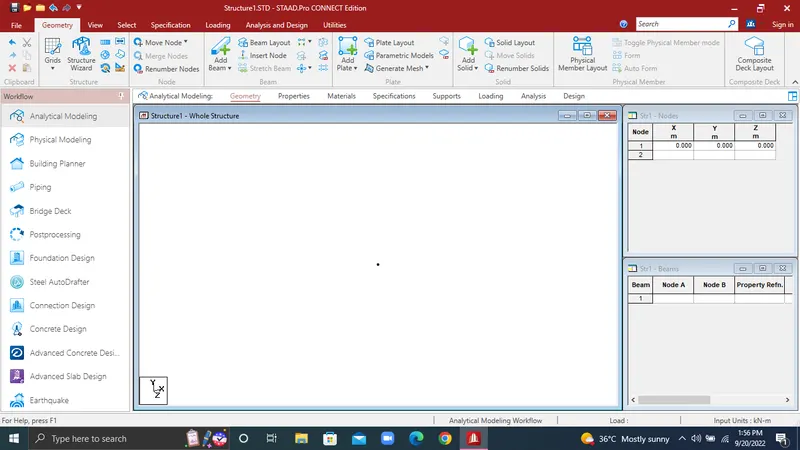

1.First creat a node

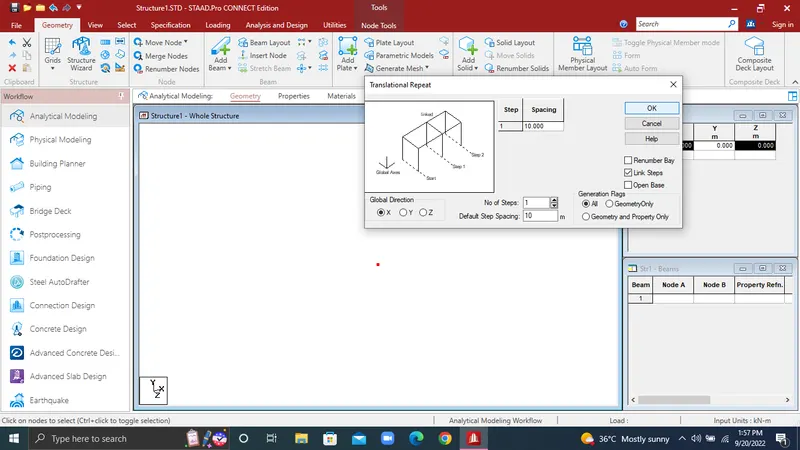

2.Selected the node use translation reputing command X direction one step 10m spacing

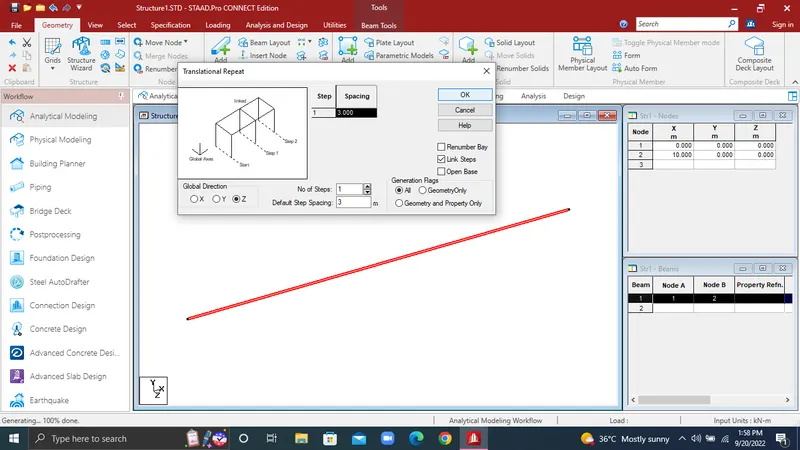

3.To select the beam use traslation reputing command Z direction one step 3m spacing link steps

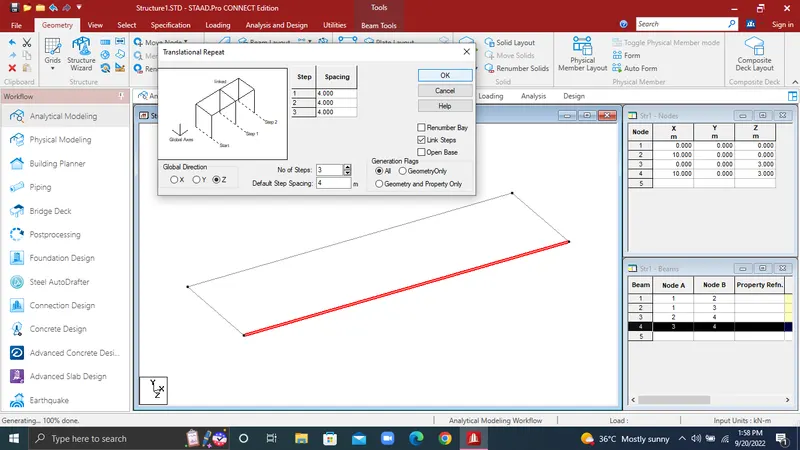

4.Next select the beam 3 steps 12m spacing use reputing command

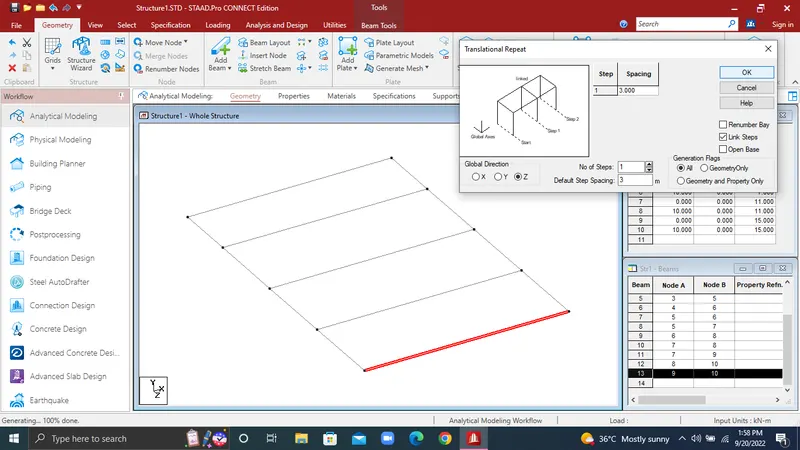

5.select the last beam reputing command 3m spacing

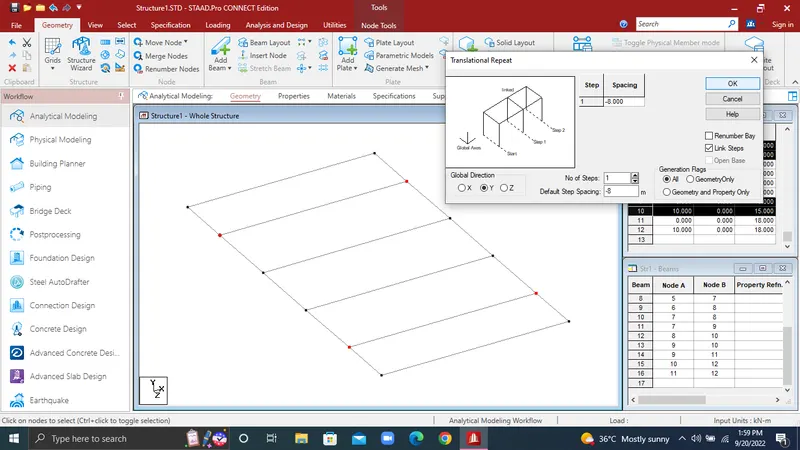

6.Select the four node show in screen short reputin command Y direction -8m spacing and link steps

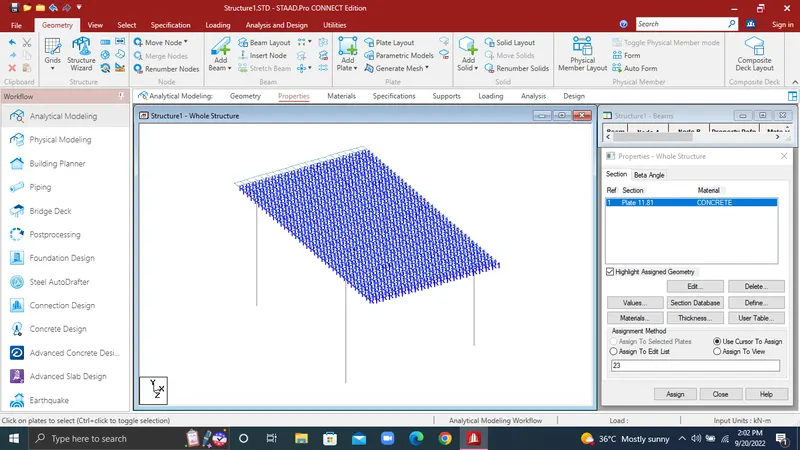

7.And then creat the plate in 0.5m spacing, select the plate reputin in X direction 19 steps

8.Select the plats and then reputing command in Z direction 35steps in 0.5m spacing

9.Creat a plats in Y direction 1.5m spacing

10.Select the plats Use reputing command in Z direction 18m spacing

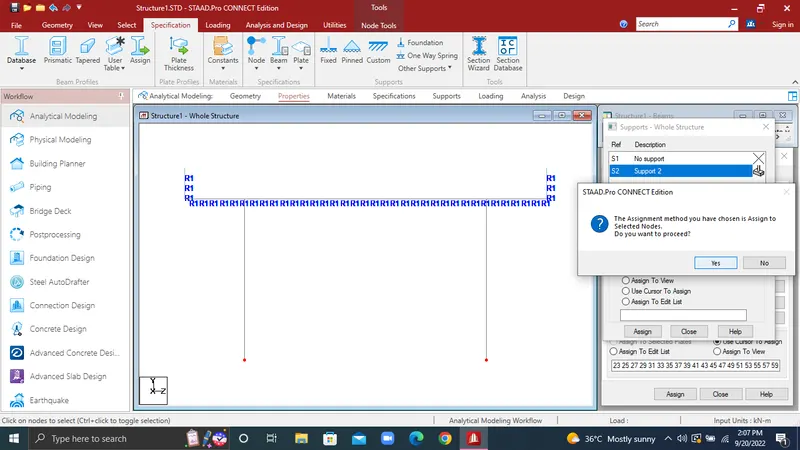

11.It is the fixed support

12.Piers size is 1m

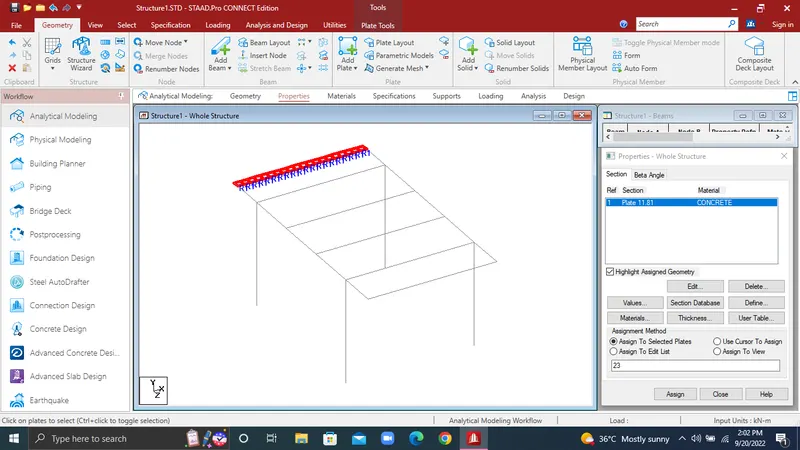

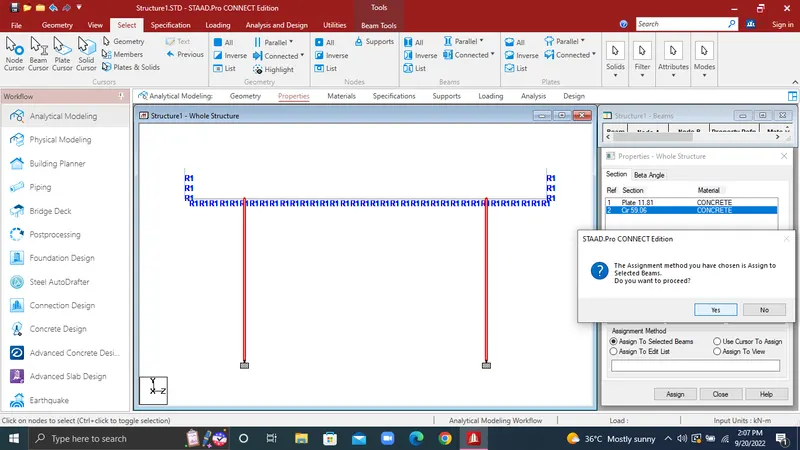

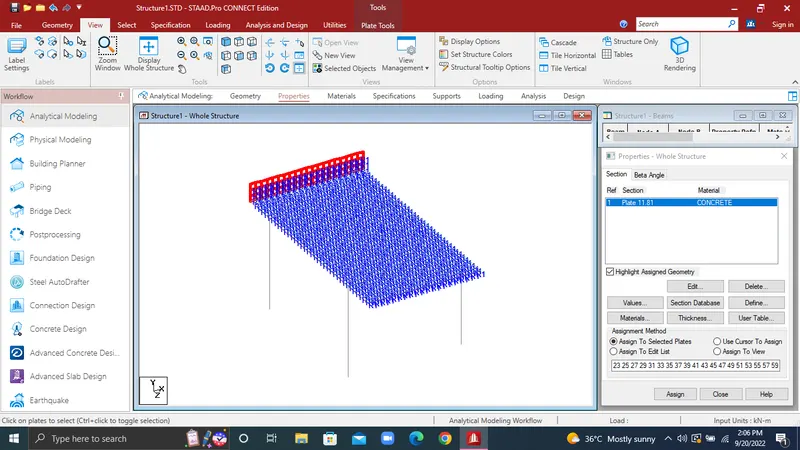

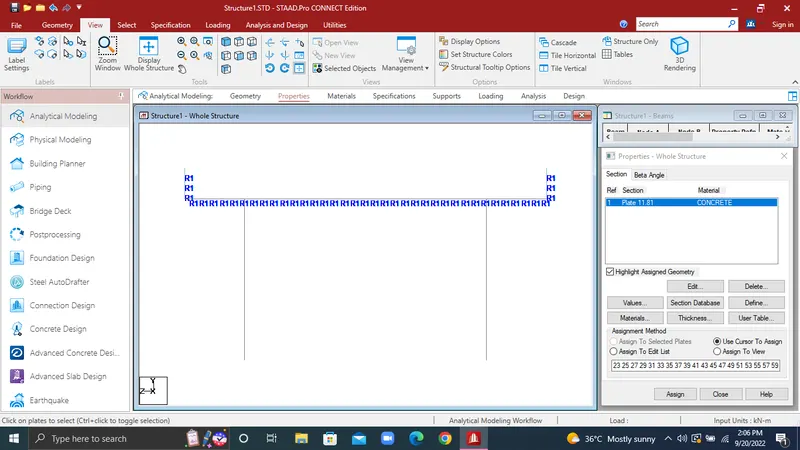

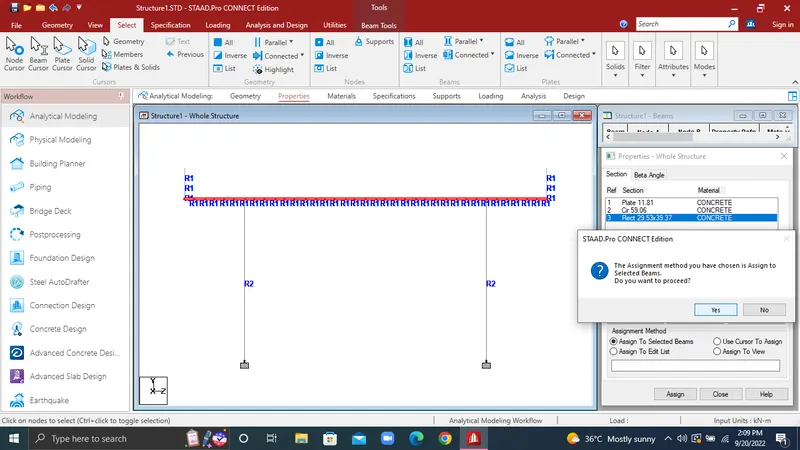

13.Beams size is 0.75m x 1m and plats thick is 0.3m

CALCULATION:

Density of wet snow = 8kN/m3

Depth of snow = 1250 mm

Span = 10m

Flat deck, angle = 0 degree

Snow load So = 8 X 1.250 X 10

= 100 kN/m

Shape coefficient from IS 875 part 4

Design snow load = 0.8 X 100

= 80 kN/m

The minimum snow load as per IRS is 9 kN/m

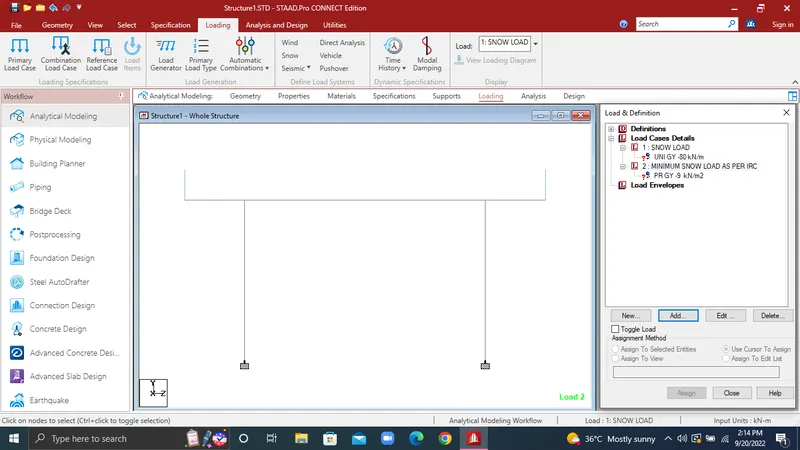

14.Next Load cases details > add > Snow load > Minimum snow load as per IRC

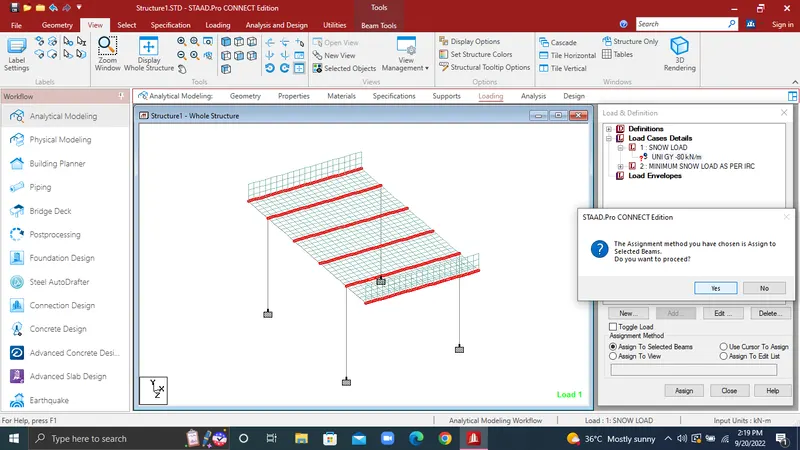

15.Snow load to be asign beams

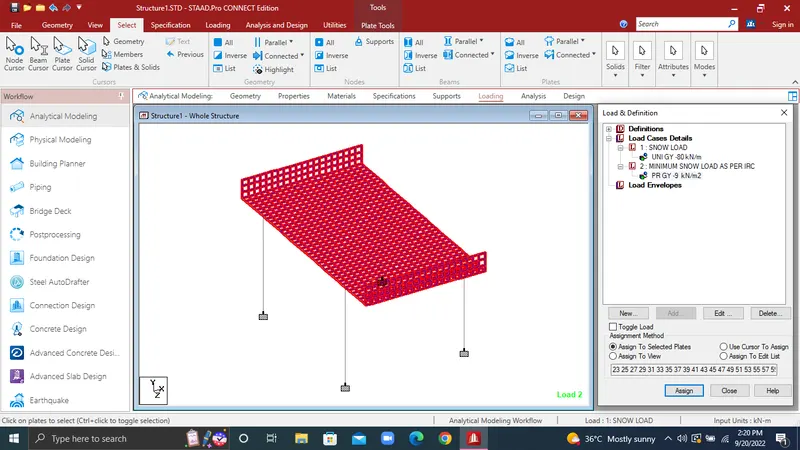

16.Minimum snow load to be asign plats

RESULTS:

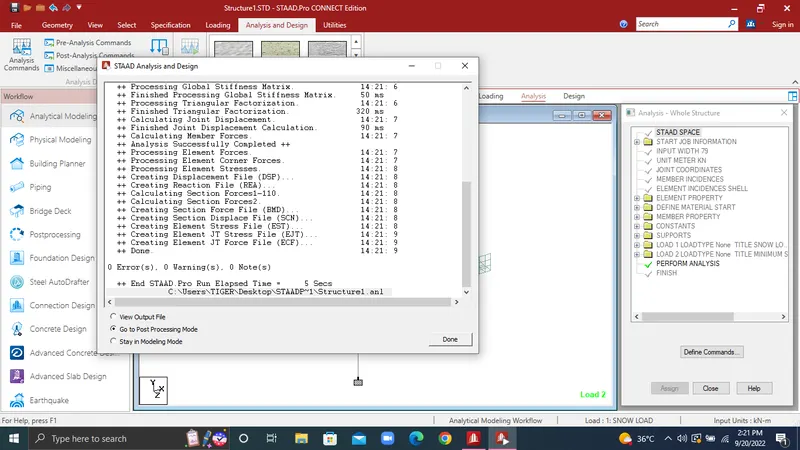

17.Go to analysis and run analysis > post processing mode

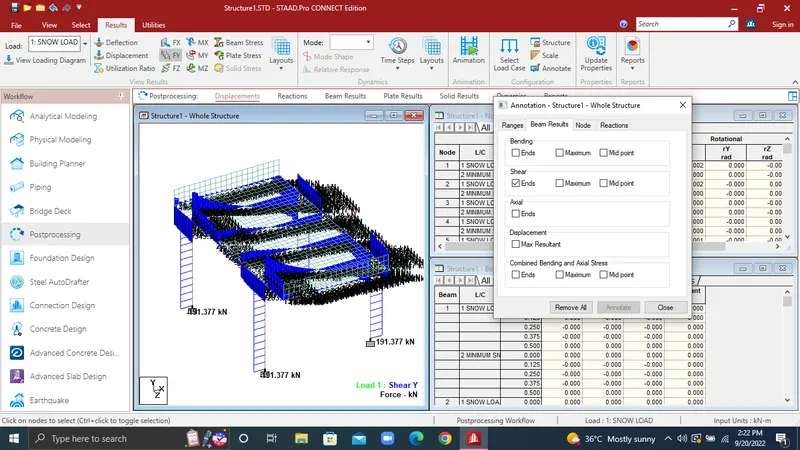

18.FY > annotated > shear > end

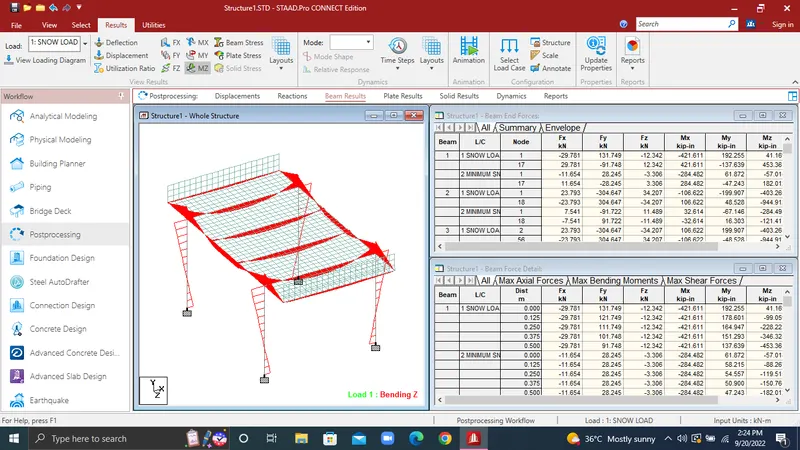

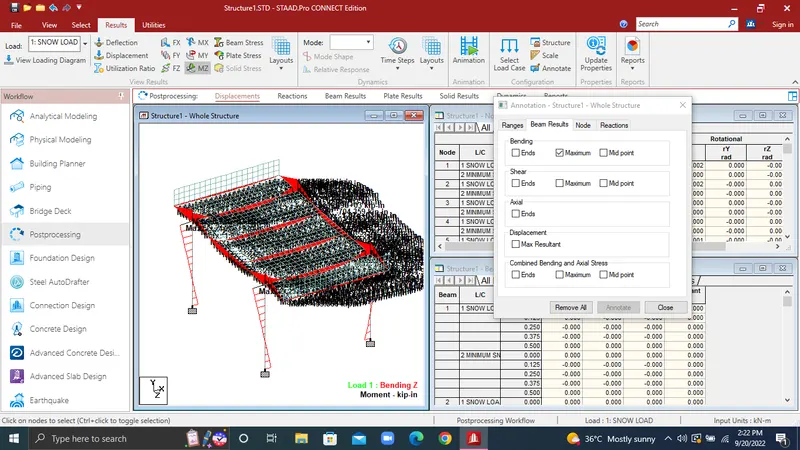

19. MZ > annotated > bending > moment

20.Plats stresses MY local

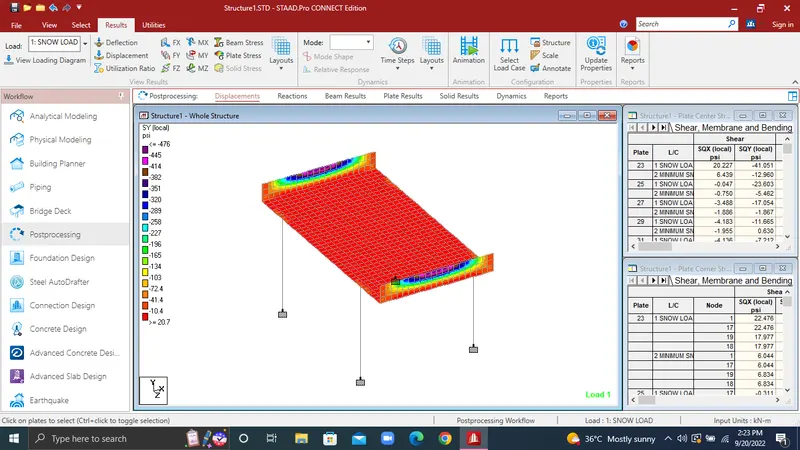

21.Plats stresses SY local

22. Beam results
