Week 10 Challenge

Given Data:-

Span of Bridge = 10 m

Desk of Bridge is Flat <30 Degree

The Depth of flat occurnuiation of snow is 1250mm

Width is 18 Mtr As Per Attach DWG

Sol:-

Snow Density =2 Kn / M3

Depth = 1.250

Degree = 30 Degree

=2*1.250*20=50 Kn

Snow Load is

= 0.8*50 = 40Kn

Open Staad Pro .

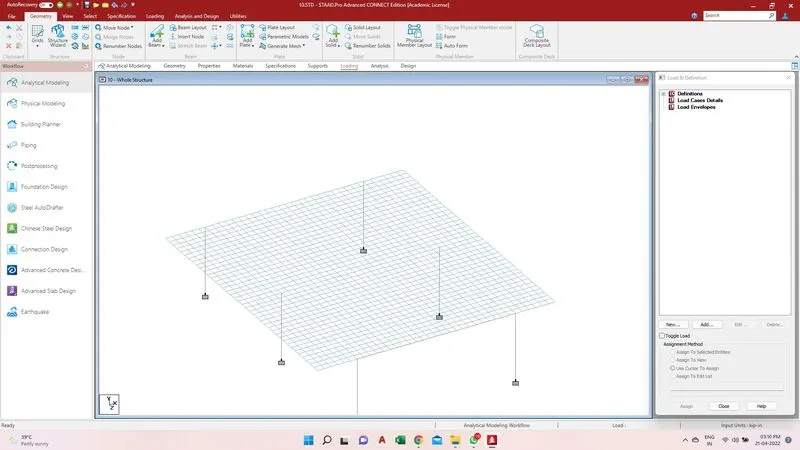

1.Draw the Span 2X10=20 Mtr

Span is 18 mtr

& Plate

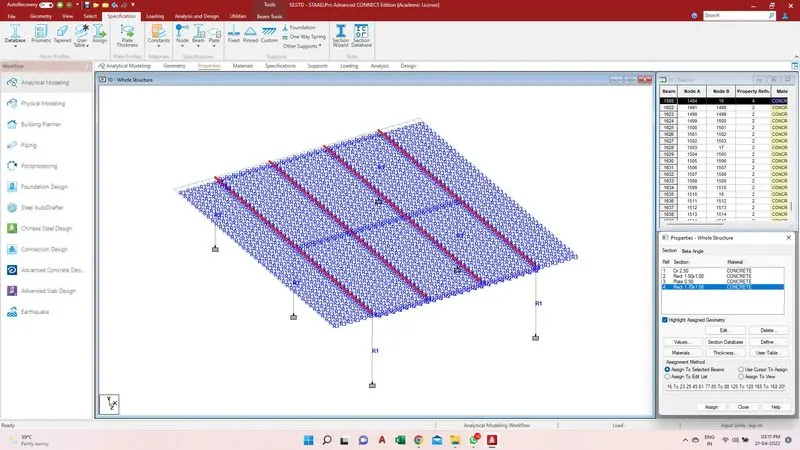

2. Assign the Property of pier , beam , plate

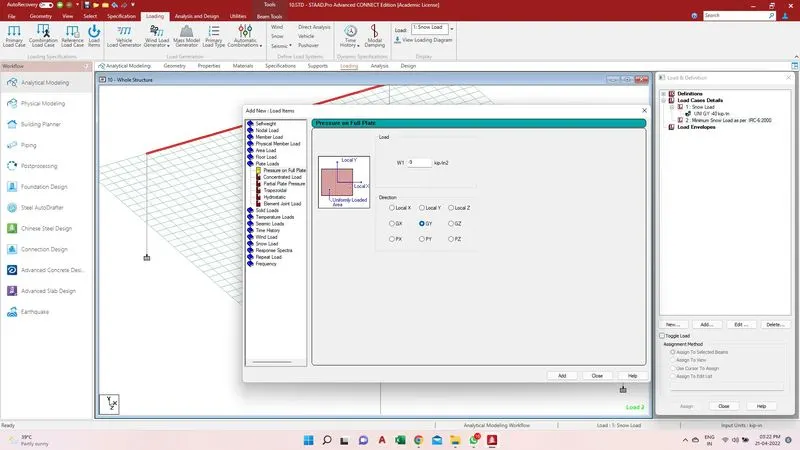

3. Going to Loading option

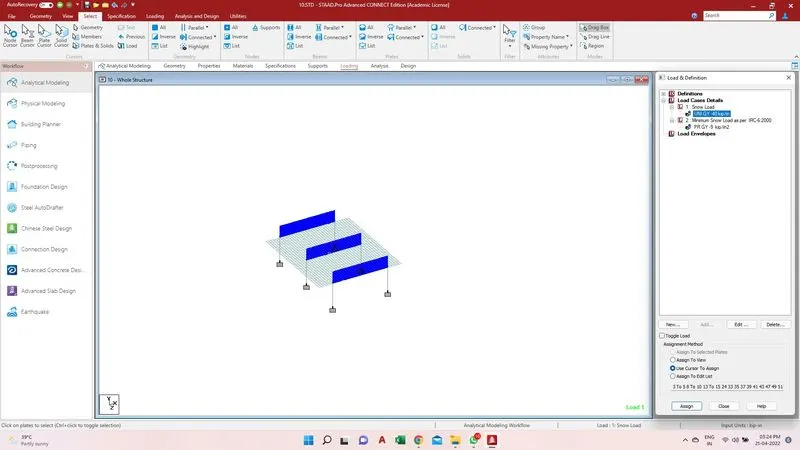

Add th snow load

4. Snow Load As per Calculaion

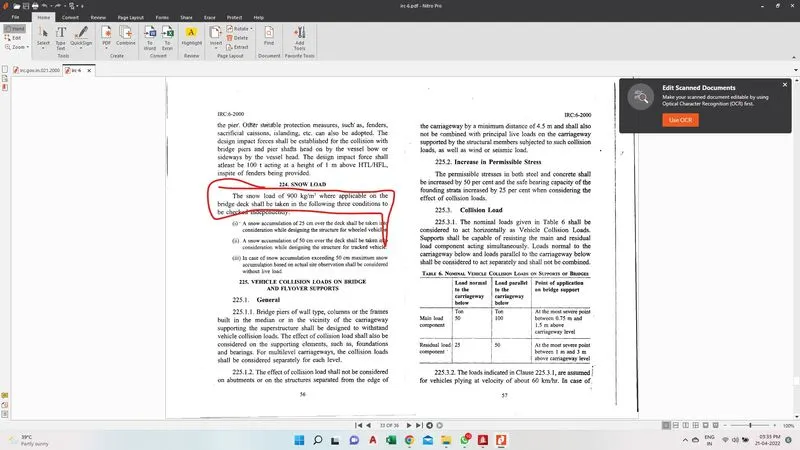

5. Snoe lOAD As per IRC:6:2000 (II Section)

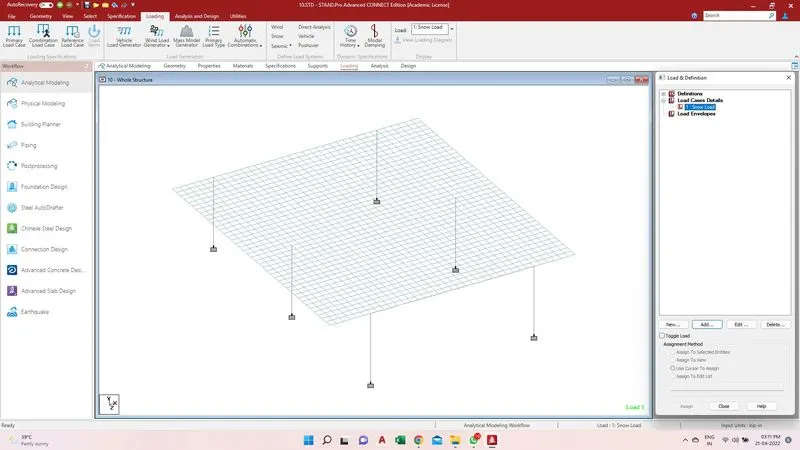

6. Snow Load As per IRC in apply in Staad pro.

7. Save the File

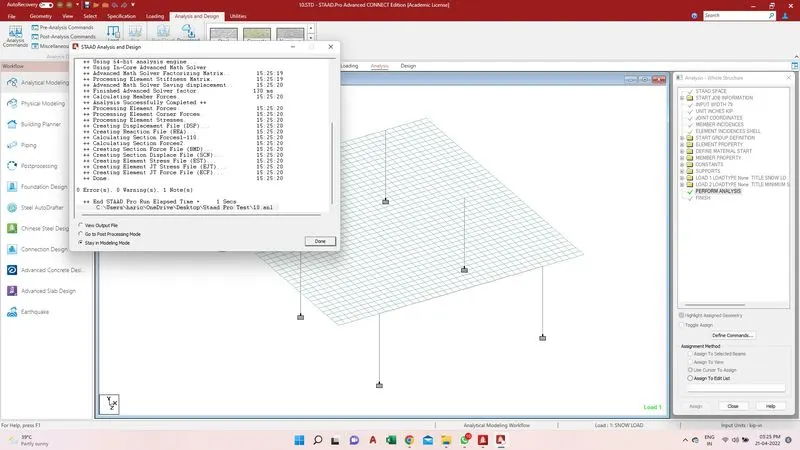

Going to Run analysis

0 Error , 0 Warring , O Notes

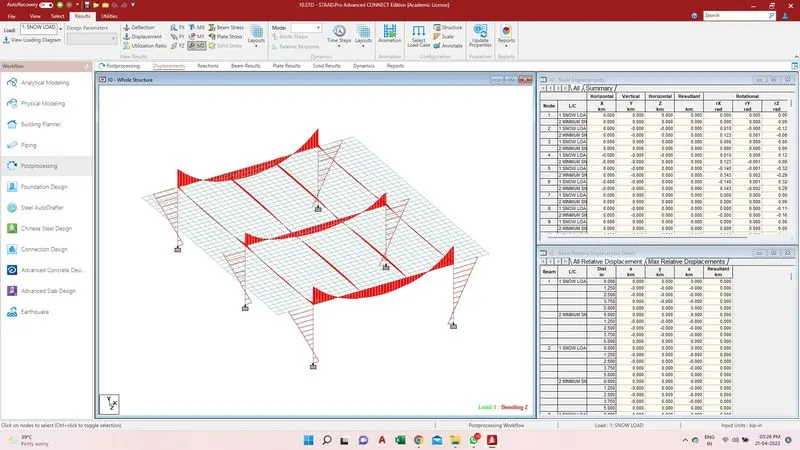

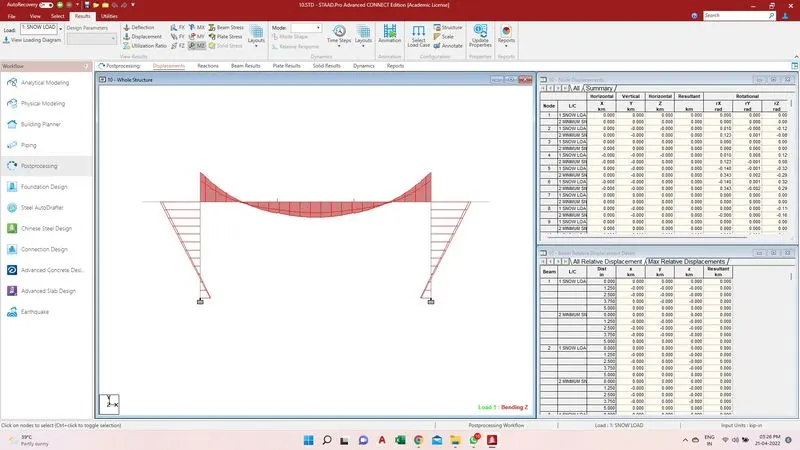

MZ Difflection

My Difflection

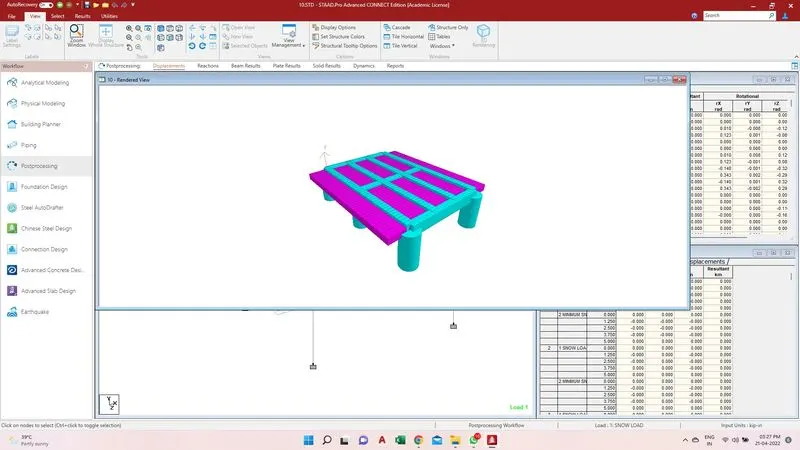

3d Model

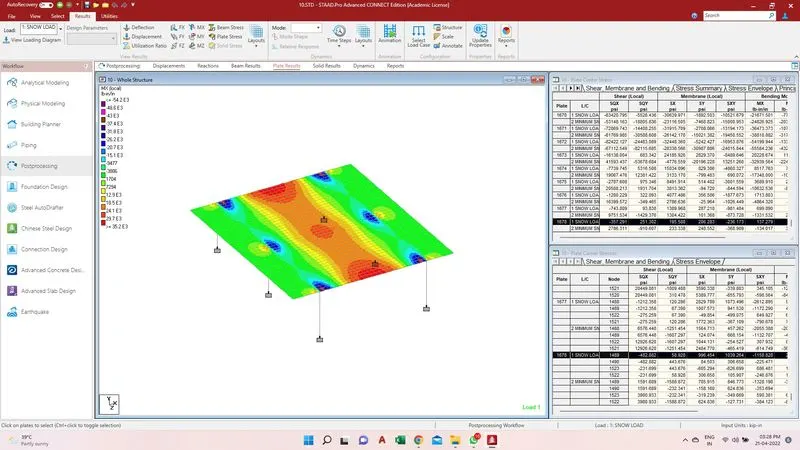

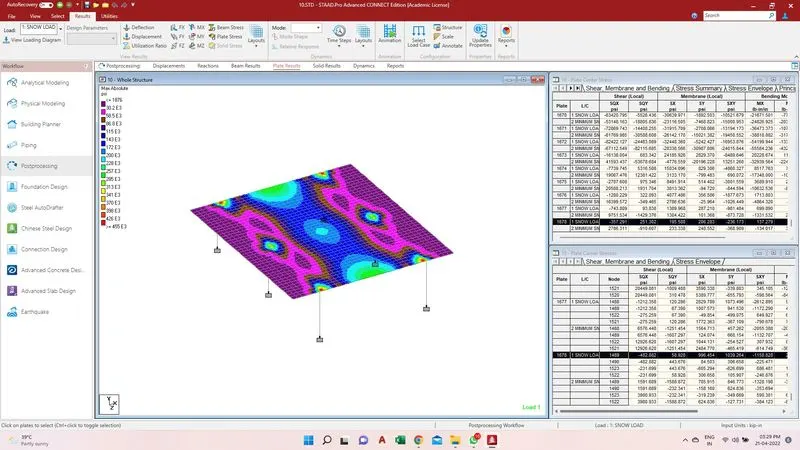

Counour MX

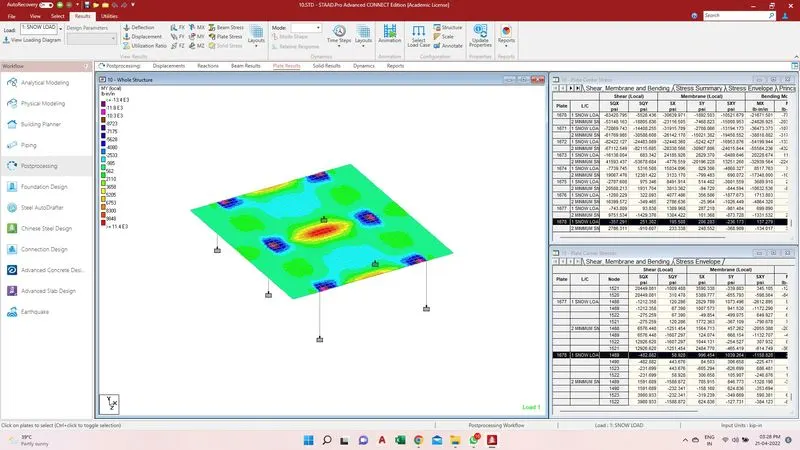

Contour MY

Top

Attach the Staad Pro File

Thank You
