Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

Dear Team,

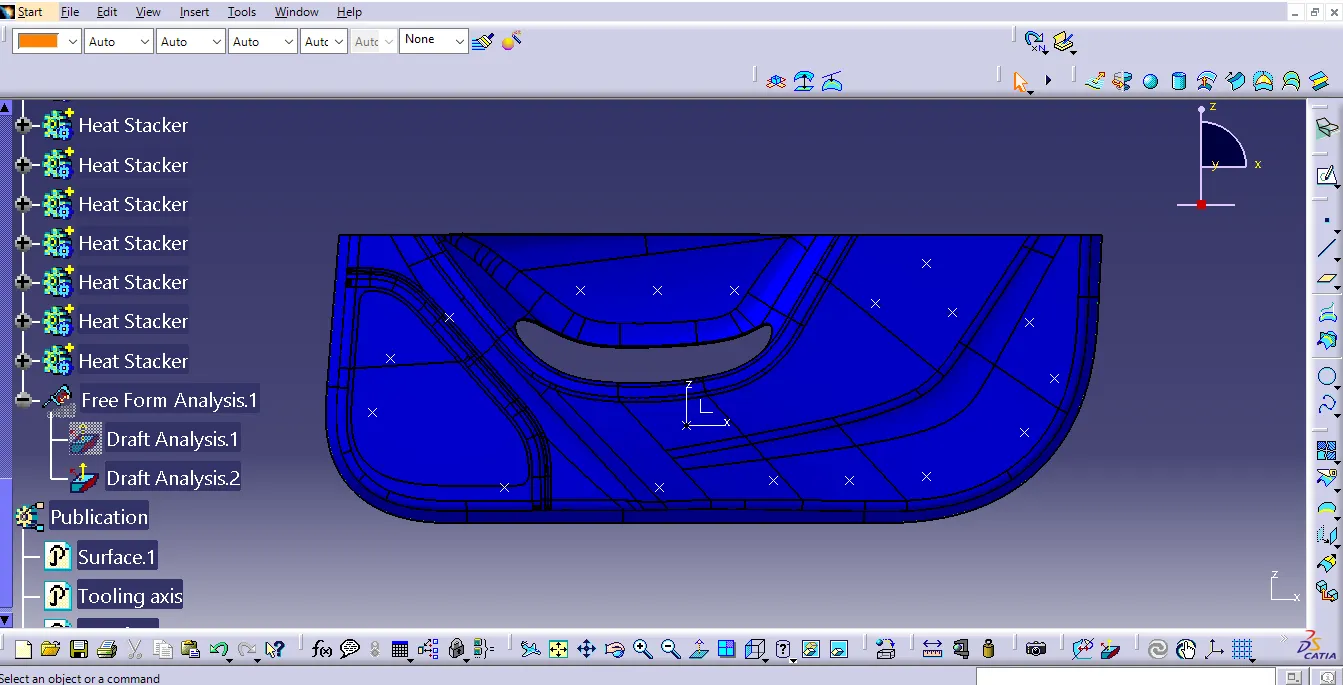

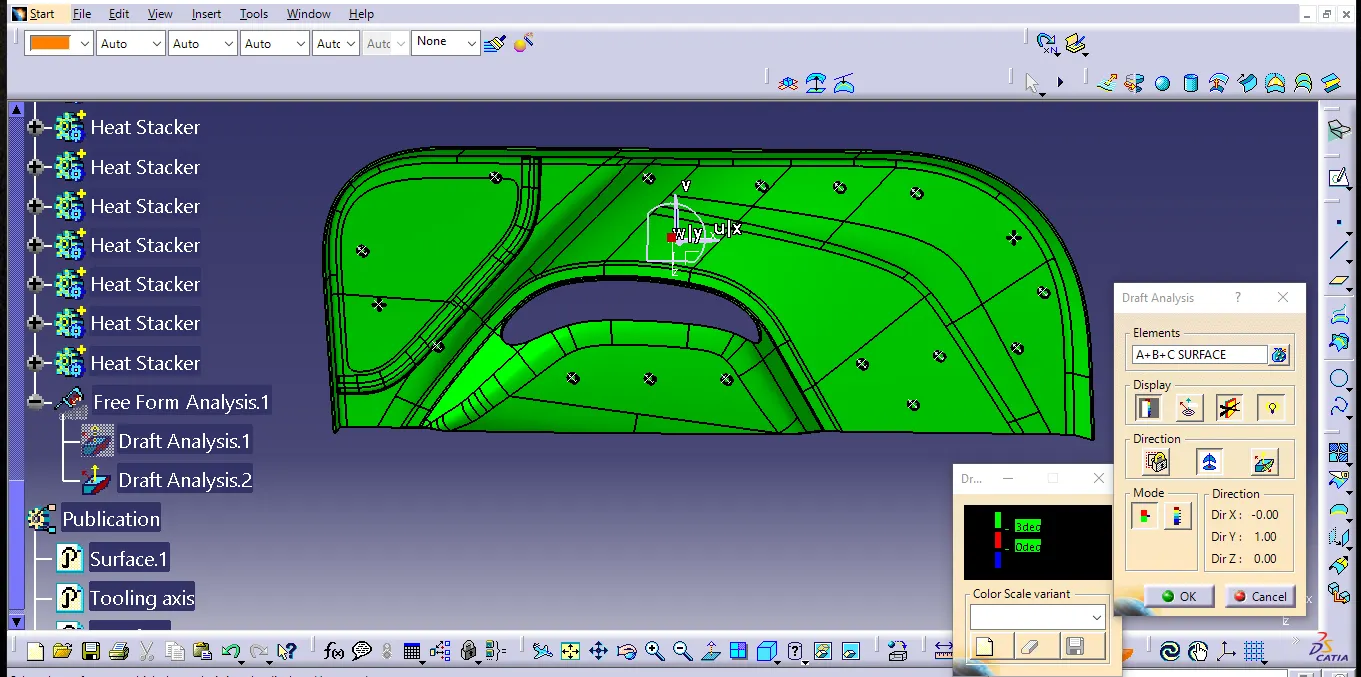

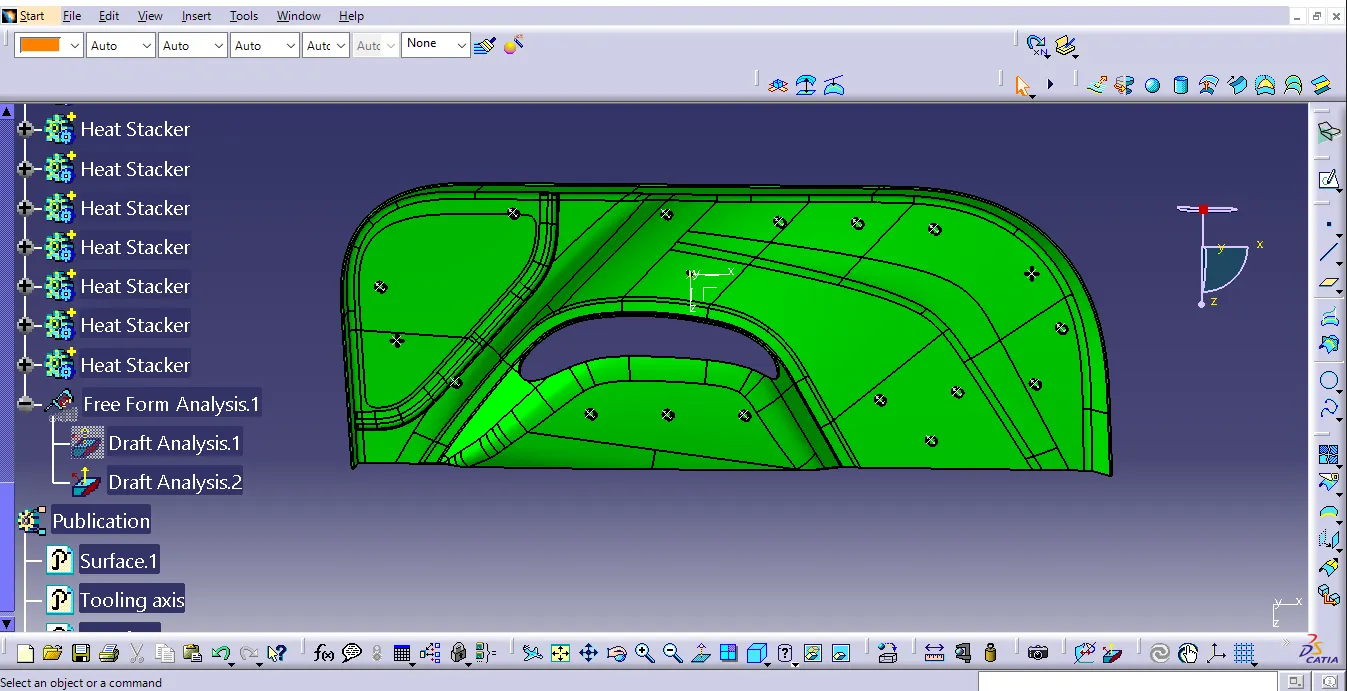

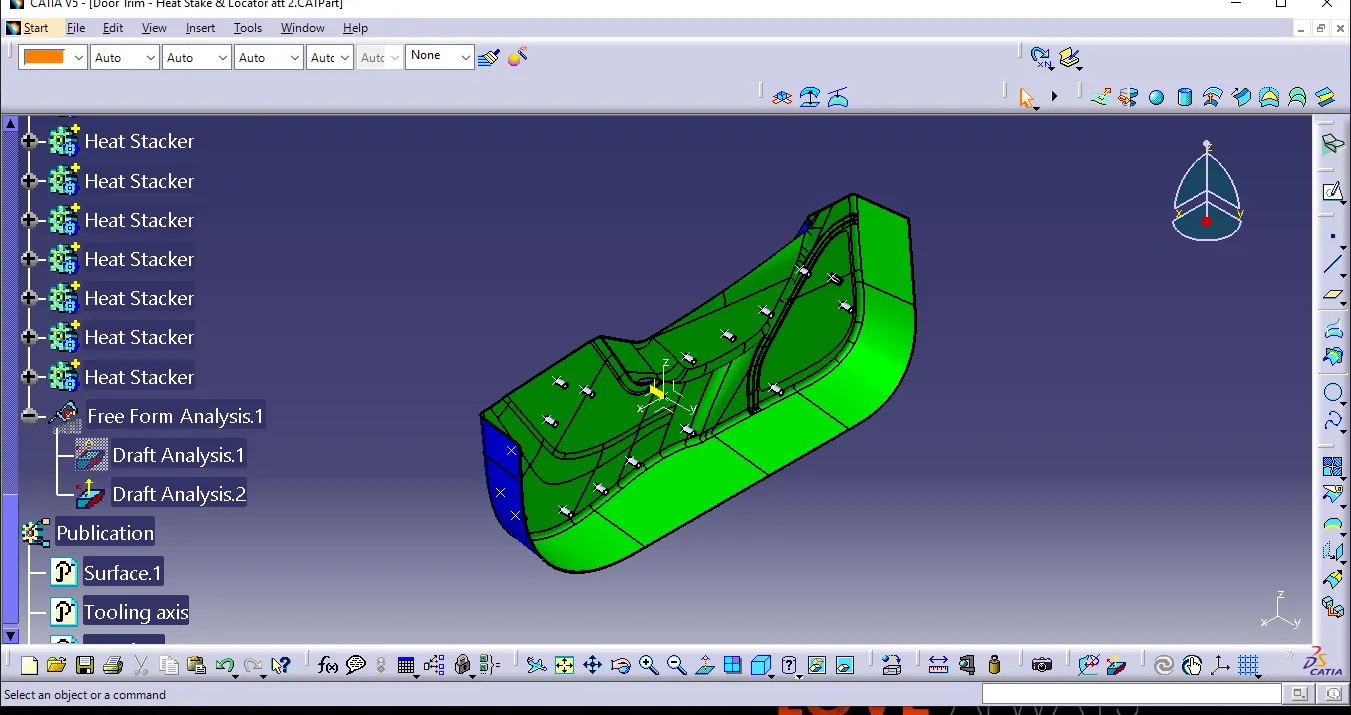

Please find the attached Images and Cat Part for your reference. I Found the Tooling axis by creating intersection. and found ok using draft analysis. After that I create a offset to 2.5 mm to create b surface and done some patch work. After I create sweep with A surface and Join with B surface to create final surface. and made it closed surface. After I create positioned sketch for Locator and made it solid by doing thickened surface. and translate it to another position. and I create positioned sketch for Heat STacker and Made translate to all other locations. finaly I done the Draft analysis which seems to be ok.
