Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

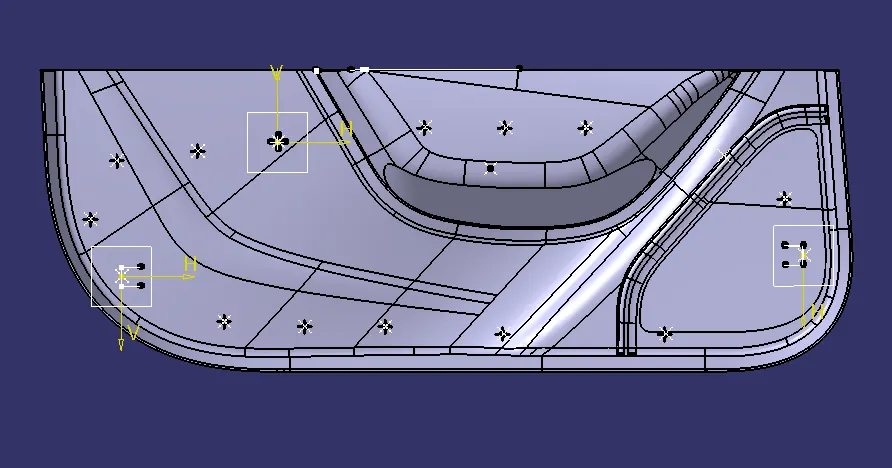

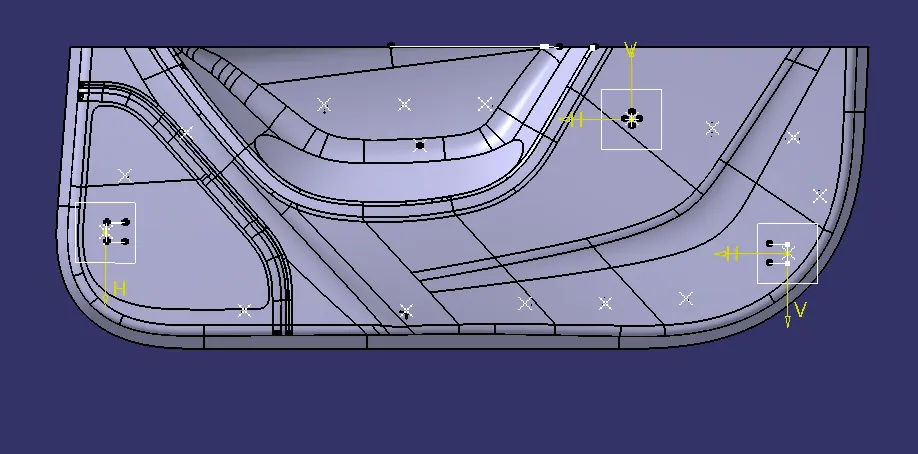

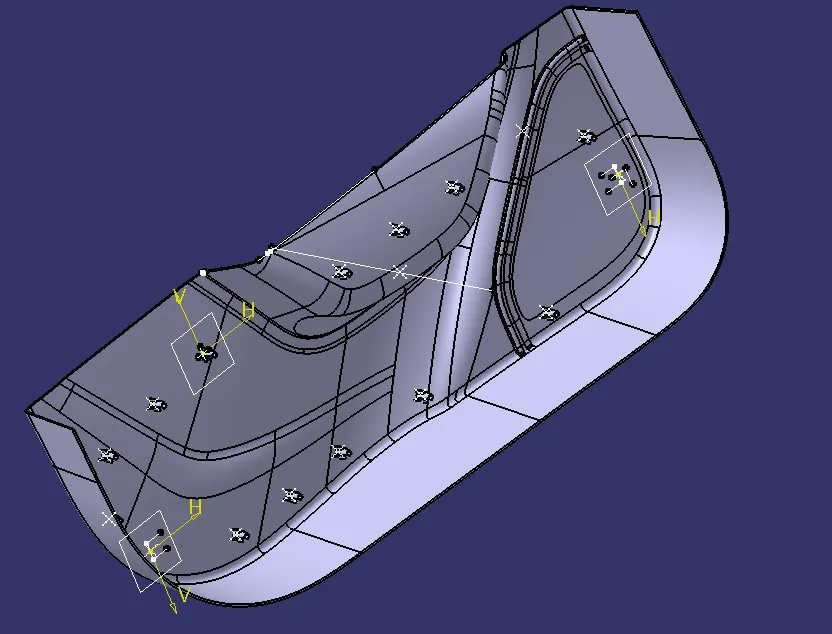

DOOR TRIM WITH HEAT STAKE AND LOCATORS

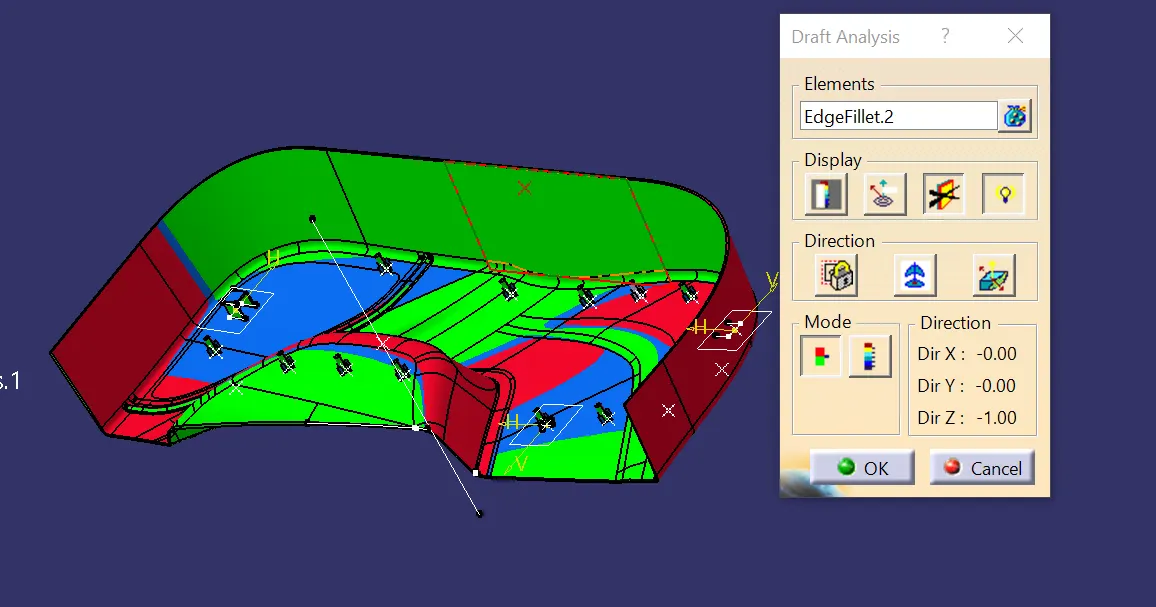

DRAFT ANALYSIS
- Draft analysis is an operation that is performed to know the draft angles of the surfaces of the Door trim and heat stake features and locator features
- The minimum draft angle is 3 degrees
- Click on insert menu and select analysis option
- Select feature draft analysis
- Select the Material option and select the surface
- Drag the compass and place it on the tooling axis
- Click on the surface and the draft analysis is occured and we can see the limit of draft values in the colour coded we given
- Click ok for completing the draft analysis
