Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

PROCEDURE DOOR LOWER TRIM :-

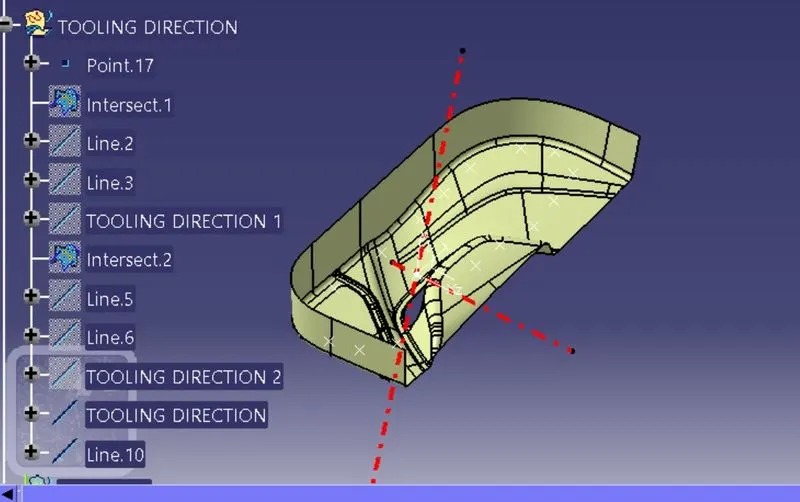

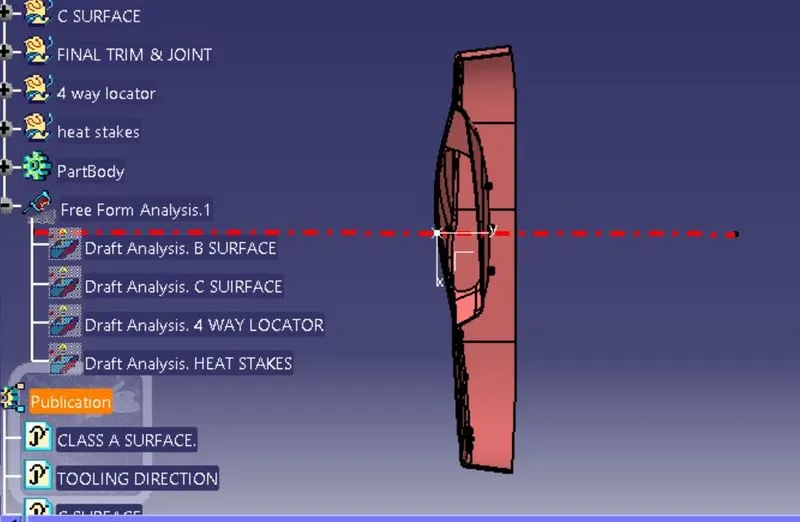

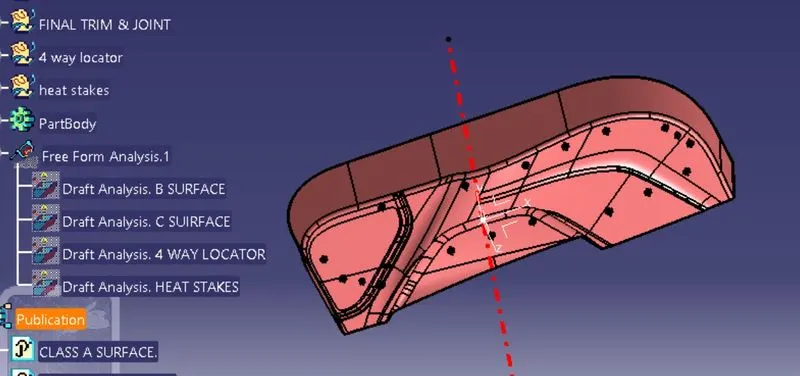

TOOLING AXIS :-

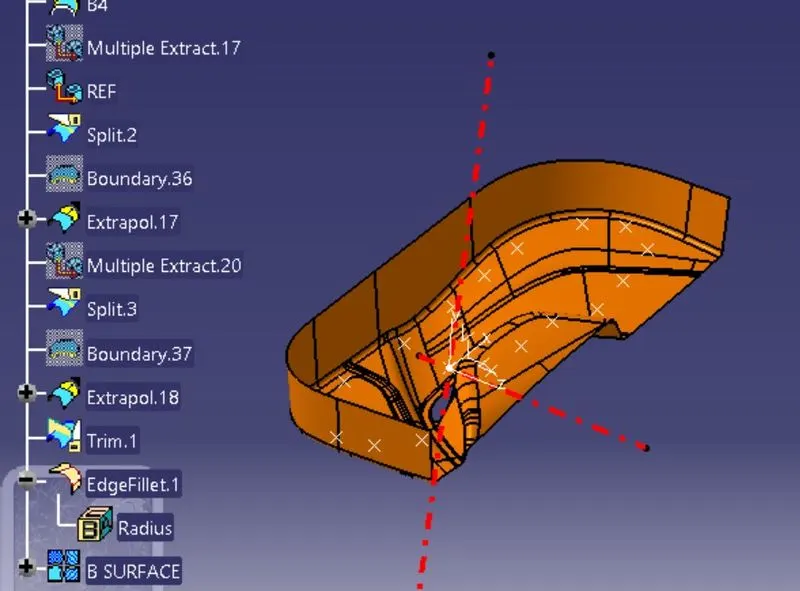

B SURFACE:-

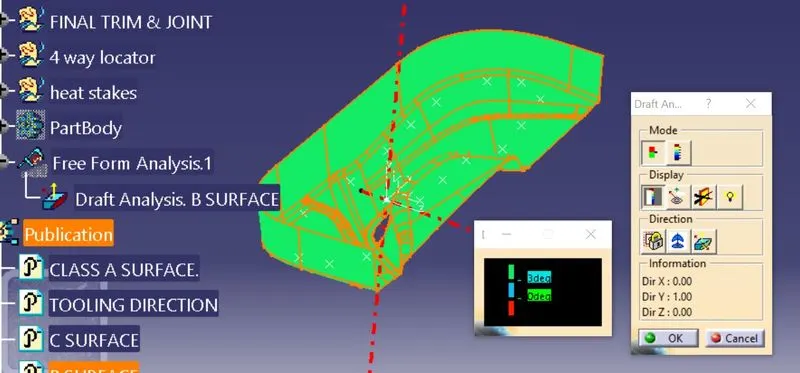

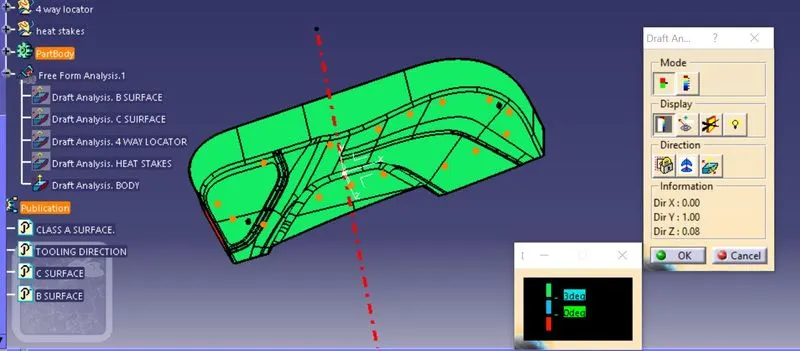

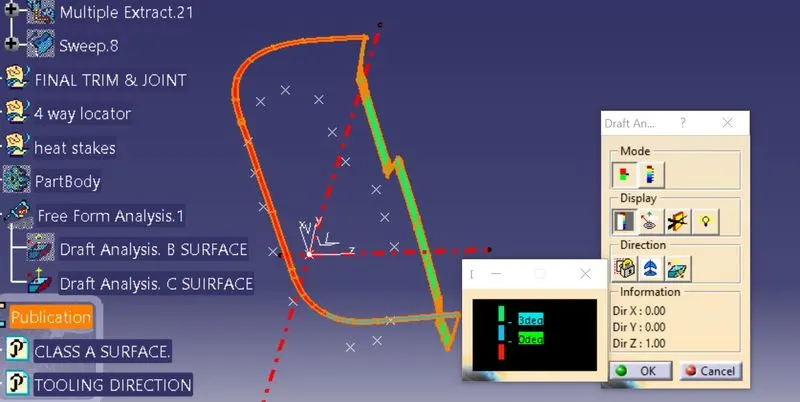

DRAFT ANALYSIS:-

DRAFT ANGLE > 3 Degree

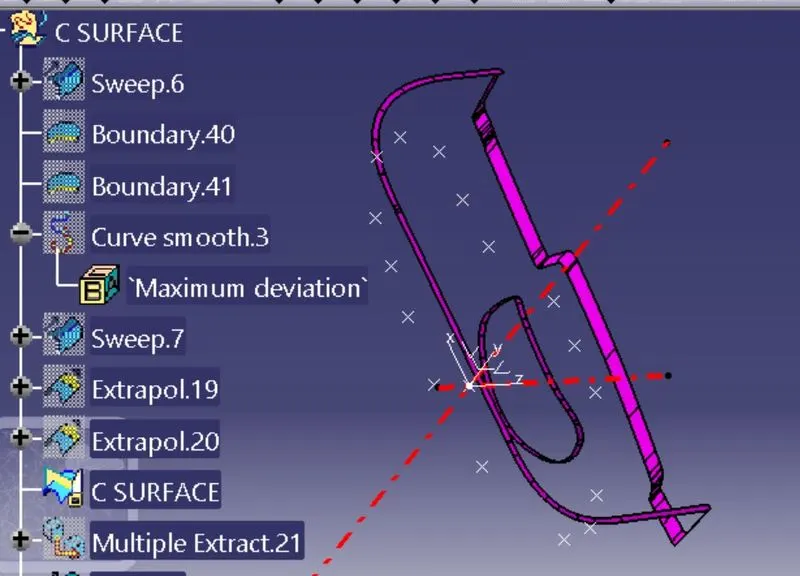

C SURFACE:-

DRAFT ANALYSIS:-

DRAFT ANGLE < 3 Degree

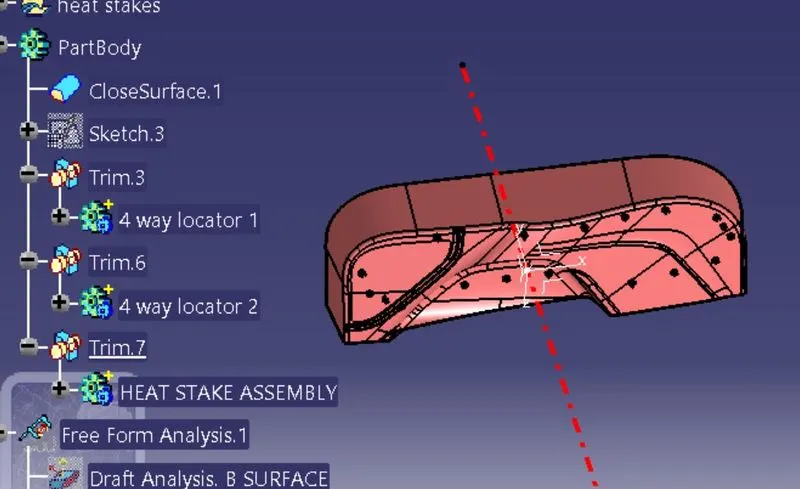

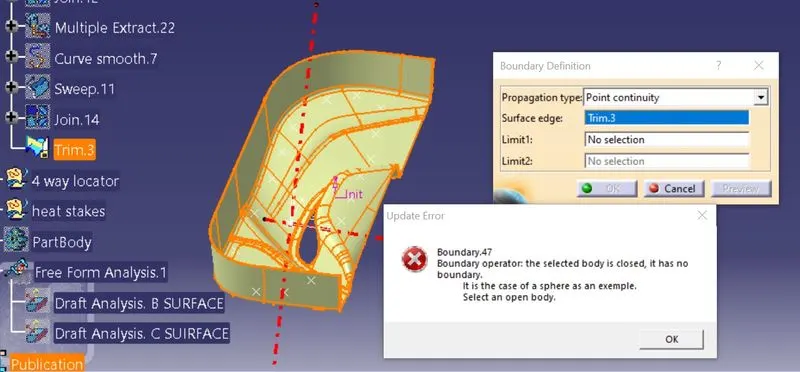

CLOSED SURFACE:-

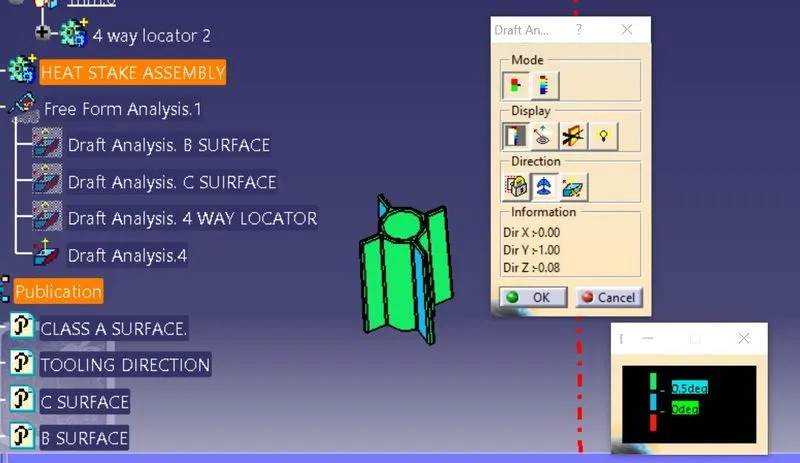

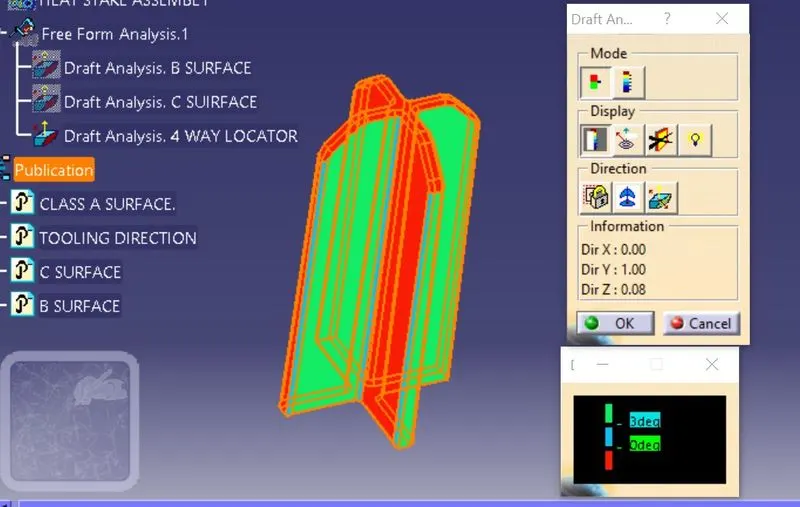

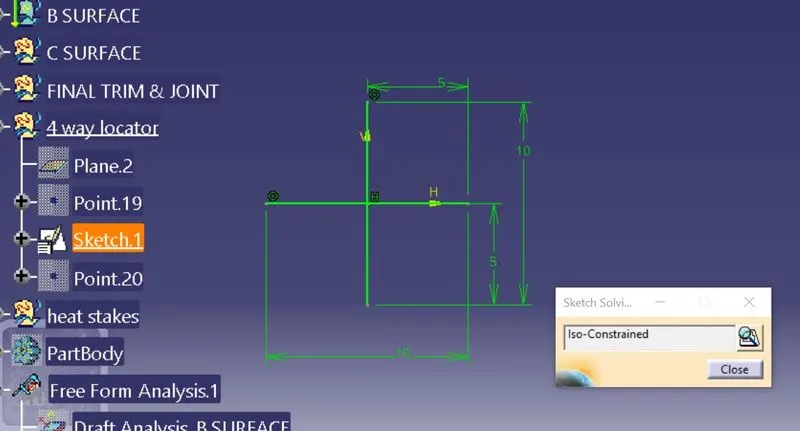

4 WAY LOCATOR :-

Thickness t= 1.25mm

Draft Angle = 0.5 Degree

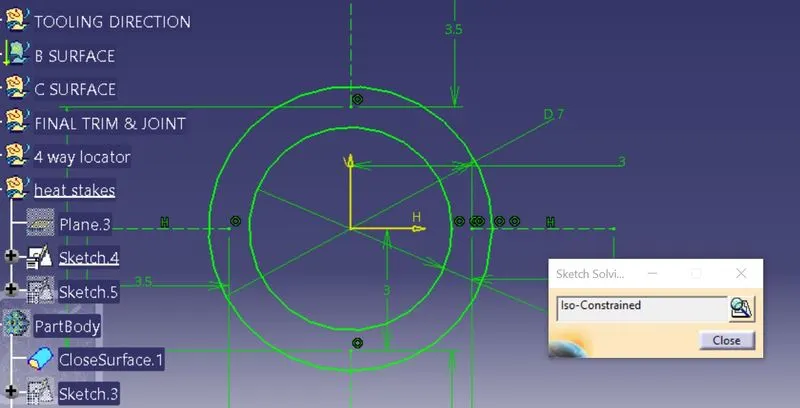

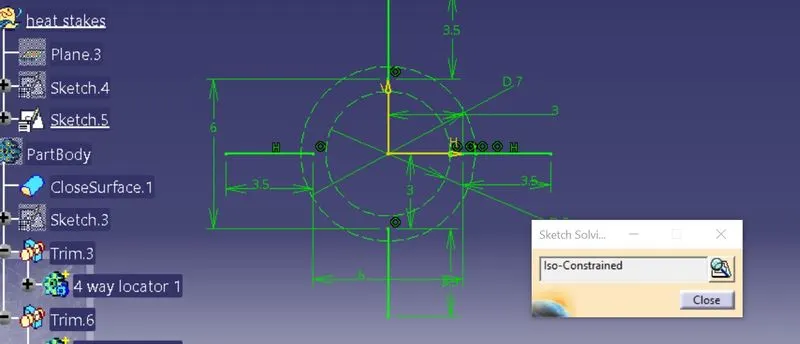

HEAT STAKES :-

D = 7mm

d= 5mm

Draft Angle = 0.5 Degree

BODY :-

Thickness T=2.5mm

Draft angle > 3 degree

TREE STUCTURE

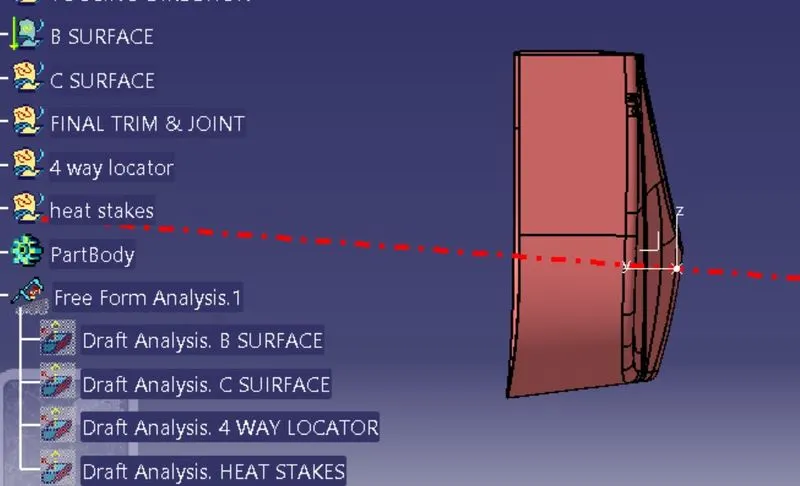

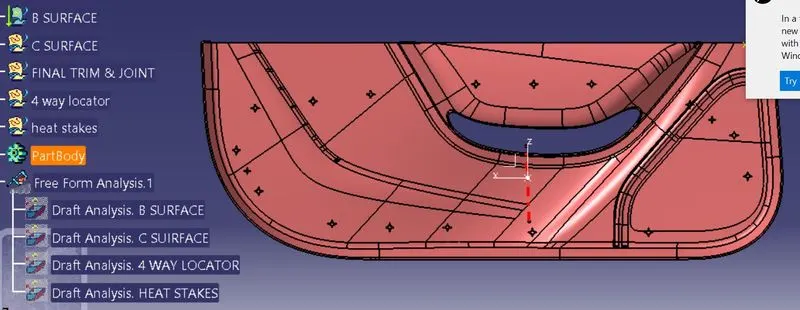

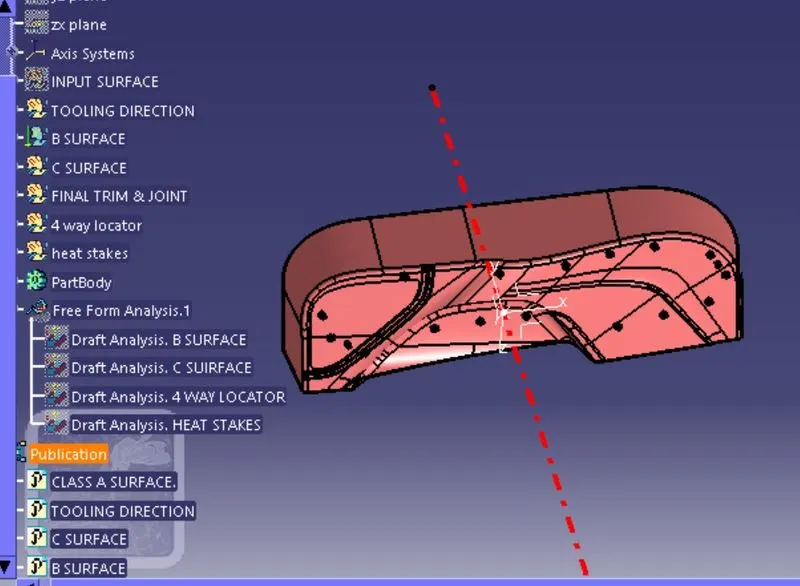

ALL VIEW
