Week 10 - Challenge 3 - Door Trim Lower with Engineering Features
Part Views :-

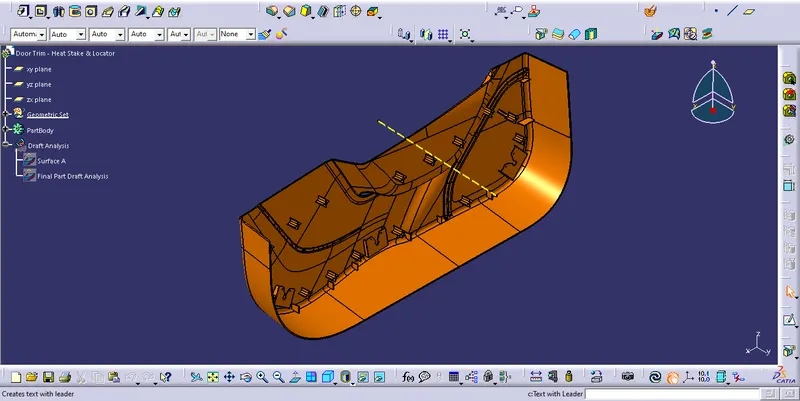

Isometric View

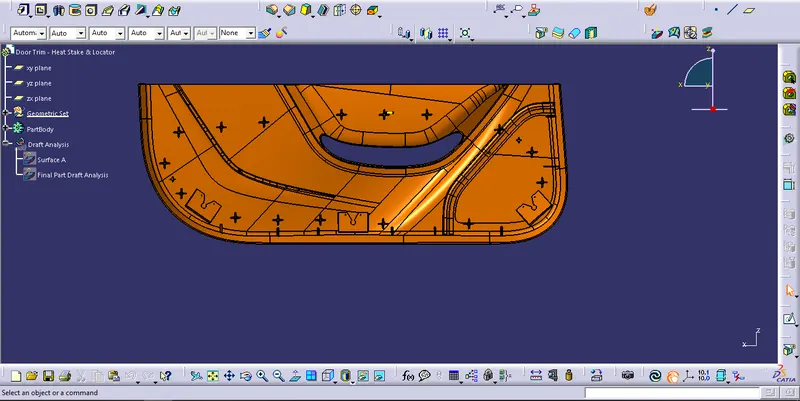

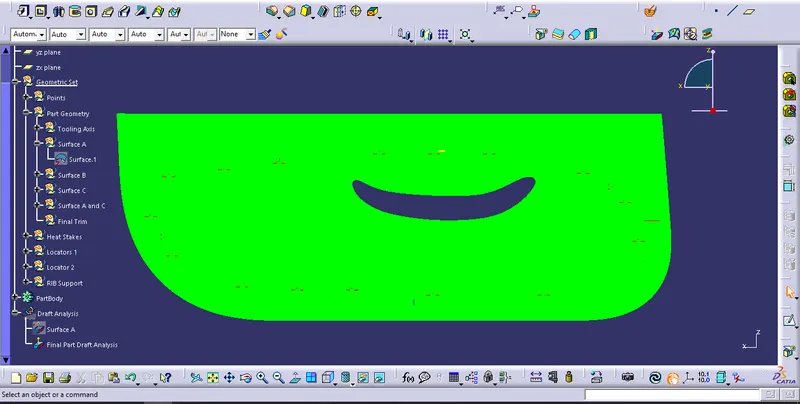

Front View :-

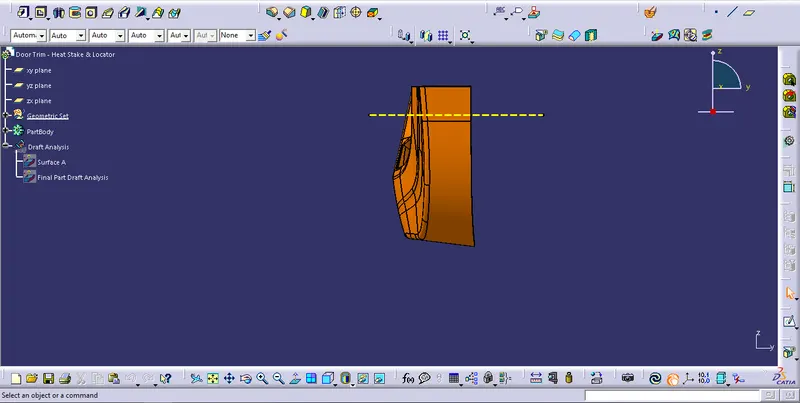

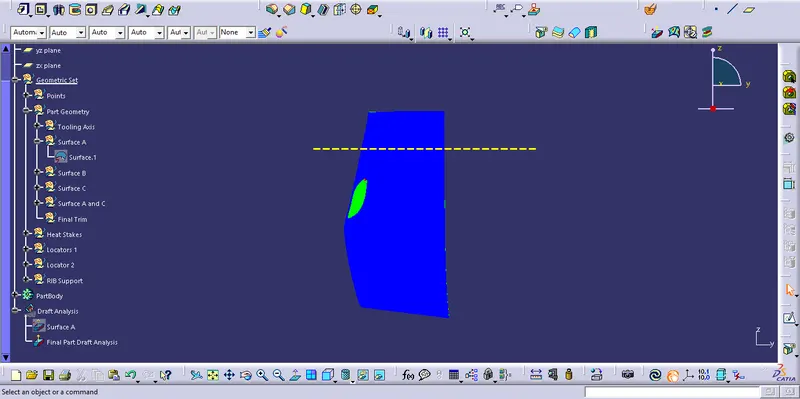

Side View :-

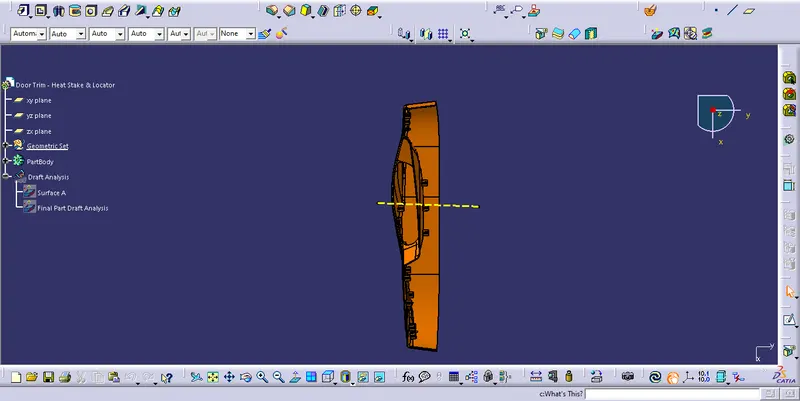

Top View :-
Draft Analysis
- For draft analysis first creates tooling axis which is parallel most appropriate surfaces.
- In draft analysis draft angle is considered 2.9 Degree for suitable result.

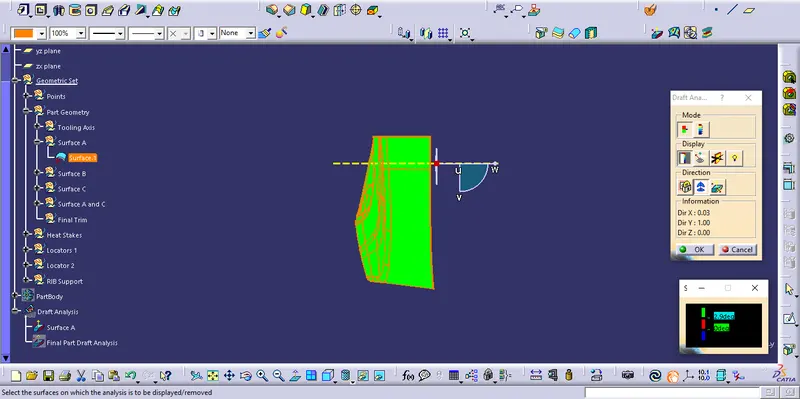

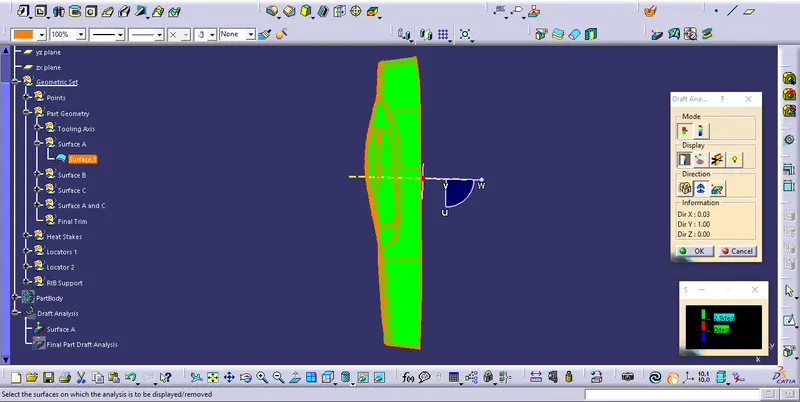

Surface A Analysis

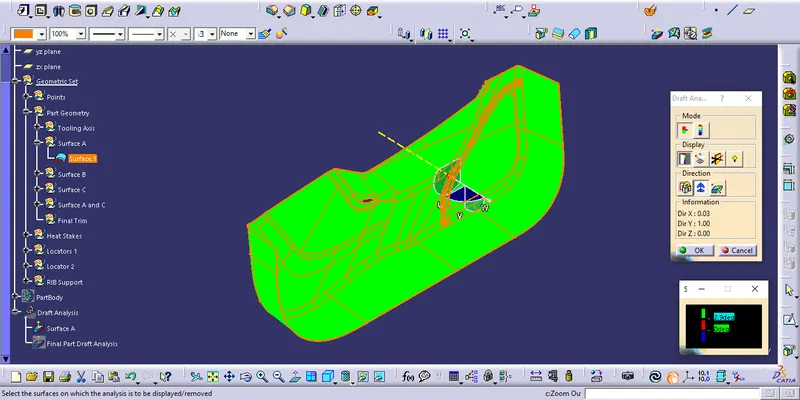

Isometric View

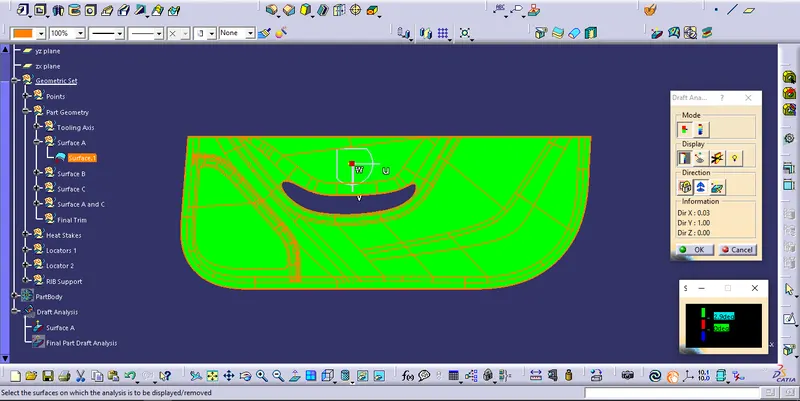

Front View
Side View
Top View

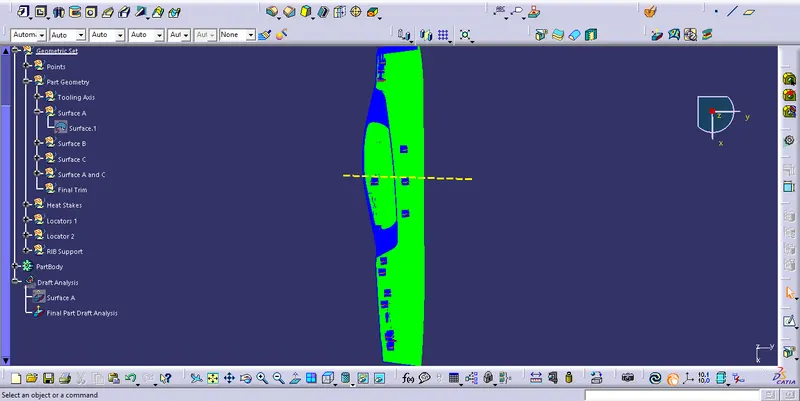

Part Analysis

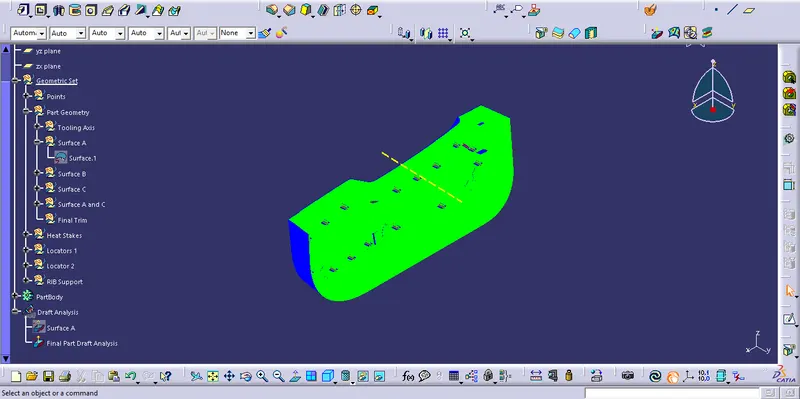

Isometric View
Front View
Side View
Top View
- In some area like screw bose and its supporting surface is showing negative draft due to smaller draft angle. While others are in range of 0 to 2.9 Degree draft angle.
