Week 10 - Challenge 3 - Door Trim Lower with Engineering Features
REPORT:
TOOLING AXIS:
I CREATED A POINT ON THE CLASS A SURFACE, THROUGH THAT POINT I CREATED LINE PERPENDICULAR TO THE SURFACE. I MADE PERPENDICULAR LINE AS TOOLING AXIS 1.
THEN I CREATED A SECOND LINE PERPENDICULAR TO THE TOOLING AXIS 1 AND I NAMED IT AS TOOLING AXIS 2.
DRAFT ANALYSIS:

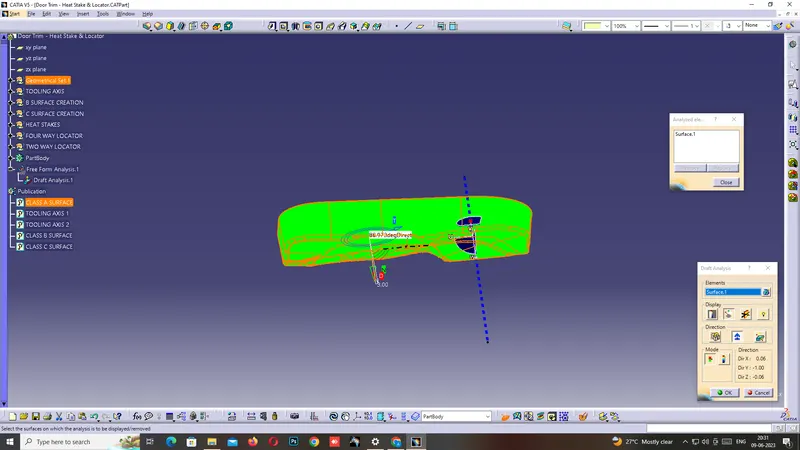

I DONE THE DRAFT ANAYSIS IN CLASS A SURFACE. FIRST OF ALL I GOT THE DRAFT ANALYSIS COMMAND IN THE PART BODY. THEN I INSERTED THE COMPASS IN THE DRAFT ANALYSIS TO THE TOOLING AXIS. I DONE THE ANALYSIS AND I VERFIED THE ANGLE WITH THE RUNNING POINT ANALYSIS.

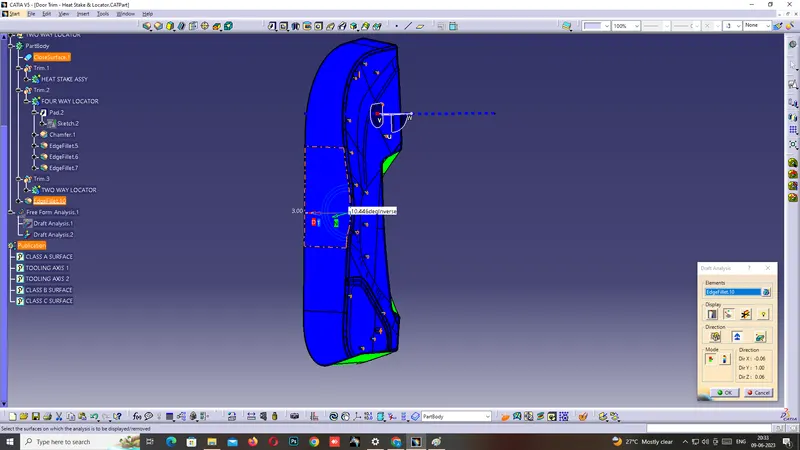

I DONE THE DRAFT ANAYSIS IN PART BODY. FIRST OF ALL I GOT THE DRAFT ANALYSIS COMMAND IN THE PART BODY. THEN I INSERTED THE COMPASS IN THE DRAFT ANALYSIS TO THE TOOLING AXIS. I DONE THE ANALYSIS AND I VERFIED THE ANGLE WITH THE RUNNING POINT ANALYSIS.
B SURFACE CREATION:
I OFFSETTED THE CLASS A SURFACE INSIDE FOR 3MM. THEN I REPAIRED THE PATCHED WITH THE HELP OF TOOLS LIKE MULTIPLE EXTRACT, BOUNDARY CREATION, TRIM AND EDGE FILLETS. IN SOME AREAS I USED THE EXPOLATE COMMAND TO ENLARGE THE PARTICULAR AREA OF THE SURFACE.
THEN AFTER SOME ALTERATIONS THE SURFACE CAME TO AN END. I NAMED IT AS CLASS B SURFACE.
C SURFACE CREATION:
I EXTRACTED THE BOUNDARY OF THE CLASS A SURFACE. THEN WITH THE HELP OF TOOLING AXES 1 AND 2, I SWEEP THE BOUNDARIES. I SWEEPED THEM WITH REFERANCE SURFACE AND SOME BOUNDARIES WITH DRAFT DIRECTION.
THEN I NAMED THE SWEEPED SURFACES AS CLASS C SURFACE.

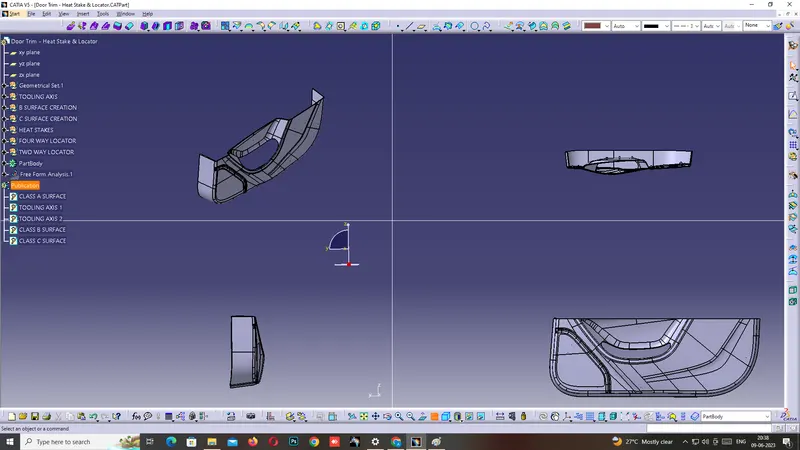

PARTBODY:
I TRIMMED THE CLASS B SURFACE AND CLASS A SURFACE TOGETHER. I GOT NEW SURFACE. THEN I MADE IT AS CLOSED SURFACE WITH THE HELP OF CLOSE SURFACE COMMAND. FINALLY IT IS A PART BODY.
FOUR WAY LOCATOR:
I CREATED A PLANE THROUGH ONE OF THE HEAT STAKES POINT. THEN I CREATED A SKETCH IN THE PLANE WITH THE HELP OF LINE COMMAND.THEN I PAD IT TO CERTAIN DIMESION AND I THICKENED IT. I NAMED THE THICKENED SURFACE AS FOUR WAY LOCATOR. THEN I UNION TRIM THE FOUR WAY LOCATOR WITH PART BODY. THEN I CHAMFERED THE WITH ENTRY CHAMFERS AND FILLED TO PARTICULAR RADIUS.
TWO WAY LOCATOR:
I CREATED A PLANE IN ONE POINTS IN RIGHT SIDE OF THE PART BODY. I CREATED A SKETCH IN THE PLANE WITH THE HELP OF LINE COMMAND. THEN I PAD IT TO CERTAIN DIMENSION AND I THICKENED IT. I NAMED THE THICKENED SURFACE AS TWO WAY LOCATOR. THEN I UNION TRIM THE TWO WAY LOCATOR WITH PARTBODY. THEN I CHAMFERED THE WITH ENTRY CHAMFERS AND FILLED TO PARTICULAR RADIUS.
HEAT STAKES:
I CREATED A PLANE IN ONE OF POINTS IN THE LEFT SIDE OF THE PARTBODY. I CREATED A SKETCH WITH THE HELP OF CIRCLE COMMAND. THEN I PAD IT TO CERTAIN DIMENSION. THEN I NAMED IT AS HEAT STAKE1. AFTER THAT I COPY HEAT STAKE AND PASTE SPECIAL WITH LINK IN DOOR TRIM HEAT STAKE LOCATOR. I DID THE ABOVE COPY & PASTE SPECIAL PROCESS FOR TOTALLY 15 POINTS GIVEN NOT CONSIEDERING POINT1. THEN CREATED A ASSEMBLY FOR THE PADS CREATED FOR 16 NUMBER OF HEATSTAKES1. THEN I UNION TRIM THE HEAT STAKES ASSY WITH PART BODY. THEN I CREATED FILLETS TO HEAT STAKES.
