Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

Report:

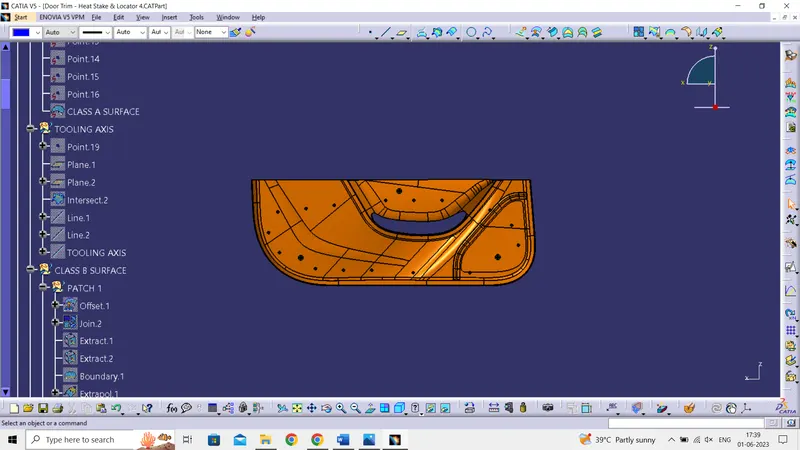

Tool Axis Creation:

• For the tooling axis checking the all 3 axis i.e., x, y and z
• x - axis



• y- axis



• z - axis



• In the above axes the y axis has better view cover major elements in the component

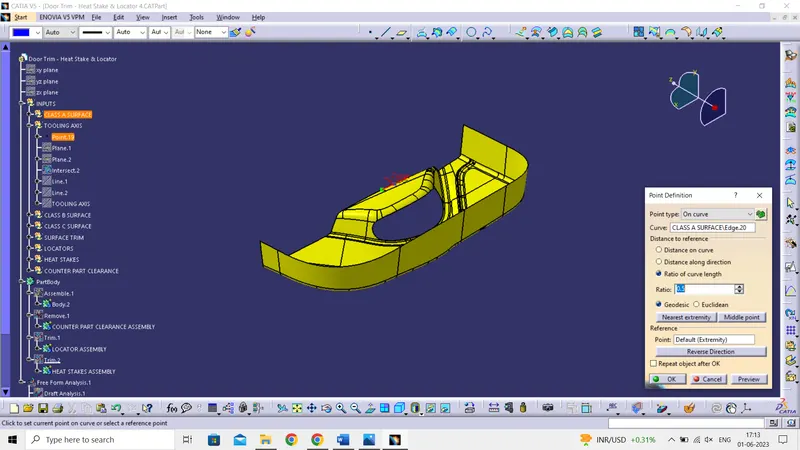

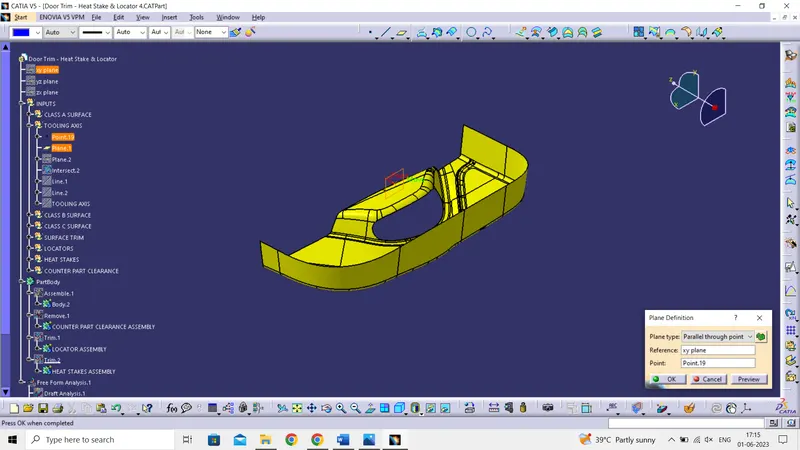

• By choosing y axis as reference a point is defined


• Based on the point an plane is defined

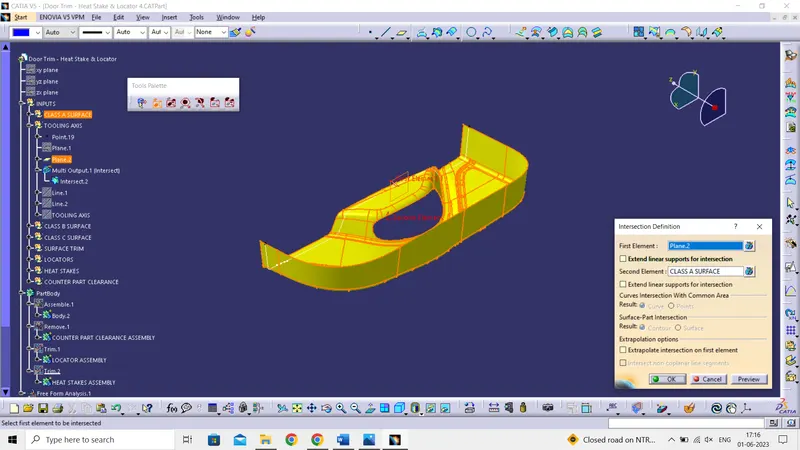

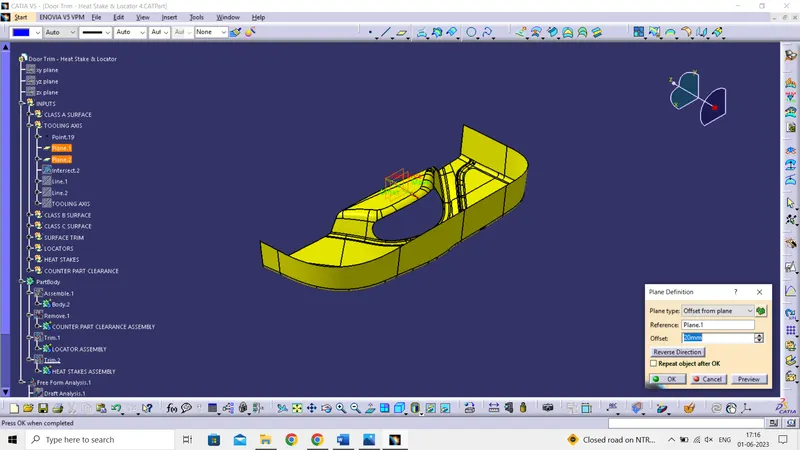

• For the intersection plane is offsetted



• By using intersection splitting the class A surface by plane as reference

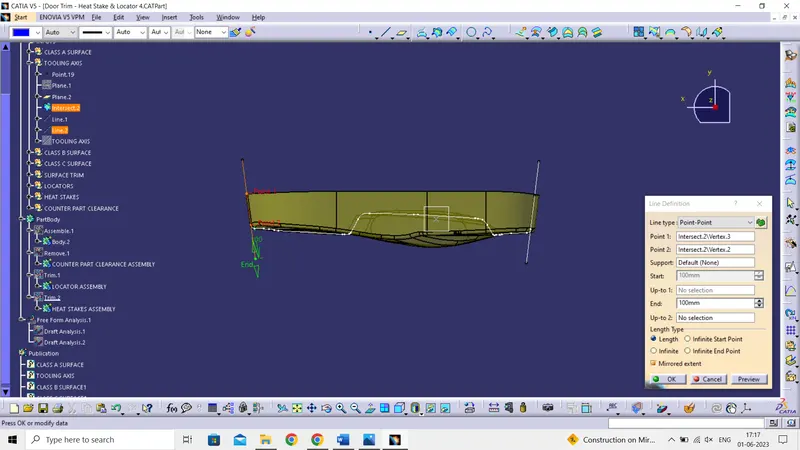

• The line which effect the tool axis those lines are defined by point to point

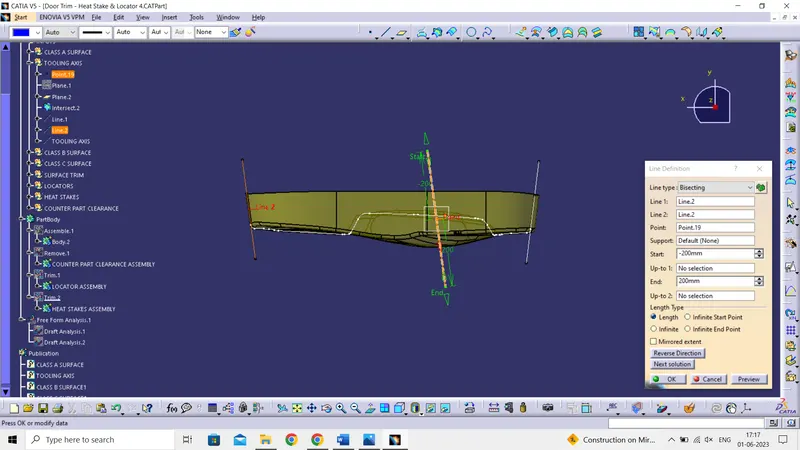

• After creating the lines, the axis is defined by using bisecting in the line definition by taking point and lines as reference



• Therefore, Tool axis is created and published

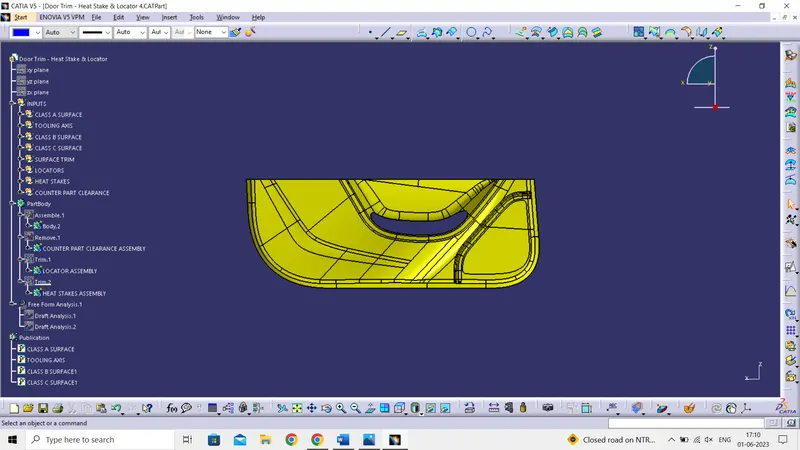

Draft Analysis:

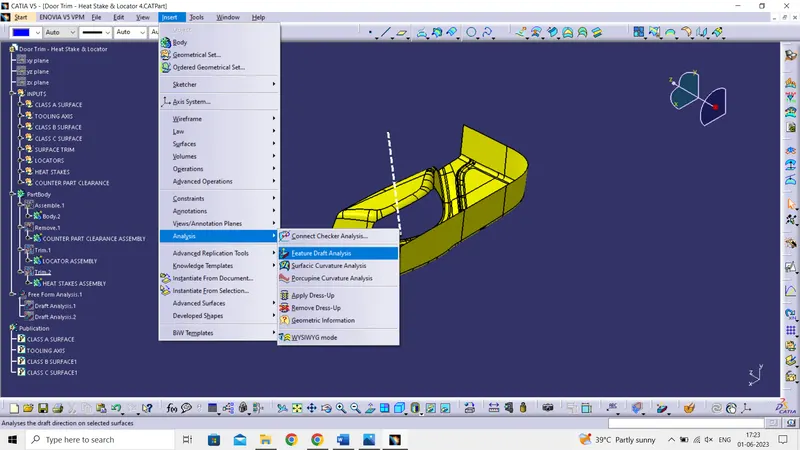

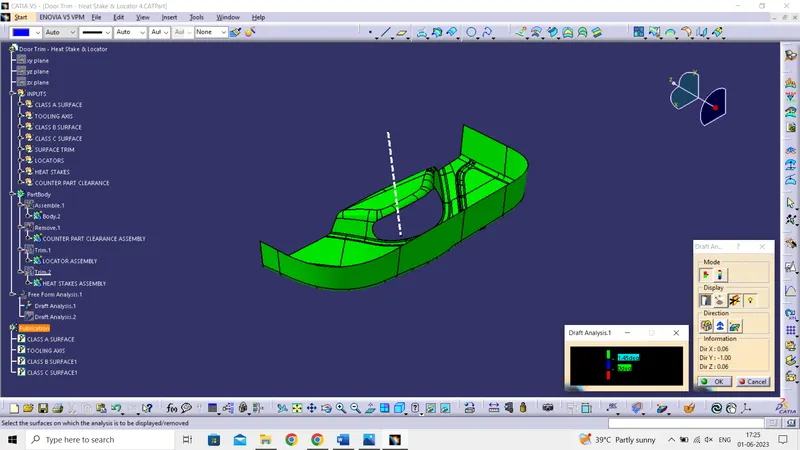

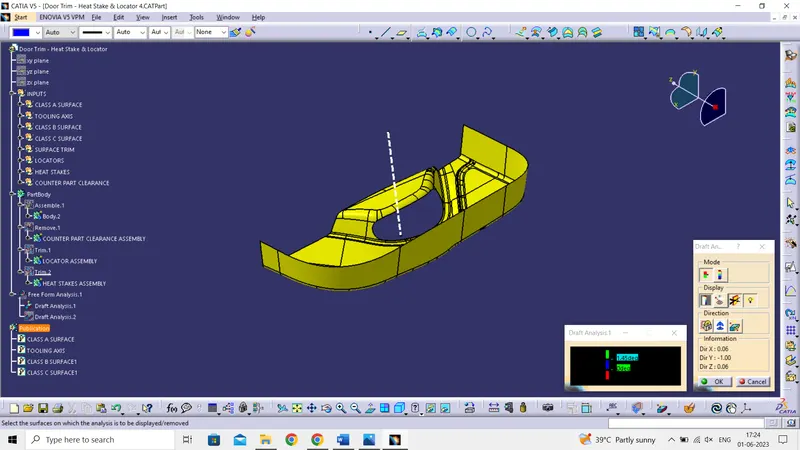

• After creating the tool axis then add the feature draft analysis in the insert section

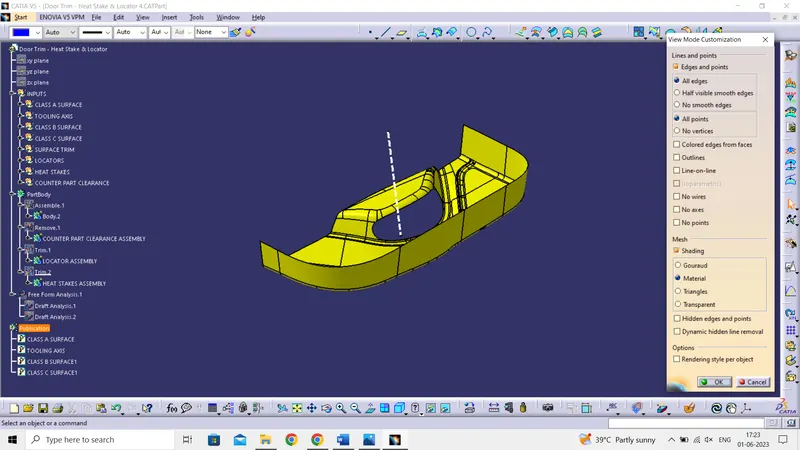

• Change the view mode into customize view parameter then in mesh section pick material



• switch to the qiuck analysis mode and display the color scale

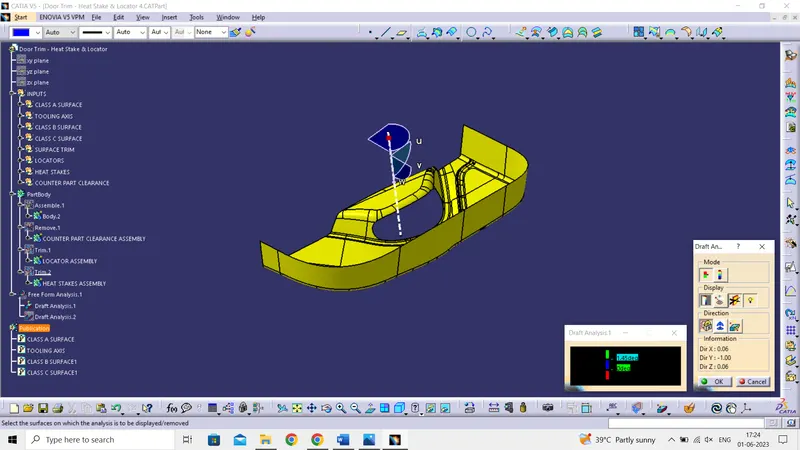

• Then in the direction section use the compass to define the draft direction by taking tool axis as reference and lock the direction

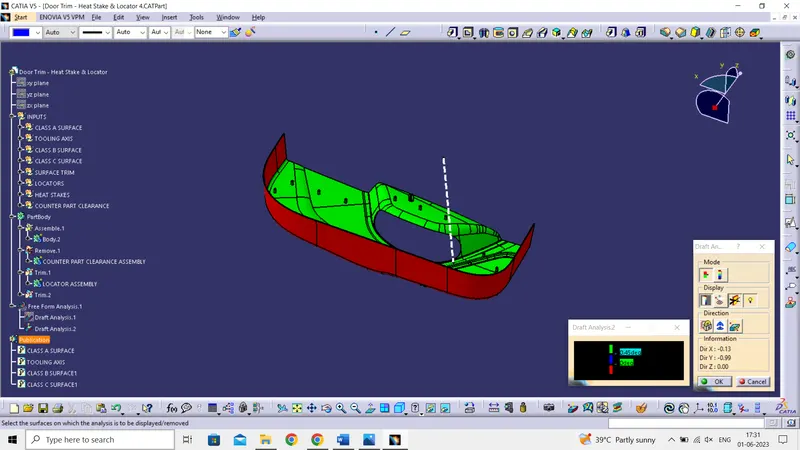

• After setting draft direction select the Class A surface which shows the draft angle

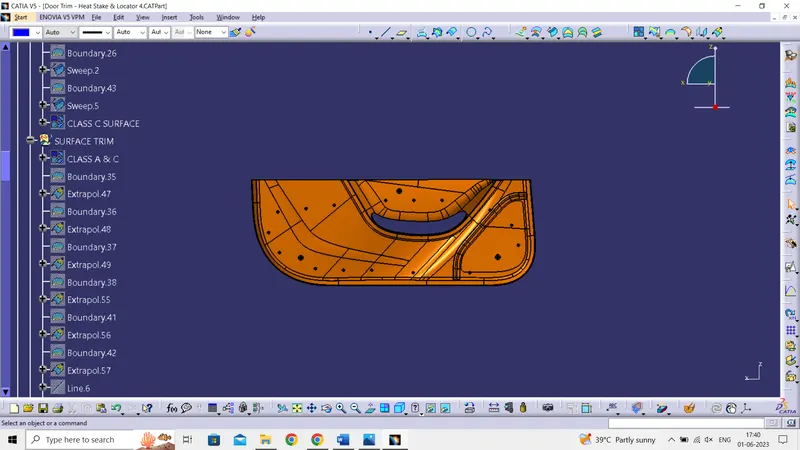

Surfaces:

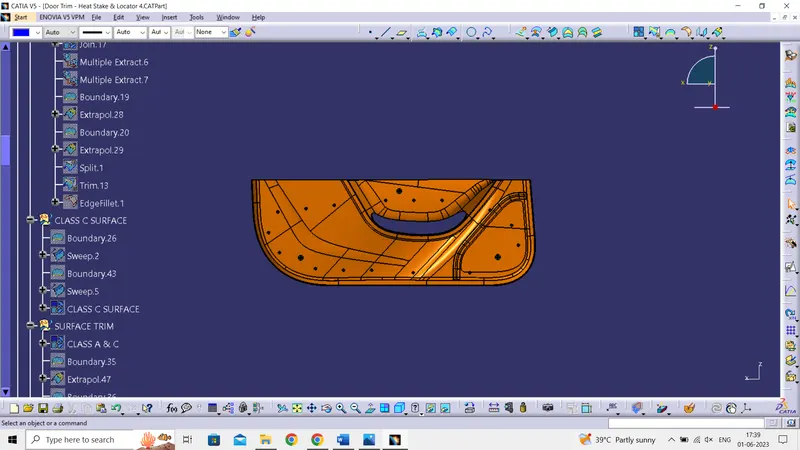

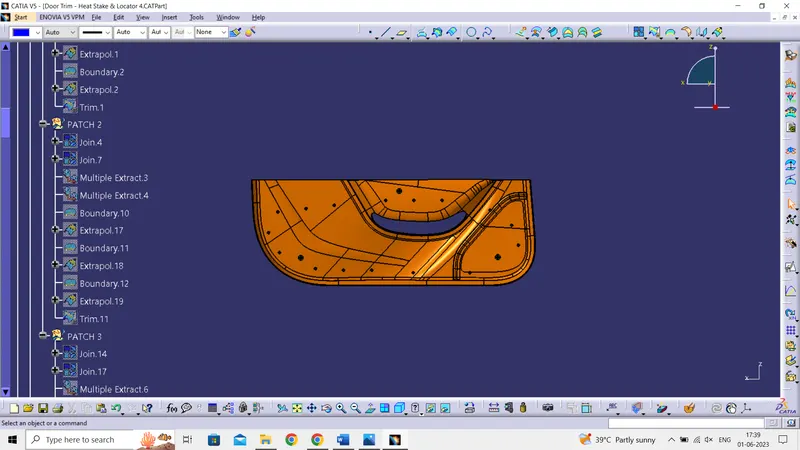

• Class A Surface



• Class B Surface



• Class C Surface



• Class A & C Join Surfaces

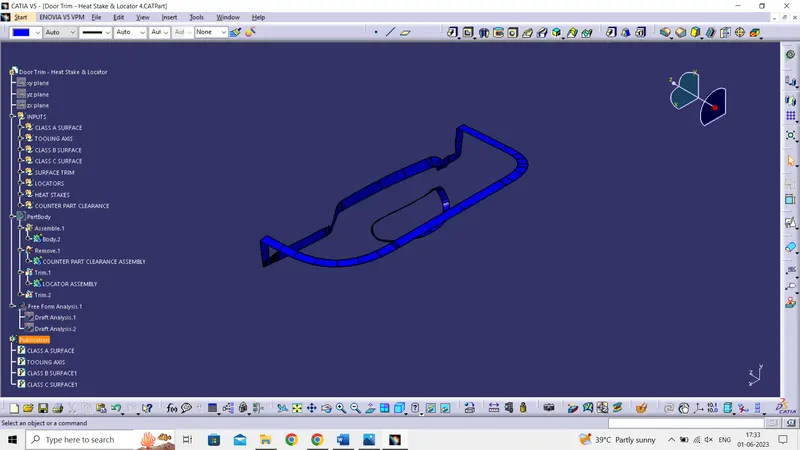

• All Class A, B and C Surfaces

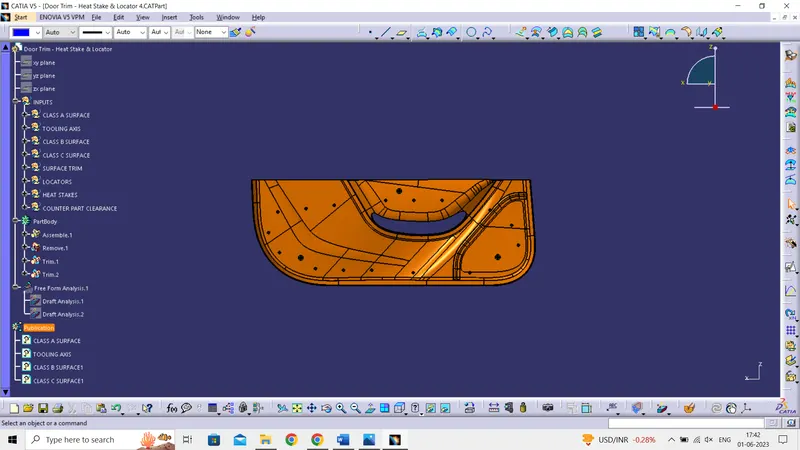

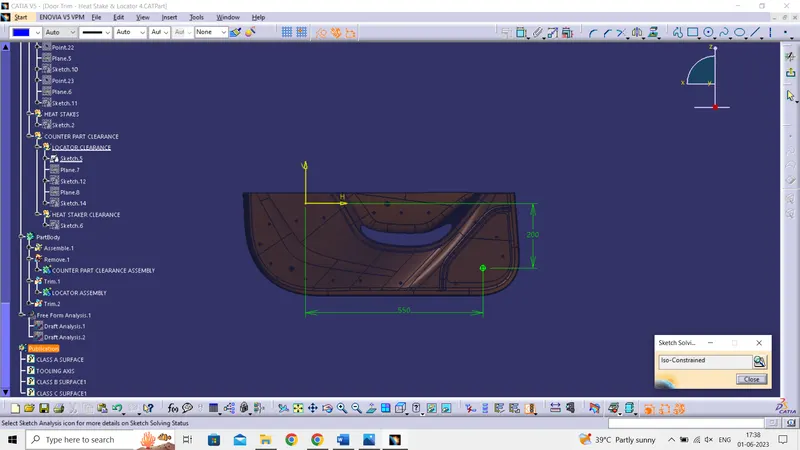

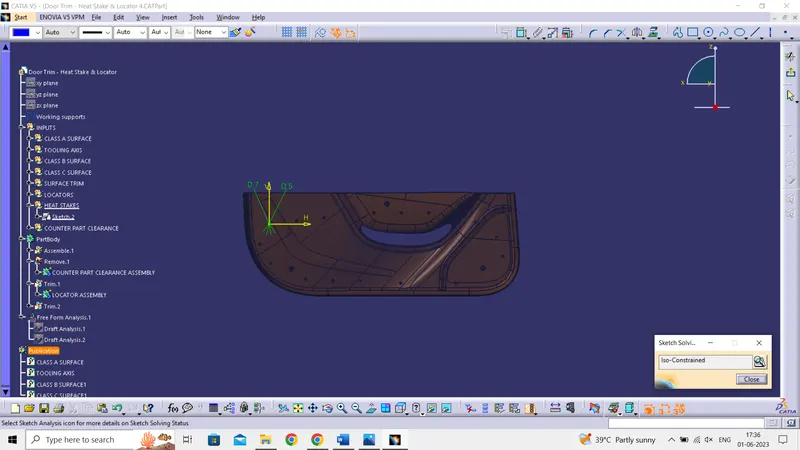

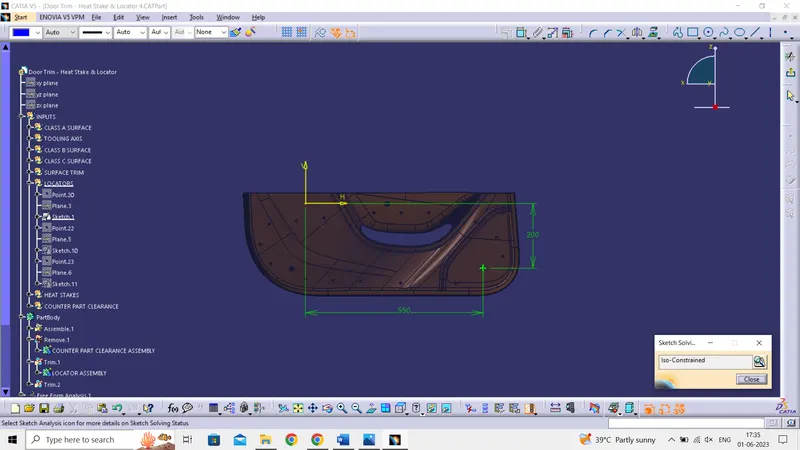

Skecth Solving Status:

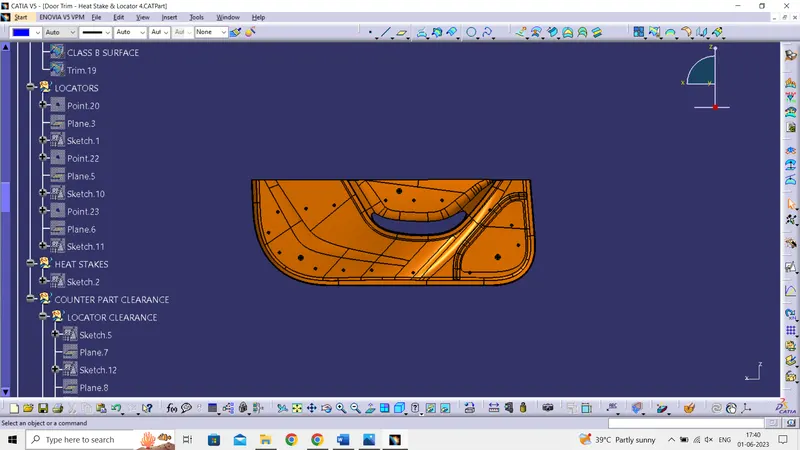

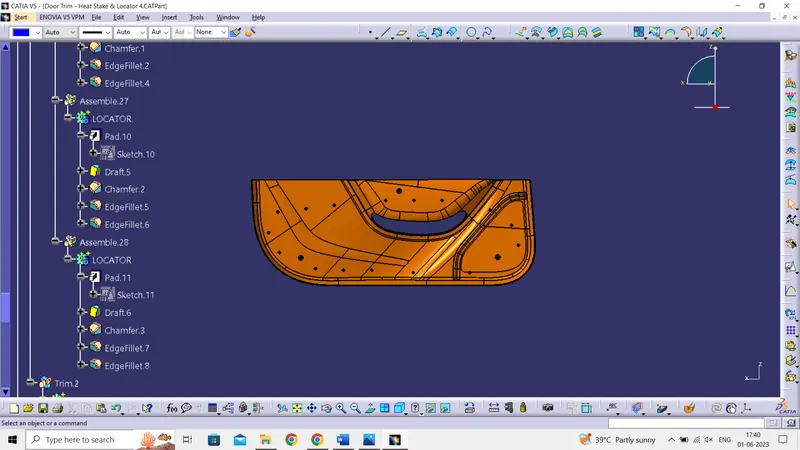

• Locators:

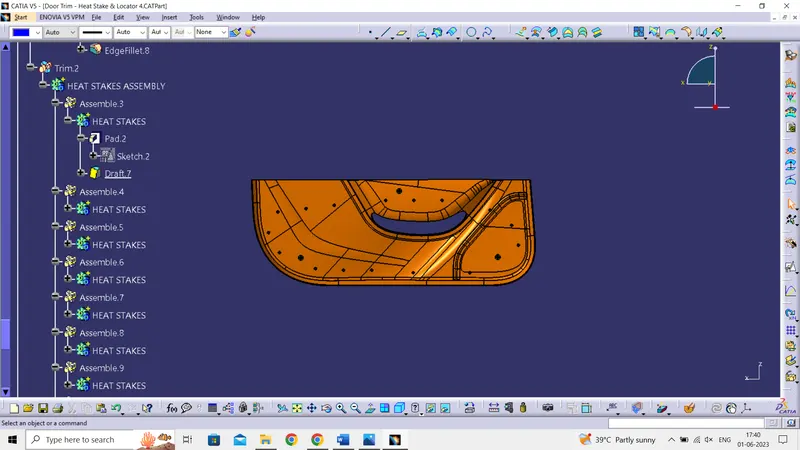

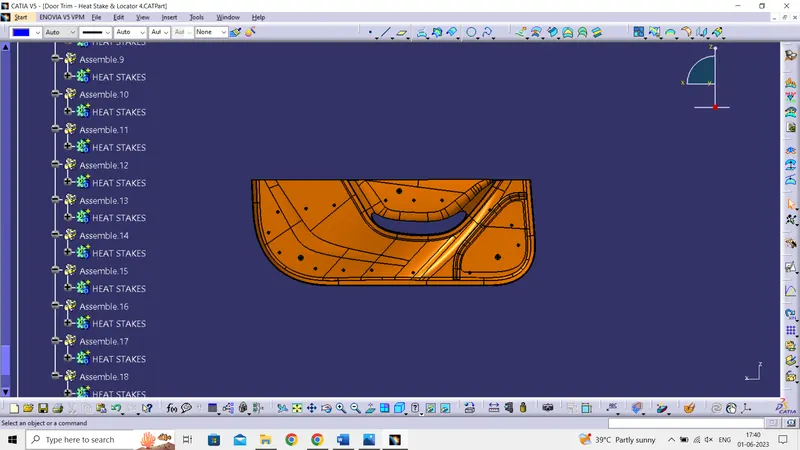

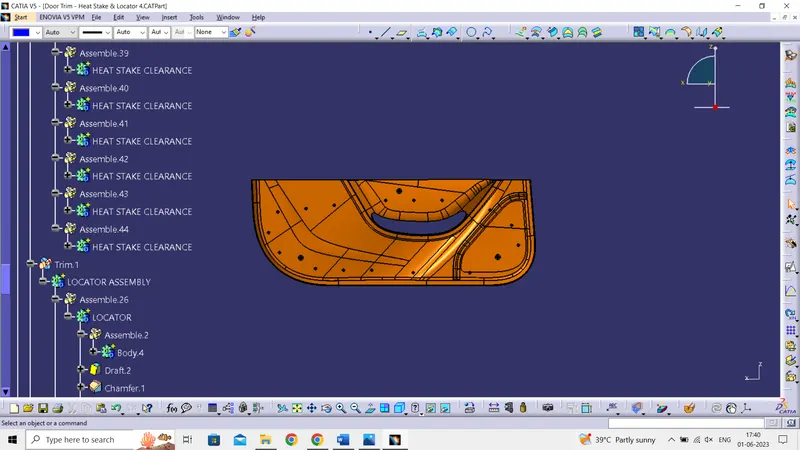

• Heat Stakers:

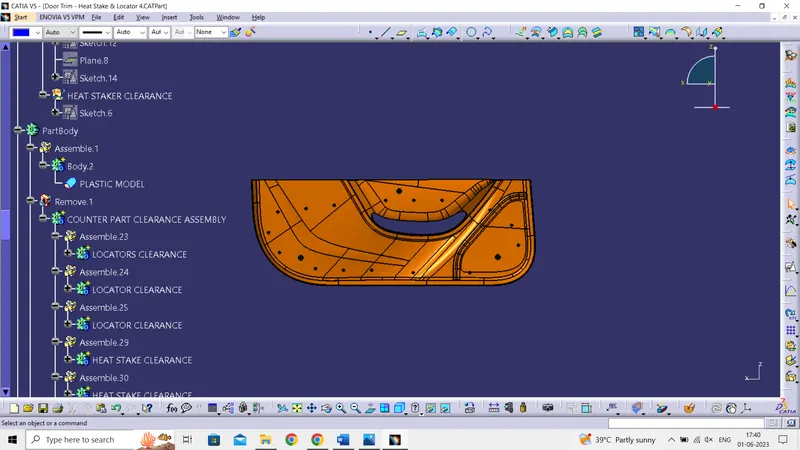

• Locator counter part Clearance:

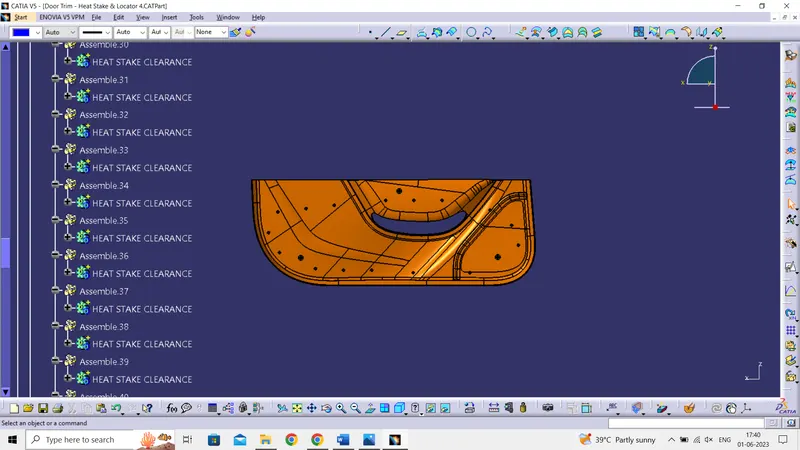

• Heat Staker counter part clearance:

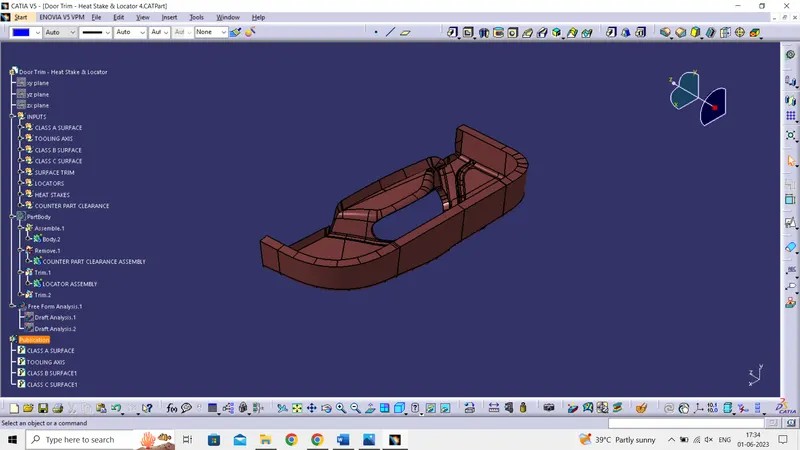

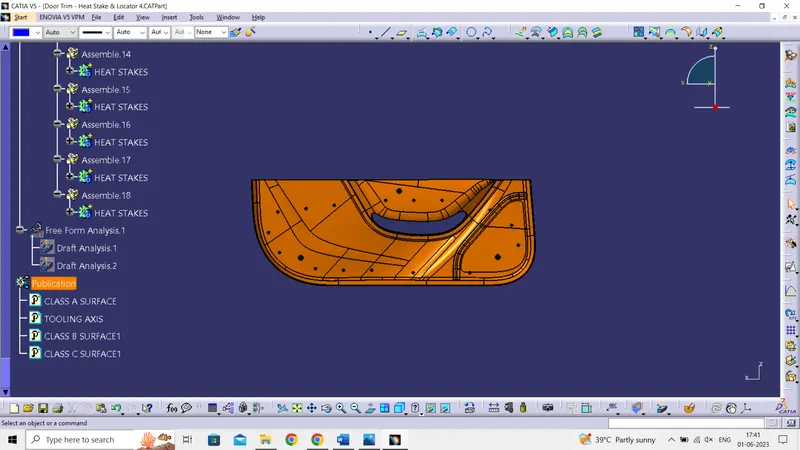

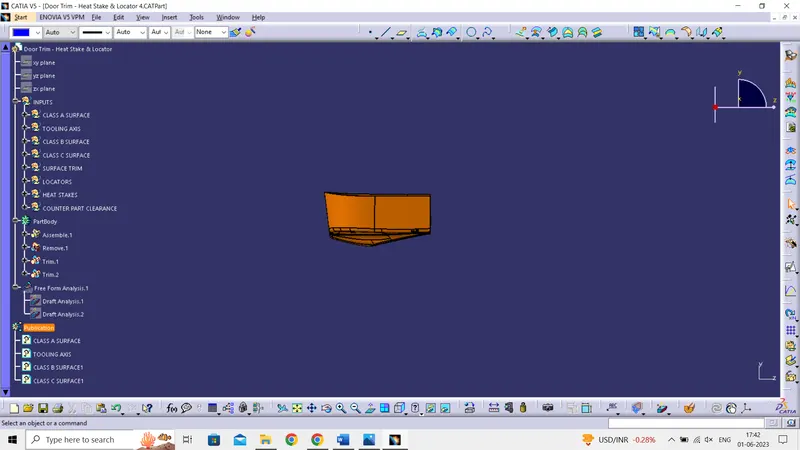

Tree Structure and Publications:

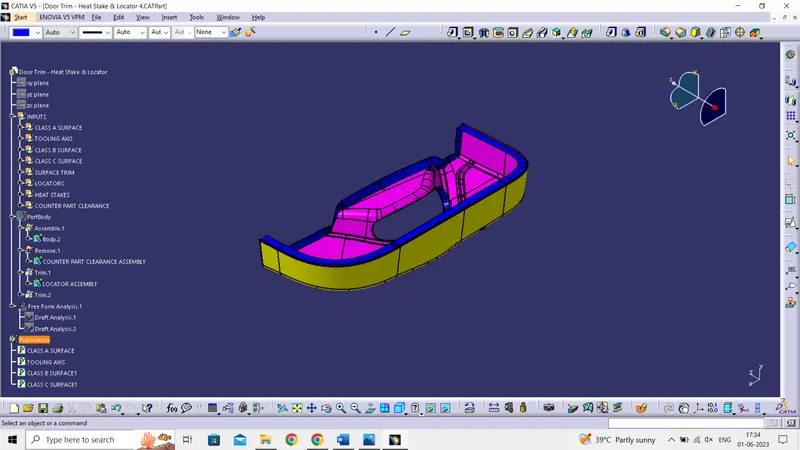

Draft Analysis:

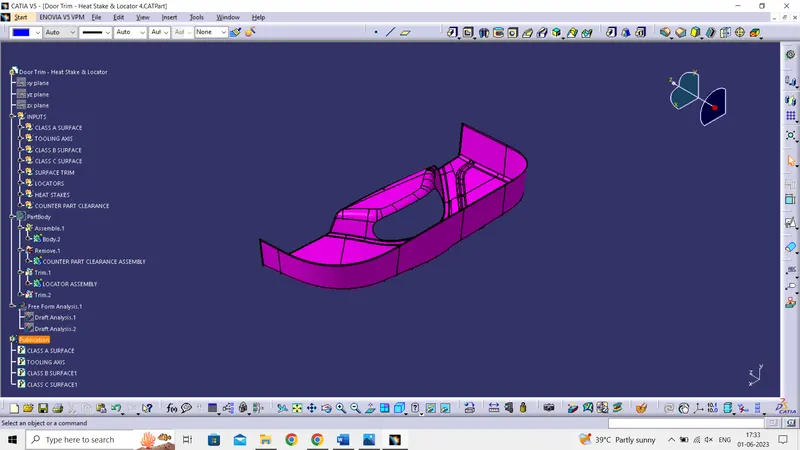

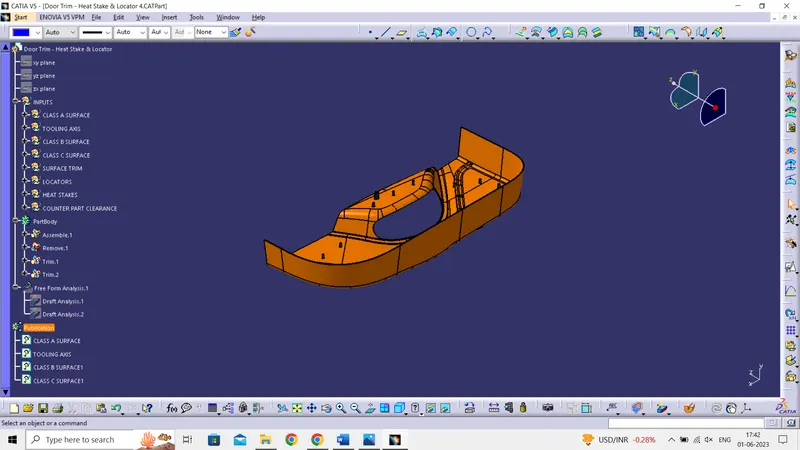

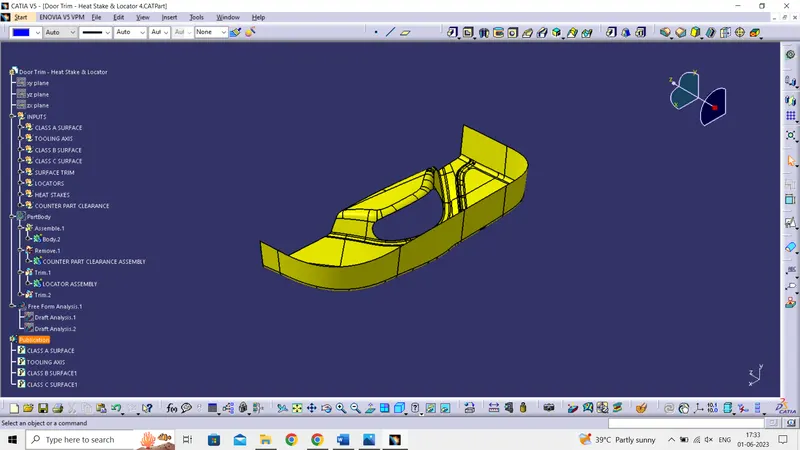

Plastic Model

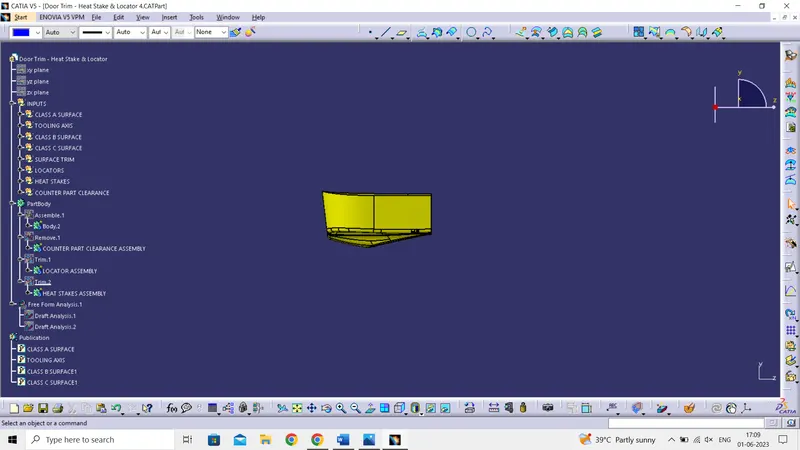

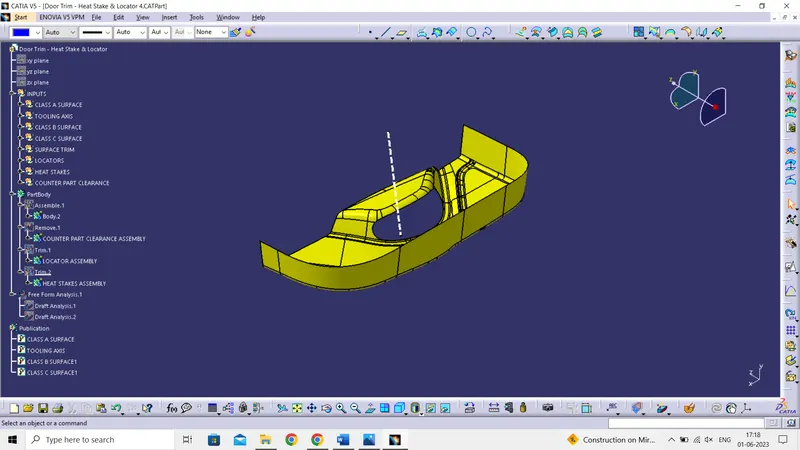

1. Isometric view:

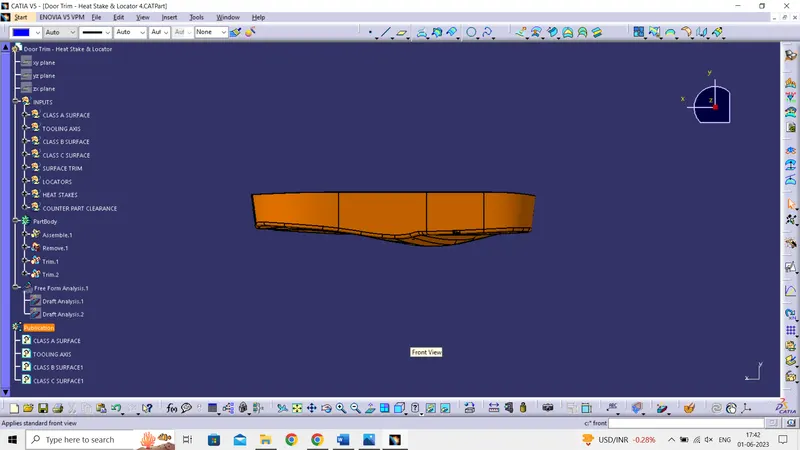

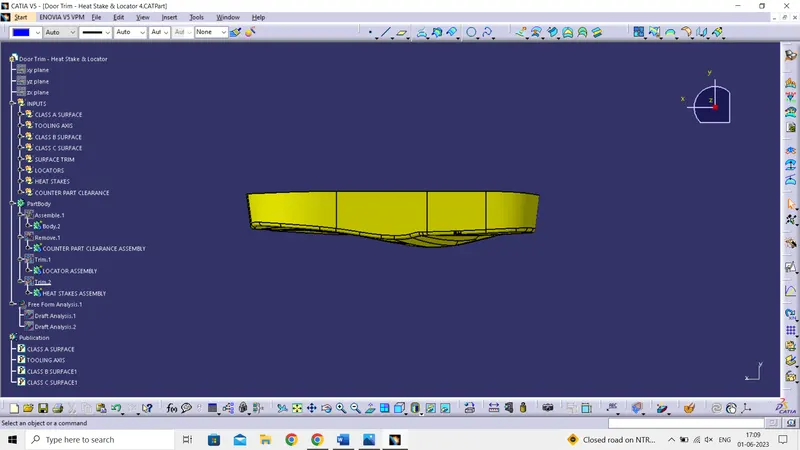

2. Front View:



3. Side View:

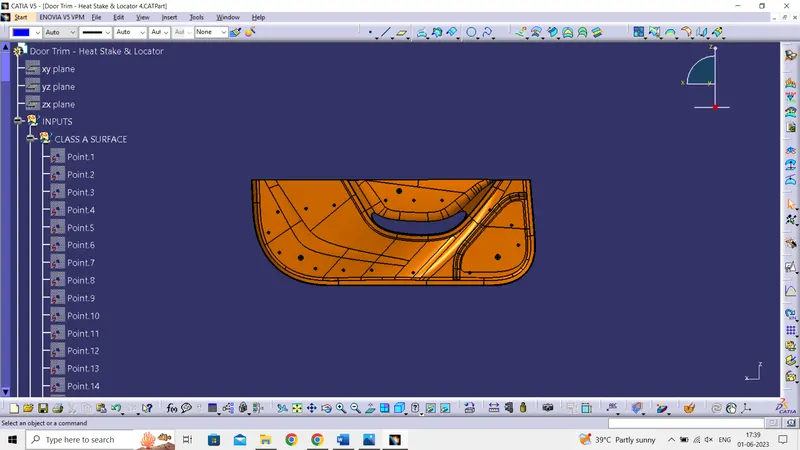

4. Top View:
