Week 10 - Challenge 3 - Door Trim Lower with Engineering Features

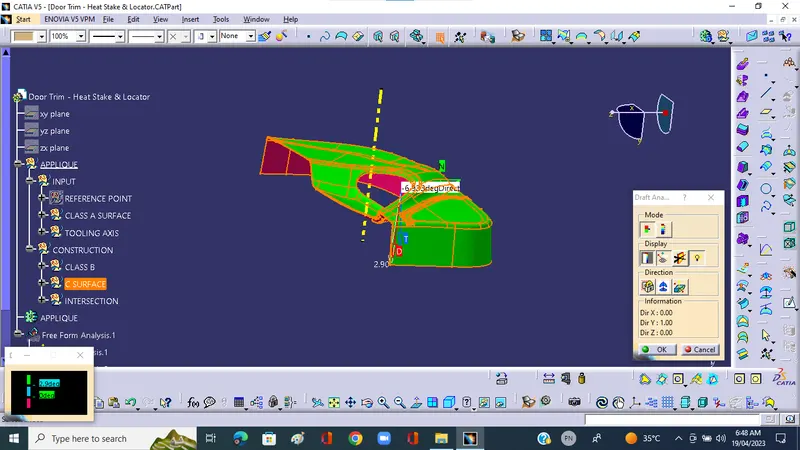

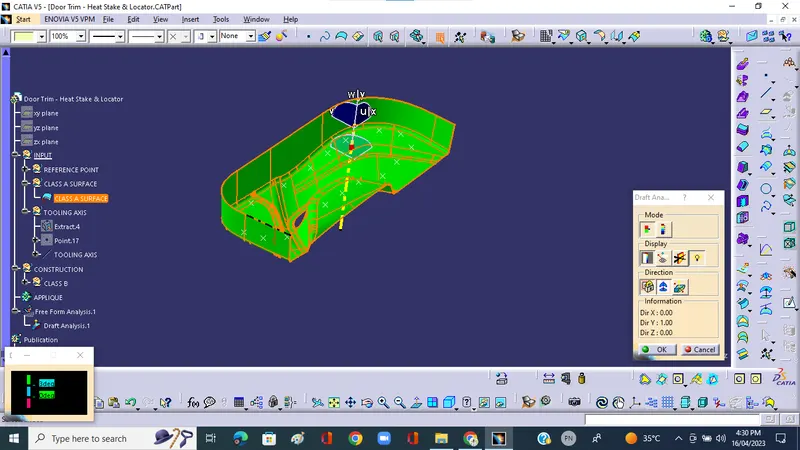

DRAFT ANALYSIS OF CLASS A SURFACE

I  have got analysis draft anglr of whole surface is 3 degree.

FINAL MODEL

THE DRAFT NAGLE OF OUTSIDE AREA IS 2.9 DEGREE AND THE IN SIDE NEGATIVE ANGLE

 TOOLING AXIS OF THE APPLIQUE IS BELONGS TO Y DIRECTION

THE APLLIQUE THICKNESS IS 2.5 MM

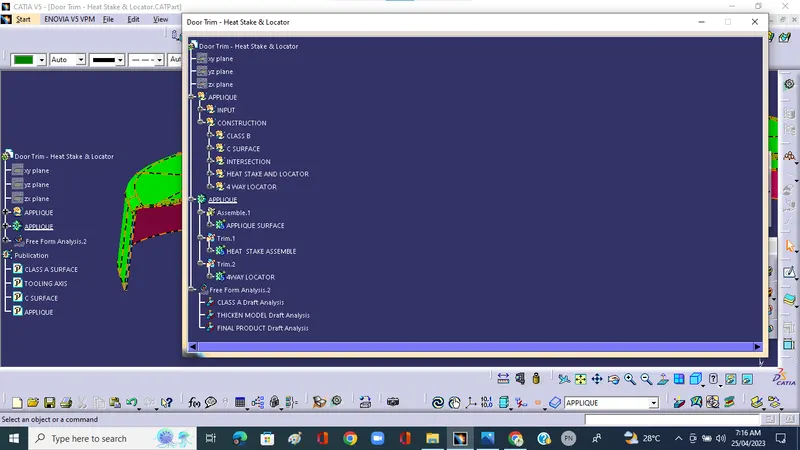

PARENT / CHILDREN

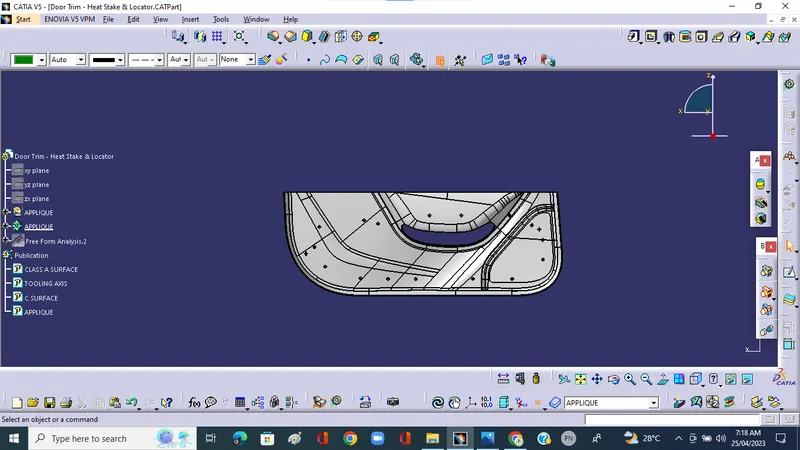

THE PRODUCT VIEW

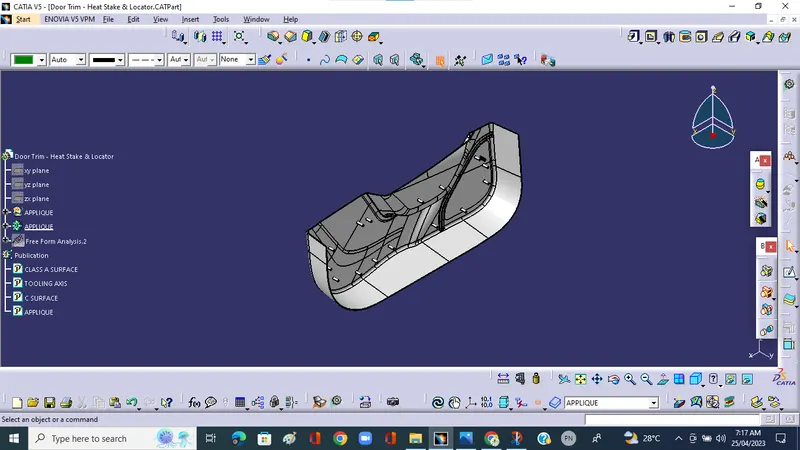

ISOMECTRIC

FRONT

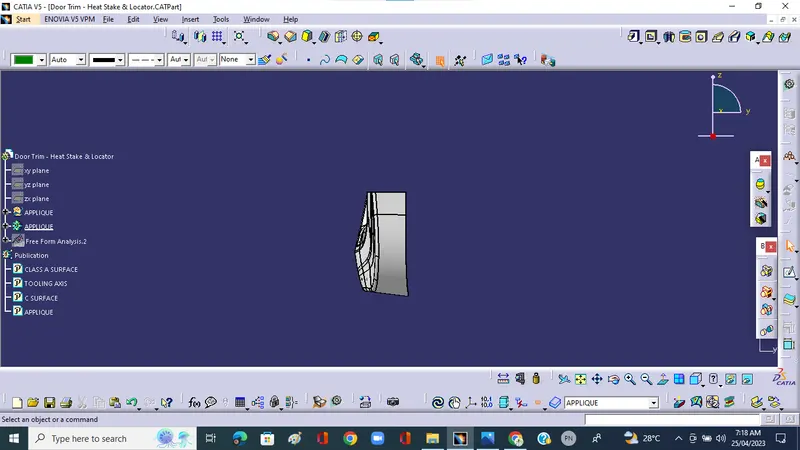

RIGHT

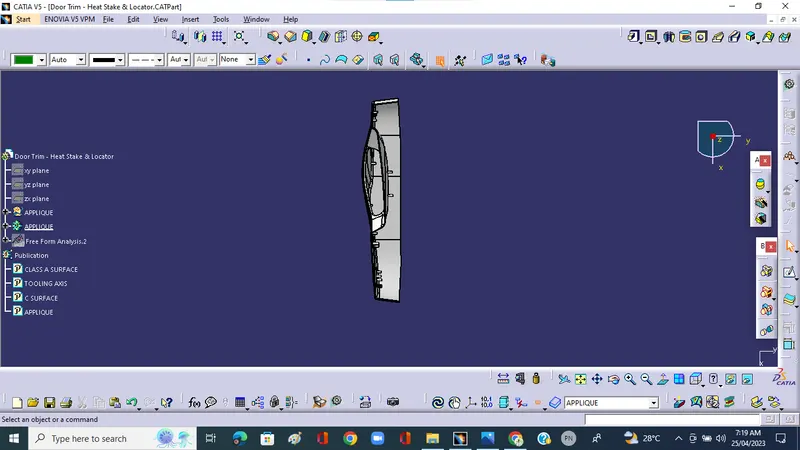

TOP

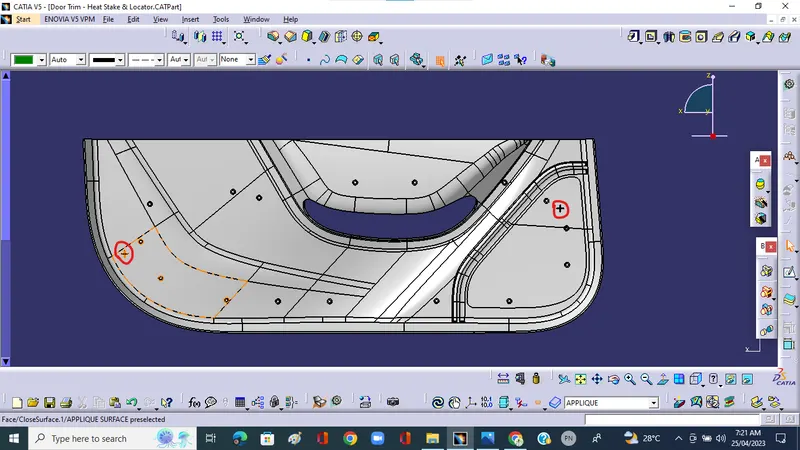

LOCATOR POSITION

HEAT STAKE POSITION
