Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

Since the surface was a unsymmetric the tooling axis wa created using oint and direction and also by trail and error method to clear the surface
Then for the dog house I used the same point which was used fro main tooling axis to create the side core axis in the core removal direction and draft for side core was provided with respect to that.

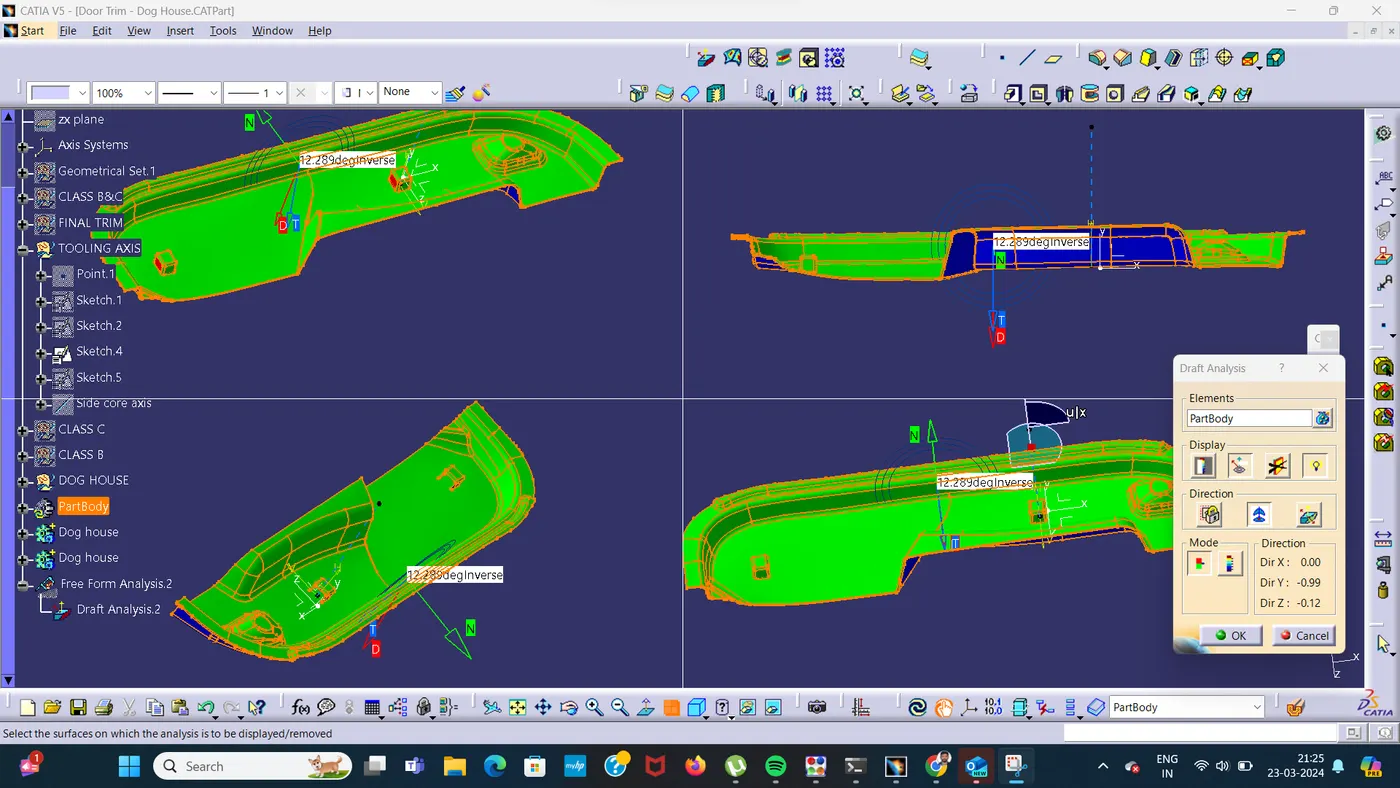

Here I'm attaching the sccreenshot of the final product draft analysis and also the final product is uploaded as zip file.
