Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

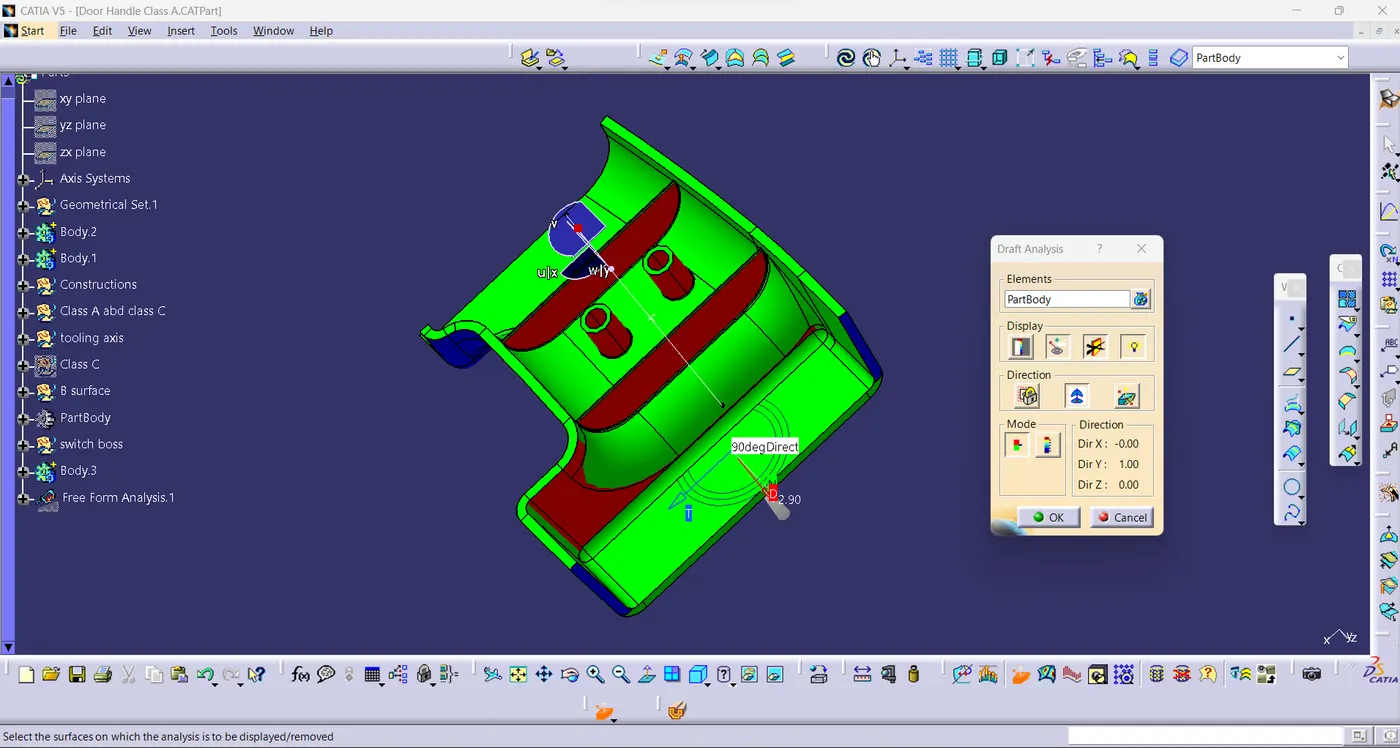

Draft analysis of finished part

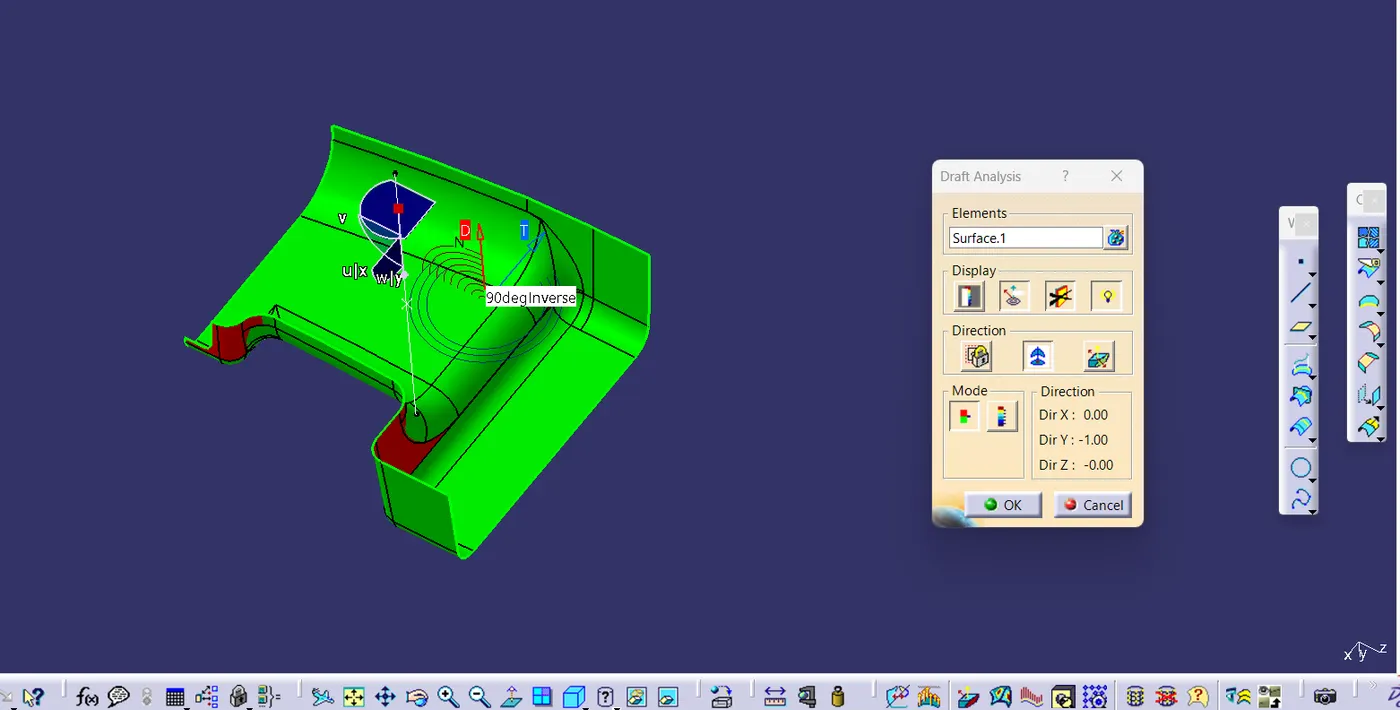

Draft analysis of C surface

Here it can be seen that the C surface is not clearing draft analysis

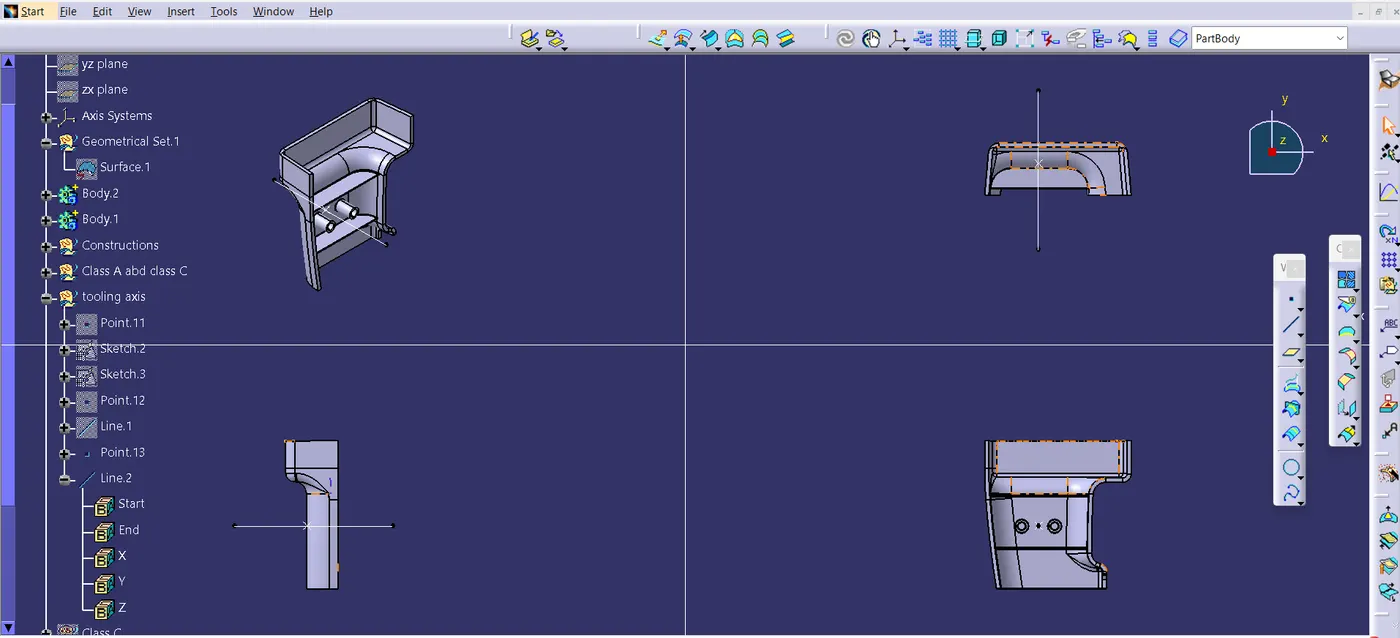

The tooling axis was tried to create in various ways to check if the c surface is clearing

1) tooling axis was cleared with point on curve and direction

2) the bisection method but i was not able to get bisection for two different directions

3) tooling axis made with point and direction this one was selected for the completion of the task

Please check the completed task and give me comments if there are any corrections
