Week 10 - Challenge 2- Attachment Feature Creation (Dog House)
Draft Analysis
- Draft analysis is nothing but the analyzing the draft angle provided on the part as well as the core and cavity of the injection mold by the engineer.
- Usually draft angle is provided on the part and the core and cavity too reduce the wear and tear of the product while enjecting from the mold.
- Usually the norminal draft angle 3deg is provided on the part.
Tooling Axis
- The tooling axis of the product tells us the direction of movement where the part is being produced effectivity.
- The side core and other things can be reduced.
Tooling axis created by three methods
- Bisecting method
- Point and direction
Bisecting Method
- The intersection is crated directly in a sketch by using intersection option, were created by simply using intersection tool
- The lines are drawn by taking the intersection lines are references. Just make sure to select the two points as a line type.
- The two lines were drawn by simply selecting the two points.
- The tooling axis is created by using the line tool, just make sure that to select the bisection option as a line type.
- Bisecting lines are drawn by simply selecting the lines which are drawn above and the middle point.

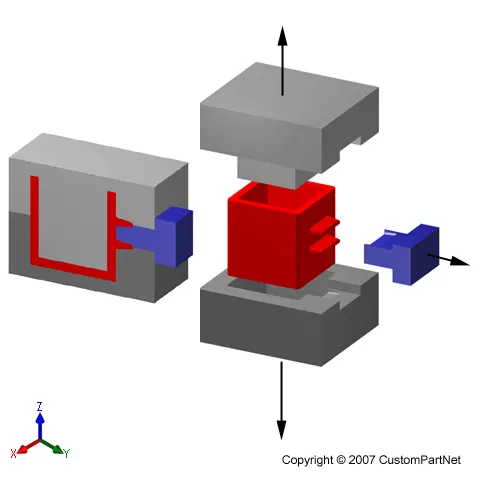

Side Core Tooling Axis
- Tooling axis the direction in which the mold or core and cavity opens is the tooling axis. connectivity of class A surface checking the connectivity of the surface this can be done by creating boundaries or by simply using the join option such that any opening can be easily visualized.

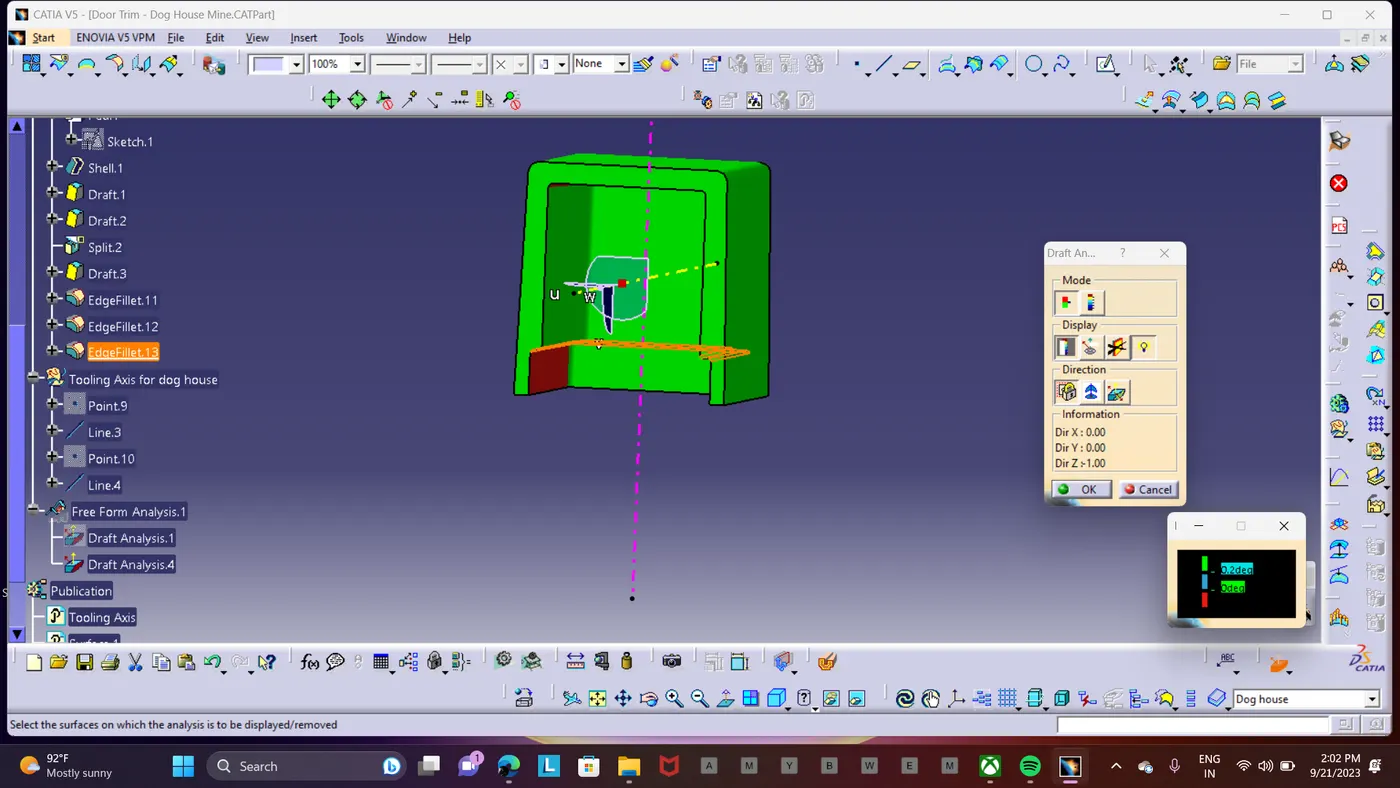

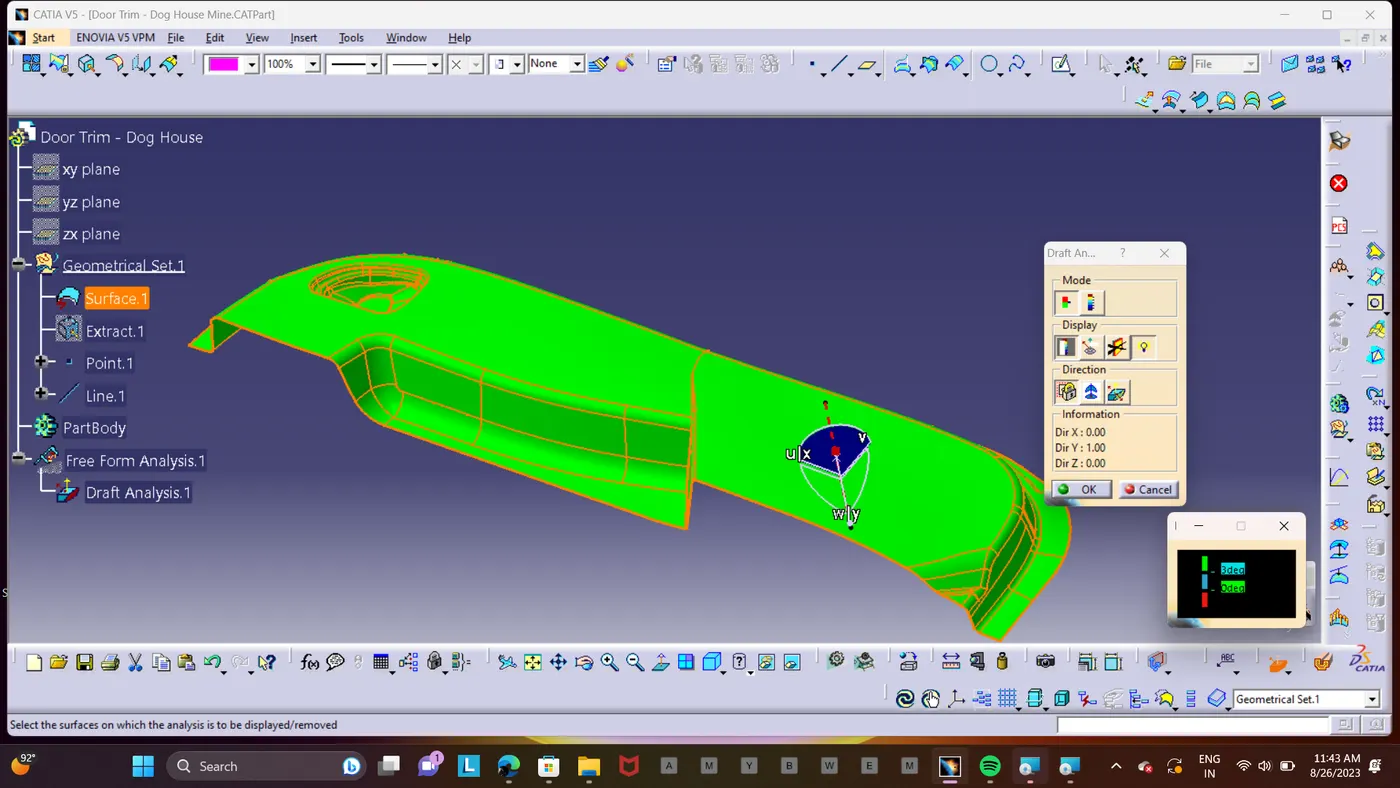

Draft Analysis

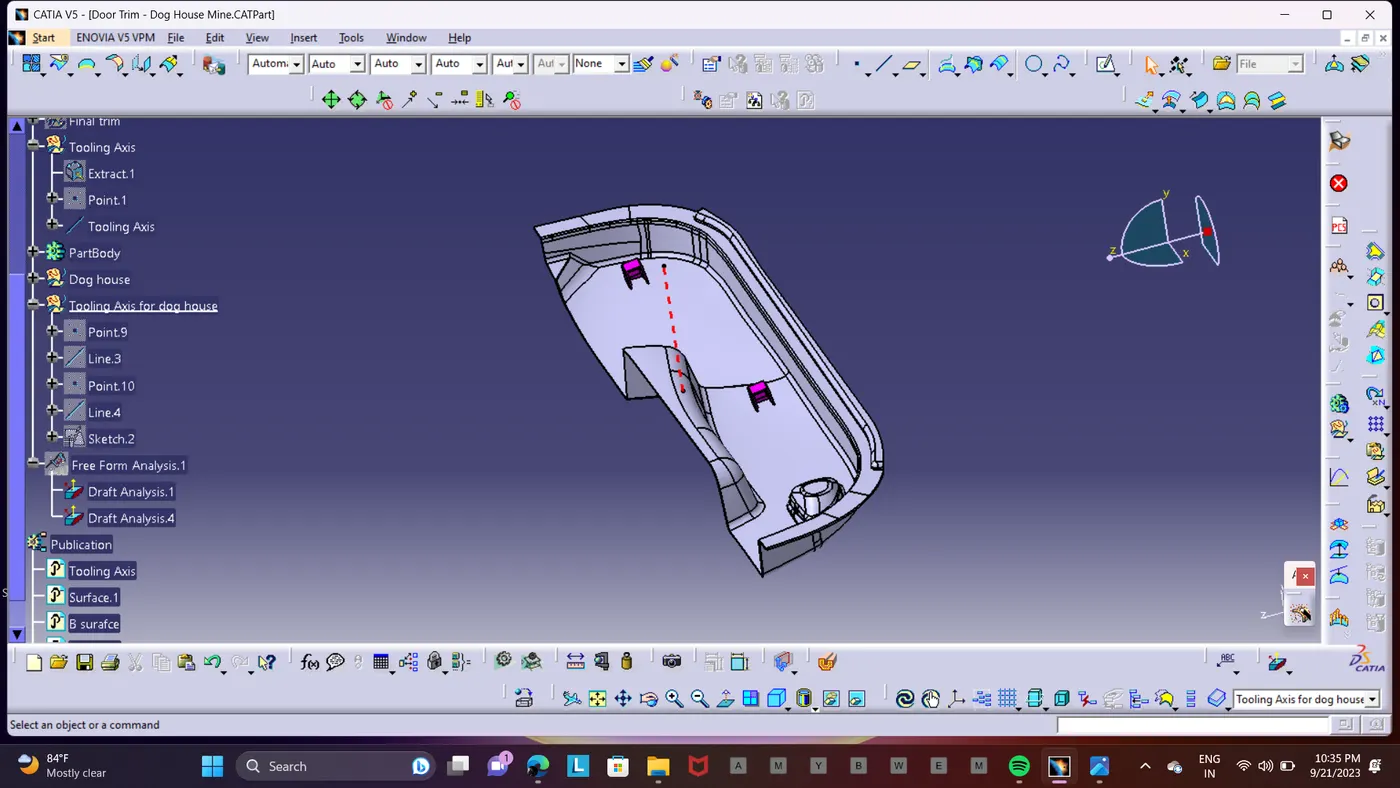

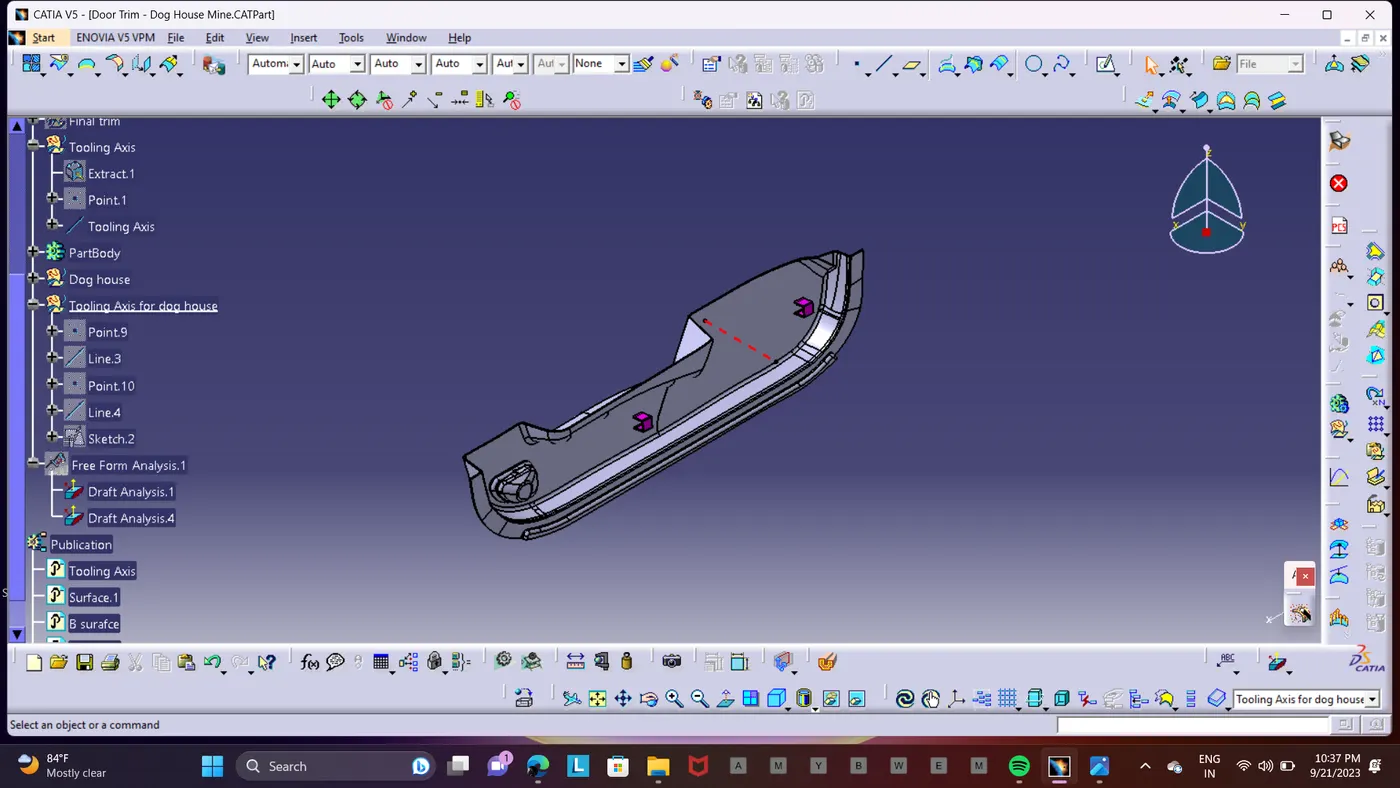

Isomatric View

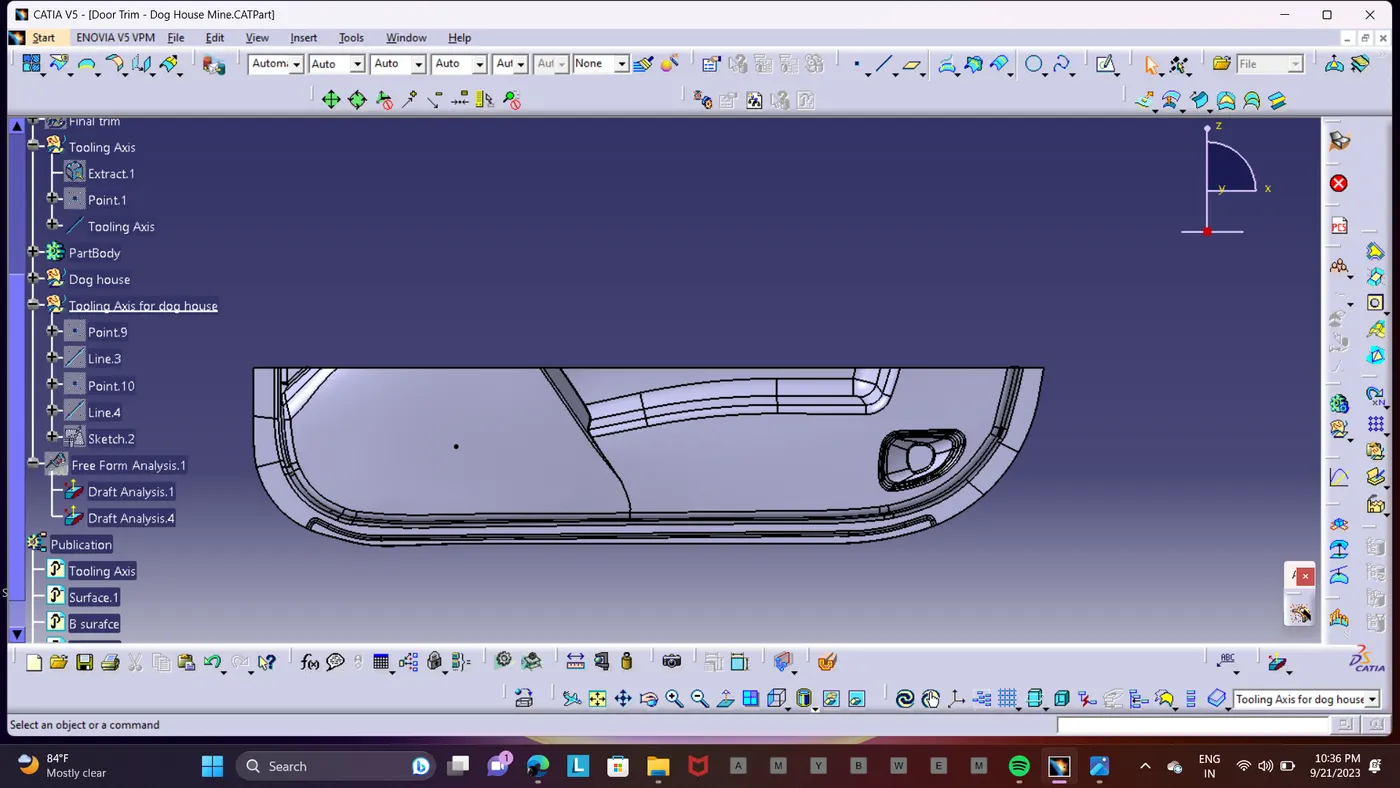

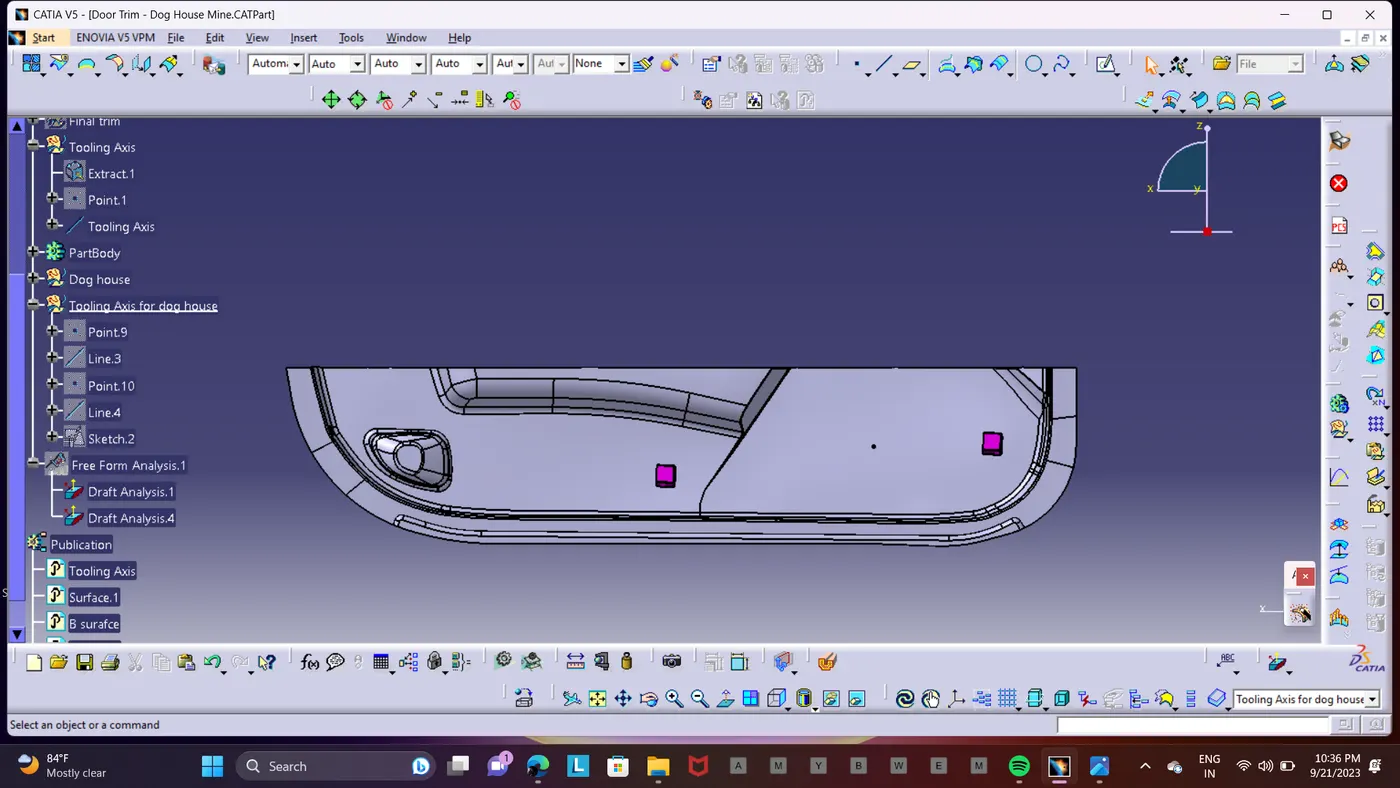

Top View

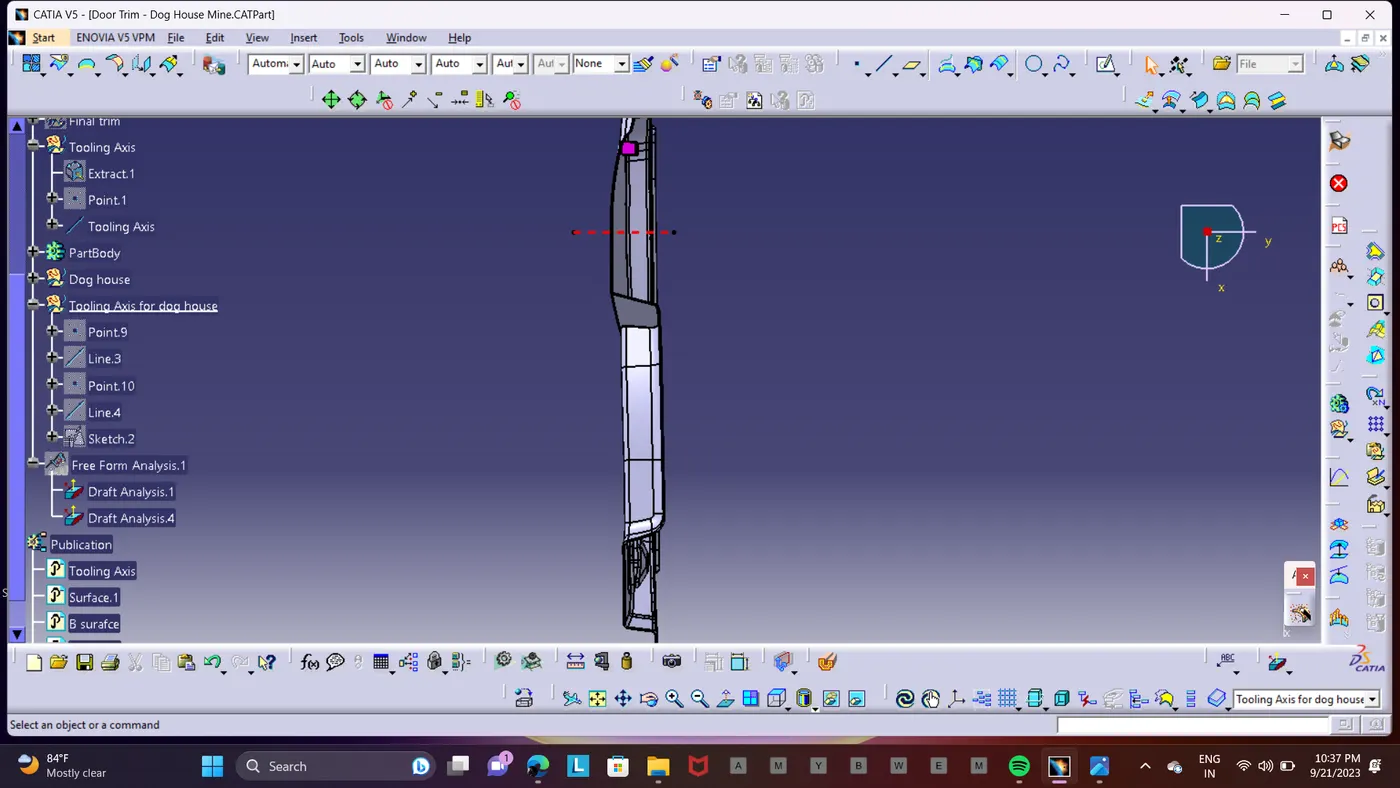

Side View
